CONTENTS

FUEL SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Working Range at a Regular Deal-
ership ........................................................................

2

Precaution for Battery Service  ..................................

2

REMOVAL AND INSTALLATION  ................

3

EVAP CANISTER ...............................................

3

Exploded View ..........................................................

3

Removal and Installation  ..........................................

3

Inspection .................................................................

4

FL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Working Range at a Regular Dealership

INFOID:0000000009164427

CAUTION:

The service items unmentioned on this manual are recommended to be performed by a GT-R certified
NISSAN dealer. Because those service items require special equipment and a GT-R certified technical
staff who completed special training.

Precaution for Battery Service

INFOID:0000000009159997

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

EVAP CANISTER

FL-3

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

REMOVAL AND INSTALLATION

EVAP CANISTER

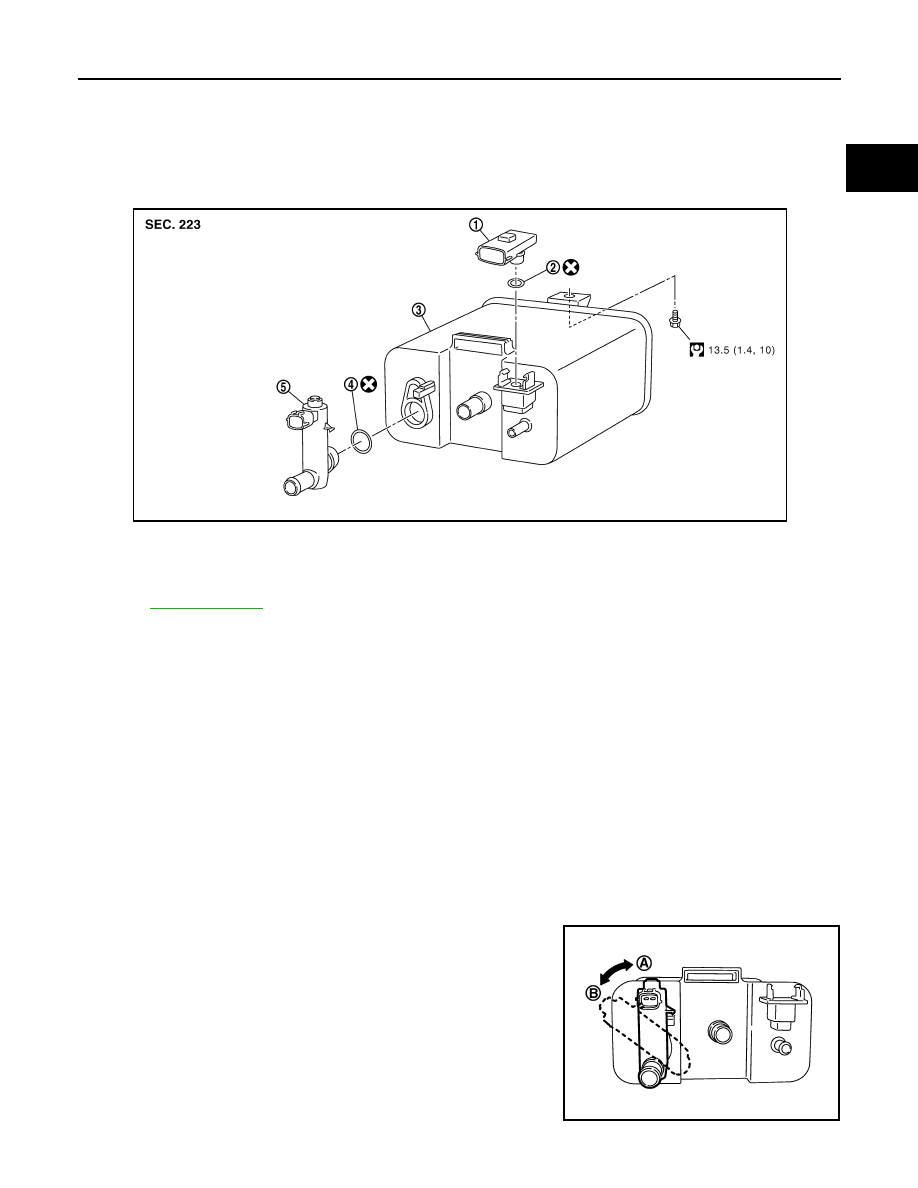

Exploded View

INFOID:0000000009160008

Removal and Installation

INFOID:0000000009160009

REMOVAL

1.

Lift up the vehicle.

2.

Remove EVAP canister fixing bolt.

3.

Remove EVAP canister.

NOTE:
The EVAP canister vent control valve and EVAP canister system pressure sensor can be removed without
removing the EVAP canister.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Tighten EVAP canister fixing bolt to the specified torque.

DISASSEMBLY

1.

Turn EVAP canister vent control valve counterclockwise.

2.

Remove the EVAP canister vent control valve.

1.

EVAP canister system pressure sen-
sor

2.

O-ring

3.

EVAP canister

4.

O-ring

5.

EVAP canister vent control valve

Refer to

GI-4, "Components"

 for symbols not described on the above.

JMBIA0049GB

A

:  Lock

B

:  Unlock

PBIB2730E

FL-4

< REMOVAL AND INSTALLATION >

EVAP CANISTER

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

Always replace O-ring with a new one.

Inspection

INFOID:0000000009160010

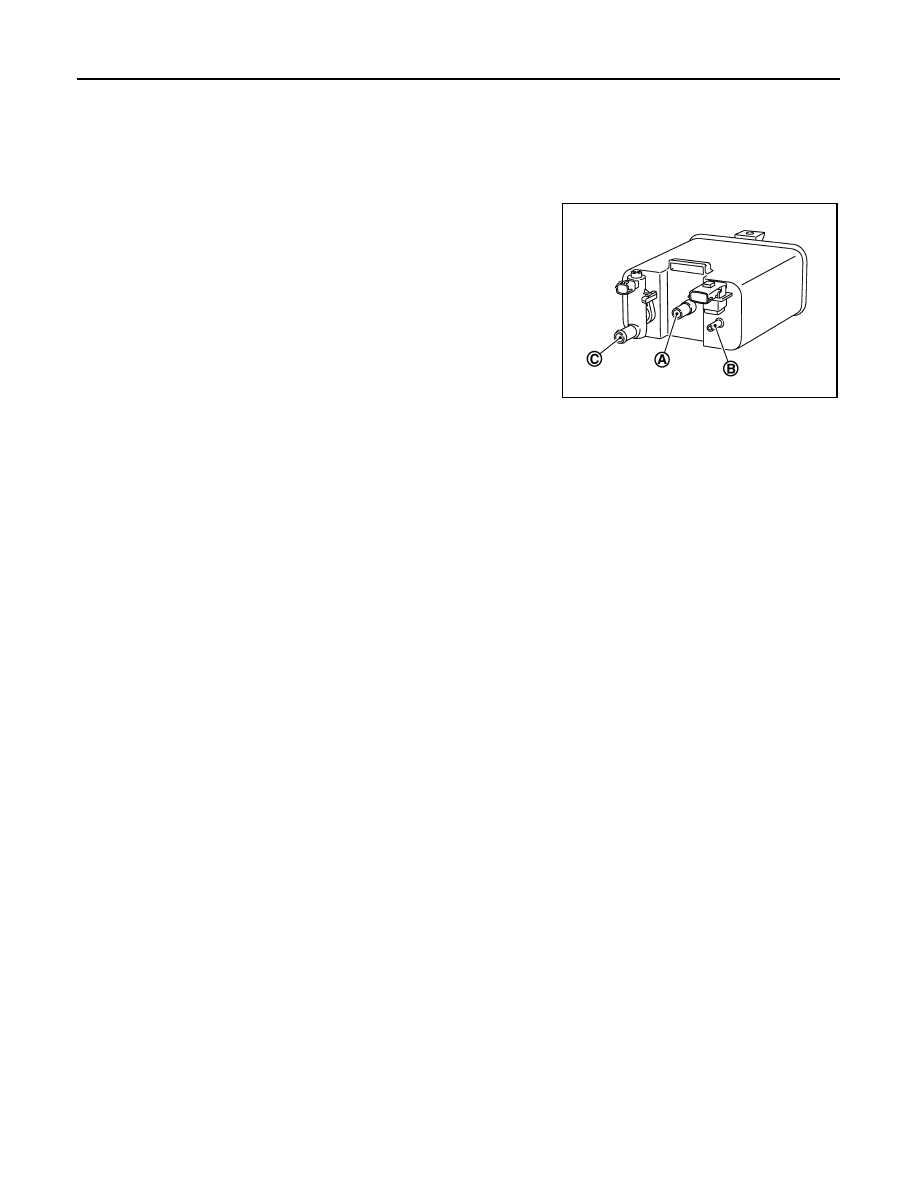

Check EVAP canister as follows:
1.

Block port (B).

2.

Blow air into port (A) and check that it flows freely out of port (C).

3.

Release blocked port (B).

4.

Apply vacuum pressure to port (B) and check that vacuum pres-
sure exists at the ports (A) and (C).

5.

Block port (A) and (B).

6.

Apply pressure to port (C) and check that there is no leakage.

PBIB2728E
