DAYTIME RUNNING LIGHT SYSTEM

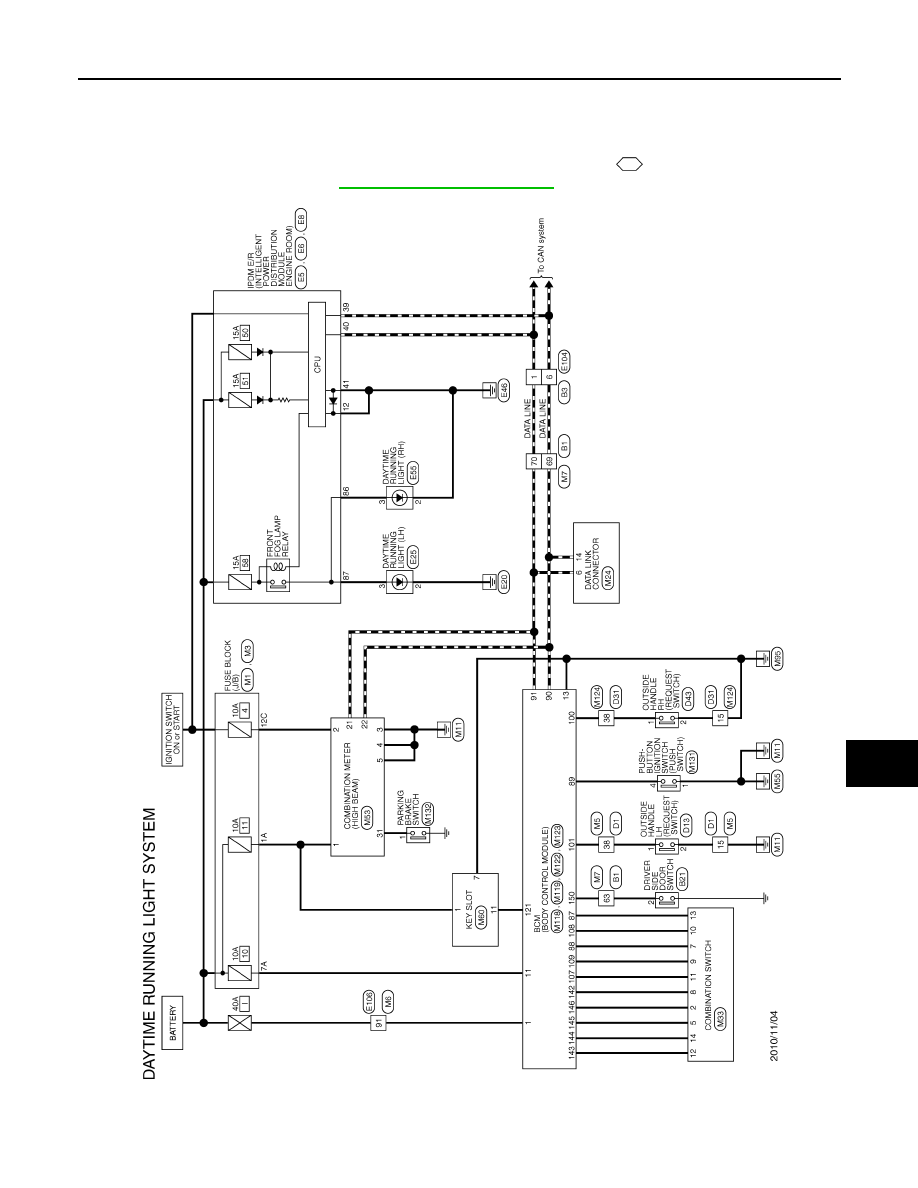

Wiring Diagram - DAYTIME LIGHT SYSTEM -

INFOID:0000000009160351

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCLWA4662GB

EXL-34

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

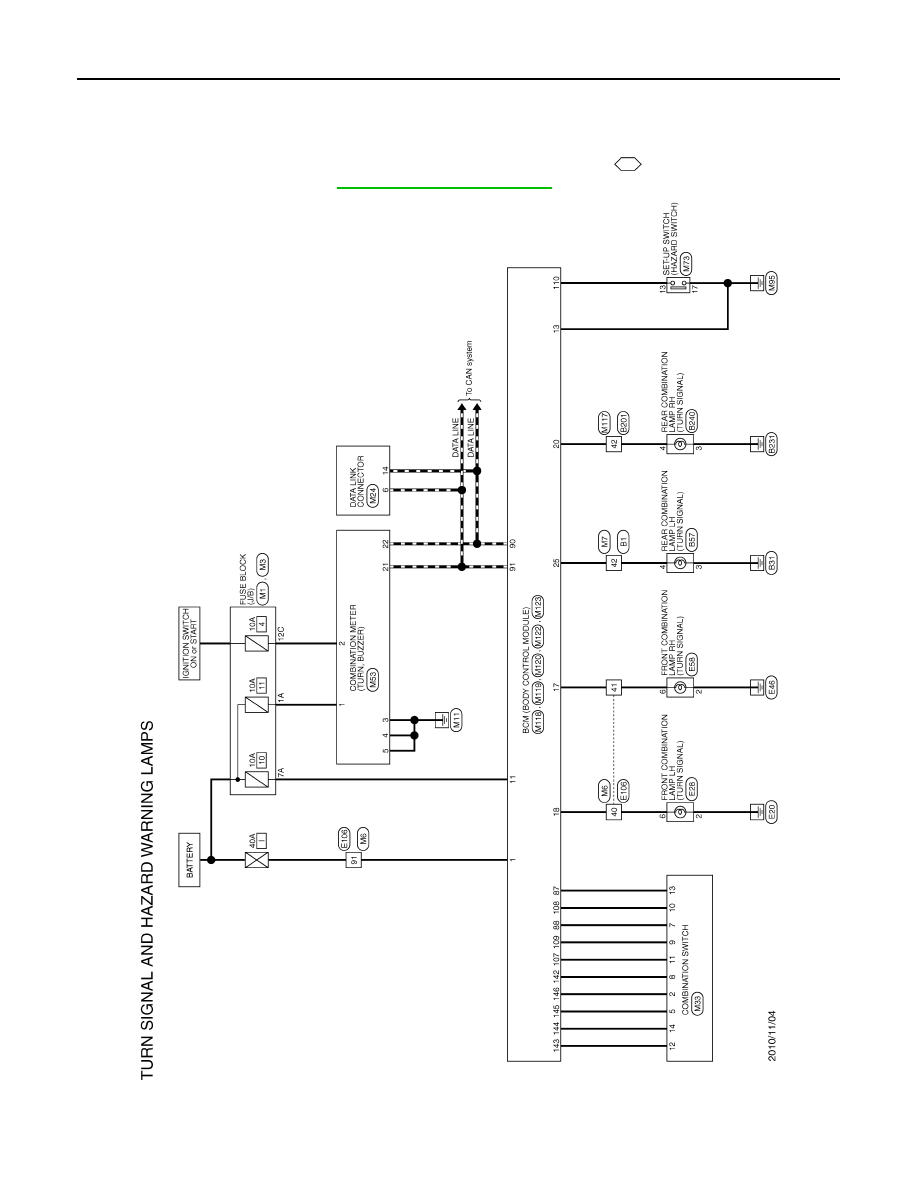

Wiring Diagram - TURN AND HAZARD WARNING LAMPS -

INFOID:0000000009160352

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCLWA4676GB

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

EXL-35

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

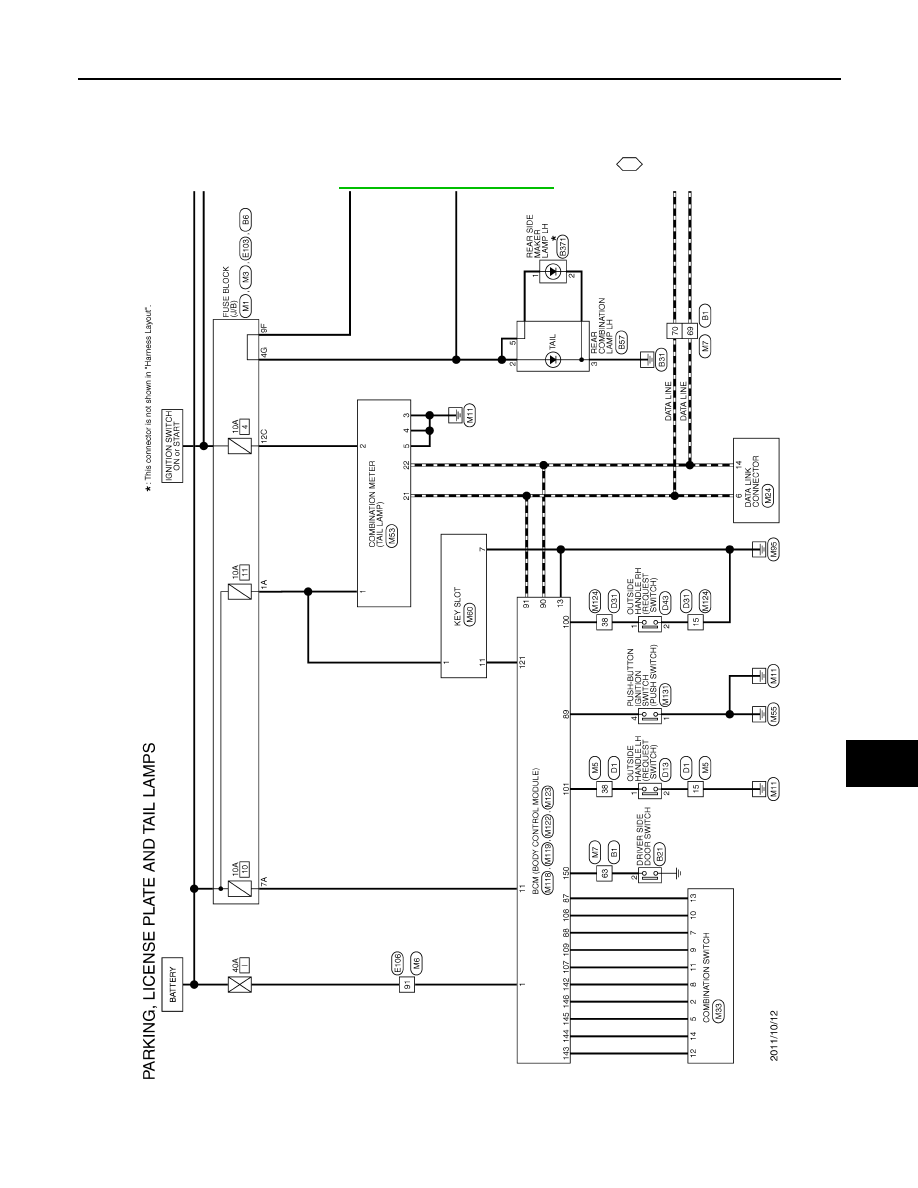

Wiring Diagram - PARKING LICENSE PLATE AND TAIL LAMPS -

INFOID:0000000009160353

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JRLWC1407GB

EXL-36

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

JRLWC1408GB
