Nissan GT-R. Manual - part 74





CONDENSER

DEF-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

CONDENSER

Exploded View

INFOID:0000000009161624

Removal and Installation

INFOID:0000000009161625

REMOVAL

1.

Remove the rear seat cushion and the rear seatback.
Refer to

SE-56, "Removal and Installation"

2.

Remove the rear kickplate, rear wheel well garnish and the rear pillar finisher.
Refer to

INT-15, "Removal and Installation"

3.

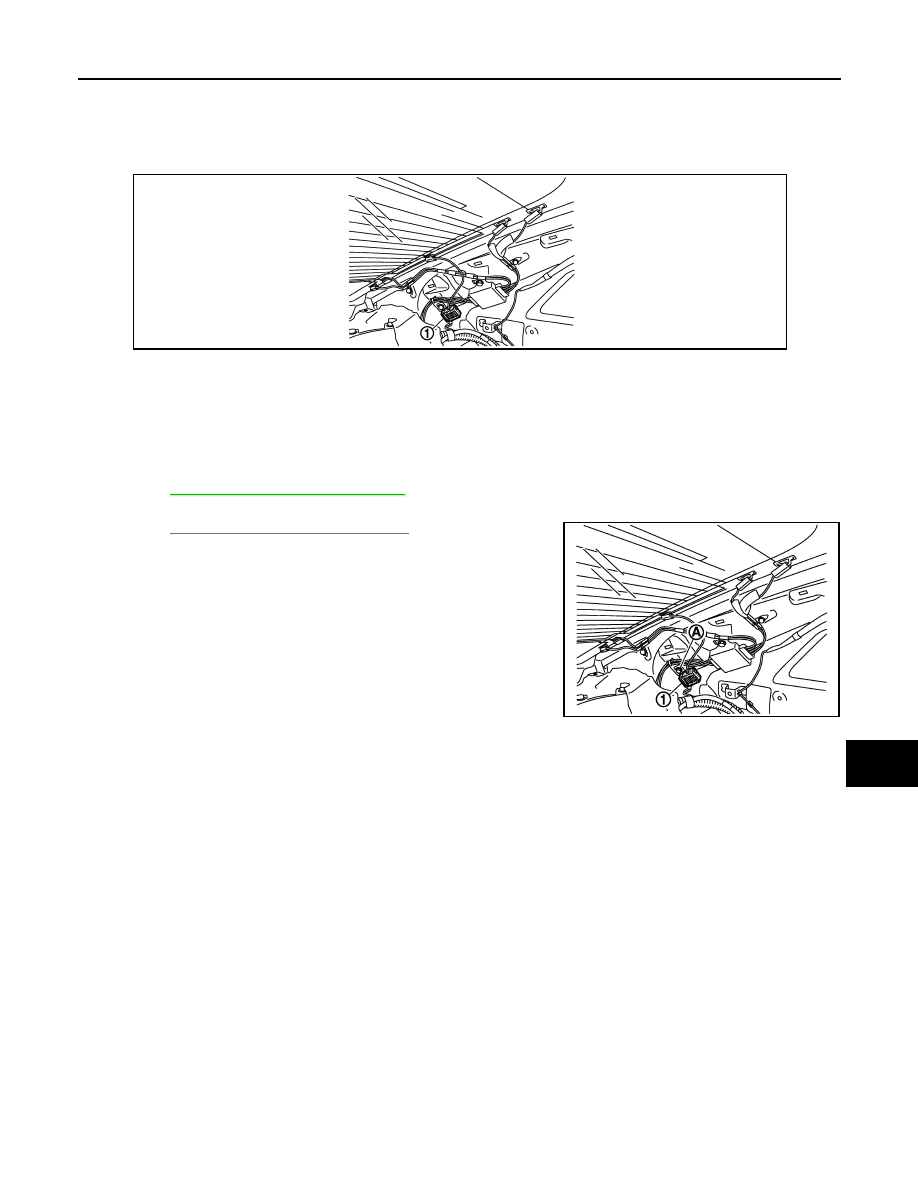

Remove bolt (A), and then remove condenser (1) from the vehi-
cle body.

INSTALLATION

Install in the reverse order of removal.

1.

Condenser

NNLIB0006ZZ

NNLIB0007ZZ

DLN-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

DLN

A

B

DLN

N

O

P

CONTENTS

DRIVELINE

TRANSFER

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Working Range at a Regular Deal-
ership ......................................................................
..

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection  ..............................
..

3

Precaution for Battery Service  ..................................

4

Aluminum Die-Casting Parts Handling  ......................

4

Service Notice or Precautions for the Transfer  .........

5

PERIODIC MAINTENANCE ..........................

6

TRANSFER FLUID  ..............................................

6

Transfer Fluid  ............................................................

6

SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................

7

SERVICE DATA AND SPECIFICATIONS
(SDS) ...................................................................

7

General Specifications  ..............................................

7

FRONT PROPELLER SHAFT: 3F56A-DOJ75

SYMPTOM DIAGNOSIS  ...............................

8

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

8

NVH Troubleshooting Chart  ......................................

8

PRECAUTION ..............................................

10

PRECAUTIONS ..................................................

10

Precaution for Working Range at a Regular Deal-
ership ......................................................................

10

Aluminum Die-Casting Parts Handling  ....................

10

REMOVAL AND INSTALLATION  ...............

11

FRONT PROPELLER SHAFT  ..........................

11

Exploded View .........................................................

11

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

12

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

12

General Specifications .............................................

12

MAIN PROPELLER SHAFT: 2F71A-VL101

SYMPTOM DIAGNOSIS  ..............................

13

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ...........................

13

NVH Troubleshooting Chart  ....................................

13

PRECAUTION ..............................................

15

PRECAUTIONS .................................................

15

Precaution for Working Range at a Regular Deal-
ership .......................................................................

15

Precautions for terminology .....................................

15

Aluminum Die-Casting Parts Handling  ....................

15

REMOVAL AND INSTALLATION  ...............

16

MAIN PROPELLER SHAFT ..............................

16

Exploded View .........................................................

16

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

17

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

17

General Specifications .............................................

17

FRONT FINAL DRIVE: F160A

SYMPTOM DIAGNOSIS  ..............................

18

DLN-2

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ............................

18

NVH Troubleshooting Chart  ...................................

18

PRECAUTION .............................................

19

PRECAUTIONS  .................................................

19

Precaution for Working Range at a Regular Deal-
ership .....................................................................
.

19

Aluminum Die-Casting Parts Handling  ...................

19

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection  ............................
.

19

General Precautions  ...............................................

20

PERIODIC MAINTENANCE ........................

21

FRONT DIFFERENTIAL GEAR OIL ..................

21

Inspection ...............................................................

21

SERVICE DATA AND SPECIFICATIONS
(SDS) ...........................................................

22

SERVICE DATA AND SPECIFICATIONS
(SDS) ..................................................................

22

General Specifications ............................................

22

REAR FINAL DRIVE

SYMPTOM DIAGNOSIS  ............................

23

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ............................

23

NVH Troubleshooting Chart ....................................

23

PRECAUTION ............................................

24

PRECAUTIONS  .................................................

24

Precaution for Working Range at a Regular Deal-
ership ......................................................................

24

Aluminum Die-Casting Parts Handling ....................

24

PERIODIC MAINTENANCE  .......................

25

REAR DIFFERENTIAL GEAR OIL ....................

25

Inspection ................................................................

25

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

28

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

28

General Specifications  ............................................

28

PRECAUTIONS

DLN-3

< PRECAUTION >

[TRANSFER]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Working Range at a Regular Dealership

INFOID:0000000009190091

CAUTION:

The service items unmentioned on this manual are recommended to be performed by a GT-R certified
NISSAN dealer. Because those service items require special equipment and a GT-R certified technical
staff who completed special training.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009162049

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions Necessary for Steering Wheel Rotation After Battery Disconnection

INFOID:0000000009162050

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition switch to the LOCK position,

then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
