CHG

PRECAUTIONS

CHG-11

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from ACC position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT.

Precaution for Battery Service

INFOID:0000000009160058

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

Precaution for Power Generation Voltage Variable Control System

INFOID:0000000009160059

CAUTION:

For this model, the battery current sensor that is installed to the battery cable at the negative terminal
measures the charging/discharging current of the battery, and performs various controls. If the electri-
cal component or the ground wire is connected directly to the battery terminal, the current other than
that being measured with the battery current sensor is charging to or discharging from the battery.
This condition causes the malfunction of the control, and then the battery discharge may occur. Do
not connect the electrical component or the ground wire directly to the battery terminal.

CHG-12

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

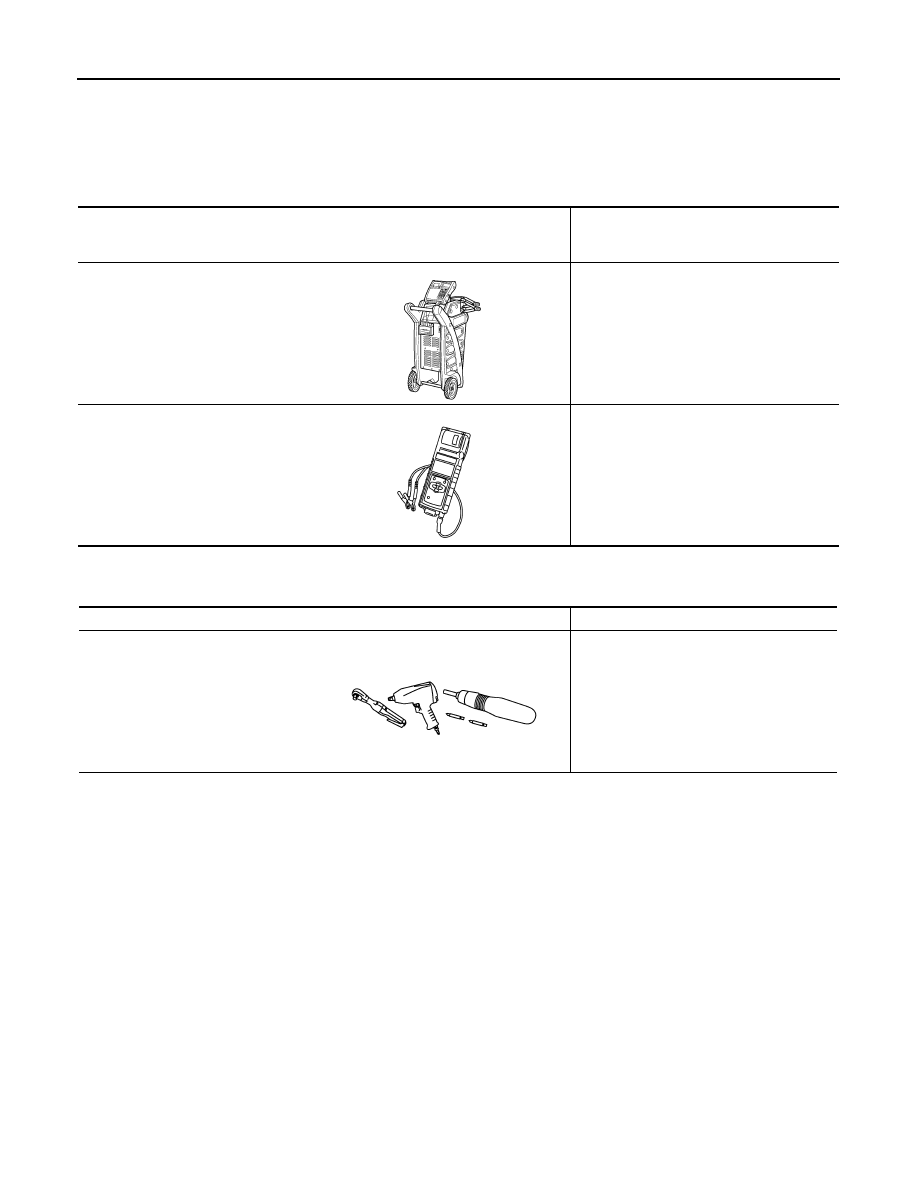

Special Service Tools

INFOID:0000000009160060

Commercial Service Tools

INFOID:0000000009160061

Tool number

(Kent-Moore No.)

Tool name

Description


(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station

Tests batteries, starting and charging sys-
tems and charges batteries.
For operating instructions, refer to diagnos-
tic station instruction manual.


(—) Model EXP-800 NI
Battery and electrical diagnostic ana-
lyzer

Tests batteries and charging systems.
For operating instructions, refer to diagnos-
tic analyzer instruction manual.

AWIIA1239ZZ

JSMIA0806ZZ

Tool name

Description

Power tool

Loosening bolts, nuts and screws

PIIB1407E

CHG

CHARGING SYSTEM PRELIMINARY INSPECTION

CHG-13

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PERIODIC MAINTENANCE

CHARGING SYSTEM PRELIMINARY INSPECTION

Inspection Procedure

INFOID:0000000009160062

1.

CHECK BATTERY TERMINALS CONNECTION

Check if battery terminals are clean and tight.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair battery terminals connection.

2.

CHECK FUSE

Check for blown fuse and fusible link.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Be sure to eliminate the cause of malfunction before installing new fuse.

3.

CHECK DRIVE BELT TENSION

Check drive belt tension. Refer to

EM-6, "Checking"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair as needed.

Unit

Power source (Power supply terminals)

Fuse No.

Alternator

Battery (“S” terminal)

38

Combination meter

Ignition switch ON (“L” terminal)

4

CHG-14

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Alternator

INFOID:0000000009160067

*: Adjustment range of power generation voltage variable control is 11.4 - 15.6 V.

Type

A002TX0091

MITSUBISHI make

Nominal rating

[V - A]

12 -150

Ground polarity

Negative

Minimum revolution under no-load (When 13.5 V is applied)

[rpm]

Less than 1,300

Hot output current (When 13.5 V is applied)

[A/rpm]

More than 57/1,500

More than 126/2,500
More than 152/5,000

Regulated output voltage

[V]

14.1 - 14.7

*
