AV

DISPLAY UNIT

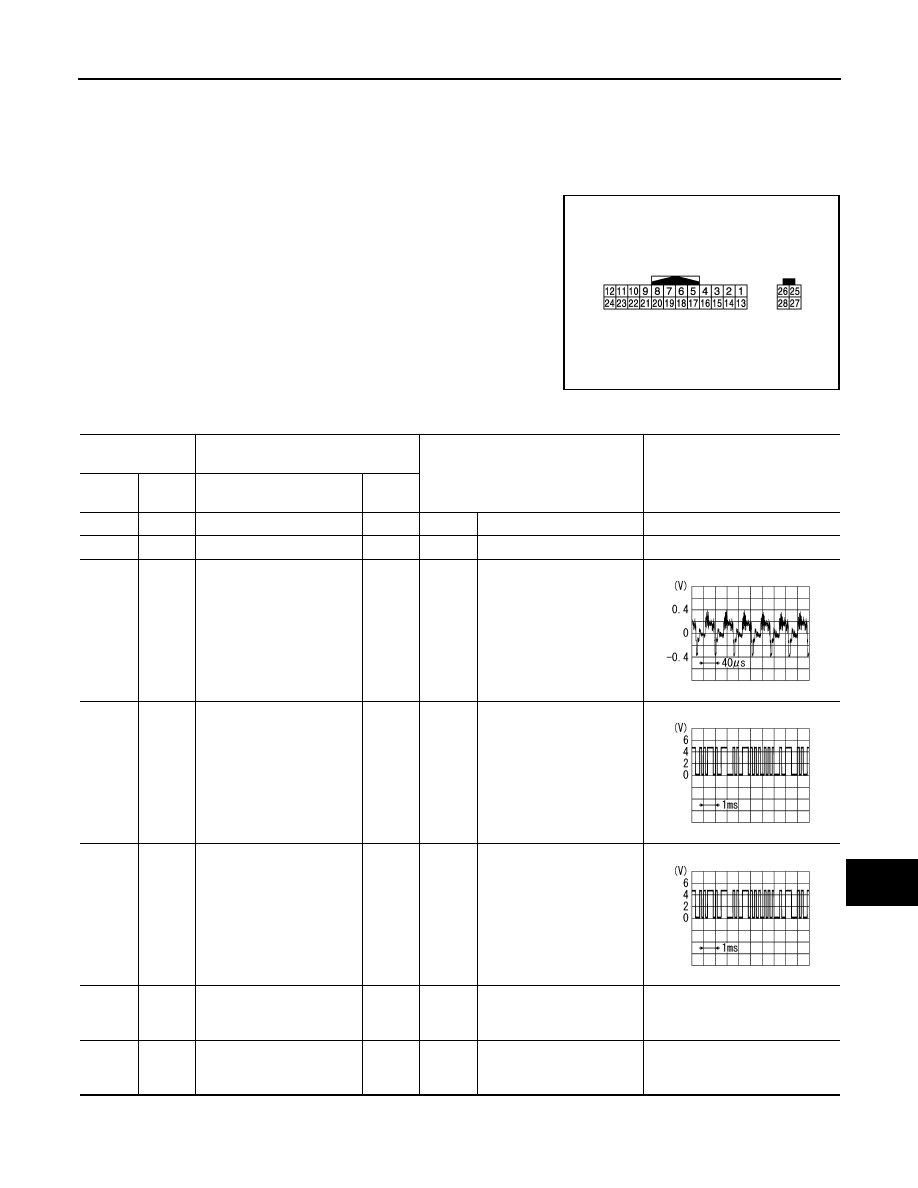

AV-131

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISPLAY UNIT

Reference Value

INFOID:0000000009163345

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA2241ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

6

—

Shield

—

—

—

—

7

—

Shield

—

—

—

—

8

(W)

Ground

Camera image signal

Input

Ignition

switch

ON

At rear view camera image
is displayed.

9

(SB)

Ground

Communication signal
(DISP

→

CONT)

Output

Ignition

switch

ON

When adjusting display
brightness.

10

(V)

Ground

Communication signal
(CONT

→

DISP)

Input

Ignition

switch

ON

When adjusting display
brightness.

11

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

12

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

SKIB2251J

PKIB5039J

PKIB5039J

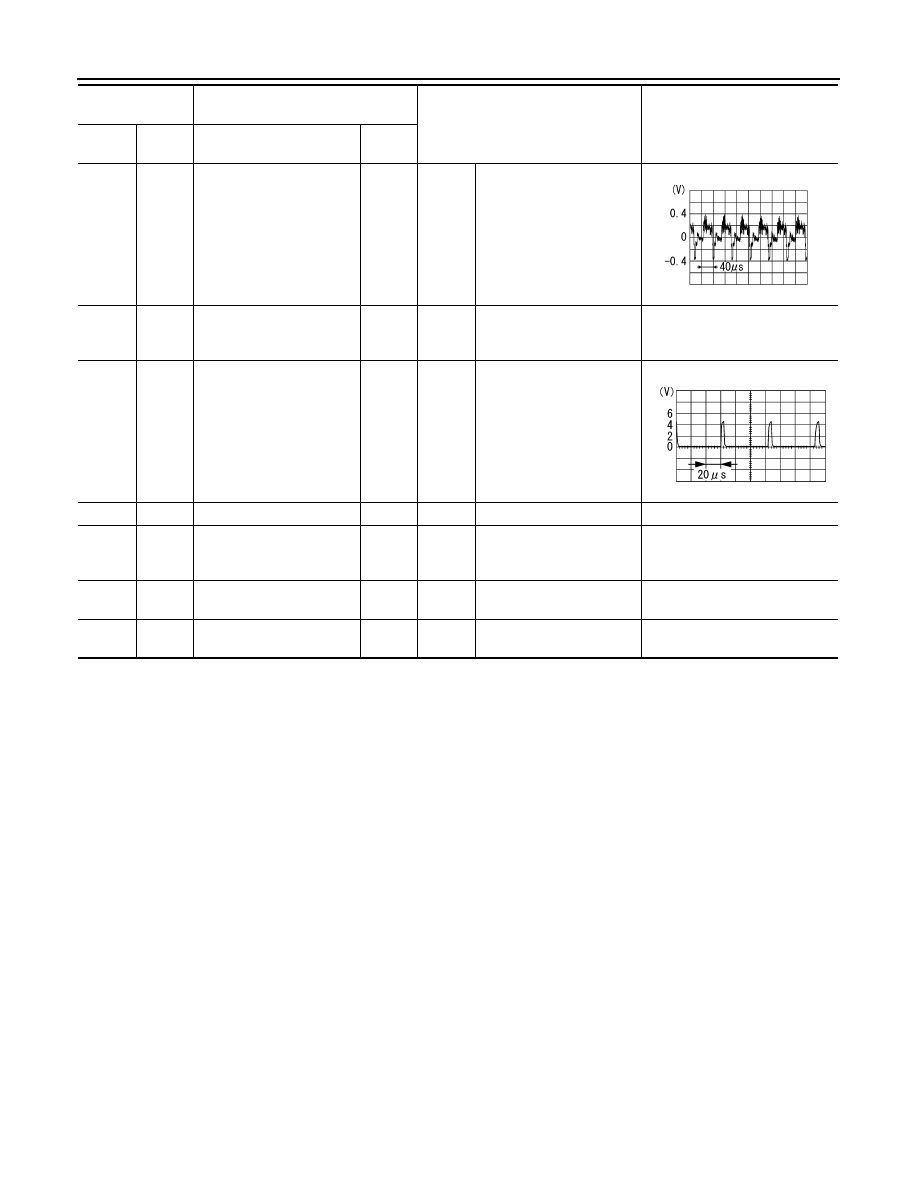

AV-132

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

DISPLAY UNIT

18

(R)

Ground

Composite image signal

Input

Ignition

switch

ON

At DVD image is displayed.

19

(W)

Ground

Composite image ground

—

Ignition

switch

ON

—

0  V

20

(B)

Ground

Composite synchronizing
signal

Input

Ignition

switch

ON

—

22

—

Shield

—

—

—

—

23

(P)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

27

—

RGB digital image signal
(+)

Input

—

—

—

28

—

RGB digital image signal
(

−

)

Input

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB2251J

SKIA0187E

AV

BOSE AMP.

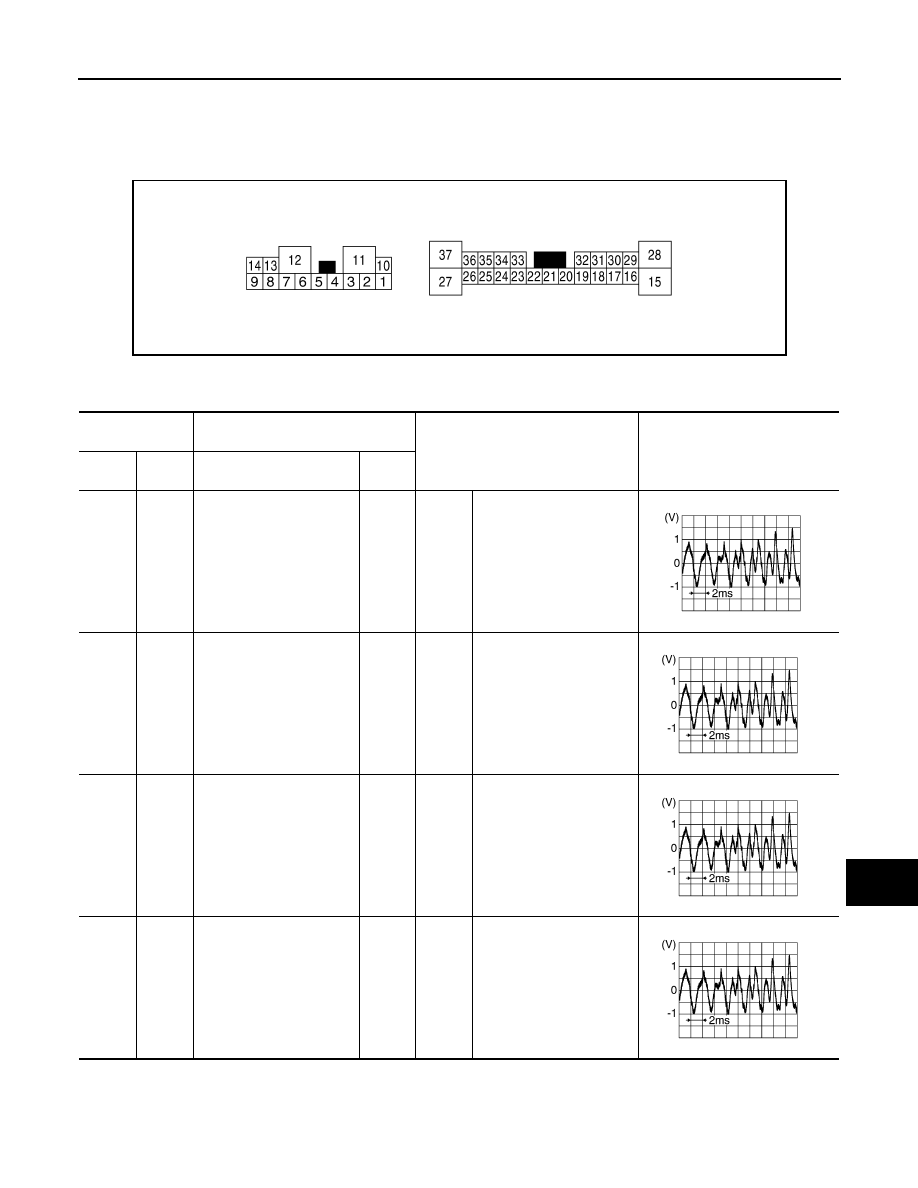

AV-133

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE AMP.

Reference Value

INFOID:0000000009163346

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA0760ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(R)

10

(G)

Audio signal front door
speaker LH

Output

Ignition

switch

ON

Audio signal output

2

(Y)

3

(LG)

Audio signal front door
speaker RH

Output

Ignition

switch

ON

Audio signal output

4

(O)

5

(GR)

Audio signal front door
squawker LH

Output

Ignition

switch

ON

Audio signal output

6

(V)

7

(LG)

Audio signal rear speaker
LH

Output

Ignition

switch

ON

Audio signal output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

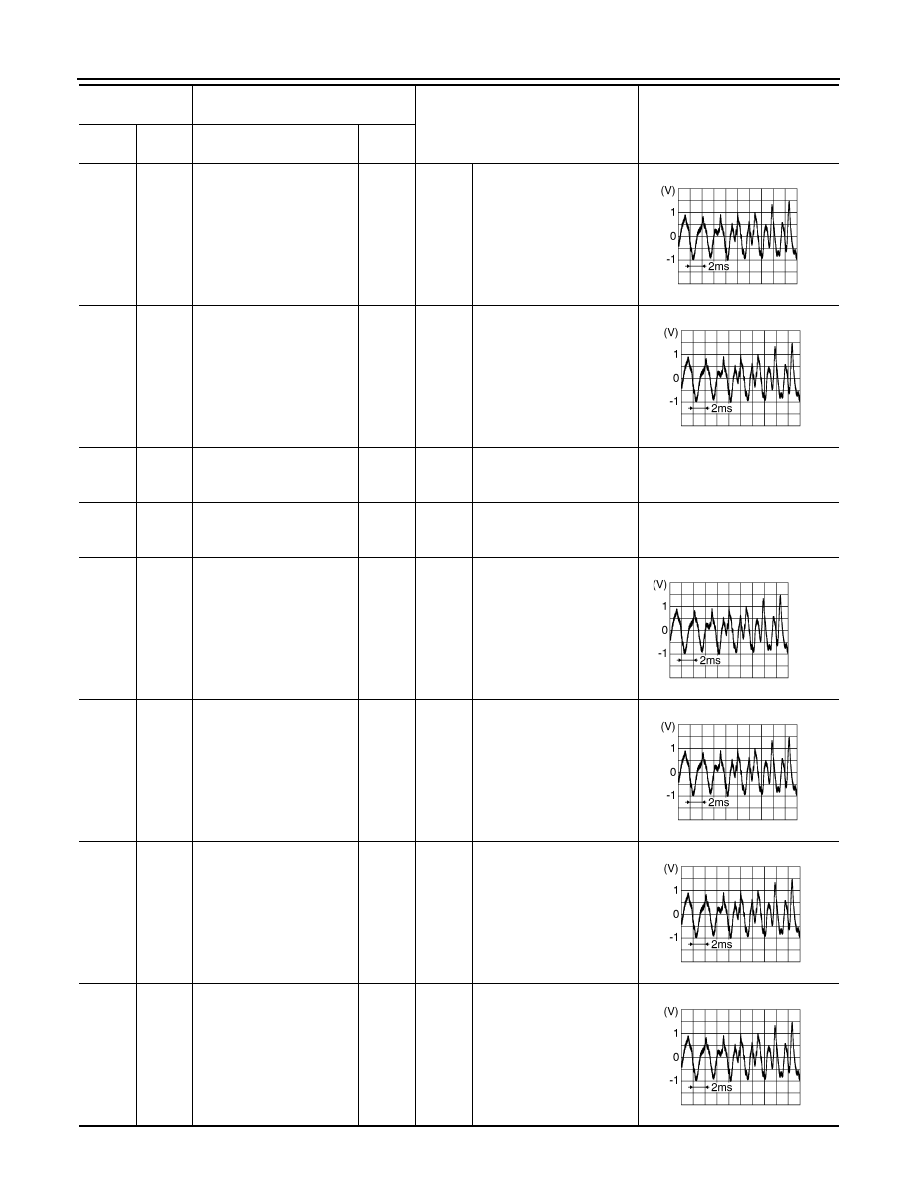

AV-134

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

BOSE AMP.

8

(SB)

13

(BR)

Audio signal front door
squawker RH

Output

Ignition

switch

ON

Audio signal output

9

(P)

14

(SB)

Audio signal woofer

Output

Ignition

switch

ON

Audio signal output

11

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

12

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

15

(V)

28

(W)

Audio signal center speak-
er

Output

Ignition

switch

ON

Audio signal output

18

(L)

32

(P)

Audio signal front LH

Input

Ignition

switch

ON

Audio signal output

19

(R)

20

(G)

Audio signal front RH

Input

Ignition

switch

ON

Audio signal output

21

(V)

22

(SB)

Audio signal rear LH

Input

Ignition

switch

ON

Audio signal output

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E
