Nissan GT-R. Manual - part 13

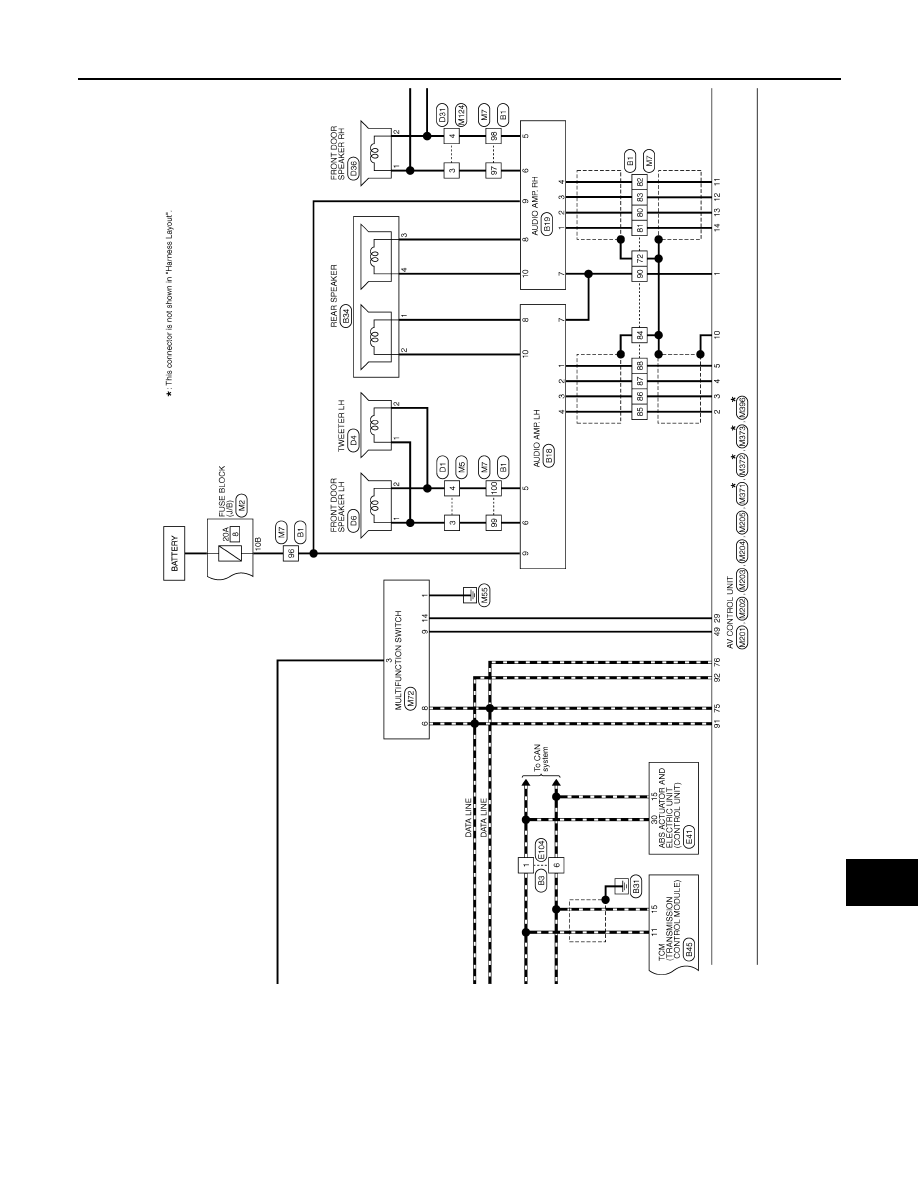

AV

BASE AUDIO WITH NAVIGATION SYSTEM

AV-47

< WIRING DIAGRAM >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWC1437GB

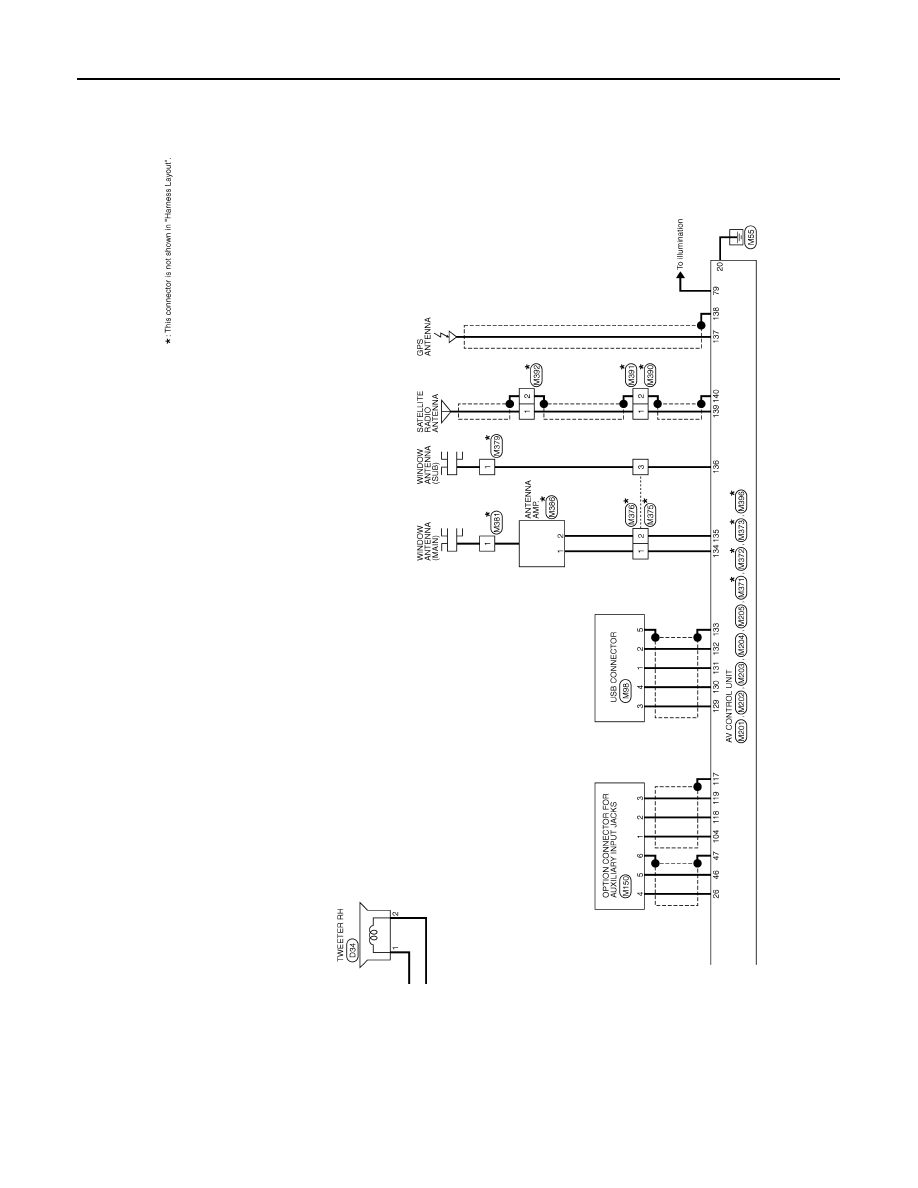

AV-48

< WIRING DIAGRAM >

[BASE AUDIO WITH NAVIGATION]

BASE AUDIO WITH NAVIGATION SYSTEM

JRNWC1438GB

AV

INSPECTION AND ADJUSTMENT

AV-49

< BASIC INSPECTION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000009163214

BEFORE REPLACEMENT

When replacing AV control unit, save or print current vehicle specification with CONSULT configuration before
replacement.

AFTER REPLACEMENT

CAUTION:

When replacing AV control unit, you must perform “After Replace ECU” or “Manual Configuration”
with CONSULT.
• Complete the procedure of “After Replace ECU” or “Manual Configuration” in order.
• If you set incorrect “After Replace ECU” or “Manual Configuration”, incidents might occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000009163215

1.

SAVING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “Before Replace ECU” to save or print current vehicle specification. Refer to

AV-49, "CONFIGURA-

TION (AV CONTROL UNIT) : Description"

.

NOTE:
If “Before Replace ECU” can not be used, use the “Manual Configuration”.

>> GO TO 2.

2.

REPLACE AV CONTROL UNIT

Replace AV control unit. Refer to

AV-77, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “After Replace ECU” or “Manual Configuration” to write vehicle specification. Refer to

AV-50, "CON-

FIGURATION (AV CONTROL UNIT) : Special Repair Requirement"

.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course
lines) are normal.

>> WORK END

CONFIGURATION (AV CONTROL UNIT)

CONFIGURATION (AV CONTROL UNIT) : Description

INFOID:0000000009163216

• Since vehicle specifications are not included in the AV control unit after replacement, it is required to write

vehicle specifications with CONSULT.

• The AV control unit configuration includes functions as follows.

AV-50

< BASIC INSPECTION >

[BASE AUDIO WITH NAVIGATION]

INSPECTION AND ADJUSTMENT

CONFIGURATION (AV CONTROL UNIT) : Special Repair Requirement

INFOID:0000000009163217

1.

WRITE VEHICLE SPECIFICATION

CONSULT Configuration

Write vehicle specification into AV control unit.

To write vehicle specification stored in CONSULT into the AV control unit>>GO TO 2.
To write vehicle specification into the AV control unit by hand>>GO TO 3.

2.

WRITE STORED DATA

CONSULT Configuration

Select “After Replace ECU” in “Read/Write Configuration”. Write data stored in CONSULT with the “Before
Replace ECU” function into the AV control unit.

>> GO TO 4.

3.

MANUALLY WRITE VEHICLE SPECIFICATION

CONSULT Configuration

Perform “Manual Configuration”. Refer to

AV-50, "CONFIGURATION (AV CONTROL UNIT) : Configuration

List"

.

NOTE:
If selection items are not displayed on the CONSULT screen, touch “NEXT”.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course
lines) are normal.

>> WORK END

CONFIGURATION (AV CONTROL UNIT) : Configuration List

INFOID:0000000009163218

CAUTION:

Grasp vehicle specifications precisely. The control of ECU may not function normally if the specifica-
tions are misread.
NOTE:
• The items shown in this list depend on vehicle specifications.
• The config list may not be displayed depending on vehicle specifications. This is not a malfunction.

Function

Description

Read/Write Configuration

Before Replace ECU

Allows the reading of vehicle specification written in AV control unit
to store the specification in CONSULT.

After Replace ECU

Allows the writing of the vehicle information stored in CONSULT
into the AV control unit.

Manual Configuration

Allows the writing of the vehicle specification into the AV control
unit by hand.

MANUAL SETTING ITEM

Note

Items

Setting value

STEERING

LHD

RHD
