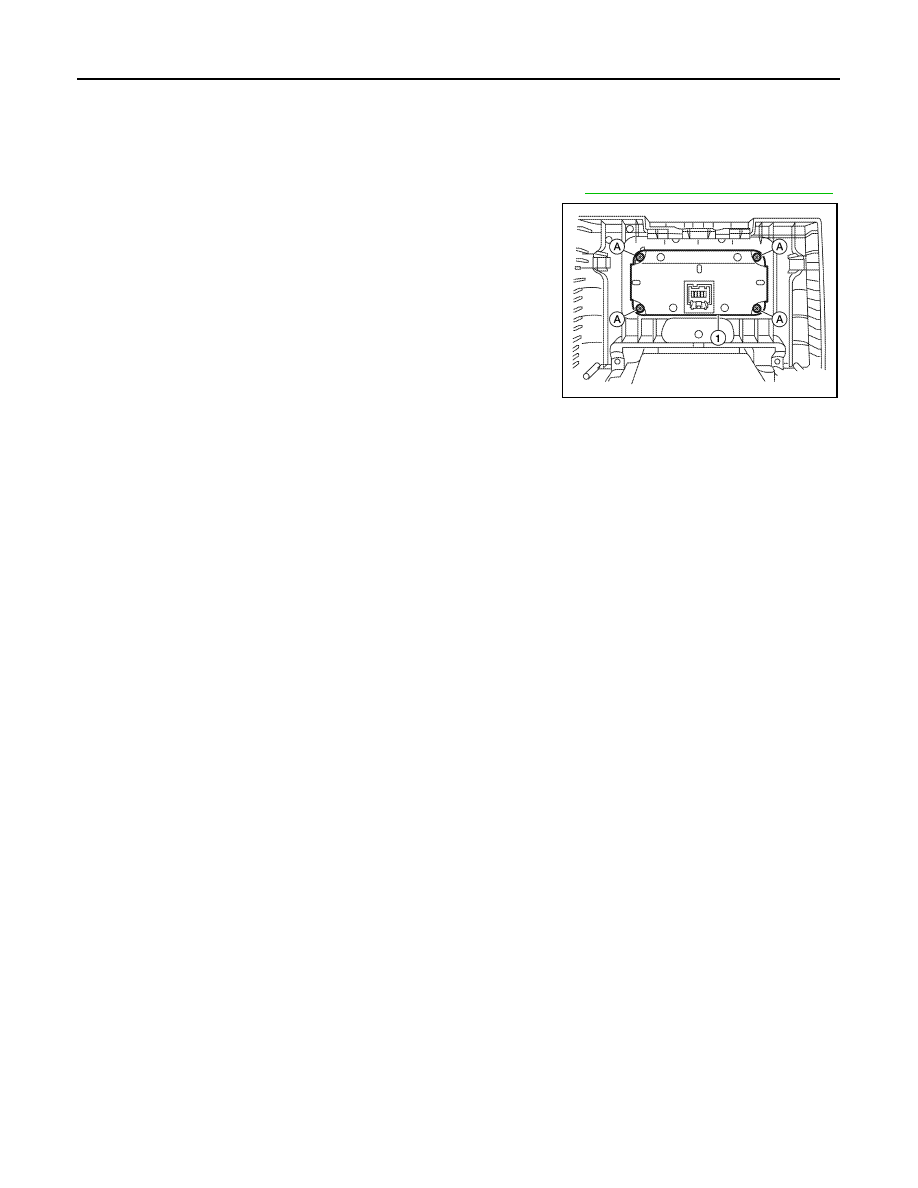

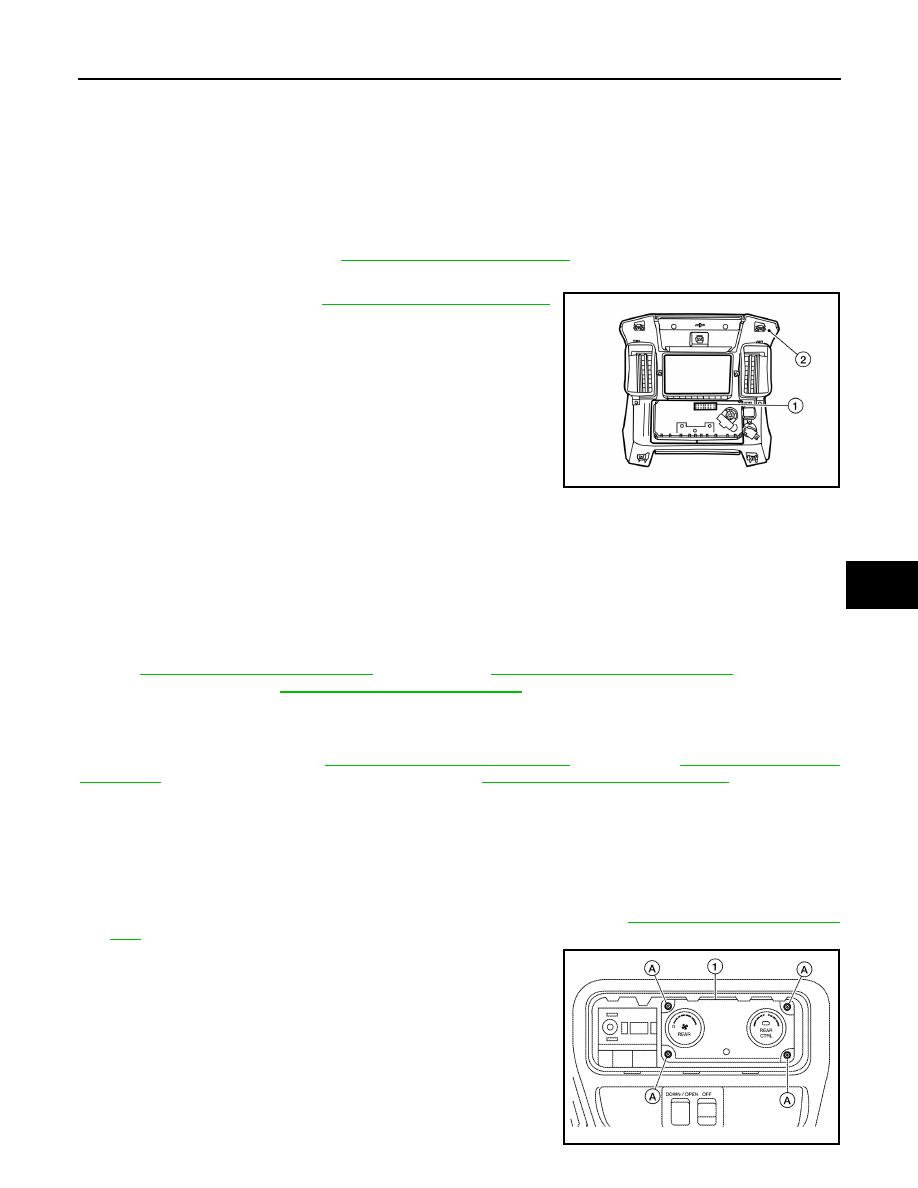

CONTROL UNIT VTL-7 < REMOVAL AND INSTALLATION > C D E F G H J K L M A B VTL N O P REMOVAL AND INSTALLATION CONTROL UNIT Removal and Installation INFOID:0000000007356269 FRONT AIR CONTROL (MANUAL A/C) Removal 1. Remove the AT finisher. Refer to IP-21, "Removal and Installation" 2. Remove the cup holder. IP-16, "Removal and Installation" 4. Remove the four screws securing the front air control to cluster lid C. Installation Installation is in the reverse order of removal. A/C AND AV SWITCH ASSEMBLY (AUTOMATIC A/C) Removal and Installation The front A/C switch is integrated into the A/C and AV switch assembly in cluster lid C in the instrument panel. Refer to AV-34, "Removal and Installation" AV-257, "Removal and Installation" WITHOUT NAVIGATION) or AV-422, "Removal and Installation" (BOSE AUDIO WITH NAVIGATION). A/C AUTO AMP. (AUTOMATIC A/C) Removal Remove the display unit. Refer to AV-116, "Removal and Installation" (BOSE AUDIO WITHOUT NAVIGATION) or AV-422, "Removal and Installation" (BOSE AUDIO WITH NAVIGATION). Installation Installation is in the reverse order of removal. REAR AIR CONTROL (FRONT) Removal 1. Remove the front roof console finisher from the front roof console. Refer to INT-22, "Removal and Installa- 2. Remove the 4 rear air control (front) screws (A), disconnect the rear air control (front) connector and remove the rear air control (front) (1) from the front roof console. AWIIA1575ZZ ALIIA0135ZZ August 2012 2012 Pathfinder |
