DIRECT CLUTCH

TM-259

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

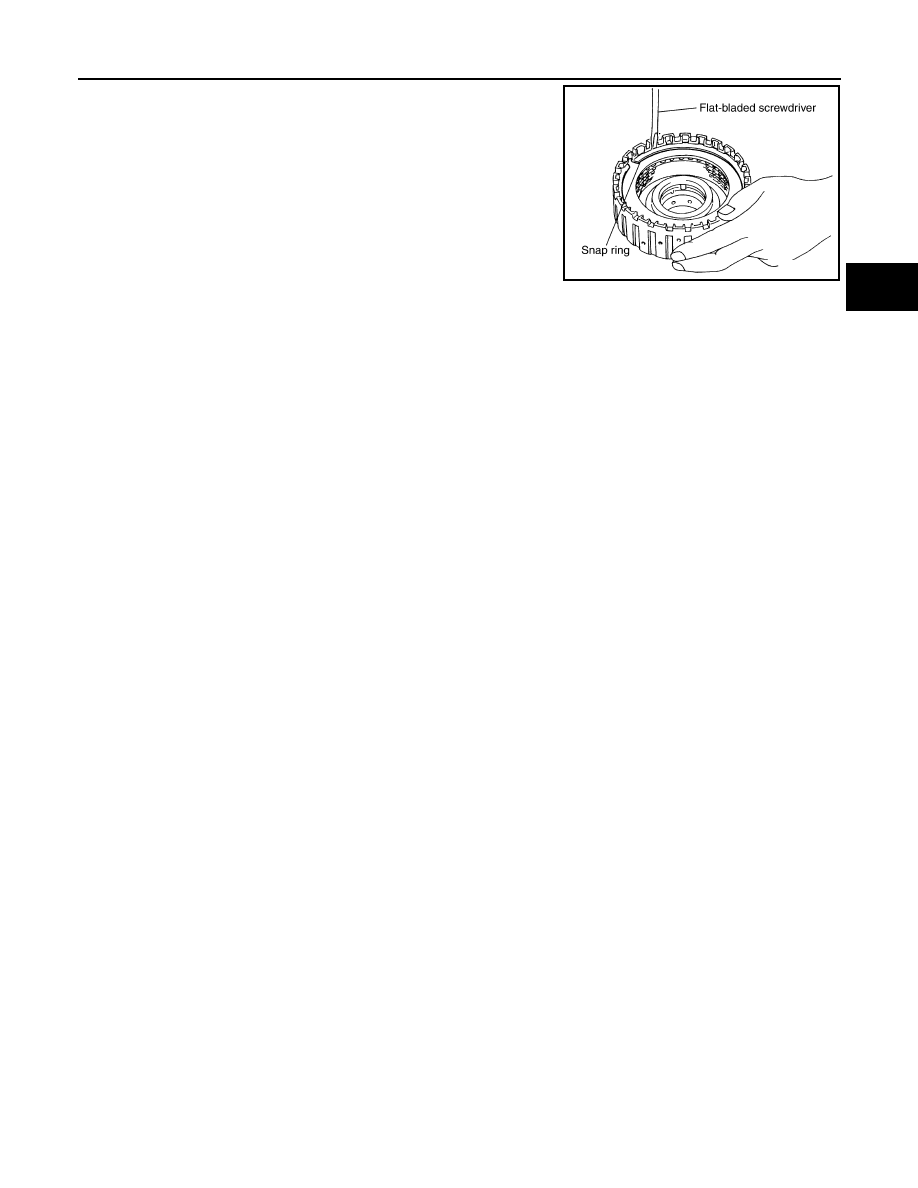

2. Install snap ring in direct clutch drum using suitable tool.

SCIA2868E

August 2012

2012 Pathfinder

TM-260

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

ASSEMBLY

Assembly (1)

INFOID:0000000007357333

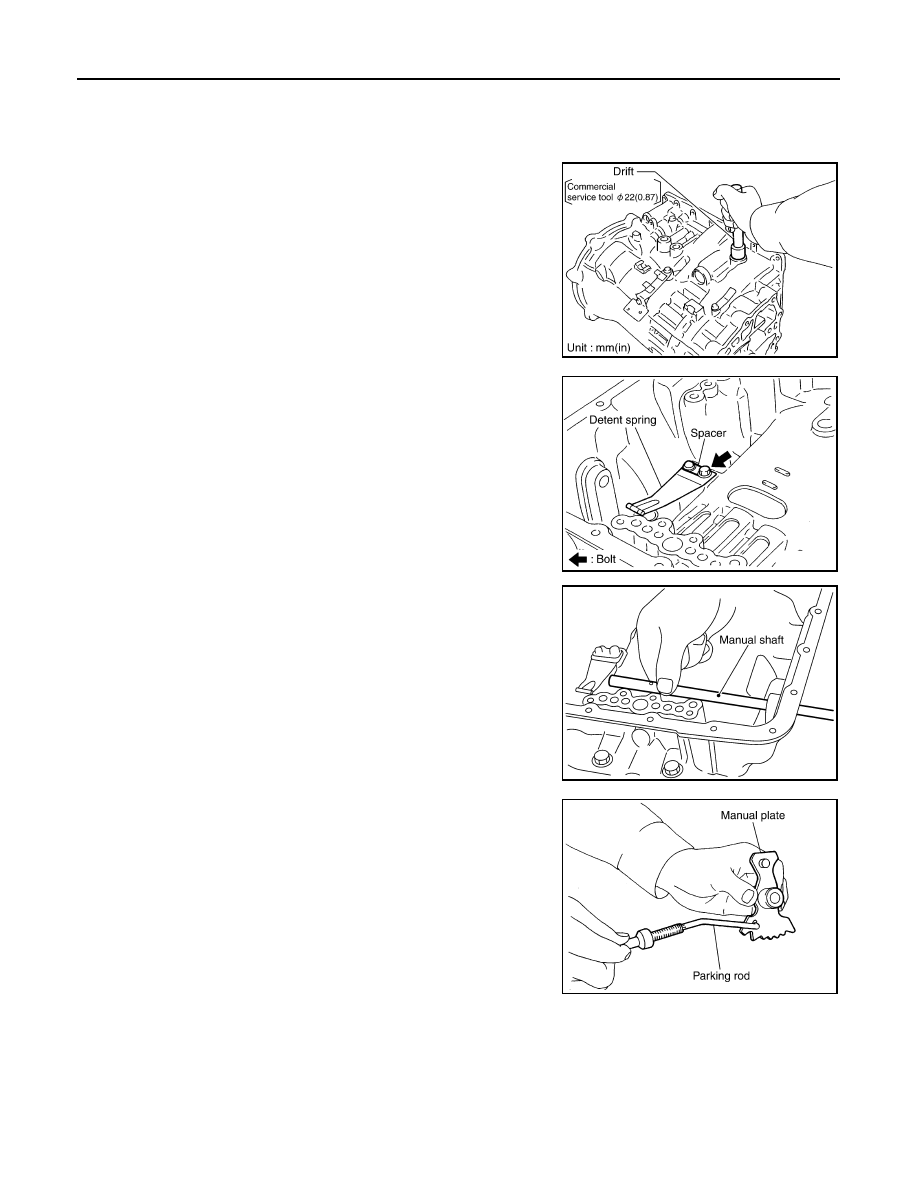

1. Drive manual shaft oil seals into the transmission case until they

are flush using suitable tool.

CAUTION:

• Apply ATF to manual shaft oil seals.

• Do not reuse manual shaft oil seals.

2. Install detent spring and spacer in transmission case and secure

with the bolt.

3. Install manual shaft to transmission case.

4. Install parking rod to manual plate.

SCIA5259E

Bolt

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5248E

SCIA5716E

SCIA5220E

August 2012

2012 Pathfinder

ASSEMBLY

TM-261

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

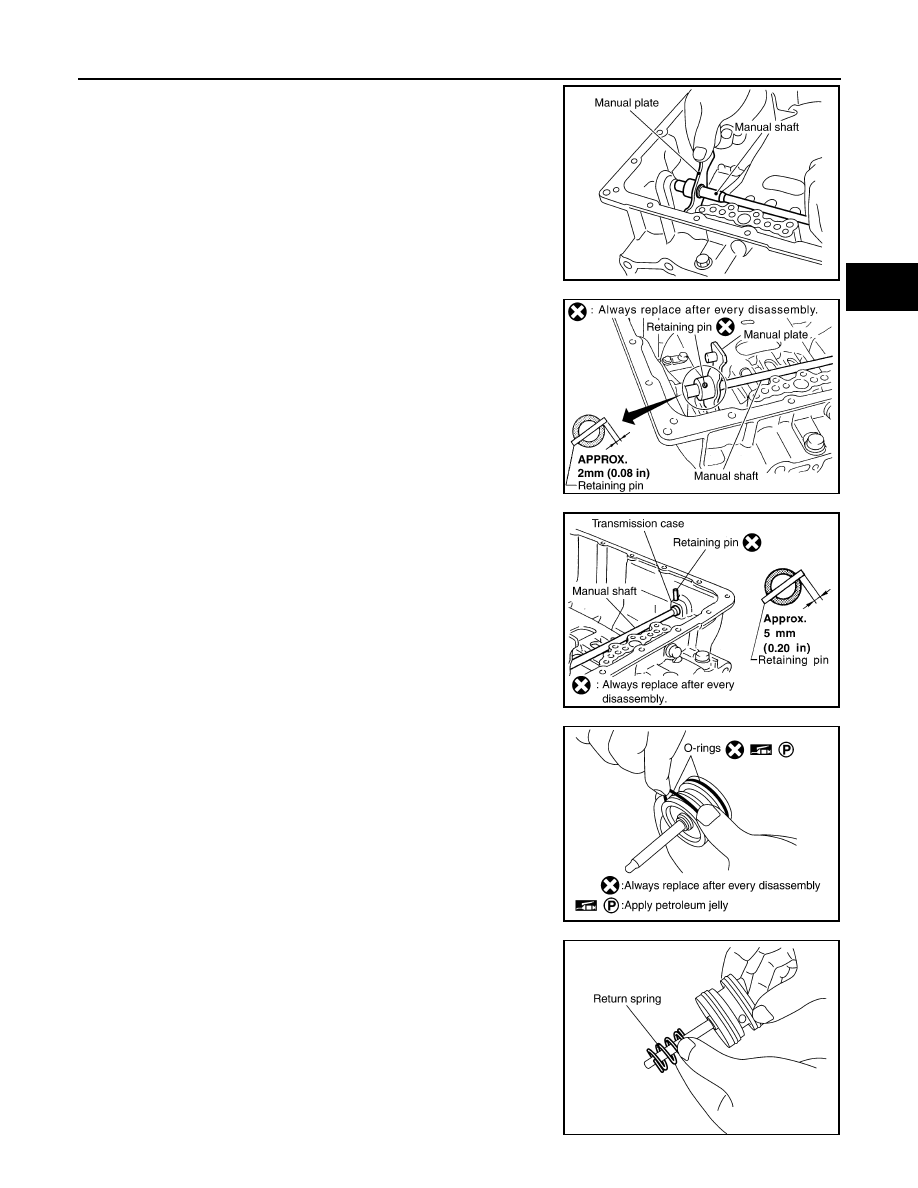

5. Install manual plate (with parking rod) to manual shaft.

6. Install retaining pin into the manual plate and manual shaft.
a. Align pinhole of the manual plate to pinhole of the manual shaft

using suitable tool.

b. Tap the retaining pin into the manual plate using suitable tool.

CAUTION:

• Drive retaining pin to 2

±

 0.5 mm (0.08

±

 0.020 in) over the

manual plate.

• Do not reuse retaining pin.

7. Install retaining pin into the transmission case and manual shaft.
a. Align pinhole of the transmission case to pinhole of the manual

shaft using suitable tool.

b. Tap the retaining pin into the transmission case using suitable

tool.

CAUTION:

• Drive retaining pin to 5

±

 1 mm (0.20

±

 0.04 in) over the

transmission case.

• Do not reuse retaining pin.

8. Install O-rings to servo assembly.

CAUTION:

• Do not reuse O-rings.

• Apply petroleum jelly to O-rings.

9. Install return spring to servo assembly.

SCIA5715E

SCIA5297E

SCIA2427E

SCIA5719E

SCIA5717E

August 2012

2012 Pathfinder

TM-262

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

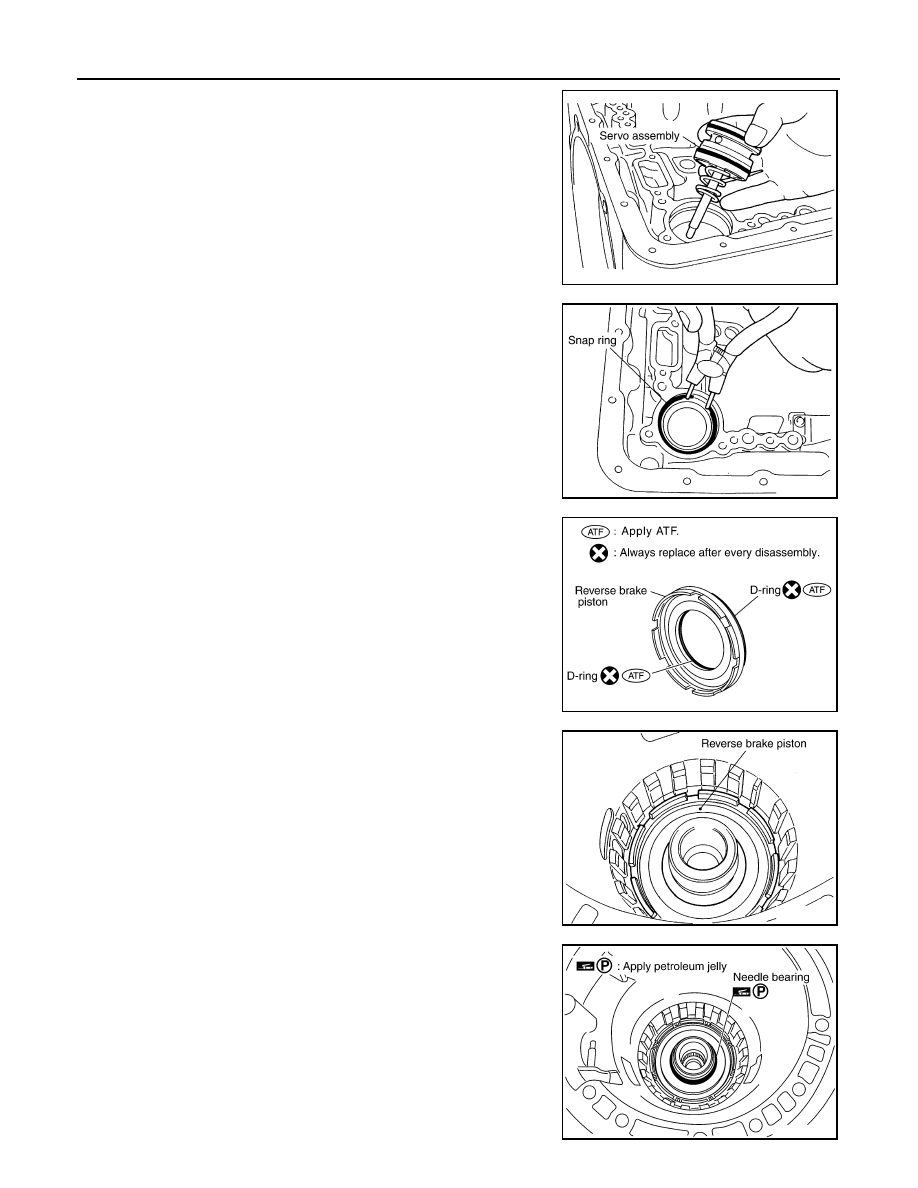

10. Install servo assembly in transmission case.

11. Install snap ring to transmission case using suitable tool.

12. Install D-rings in reverse brake piston.

CAUTION:

• Do not reuse D-rings.

• Apply ATF to D-rings.

13. Install reverse brake piston in transmission case.

14. Install needle bearing to drum support edge surface.

CAUTION:

Apply petroleum jelly to needle bearing.

SCIA5679E

SCIA2333E

SCIA6330E

SCIA2325E

SCIA2796E

August 2012

2012 Pathfinder

ASSEMBLY

TM-263

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

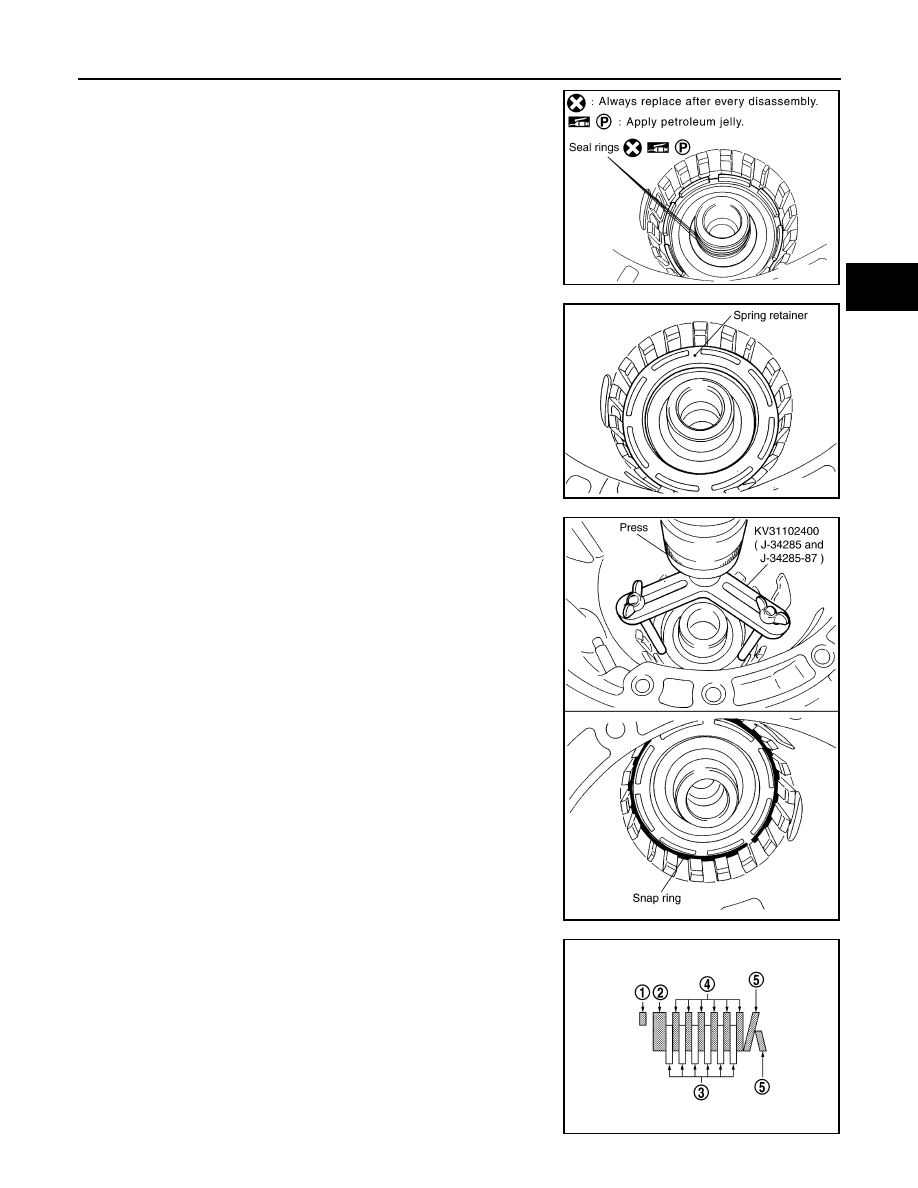

15. Install seal rings to drum support.

CAUTION:

• Do not reuse seal rings.

• Apply petroleum jelly to seal rings.

16. Install spring retainer and return spring in transmission case.

17. Install snap ring in transmission case while compressing return

spring using Tool.

CAUTION:

Securely assemble them using a flat-bladed screwdriver so

that snap ring tension is slightly weak.

18. Install reverse brake drive plates, driven plates and dish plates

in transmission case.

CAUTION:

Take care with order of plates.

• VQ40DE models

- Snap ring (1)

- Retaining plate (2)

- Drive plate (3)

- Driven plate (4)

- Dish plate (5)

- Drive plate/Driven plate:6/6

SCIA3333E

SCIA2324E

Tool number

: KV31102400 (J-34285 and J-34285-87)

SCIA5877E

SCIA6949E

August 2012

2012 Pathfinder

TM-264

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

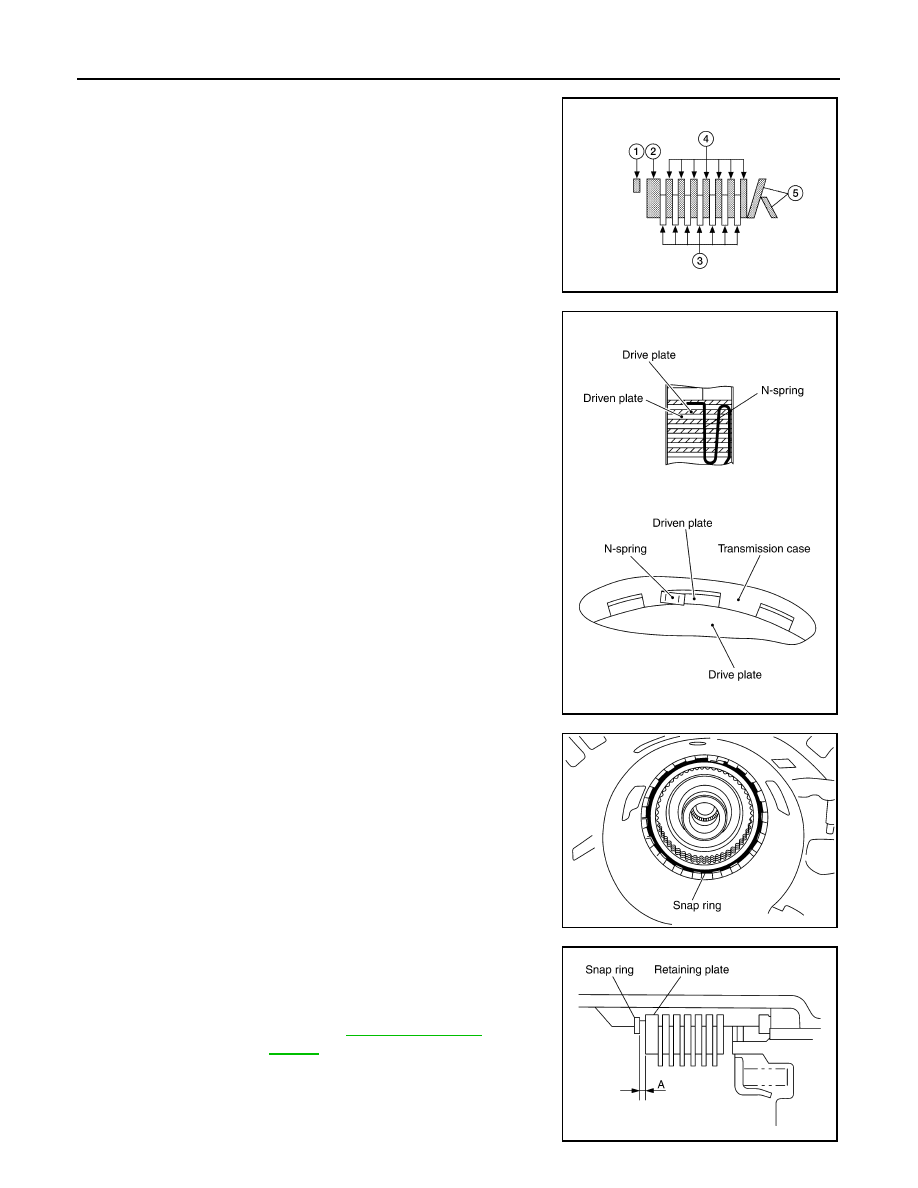

• VK56DE models

- Snap ring (1)

- Retaining plate (2)

- Drive plate (3)

- Driven plate (4)

- Dish plate (5)

- Drive plate/Driven plate: 7/7

19. Assemble N-spring.
20. Install reverse brake retaining plate in transmission case.

21. Install snap ring in transmission case.

22. Measure clearance (A) between retaining plate and snap ring. If

not within specified clearance, select proper retaining plate.

WCIA0625E

SCIA5249E

SCIA2439E

Clearance “A”

: 0.7 - 1.1mm (0.028 - 0.043 in)

Retaining plate

: Refer to

TM-284, "Reverse

brake"

.

SCIA3129E

August 2012

2012 Pathfinder

ASSEMBLY

TM-265

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

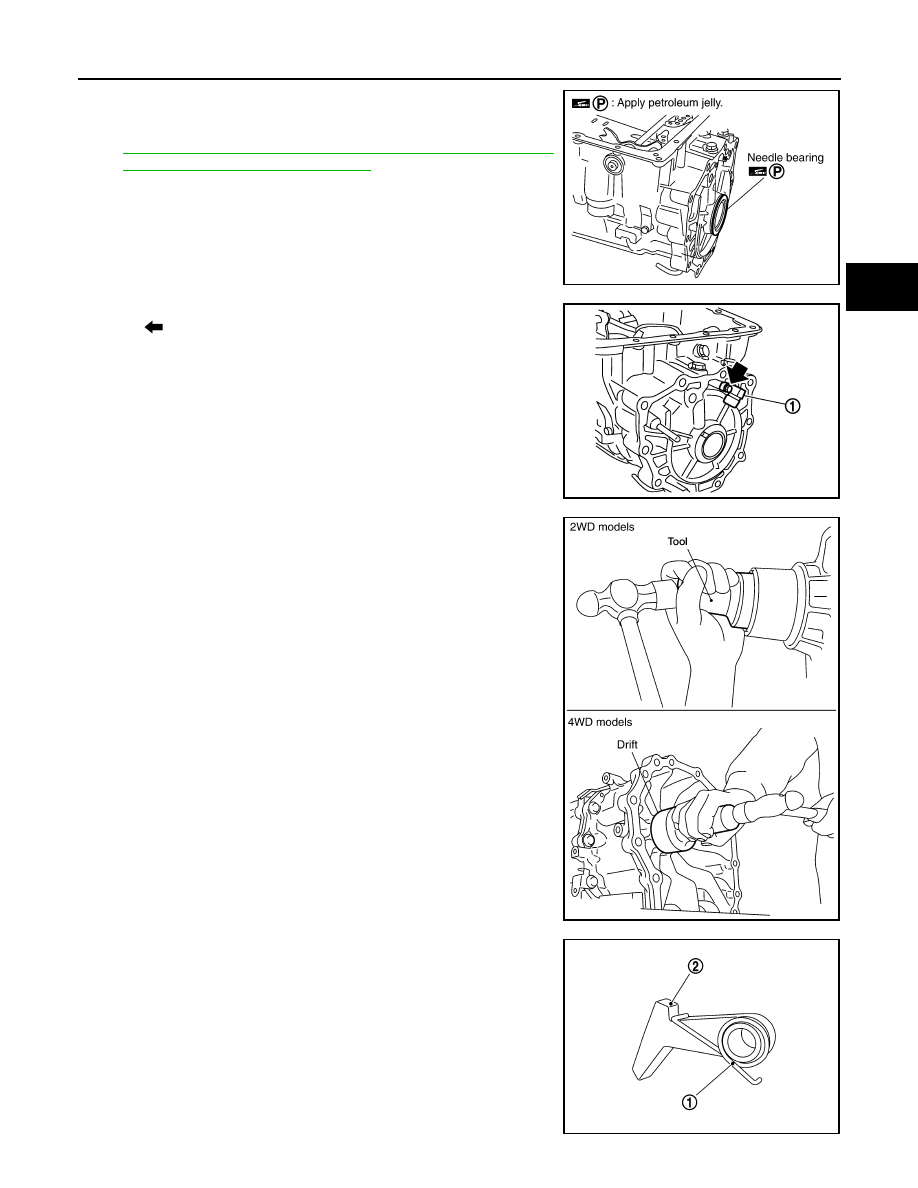

23. Install needle bearing to transmission case.

CAUTION:

• Take care with the direction of needle bearing. Refer to

TM-217, "Location of Adjusting Shims, Needle Bearings,

Thrust Washers and Snap Rings"

.

• Apply petroleum jelly to needle bearing.

24. Install output speed sensor (1) to transmission case and tighten

bolt (

) to specified torque.

CAUTION:

• Do not subject sensor to impact by dropping or hitting it.

• Do not disassemble sensor.

• Do not allow metal filings or any foreign material to get on

the sensor's front edge magnetic area.

• Do not place sensor in an area affected by magnetism.

25. Install new rear oil seal until it is flush into the rear extension

case (2WD models) using Tool or adapter case (4WD models)

using suitable tool.

CAUTION:

• Apply ATF to rear oil seal.

• Do not reuse rear oil seal.

26. Install return spring (1) to parking pawl (2).

SCIA5031E

Output speed sensor bolt : 5.8 N·m (0.59 kg-m, 51 in-lb)

JSDIA1321ZZ

Tool number

: ST33400001 (J-26082)

WCIA0475E

SCIA6180J

August 2012

2012 Pathfinder

TM-266

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

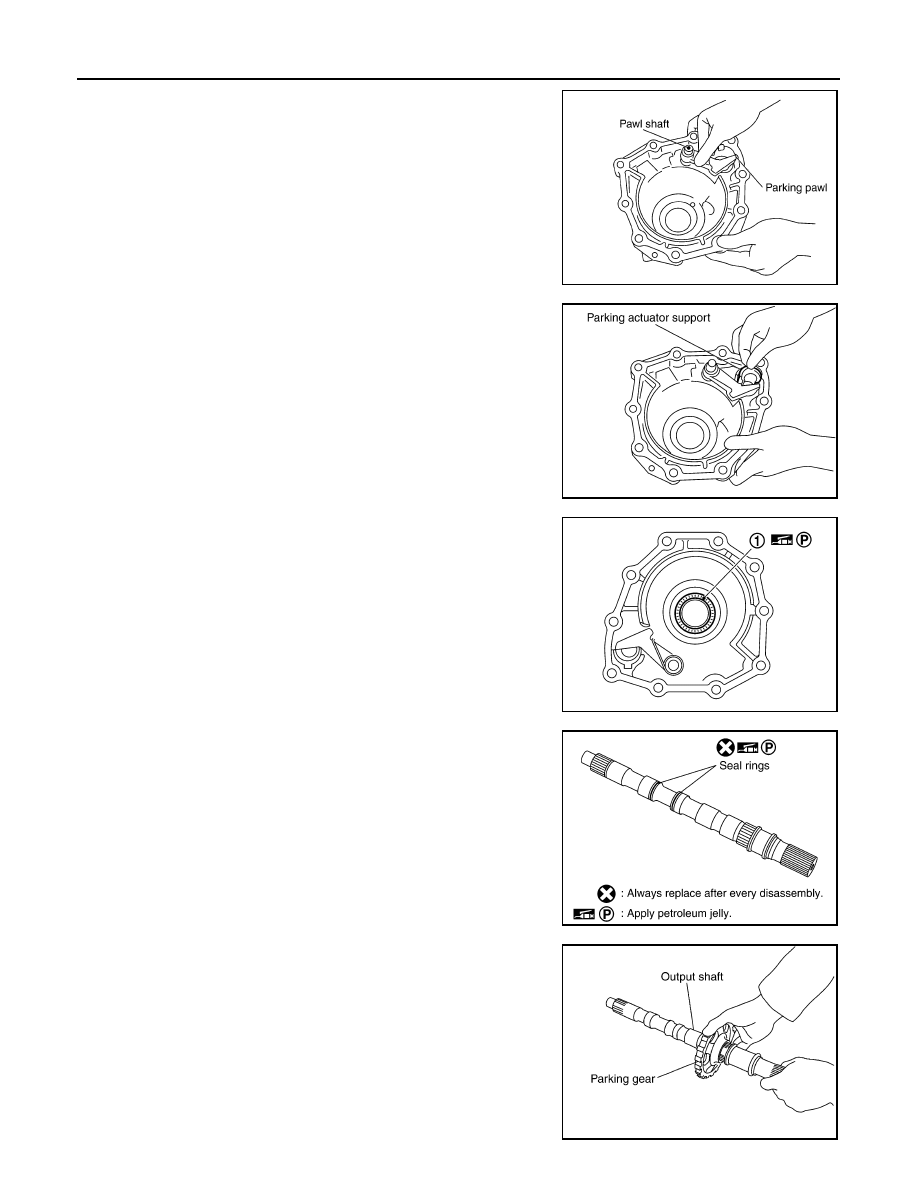

27. Install parking pawl (with return spring) and pawl shaft to rear

extension (2WD models) or adapter case (4WD models).

28. Install parking actuator support to rear extension (2WD models)

or adapter case (4WD models).

29. Install needle bearing (1) to rear extension (2WD models) or

adapter case (4WD models).

CAUTION:

Apply petroleum jelly to needle bearing.

30. Install seal rings to output shaft.

CAUTION:

• Do not reuse seal rings.

• Apply petroleum jelly to seal rings.

31. Install parking gear to output shaft.

SCIA3424E

SCIA3423E

SCIA6179J

SCIA5209E

SCIA5247E

August 2012

2012 Pathfinder
