ST-4

< PREPARATION >

PREPARATION

PREPARATION

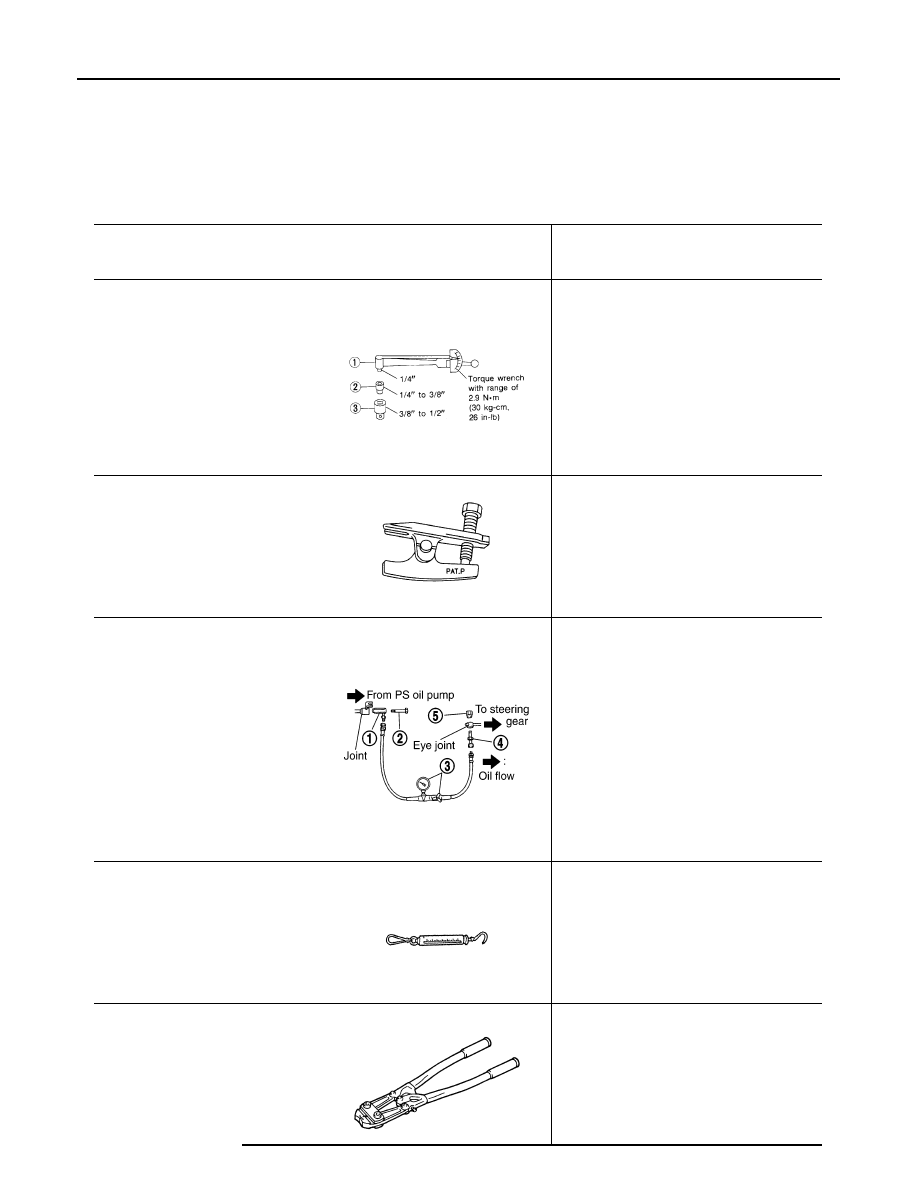

Special Service Tool

INFOID:0000000007356570

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST3127 S000
(See J-25765-A)
Preload gauge
1. GG9103000
(J-25765-A)
Torque wrench
2. HT62940000
(

—

)

Socket adapter
3. HT62900000
(

—

)

Socket adapter

Inspecting of pinion rotating torque and rota-
tional torque for ball joint

HT72520000
(J-25730-A)
Ball joint remover

Removing steering outer socket

1. KV48105300-4 and 5295262U10
(

—

)

Connector A and O-ring
2. KV48105300-3 and 5295262U00
(

—

)

Eye-bolt and O-ring
3. KV48103500
(J-26357 and J-26357-10)
Pressure gauge and shut-off valve
4. KV48105300-1 and 5295262U00
(

—

)

Connector B and O-ring
5. KV48105300-2
(

—

)

Nut

Measuring oil pump relief pressure

—

(J-44372)
Spring gauge

Measuring steering wheel turning force

KV40107300
(

—

)

Boot band crimping tool

Crimping boot bands

S-NT541

NT146

SGIA0427E

LST024

ZZA1229D

August 2012

2012 Pathfinder

PREPARATION

ST-5

< PREPARATION >

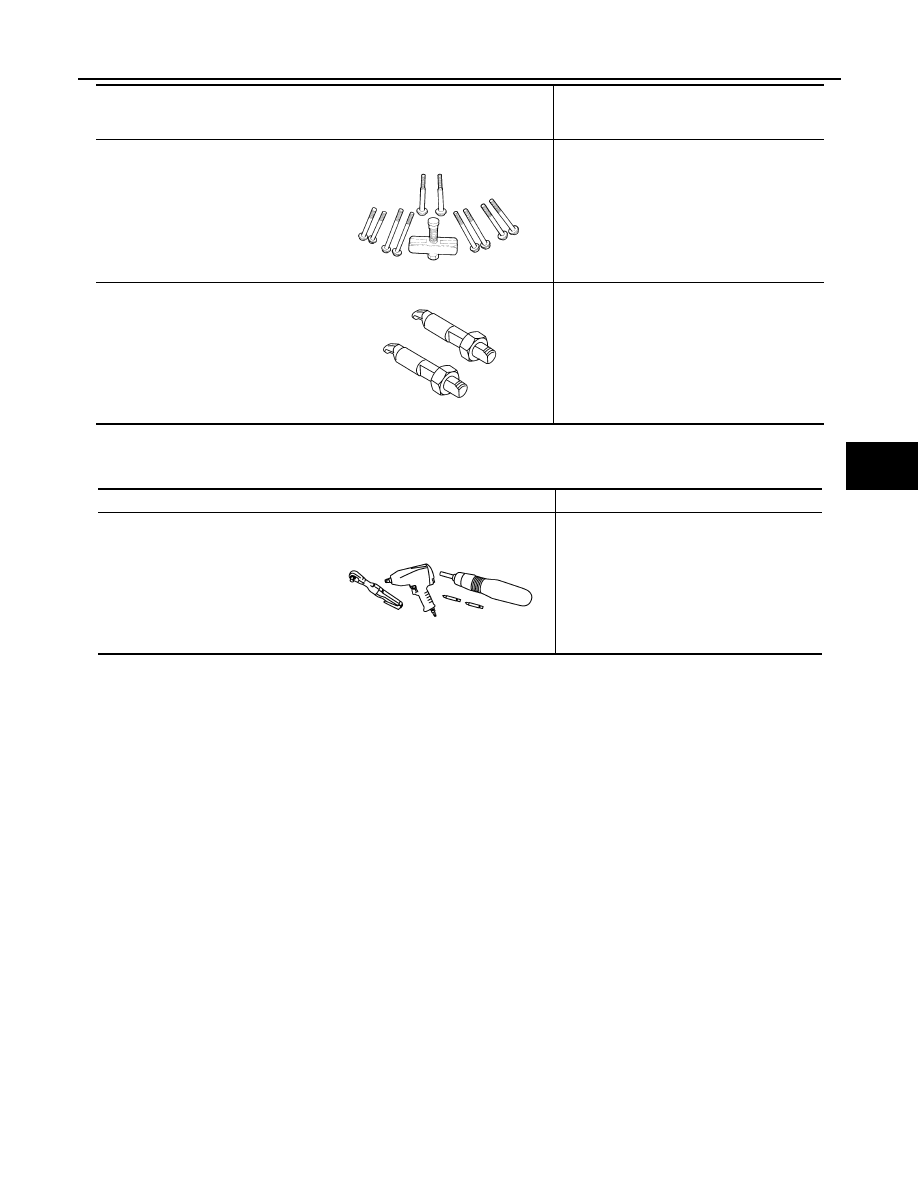

Commercial Service Tool

INFOID:0000000007356571

KV481J0010
(J-1859A)
Steering wheel puller

Removing steering wheel

KV481J0020
(J-42578)
Steering wheel puller legs

Removing steering wheel

Tool number
(Kent-Moore No.)
Tool name

Description

LHIA0043E

LHIA0044E

Tool name

Description

Power tool

Removing nuts, screws and bolts

PIIB1407E

August 2012

2012 Pathfinder

ST-6

< SYSTEM DESCRIPTION >

HEATED STEERING WHEEL

SYSTEM DESCRIPTION

HEATED STEERING WHEEL

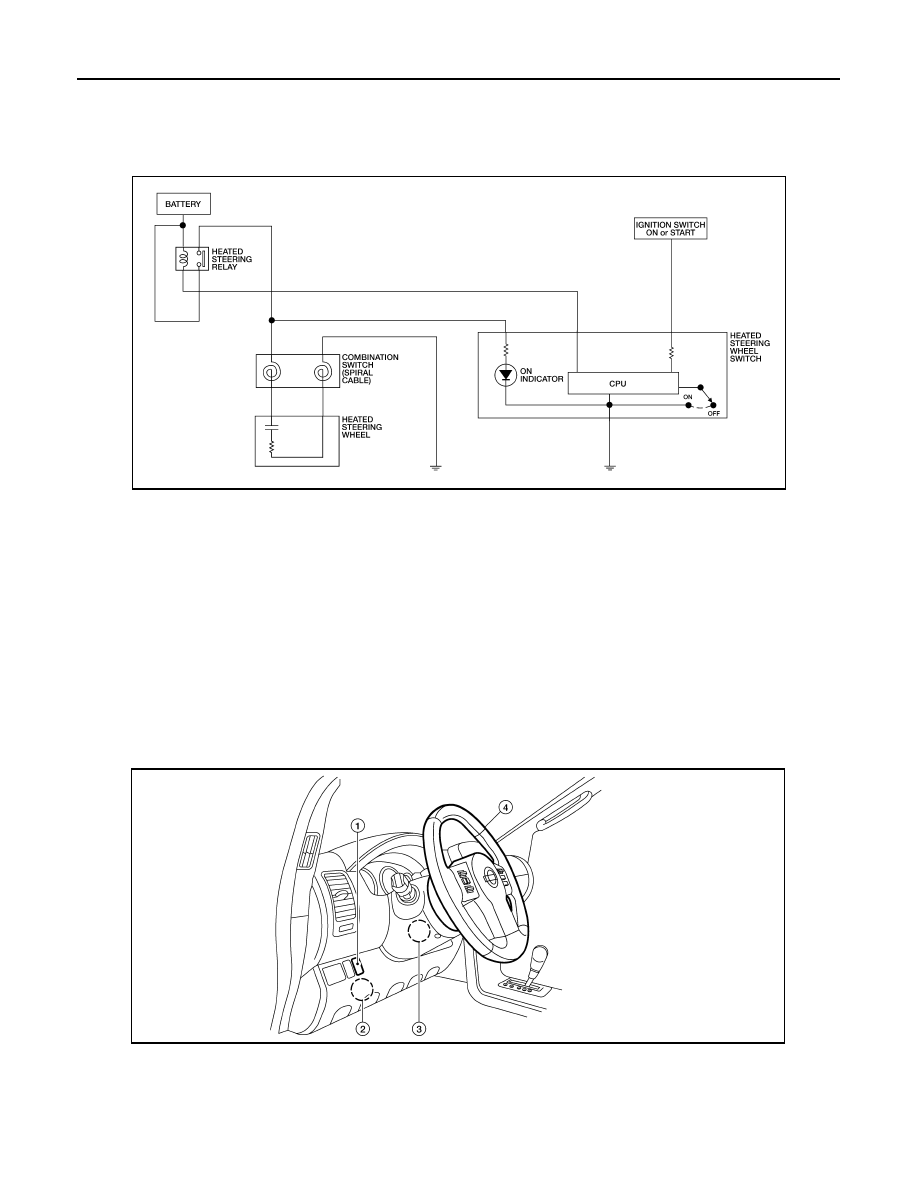

System Diagram

INFOID:0000000007356572

System Description

INFOID:0000000007356573

The heated steering wheel switch controls the heated steering relay. When the switch is turned on, the relay is

energized and the heated steering system will operate. The heated steering system will turn off when the

steering wheel temperature reaches approximately 86

F (30

C). Heated steering system operation can also

be canceled by pressing the heated steering wheel switch again.

NOTE:

If the surface temperature of the steering wheel is below 68

F (20

C), the system will heat the steering wheel

and cycle off and on to maintain a temperature above 68

F (20

C). The indicator light will remain on as long

as the system is on. Push the switch again to turn the heated steering wheel system off manually. The indica-

tor light will go off.

Component Parts Location

INFOID:0000000007356574

AWGIA0022GB

Heated steering wheel switch M7

Heated steering relay M2

Combination switch (spiral cable) M5

Heated steering wheel M114

ALGIA0025ZZ

August 2012

2012 Pathfinder

HEATED STEERING WHEEL

ST-7

< SYSTEM DESCRIPTION >

Component Description

INFOID:0000000007356575

Heated steering wheel switch

• Controls the heated steering relay and operates the heated steering system.
• Turns the indicator lamp ON when the system is activated.

Heated steering relay

• Operates the heated steering system with the control signal from the heated steering

wheel switch.

Heated steering wheel

• Heats the heating element with the power supplied from the heated steering relay.

August 2012

2012 Pathfinder

ST-8

< WIRING DIAGRAM >

HEATED STEERING WHEEL

WIRING DIAGRAM

HEATED STEERING WHEEL

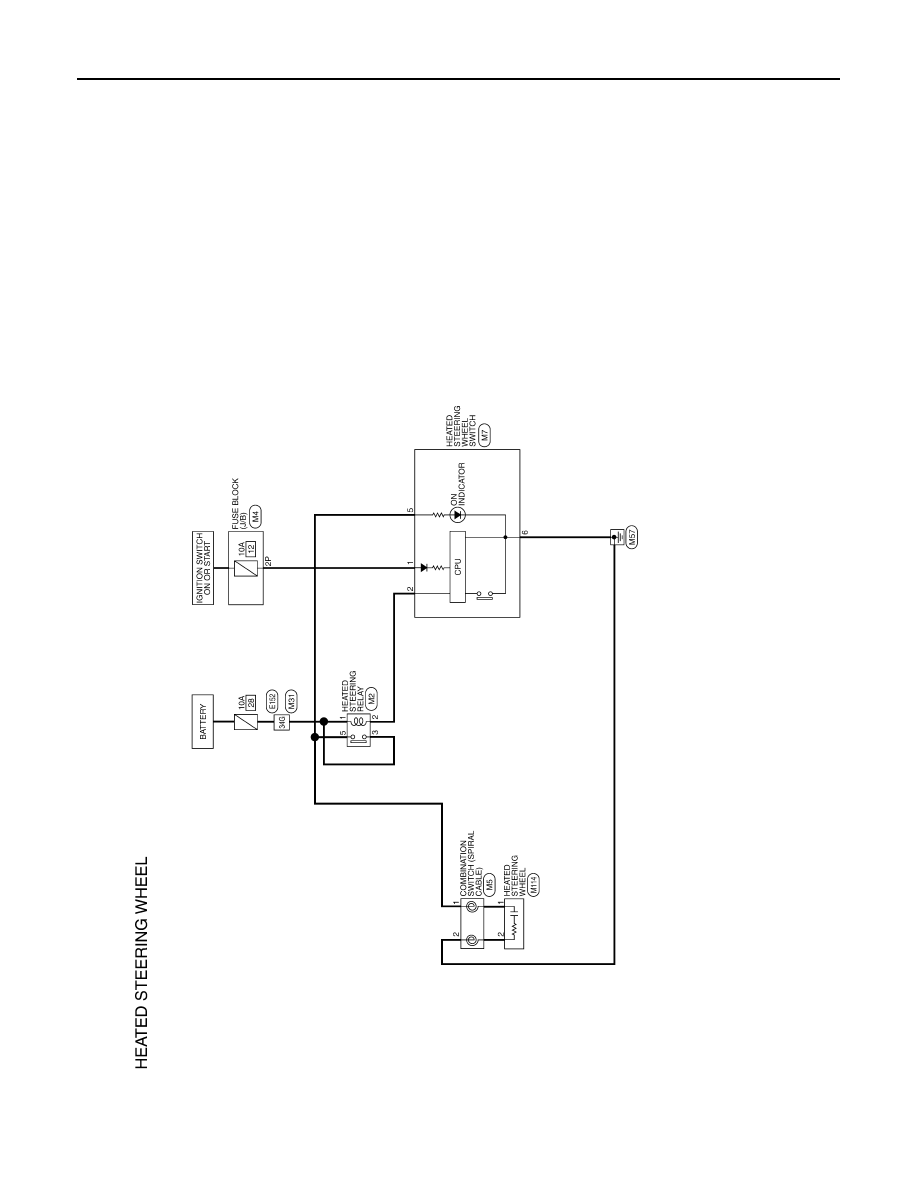

Wiring Diagram

INFOID:0000000007356576

ABGWA0035GB

August 2012

2012 Pathfinder

HEATED STEERING WHEEL

ST-9

< WIRING DIAGRAM >

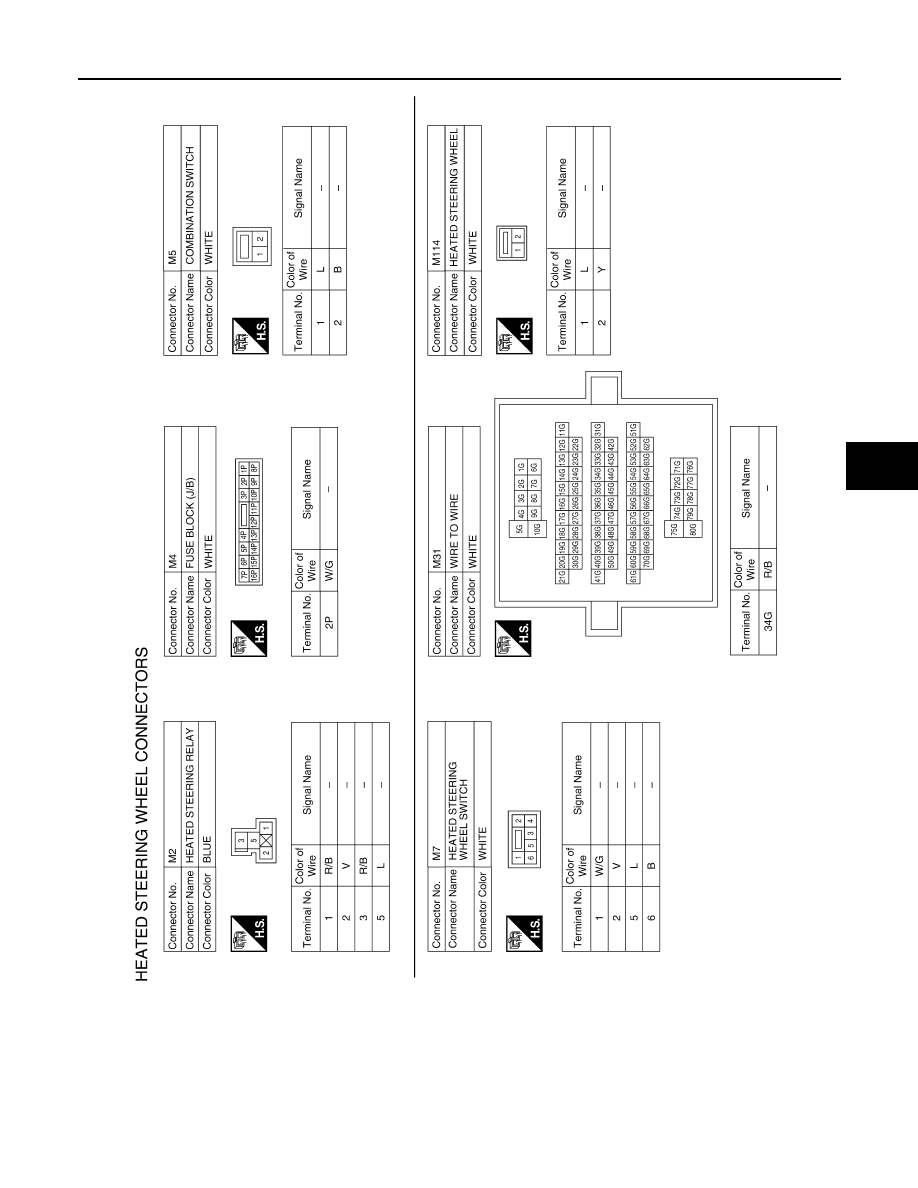

ABGIA0008GB

August 2012

2012 Pathfinder

ST-10

< WIRING DIAGRAM >

HEATED STEERING WHEEL

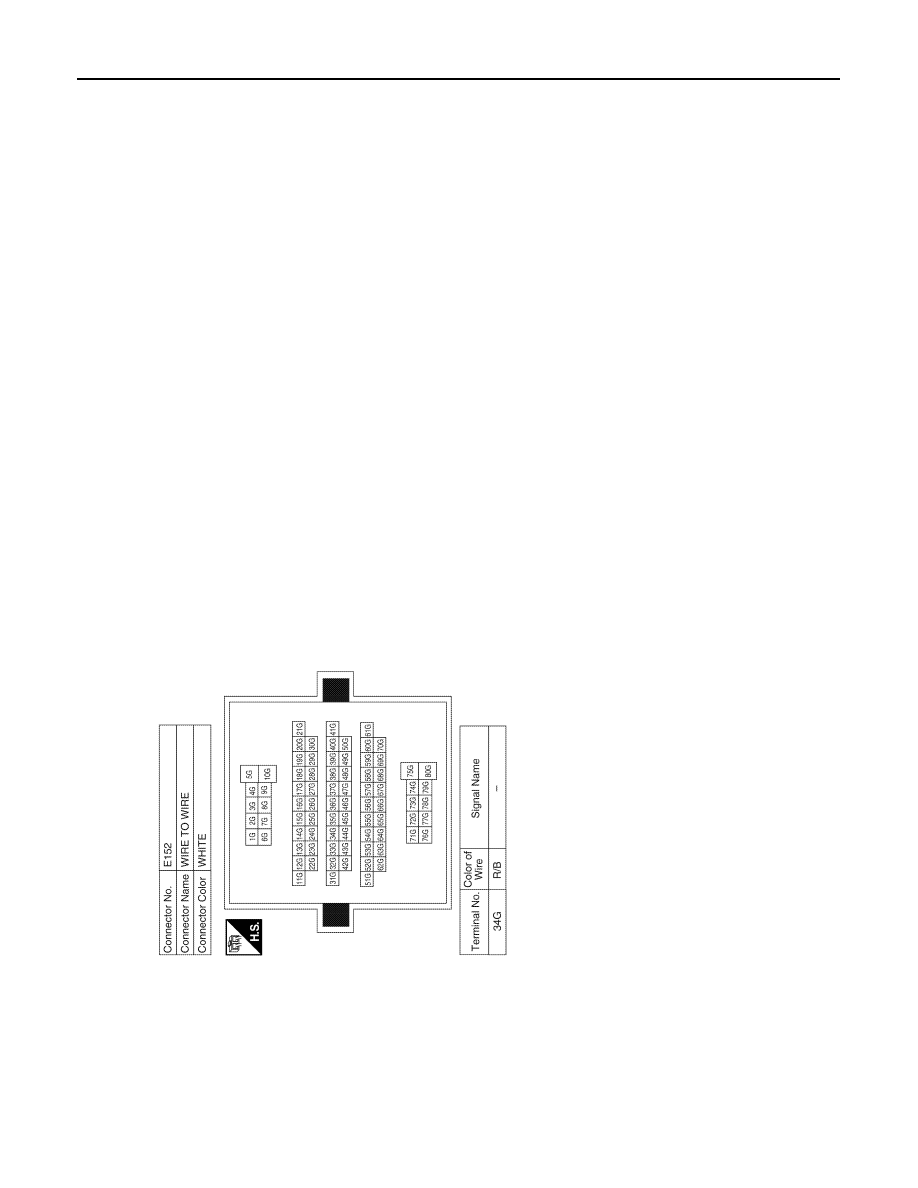

ABGIA0030GB

August 2012

2012 Pathfinder

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

ST-11

< SYMPTOM DIAGNOSIS >

SYMPTOM DIAGNOSIS

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000007356577

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

: Applicable

Reference page

(VQ40D

(VK

56DE)

(2F1

0),

(2S1

0),

(2S1

(R18

0A),

Possible cause and suspected parts

lui

d l

Air i

dra

lic

ter so

cket

ll joi

nt swi

ing

rce

ter so

cket

ll joi

nt rot

ting torq

ter so

ll joi

nt en

tee

rin

g f

lui

lea

ring

whe

l pl

ring

ar rac

k sl

g f

rce

Dri

loo

sene

rop

er s

erin

whee

rop

er i

tal

tio

n o

r lo

s of

til

t lo

ing

er d

ete

rio

rat

ion

tee

rin

g c

form

ion

r da

rop

er i

tal

tio

n o

r lo

s of

ring

olu

eri

e l

PROPE

LLE

R SHAFT

ONT FINAL

DRIVE

L H

SUS

PENSION

ROAD W

EEL

DRIV

E SHAFT

BRA

KES

Symptom

Noise

× × × × × × × ×

× × × × × ×

Shake

× × ×

× × × × × ×

Vibration

× × × × ×

× × ×

Shimmy

× × ×

× × × ×

Shudder

× × × ×
