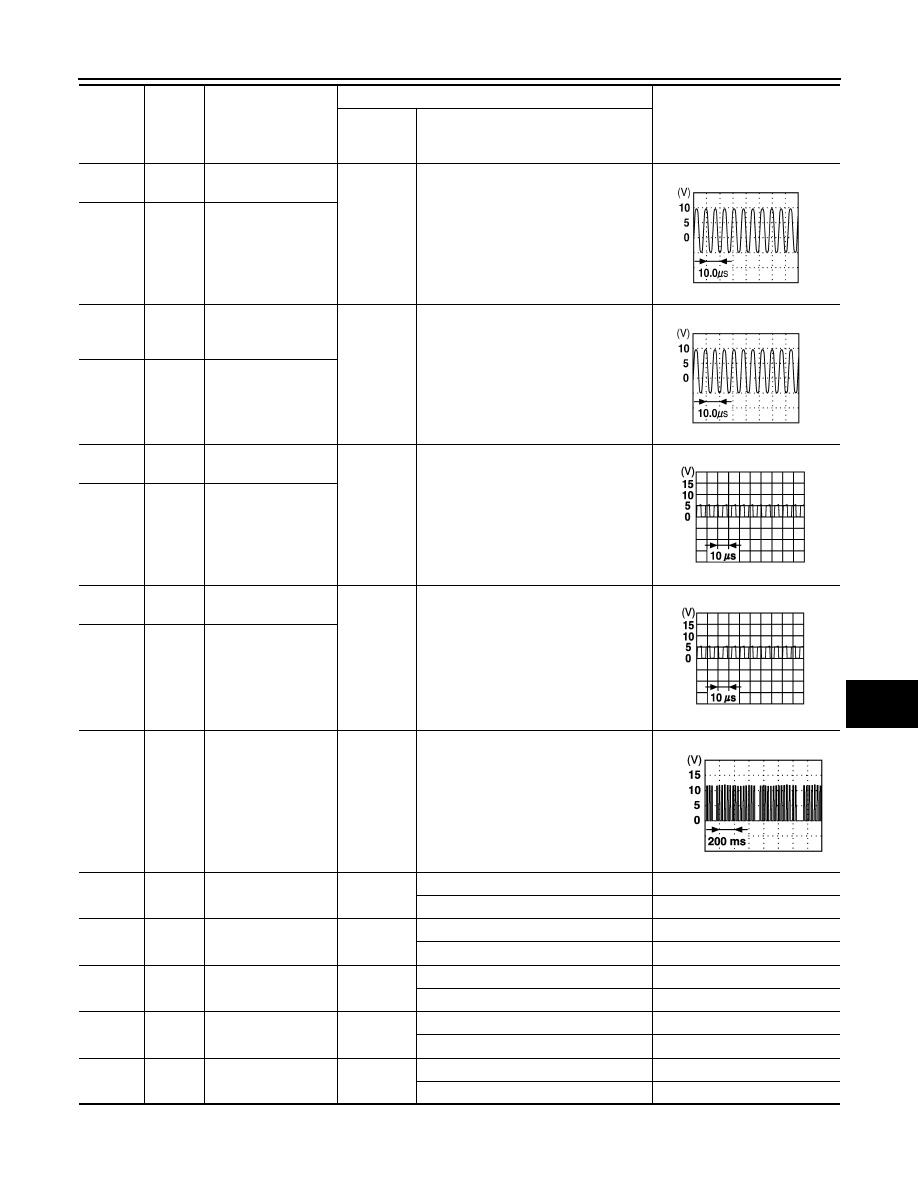

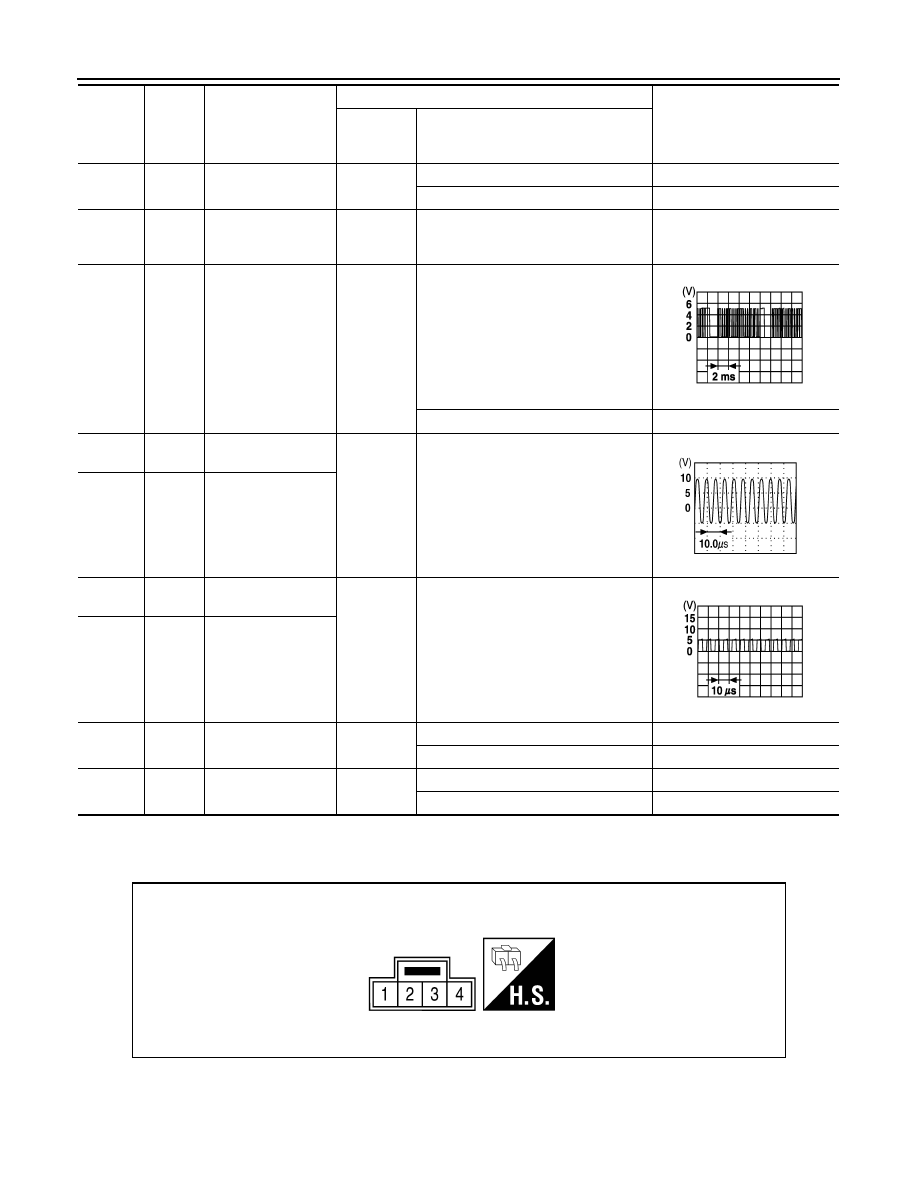

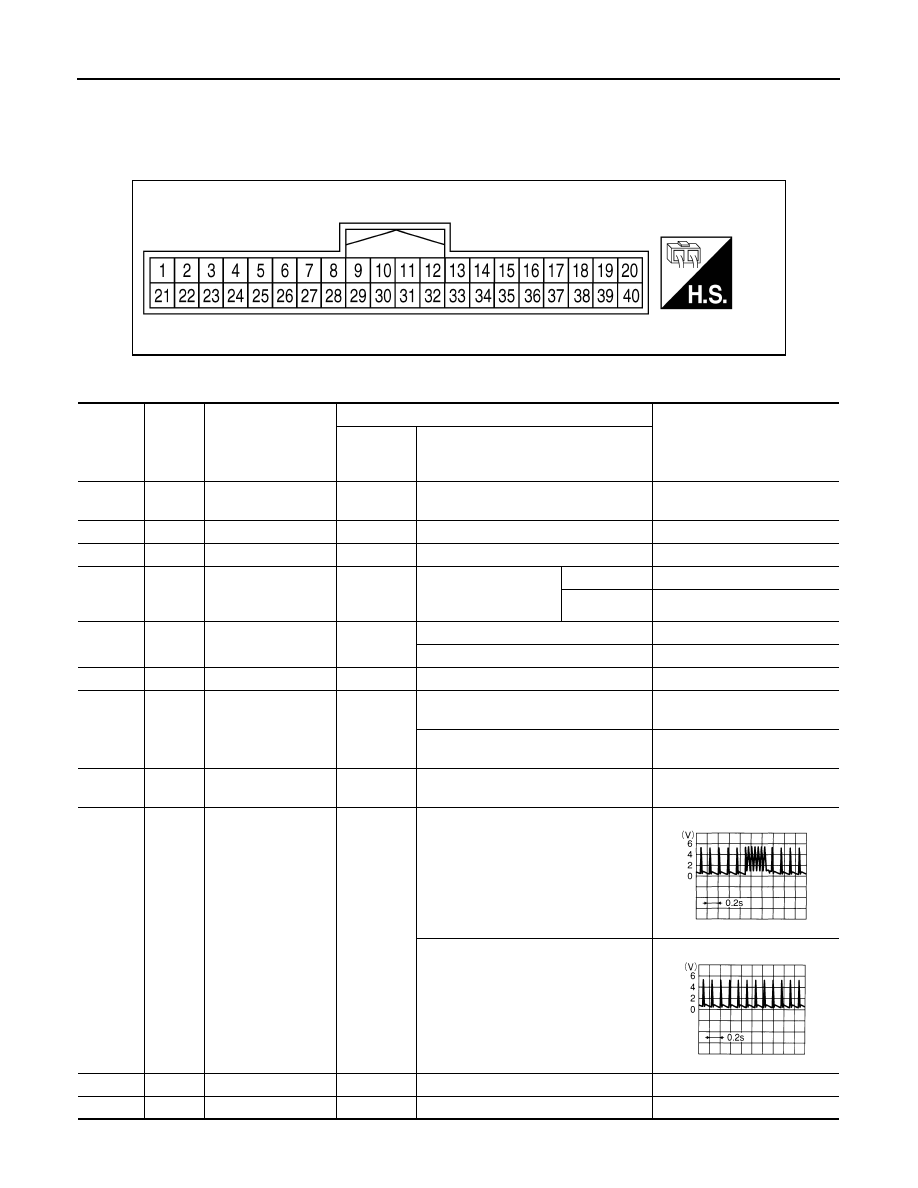

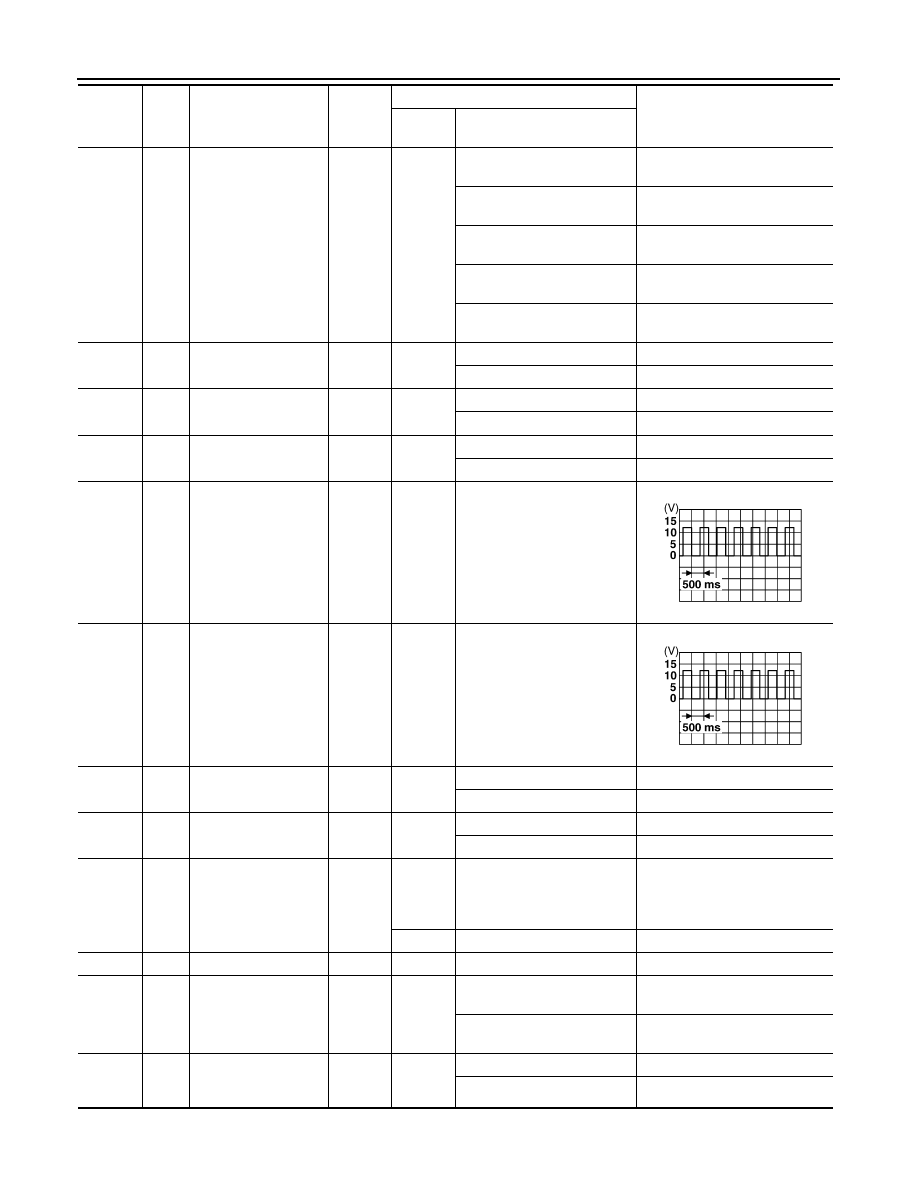

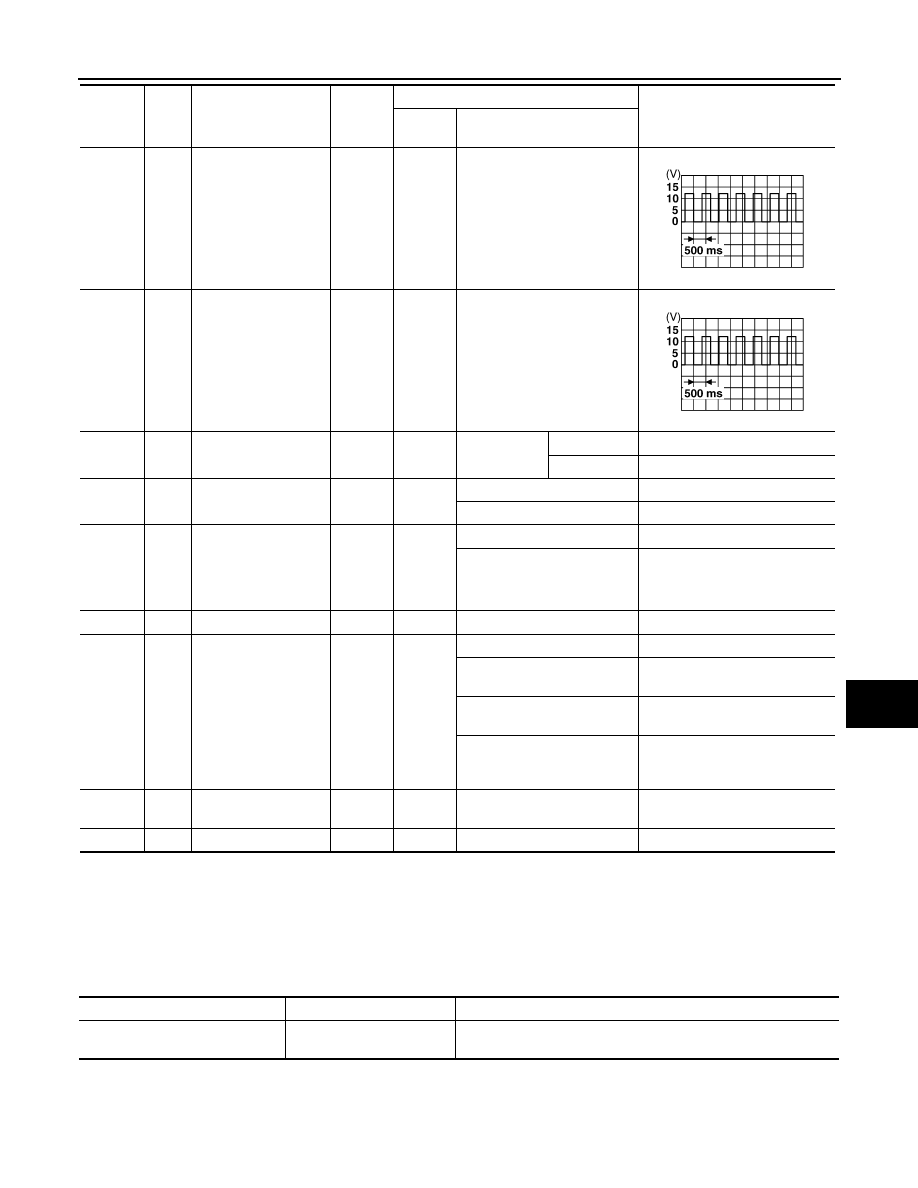

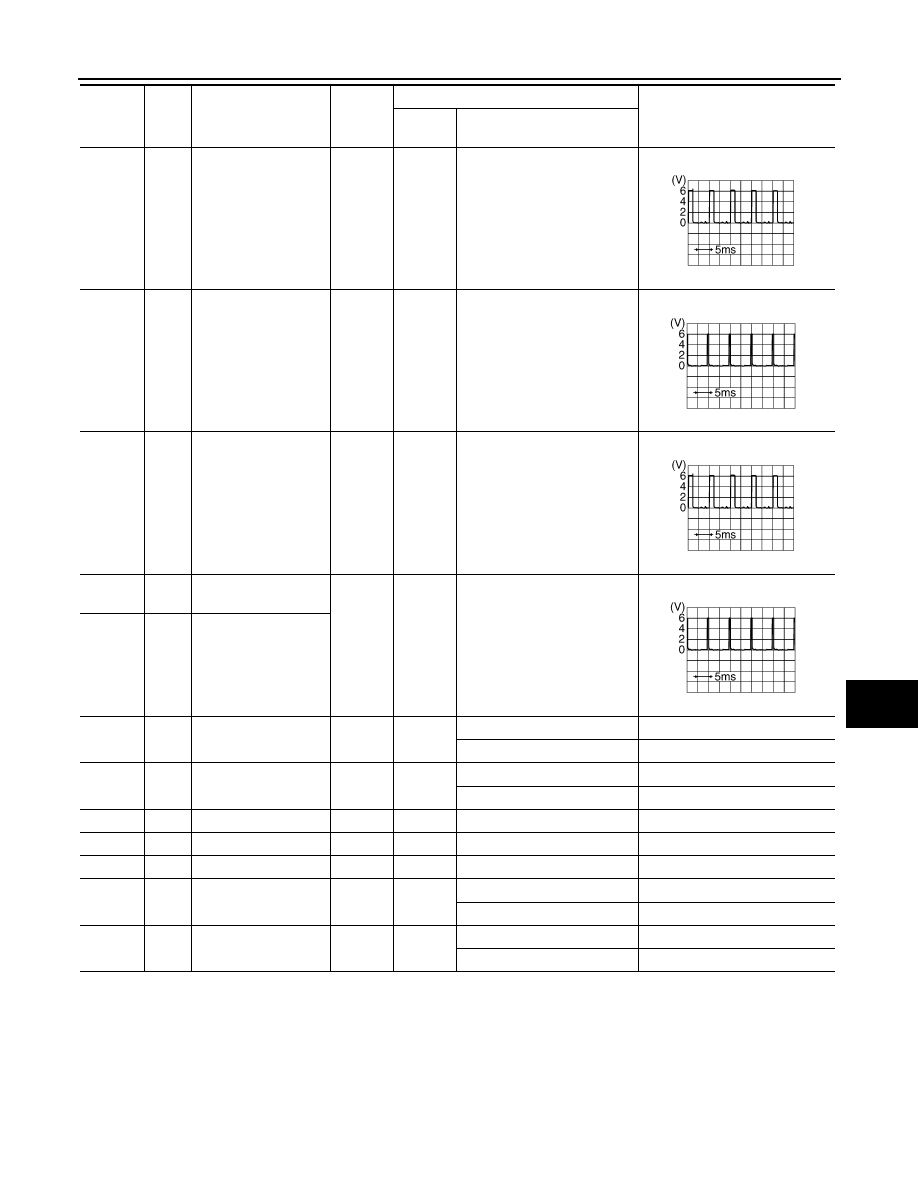

BCM (BODY CONTROL MODULE) SEC-61 < ECU DIAGNOSIS INFORMATION > [WITH INTELLIGENT KEY SYSTEM] C D E F G H I J L M A B SEC N O P 32 O Combination switch Output ON Lighting, turn, wiper OFF 33 GR Combination switch Output ON Lighting, turn, wiper OFF 34 G Combination switch Output ON Lighting, turn, wiper OFF 35 BR Combination switch Output ON Lighting, turn, wiper OFF 36 LG Combination switch 37 1 B Key switch and key Input OFF Key inserted Battery voltage Key inserted 0V 37 2 B Key switch and igni- Input OFF Intelligent Key inserted Battery voltage Intelligent Key inserted 0V 38 W/R Ignition switch (ON) Input ON — Battery voltage 39 L CAN-H — — — — 40 P CAN-L — — — — 42 LG Glass hatch ajar Input ON Glass hatch open 0V Glass hatch closed Battery voltage 43 P Back door latch switch Input OFF ON (open) 0V OFF (closed) Battery voltage Terminal Wire color Signal name Signal input/ output Measuring condition Reference value or waveform (Approx.) Ignition switch Operation or condition SKIA5291E SKIA5292E SKIA5291E SKIA5292E August 2012 2012 Pathfinder 2012 Pathfinder |
