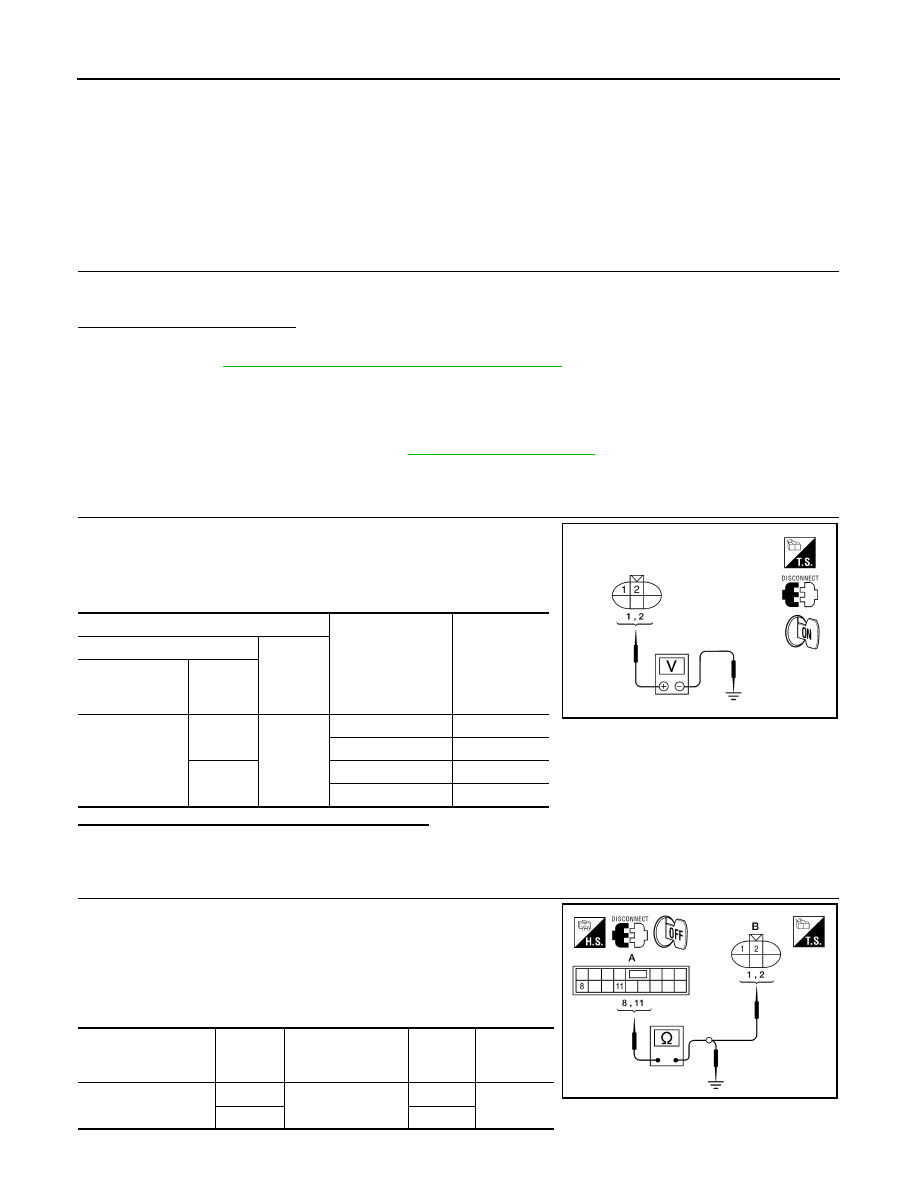

PWC-22

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW MOTOR

POWER WINDOW MOTOR

DRIVER SIDE
DRIVER SIDE : Description

INFOID:0000000007355866

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch.

DRIVER SIDE : Component Function Check

INFOID:0000000007355867

1.

 CHECK POWER WINDOW MOTOR CIRCUIT

Check front power window motor LH operation with operating main power window and door lock/unlock

switch.
Is the inspection result normal?

YES

>> Front power window motor LH is OK.

NO

>> Refer to

PWC-22, "DRIVER SIDE : Diagnosis Procedure"

.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000007355868

Regarding Wiring Diagram information, refer to

PWC-61, "Wiring Diagram"

.

1.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL

1. Disconnect front power window motor LH.

2. Turn ignition switch ON.

3. Check voltage between front power window motor LH connector

and ground.

Is the measurement value within the specification?

YES

>> GO TO 3

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect main power window and door lock/unlock switch and

front power window motor LH.

3. Check continuity between main power window and door lock/

unlock switch connector (A) and front power window motor con-

nector LH (B).

Terminal

Main power win-

dow and door lock/

unlock switch con-

dition

Voltage (V)

(Approx.)

(+)

(–)

Power window

motor LH con-

nector

Terminal

D9

2

Ground

UP

Battery voltage

DOWN

0

1

UP

0

DOWN

Battery voltage

ALKIA1207ZZ

Main power window

and door lock/unlock

switch connector

Terminal

Front power win-

dow motor LH con-

nector

Terminal

Continuity

D7 (A)

8

D9 (B)

2

Yes

11

1

ALKIA1710ZZ

August 2012

2012 Pathfinder

POWER WINDOW MOTOR

PWC-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

4. Check continuity between main power window and door lock/unlock switch connector (A) and ground.

Is the inspection result normal?

YES

>> Replace main power window and door lock/unlock switch. Refer to

PWC-85, "Removal and Instal-

lation"

.

NO

>> Repair or replace harness.

3.

 CHECK POWER WINDOW MOTOR

Check front power window motor LH.

Refer to

PWC-23, "DRIVER SIDE : Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

NO

>> Replace power window motor LH. Refer to

GW-19, "Rear Door Glass Regulator"

.

DRIVER SIDE : Component Inspection

INFOID:0000000007355869

COMPONENT INSPECTION

1.

 CHECK FRONT POWER WINDOW MOTOR LH

Check motor operation by connecting the battery voltage directly to power window motor.

Is the inspection result normal?

YES

>> Front power window motor LH is OK.

NO

>> Replace front power window motor LH. Refer to

GW-15, "Front Door Glass Regulator"

.

PASSENGER SIDE
PASSENGER SIDE : Description

INFOID:0000000007355870

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or

power window and door lock/unlock switch RH.

PASSENGER SIDE : Component Function Check

INFOID:0000000007355871

1.

 CHECK POWER WINDOW MOTOR CIRCIUT

Check power window motor operation with operating main power window and door lock/unlock switch or

power window and door lock/unlock switch RH.
Is the inspection result normal?

YES

>> Front power window motor RH is OK.

NO

>> Refer to

PWC-23, "PASSENGER SIDE : Diagnosis Procedure"

.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000007355872

Regarding Wiring Diagram information, refer to

PWC-61, "Wiring Diagram"

.

1.

 CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL

Main power window and door

lock/unlock switch connector

Terminal

Ground

Continuity

D7 (A)

8

No

11

Terminal

Motor condition

(+)

(–)

1

2

DOWN

2

1

UP

August 2012

2012 Pathfinder

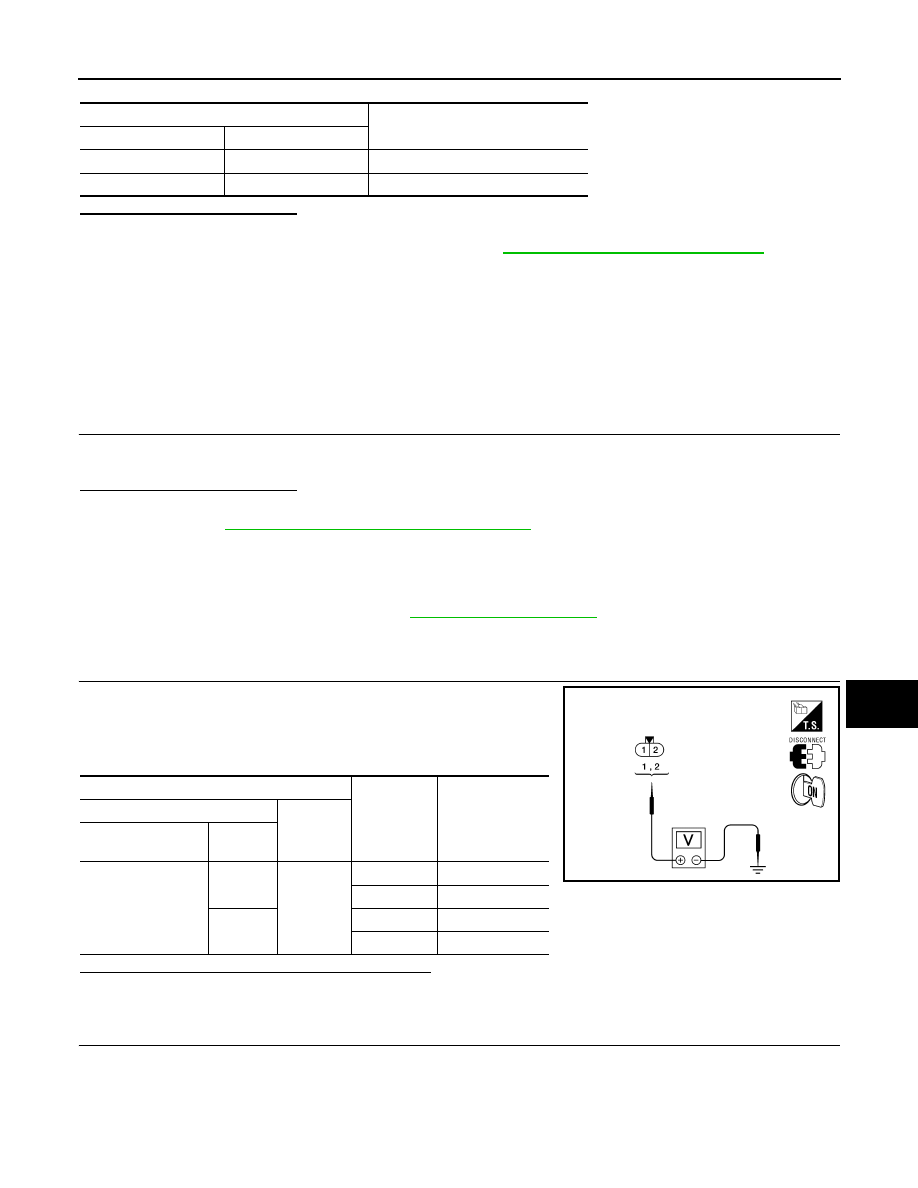

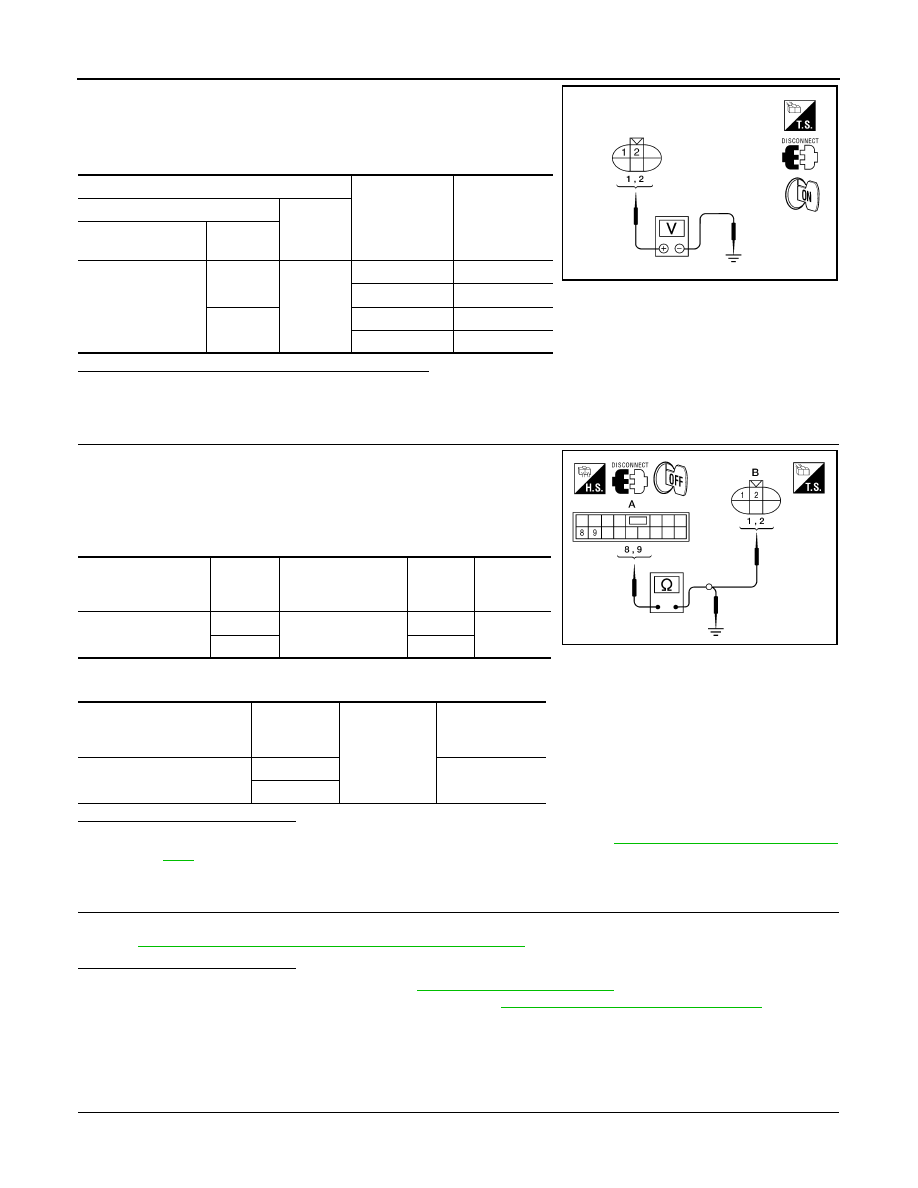

PWC-24

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW MOTOR

1. Disconnect front power window motor RH.

2. Turn ignition switch ON.

3. Check voltage between front power window motor RH connector

and ground.

Is the measurement value within the specification?

YES

>> GO TO 3

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect power window and door lock/unlock switch RH.

3. Check continuity between power window and door lock/unlock

switch RH connector (A) and front power window motor RH con-

nector (B).

4. Check continuity between power window and door lock/unlock switch RH connector (A) and ground.

Is the inspection result normal?

YES

>> Replace power window and door lock/unlock switch RH. Refer to

PWC-86, "Removal and Installa-

tion"

.

NO

>> Repair or replace harness.

3.

 CHECK FRONT POWER WINDOW MOTOR RH

Check front power window motor RH.

Refer to

PWC-24, "PASSENGER SIDE : Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

NO

>> Replace front power window motor RH. Refer to

GW-15, "Front Door Glass Regulator"

.

PASSENGER SIDE : Component Inspection

INFOID:0000000007355873

COMPONENT INSPECTION

1.

 CHECK FRONT POWER WINDOW MOTOR RH

Check motor operation by connecting the battery voltage directly to front power window motor RH.

Terminal

Front power

window motor

RH condition

Voltage (V)

(Approx.)

(+)

(–)

Front power window
motor RH connector

Terminal

D104

2

Ground

UP

Battery voltage

DOWN

0

1

UP

0

DOWN

Battery voltage

ALKIA1207ZZ

Power window and

door lock/unlock

switch RH connector

Terminal

Front power window
motor RH connector

Terminal

Continuity

D105 (A)

8

D104 (B)

2

Yes

9

1

Power window and door

lock/unlock switch RH con-

nector

Terminal

Ground

Continuity

D105 (A)

8

No

9

ALKIA1711ZZ

August 2012

2012 Pathfinder

POWER WINDOW MOTOR

PWC-25

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> Front power window motor RH is OK.

NO

>> Replace front power window motor RH. Refer to

GW-15, "Front Door Glass Regulator"

.

REAR LH
REAR LH : Description

INFOID:0000000007355874

Door glass moves UP/DOWN by receiving the signal from power window main switch or rear power window

switch LH.

REAR LH : Component Function Check

INFOID:0000000007355875

1.

 CHECK REAR POWER WINDOW MOTOR LH CIRCUIT

Check rear power window motor LH operation with main power window and door lock/unlock switch or rear

power window switch LH.
Is the inspection result normal?

YES

>> Rear power window motor LH is OK.

NO

>> Refer to

PWC-25, "REAR LH : Diagnosis Procedure"

REAR LH : Diagnosis Procedure

INFOID:0000000007355876

Regarding Wiring Diagram information, refer to

PWC-61, "Wiring Diagram"

.

1.

 CHECK REAR POWER WINDOW SWITCH OUTPUT SIGNAL

1. Disconnect rear power window motor LH.

2. Turn ignition switch ON.

3. Check voltage between rear power window motor LH connector

and ground.

Is the measurement value within the specification?

YES

>> GO TO 3

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

Terminal

Motor condition

(+)

(–)

1

2

DOWN

2

1

UP

Terminal

Window

condition

Voltage (V)

(Approx.)

(+)

(–)

Rear power window
motor LH connector

Terminal

D204

1

Ground

UP

0

DOWN

Battery voltage

2

UP

Battery voltage

DOWN

0

LIIA2228E

August 2012

2012 Pathfinder

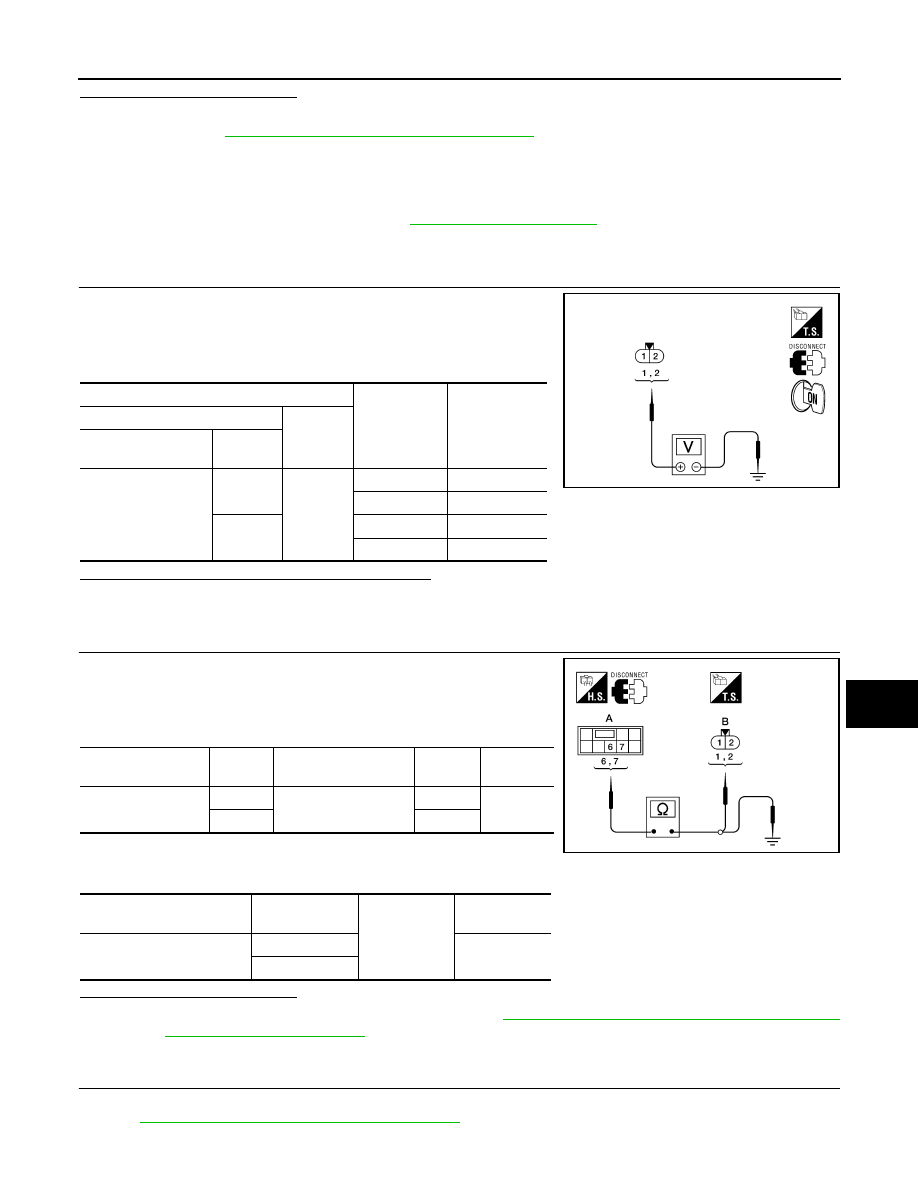

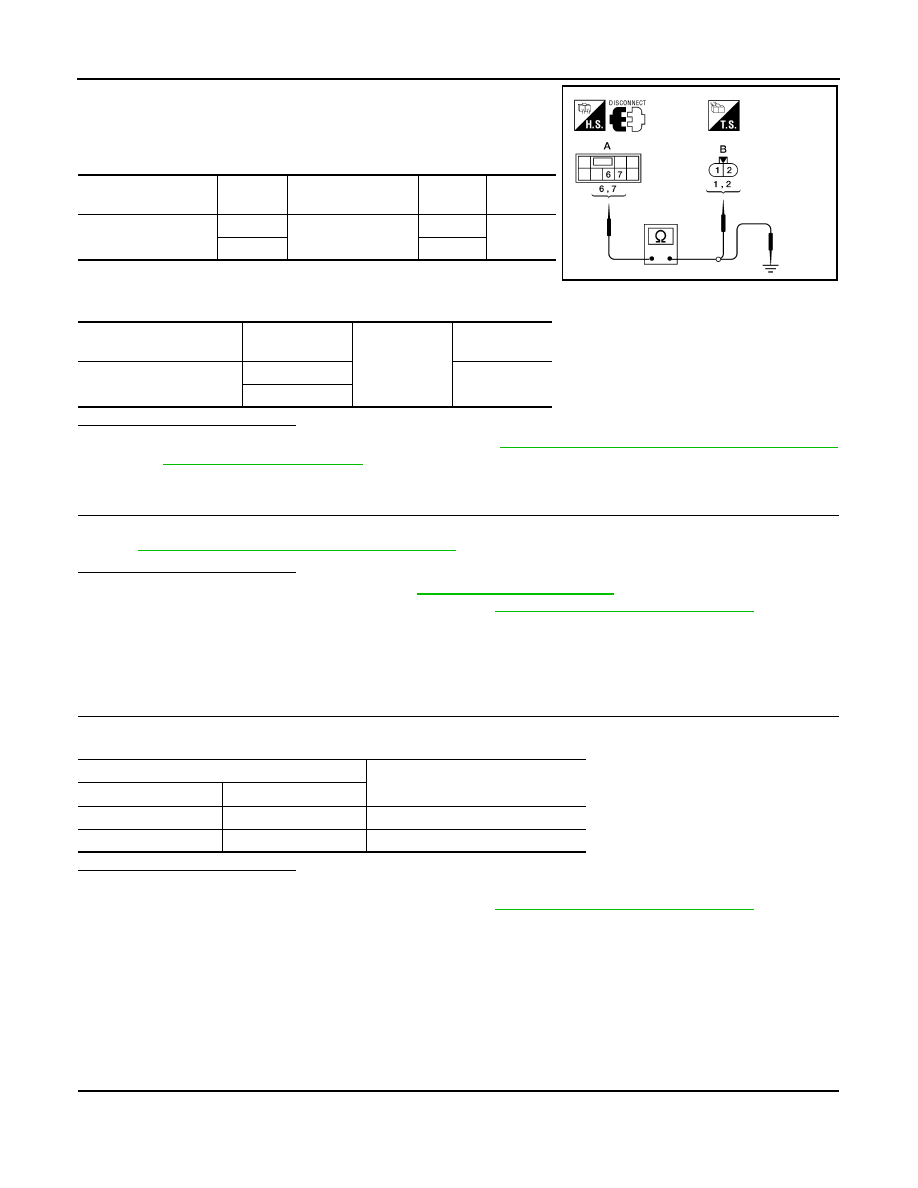

PWC-26

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW MOTOR

1. Turn ignition switch OFF.

2. Disconnect rear power window switch LH.

3. Check continuity between rear power window switch LH connec-

tor (A) and rear power window motor LH connector (B).

4. Check continuity between rear power window switch LH connec-

tor (A) and ground.

Is the inspection result normal?

YES

>> Check rear power window switch LH. Refer to

PWC-19, "REAR POWER WINDOW SWITCH :

Component Function Check"

.

NO

>> Repair or replace harness.

3.

 CHECK REAR POWER WINDOW MOTOR LH

Check rear power window motor LH.

Refer to

PWC-26, "REAR LH : Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

NO

>> Replace rear power window motor LH. Refer to

GW-19, "Rear Door Glass Regulator"

.

REAR LH : Component Inspection

INFOID:0000000007355877

COMPONENT INSPECTION

1.

 CHECK REAR POWER WINDOW MOTOR LH

Check motor operation by connecting the battery voltage directly to rear power window motor LH.

Is the inspection result normal?

YES

>> Rear power window motor LH is OK.

NO

>> Replace rear power window motor LH. Refer to

GW-19, "Rear Door Glass Regulator"

.

REAR RH
REAR RH : Description

INFOID:0000000007355878

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or

rear power window switch RH.

REAR RH : Component Function Check

INFOID:0000000007355879

1.

 CHECK REAR POWER WINDOW MOTOR RH CIRCUIT

Check rear power window motor RH operation with operating main power window and door lock/unlock switch

or rear power window switch RH.

Rear power window

switch LH connector

Terminal

Rear power window
motor LH connector

Terminal

Continuity

D203 (A)

6

D204 (B)

1

Yes

7

2

Rear power window switch

LH connector

Terminal

Ground

Continuity

D203 (A)

6

No

7

LIIA2229E

Terminal

Motor condition

(+)

(–)

2

1

UP

1

2

DOWN

August 2012

2012 Pathfinder

POWER WINDOW MOTOR

PWC-27

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> Rear power window motor RH is OK.

NO

>> Refer to

PWC-27, "REAR RH : Diagnosis Procedure"

.

REAR RH : Diagnosis Procedure

INFOID:0000000007355880

Regarding Wiring Diagram information, refer to

PWC-61, "Wiring Diagram"

.

1.

 CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

1. Disconnect rear power window motor RH.

2. Turn ignition switch ON.

3. Check voltage between rear power window motor RH connector

and ground.

Is the measurement value within the specification?

YES

>> GO TO 3

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect rear power window switch RH.

3. Check continuity between rear power window switch RH con-

nector (A) and rear power window motor RH connector (B).

4. Check continuity between rear power window switch RH con-

nector (A) and ground.

Is the inspection result normal?

YES

>> Check rear power window switch RH. Refer to

PWC-19, "REAR POWER WINDOW SWITCH :

Component Function Check"

.

NO

>> Repair or replace harness.

3.

 CHECK REAR POWER WINDOW MOTOR RH

Check rear power window motor RH.

Refer to

PWC-28, "REAR RH : Component Inspection"

.

Terminal

Rear power

window switch

RH condition

Voltage (V)

(Approx.)

(+)

(–)

Rear power window

motor RH connector

Terminal

D304

1

Ground

UP

0

DOWN

Battery voltage

2

UP

Battery voltage

DOWN

0

LIIA2228E

Rear power window

switch RH connector

Terminal

Rear power window

motor RH connector

Terminal

Continuity

D303 (A)

6

D304 (B)

1

Yes

7

2

Rear power window switch

RH connector

Terminal

Ground

Continuity

D303 (A)

6

No

7

LIIA2229E

August 2012

2012 Pathfinder

PWC-28

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW MOTOR

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

NO

>> Replace rear power window motor RH. Refer to

GW-19, "Rear Door Glass Regulator"

.

REAR RH : Component Inspection

INFOID:0000000007355881

COMPONENT INSPECTION

1.

 CHECK REAR POWER WINDOW MOTOR RH

Check motor operation by connecting the battery voltage directly to rear power window motor RH.

Is the inspection result normal?

YES

>> Rear power window motor RH is OK.

NO

>> Replace rear power window motor RH. Refer to

GW-19, "Rear Door Glass Regulator"

.

Terminal

Motor condition

(+)

(–)

2

1

UP

1

2

DOWN

August 2012

2012 Pathfinder

ENCODER

PWC-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ENCODER

DRIVER SIDE
DRIVER SIDE : Description

INFOID:0000000007355882

Detects condition of the front power window motor LH operation and transmits to main power window and door

lock/unlock switch as pulse signal.

DRIVER SIDE : Component Function Check

INFOID:0000000007355883

1.

 CHECK ENCODER OPERATION

Check front door glass LH perform AUTO open/close operation normally when operating main power window

and door lock/unlock switch.
Is the inspection result normal?

YES

>> Encoder operation is OK.

NO

>> Refer to

PWC-29, "DRIVER SIDE : Diagnosis Procedure"

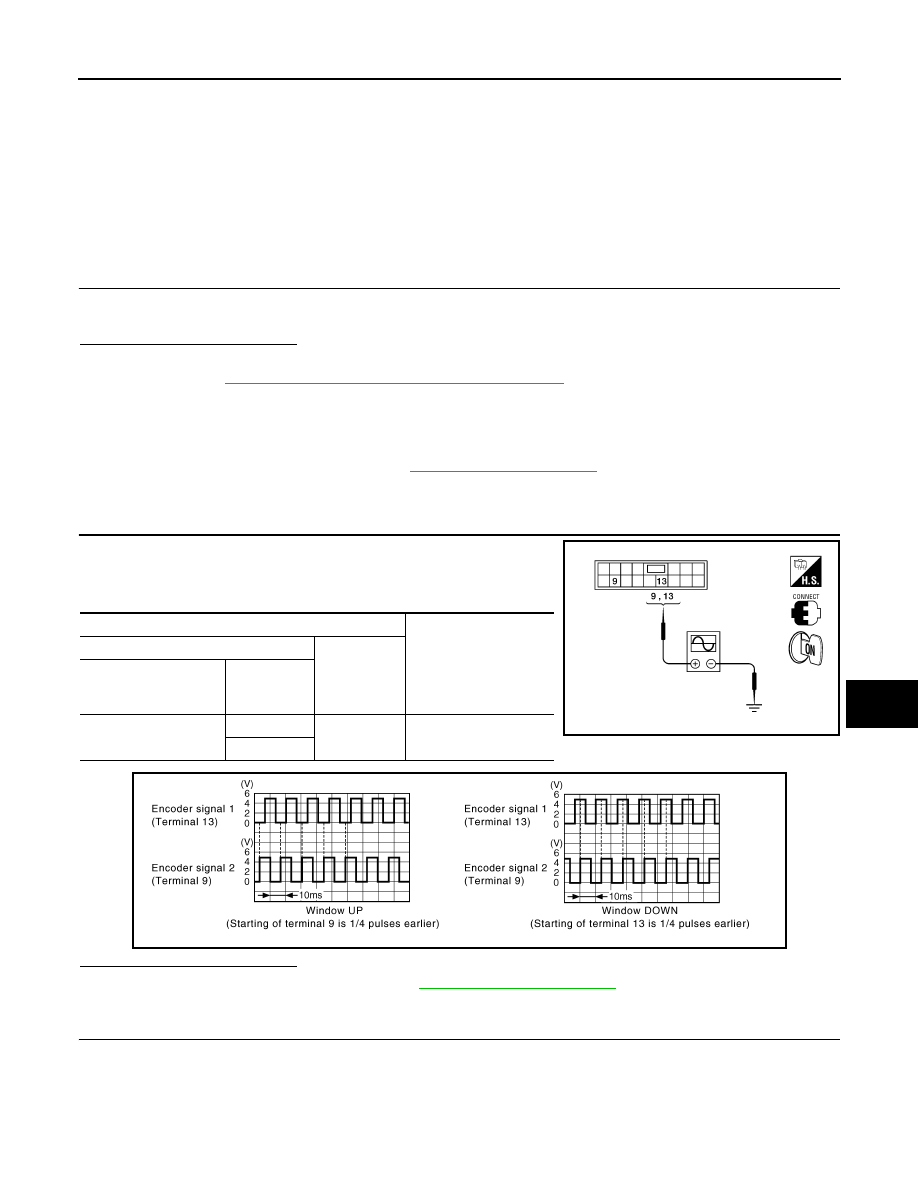

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000007355884

Regarding Wiring Diagram information, refer to

PWC-61, "Wiring Diagram"

.

1.

 CHECK ENCODER OPERATION

1. Turn ignition switch ON.

2. Check signal between main power window and door lock/unlock

switch connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

NO

>> GO TO 2

2.

 CHECK FRONT POWER WINDOW MOTOR LH POWER SUPPLY

Terminals

Signal

(Reference value)

(+)

(–)

 Main power window

and door lock/unlock

switch connector

Terminal

D7

9

Ground

Refer to following signal

13

ALKIA0295ZZ

JMKIA0220GB

August 2012

2012 Pathfinder
