IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-75

< DTC/CIRCUIT DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

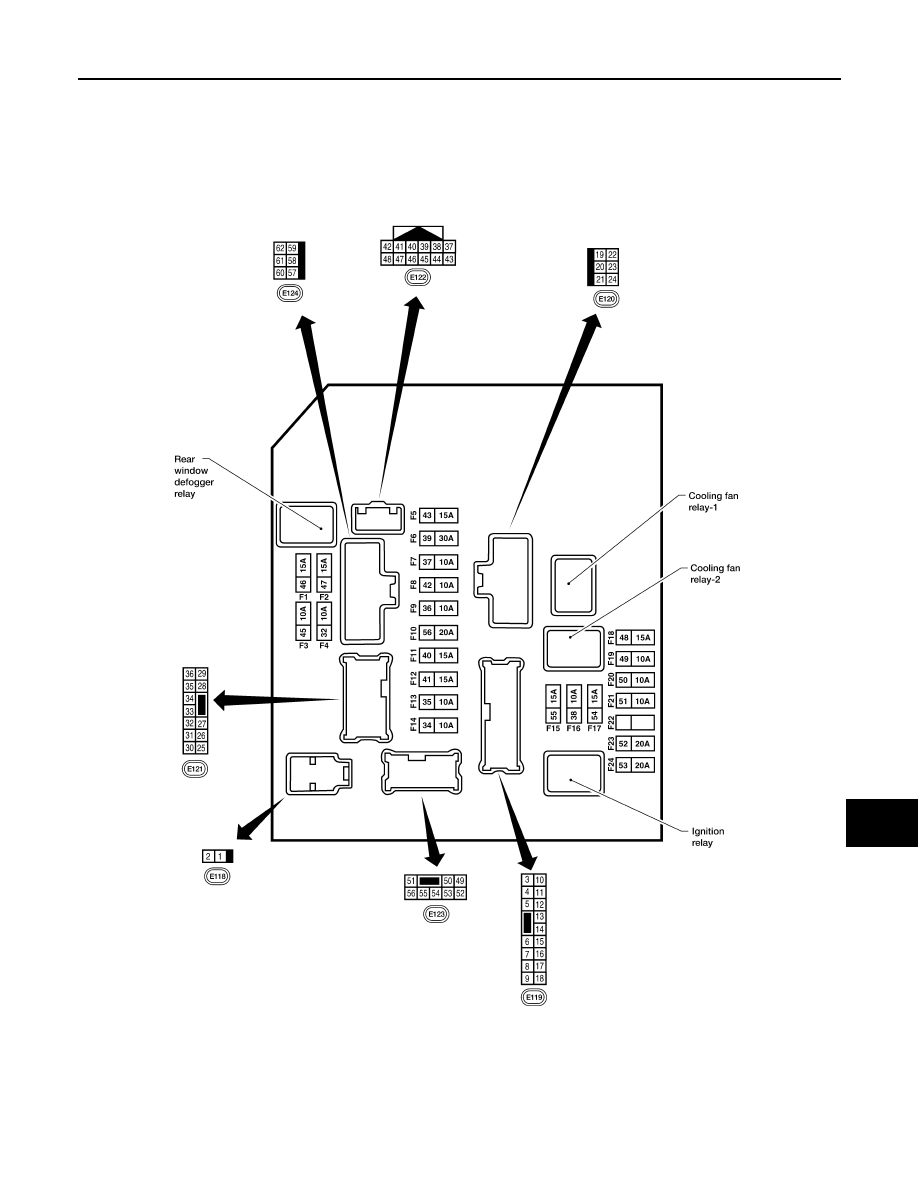

IPDM E/R Terminal Arrangement

INFOID:0000000007355085

NOTE:

Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers

represent the fuse numbers as they appear in the wiring diagrams.

ABMIA2561GB

August 2012

2012 Pathfinder

PG-76

< REMOVAL AND INSTALLATION >

BATTERY

REMOVAL AND INSTALLATION

BATTERY

Removal and Installation

INFOID:0000000007355086

REMOVAL

1. Disconnect both negative and positive battery terminals.

CAUTION:

• Before servicing, turn the ignition switch off and wait at

least three minutes.

• Disconnect negative battery terminal first.

2. Remove battery clamp nuts and battery clamp.
3. Remove battery cover.
4. Remove battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When connecting battery terminals, connect positive battery terminal first.

Reset electronic systems as necessary. Refer to

PG-8, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

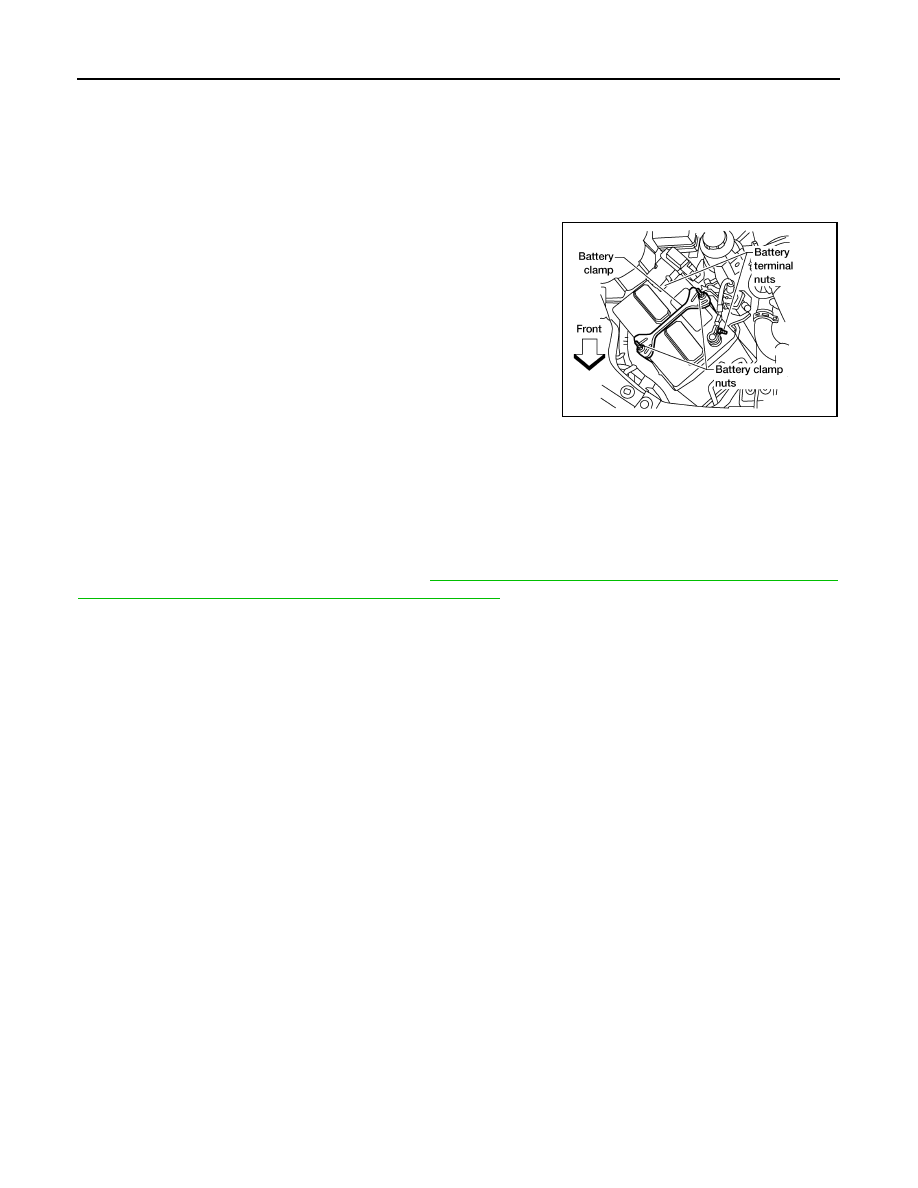

WKIA3188E

Battery clamp nuts

: 3.92 N·m (0.40 kg-m, 35 in-lb)

Battery terminal nut

: 3.4 N·m (0.35 kg-m, 30 in-lb)

August 2012

2012 Pathfinder

BATTERY

PG-77

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

BATTERY

Battery

INFOID:0000000007355087

*: Always check with the Parts Department for the latest parts information.

Application

VQ40DE

VK56DE

Type*

GR35

GR24F

Capacity (20 HR) minimum V-AH

12-60

12-70

Cold cranking current A
[For reference value at -18

C (0

F)]

550

650

August 2012

2012 Pathfinder

PWC-2

PASSENGER SIDE : Component Inspection .........

REAR LH ...................................................................

REAR LH : Description ...........................................

REAR LH : Component Function Check ................

REAR LH : Diagnosis Procedure ............................

REAR LH : Component Inspection .........................

REAR RH ..................................................................

REAR RH : Description ..........................................

REAR RH : Component Function Check ................

REAR RH : Diagnosis Procedure ...........................

REAR RH : Component Inspection ........................

ENCODER .........................................................

DRIVER SIDE ............................................................

DRIVER SIDE : Description ....................................

DRIVER SIDE : Component Function Check .........

DRIVER SIDE : Diagnosis Procedure ....................

PASSENGER SIDE ...................................................

PASSENGER SIDE : Description ...........................

PASSENGER SIDE : Component Function Check

...

PASSENGER SIDE : Diagnosis Procedure ...........

DOOR SWITCH .................................................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

Component Inspection ............................................

DOOR KEY CYLINDER SWITCH ......................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

Component Inspection ............................................

POWER WINDOW SERIAL LINK .....................

POWER WINDOW MAIN SWITCH ...........................

POWER WINDOW MAIN SWITCH : Description ...

POWER WINDOW MAIN SWITCH : Component
Function Check .......................................................

POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ...............................................................

FRONT POWER WINDOW SWITCH ........................

FRONT POWER WINDOW SWITCH : Descrip-
tion ..........................................................................

FRONT POWER WINDOW SWITCH : Compo-
nent Function Check ...............................................

FRONT POWER WINDOW SWITCH : Diagnosis
Procedure ...............................................................

POWER WINDOW LOCK SWITCH ...................

Description ..............................................................

Component Function Check ...................................

ECU DIAGNOSIS INFORMATION ..............

POWER WINDOW MAIN SWITCH ...................

Reference Value .....................................................

Fail Safe .................................................................

FRONT POWER WINDOW SWITCH ................

Reference Value .....................................................

Fail Safe .................................................................

BCM (BODY CONTROL MODULE) ..................

Reference Value .....................................................

Terminal Layout ......................................................

Physical Values .......................................................

Fail Safe .................................................................

DTC Inspection Priority Chart ...............................

DTC Index ..............................................................

WIRING DIAGRAM ....................................

POWER WINDOW SYSTEM .............................

Wiring Diagram .......................................................

SYMPTOM DIAGNOSIS ............................

NONE OF THE POWER WINDOWS CAN BE
OPERATED USING ANY SWITCH ...................

Diagnosis Procedure ...............................................

DRIVER SIDE POWER WINDOW ALONE
DOES NOT OPERATE ......................................

Diagnosis Procedure ...............................................

FRONT PASSENGER SIDE POWER WIN-
DOW ALONE DOES NOT OPERATE ...............

Diagnosis Procedure ...............................................

REAR LH SIDE POWER WINDOW ALONE
DOES NOT OPERATE ......................................

Diagnosis Procedure ...............................................

REAR RH SIDE POWER WINDOW ALONE
DOES NOT OPERATE ......................................

Diagnosis Procedure ...............................................

ANTI-PINCH SYSTEM DOES NOT OPERATE
NORMALLY (DRIVER SIDE) ............................

Diagnosis Procedure ...............................................

ANTI-PINCH SYSTEM DOES NOT OPERATE
NORMALLY (PASSENGER SIDE) ...................

Diagnosis Procedure ...............................................

AUTO OPERATION DOES NOT OPERATE
BUT MANUAL OPERATES NORMALLY
(DRIVER SIDE) ..................................................

Diagnosis Procedure ...............................................

AUTO OPERATION DOES NOT OPERATE
BUT MANUAL OPERATES NORMALLY
(PASSENGER SIDE) .........................................

Diagnosis Procedure ...............................................

August 2012

2012 Pathfinder

PWC-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000007355843

DETAILED FLOW

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred) as much as possible when the customer brings the vehicle in.

>> GO TO 2

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.

Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 3

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 2 and then identify where to start per-

forming the diagnosis based on possible causes and symptoms.

>> GO TO 4

IDENTIFY THE MALFUNCTIONING PARTS WITH “DTC/CIRCUIT DIAGNOSIS”

Perform the diagnosis with “DTC/Circuit diagnosis” of the applicable system.

>> GO TO 5

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 6

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,

referring to the symptom inspection result in step 2.
Are the malfunctions corrected?

YES

>> Inspection End.

>> GO TO 3

August 2012

2012 Pathfinder

INSPECTION AND ADJUSTMENT

PWC-5

< BASIC INSPECTION >

PWC

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL
ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : De-
scription

INFOID:0000000007355844

NOTE:

ANTI-PINCH SYSTEM

If any of the following work has been done Initial setting is necessary.

• Power supply to the power window main switch or power window motor is cut off by the removal

of battery terminal or the battery fuse is blown.

• Disconnection and connection of power window main switch harness connector.

• Power window motor or regulator is replaced.

• Removal and installation of glass.

• Removal and installation of door glass run.

• Window is partly opened and/or closed many times without being fully closed.

NOTE:

The following specified operations can not be performed under the non-initialized condition.

• Auto-up operation

Refer to

PWC-5, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Special

Repair Requirement"

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement

INFOID:0000000007355845

INITIALIZATION PROCEDURE

After installing each component, perform the following procedure to reset the limit switch.

1. Raise the glass to the top position.

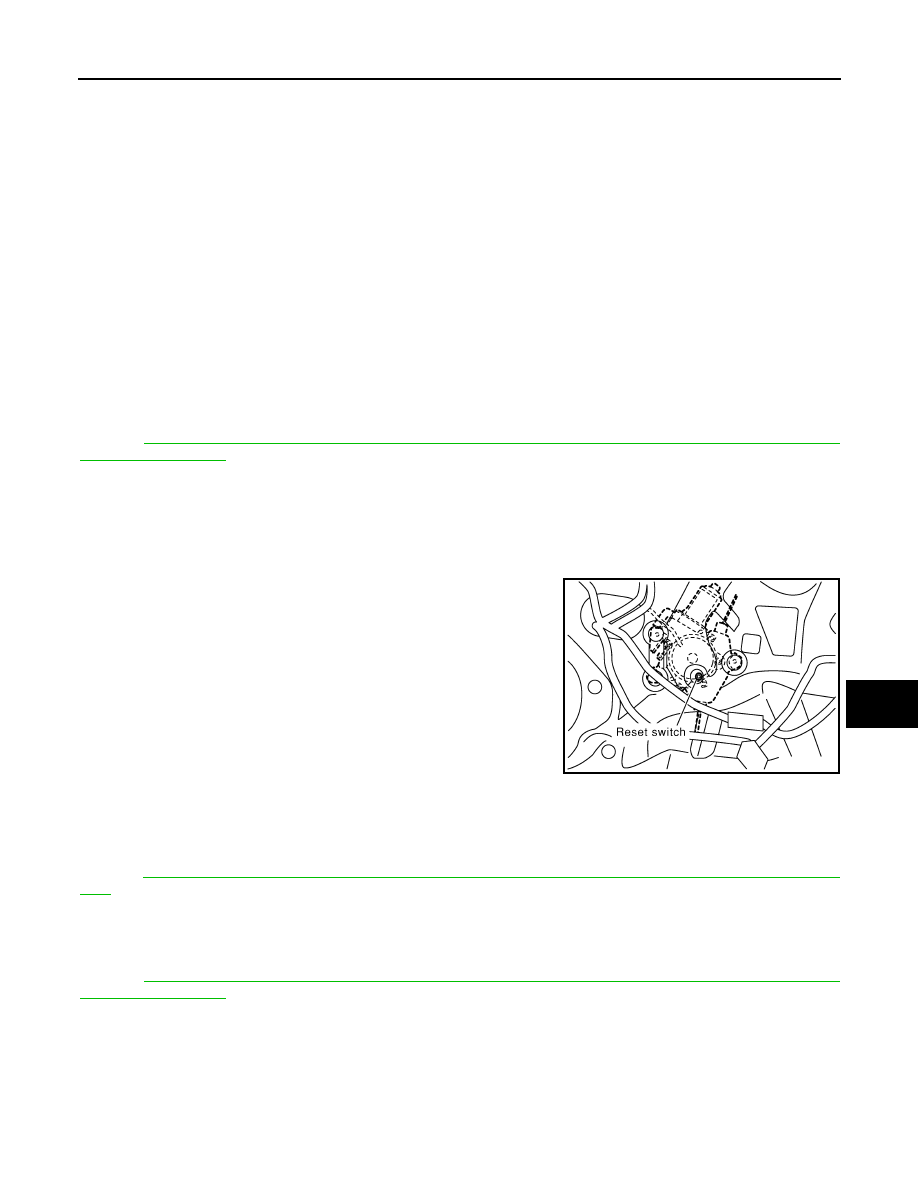

2. While pressing and holding the reset switch, lower the glass to

the bottom position.

3. Release the reset switch. Verify that the reset switch returns to

the original position, if not, pull the switch using suitable tool.

CAUTION:

Do not operate the glass automatically to raise the glass to

the top position.

Raise the glass to the top position.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000007355846

Refer to

PWC-5, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Descrip-

tion"

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000007355847

Refer to

PWC-5, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Special

Repair Requirement"

for initialization procedure and check anti-pinch function.

SIIA0347E
