TRANSFER FLUID
TRANSFER FLUID : ATX14B

INFOID:0000000007347387

TRANSFER FLUID : Inspection

INFOID:0000000007347388

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-11, "FOR

USA AND CANADA : Introduction to Periodic Maintenance"

 (United Sates and Canada) or

MA-15,

"FOR MEXICO : Periodic Maintenance Schedule"

 (Mexico).

FLUID LEAKAGE AND FLUID LEVEL

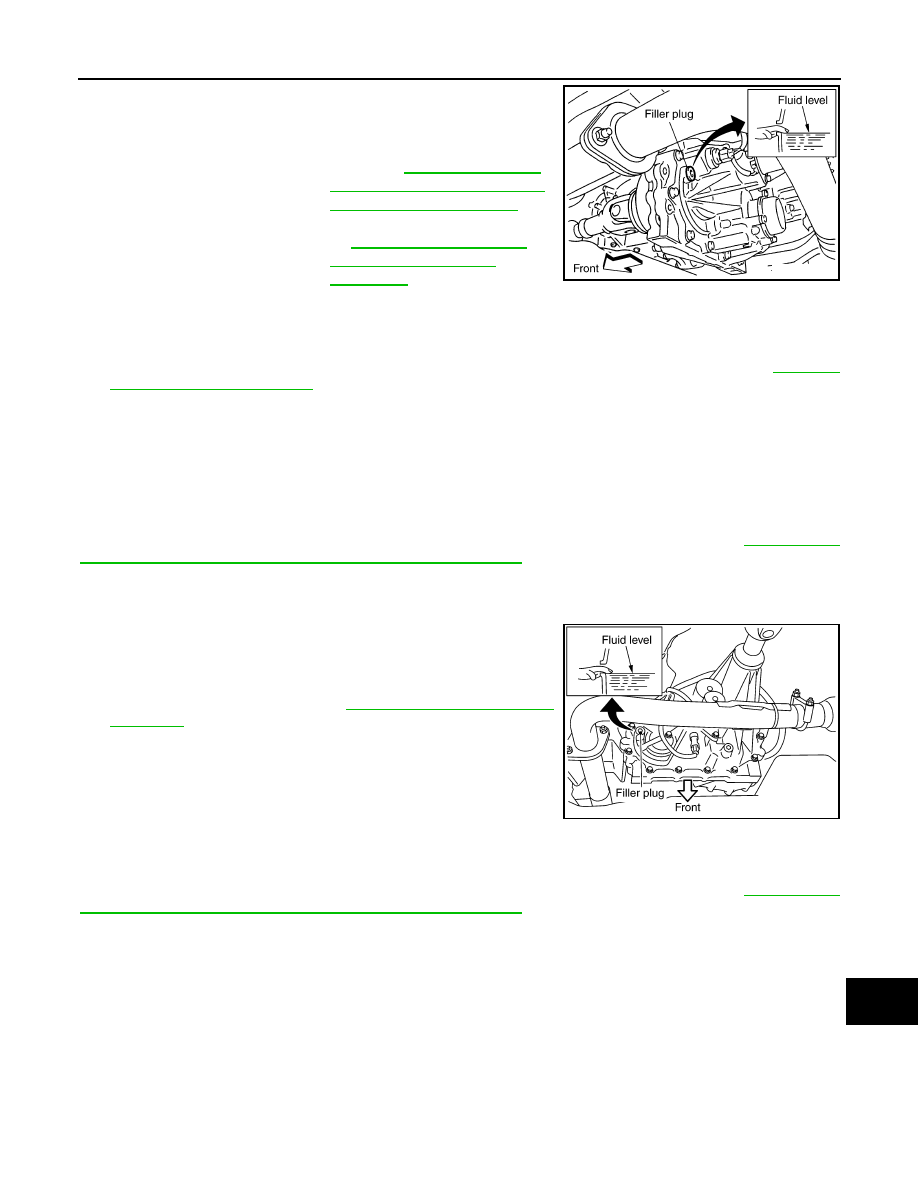

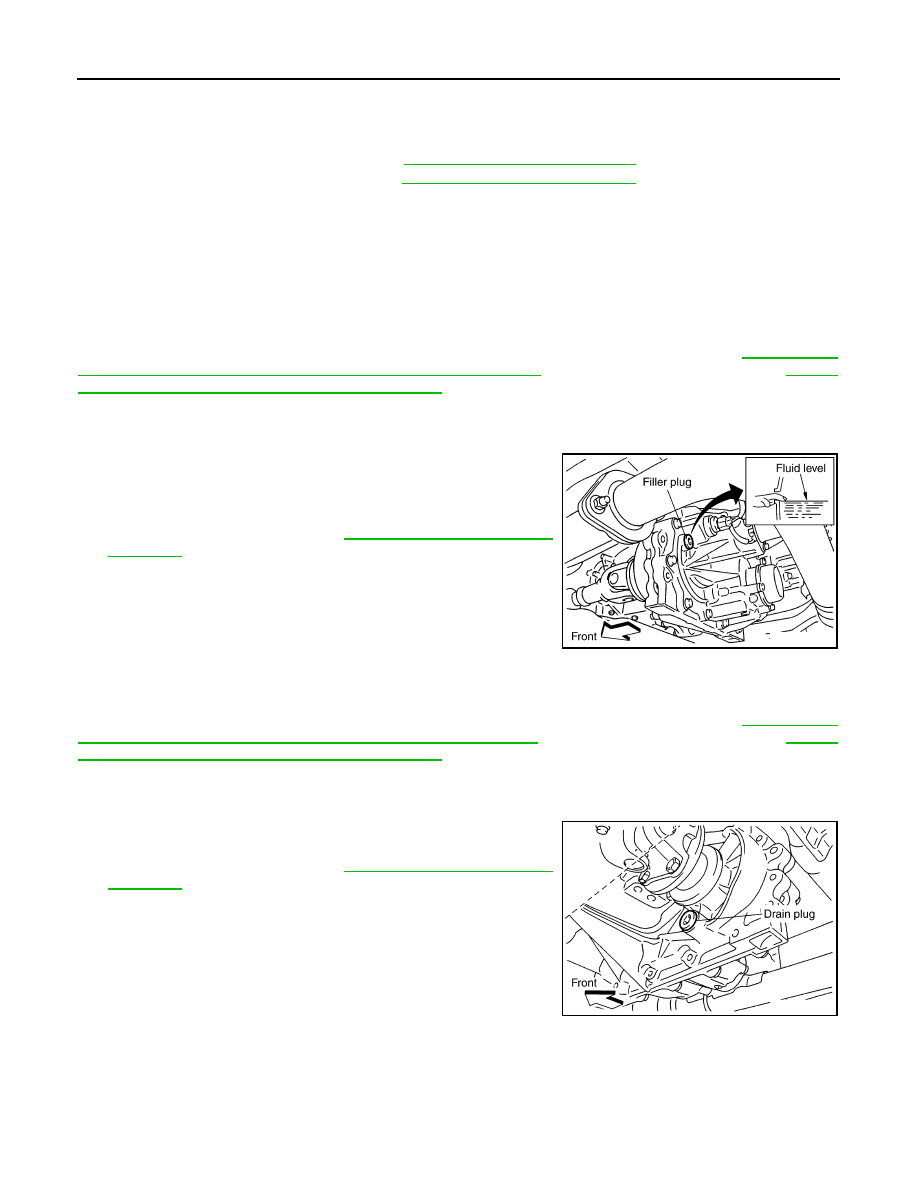

1. Make sure that fluid is not leaking from the transfer assembly or around it.
2. Check fluid level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking fluid level.

3. Install the filler plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-156, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

TRANSFER FLUID : Replacement

INFOID:0000000007347389

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-11, "FOR

USA AND CANADA : Introduction to Periodic Maintenance"

 (United States and Canada) or

MA-15,

"FOR MEXICO : Periodic Maintenance Schedule"

 (Mexico).

DRAINING

1. Stop engine.
2. Remove the drain plug and gasket and drain the fluid.
3. Install the drain plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-156, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

A/T fluid level gauge bolt

: Refer to

TM-195, "2WD : Exploded View"



(2WD) or

TM-198, "4WD : Exploded View"



(4WD).

SDIA3209E

SDIA3208E

August 2012

2012 Pathfinder

CHASSIS AND BODY MAINTENANCE

MA-47

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

1. Remove the filler plug and gasket.
2. Fill the transfer with new fluid until the fluid level reaches the

specified limit near the filler plug hole.

CAUTION:

Carefully fill fluid. (Fill up for approx. 3 minutes.)

3. Leave the vehicle for 3 minutes, and check fluid level again.
4. Install the filler plug with a new gasket to the transfer. Tighten to the specified torque. Refer to

DLN-156,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

TRANSFER FLUID : TX15B

INFOID:0000000007347390

TRANSFER FLUID : Inspection

INFOID:0000000007347391

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-11, "FOR

USA AND CANADA : Introduction to Periodic Maintenance"

 .

FLUID LEAKAGE AND FLUID LEVEL

1. Make sure that fluid is not leaking from the transfer assembly or around it.
2. Check fluid level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking fluid level.

3. Install the filler plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-289, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

TRANSFER FLUID : Replacement

INFOID:0000000007347392

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-11, "FOR

USA AND CANADA : Introduction to Periodic Maintenance"

.

DRAINING

1. Stop engine.

Fluid grade and capacity : Refer to

MA-11, "FOR USA

AND CANADA : Introduction
to Periodic Maintenance"



(United States and Canada)
or

MA-15, "FOR MEXICO :

Periodic Maintenance
Schedule"

 (Mexico).

SDIA3209E

SDIA3287E

August 2012

2012 Pathfinder

MA-48

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

2. Remove the drain plug and gasket and drain the fluid.
3. Install the drain plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-289, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug and gasket.
2. Fill the transfer with new fluid until the fluid level reaches the

specified limit near the filler plug hole.

CAUTION:

Carefully fill fluid. (Fill up for approx. 3 minutes.)

3. Leave the vehicle for 3 minutes, and check fluid level again.
4. Install the filler plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-289, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

PROPELLER SHAFT
PROPELLER SHAFT : Checking Propeller Shaft

INFOID:0000000007347393

Check the front and rear propeller shafts for damage, dents, and cracks. Check the joints for looseness and

any damage. Repair or replace as necessary. Refer to

DLN-205, "NVH Troubleshooting Chart"

.

DIFFERENTIAL GEAR OIL
DIFFERENTIAL GEAR OIL : Front Final Drive R180A

INFOID:0000000007347394

DIFFERENTIAL GEAR OIL : Checking Differential Gear Oil

INFOID:0000000007347395

DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL

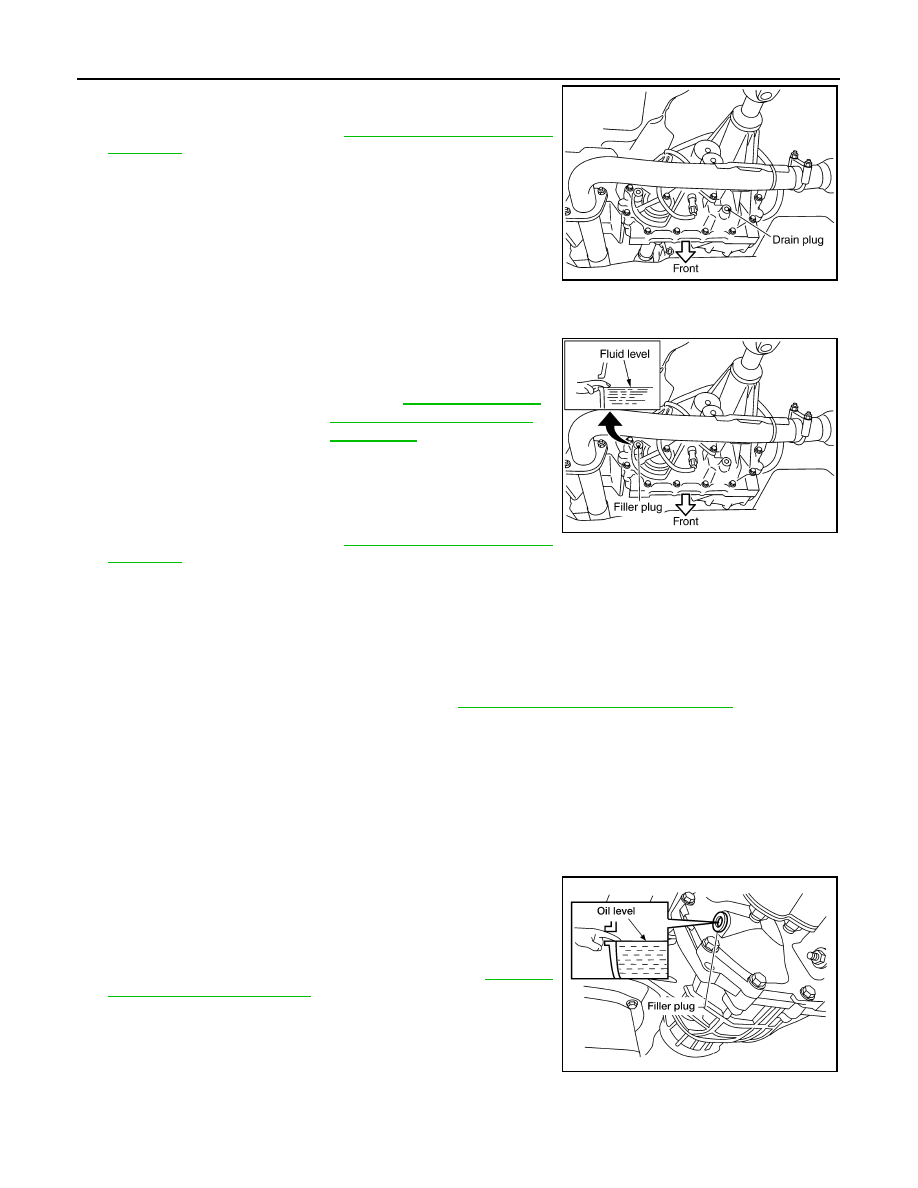

1. Make sure that differential gear oil is not leaking from the front final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with a new gasket on it to the front final drive

assembly. Tighten to the specified torque. Refer to

DLN-360,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

DIFFERENTIAL GEAR OIL : Changing Differential Gear Oil

INFOID:0000000007347396

DRAINING

SDIA3286E

Fluid grade and capacity : Refer to

MA-18, "FOR USA

AND CANADA : Fluids and
Lubricants"

 .

SDIA3287E

LDIA0176E

August 2012

2012 Pathfinder

CHASSIS AND BODY MAINTENANCE

MA-49

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

1. Stop the engine.
2. Remove the drain plug and gasket from the front final drive

assembly to drain the differential gear oil.

3. Install the drain plug with a new gasket to the front final drive

assembly. Tighten to the specified torque. Refer to

DLN-360,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug and gasket from the front final drive

assembly.

2. Fill the front final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with a new gasket on it to the front final drive assembly. Tighten to the specified

torque. Refer to

DLN-360, "Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

DIFFERENTIAL GEAR OIL : Front Final Drive M205

INFOID:0000000007347397

DIFFERENTIAL GEAR OIL : Checking Differential Gear Oil

INFOID:0000000007347398

DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL

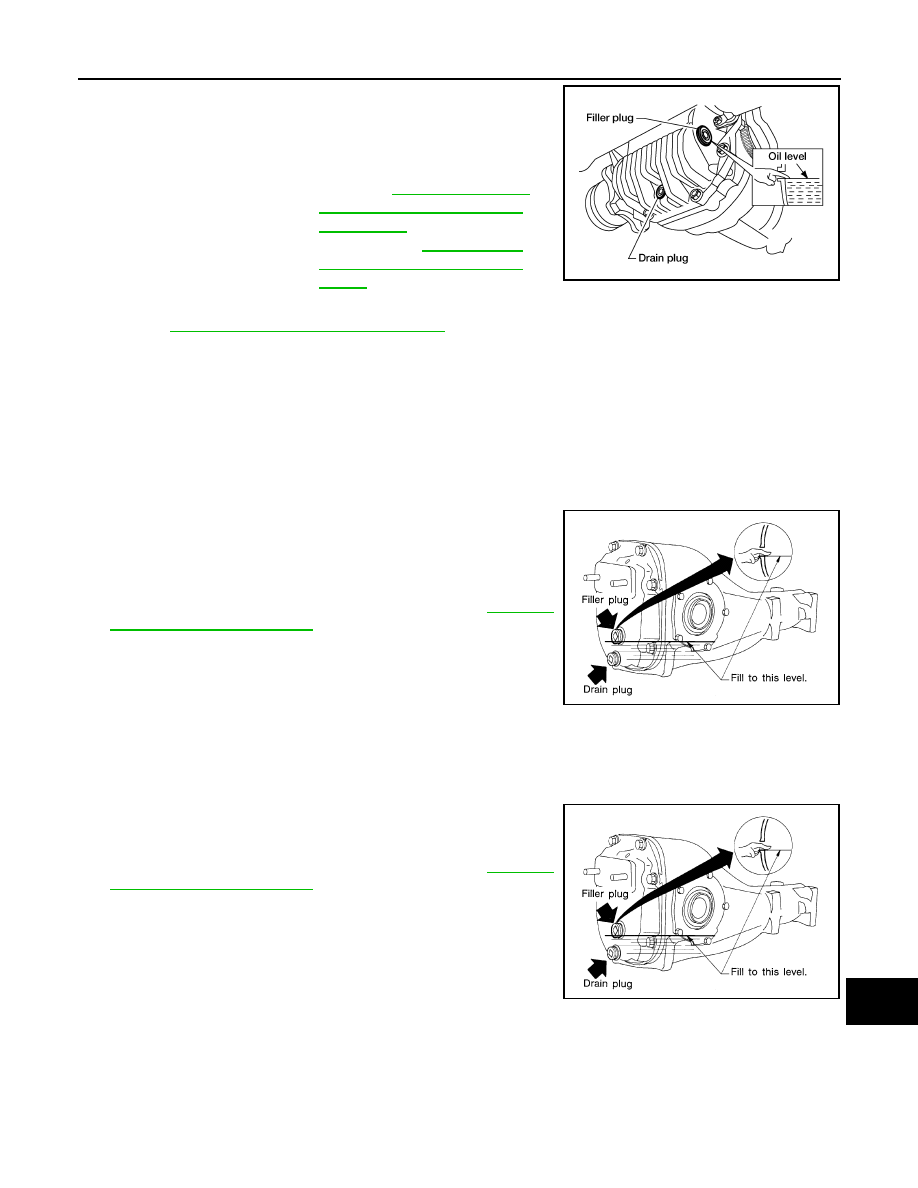

1. Make sure that differential gear oil is not leaking from the front final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with sealant applied on the threads to the

front final drive assembly. Tighten to the specified torque. Refer

to

DLN-394, "Disassembly and Assembly"

.

• Use High Performance Thread Sealant or equivalent. Refer to

GI-14, "Recommended Chemical Products and Sealants"

.

DIFFERENTIAL GEAR OIL : Changing Differential Gear Oil

INFOID:0000000007347399

DRAINING

1. Stop the engine.
2. Remove the drain plug from the front final drive assembly to drain the differential gear oil.
3. Install the drain plug with sealant applied on the threads to the front final drive assembly. Tighten to the

specified torque. Refer to

DLN-394, "Disassembly and Assembly"

.

• Use High Performance Thread Sealant or equivalent. Refer to

GI-14, "Recommended Chemical Prod-

ucts and Sealants"

.

LDIA0175E

Differential gear oil
grade and capacity

: Refer to

MA-18, "FOR USA

AND CANADA : Fluids and
Lubricants"

 (United States

ans Canada) or

MA-20,

"FOR MEXICO : Fluids and
Lubricants"

 (Mexico).

LDIA0176E

LDIA0176E

August 2012

2012 Pathfinder

MA-50

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

FILLING

1. Remove the filler plug from the front final drive assembly.
2. Fill the front final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with sealant applied on the threads to the

front final drive assembly. Tighten to the specified torque. Refer to

DLN-394, "Disassembly and Assem-

bly"

.

• Use High Performance Thread Sealant or equivalent. Refer to

GI-14, "Recommended Chemical Prod-

ucts and Sealants"

.

DIFFERENTIAL GEAR OIL : Rear Final Drive R200

INFOID:0000000007347400

DIFFERENTIAL GEAR OIL : Checking Differential Gear Oil

INFOID:0000000007347401

OIL LEAKAGE AND OIL LEVEL

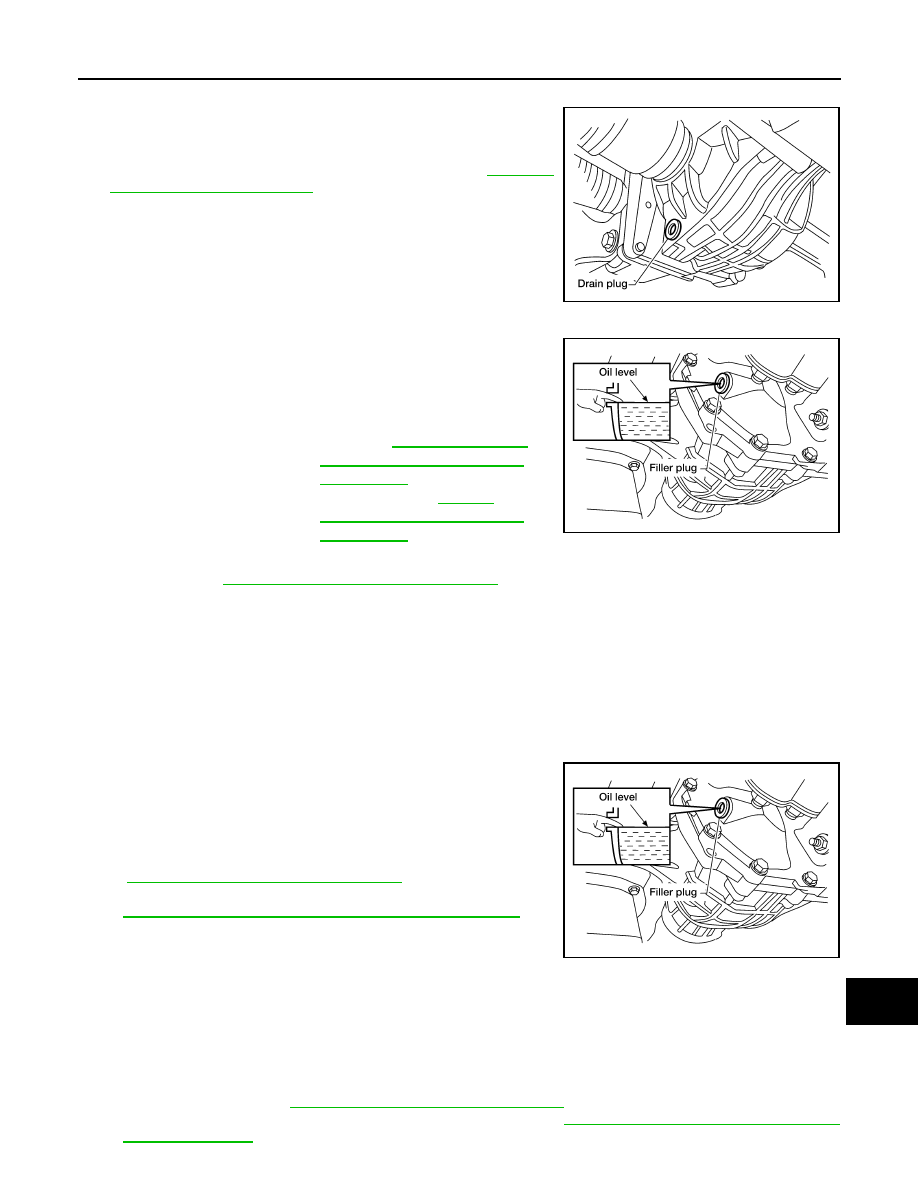

1. Make sure that differential gear oil is not leaking from the rear final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with a new gasket on it to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-430,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

DIFFERENTIAL GEAR OIL : Changing Differential Gear Oil

INFOID:0000000007347402

DRAINING

1. Stop the engine.
2. Remove the drain plug and gasket from the rear final drive

assembly to drain the differential gear oil.

3. Install the drain plug with a new gasket to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-430,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

Differential gear oil
grade and capacity

: Refer to

MA-18, "FOR USA

AND CANADA : Fluids and
Lubricants"

 (United States

and Canada) or

MA-20,

"FOR MEXICO : Fluids and
Lubricants"

 (Mexico).

LDIA0176E

LDIA0163E

LDIA0162E

August 2012

2012 Pathfinder

CHASSIS AND BODY MAINTENANCE

MA-51

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

1. Remove the filler plug and gasket from the rear final drive ass-

mebly.

2. Fill the rear final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with a new gasket on it to the rear final drive assembly. Tighten to the specified torque.

Refer to

DLN-430, "Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

DIFFERENTIAL GEAR OIL : Rear Final Drive R230

INFOID:0000000007347403

DIFFERENTIAL GEAR OIL : Checking Differential Gear Oil

INFOID:0000000007347404

OIL LEAKAGE AND OIL LEVEL

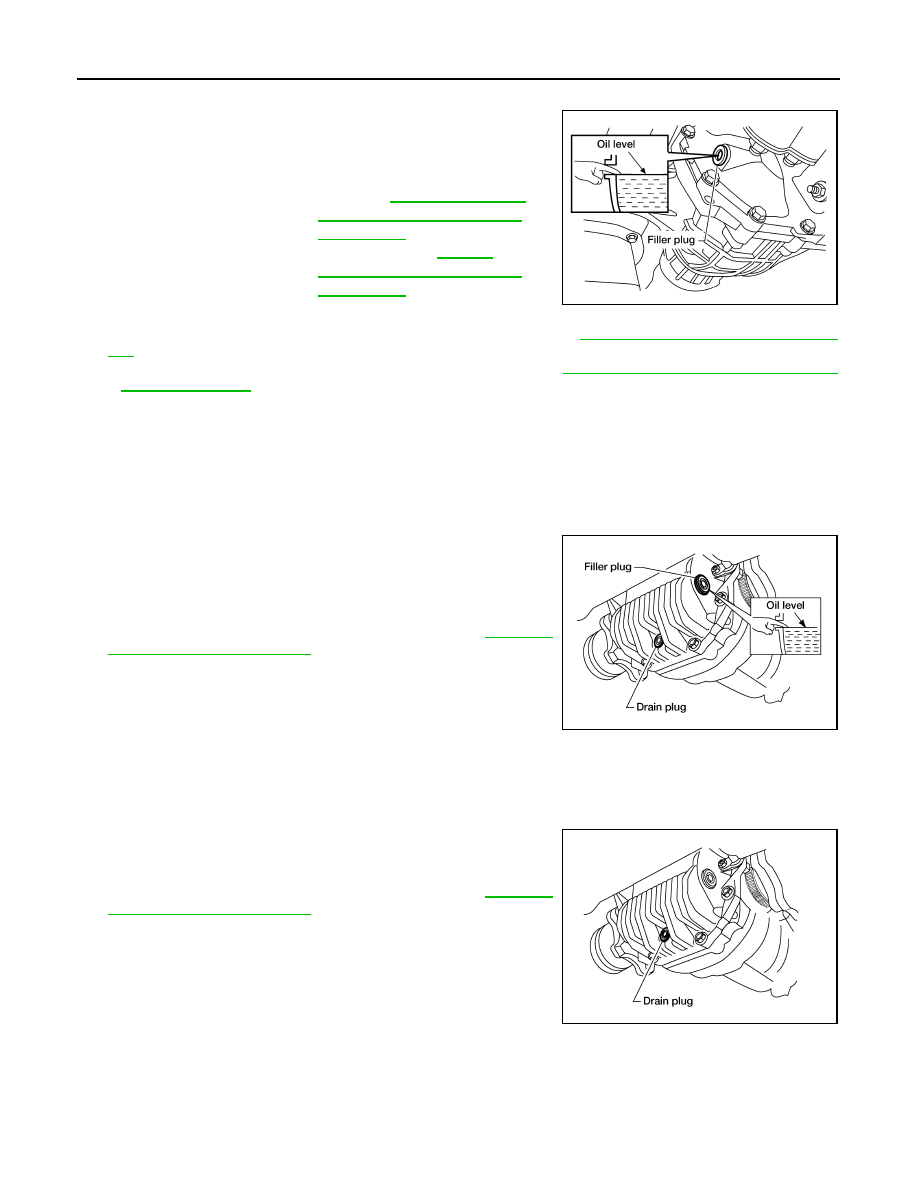

1. Make sure that differential gear oil is not leaking from the rear final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with a new gasket on it to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-467,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

DIFFERENTIAL GEAR OIL : Changing Differential Gear Oil

INFOID:0000000007347405

DRAINING

1. Stop the engine.
2. Remove the drain plug and gasket from the rear final drive

assembly to drain the differential gear oil.

3. Install the drain plug with a new gasket to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-467,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

Differential gear oil
grade and capacity

: Refer to

MA-18, "FOR USA

AND CANADA : Fluids and
Lubricants"

 (United States

and Canada),

MA-20, "FOR

MEXICO : Fluids and Lubri-
cants"

 (Mexico)

LDIA0163E

LLIA0068E

LLIA0068E

August 2012

2012 Pathfinder

MA-52

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

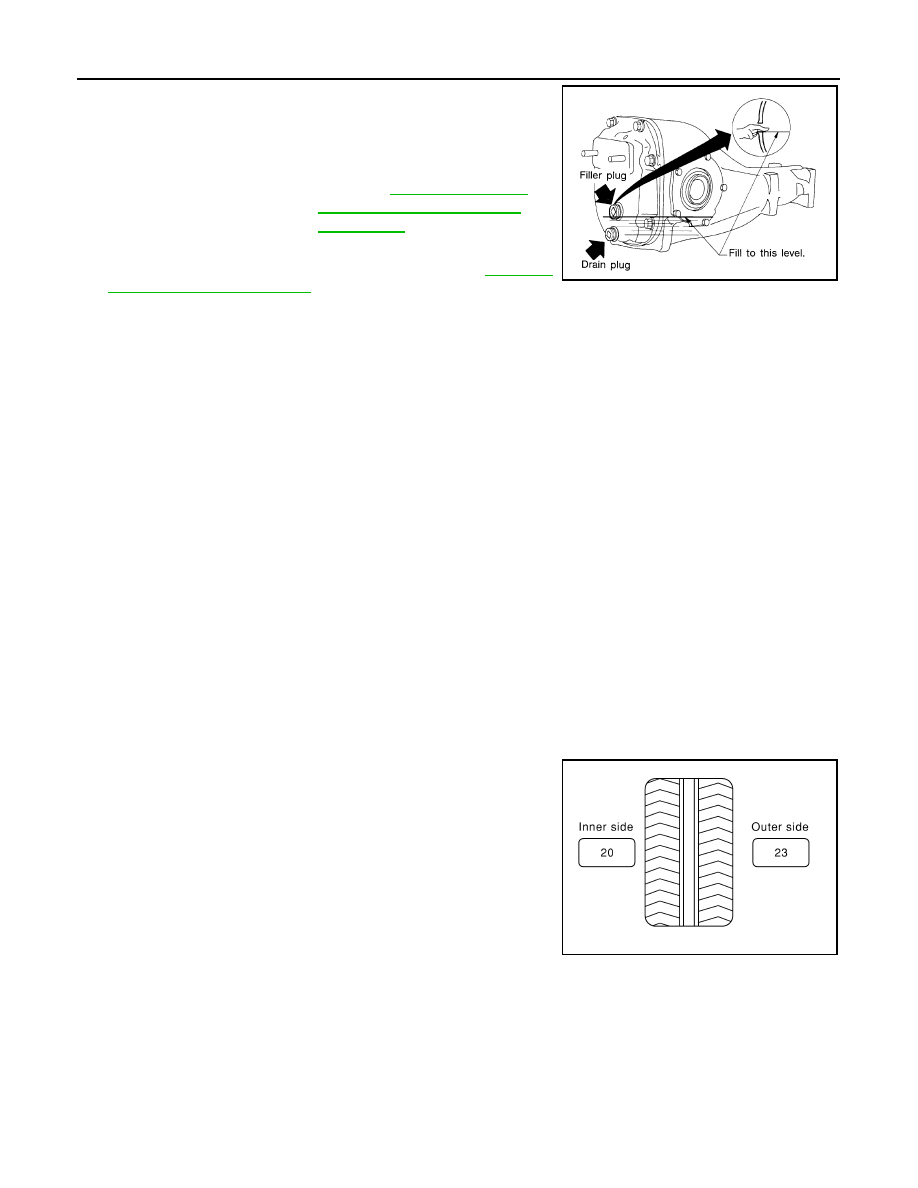

1. Remove the filler plug and gasket from the rear final drive

assembly.

2. Fill the rear final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with a new gasket on it to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-467,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

WHEELS
WHEELS : Adjustment

INFOID:0000000007347406

BALANCING WHEELS (ADHESIVE WEIGHT TYPE)

Preparation Before Adjustment

Remove inner and outer balance weights from the road wheel using releasing agent, remove double-faced

adhesive tape from the road wheel.

CAUTION:

• Be careful not to scratch the road wheel during removal.

• After removing double-faced adhesive tape, wipe clean all traces of releasing agent from the road

wheel.

Wheel Balance Adjustment

• If a balancer machine has an adhesive weight mode setting, select the adhesive weight mode setting and

skip Step 2. below. If a balancer machine only has the clip-on (rim flange) weight mode setting, follow Step 2.

to calculate the correct size adhesive weight.

1. Set road wheel on balancer machine using the center hole as a guide. Start the balancer machine.
2. For balancer machines that only have a clip-on (rim flange) weight mode setting, follow this step to calcu-

late the correct size adhesive weight to use. When inner and outer imbalance values are shown on the

balancer machine indicator, multiply outer imbalance value by 5/3 (1.67) to determine balance weight that

should be used. Select the outer balance weight with a value closest to the calculated value above and

install in to the designated outer position of, or at the designated angle in relation to the road wheel.

a. Indicated imbalance value

×

 5/3 = balance weight to be installed

Calculation example:

23 g (0.81 oz)

×

 5/3 (1.67) = 38.33 g (1.35 oz)

⇒

 40 g (1.41 oz)

balance weight (closer to calculated balance weight value)

NOTE:

Note that balance weight value must be closer to the calculated

balance weight value.

Example:

37.4

⇒

 35 g (1.23 oz)

37.5

⇒

 40 g (1.41 oz)

Differential gear oil
grade and capacity

: Refer to

MA-18, "FOR USA

AND CANADA : Fluids and
Lubricants"

.

LLIA0068E

SMA054D

August 2012

2012 Pathfinder

CHASSIS AND BODY MAINTENANCE

MA-53

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

3. Install balance weight in the position shown.

CAUTION:

• Do not install the inner balance weight before installing

the outer balance weight.

• Before installing the balance weight, be sure to clean the

mating surface of the road wheel.

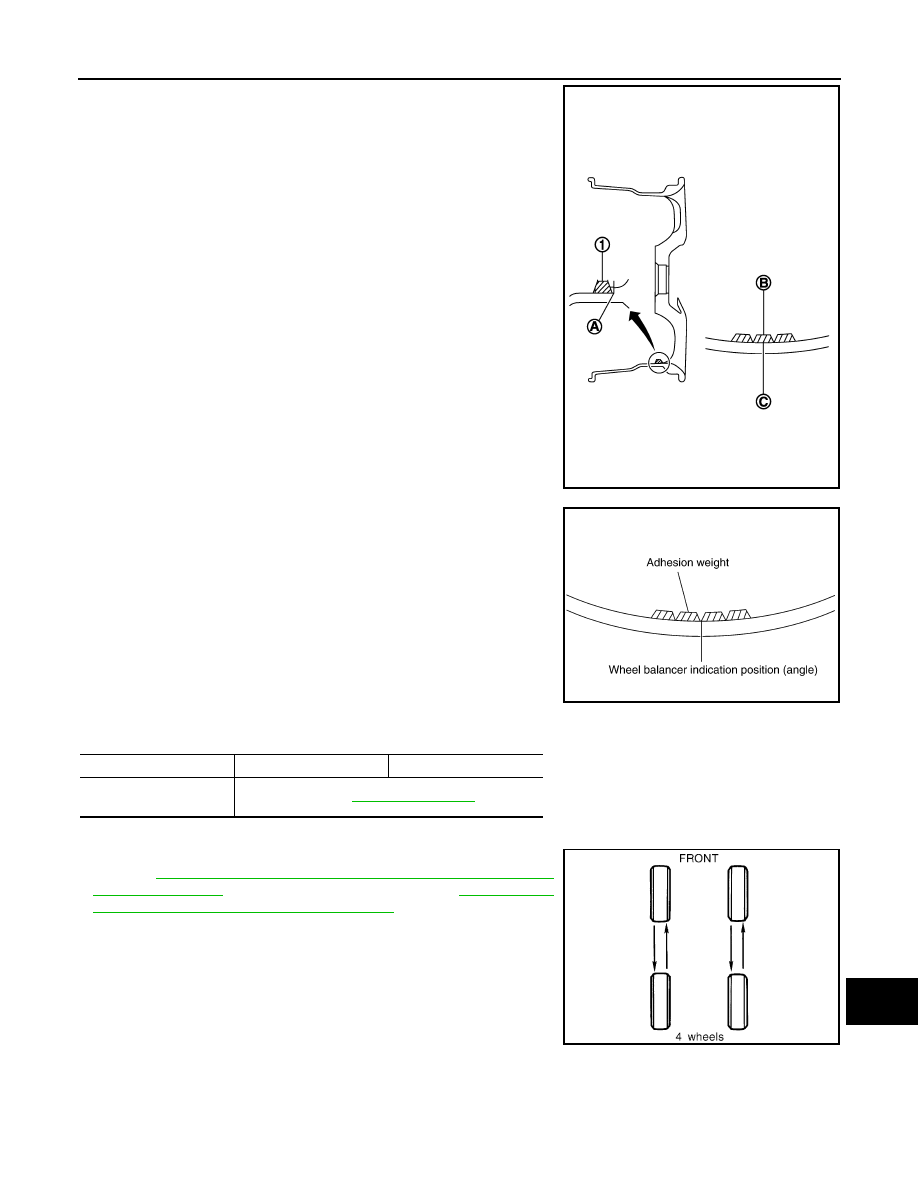

• When installing balance weight (1) to road wheel, set it into the

grooved area (A) on the inner wall of the road wheel as shown

so that the balance weight center (B) is aligned with the bal-

ancer machine indication position (angle) (C).

CAUTION:

• Always use genuine NISSAN adhesive balance weights.

• Balance weights are non-reusable; always replace with

new ones.

• Do not install more than three sheets of balance weight.

4. If calculated balance weight value exceeds 50 g (1.76 oz), install

two balance weight sheets in line with each other as shown.

CAUTION:

Do not install one balance weight sheet on top another.

5. Start balancer machine again.
6. Install balance weight on inner side of road wheel in the bal-

ancer machine indication position (angle).

CAUTION:

Do not install more than two balance weights.

7. Start balancer machine. Make sure that inner and outer residual

imbalance values are 5 g (0.17 oz) each or below.

8. If either residual imbalance value exceeds 5 g (0.17 oz), repeat installation procedures.

TIRE ROTATION

• Follow the maintenance schedule for tire rotation service intervals.

Refer to

MA-11, "FOR USA AND CANADA : Introduction to Peri-

odic Maintenance"

 (United States and Canada), or

MA-15, "FOR

MEXICO : Periodic Maintenance Schedule"

 (Mexico).

• When installing the wheel, tighten wheel nuts to the specified

torque.

CAUTION:

• Do not include the spare tire when rotating the tires.

• When installing wheels, tighten them diagonally by dividing

the work two to three times in order to prevent the wheels

from developing any distortion.

• Be careful not to tighten wheel nut at torque exceeding the

criteria for preventing strain of disc rotor.

• Use NISSAN genuine wheel nuts for aluminum wheels.

JPEIC0040ZZ

Wheel balance

Dynamic (At flange)

Static (At flange)

Maximum allowable im-
balance

Refer to

WT-55, "Road Wheel"

.

PEIA0033E

Wheel nut tightening
torque

: 133 N·m (14 kg-m, 98 ft-lb)

SMA829C

August 2012

2012 Pathfinder
