INL-58

< SYMPTOM DIAGNOSIS >

INTERIOR LIGHTING SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

INTERIOR LIGHTING SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000007355250

CAUTION:

Perform the self-diagnosis with CONSULT before the symptom diagnosis. Perform the trouble diagno-

sis if any DTC is detected.

Symptom

Possible cause

Inspection item

All of the following lamps do not turn ON
• Front room/map lamp assembly
• Personal lamp 2nd row (with personal lamp 2nd

row)

• Room lamp 2nd row (without personal lamp 2nd

row)

• Cargo room lamp
• Vanity mirror lamps (if equipped)
• Ignition keyhole illumination

• Harness between BCM and each in-

terior room lamp

• Harness between BCM and each

door switch

• BCM

Battery saver output/power supply cir-
cuit
Refer to

INL-16

.

Some or all of the following interior room lamps do
not turn ON/OFF
• Front room/map lamp assembly
• Personal lamp 2nd row (with personal lamp 2nd

row)

• Room lamp 2nd row (without personal lamp 2nd

row)

• Harness between BCM and each in-

terior room lamp

• BCM

Door switch circuit
Refer to

DLK-56

 (with Intelligent Key

system) or

DLK-229

 (without Intelligent

Key system).

Interior room lamp control circuit
Refer to

INL-18

.

Cargo lamp does not turn ON/OFF

• Harness between BCM and cargo

lamp

• BCM

Cargo lamp circuit
Refer to

INL-20

.

Ignition keyhole illumination does not turn ON/OFF

• Harness between BCM and cargo

lamp

• BCM

Ignition keyhole illumination circuit
Refer to

INL-22

Interior room lamp timer does not activate.
(It turns ON/ OFF when the door opens/closes.)

—

Check the interior room lamp setting.
Refer to

BCS-18

.

Interior room lamp battery saver does not activate.

—

Check the interior room lamp battery
saver setting.
Refer to

BCS-24

.

August 2012

2012 Pathfinder

PRECAUTIONS

INL-59

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000007355251

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000007355252

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing work. If

DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

August 2012

2012 Pathfinder

INL-60

< PRECAUTION >

PRECAUTIONS

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT.

Precaution for Work

INFOID:0000000007355253

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components.

- Water soluble dirt: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the dirty

area.

Then rub with a soft and dry cloth.

- Oily dirt: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the dirty area.

Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with

a soft and dry cloth.

• Do not use organic solvent such as thinner, benzene, alcohol, or gasoline.

• For genuine leather seats, use a genuine leather seat cleaner.

August 2012

2012 Pathfinder

PREPARATION

INL-61

< PREPARATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000007355254

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-46534)
Trim tool set

For removing trim

AWJIA0483ZZ

August 2012

2012 Pathfinder

INL-62

< REMOVAL AND INSTALLATION >

INTERIOR ROOM LAMP

REMOVAL AND INSTALLATION

INTERIOR ROOM LAMP

Removal and Installation

INFOID:0000000007355255

FRONT ROOM/MAP LAMP ASSEMBLY

Removal

The front room/map lamp assembly is replaced as part of the over-

head console assembly. Refer to

INT-22, "Removal and Installation"

.

: Metal clip

: Vehicle front

Installation

Installation is in the reverse order of removal.

Bulb Replacement

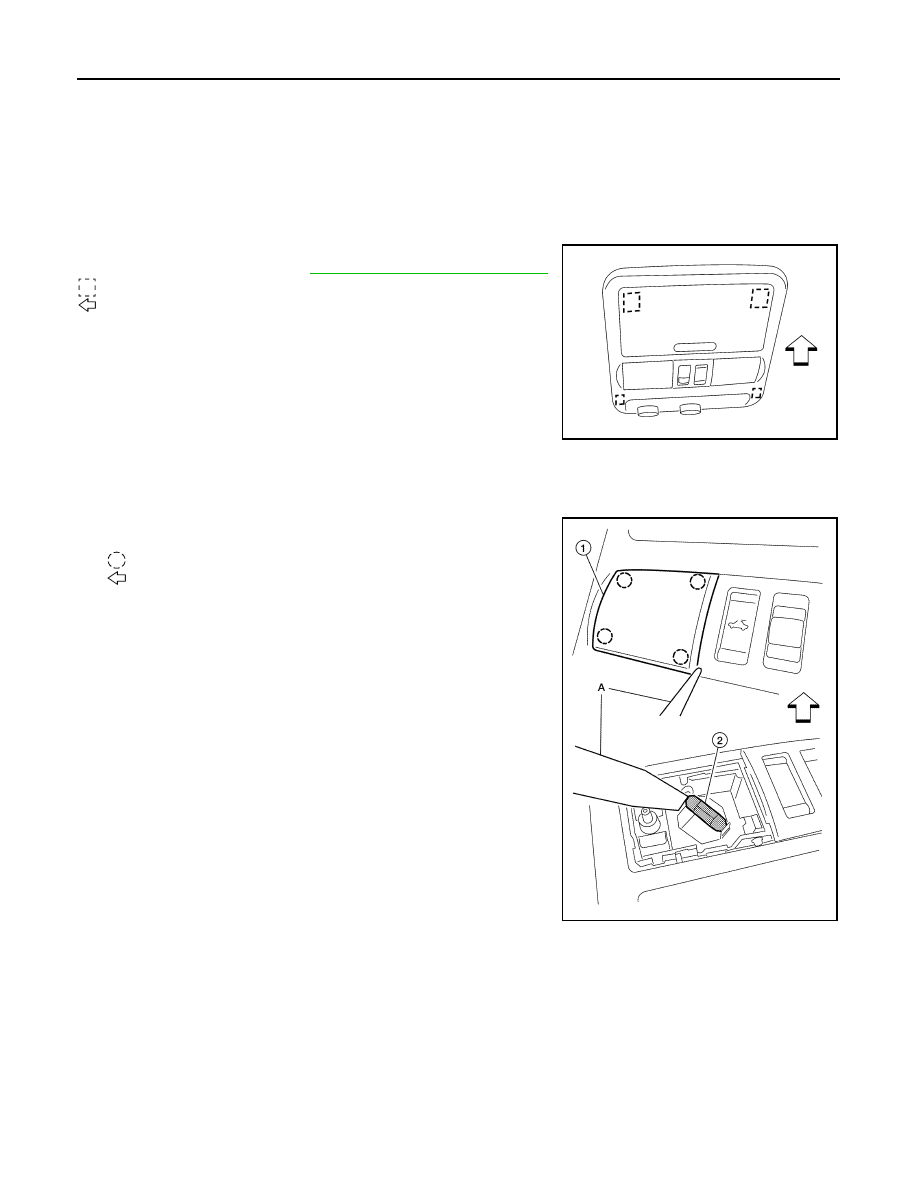

1. Using a suitable tool (A), remove front room/map lamp assembly

lens (1).

: Pawl

: Vehicle front

CAUTION:

Wrap a cloth around suitable tool to protect the housing

and lens.

2. Release one side of the bulb (2) from the tab, then pull straight

downward to remove.

VANITY MIRROR LAMP (IF EQUIPPED)

Removal

ALLIA0581ZZ

Front room/map lamp as-
sembly bulb

: 12V - 8W

AWLIA1667ZZ

August 2012

2012 Pathfinder

INTERIOR ROOM LAMP

INL-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

The vanity mirror lamp is replaced as part of the sun visor assembly.

Refer to

INT-22, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

The vanity mirror lamp bulb is replaced as part of the sun visor assembly. Refer to

INT-22, "Removal and

Installation"

.

PERSONAL LAMP (IF EQUIPPED)

Removal

1. Release the clips and remove personal lamp from headlining.

Refer to

INT-22, "Removal and Installation"

.

: Pawl
: Metal clip

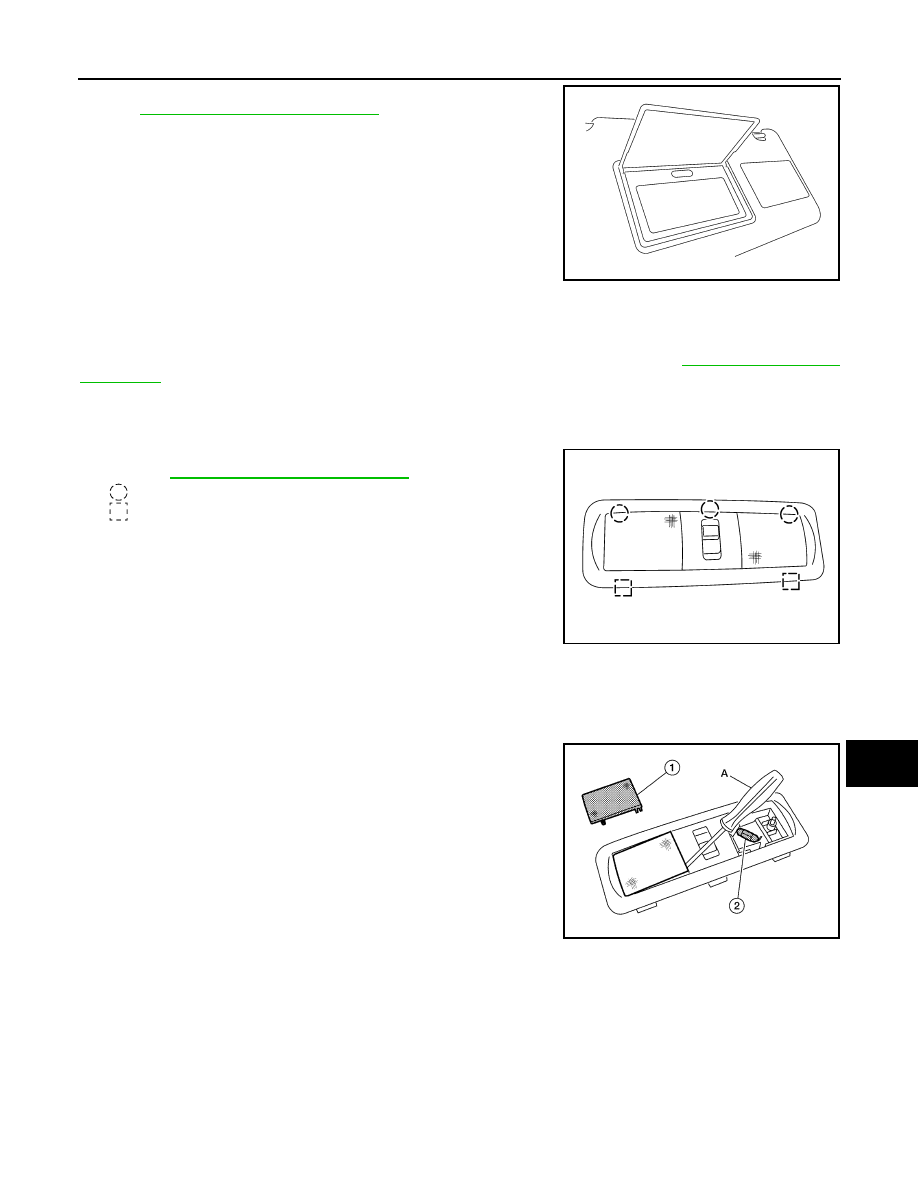

2. Disconnect personal lamp electrical connector, then remove

from overhead console.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Remove personal lamp.
2. Using a suitable tool (A), release the pawls and remove per-

sonal lamp lens (1).

CAUTION:

Wrap a cloth around suitable tool to protect the housing

and lens.

3. Release one side of the bulb (2) from the tab, then pull straight

downward to remove.

ROOM LAMP (IF EQUIPPED)

Removal

ALLIA0583ZZ

ALLIA0588ZZ

Personal lamp bulb

: 12V - 8W

AWLIA1669ZZ

August 2012

2012 Pathfinder

INL-64

< REMOVAL AND INSTALLATION >

INTERIOR ROOM LAMP

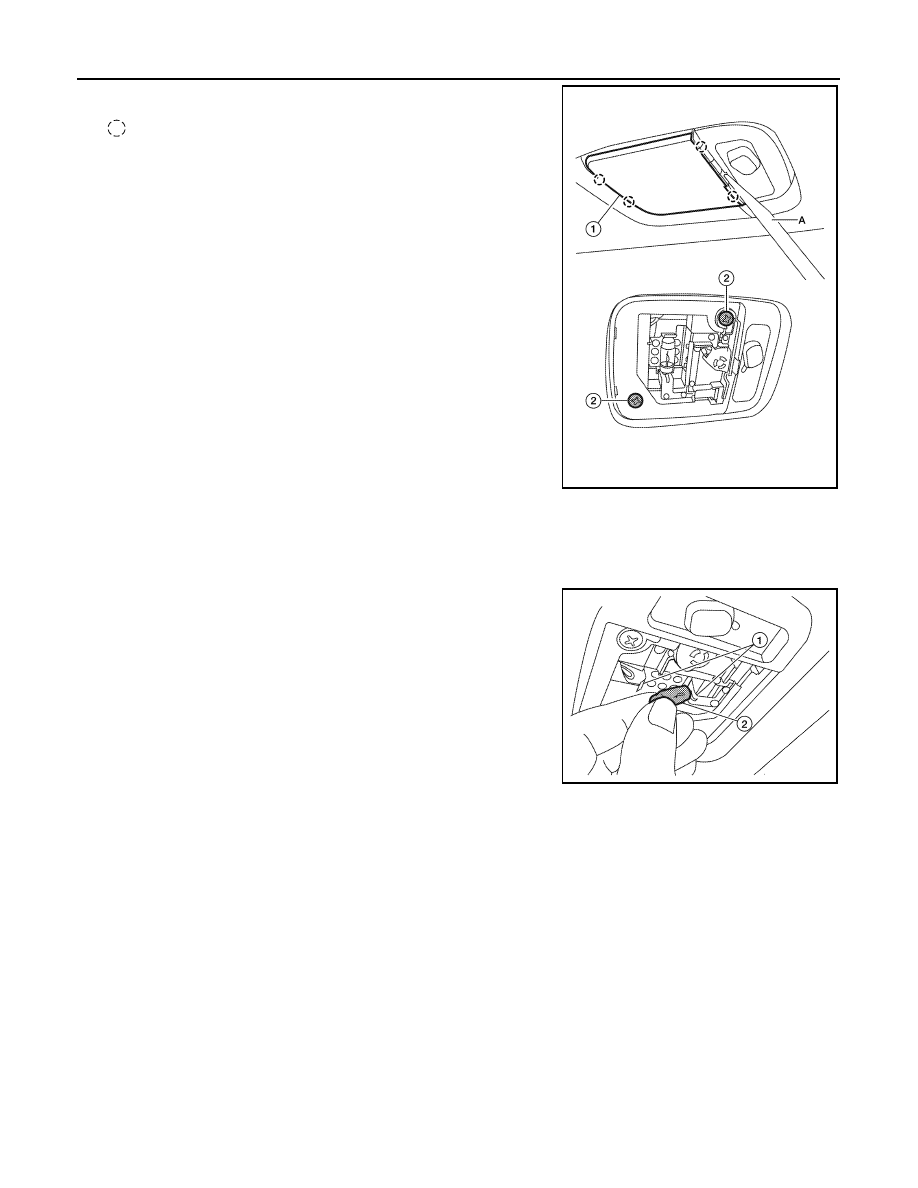

1. Using a suitable tool (A), release the pawls and remove the

room lamp lens (1).

: Pawl

CAUTION:

Wrap a cloth around suitable tool to protect the housing

and lens.

2. Remove room lamp screws (2).
3. Disconnect the connector, then remove room lamp.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Using a suitable tool, release the pawls and remove the room lamp lens.
2. Release the room lamp bulb retainers (1), then pull bulb (2)

straight out to remove.

CARGO LAMP

Removal

AWLIA1670ZZ

Room lamp bulb

: 12V - 8W

ALLIA0326ZZ

August 2012
