BCM (BODY CONTROL MODULE)

INL-33

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

DTC Index

INFOID:0000000007830023

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→

 ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→

 2

→

 3...38

→

 39 after returning to the normal condition whenever ignition switch OFF

→

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch

OFF

→

 ON after returning to the normal condition if the malfunction is detected again.

Priority

DTC

1

• U1000: CAN COMM CIRCUIT

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2013: STRG COMM 1
• B2552: INTELLIGENT KEY
• B2590: NATS MALFUNCTION

3

• C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL

4

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL

CONSULT display

Fail-safe

Intelligent Key

warning lamp ON

Low tire pressure
warning lamp ON

Reference page

No DTC is detected.
Further testing may be required.

—

—

—

—

U1000: CAN COMM CIRCUIT

X

—

—

BCS-29

B2013: STRG COMM 1

—

—

—

SEC-30

B2190: NATS ANTENNA AMP

—

—

—

SEC-33

 (with I-Key)

SEC-132

 (without I-

Key)

B2191: DIFFERENCE OF KEY

—

—

—

SEC-36

 (with I-Key)

SEC-135

 (without I-

Key)

August 2012

2012 Pathfinder

INL-34

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

B2192: ID DISCORD BCM-ECM

—

—

—

SEC-37

 (with I-Key)

SEC-136

 (without I-

Key)

B2193: CHAIN OF BCM-ECM

—

—

—

SEC-39

 (with I-Key)

SEC-138

 (without I-

Key)

B2552: INTELLIGENT KEY

—

—

—

SEC-41

B2590: NATS MALFUNCTION

—

—

—

SEC-42

C1708: [NO DATA] FL

—

—

X

WT-14

C1709: [NO DATA] FR

—

—

X

WT-14

C1710: [NO DATA] RR

—

—

X

WT-14

C1711: [NO DATA] RL

—

—

X

WT-14

C1712: [CHECKSUM ERR] FL

—

—

X

WT-16

C1713: [CHECKSUM ERR] FR

—

—

X

WT-16

C1714: [CHECKSUM ERR] RR

—

—

X

WT-16

C1715: [CHECKSUM ERR] RL

—

—

X

WT-16

C1716: [PRESSDATA ERR] FL

—

—

X

WT-18

C1717: [PRESSDATA ERR] FR

—

—

X

WT-18

C1718: [PRESSDATA ERR] RR

—

—

X

WT-18

C1719: [PRESSDATA ERR] RL

—

—

X

WT-18

C1720: [CODE ERR] FL

—

—

X

WT-16

C1721: [CODE ERR] FR

—

—

X

WT-16

C1722: [CODE ERR] RR

—

—

X

WT-16

C1723: [CODE ERR] RL

—

—

X

WT-16

C1724: [BATT VOLT LOW] FL

—

—

X

WT-16

C1725: [BATT VOLT LOW] FR

—

—

X

WT-16

C1726: [BATT VOLT LOW] RR

—

—

X

WT-16

C1727: [BATT VOLT LOW] RL

—

—

X

WT-16

C1729: VHCL SPEED SIG ERR

—

—

X

WT-20

C1735: IGNITION SWITCH

—

—

X

WT-21

CONSULT display

Fail-safe

Intelligent Key

warning lamp ON

Low tire pressure
warning lamp ON

Reference page

August 2012

2012 Pathfinder

INTERIOR ROOM LAMP

INL-35

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

WIRING DIAGRAM

INTERIOR ROOM LAMP

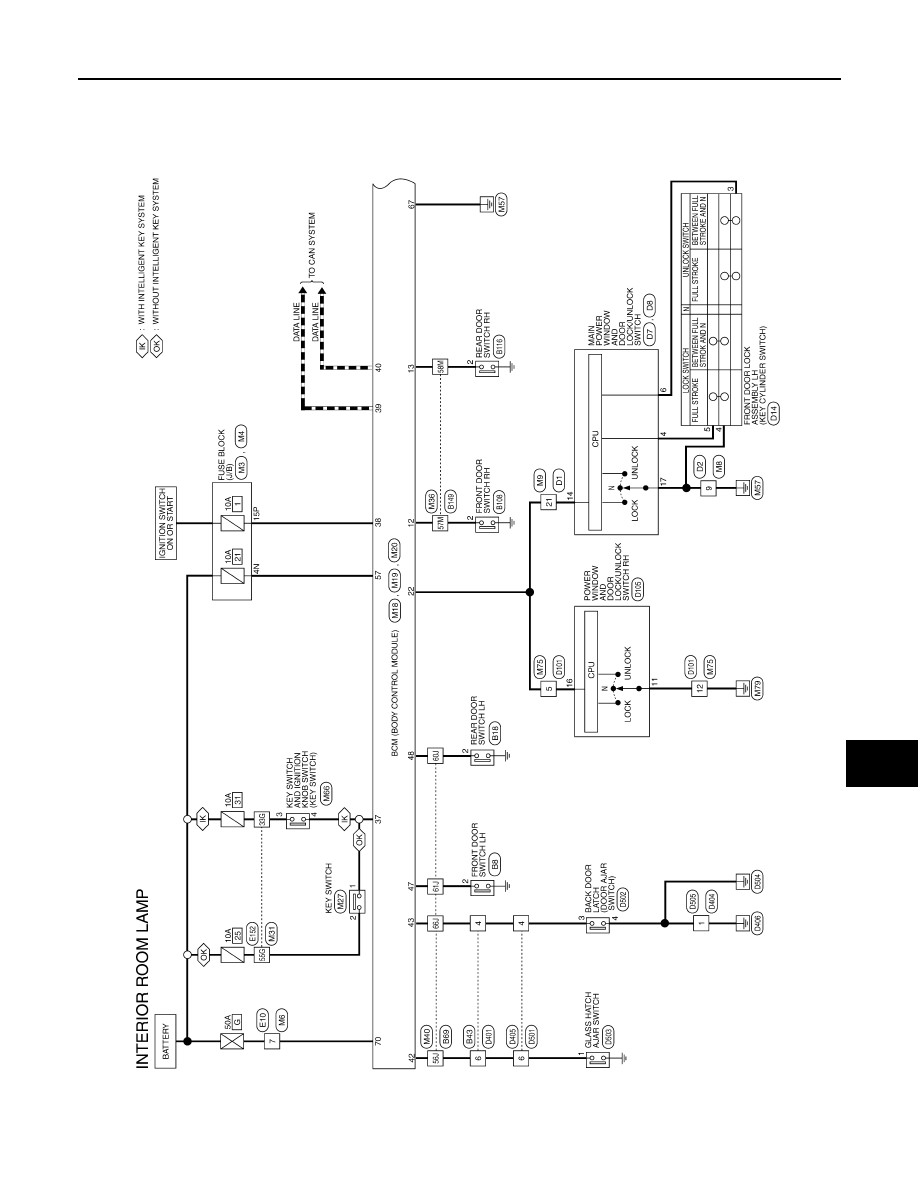

Wiring Diagram

INFOID:0000000007355248

ABLWA1613GB

August 2012

2012 Pathfinder

INL-36

< WIRING DIAGRAM >

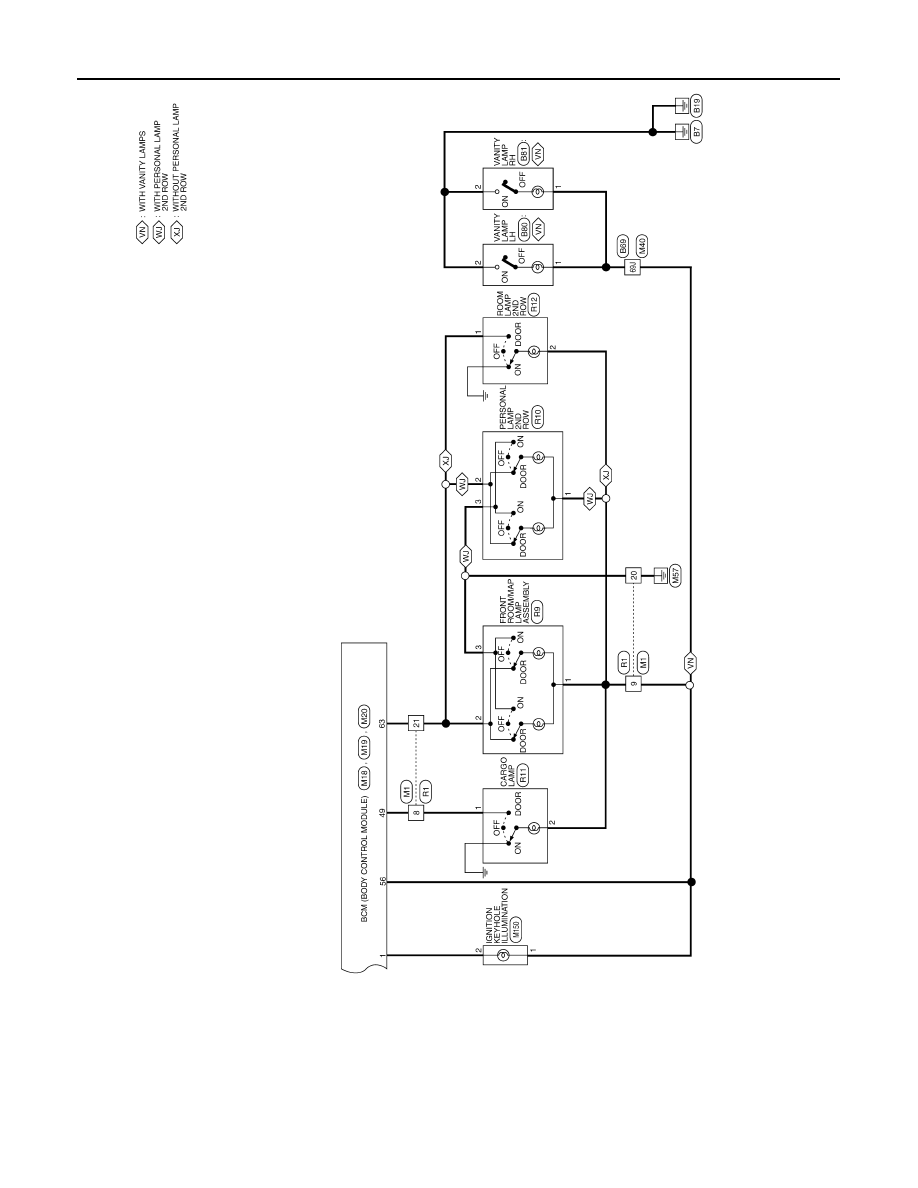

INTERIOR ROOM LAMP

ABLWA1614GB

August 2012

2012 Pathfinder

INTERIOR ROOM LAMP

INL-37

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

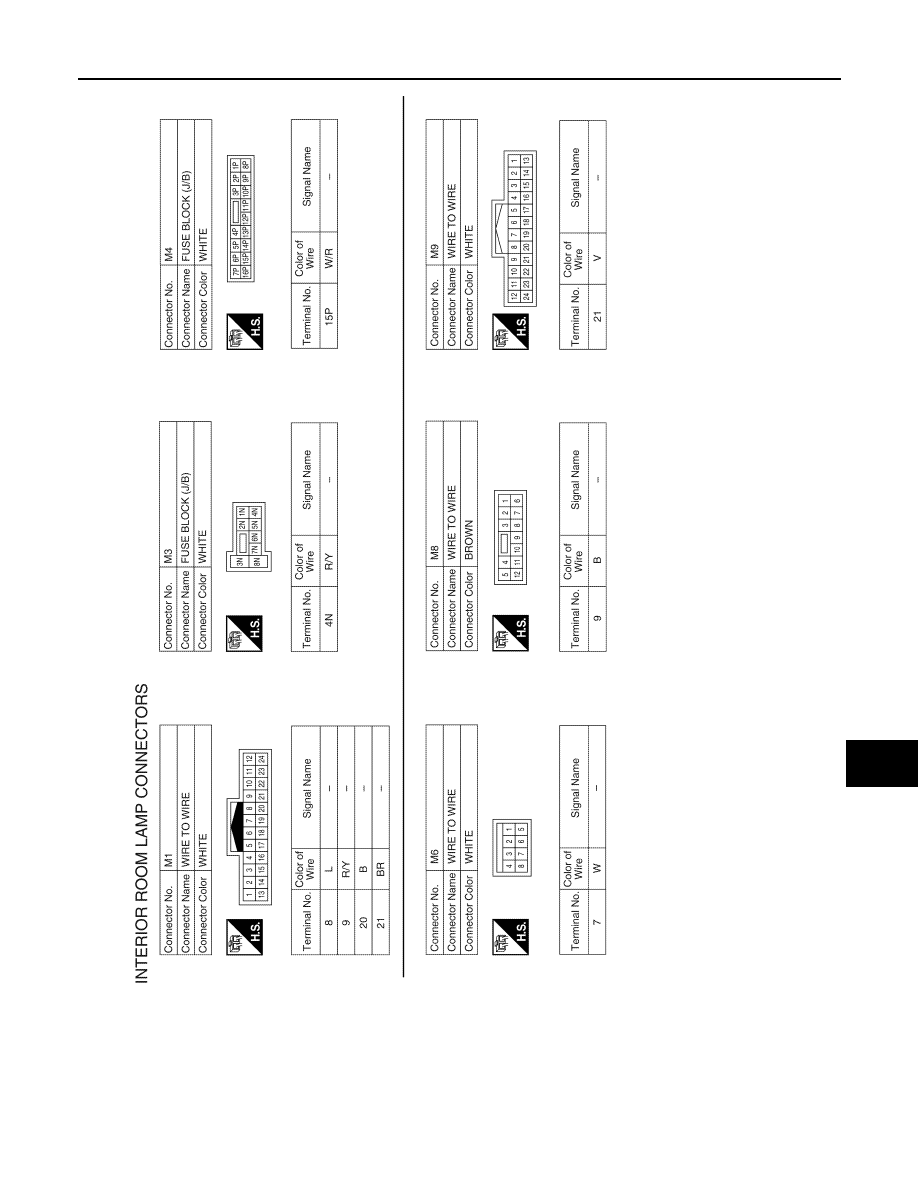

ABLIA1655GB

August 2012

2012 Pathfinder

INL-38

< WIRING DIAGRAM >

INTERIOR ROOM LAMP

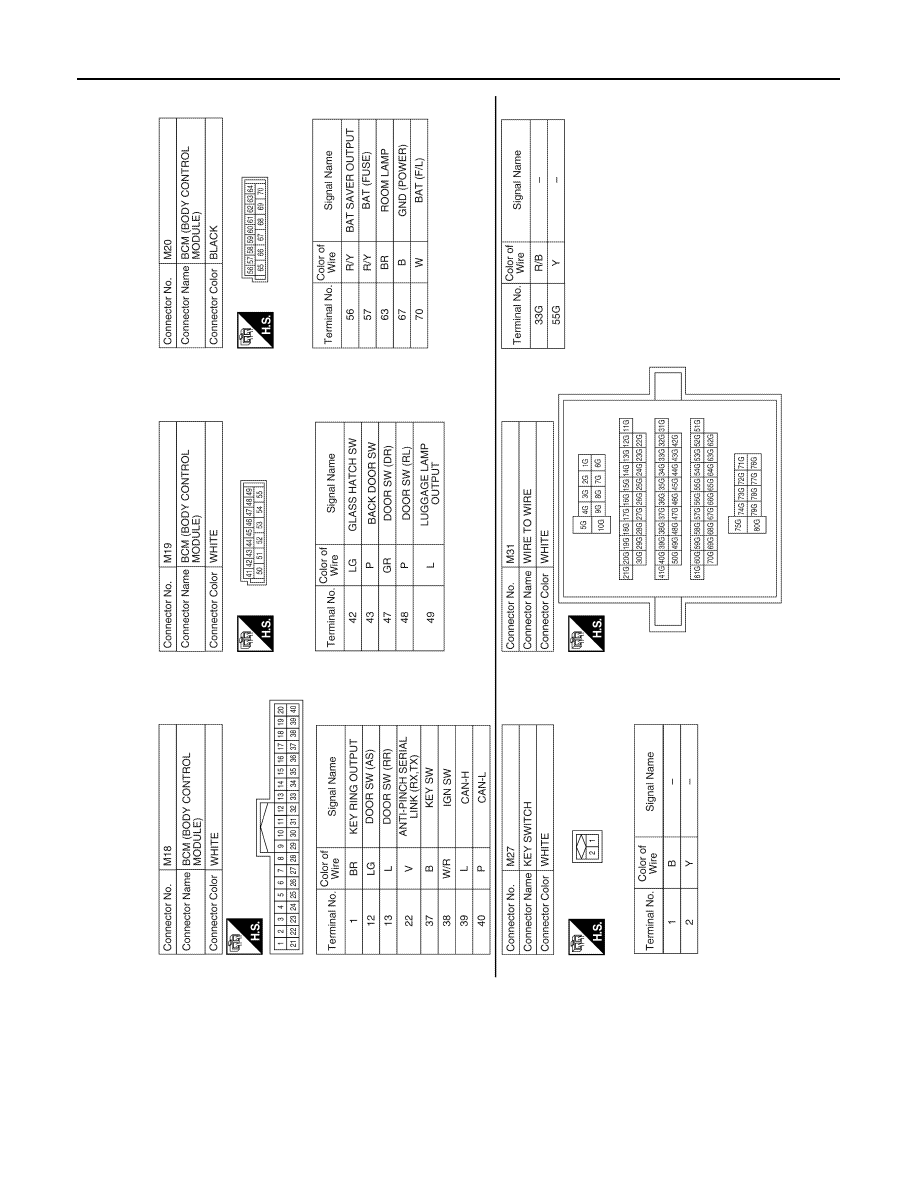

ABLIA1656GB

August 2012

2012 Pathfinder

INTERIOR ROOM LAMP

INL-39

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

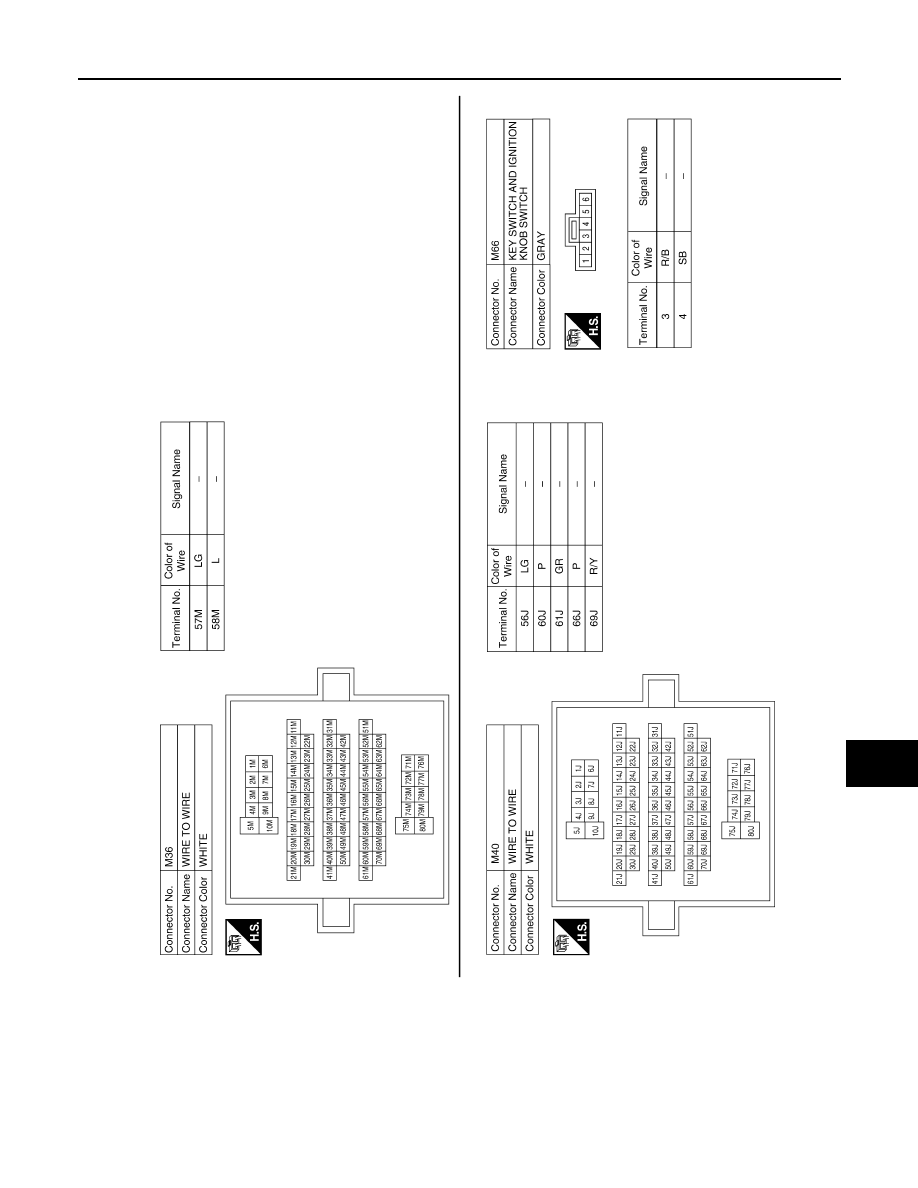

ABLIA0443GB

August 2012

2012 Pathfinder

INL-40

< WIRING DIAGRAM >

INTERIOR ROOM LAMP

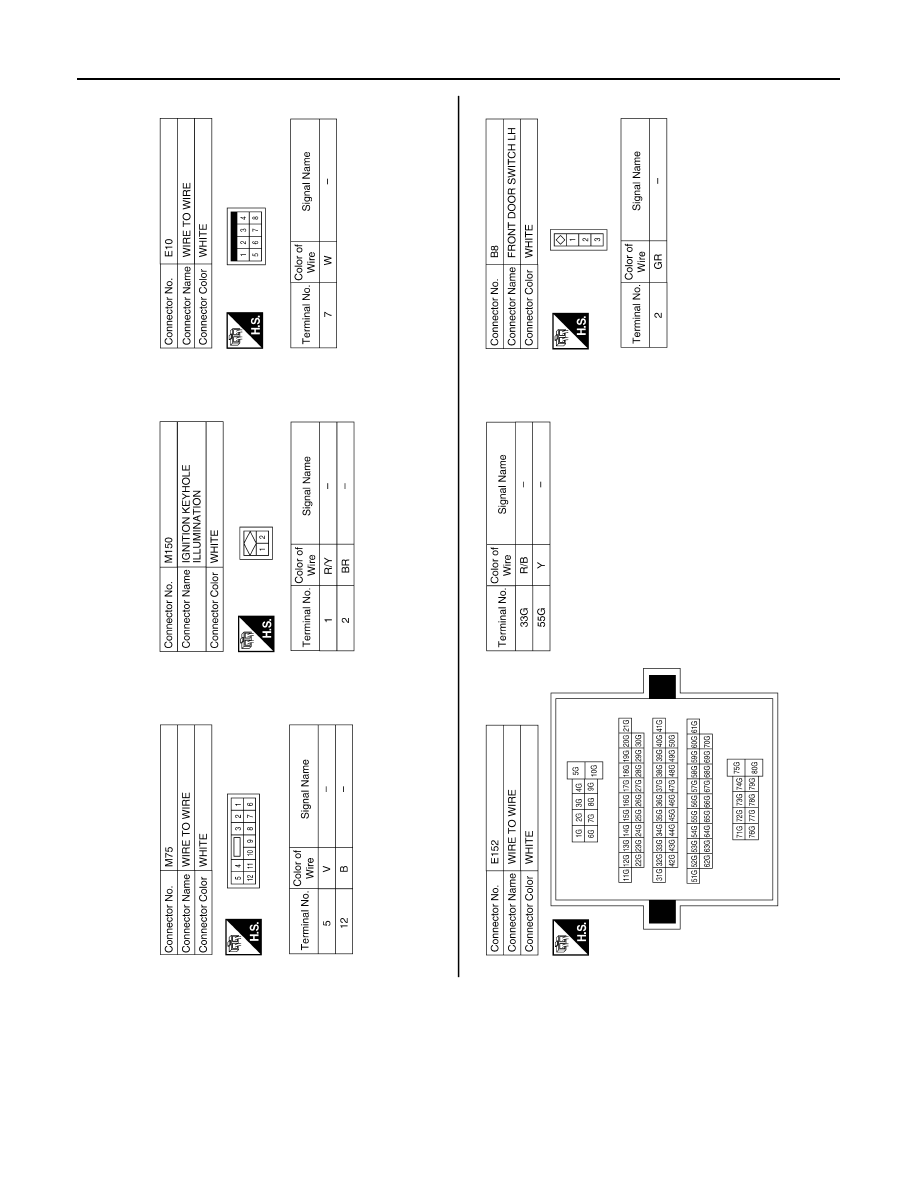

ABLIA0444GB

August 2012

2012 Pathfinder
