SYSTEM DESCRIPTION

FUNCTION INFORMATION

Component Part Location

INFOID:0000000007356415

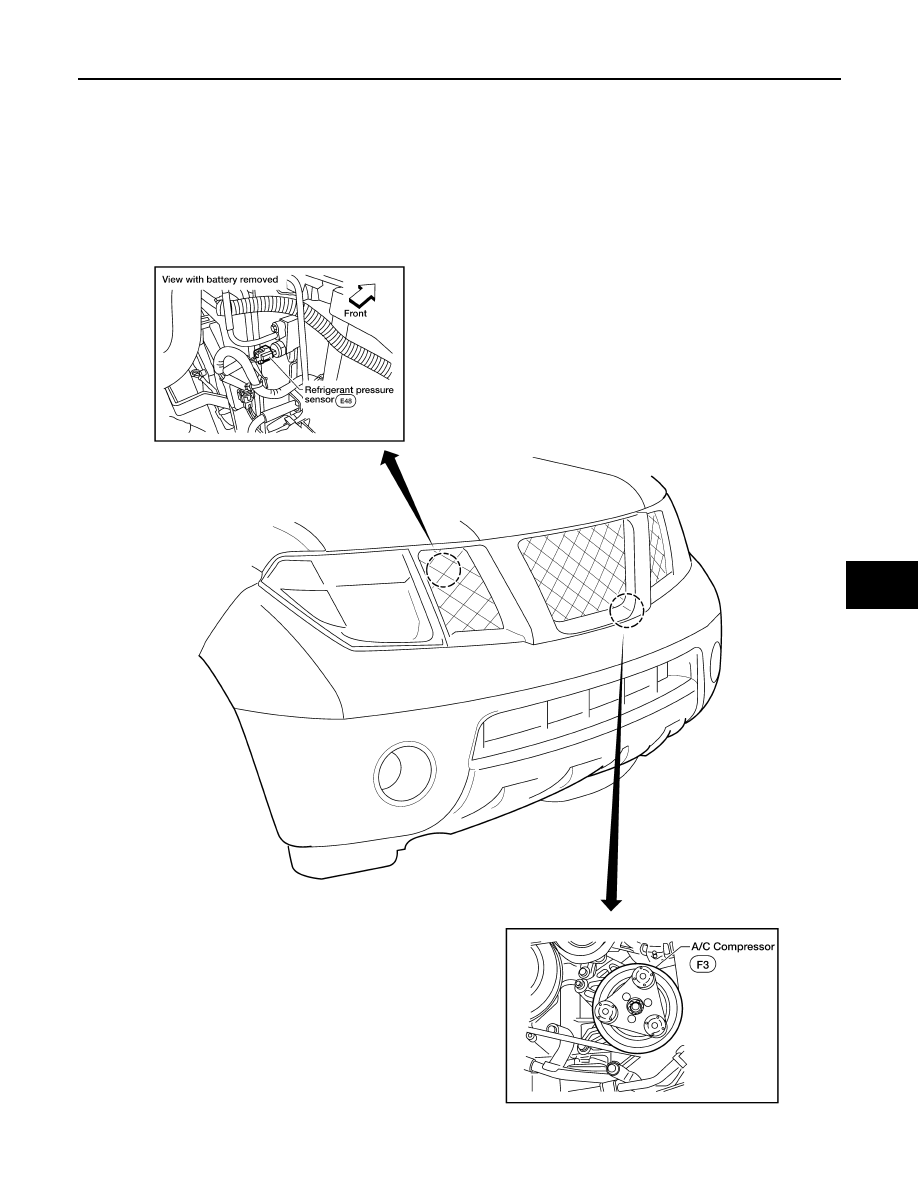

ENGINE COMPARTMENT

WJIA1489E

August 2012

2012 Pathfinder

HAC-132

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONER]

FUNCTION INFORMATION

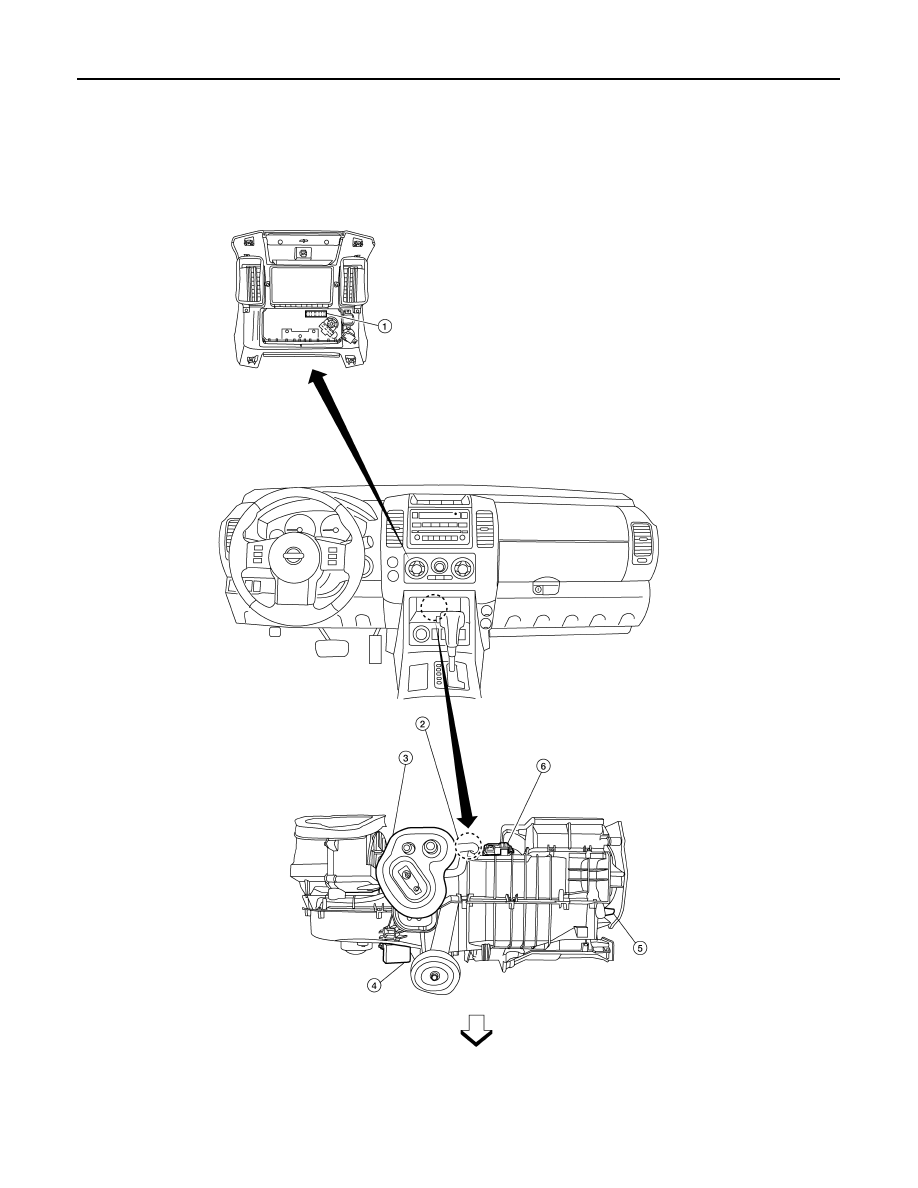

PASSENGER COMPARTMENT

1.

Front air control M52

2.

Intake sensor M146

3.

Intake door motor M58

4.

Front blower motor resistor M121

5.

Mode door motor M144

6.

Air mix door motor (front) M149

AWIIA1194GB

August 2012

2012 Pathfinder

FUNCTION INFORMATION

HAC-133

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Symptom Table

INFOID:0000000007356416

Symptom

Reference Page

A/C system does not come on.

Go to Trouble Diagnosis Procedure for A/C System.

HAC-167

Air outlet does not change.

Go to Trouble Diagnosis Procedure for Mode Door Motor.

HAC-142

Mode door motor is malfunctioning.

Discharge air temperature does not change.

Go to Trouble Diagnosis Procedure for Air Mix Door Motor.

HAC-147

Air mix door motor is malfunctioning.

Intake door does not change.

Go to Trouble Diagnosis Procedure for Intake Door Motor.

HAC-150

Intake door motor is malfunctioning.

Front blower motor operation is malfunctioning. Go to Trouble Diagnosis Procedure for Front Blower Motor.

HAC-153

Magnet clutch does not engage.

Go to Trouble Diagnosis Procedure for Magnet Clutch.

HAC-160

Insufficient cooling

Go to Trouble Diagnosis Procedure for Insufficient Cooling.

HAC-180

Insufficient heating

Go to Trouble Diagnosis Procedure for Insufficient Heating.

HAC-188

Noise

Go to Trouble Diagnosis Procedure for Noise.

HAC-190

August 2012

2012 Pathfinder

HAC-134

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONER]

REFRIGERATION SYSTEM

REFRIGERATION SYSTEM

Refrigerant Cycle

INFOID:0000000007356417

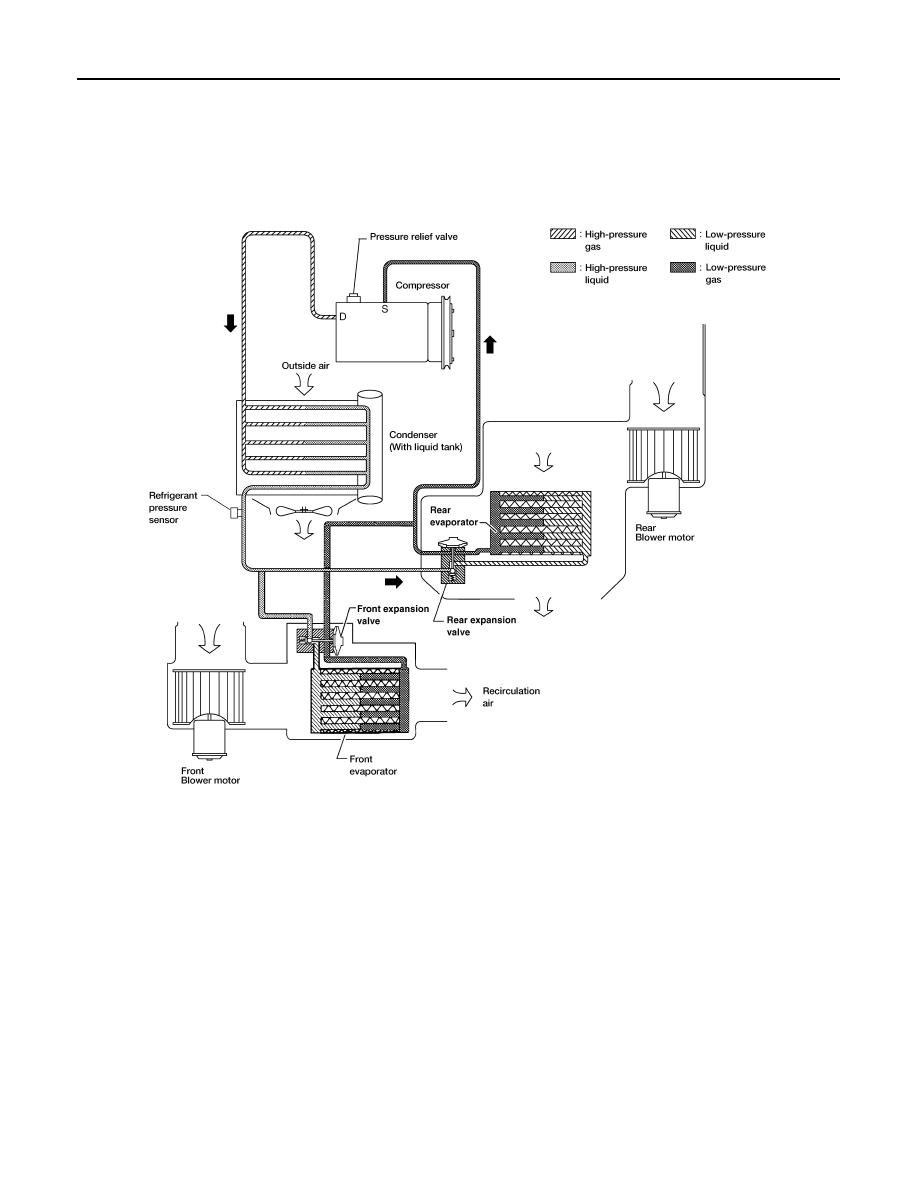

REFRIGERANT FLOW

The refrigerant flows in the standard pattern, that is, through the compressor, the condenser with liquid tank,

through the front and rear evaporators, and back to the compressor. The refrigerant evaporation through the

evaporator coils are controlled by front and rear externally equalized expansion valves, located inside the front

and rear evaporator cases.

FREEZE PROTECTION

The compressor cycles on and off to maintain the evaporator temperature within a specified range. When the

evaporator coil temperature falls below a specified point, the intake sensor interrupts the compressor opera-

tion. When the evaporator coil temperature rises above the specification, the intake sensor allows compressor

operation.

Refrigerant System Protection

INFOID:0000000007356418

REFRIGERANT PRESSURE SENSOR

WJIA1342E

August 2012

2012 Pathfinder

REFRIGERATION SYSTEM

HAC-135

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

The refrigerant system is protected against excessively high- or low-pressures by the refrigerant pressure sen-

sor, located on the condenser. If the system pressure rises above or falls below the specifications, the refriger-

ant pressure sensor detects the pressure inside the refrigerant line and sends a voltage signal to the ECM.

The ECM de-energizes the A/C relay to disengage the magnetic compressor clutch when pressure on the high
pressure side detected by refrigerant pressure sensor is over about 2,746 kPa (28 kg/cm

2

, 398 psi), or below

about 120 kPa (1.22 kg/cm

2

, 17.4 psi).

PRESSURE RELIEF VALVE

The refrigerant system is also protected by a pressure relief valve, located in the rear head of the compressor.

When the pressure of refrigerant in the system increases to an abnormal level [more than 2,990 kPa (30.5 kg/
cm

2

, 433.6 psi)], the release port on the pressure relief valve automatically opens and releases refrigerant into

the atmosphere.

August 2012

2012 Pathfinder

HAC-136

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONER]

MANUAL AIR CONDITIONER SYSTEM

MANUAL AIR CONDITIONER SYSTEM

Control System Diagram

INFOID:0000000007356419

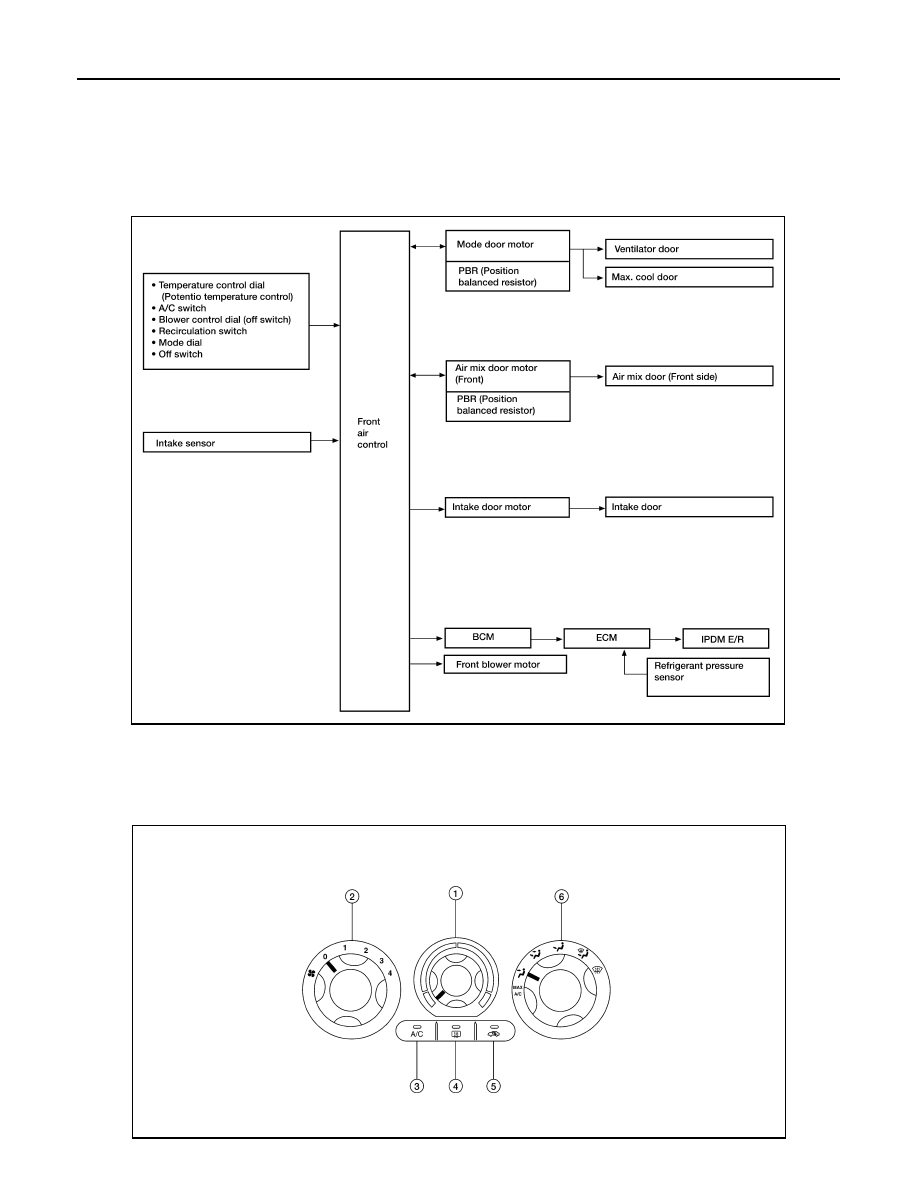

CONTROL SYSTEM

The control system consists of input sensors, switches, the front air control (microcomputer) and outputs.

The relationship of these components is shown in the figure below:

Control System Description

INFOID:0000000007356420

CONTROL OPERATION

Front air control

AWIIA0592GB

WJIA1510E

August 2012

2012 Pathfinder

MANUAL AIR CONDITIONER SYSTEM

HAC-137

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

TEMPERATURE CONTROL DIAL (TEMPERATURE CONTROL)

Increases or decreases the set temperature.

RECIRCULATION (

) SWITCH

• When REC switch is ON, REC switch indicator turns ON, and air inlet is set to REC.

• When REC switch is turned OFF, or when compressor is turned from ON to OFF, REC switch is automati-

cally turned OFF. REC mode can be re-entered by pressing REC switch again.

• REC switch is not operated when DEF switch is turned ON, or at the D/F or FOOT position.

DEFROSTER (

) SWITCH

Positions the air outlet doors to the defrost position. Also positions the intake doors to the outside air position.

REAR WINDOW DEFOGGER SWITCH

When switch is ON, rear window is defogged.

OFF SWITCH (BLOWER SPEED SET TO 0)

The compressor and blower are OFF.

A/C SWITCH

The compressor is ON or OFF.

(Pressing the A/C switch will turn off the A/C switch and compressor.)

MODE DIAL

Controls the air discharge outlets.

FRONT BLOWER CONTROL DIAL

Manually controls the four blower speeds.

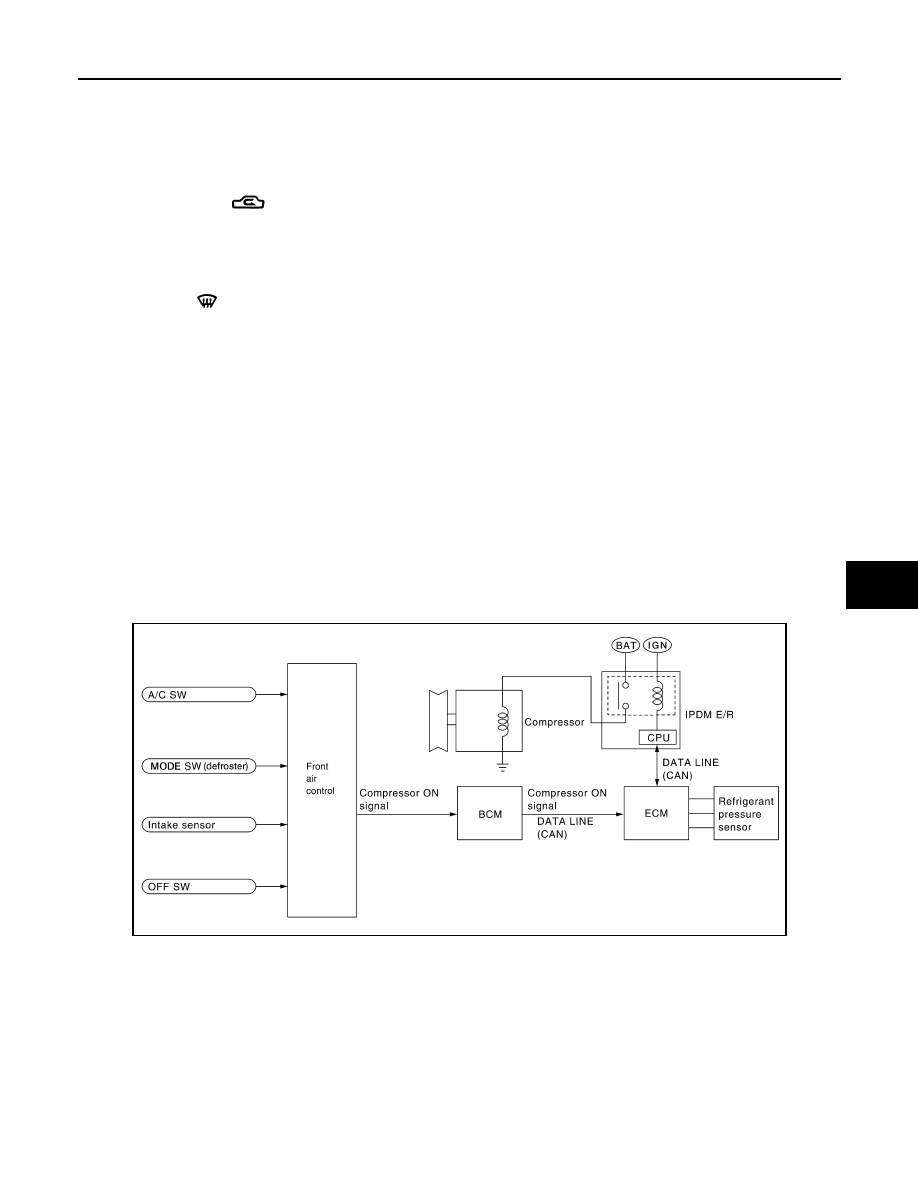

MAGNET CLUTCH CONTROL

When the A/C switch is pressed, or the mode dial is turned to the DEF or D/F position, the front air control out-

puts a compressor ON signal to BCM.

The BCM then sends a compressor ON signal to ECM, via CAN communication line.

ECM judges whether compressor can be turned ON, based on each sensor status (refrigerant pressure sen-

sor signal, throttle angle sensor, etc.). If it judges compressor can be turned ON, it sends compressor ON sig-

nal to IPDM E/R, via CAN communication line.

Upon receipt of compressor ON signal from ECM, IPDM E/R turns air conditioner relay ON to operate com-

pressor.

1.

Temperature control dial

2.

Blower control dial

3.

A/C switch

4.

Rear window defogger switch

5.

Recirculation switch

6.

Mode dial

WJIA1293E
