Nissan Pathfinder (2012 year). Manual - part 419

HAC-74

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

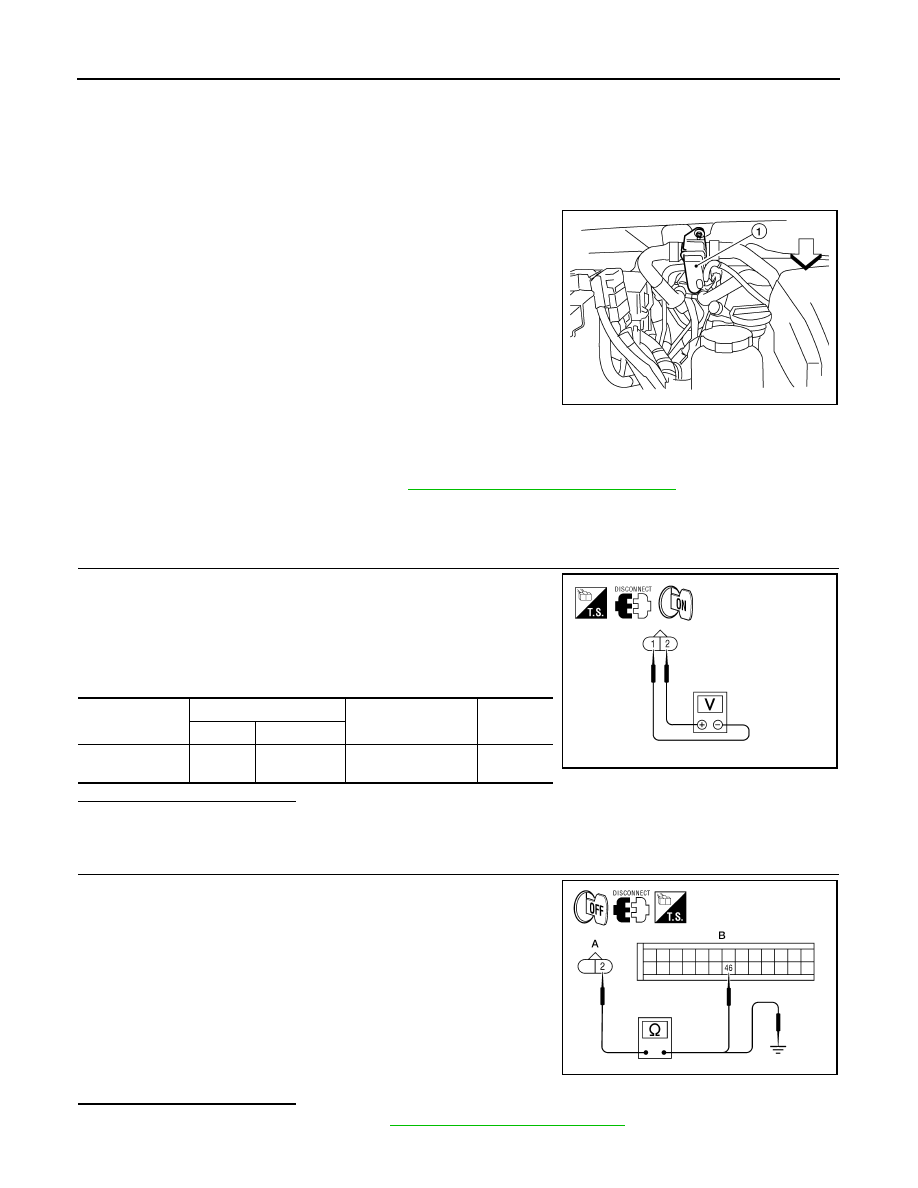

WATER VALVE CIRCUIT

WATER VALVE CIRCUIT

Water Valve Description (VK56DE)

INFOID:0000000007356380

COMPONENT DESCRIPTION

Water Valve

The water valve (1) cuts the flow of engine coolant to the front and

rear heater cores to allow for maximum cooling during A/C opera-

tion. It is controlled by the A/C auto amp.

Water Valve Diagnosis Procedure (VK56DE)

INFOID:0000000007356381

Regarding Wiring Diagram information, refer to

HAC-95, "Wiring Diagram - Automatic"

.

DIAGNOSTIC PROCEDURE FOR WATER VALVE

1.

CHECK WATER VALVE POWER AND GROUND CIRCUITS

1. Disconnect water valve connector F68.

2. Turn ignition switch ON.

3. Rotate temperature control dial (driver) to 32

°

C (90

°

F).

4. Check voltage between water valve harness connector F68 ter-

minal 1 and terminal 2 while rotating temperature control dial

(driver) to 18

°

C (60

°

F).

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK WATER VALVE CONTROL OUTPUT CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect A/C auto amp. connector M50.

3. Check continuity between water valve harness connector F68

(A) terminal 2 and A/C auto amp. harness connector M50 (B)

terminal 46.

4. Check continuity between water valve harness connector F68

(A) terminal 2 and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

VTL-7, "Removal and Installation"

.

NO

>> Repair harness or connector.

WJIA1791E

Connector

Terminals

Condition

Voltage

(Approx.)

(+) (-)

Water valve: F68

2

1

Rotate temperature

control dial

Battery
voltage

WJIA1794E

2 - 46

: Continuity should exist.

2 - Ground

: Continuity should not exist.

AWIIA0203ZZ

August 2012

2012 Pathfinder

WATER VALVE CIRCUIT

HAC-75

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

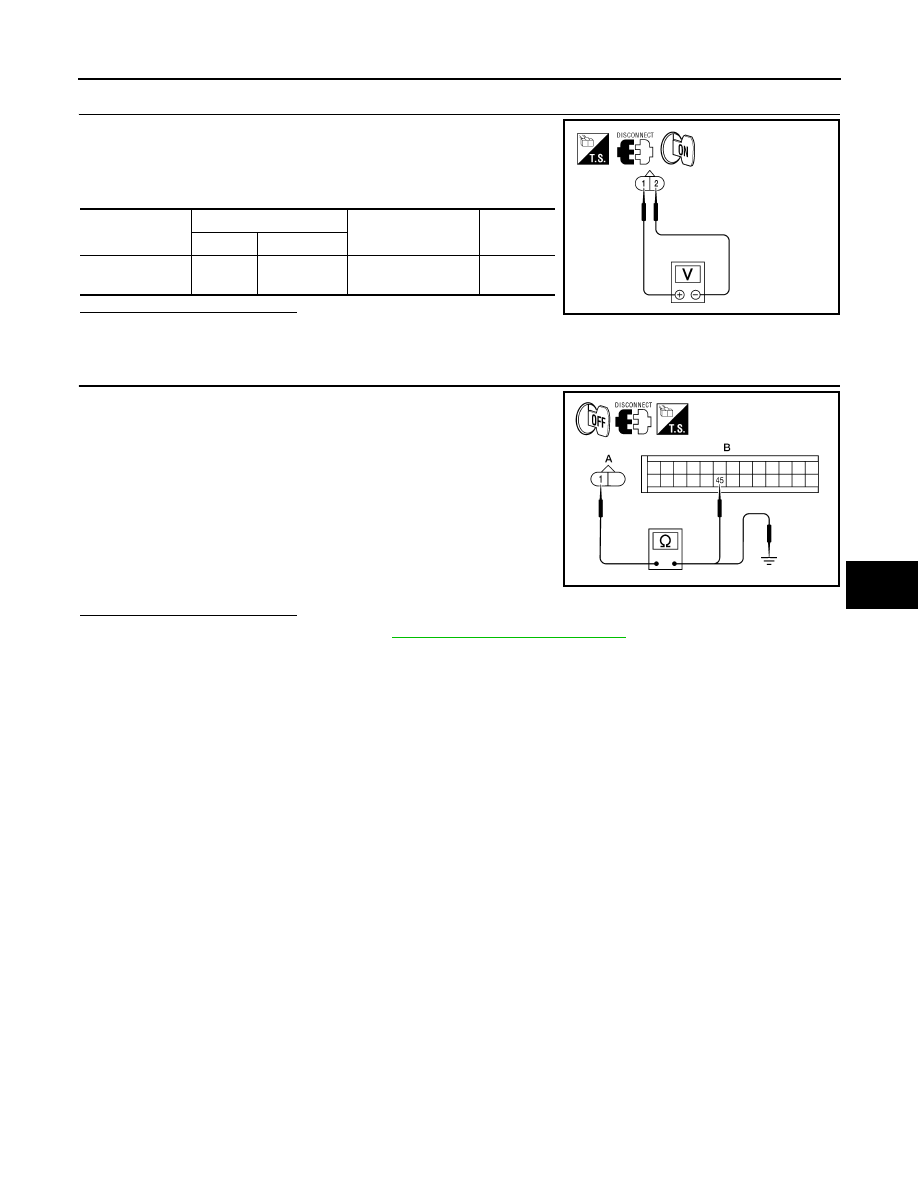

3.

CHECK WATER VALVE POWER AND GROUND CIRCUITS

1. Rotate temperature control dial (driver) to 18

°

C (60

°

F).

2. Check voltage between water valve harness connector F68 ter-

minal 1 and terminal 2 while rotating temperature control dial

(driver) to 32

°

C (90

°

F).

Is the inspection result normal?

YES

>>  Replace the water valve.

NO

>> GO TO 4.

4.

CHECK WATER VALVE CONTROL OUTPUT CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect A/C auto amp. connector M50.

3. Check continuity between water valve harness connector F68

(A) terminal 1 and A/C auto amp. harness connector M50 (B)

terminal 45.

4. Check continuity between water valve harness connector F68

(A) terminal 1 and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

VTL-7, "Removal and Installation"

.

NO

>> Repair harness or connector.

Connector

Terminals

Condition

Voltage

(Approx.)

(+) (-)

Water valve: F68

1

2

Rotate temperature

control dial

Battery
voltage

WJIA1792E

1 - 45

: Continuity should exist.

1 - Ground

: Continuity should not exist.

AWIIA0204ZZ

August 2012

2012 Pathfinder

HAC-76

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

HEATER PUMP

HEATER PUMP

System Description (VQ40DE)

INFOID:0000000007356382

SYSTEM DESCRIPTION

Component Parts

Heater pump control system components are:

• A/C auto amp.

• Heater pump relay

• Heater pump

• Intake sensor

System Operation

The heater pump improves heater performance specifically at idle conditions. It is designed to operate in

either of the following 2 situations:

1. Front blower motor set to maximum speed and temperature control dial (driver or passenger) set to full hot

32

°

C (90

°

F) or

2. Engine coolant temperature (signal via CAN communication) minus heater core outlet temperature (intake

sensor input to A/C auto amp.) is greater than 20

°

C (68

°

F). If the difference is less than 16

°

C (61

°

F), the

heater pump will not operate unless the conditions in item No. 1 above are met.

Diagnosis Procedure (VQ40DE)

INFOID:0000000007356383

Regarding Wiring Diagram information, refer to

HAC-95, "Wiring Diagram - Automatic"

.

DIAGNOSTIC PROCEDURE FOR HEATER PUMP CIRCUIT

1.

CHECK POWER SUPPLY TO HEATER PUMP

1. Disconnect heater pump connector.

2. Turn ignition switch ON.

3. Set front blower motor to maximum speed.

4. Turn temperature control dial (passenger or driver) to full hot 32

°

C (90

°

F).

WJIA1780E

August 2012

2012 Pathfinder

HEATER PUMP

HAC-77

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

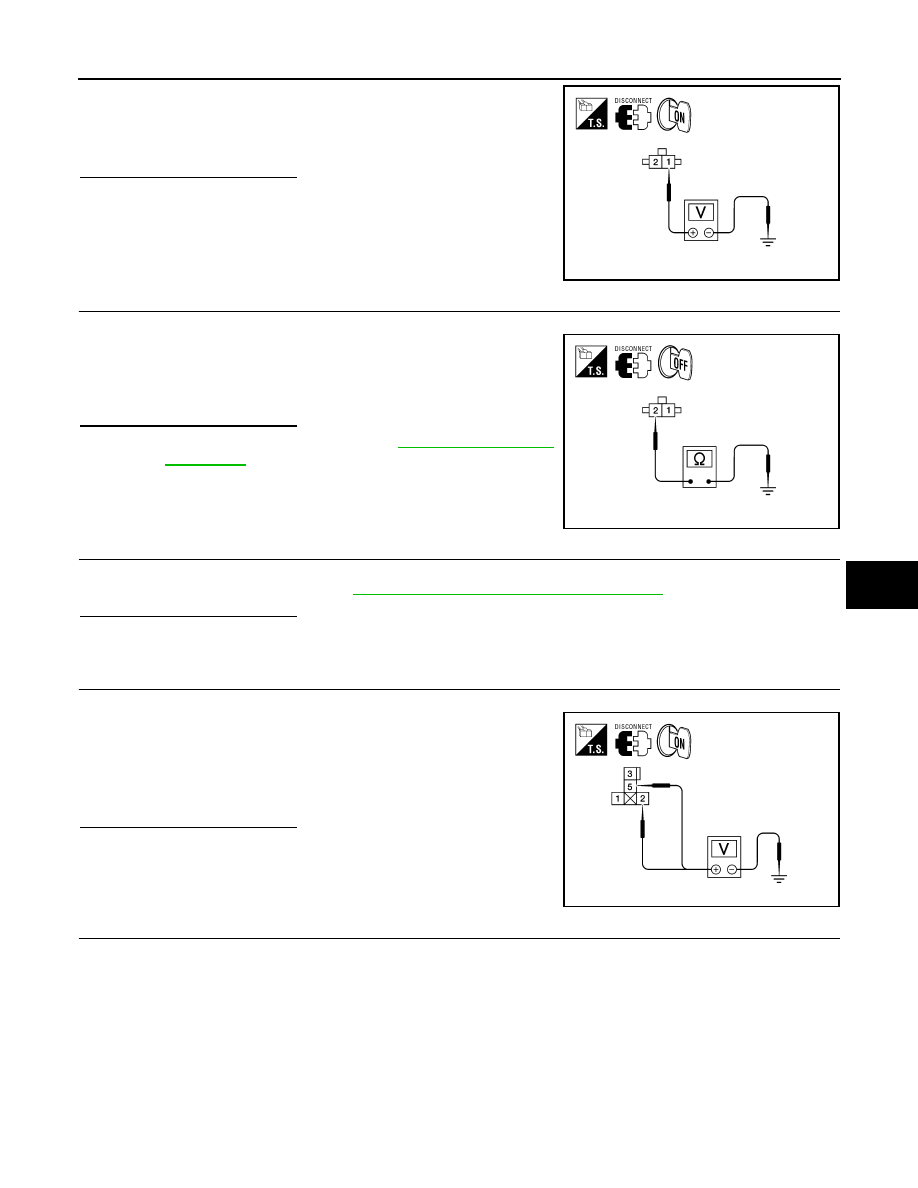

5. Check voltage between heater pump harness connector E141

terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK HEATER PUMP GROUND

1. Turn ignition switch OFF.

2. Check continuity between heater pump harness connector E141

terminal 2 and ground.

Is the inspection result normal?

YES

>> Replace heater pump. Refer to

HA-58, "Removal and

Installation"

.

NO

>> Repair harness or connector.

3.

CHECK HEATER PUMP RELAY

1. Turn ignition switch OFF.

2. Check heater pump relay. Refer to

HAC-78, "Component Inspection (VQ40DE)"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace heater pump relay.

4.

CHECK RELAY POWER SUPPLY

1. Turn ignition switch ON.

2. Check voltage between heater pump relay harness connector

E144 terminals 2, 5 and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair harness or connector.

5.

CHECK HEATER PUMP MOTOR POWER CIRCUIT

1. Turn ignition switch OFF.

1 - Ground

: Battery voltage

WJIA1984E

2 - Ground

: Continuity should exist.

WJIA1985E

2 - Ground

: Battery voltage

5 - Ground

: Battery voltage

WJIA1986E

August 2012

2012 Pathfinder

HAC-78

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

HEATER PUMP

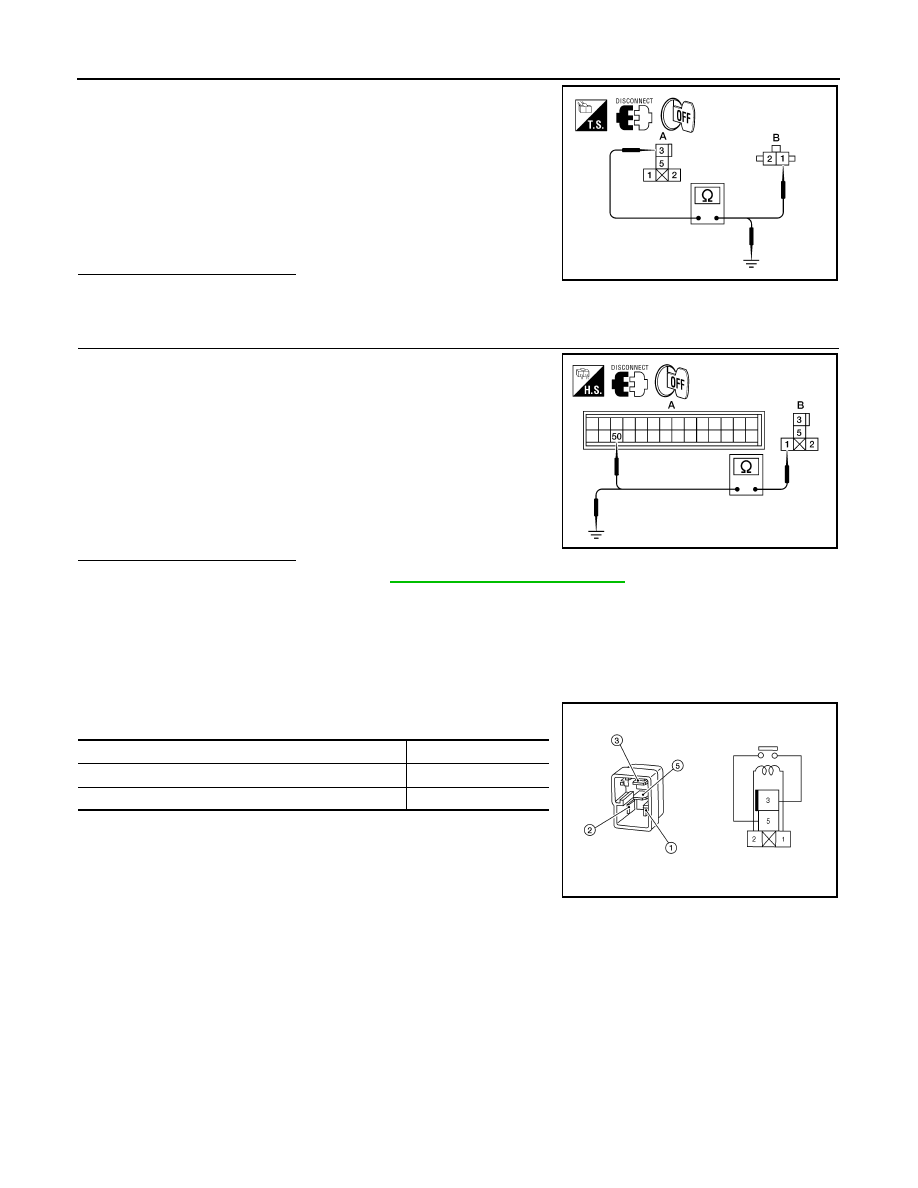

2. Check continuity between heater pump relay harness connector

(A) E144 terminal 3 and heater pump harness connector (B)

E141 terminal 1.

3. Check continuity between heater pump relay harness connector

(A) E144 terminal 3 and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair harness or connector.

6.

CHECK CIRCUIT BETWEEN HEATER PUMP RELAY AND A/C AUTO AMP.

1. Disconnect A/C auto amp. connector.

2. Check continuity between A/C auto amp. harness connector

M50 (A) terminal 50 and heater pump relay harness connector

E144 (B) terminal 1.

3. Check continuity between heater pump relay harness connector

E144 (B) terminal 1 and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

VTL-7, "Removal and Installation"

.

NO

>> Repair harness or connector.

Component Inspection (VQ40DE)

INFOID:0000000007356384

COMPONENT INSPECTION

Heater Pump Relay

Check continuity between terminals 3 and 5.

If NG, replace relay.

3 - 1

: Continuity should exist.

3 - Ground

: Continuity should not exist.

WJIA1987E

1 - 50

: Continuity should exist.

1 - Ground

: Continuity should not exist.

AWIIA0263ZZ

Conditions

Continuity

12V direct current supply between terminals 1 and 2

Yes

No current supply

No

LHA160

August 2012

2012 Pathfinder

AMBIENT SENSOR

HAC-79

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

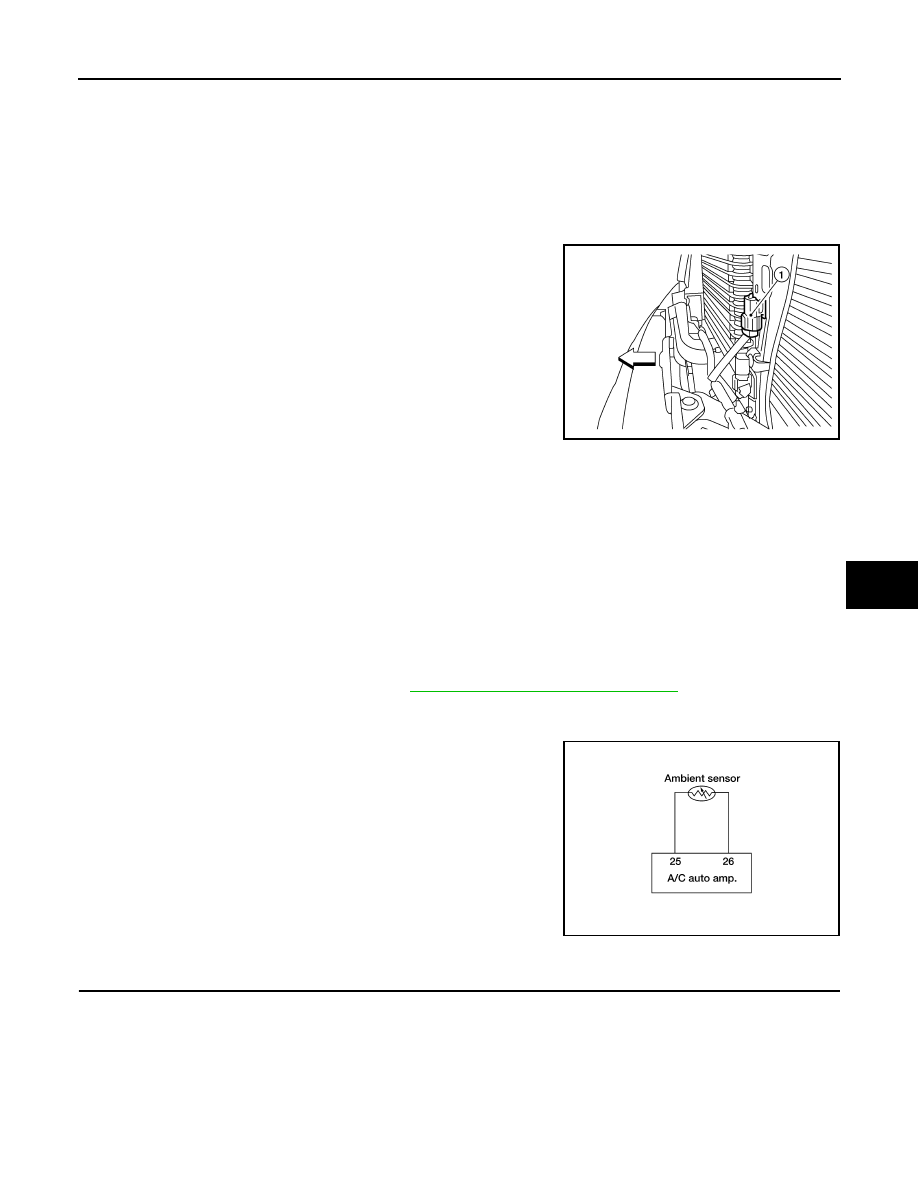

AMBIENT SENSOR

Component Description

INFOID:0000000007356385

COMPONENT DESCRIPTION

Ambient Sensor

Ambient sensor (1) is attached to the radiator core support (left side). It detects ambient temperature and con-

verts it into a value which is then input into the A/C auto amp.

•

⇐

: Front

AMBIENT TEMPERATURE INPUT PROCESS

The A/C auto amp. includes a processing circuit for the ambient sensor input. However, when the temperature

detected by the ambient sensor increases quickly, the processing circuit retards the A/C auto amp. function. It

only allows the A/C auto amp. to recognize an ambient temperature increase of 0.33

°

C (0.6

°

F) per 100 sec-

onds.

This prevents constant adjustments due to momentary conditions, such as stopping after high speed driving.

Although the actual ambient temperature has not changed, the temperature detected by the ambient sensor

will increase. This is because the heat from the engine compartment can radiate to the front grille area, loca-

tion of the ambient sensor.

Ambient Sensor Diagnosis Procedure

INFOID:0000000007356386

Regarding Wiring Diagram information, refer to

HAC-95, "Wiring Diagram - Automatic"

.

DIAGNOSTIC PROCEDURE FOR AMBIENT SENSOR

SYMPTOM: Ambient sensor circuit is open or shorted. (40 or 41 is

indicated on A/C auto amp. as a result of conducting the A/C auto

amp. self-diagnosis)

1.

CHECK VOLTAGE BETWEEN AMBIENT SENSOR AND GROUND

AWIIA0262ZZ

AWIIA0160GB

August 2012

2012 Pathfinder

HAC-80

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

AMBIENT SENSOR

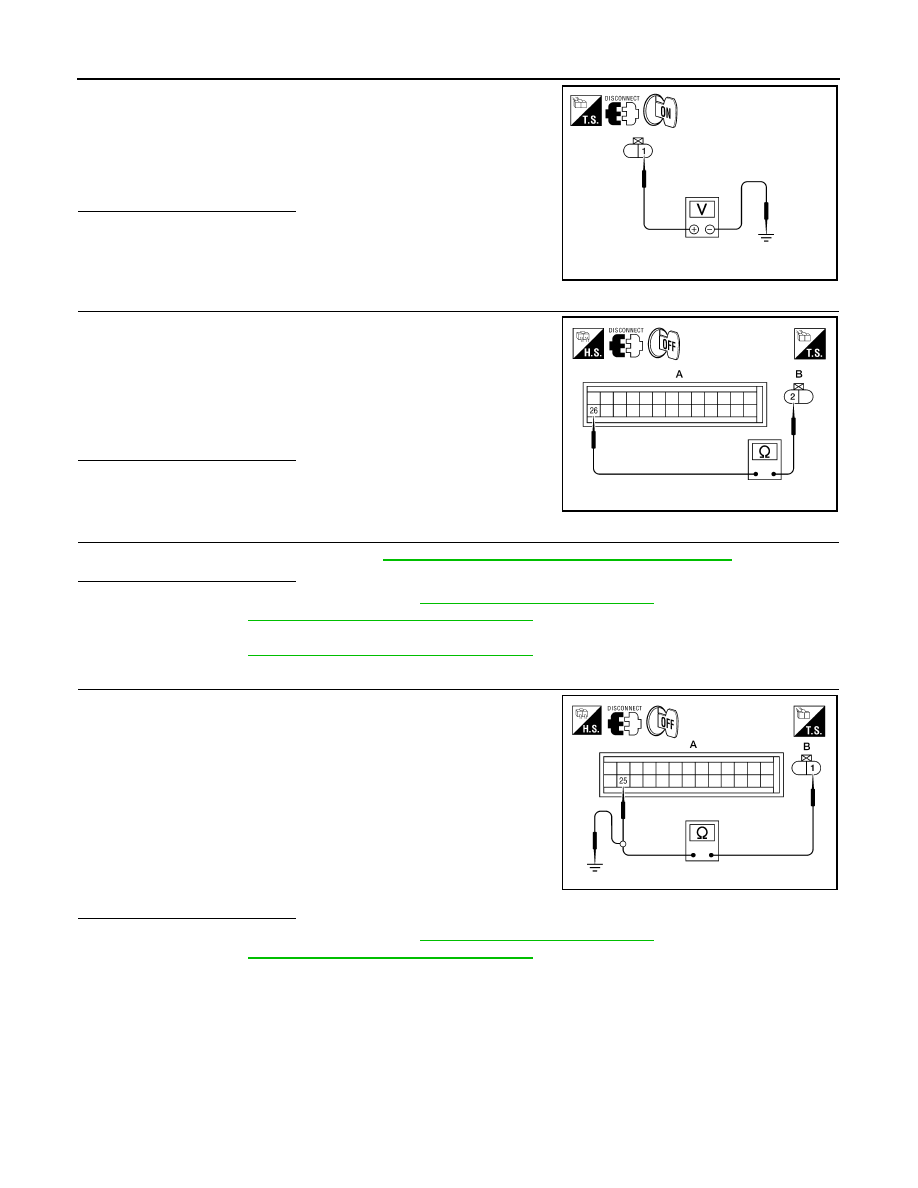

1. Disconnect ambient sensor connector.

2. Turn ignition switch ON.

3. Check voltage between ambient sensor harness connector E1

terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR AND A/C AUTO AMP.

1. Turn ignition switch OFF.

2. Disconnect A/C auto amp. connector.

3. Check continuity between ambient sensor harness connector

E1 (B) terminal 2 and A/C auto amp. harness connector M49 (A)

terminal 26.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK AMBIENT SENSOR

Check the Ambient Sensor Circuit. Refer to

HAC-80, "Ambient Sensor Component Inspection"

.

Is the inspection result normal?

YES

>> 1. Replace A/C auto amp. Refer to

VTL-7, "Removal and Installation"

.

2. GO TO

HAC-24, "A/C Auto Amp. Self-Diagnosis"

 and perform self-diagnosis.

NO

>> 1. Replace ambient sensor.

2. GO TO

HAC-24, "A/C Auto Amp. Self-Diagnosis"

 and perform self-diagnosis.

4.

CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR AND A/C AUTO AMP.

1. Turn ignition switch OFF.

2. Disconnect A/C auto amp. connector.

3. Check continuity between ambient sensor harness connector

E1 (B) terminal 1 and A/C auto amp. harness connector M49 (A)

terminal 25.

4. Check continuity between ambient sensor harness connector

E1 (B) terminal 1 and ground.

Is the inspection result normal?

YES

>> 1. Replace A/C auto amp. Refer to

VTL-7, "Removal and Installation"

2. GO TO

HAC-24, "A/C Auto Amp. Self-Diagnosis"

 and perform self-diagnosis.

NO

>> Repair harness or connector.

Ambient Sensor Component Inspection

INFOID:0000000007356387

COMPONENT INSPECTION

Ambient Sensor

1 - Ground

: Approx. 5V

AWIIA0161ZZ

2 - 26

: Continuity should exist.

AWIIA1039ZZ

1 - 25

: Continuity should exist.

1 - Ground

: Continuity should not exist.

AWIIA1040ZZ

August 2012

2012 Pathfinder

AMBIENT SENSOR

HAC-81

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

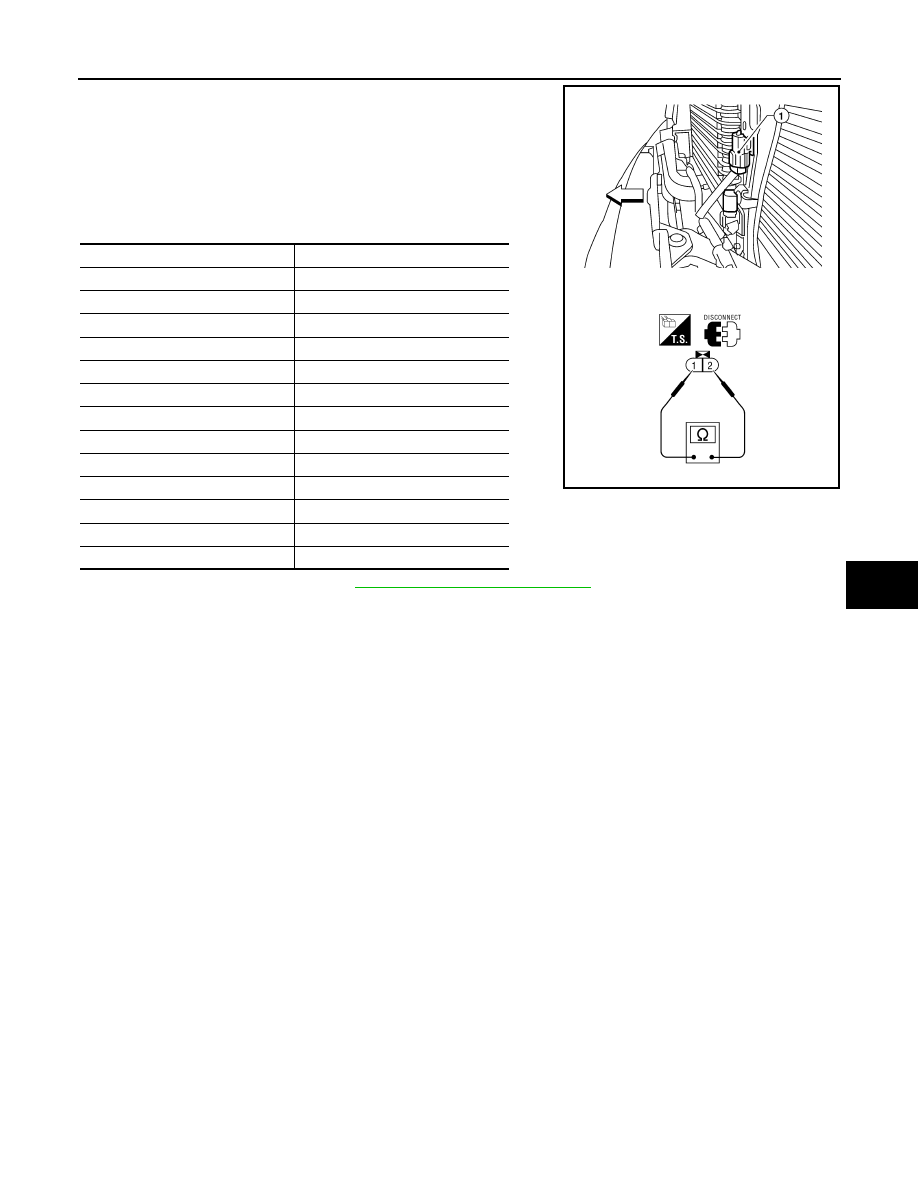

After disconnecting ambient sensor (1) connector E1, measure

resistance between terminals 1 and 2 at sensor component side,

using the table below.

•

⇐

: Front

NOTE:

The ambient sensor is located behind the front grille, below the hood

latch. The ambient sensor (1) provides input for the automatic A/C

system.

If NG, replace ambient sensor. Refer to

HA-57, "Removal and Installation"

.

Temperature

°

C (

°

F)

Resistance k

Ω



−

15 (5)

12.73



−

10 (14)

9.92



−

5 (23)

7.80

0 (32)

6.19

5 (41)

4.95

10 (50)

3.99

15 (59)

3.24

20 (68)

2.65

25 (77)

2.19

30 (86)

1.81

35 (95)

1.51

40 (104)

1.27

45 (113)

1.07

WJIA1981E

August 2012

2012 Pathfinder
