Nissan Pathfinder (2012 year). Manual - part 401

GW-14

< UNIT REMOVAL AND INSTALLATION >

WINDSHIELD GLASS

Repairing Water Leaks for Windshield

Leaks can be repaired without removing and reinstalling glass.

If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.

This can be done by applying water to the windshield area while pushing glass outward.

To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

10.0 mm (0.39 in)

22.0 mm (0.78 in)

20.0 mm (0.78 in)

28.0 mm (1.10 in)

12.0 mm (0.47 in)

15.0 mm (0.59 in)

August 2012

2012 Pathfinder

FRONT DOOR GLASS AND REGULATOR

GW-15

< UNIT REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

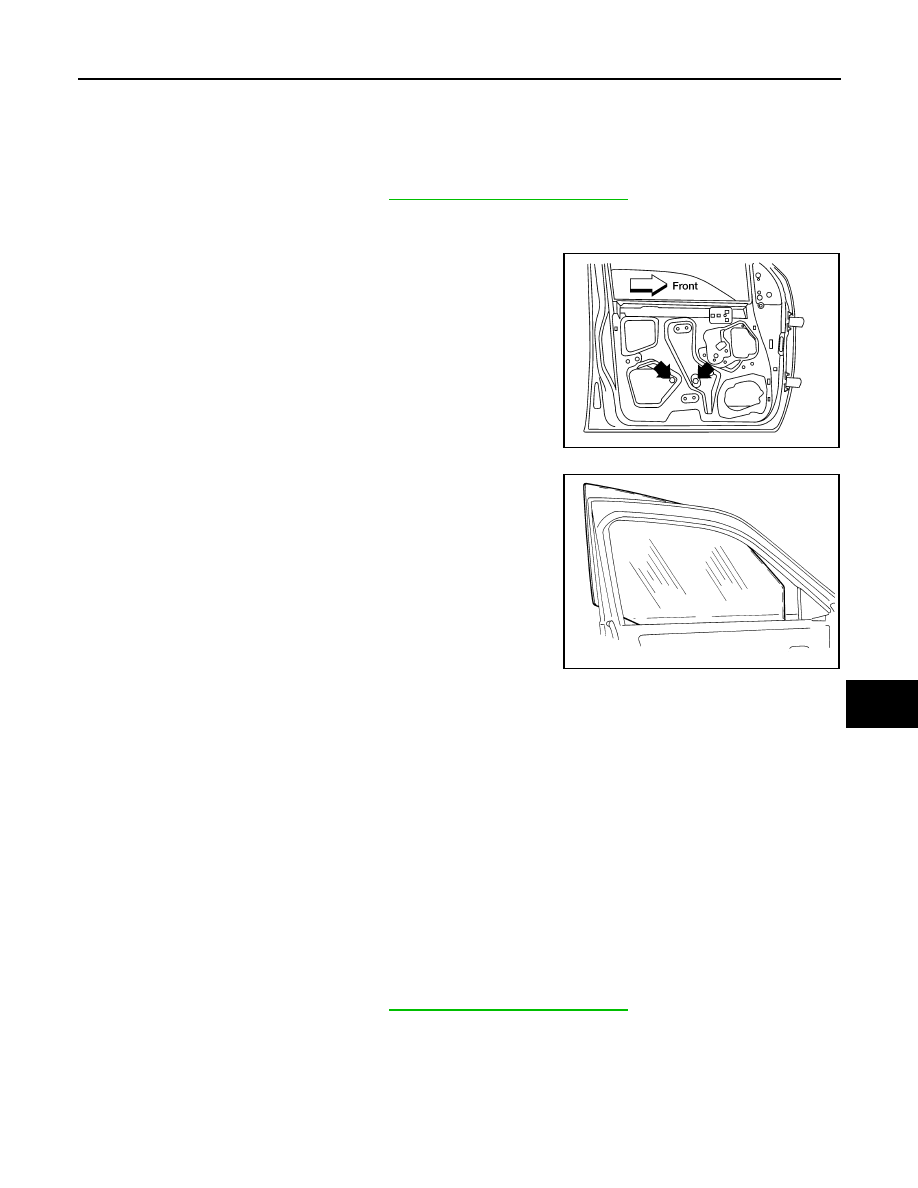

Front Door Glass

INFOID:0000000007355836

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

2. Position aside the vapor barrier.
3. Temporarily reconnect the power window switch.
4. Operate the power window main switch to raise/lower the door

window until the glass bolts can be seen.

5. Partially remove the inside seal.
6. Remove the glass bolts.

7. While holding the door window, raise it at the rear and pull the

glass out of the sash toward the outside of the door.

INSTALLATION

Installation is in the reverse order of removal.

• Check the glass for proper fit. Follow the "FITTING INSPECTION" procedure.

• On the drivers door, reset the motor.

FITTING INSPECTION

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass and guide rail bolts to correct the glass position.

Front Door Glass Regulator

INFOID:0000000007355837

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

2. Position aside the vapor barrier.
3. Temporarily reconnect the power window switch.

LIIA1686E

LIIA1687E

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

August 2012

2012 Pathfinder

GW-16

< UNIT REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

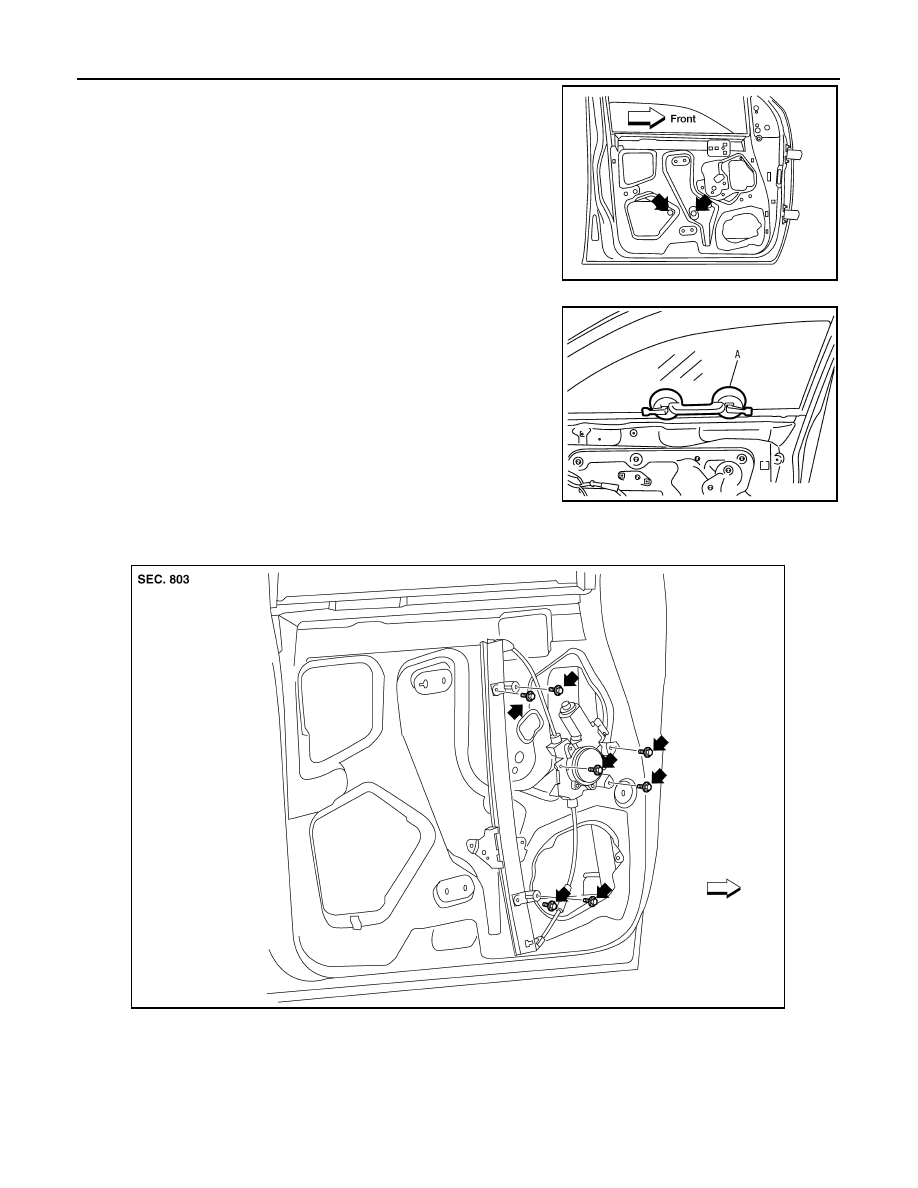

4. Operate the power window main switch to raise/lower the door

window until the glass bolts can be seen.

5. Remove the glass bolts.

6. Raise the front door glass and hold it in place with suitable tool

(A) .

7. Disconnect the harness connector from the regulator assembly.
8. Remove the bolts and the regulator assembly.

DISASSEMBLY AND ASSEMBLY

Remove the regulator motor from the regulator assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Wire wear

• Regulator deformation

LIIA1686E

PIIB3510J

WIIA1033E

August 2012

2012 Pathfinder

FRONT DOOR GLASS AND REGULATOR

GW-17

< UNIT REMOVAL AND INSTALLATION >

• Grease condition for each sliding part

INSTALLATION

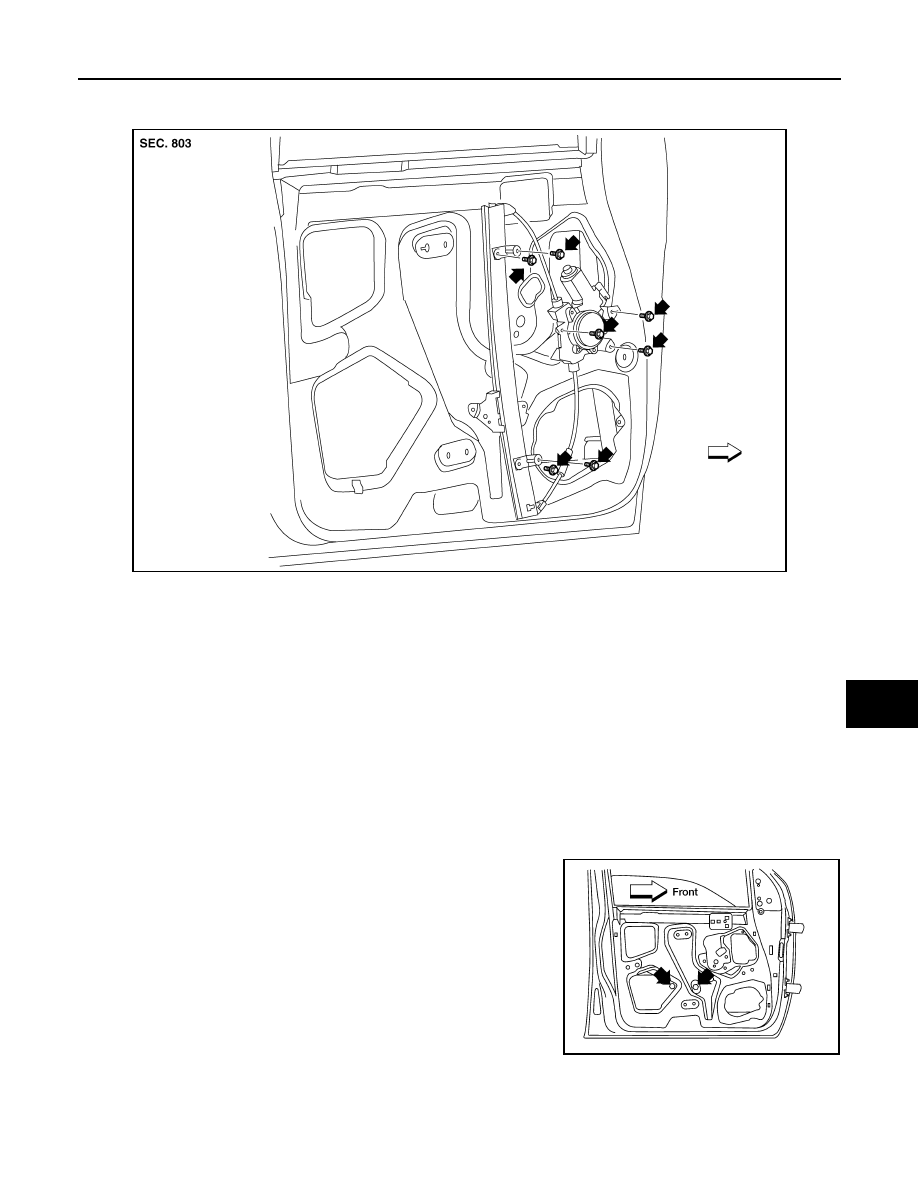

1. Install the regulator assembly.
a. Loosely install the top rear regulator bolt to use along with the temporary holds on the window motor to

install the assembly in the door.

b. Install the top front regulator bolt.
c. Install the bottom front regulator bolt.
d. Install the bottom rear regulator bolt.
e. Tighten the top rear regulator bolt.
f.

Install the top window motor bolt.

g. Install the lower window motor bolt
h. Install the rear window motor bolt.

2. Connect the harness connector to the regulator assembly.
3. Lower the glass and ensure that it is in both the front and rear

glass channels. Tighten glass bolts.

4. Check the glass for proper fit.
5. On the drivers door, reset the motor. Follow the "Setting of Limit Switch" procedure.
6. Reposition the vapor barrier.

WIIA1033E

Regulator and motor bolts : 5.1 N·m (0.58 kg-m, 50 in-lb)

Glass mounting bolts : 6.1 N·m (0.62 kg-m, 54 in-lb)

LIIA1686E

August 2012

2012 Pathfinder

GW-18

< UNIT REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

7. Install front door finisher. Refer to

INT-15, "Removal and Installation"

SETTING AFTER INSTALLATION

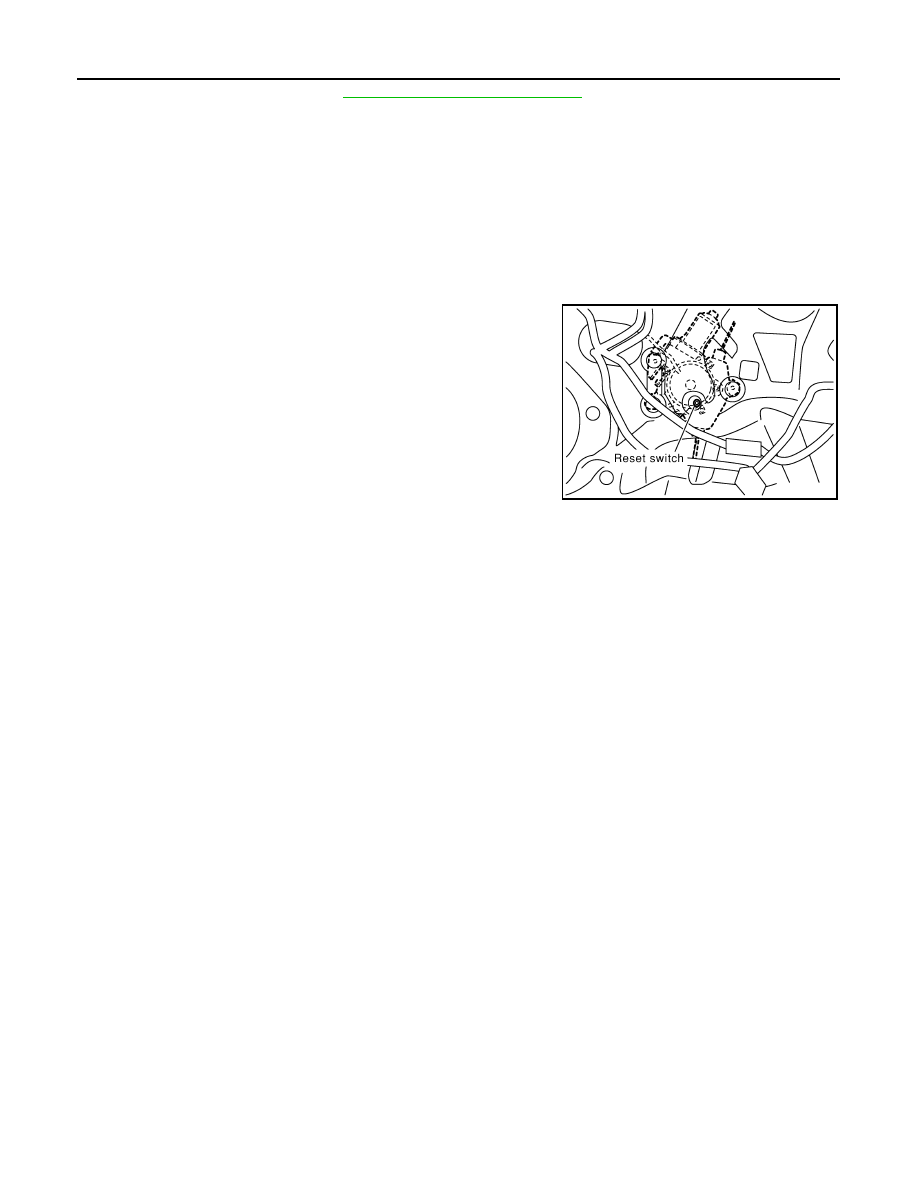

Setting of Limit Switch

If any of the following work has been done, set the limit switch (integrated in the motor).

• Removal and installation of the regulator.

• Removal and installation of the motor from the regulator.

• Removal and installation of the glass.

• Removal and installation of the glass run.

Resetting

After installing each component, perform the following procedure to reset the limit switch.

1. Raise the glass to the top position.

2. While pressing and holding the reset switch, lower the glass to

the bottom position.

3. Release the reset switch. Verify that the reset switch returns to

the original position, if not, pull the switch using suitable tool.

CAUTION:

Do not operate the glass automatically to raise the glass to

the top position.

Raise the glass to the top position.

SIIA0347E

August 2012

2012 Pathfinder

REAR DOOR GLASS AND REGULATOR

GW-19

< UNIT REMOVAL AND INSTALLATION >

REAR DOOR GLASS AND REGULATOR

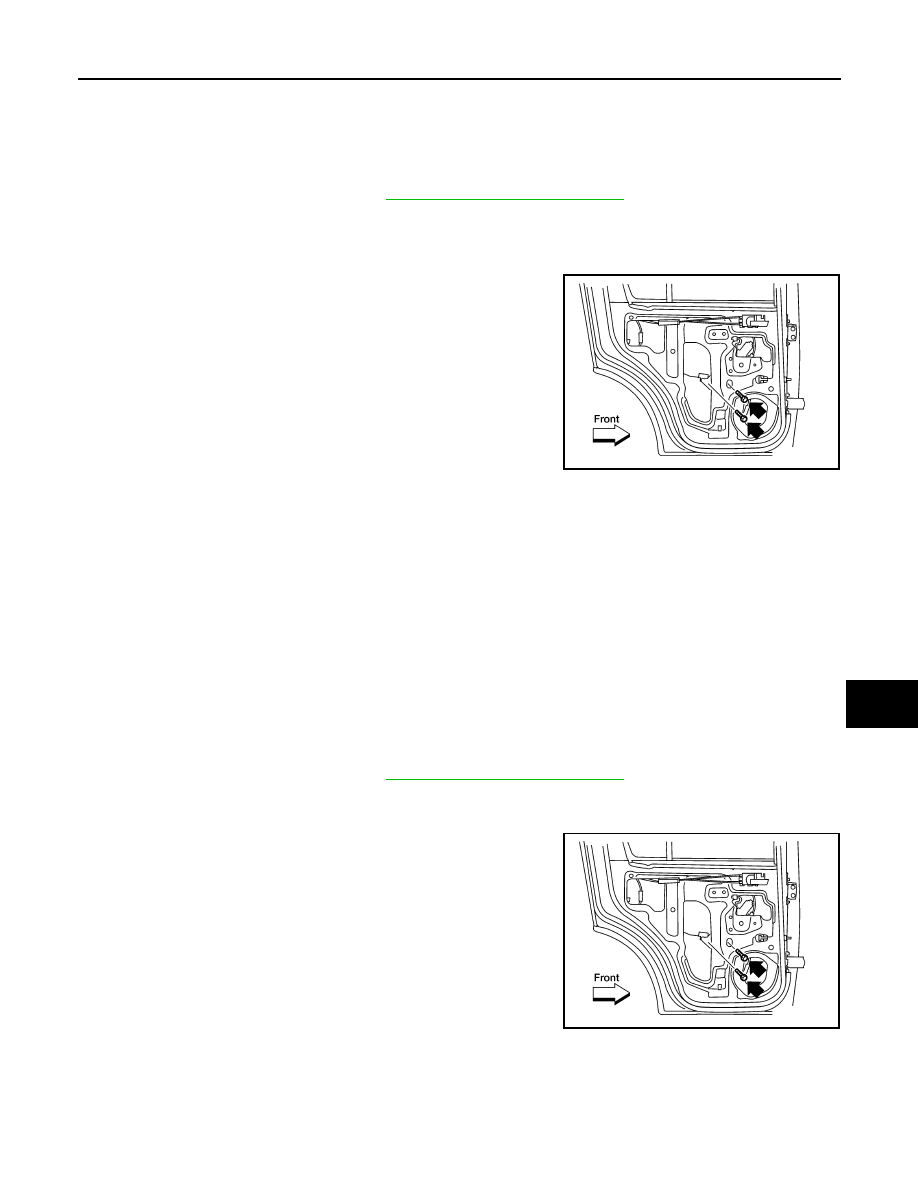

Rear Door Glass

INFOID:0000000007355838

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

2. Position aside the vapor barrier.
3. Temporarily reconnect the power window switch.
4. Remove the glass run from the partition glass.
5. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

6. Remove the partition sash bolt (lower) and screw (upper) to

remove the sash.

7. Remove the bolts and the glass.

INSTALLATION

Installation is in the reverse order of removal.

• Check the glass alignment. Refer to "FITTING INSPECTION".

FITTING INSPECTION

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass carrier plate bolts to correct the glass position.

Rear Door Glass Regulator

INFOID:0000000007355839

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

2. Position aside the vapor barrier.
3. Temporarily reconnect the power window switch.
4. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

LIIA1689E

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

LIIA1689E

August 2012

2012 Pathfinder

GW-20

< UNIT REMOVAL AND INSTALLATION >

REAR DOOR GLASS AND REGULATOR

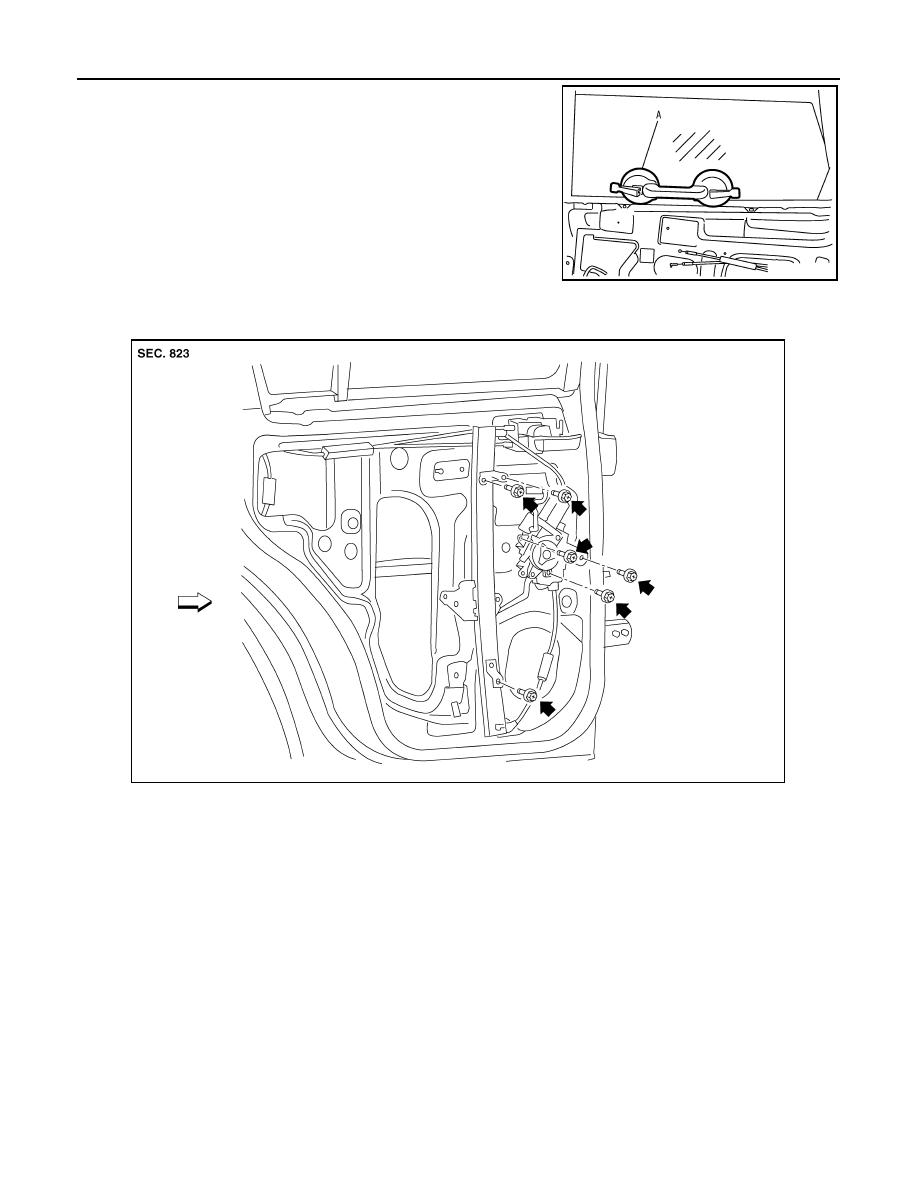

5. Raise the rear door glass and hold it in place with suitable tool

(A).

6. Remove the bolts and the regulator assembly.

• Disconnect the connector from the regulator assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Gear wear

• Regulator deformation

• Spring damage

• Grease condition for each sliding part

INSTALLATION

PIIB3511J

WIIA1034E

August 2012

2012 Pathfinder

REAR DOOR GLASS AND REGULATOR

GW-21

< UNIT REMOVAL AND INSTALLATION >

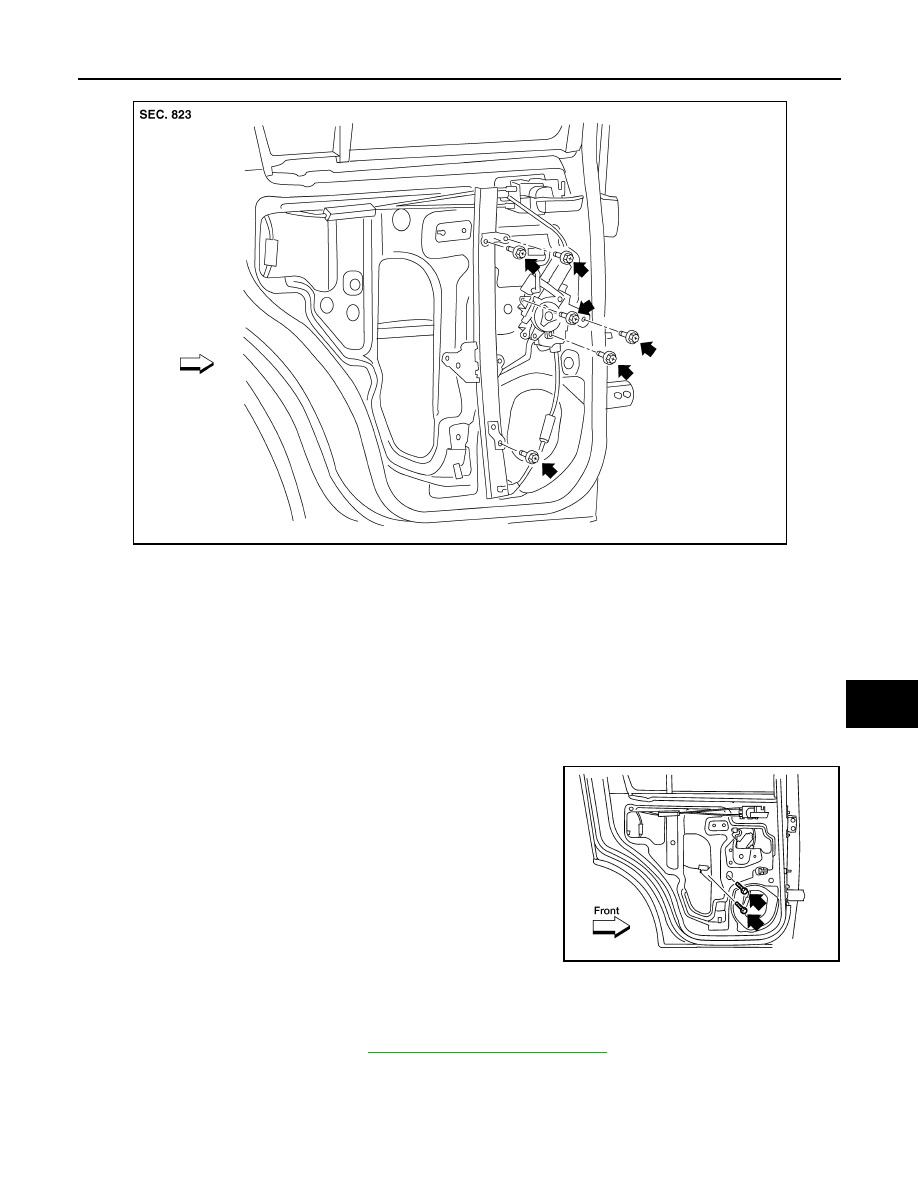

1. Connect the harness connector and install the regulator assembly.

a. Loosely install the top rear regulator bolt to use along with the temporary holds on the window motor to

install the assembly in the door.

b. Install the top front regulator bolt.
c. Install the bottom regulator bolt.
d. Tighten the top rear regulator bolt.
e. Install the top window motor bolt.
f.

Install the lower window motor bolt.

g. Install the front window motor bolt.

2. Lower the glass and ensure that it is in both the front and rear

glass channels. Tighten the bolts.

3. Install the partition sash
4. Check the glass alignment.
5. Reposition the vapor barrier.
6. Install the rear door finisher. Refer to

INT-15, "Removal and Installation"

Regulator assembly

: 7.5 N·m (0.77 kg-m, 66 in-lb)

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

WIIA1034E

LIIA1689E

August 2012

2012 Pathfinder
