Nissan Pathfinder (2012 year). Manual - part 310





ECM

EC-561

< ECU DIAGNOSIS INFORMATION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

HO2S

01H

Air fuel ratio (A/F) sensor 1
(Bank 1)

P0131

83H

0BH

Minimum sensor output voltage for test
cycle

P0131

84H

0BH

Maximum sensor output voltage for
test cycle

P0130

85H

0BH

Minimum sensor output voltage for test
cycle

P0130

86H

0BH

Maximum sensor output voltage for
test cycle

P0133

87H

04H

Response rate: Response ratio (lean
to rich)

P0133

88H

04H

Response rate: Response ratio (rich to
lean)

P2A00

89H

84H

The amount of shift in air fuel ratio

P2A00

8AH

84H

The amount of shift in air fuel ratio

P0130

8BH

0BH

Difference in sensor output voltage

P0133

8CH

83H

Response gain at the limited frequency

P014C

8DH

04H

O2 sensor slow response - Rich to
lean bank 1 sensor 1

P014C

8EH

04H

O2 sensor slow response - Rich to
lean bank 1 sensor 1

P014D

8FH

84H

O2 sensor slow response - Lean to rich
bank 1 sensor 1

P014D

90H

84H

O2 sensor slow response - Lean to rich
bank 1 sensor 1

P015A

91H

01H

O2 sensor delayed response - Rich to
lean bank 1 sensor 1

P015A

92H

01H

O2 sensor delayed response - Rich to
lean bank 1 sensor 1

P015B

93H

01H

O2 sensor delayed response - Lean to
rich bank 1 sensor 1

P015B

94H

01H

O2 sensor delayed response - Lean to
rich bank 1 sensor 1

02H

Heated oxygen sensor 2
(Bank 1)

P0138

07H

0CH

Minimum sensor output voltage for test
cycle

P0137

08H

0CH

Maximum sensor output voltage for
test cycle

P0138

80H

0CH

Sensor output voltage

P0139

81H

0CH

Difference in sensor output voltage

P0139

82H

11H

Rear O2 sensor delay response diag-
nosis

03H

Heated oxygen sensor 3
(Bank 1)

P0143

07H

0CH

Minimum sensor output voltage for test
cycle

P0144

08H

0CH

Maximum sensor output voltage for
test cycle

P0146

80H

0CH

Sensor output voltage

P0145

81H

0CH

Difference in sensor output voltage

August 2012

2012 Pathfinder

EC-562

< ECU DIAGNOSIS INFORMATION >

[VK56DE]

ECM

HO2S

05H

Air fuel ratio (A/F) sensor 1
(Bank 2)

P0151

83H

0BH

Minimum sensor output voltage for test
cycle

P0151

84H

0BH

Maximum sensor output voltage for
test cycle

P0150

85H

0BH

Minimum sensor output voltage for test
cycle

P0150

86H

0BH

Maximum sensor output voltage for
test cycle

P0153

87H

04H

Response rate: Response ratio (lean
to rich)

P0153

88H

04H

Response rate: Response ratio (rich to
lean)

P2A03

89H

84H

The amount of shift in air fuel ratio

P2A03

8AH

84H

The amount of shift in air fuel ratio

P0150

8BH

0BH

Difference in sensor output voltage

P0153

8CH

83H

Response gain at the limited frequency

P014E

8DH

04H

O2 sensor slow response - Rich to
lean bank 2 sensor 1

P014E

8EH

04H

O2 sensor slow response - Rich to
lean bank 2 sensor 1

P014F

8FH

84H

O2 sensor slow response - Lean to rich
bank 2 sensor 1

P014F

90H

84H

O2 sensor slow response - Lean to rich
bank 2 sensor 1

P015C

91H

01H

O2 sensor delayed response - Rich to
lean bank 2 sensor 1

P015C

92H

01H

O2 sensor delayed response - Rich to
lean bank 2 sensor 1

P015D

93H

01H

O2 sensor delayed response - Lean to
rich bank 2 sensor 1

P015D

94H

01H

O2 sensor delayed response - Lean to
rich bank 2 sensor 1

06H

Heated oxygen sensor 2
(Bank 2)

P0158

07H

0CH

Minimum sensor output voltage for test
cycle

P0157

08H

0CH

Maximum sensor output voltage for
test cycle

P0158

80H

0CH

Sensor output voltage

P0159

81H

0CH

Difference in sensor output voltage

P0159

82H

11H

Rear O2 sensor delay response diag-
nosis

07H

Heated oxygen sensor 3
(Bank2)

P0163

07H

0CH

Minimum sensor output voltage for test
cycle

P0164

08H

0CH

Maximum sensor output voltage for
test cycle

P0166

80H

0CH

Sensor output voltage

P0165

81H

0CH

Difference in sensor output voltage

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

August 2012

2012 Pathfinder

ECM

EC-563

< ECU DIAGNOSIS INFORMATION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

CATA-
LYST

21H

Three way catalyst function
(Bank1)

P0420

80H

01H

O2 storage index

P0420

82H

01H

Switching time lag engine exhaust in-
dex value

P2423

83H

0CH

Difference in 3rd O2 sensor output
voltage

P2423

84H

84H

O2 storage index in HC trap catalyst

22H

Three way catalyst function
(Bank2)

P0430

80H

01H

O2 storage index

P0430

82H

01H

Switching time lag engine exhaust in-
dex value

P2424

83H

0CH

Difference in 3rd O2 sensor output
voltage

P2424

84H

84H

O2 storage index in HC trap catalyst

EGR
SYSTEM

31H

EGR function

P0400

80H

96H

Low flow faults: EGR temp change rate
(short term)

P0400

81H

96H

Low flow faults: EGR temp change rate
(long term)

P0400

82H

96H

Low flow faults: Difference between
max EGR temp and EGR temp under
idling condition

P0400

83H

96H

Low flow faults: Max EGR temp

P1402

84H

96H

High Flow Faults: EGR temp increase
rate

VVT
SYSTEM

35H

VVT Monitor (Bank1)

P0011

80H

9DH

VTC intake function diagnosis (VTC
alignment check diagnosis)

P0014

81H

9DH

VTC exhaust function diagnosis (VTC
alignment check diagnosis)

P0011

82H

9DH

VTC intake function diagnosis (VTC
drive failure diagnosis)

P0014

83H

9DH

VTC exhaust function diagnosis (VTC
drive failure diagnosis)

P100A

84H

10H

VEL slow response diagnosis

P1090

85H

10H

VEL servo system diagnosis

36H

VVT Monitor (Bank2)

P0021

80H

9DH

VTC intake function diagnosis (VTC
alignment check diagnosis)

P0024

81H

9DH

VTC exhaust function diagnosis (VTC
alignment check diagnosis)

P0021

82H

9DH

VTC intake function diagnosis (VTC
drive failure diagnosis)

P0024

83H

9DH

VTC exhaust function diagnosis (VTC
drive failure diagnosis)

P100B

84H

10H

VEL slow response diagnosis

P1093

85H

10H

VEL servo system diagnosis

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

August 2012

2012 Pathfinder

EC-564

< ECU DIAGNOSIS INFORMATION >

[VK56DE]

ECM

EVAP
SYSTEM

39H

EVAP control system leak
(Cap Off)

P0455

80H

0CH

Difference in pressure sensor output
voltage before and after pull down

3BH

EVAP control system leak
(Small leak)

P0442

80H

05H

Leak area index (for more than 0.04
inch)

3CH

EVAP control system leak
(Very small leak)

P0456

80H

05H

Leak area index (for more than 0.02
inch)

P0456

81H

FDH

Maximum internal pressure of EVAP
system during monitoring

P0456

82H

FDH

Internal pressure of EVAP system at
the end of monitoring

3DH

Purge flow system

P0441

83H

0CH

Difference in pressure sensor output
voltage before and after vent control
valve close

O2 SEN-
SOR
HEATER

41H

A/F sensor 1 heater (Bank 1)

Low Input: P0031

High Input: P0032

81H

0BH

Converted value of heater electric cur-
rent to voltage

42H

Heated oxygen sensor 2 heat-
er (Bank 1)

Low Input: P0037

High Input: P0038

80H

0CH

Converted value of heater electric cur-
rent to voltage

43H

Heated oxygen sensor 3 heat-
er (Bank 1)

P0043

80H

0CH

Converted value of heater electric cur-
rent to voltage

45H

A/F sensor 1 heater (Bank 2)

Low Input: P0051

High Input: P0052

81H

0BH

Converted value of heater electric cur-
rent to voltage

46H

Heated oxygen sensor 2 heat-
er (Bank 2)

Low Input: P0057

High Input: P0058

80H

0CH

Converted value of heater electric cur-
rent to voltage

47H

Heated oxygen sensor 3 heat-
er (Bank 2)

P0063

80H

0CH

Converted value of heater electric cur-
rent to voltage

SEC-
OND-
ARY AIR

71H

Secondary air system

P0411

80H

01H

Secondary air injection system incor-
rect flow detected

Bank1: P0491
Bank2: P0492

81H

01H

Secondary air injection system insuffi-
cient flow

P2445

82H

01H

Secondary air injection system pump
stuck off

P2448

83H

01H

Secondary air injection system high
airflow

Bank1: P2440
Bank2: P2442

84H

01H

Secondary air injection system switch-
ing valve stuck open

P2440

85H

01H

Secondary air injection system switch-
ing valve stuck open

P2444

86H

01H

Secondary air injection system pump
stuck on

FUEL
SYSTEM

81H

Fuel injection system function
(Bank 1)

P0171 or P0172

80H

2FH

Long term fuel trim

P0171 or P0172

81H

24H

The number of lambda control
clamped

P117A

82H

03H

Cylinder A/F imbalance monitoring

82H

Fuel injection system function
(Bank 2)

P0174 or P0175

80H

2FH

Long term fuel trim

P0174 or P0175

81H

24H

The number of lambda control
clamped

P117B

82H

03H

Cylinder A/F imbalance monitoring

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

August 2012

2012 Pathfinder

ECM

EC-565

< ECU DIAGNOSIS INFORMATION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

MISFIRE

A1H

Multiple cylinder misfires

P0301

80H

24H

Misfiring counter at 1000 revolution of
the first cylinder

P0302

81H

24H

Misfiring counter at 1000 revolution of
the second cylinder

P0303

82H

24H

Misfiring counter at 1000 revolution of
the third cylinder

P0304

83H

24H

Misfiring counter at 1000 revolution of
the fourth cylinder

P0305

84H

24H

Misfiring counter at 1000 revolution of
the fifth cylinder

P0306

85H

24H

Misfiring counter at 1000 revolution of
the sixth cylinder

P0307

86H

24H

Misfiring counter at 1000 revolution of
the seventh cylinder

P0308

87H

24H

Misfiring counter at 1000 revolution of
the eighth cylinder

P0300

88H

24H

Misfiring counter at 1000 revolution of
the multiple cylinders

P0301

89H

24H

Misfiring counter at 200 revolution of
the first cylinder

P0302

8AH

24H

Misfiring counter at 200 revolution of
the second cylinder

P0303

8BH

24H

Misfiring counter at 200 revolution of
the third cylinder

P0304

8CH

24H

Misfiring counter at 200 revolution of
the fourth cylinder

P0305

8DH

24H

Misfiring counter at 200 revolution of
the fifth cylinder

P0306

8EH

24H

Misfiring counter at 200 revolution of
the sixth cylinder

P0307

8FH

24H

Misfiring counter at 200 revolution of
the seventh cylinder

P0308

90H

24H

Misfiring counter at 200 revolution of
the eighth cylinder

P0300

91H

24H

Misfiring counter at 1000 revolution of
the single cylinder

P0300

92H

24H

Misfiring counter at 200 revolution of
the single cylinder

P0300

93H

24H

Misfiring counter at 200 revolution of
the multiple cylinders

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

August 2012

2012 Pathfinder

EC-566

< ECU DIAGNOSIS INFORMATION >

[VK56DE]

ECM

MISFIRE

A2H

No. 1 cylinder misfire

P0301

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0301

0CH

24H

Misfire counts for last/current driving
cycles

A3H

No. 2 cylinder misfire

P0302

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0302

0CH

24H

Misfire counts for last/current driving
cycles

A4H

No. 3 cylinder misfire

P0303

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0303

0CH

24H

Misfire counts for last/current driving
cycles

A5H

No. 4 cylinder misfire

P0304

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0304

0CH

24H

Misfire counts for last/current driving
cycles

A6H

No. 5 cylinder misfire

P0305

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0305

0CH

24H

Misfire counts for last/current driving
cycles

A7H

No. 6 cylinder misfire

P0306

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0306

0CH

24H

Misfire counts for last/current driving
cycles

A8H

No. 7 cylinder misfire

P0307

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0307

0CH

24H

Misfire counts for last/current driving
cycles

A9H

No. 8 cylinder misfire

P0308

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0308

0CH

24H

Misfire counts for last/current driving
cycles

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

August 2012

2012 Pathfinder

ENGINE CONTROL SYSTEM

EC-567

< WIRING DIAGRAM >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

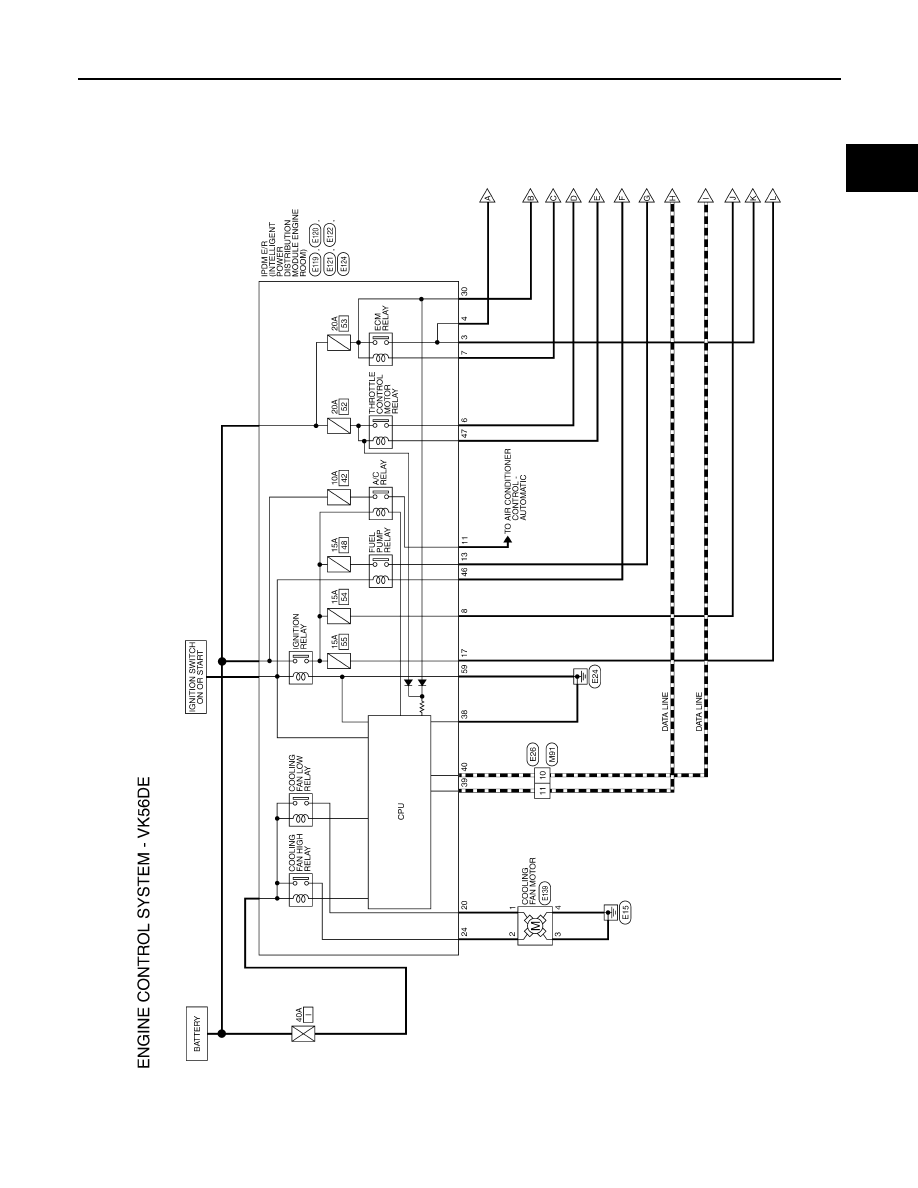

WIRING DIAGRAM

ENGINE CONTROL SYSTEM

Wiring Diagram

INFOID:0000000007358454

ABBWA0801GB

August 2012

2012 Pathfinder

EC-568

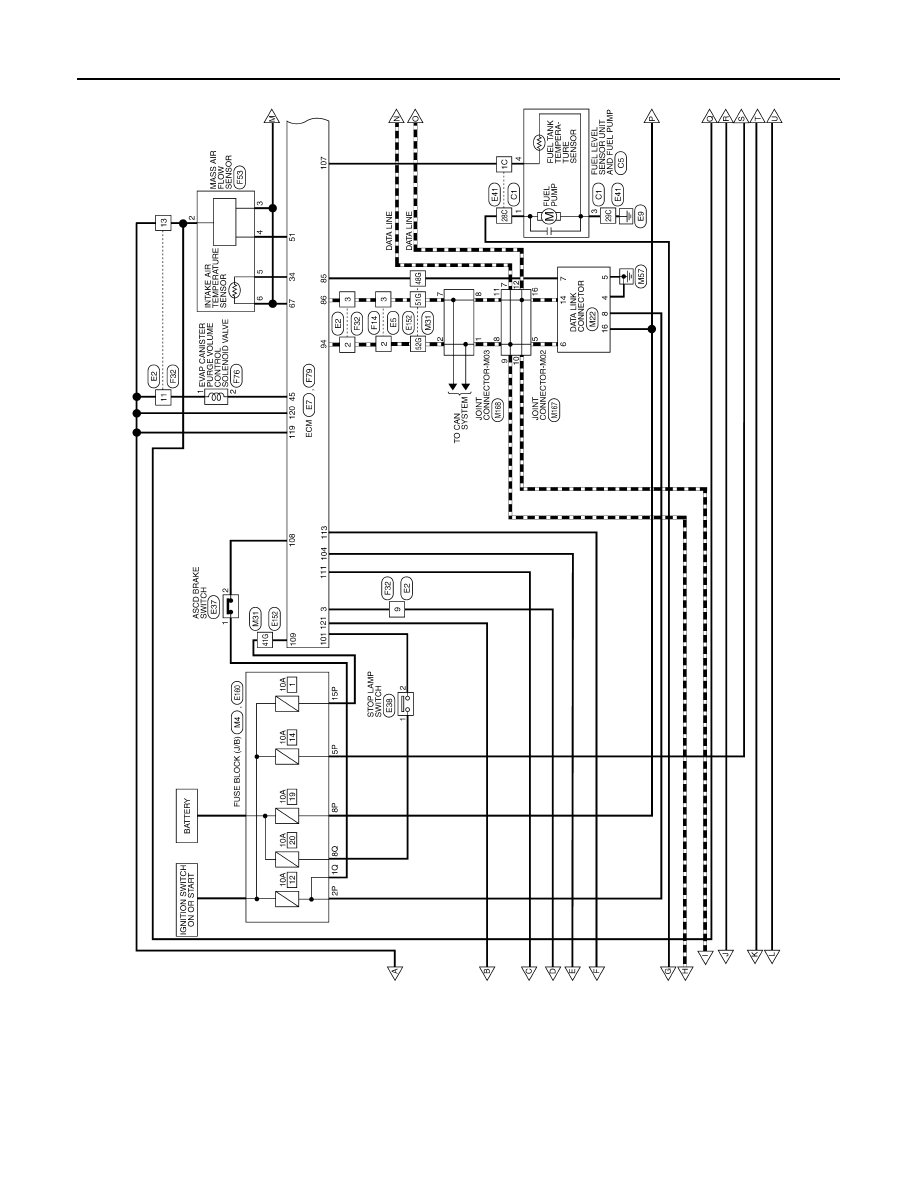

< WIRING DIAGRAM >

[VK56DE]

ENGINE CONTROL SYSTEM

ABBWA0802GB

August 2012

2012 Pathfinder















Content      ..     308      309      310      311     ..
