Nissan Pathfinder (2012 year). Manual - part 176





DOOR LOCK

DLK-303

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYMPTOM DIAGNOSIS

DOOR LOCK

Symptom Table

INFOID:0000000007355639

DOOR LOCK SYSTEM

NOTE:

• Before performing the diagnosis in the following table, check “Work flow”. Refer to

DLK-207, "Work Flow"

.

• If the following symptoms” are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

Symptom

Repair order

Refer to page

Key reminder door function does not operate
properly.

1. Door switch check

DLK-229

2. Key switch (Insert) check

DLK-259

3. Replace BCM.

BCS-53

Power door lock does not operate with door lock
and unlock switch on main power window and
door lock/unlock switch or power window and
door lock/unlock switch RH.

1. Door lock/unlock switch check (driver side)

DLK-234

2. Door lock/unlock switch check (passenger side)

DLK-236

Specific door lock actuator does not operate.

1. Door lock actuator check (Front LH)

DLK-243

2. Door lock actuator check (Front RH)

DLK-244

3. Door lock actuator check (Rear LH)

DLK-245

4. Door lock actuator check (Rear RH)

DLK-247

5. Back door lock actuator check

DLK-248

6.Glass hatch lock actuator check

DLK-250

Back door does not operate using back door
opener switch (door locks are open).

1. Check back door opener switch

DLK-239

2. Check back door lock actuator.

DLK-248

Glass hatch does not open using glass hatch ajar
switch (door locks are open).

1. Check glass hatch ajar switch

DLK-232

2. Check glass hatch lock actuator.

DLK-250

Power door lock does not operate with front door
key cylinder LH operation.

1. Front door lock assembly LH (key cylinder
switch) check

DLK-241

2. Replace BCM.

BCS-53

Power door lock does not operate.

1. BCM power supply and ground circuit check

BCS-30

2. Door lock/unlock switch check (driver)

DLK-234

3. Door lock/unlock switch check (passenger)

DLK-236

Vehicle speed sensing auto LOCK operation does
not operate.

1. Ensure automatic door lock/unlock function
(lock operation) is enabled.

DLK-222

2. Check combination meter vehicle speed signal.

MWI-30

3. Check intermittent incident.

GI-37

Ignition OFF interlock door UNLOCK function
does not operate.

1. Ensure automatic door lock/unlock function (un-
lock operation) is enabled.

DLK-222

2. Check BCM for DTCs.

BCS-43

3. Check intermittent incident.

GI-37

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-304

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY SYSTEM

REMOTE KEYLESS ENTRY SYSTEM

Symptom Table

INFOID:0000000007355640

REMOTE KEYLESS ENTRY SYSTEM

Symptom

Diagnoses/service procedure

Reference

page

All functions of remote keyless entry system do not
operate.

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241 or Signal Tech II Tool J-50190)

NOTE:

If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

DLK-254

2. Check BCM and remote keyless entry receiver.

DLK-252

The new ID of keyfob cannot be entered.

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241 or Signal Tech II Tool J-50190)

NOTE:

If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

DLK-254

2. Key switch (insert) check

DLK-259

3. Door switch check

DLK-229

4. ACC power check

BCS-30

5. Replace BCM.

BCS-53

Door lock or unlock does not function.
(If the power door lock system does not operate
manually, check power door lock system)

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241 or Signal Tech II Tool J-50190)

NOTE:

If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

DLK-217

2. Replace BCM.

BCS-53

Hazard and horn reminder does not activate properly
when pressing lock or unlock button of keyfob.

1. Check hazard and horn reminder mode with CONSULT

NOTE:

Hazard and horn reminder mode can be changed.
First check the hazard and horn reminder mode setting.

DLK-223

2. Door switch check

DLK-229

3. Replace BCM.

BCS-53

Hazard reminder does not activate properly when
pressing lock or unlock button of keyfob.
(Horn reminder OK)

1. Check hazard reminder mode with CONSULT

NOTE:

Hazard reminder mode can be changed.
First check the hazard reminder mode setting.

DLK-223

2. Check hazard function with hazard switch

3. Replace BCM.

BCS-53

Horn reminder does not activate properly when
pressing lock or unlock button of keyfob.
(Hazard reminder OK)

1. Check horn reminder mode with CONSULT

NOTE:

Horn reminder mode can be changed.
First check the horn reminder mode setting.

DLK-223

2. Check horn function with horn switch

3. IPDM E/R operation check

DLK-256

4. Replace BCM.

BCS-53

Room lamp and ignition keyhole illumination do not
operate properly.

1. Room lamp operation check

INL-3

2. Ignition keyhole illumination operation check

INL-3

3. Door switch check

DLK-229

4. Replace BCM.

BCS-53

August 2012

2012 Pathfinder

2012 Pathfinder

REMOTE KEYLESS ENTRY SYSTEM

DLK-305

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Panic alarm (horn and headlamp) does not activate
when panic alarm button is continuously pressed.

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241 or Signal Tech II Tool J-50190)

NOTE:

If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

DLK-254

2. Key switch (insert) check

DLK-259

3. Replace BCM.

BCS-53

Auto door lock operation does not activate properly.
(All other remote keyless entry functions OK.)

1. Check auto door lock operation mode with CONSULT

NOTE:

Auto door lock operation mode can be changed.
First check the auto door lock operation mode setting.

DLK-215

2. Replace BCM.

BCS-53

Keyless power window down (open) operation does
not activate properly.
(All other remote keyless entry functions OK.)

1. Check power window down operation mode with CONSULT

NOTE:

Power window down operation mode can be changed.
First check the power window down operation mode setting.

DLK-223

2. Check power window function with switch

PWC-6

3. Replace BCM.

BCS-53

Symptom

Diagnoses/service procedure

Reference

page

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-306

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOMELINK UNIVERSAL TRANSCEIVER

HOMELINK UNIVERSAL TRANSCEIVER

Symptom Table

INFOID:0000000007355641

HOMELINK UNIVERSAL TRANSCEIVER MALFUNCTION

Symptom

Diagnosis/service procedure

Reference page

Homelink universal transceiver does not operate properly.

1.

Check homelink universal transceiver function.

DLK-265

2.

Check Intermittent Incident.

GI-37

August 2012

2012 Pathfinder

2012 Pathfinder

SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-307

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

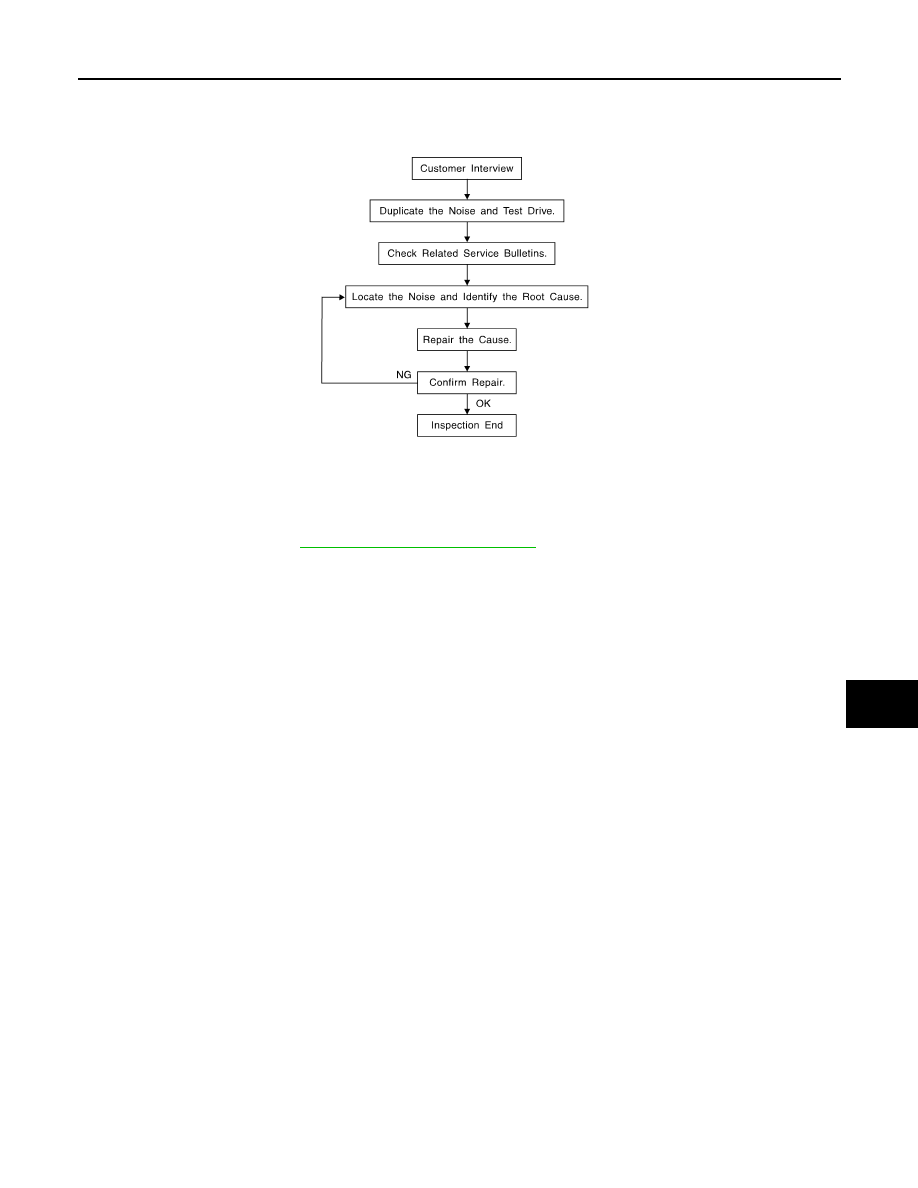

SQUEAK AND RATTLE TROUBLE DIAGNOSES

Work Flow

INFOID:0000000007830142

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-

nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any

customer's comments; refer to

DLK-311, "Diagnostic Worksheet"

. This information is necessary to duplicate

the conditions that exist when the noise occurs.

• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is

concerned about. This can be accomplished by test driving the vehicle with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when

defining the noise.

• Squeak —(Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces

= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.

• Creak—(Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-

dent on materials/often brought on by activity.

• Rattle—(Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing

clip or fastener/incorrect clearance.

• Knock —(Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick—(Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver

action or road conditions.

• Thump—(Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz—(Like a bumble bee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge

as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on

the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to

duplicate the same conditions when you confirm the repair.

SBT842

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-308

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-

cate the noise with the vehicle stopped by doing one or all of the following:

1) Close a door.

2) Tap or push/pull around the area where the noise appears to be coming from.

3) Rev the engine.

4) Use a floor jack to recreate vehicle “twist”.

5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on CVT and A/T models).

6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

• Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

• If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the

vehicle body.

CHECK RELATED SERVICE BULLETINS

After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related

to that concern or symptom.

If a TSB relates to the symptom, follow the procedure to repair the noise.

LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE

1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool

(Chassis Ear: J-39570, Engine Ear: J-39565 and mechanic's stethoscope).

2. Narrow down the noise to a more specific area and identify the cause of the noise by:

• removing the components in the area that you suspect the noise is coming from.

Do not use too much force when removing clips and fasteners, otherwise clips and fasteners can be

broken or lost during the repair, resulting in the creation of new noise.

• tapping or pushing/pulling the component that you suspect is causing the noise.

Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only

temporarily.

• feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the

noise.

• placing a piece of paper between components that you suspect are causing the noise.

• looking for loose components and contact marks.

Refer to

DLK-309, "Generic Squeak and Rattle Troubleshooting"

.

REPAIR THE CAUSE

• If the cause is a loose component, tighten the component securely.

• If the cause is insufficient clearance between components:

- separate components by repositioning or loosening and retightening the component, if possible.

- insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or urethane

tape. A NISSAN Squeak and Rattle Kit (J-43980) is available through your authorized NISSAN Parts Depart-

ment.

CAUTION:

Do not use excessive force as many components are constructed of plastic and may be damaged.

Always check with the Parts Department for the latest parts information.

The following materials are contained in the NISSAN Squeak and Rattle Kit (J-43980). Each item can be

ordered separately as needed.

URETHANE PADS [1.5 mm (0.059 in) thick]

Insulates connectors, harness, etc.

76268-9E005: 100

×

135 mm (3.94

×

5.31 in)/76884-71L01: 60

×

85 mm (2.36

×

3.35 in)/76884-71L02: 15

×

25

mm (0.59

×

0.98 in)

INSULATOR (Foam blocks)

Insulates components from contact. Can be used to fill space behind a panel.

73982-9E000: 45 mm (1.77 in) thick, 50

×

50 mm (1.97

×

1.97 in)/73982-50Y00: 10 mm (0.39 in) thick,

50

×

50 mm (1.97

×

1.97 in)

INSULATOR (Light foam block)

80845-71L00: 30 mm (1.18 in) thick, 30

×

50 mm (1.18

×

1.97 in)

FELT CLOTH TAPE

Used to insulate where movement does not occur. Ideal for instrument panel applications.

68370-4B000: 15

×

25 mm (0.59

×

0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll. The following

materials not found in the kit can also be used to repair squeaks and rattles.

UHMW (TEFLON) TAPE

Insulates where slight movement is present. Ideal for instrument panel applications.

SILICONE GREASE

August 2012

2012 Pathfinder

2012 Pathfinder

SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-309

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Used instead of UHMW tape that will be visible or not fit.

Note: Will only last a few months.

SILICONE SPRAY

Use when grease cannot be applied.

DUCT TAPE

Use to eliminate movement.

CONFIRM THE REPAIR

Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same

conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.

Generic Squeak and Rattle Troubleshooting

INFOID:0000000007830141

Refer to Table of Contents for specific component removal and installation information.

INSTRUMENT PANEL

Most incidents are caused by contact and movement between:
1. The cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by

pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-

ing felt cloth tape or silicone spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-

ness.

CAUTION:

Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will

not be able to recheck the repair.

CENTER CONSOLE

Components to pay attention to include:
1. Shift selector assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.

DOORS

Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate

many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from

the NISSAN Squeak and Rattle Kit (J-43980) to repair the noise.

TRUNK

Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.

In addition look for:
1. Trunk lid bumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-310

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-

ing the noise.

SUNROOF/HEADLINING

Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sun visor shaft shaking in the holder
3. Front or rear windshield touching headliner and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these

incidents. Repairs usually consist of insulating with felt cloth tape.

OVERHEAD CONSOLE (FRONT AND REAR)

Overhead console noises are often caused by the console panel clips not being engaged correctly. Most of

these incidents are repaired by pushing up on the console at the clip locations until the clips engage.

In addition look for:
1. Loose harness or harness connectors.
2. Front console map/reading lamp lens loose.
3. Loose screws at console attachment points.

SEATS

When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when

the noise is present. These conditions should be duplicated when verifying and isolating the cause of the

noise.

Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-

ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component

or applying urethane tape to the contact area.

UNDERHOOD

Some interior noise may be caused by components under the hood or on the engine wall. The noise is then

transmitted into the passenger compartment.

Causes of transmitted underhood noise include:
1. Any component installed to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator installation pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best

method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine rpm or

load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or

insulating the component causing the noise.

August 2012

2012 Pathfinder

2012 Pathfinder















Content      ..     174      175      176      177     ..
