Nissan Pathfinder (2012 year). Manual - part 163





DOOR

DLK-199

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

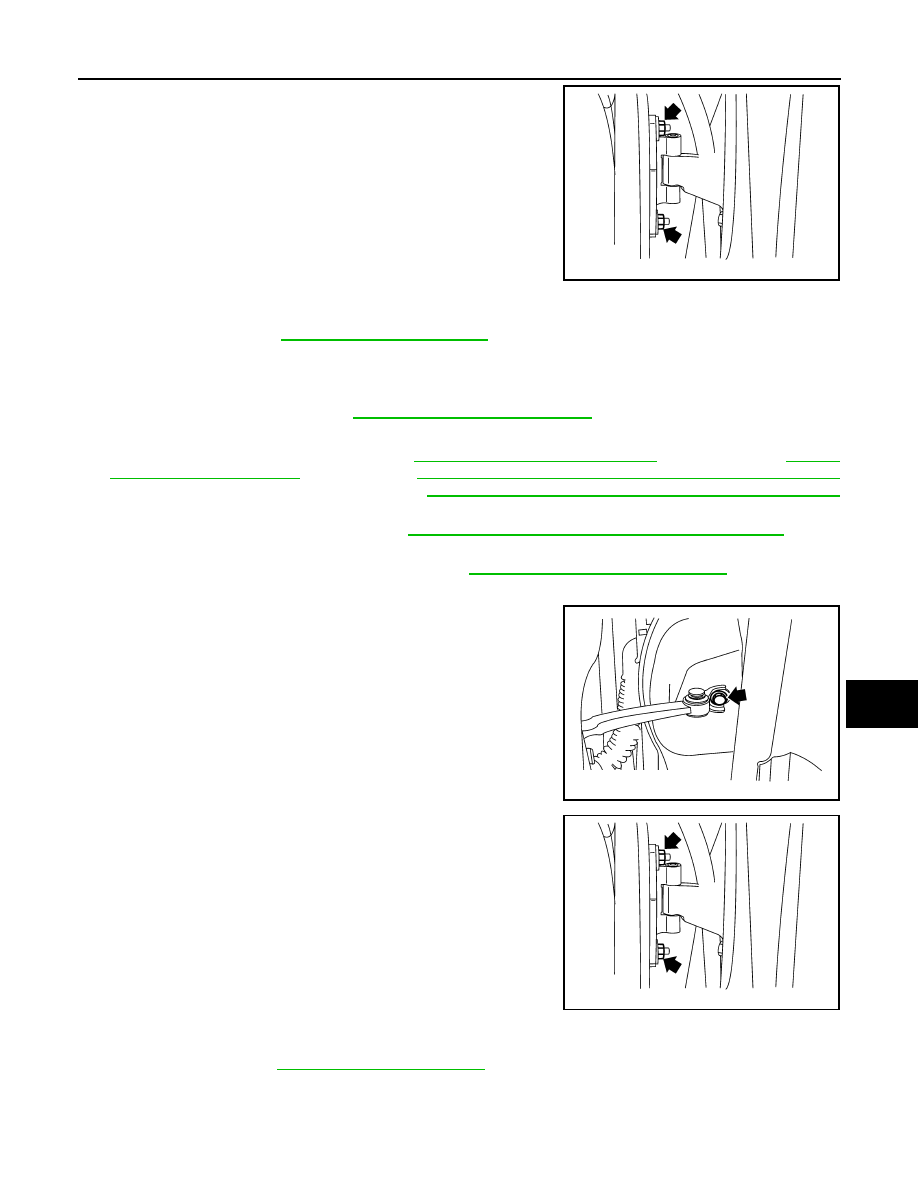

4. Remove the door-side hinge nuts, and the door assembly.

Installation

Installation is in the reverse order of removal.

Align the front door. Refer to

DLK-196, "Fitting Adjustment"

.

REAR DOOR

Removal

1. Remove the door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the inner seal.
3. Remove the rear door speaker. Refer to

AV-38, "Removal and Installation"

 (BASE AUDIO),

AV-119,

"Removal and Installation"

 (MID AUDIO),

AV-260, "Removal and Installation of Rear Door Speaker"

(BOSE AUDIO WITHOUT NAVIGATION) or

AV-425, "Removal and Installation of Rear Door Speaker"

(BOSE AUDIO WITH NAVIGATION).

4. Remove the rear door tweeter. Refer to

AV-426, "Removal and Installation of Rear Tweeter"

 (BOSE

AUDIO WITH NAVIGATION).

5. Remove the rear door glass and regulator. Refer to

GW-19, "Rear Door Glass Regulator"

.

6. Remove the door harness.
7. Remove the check link bolt from the hinge pillar.

8. Remove the door-side hinge nuts, and remove the door assem-

bly.

Installation

Installation is in the reverse order of removal.

Align the rear door. Refer to

DLK-196, "Fitting Adjustment"

.

BACK DOOR

Removal

Door hinge nuts

24.5 N·m (2.5 kg-m, 18 ft-lb)

LIIA1727E

Check link to hinge pillar
bolt

14.7 N·m (1.5kg-m, 11ft-lb)

LIIA1726E

Door hinge nuts

25.8N·m (2.6Kg-m, 19 ft-lb)

LIIA1727E

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-200

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

DOOR

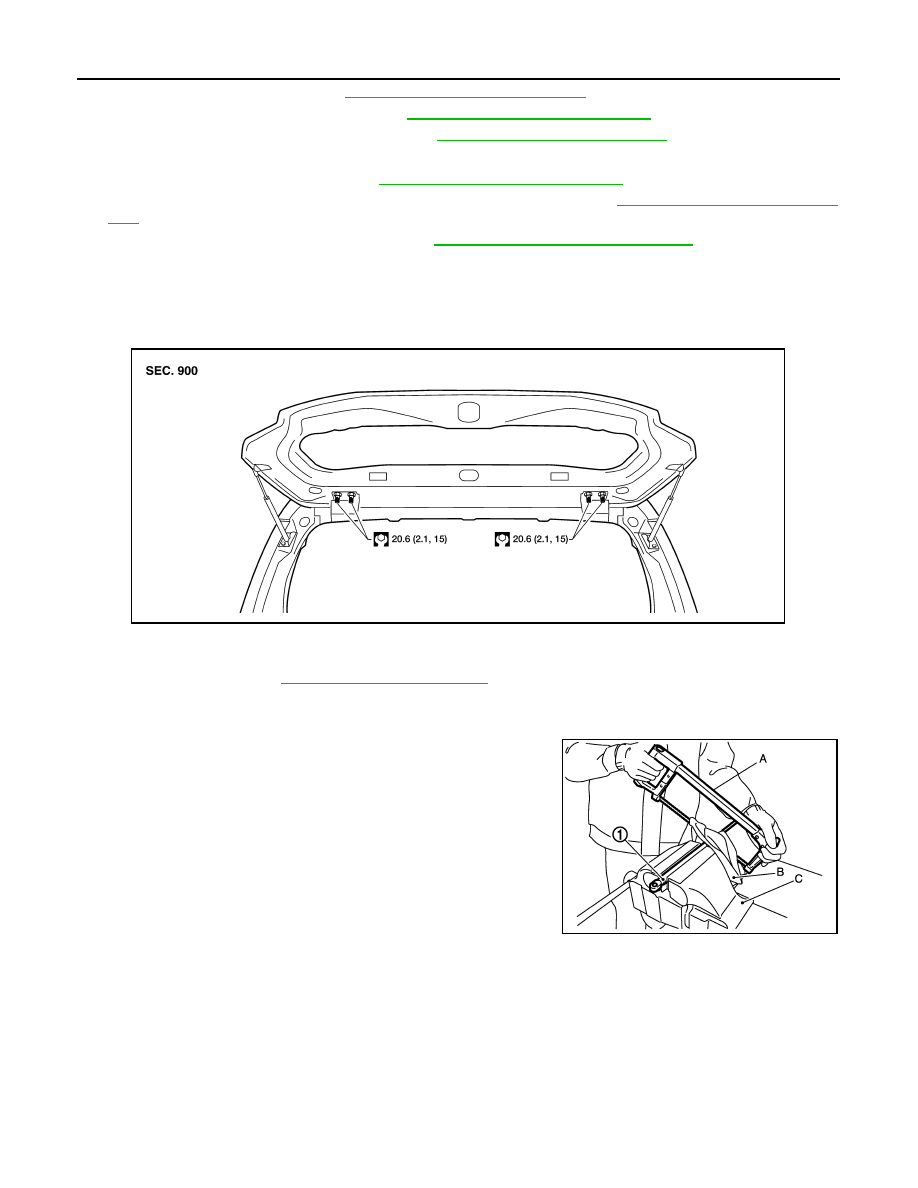

1. Remove the glass hatch. Refer to

GW-24, "Removal and Installation"

.

2. Remove the license lamp finisher. Refer to

EXT-23, "Removal and Installation"

.

3. Remove the back door lock assembly. Refer to

DLK-206, "Component Structure"

.

4. Remove the back door wire harness.
5. Remove the rear wiper motor. Refer to

WW-75, "Removal and Installation"

.

6. Remove the rear washer nozzle and hose from the back door. Refer to

WW-75, "Removal and Installa-

tion"

.

7. Remove the high mounted stop lamp. Refer to

EXL-151, "High-Mounted Stop Lamp"

.

8. Support the back door.
9. Remove the back door stays.
10. Remove the door side nuts and the back door assembly.

CAUTION:

Two technicians should be used to avoid damaging the back door during removal.

Installation

Installation is in the reverse order of removal.

Align the back door. Refer to

DLK-196, "Fitting Adjustment"

.

Back Door Stay Disposal

INFOID:0000000007355543

1. Fix back door stay (1) using a vise (C).
2. Using hacksaw (A) slowly make 2 holes in the back door stay, in

numerical order as shown in the figure.

CAUTION:

• When cutting a hole on back door stay, always cover a

hacksaw using a shop cloth (B) to avoid scattering metal

fragments or oil.

• Wear eye protection (safety glasses).

• Wear gloves.

WIIA1056E

JMKIA3336ZZ

August 2012

2012 Pathfinder

2012 Pathfinder

DOOR

DLK-201

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

A: 20 mm (0.787 in)
B: Cut at the groove.

JMKIA3609ZZ

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-202

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

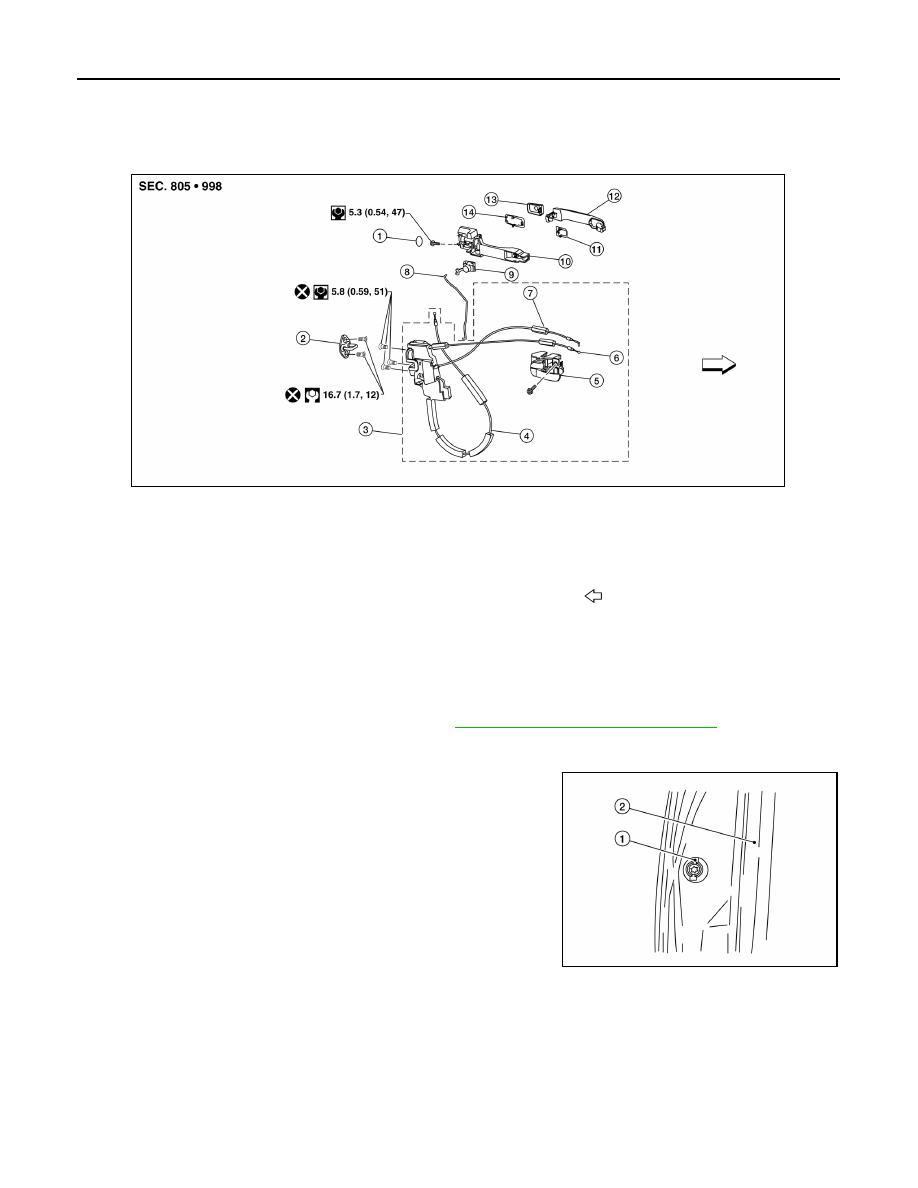

FRONT DOOR LOCK

FRONT DOOR LOCK

Component Structure

INFOID:0000000007355544

Removal and Installation

INFOID:0000000007355545

REMOVAL

1. Remove the front door window regulator. Refer to

GW-15, "Front Door Glass Regulator"

.

2. Remove door side grommet, and remove door key cylinder assembly (driver side) or outside handle

escutcheon (passenger side) bolts (1) (T30) from grommet hole.

• (2) Weatherstrip

1.

Grommet

2.

Front door striker

3.

Door lock assembly

4.

Outside handle cable

5.

Inside handle assembly

6.

Inside handle cable

7.

Door lock cable

8.

Key cylinder rod (Driver side only)

9.

Door key cylinder

10. Outside handle bracket

11. Front gasket

12. Outside handle

13. Door key cylinder assembly (Driver

side) Outside handle escutcheon
(Passenger side)

14. Rear gasket

Vehicle front

AWKIA1793GB

AWKIA2017ZZ

August 2012

2012 Pathfinder

2012 Pathfinder

FRONT DOOR LOCK

DLK-203

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

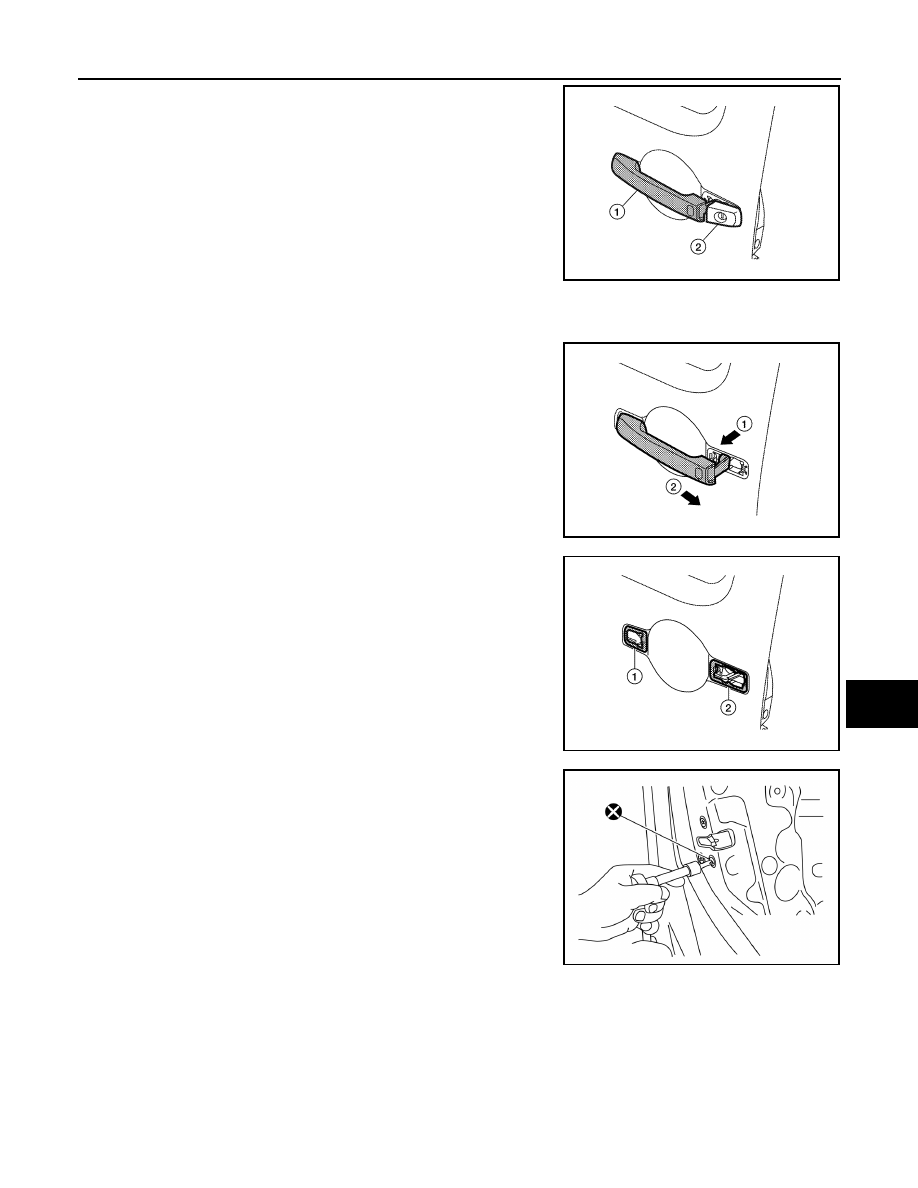

3. While pulling the outside handle (1), remove door key cylinder

assembly or escutcheon (2).

4. Separate the door key cylinder rod from the door key cylinder assembly (if equipped).
5. Disconnect the intelligent key harness connectors.
6. While pulling outside handle (1), slide toward rear of vehicle (2)

to remove outside handle.

7. Remove the front gasket (1) and rear gasket (2).

8. Remove the door lock bolts (T30), remove the door lock assem-

bly.

CAUTION:

Do not reuse door lock bolts.

ALKIA0922ZZ

ALKIA0923ZZ

ALKIA0924ZZ

AWKIA2018ZZ

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-204

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

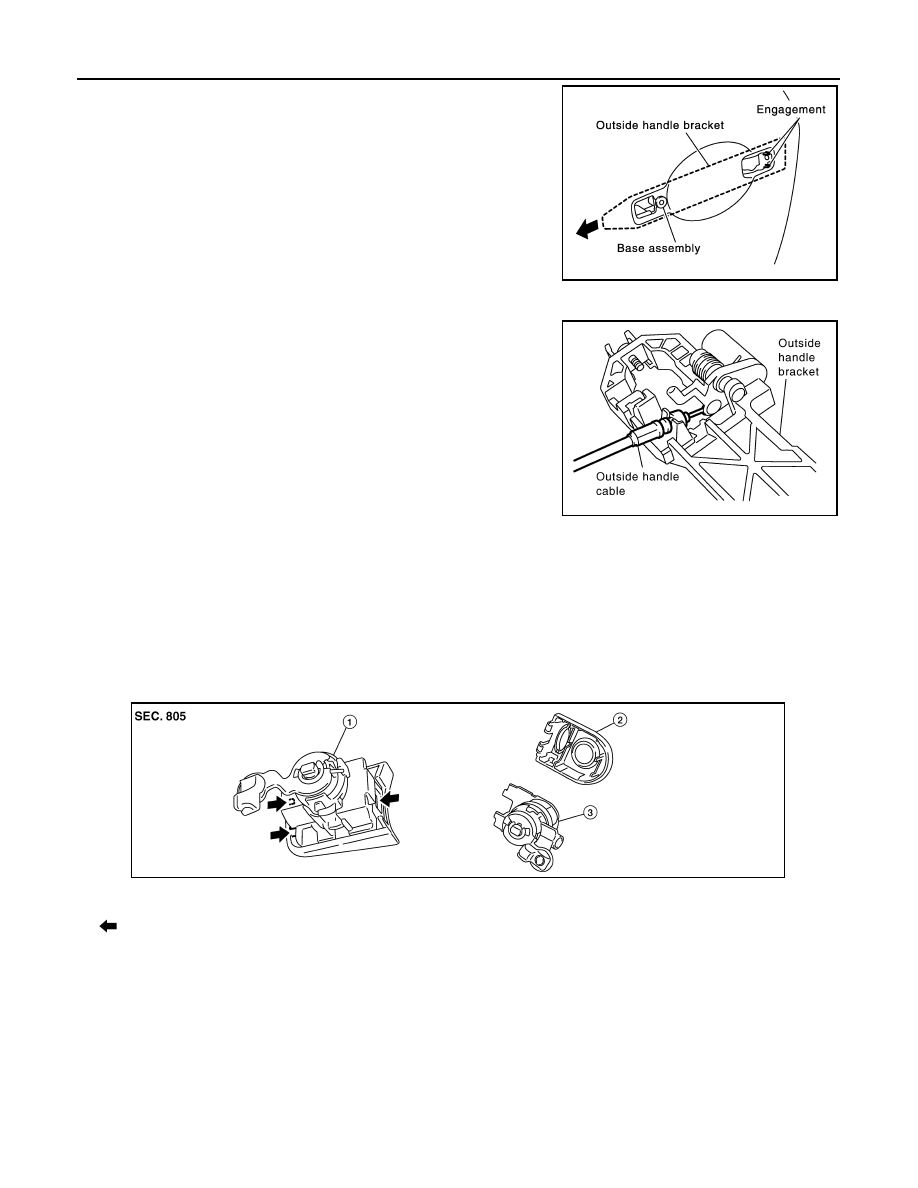

9. While pulling outside handle bracket, slide toward rear of vehicle

to remove outside handle bracket and door lock assembly as

shown.

10. Disconnect the door lock actuator harness connector.
11. Separate the outside handle cable connection from the outside

handle bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• To install the key cylinder rod, be sure to rotate the key cylinder rod holder until a click is felt.

• Do not twist the door lock cable when installing the front door lock.

Disassembly and Assembly

INFOID:0000000007355546

DOOR KEY CYLINDER ASSEMBLY

Release the key cylinder escutcheon pawls to remove the door key cylinder.

PIIA3558E

PIIA5059E

1.

Door key cylinder assembly

2.

Door key cylinder escutcheon

3.

Door key cylinder

Pawl

WIIA1057E

August 2012

2012 Pathfinder

2012 Pathfinder

REAR DOOR LOCK

DLK-205

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

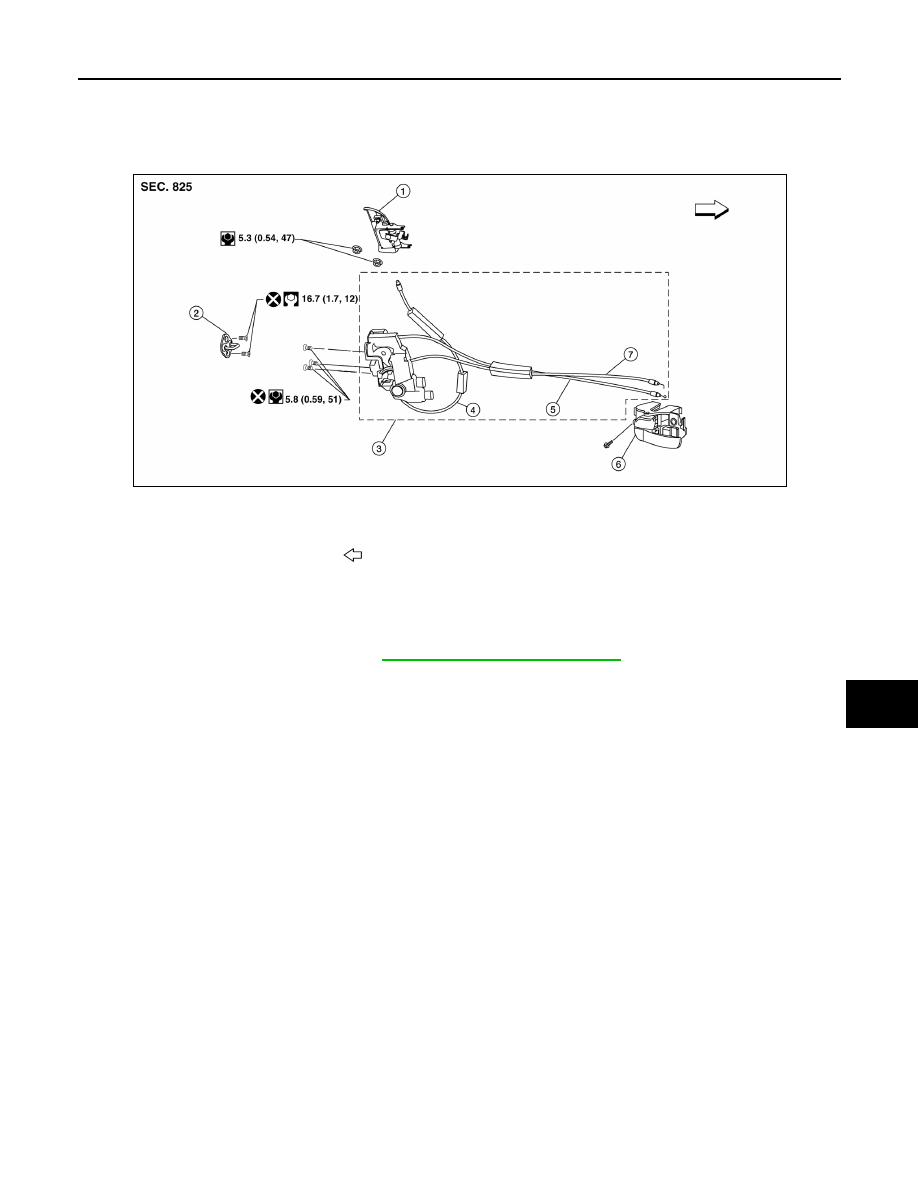

REAR DOOR LOCK

Component Structure

INFOID:0000000007355547

Removal and Installation

INFOID:0000000007355548

REMOVAL

1. Remove the rear door finisher Refer to

INT-15, "Removal and Installation"

.

2. Remove door grommets, and remove outside handle nuts from the hole.
3. Remove the inner seal.
4. Remove outside handle.
5. Disconnect the outside handle cable connection.
6. Remove the inside door handle.
7. Disconnect the door lock and inside door handle cables from the inside door handle.
8. Disconnect the door lock actuator connector and remove the assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not twist the outside door handle cable, inside door handle cable and door lock cable during instal-

lation.

1.

Outside door handle

2.

Rear door striker

3.

Rear door lock assembly

4.

Outside door handle cable

5.

Inside door handle cable

6.

Inside door handle assembly

7.

Door lock cable

Vehicle front

AWKIA1794GB

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-206

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

BACK DOOR LOCK

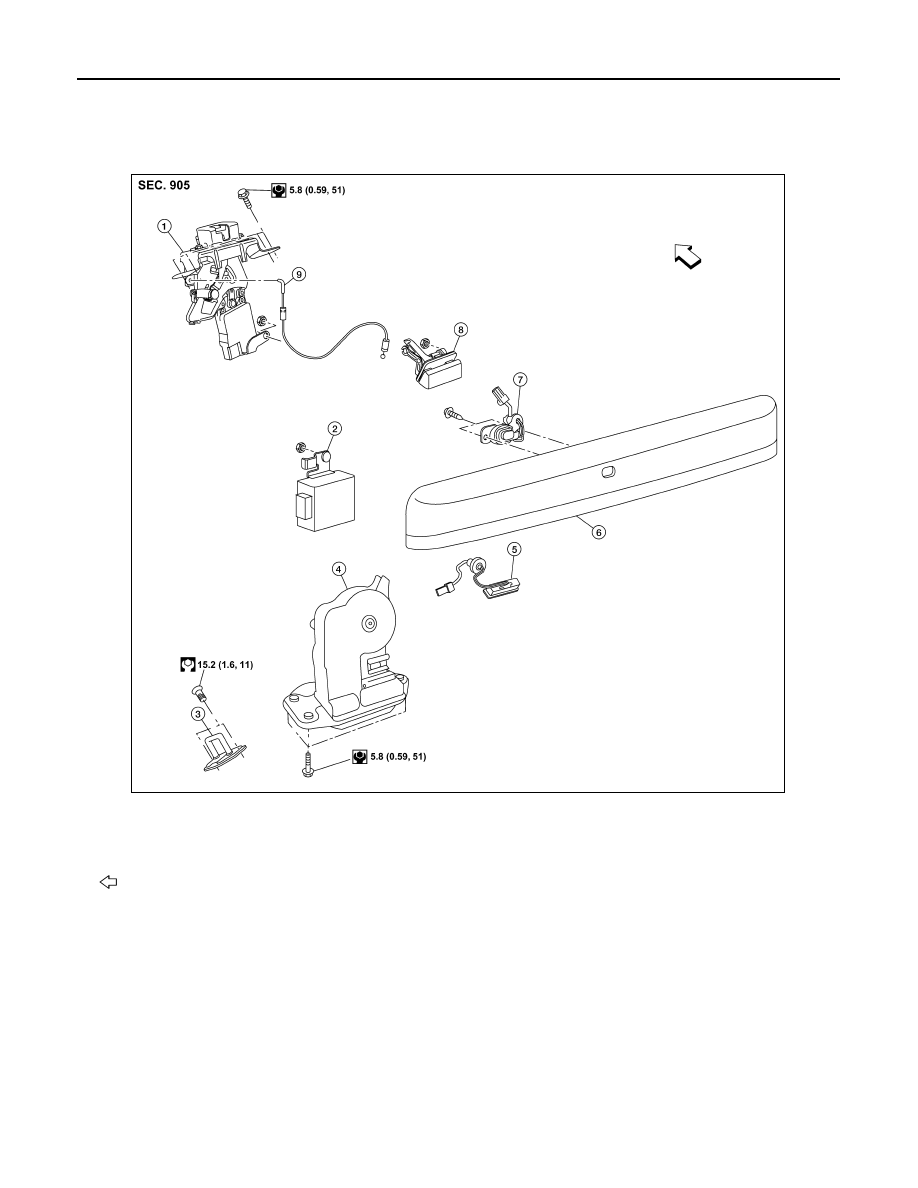

Component Structure

INFOID:0000000007355549

1.

Glass hatch latch assembly

2.

Back door control assembly

3.

Back door striker

4.

Back door latch assembly

5.

Back door release button

6.

Back door finisher

7.

Key button

8.

Glass hatch release handle

9.

Glass hatch release cable

Vehicle front

AWKIA1438GB

August 2012

2012 Pathfinder

2012 Pathfinder
