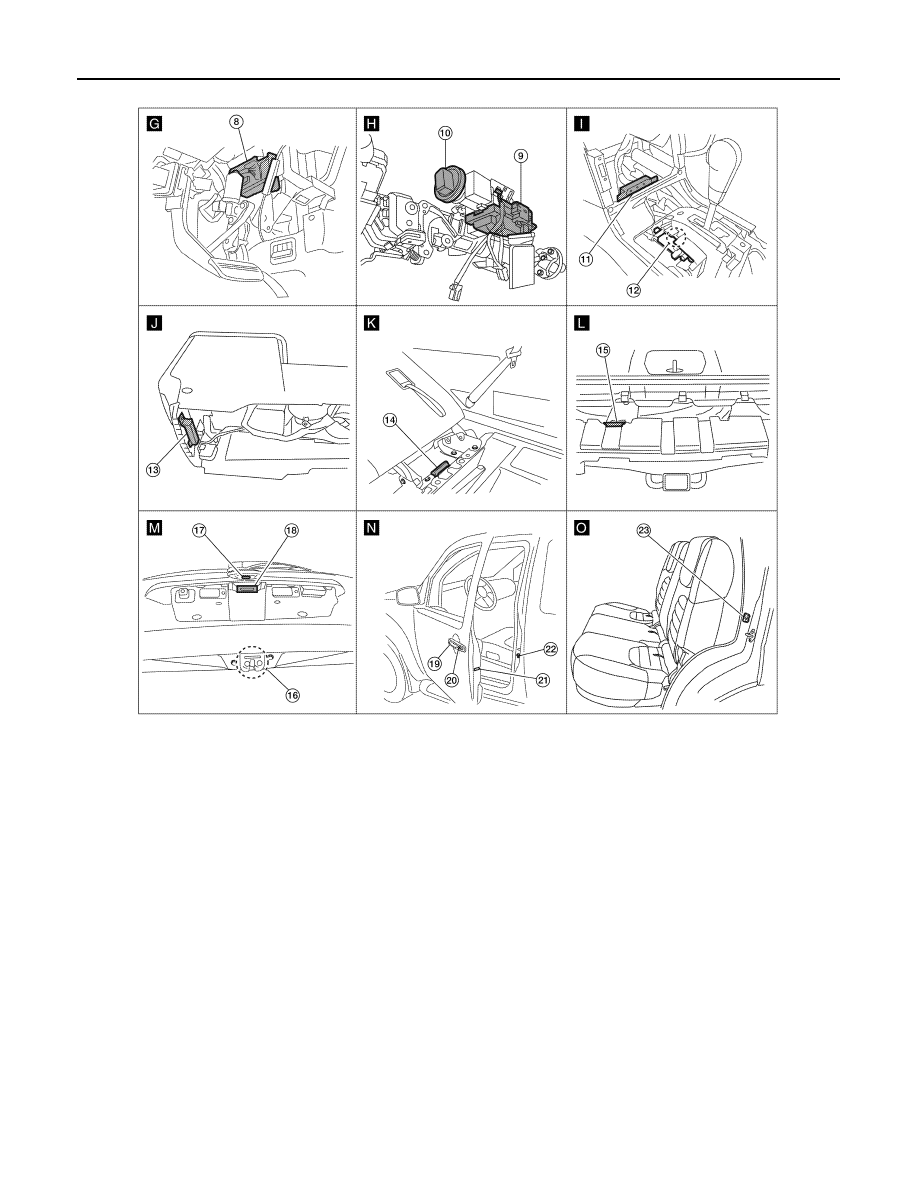

WARNING FUNCTION

DLK-31

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Horn E3
(Behind front combination lamp LH)

2.

Intelligent Key warning buzzer E60

3.

IPDM E/R E122, E124
(view with cover removed)

4.

Horn relay H-1

5.

Remote keyless entry receiver M67
(view with glove box removed)

6.

Combination meter M24

7.

Intelligent Key unit M164
(view with glove box removed)

8.

BCM M18, M19, M20
(view with instrument panel LH removed)

9.

Steering lock solenoid M65
(view with steering column removed)

10. Key switch and ignition knob switch

M66

11. Instrument panel area antenna M68

(view with center console cover removed)

12. A/T shift selector [park position switch

(Intelligent Key system)] M158

13. Center console area antenna M212

(view with center console removed)

14. Luggage area antenna B129

(behind right side of 3rd row seat)

15. Rear bumper antenna C127

(view with rear bumper removed)

16. Back door latch (door ajar switch)

D502

17. Back door request switch D552

18. Back door opener switch D511

19. Front outside antenna LH D15

Front outside antenna RH D115

20. Front door request switch LH D16

Front door request switch RH D116

21. Front door lock assembly LH (door

unlock sensor) D14

22. Front door switch LH B8

RH B108

23. Rear door switch LH B18

RH B116

ALKIA1699ZZ

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-32

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

KEY REMINDER FUNCTION

KEY REMINDER FUNCTION

System Description

INFOID:0000000007355387

Key reminder is the function that prevents the key from being left in the vehicle.

Key reminder has the following 3 functions.

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation will be performed in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function will not operate when the Intelli-

gent Key is on the instrument panel, rear of vehicle, or in the glove box. Also, this system sometimes

does not operate if the Intelligent Key is in the door pocket for the open door.

• When the key reminder function is operated when the back door is open/closed and the buzzers

sound, if the following operations are performed, the key reminder function is cleared and buzzer

sounds are stopped.

- Remote controller door lock button operation of Intelligent Key

- Remote controller door unlock button operation of Intelligent Key

- When the back door is closed, the Intelligent Key is not inside the vehicle

- When any door is open

Key reminder function

Operation condition

Operation

Driver door closed*

Right after driver side door is closed under the following conditions
• Door lock operation is performed
• Driver side door is opened
• Driver side door is in unlock state

All doors unlock

Door is open or closed

Right after all doors are closed under the following conditions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked by door lock and unlock switch or door lock knob

• All doors unlock
• Sounds Intelligent Key warning

buzzer

Back door is closed

Right after back door is closed under the following conditions
• Intelligent Key is inside luggage compartment
• All doors are closed
• All doors are locked

• Back door open
• Sounds Intelligent Key warning

buzzer

August 2012

2012 Pathfinder

2012 Pathfinder

KEY REMINDER FUNCTION

DLK-33

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

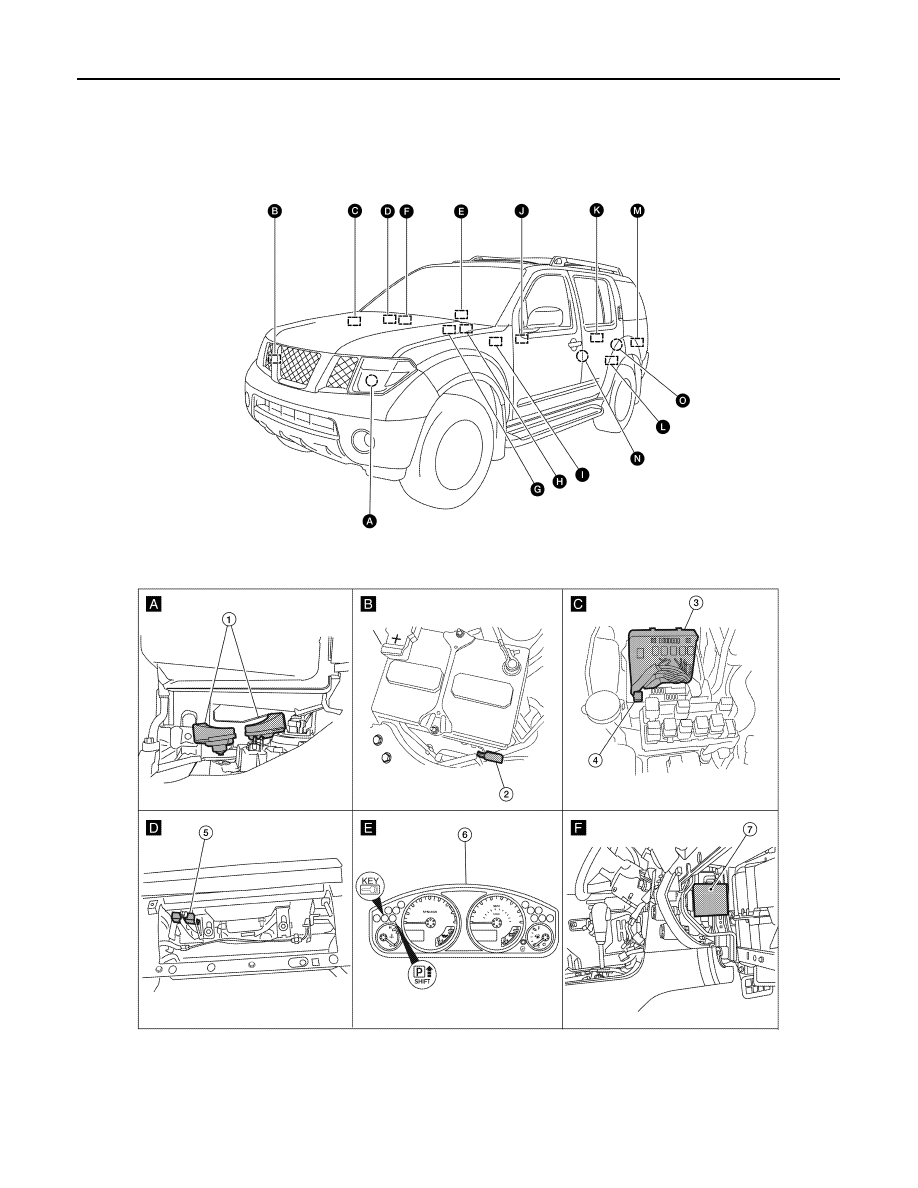

Component Parts Location

INFOID:0000000007355388

ALKIA1166ZZ

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-34

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

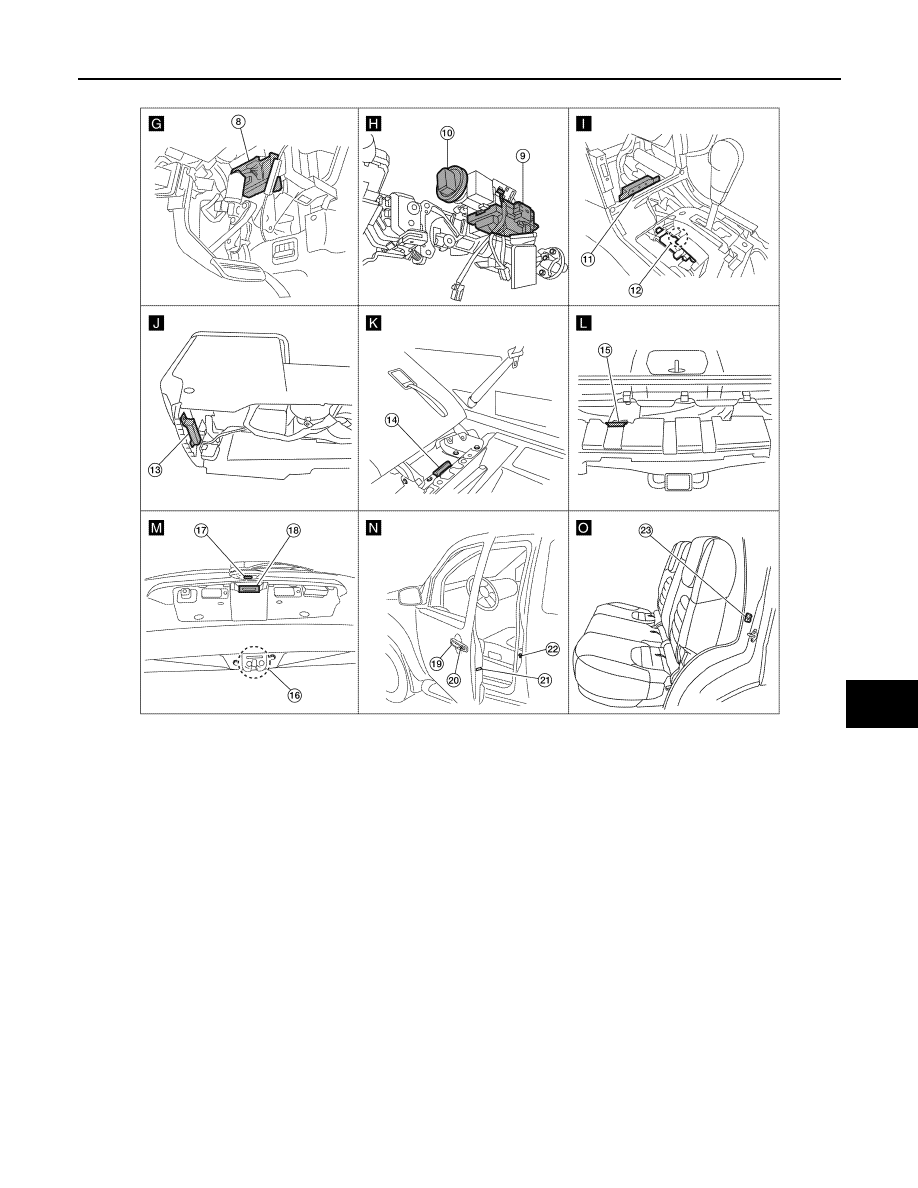

KEY REMINDER FUNCTION

1.

Horn E3
(Behind front combination lamp LH)

2.

Intelligent Key warning buzzer E60

3.

IPDM E/R E122, E124
(view with cover removed)

4.

Horn relay H-1

5.

Remote keyless entry receiver M67
(view with glove box removed)

6.

Combination meter M24

7.

Intelligent Key unit M164
(view with glove box removed)

8.

BCM M18, M19, M20
(view with instrument panel LH removed)

9.

Steering lock solenoid M65
(view with steering column removed)

10. Key switch and ignition knob switch

M66

11. Instrument panel area antenna M68

(view with center console cover removed)

12. A/T shift selector [park position switch

(Intelligent Key system)] M158

13. Center console area antenna M212

(view with center console removed)

14. Luggage area antenna B129

(behind right side of 3rd row seat)

15. Rear bumper antenna C127

(view with rear bumper removed)

16. Back door latch (door ajar switch)

D502

17. Back door request switch D552

18. Back door opener switch D511

19. Front outside antenna LH D15

Front outside antenna RH D115

20. Front door request switch LH D16

Front door request switch RH D116

21. Front door lock assembly LH (door

unlock sensor) D14

22. Front door switch LH B8

RH B108

23. Rear door switch LH B18

RH B116

ALKIA1699ZZ

August 2012

2012 Pathfinder

2012 Pathfinder

HAZARD AND BUZZER REMINDER FUNCTION

DLK-35

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD AND BUZZER REMINDER FUNCTION

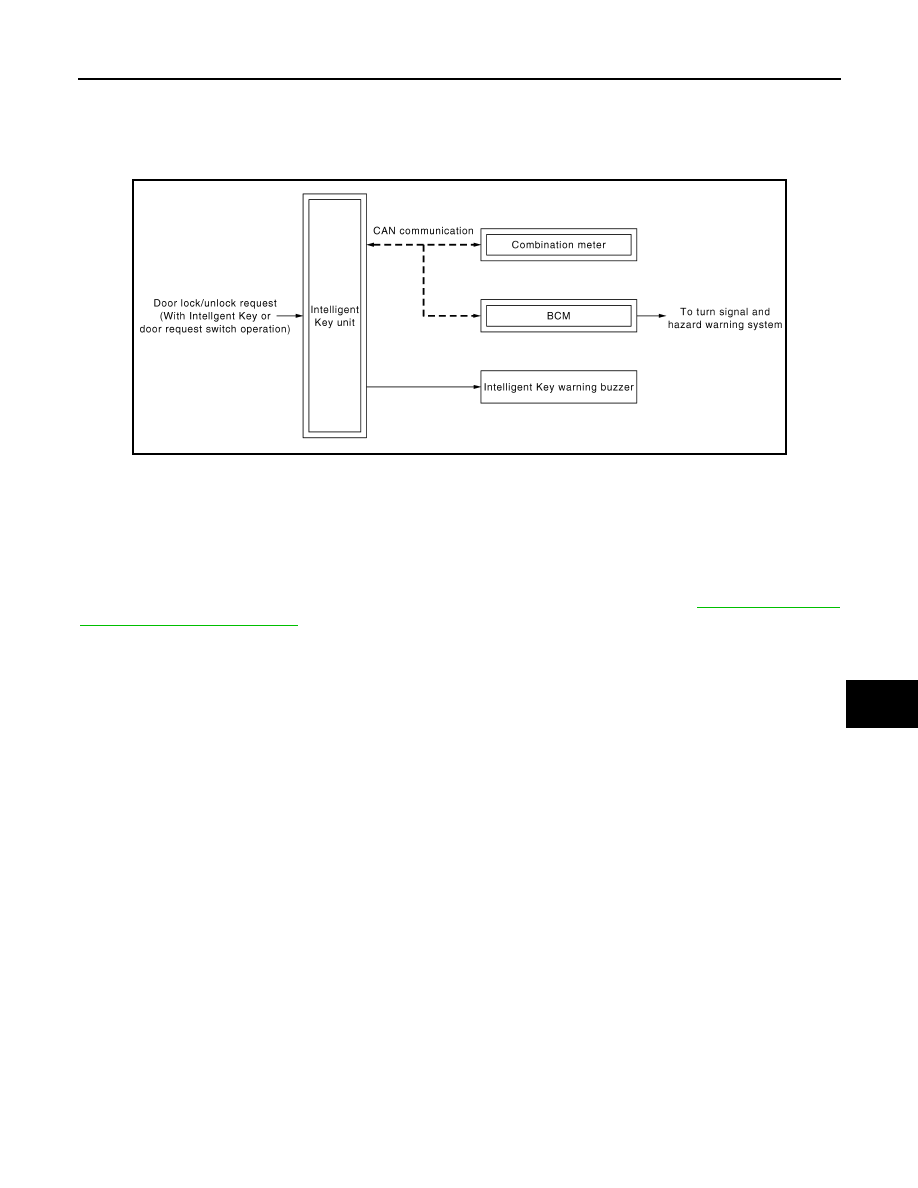

System Diagram

INFOID:0000000007355389

HAZARD & BUZZER REMINDER FUNCTION

System Description

INFOID:0000000007355390

HAZARD AND BUZZER REMINDER FUNCTION

When door is locked or unlocked by Intelligent Key or door request switch, Intelligent Key unit sounds buzzer

and sends hazard request signal to BCM via CAN communication. Then BCM flashes hazard warning lamps

as a reminder.

NOTE:

Hazard and buzzer reminder function mode can be changed with CONSULT. Refer to

DLK-43, "CONSULT

Function (INTELLIGENT KEY)"

.

JMKIA0506GB

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-36

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD AND BUZZER REMINDER FUNCTION

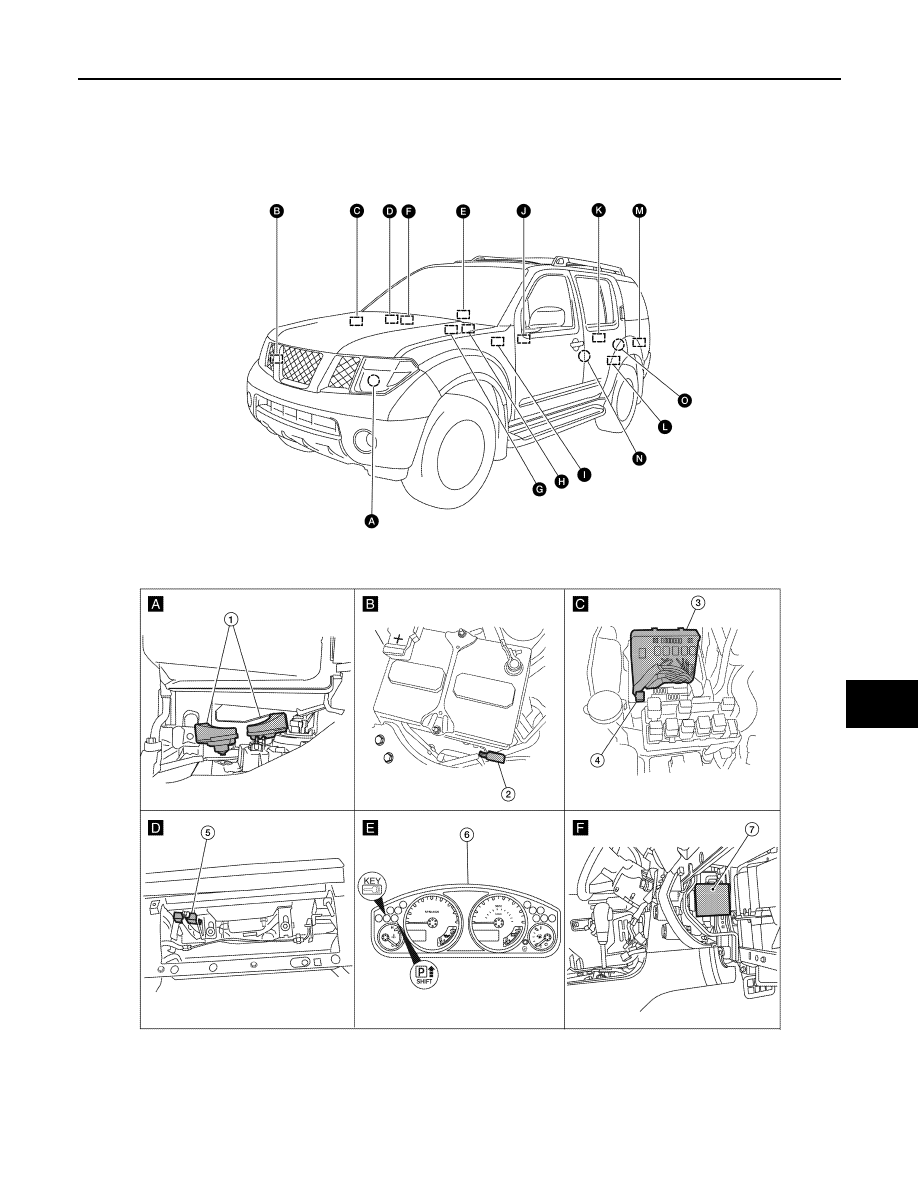

Component Parts Location

INFOID:0000000007355391

ALKIA1166ZZ

August 2012

2012 Pathfinder

2012 Pathfinder

HAZARD AND BUZZER REMINDER FUNCTION

DLK-37

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Horn E3
(Behind front combination lamp LH)

2.

Intelligent Key warning buzzer E60

3.

IPDM E/R E122, E124
(view with cover removed)

4.

Horn relay H-1

5.

Remote keyless entry receiver M67
(view with glove box removed)

6.

Combination meter M24

7.

Intelligent Key unit M164
(view with glove box removed)

8.

BCM M18, M19, M20
(view with instrument panel LH removed)

9.

Steering lock solenoid M65
(view with steering column removed)

10. Key switch and ignition knob switch

M66

11. Instrument panel area antenna M68

(view with center console cover removed)

12. A/T shift selector [park position switch

(Intelligent Key system)] M158

13. Center console area antenna M212

(view with center console removed)

14. Luggage area antenna B129

(behind right side of 3rd row seat)

15. Rear bumper antenna C127

(view with rear bumper removed)

16. Back door latch (door ajar switch)

D502

17. Back door request switch D552

18. Back door opener switch D511

19. Front outside antenna LH D15

Front outside antenna RH D115

20. Front door request switch LH D16

Front door request switch RH D116

21. Front door lock assembly LH (door

unlock sensor) D14

22. Front door switch LH B8

RH B108

23. Rear door switch LH B18

RH B116

ALKIA1699ZZ

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-38

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD AND BUZZER REMINDER FUNCTION

Component Description

INFOID:0000000007355392

Item

Function

BCM

Controls the hazard and buzzer reminder function (without Intelligent Key).

Intelligent Key unit

Controls the hazard and buzzer reminder function (with Intelligent Key).

Combination meter

Turns ON the LOCK indicator, KEY indicator, turn signal indicator and buzzer
(built in combination meter) by the request from Intelligent Key unit via CAN com-
munication.

Intelligent Key warning buzzer

Sounds by the request signal from Intelligent Key unit via CAN communication.

August 2012

2012 Pathfinder

2012 Pathfinder
