GENERATOR

REMOVAL AND INSTALLATION

GENERATOR

Removal and Installation

INFOID:0000000007355061

VQ40DE MODELS

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

Removal

1. Disconnect the negative battery terminal. Refer to

PG-76, "Removal and Installation"

.

2. Partially drain the engine coolant. Refer to

CO-12, "Changing Engine Coolant"

.

3. Remove engine room cover.
4. Remove air duct and resonator assembly. Refer to

EM-26, "Exploded View"

.

5. Remove upper radiator hose.
6. Disconnect coolant reservoir hose from radiator.
7. Remove the crankcase ventilation hose.
8. Remove the fan shroud. Refer to

CO-17, "Exploded View"

.

9. Remove engine cooling fan (Motor Driven Type). Refer to

CO-21, "Removal and Installation (Motor driven

type)"

.

10. Remove the drive belt. Refer to

EM-14, "Removal and Installation"

.

11. Remove the generator stay, using power tools.
12. Remove the generator upper bolt, using power tools.
13. Disconnect the generator harness connectors.
14. Remove the generator.

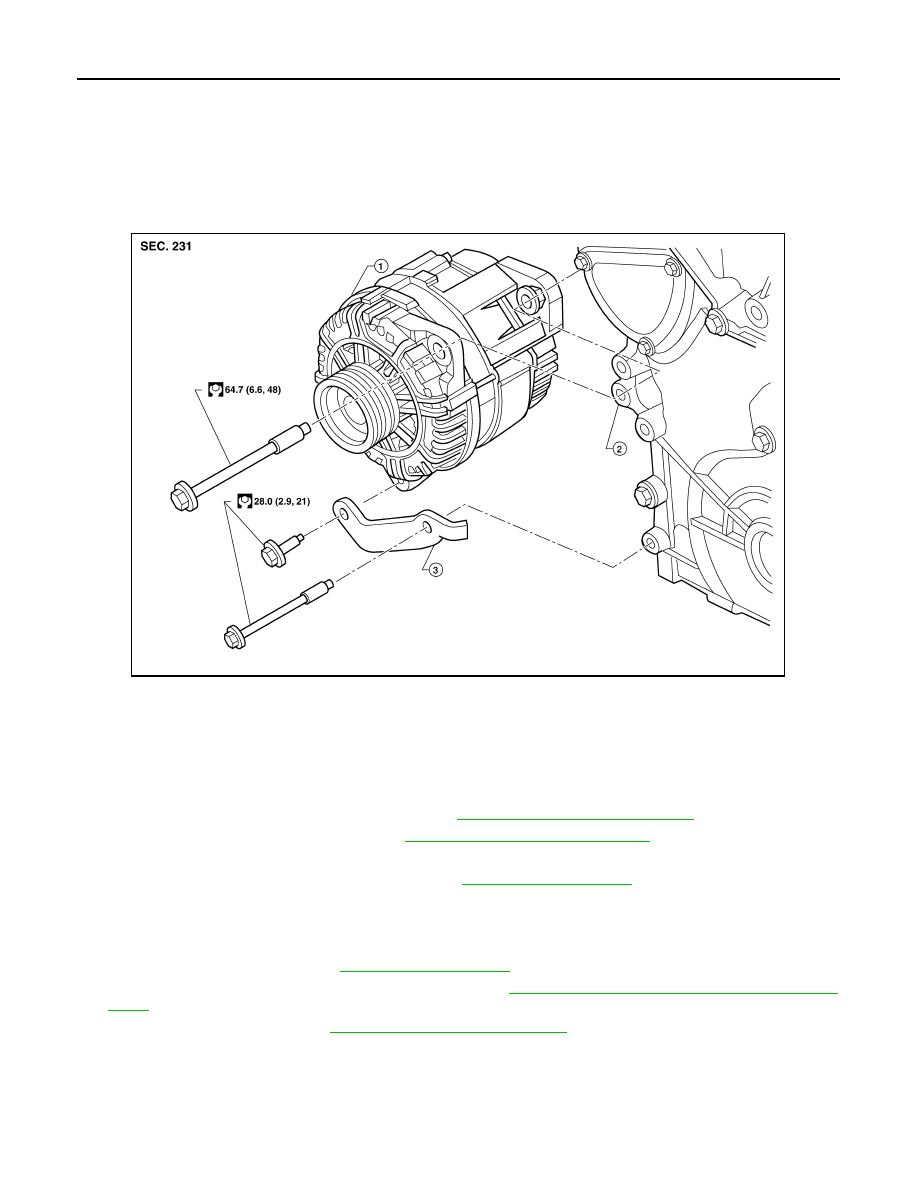

1.

Generator

2.

Engine block

3.

Generator stay

AWMIA1170GB

August 2012

2012 Pathfinder

CHG

GENERATOR

CHG-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Installation

Installation is in the reverse order of removal.

• Install the generator and check the tension of the drive belt. Refer to

EM-14, "Checking Drive Belts"

.

CAUTION:

Tighten terminal nut carefully.

• For this model, the power generation variable voltage control system that controls the power generation volt-

age of the generator has been adopted. Therefore, the power generation variable voltage control system

operation inspection should be performed after replacing the generator, and then make sure that the system

operates normally. Refer to

CHG-14, "Diagnosis Procedure"

.

VK56DE MODELS

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

Removal

1. Disconnect the negative battery terminal. Refer to

PG-76, "Removal and Installation"

.

2. Remove engine room cover. Refer to

EM-163, "Removal and Installation"

.

3. Partially drain the engine coolant. Refer to

CO-42, "Changing Engine Coolant"

.

4. Remove air duct and resonator assembly and air cleaner case (upper). Refer to

EM-164, "Exploded

View"

.

5. Remove upper radiator hose. Refer to

CO-46, "Exploded View"

.

6. Remove the lower fan shroud. Refer to

CO-46, "Exploded View"

.

7. Disconnect the coolant reservoir hose from the radiator. Refer to

CO-46, "Exploded View"

.

8. Remove the upper fan shroud. Refer to

CO-46, "Exploded View"

.

9. Remove the drive belt. Refer to

EM-152, "Removal and Installation"

.

10. Remove the lower bracket, using power tools.

Terminal nut

: 10.8 N·m (1.1 kg-m, 8 ft-lb)

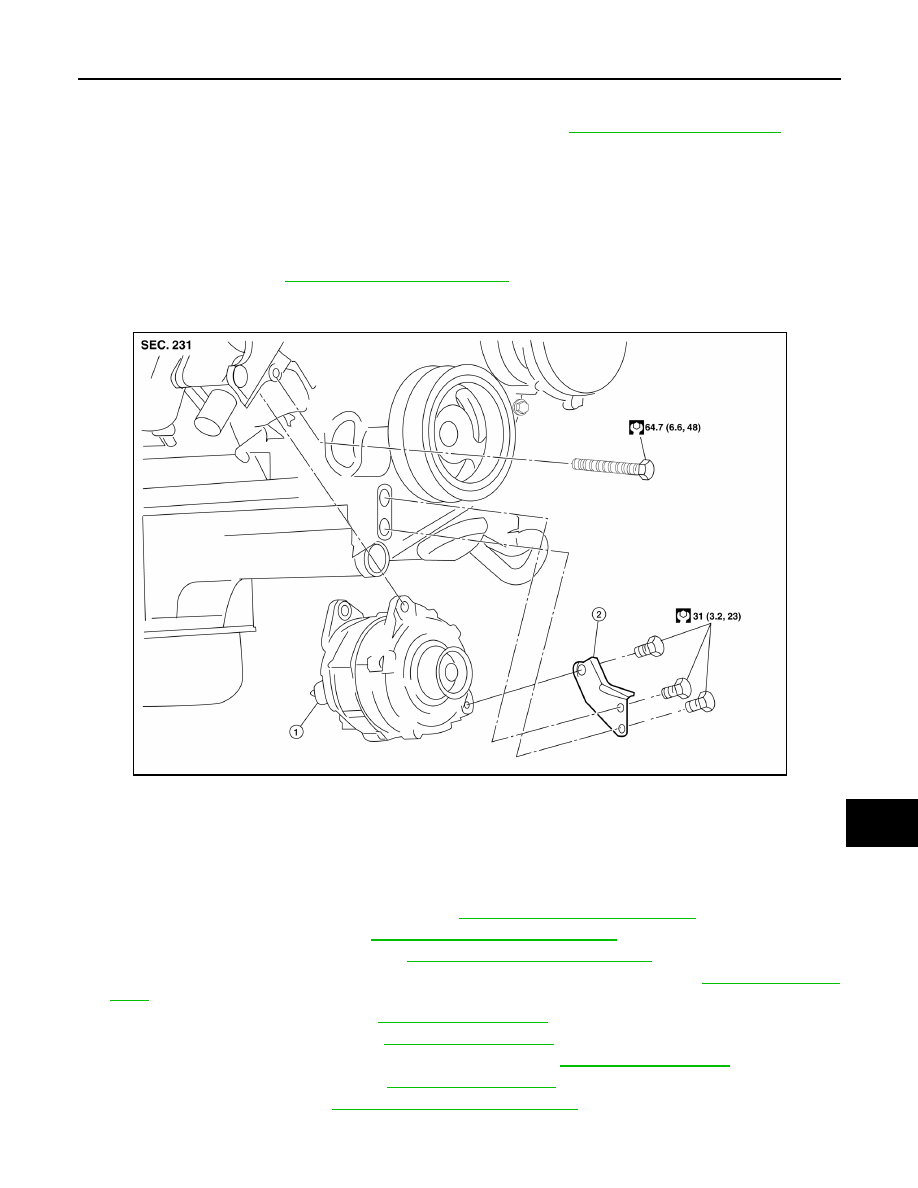

1.

Generator

2.

Lower bracket

AWMIA1199ZZ

August 2012

2012 Pathfinder

CHG-30

< REMOVAL AND INSTALLATION >

GENERATOR

11. Remove the generator upper bolt, using power tools.
12. Disconnect the generator harness connectors.
13. Remove the generator.

Installation

Installation is in the reverse order of removal.

• Install the generator and check the tension of the drive belt. Refer to

EM-152, "Checking Drive Belts"

.

CAUTION:

Tighten terminal nut carefully.

• For this model, the power generation variable voltage control system that controls the power generation volt-

age of the generator has been adopted. Therefore, the power generation variable voltage control system

operation inspection should be performed after replacing the generator, and then make sure that the system

operates normally.

Terminal nut

: 10.8 N·m (1.1 kg-m, 8 ft-lb)

August 2012

2012 Pathfinder

CHG

SERVICE DATA AND SPECIFICATIONS (SDS)

CHG-31

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Generator

INFOID:0000000007355062

*: Always check with the Parts Department for the latest parts information.

Application

VQ40DE

VK56DE

Type*

TG15S179

TG15S179

Valeo

Valeo

Nominal rating

14V-130A

14V-130A

Ground polarity

Negative

Negative

Minimum revolution under no-load

1,200 rpm

1,200 rpm

Hot output current (When 13.5 volts is ap-
plied)

More than 52A/1,500 rpm
More than 82A/1,800 rpm

More than 115A/2,500 rpm

More than 130A/5,000 rpm

More than 52A/1,500 rpm
More than 82A/1,800 rpm

More than 115A/2,500 rpm

More than 130A/5,000 rpm

Regulated output voltage

13.5 @ 5,000 rpm @ 20

°

C (68

°

F)

13.5 @ 5,000 rpm @ 20

°

C (68

°

F)

Adjustment range of power generation vari-
able voltage control

11.4 - 15.6V

11.4 - 15.6V

August 2012

2012 Pathfinder

CO-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

CO

A

CO

N

O

P

CONTENTS

ENGINE COOLING SYSTEM

VQ40DE

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

3

Precaution for Liquid Gasket .....................................

4

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tool  .................................................

5

Commercial Service Tool  ..........................................

6

SYSTEM DESCRIPTION  ..............................

7

COOLING SYSTEM ............................................

7

Cooling Circuit ...........................................................

7

Schematic .................................................................

8

OVERHEATING CAUSE ANALYSIS ..................

9

Troubleshooting Chart ...............................................

9

PERIODIC MAINTENANCE .........................

11

ENGINE COOLANT  ...........................................

11

System Inspection ...................................................

11

Changing Engine Coolant  .......................................

12

REMOVAL AND INSTALLATION ...............

17

RADIATOR .........................................................

17

Exploded View  ........................................................

17

Removal and Installation .........................................

17

ENGINE COOLING FAN  ....................................

20

Exploded View  ........................................................

20

Removal and Installation (Crankshaft driven type) ....

20

Removal and Installation (Motor driven type) ..........

21

WATER PUMP  ..................................................

23

Exploded View .........................................................

23

Removal and Installation  .........................................

23

WATER INLET AND THERMOSTAT ASSEM-
BLY ....................................................................

28

Exploded View .........................................................

28

Removal and Installation  .........................................

28

WATER OUTLET AND WATER PIPING  ..........

30

Exploded View .........................................................

30

Removal and Installation  .........................................

30

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

32

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

32

Standard and Limit  ..................................................

32

VK56DE

PRECAUTION ..............................................

33

PRECAUTIONS .................................................

33

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

33

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ...................................

33

Precaution for Liquid Gasket  ...................................

34

PREPARATION ...........................................

35

PREPARATION .................................................

35

Special Service Tool ................................................

35

Commercial Service Tool  ........................................

36

SYSTEM DESCRIPTION  .............................

37

COOLING SYSTEM  ..........................................

37

Cooling Circuit  .........................................................

37

Schematic ................................................................

38

August 2012

2012 Pathfinder

CO-2

OVERHEATING CAUSE ANALYSIS  ................

39

Troubleshooting Chart  ............................................

39

PERIODIC MAINTENANCE ........................

41

ENGINE COOLANT ...........................................

41

System Inspection  ..................................................

41

Changing Engine Coolant .......................................

42

REMOVAL AND INSTALLATION ...............

46

RADIATOR ........................................................

46

Exploded View ........................................................

46

Removal and Installation  ........................................

46

ENGINE COOLING FAN  ...................................

49

Exploded View ........................................................

49

Removal and Installation (Crankshaft Driven
Type) .......................................................................

49

Removal and Installation (Motor Driven Type) ........

50

WATER PUMP ...................................................

52

Exploded View  ........................................................

52

Removal and Installation .........................................

52

THERMOSTAT AND WATER PIPING  ..............

54

Exploded View  ........................................................

54

Removal and Installation .........................................

54

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

56

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

56

Standard and Limit ...............................................

August 2012

2012 Pathfinder

PRECAUTIONS

CO-3

< PRECAUTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000007357899

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000007357900

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing work. If

DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

August 2012

2012 Pathfinder

CO-4

< PRECAUTION >

[VQ40DE]

PRECAUTIONS

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT.

Precaution for Liquid Gasket

INFOID:0000000007357901

REMOVAL OF LIQUID GASKET

• After removing the bolts and nuts, separate the mating surface and

remove the old liquid gasket using Tool.

CAUTION:

Do not damage the mating surfaces.

• Tap the seal cutter to insert it (1).

• In areas where the Tool is difficult to use, lightly tap to slide it (2).

LIQUID GASKET APPLICATION PROCEDURE

1. Remove the old liquid gasket adhering to the gasket application

surface and the mating surface using suitable tool.

• Remove the liquid gasket completely from the groove of the

liquid gasket application surface, bolts, and bolt holes.

2. Thoroughly clean the mating surfaces and remove adhering

moisture, grease and foreign material.

3. Attach the liquid gasket tube to the Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-14, "Recommended Chemical Products and Sealants"

.

4. Apply the liquid gasket without breaks to the specified location

with the specified dimensions.

• If there is a groove for the liquid gasket application, apply the

liquid gasket to the groove.

• Normally apply the liquid gasket on the inside edge of the bolt

holes. Also apply to the outside edge of the bolt holes when

specified in the procedure.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If the liquid gasket protrudes, wipe it off immediately.

• Do not retighten after the installation.

• Wait 30 minutes or more after installation before refilling the

engine with oil or coolant.

CAUTION:

Carefully follow all of the warnings, cautions, notes, and procedures contained in this manual.

Tool number

: KV10111100 (J-37228)

WBIA0566E

PBIC0003E

Tool number

: WS39930000 ( — )

WBIA0567E

SEM159F
