Nissan Pathfinder (2012 year). Manual - part 120

BRC-226

< PRECAUTION >

[TYPE 2]

PRECAUTIONS

• When driving on roads which have extreme slopes (such as mountainous roads) or high banks (such as

sharp curves on a freeway), the VDC may not operate normally, or the VDC warning lamp and the SLIP indi-

cator lamp may turn on. This is not a problem if normal operation can be resumed after restarting the engine.

• Sudden turns (such as spin turns, acceleration turns), drifting, etc. with VDC turned off may cause the yaw

rate/side/decel G sensor to indicate a problem. This is not a problem if normal operation can be resumed

after restarting the engine.

• If battery is removed or steering angle sensor is disconnected, power to steering angle sensor is lost and the

screen goes into steering angle sensor safe mode.

• When screen goes into steering angle sensor safe mode, perform "Adjustment of Steering Angle Sensor

Neutral Position" with CONSULT and check that VDC OFF indicator turns off. Additionally, perform self-diag-

nosis, check that only "Steering Angle Sensor Safe Mode" is shown for self-diagnostic result, and then

delete the memory. (If the self-diagnostic result shows an indication other than "Steering Angle Sensor Safe

Mode", repair the relevant part and restart self-diagnosis.) The steering angle sensor is released and returns

to normal condition by performing the above operation.

• When checking, if only "Steering Angle Sensor Safe Mode" is shown in the self-diagnostic result and VDC

OFF indicator is off, delete history of malfunction. This happens when battery power supply is lost and the

screen goes into Steering Angle Sensor Safe Mode, and then screen returns to normal mode automatically

by driving the vehicle in a straight forward direction [for approximately 30 seconds at 20 km/h (12 MPH) or

more] after power is supplied again.

NOTE:

VDC OFF indicator lamp is on when VDC OFF switch is on.

Precaution for CAN System

INFOID:0000000007356981

• Do not apply voltage of 7.0V or higher to terminal to be measured.

• Maximum open terminal voltage of tester in use must be less than 7.0V.

• Before checking harnesses, turn ignition switch OFF and disconnect battery negative cable.

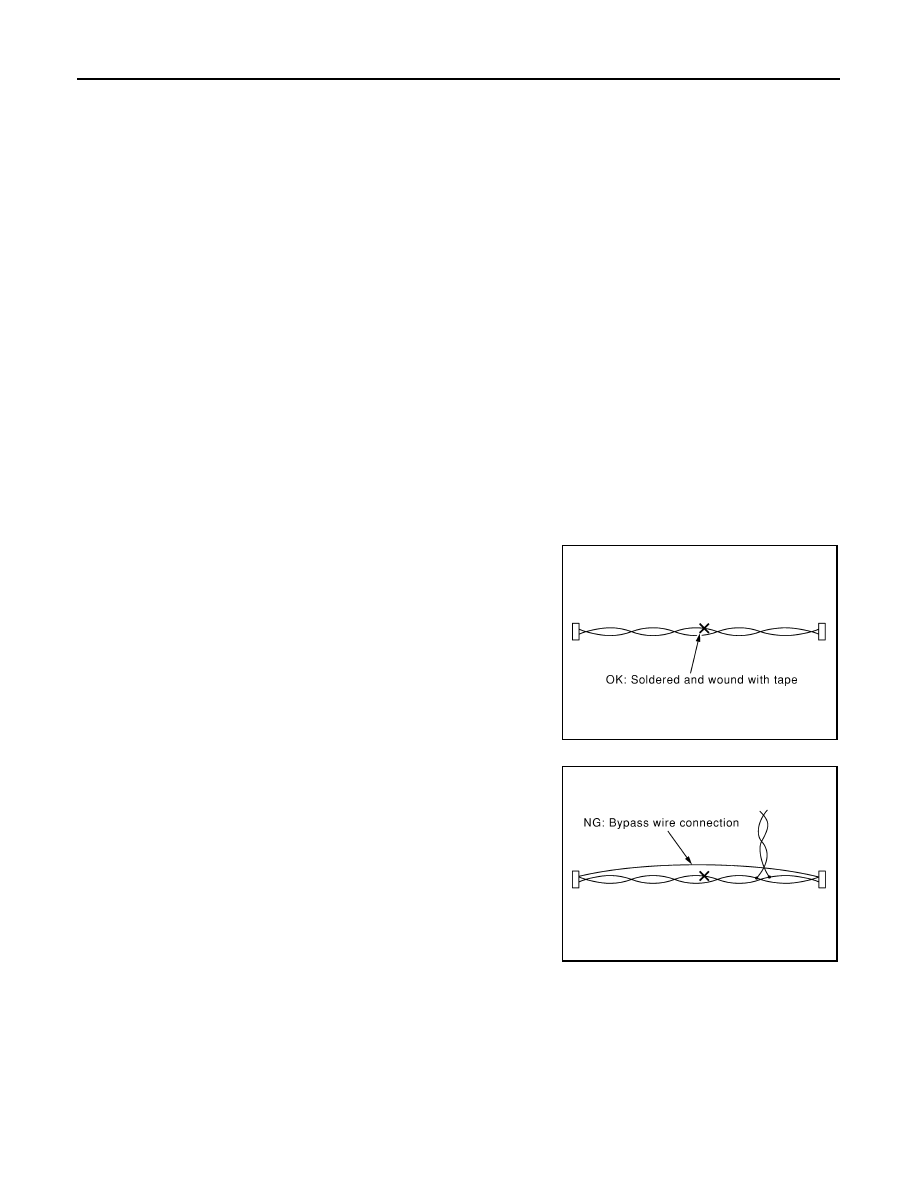

• Area to be repaired must be soldered and wrapped with tape.

Make sure that fraying of twisted wire is within 110 mm (4.33 in).

• Do not make a bypass connection to repaired area. (If the circuit is

bypassed, characteristics of twisted wire will be lost.)

PKIA0306E

PKIA0307E

August 2012

2012 Pathfinder

PREPARATION

BRC-227

< PREPARATION >

[TYPE 2]

BRC

PREPARATION

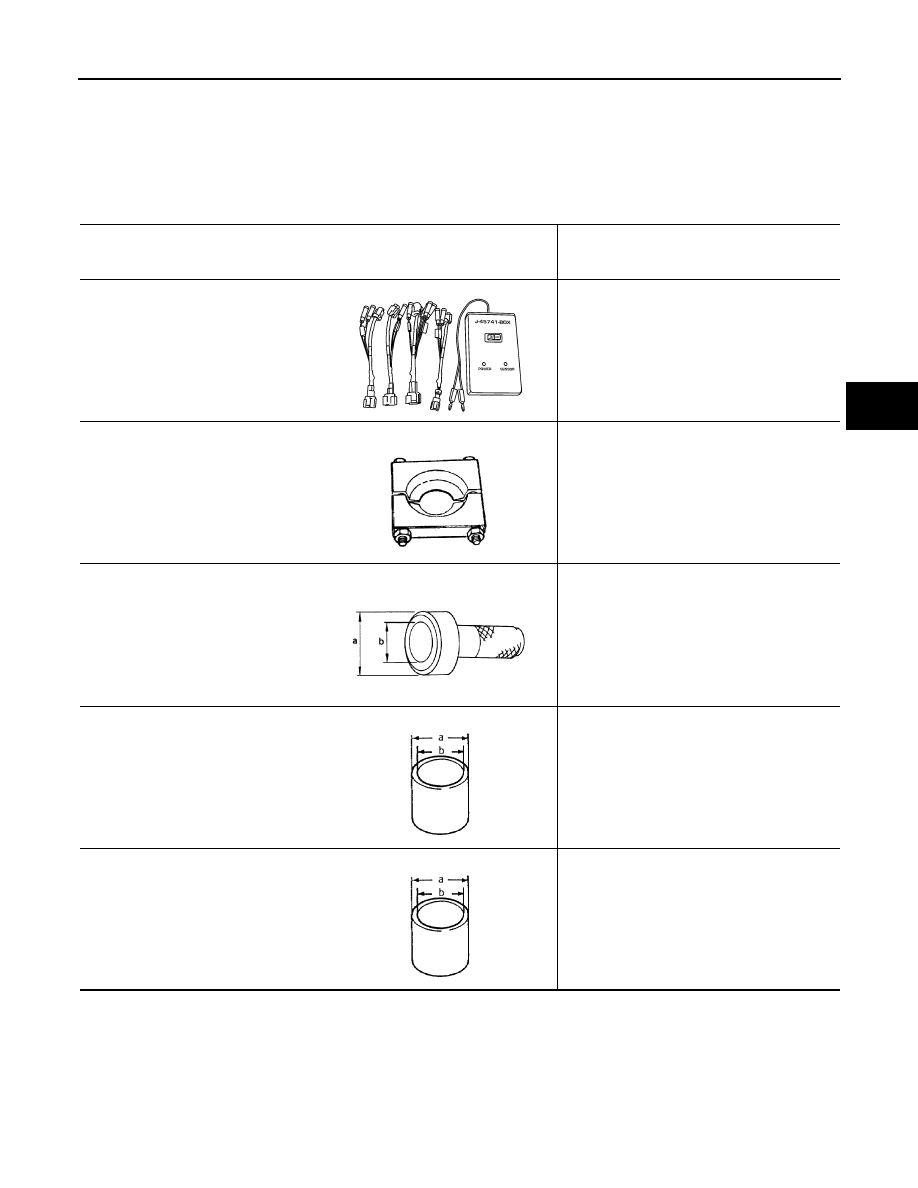

Special Service Tool

INFOID:0000000007356982

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV991J0080
(J-45741)
ABS active wheel sensor tester

Checking operation of ABS active wheel sen-
sors

ST30031000
(

—

)

Bearing puller

Removing sensor rotor

ST30720000
(J-25405)
Drift

Installing rear sensor rotor

a: 77 mm (0.03 in) diameter
b: 55 mm (2.17 in) diameter

ST27863000
(

—

)

Drift

Installing rear sensor rotor

a: 75 mm (2.95 in) diameter
b: 62 mm (2.44 in) diameter

KV40104710
(

—

)

Drift

Installing rear sensor rotor

a: 76 mm (2.99 in) diameter
b: 68.5 mm (2.697 in) diameter

WFIA0101E

ZZA0700D

ZZA0701D

ZZA0832D

August 2012

2012 Pathfinder

BRC-228

< PREPARATION >

[TYPE 2]

PREPARATION

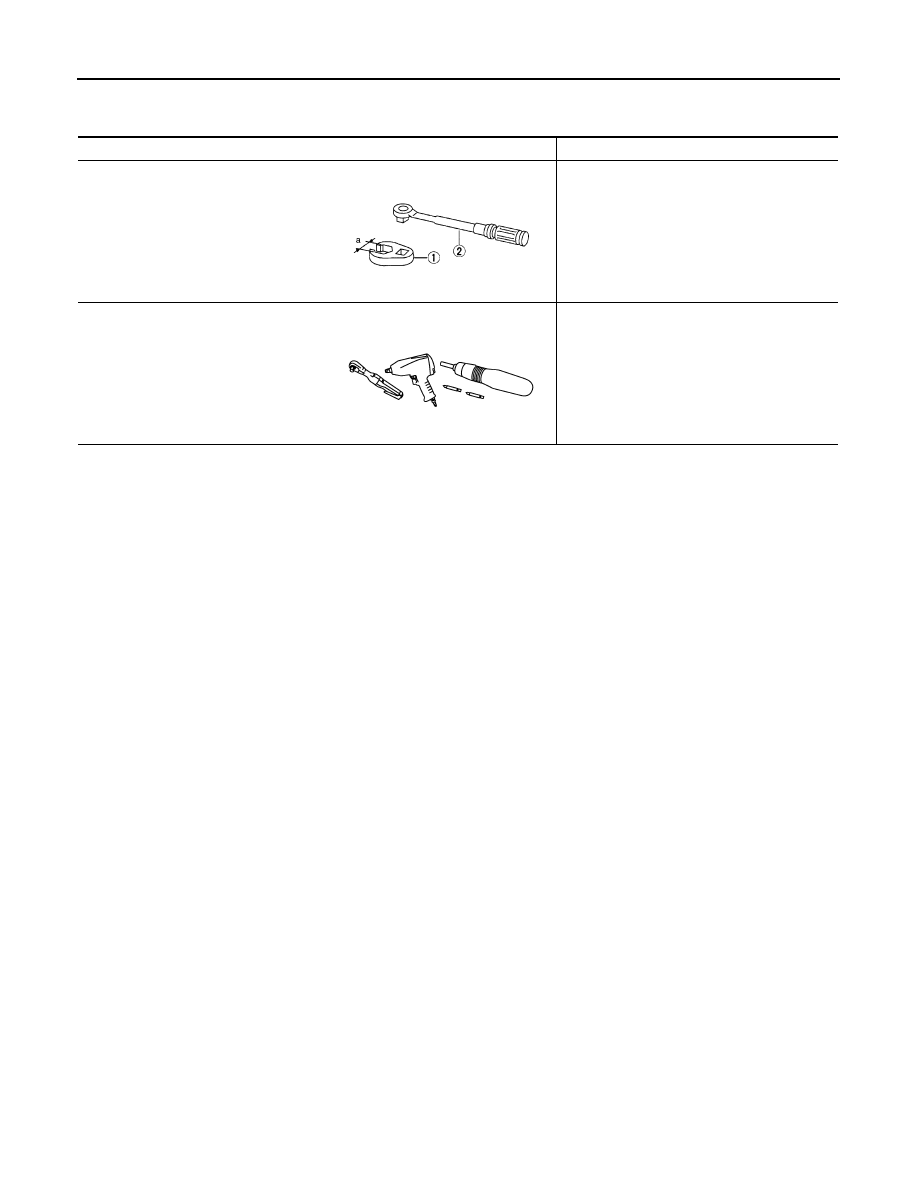

Commercial Service Tool

INFOID:0000000007356983

Tool name

Description

1. Flare nut crowfoot
2. Torque wrench

Removing and installing brake piping

a: 10 mm (0.39 in)/12 mm (0.47 in)

Power tool

Loosening nuts, screws and bolts

S-NT360

PIIB1407E

August 2012

2012 Pathfinder

WHEEL SENSORS

BRC-229

< UNIT REMOVAL AND INSTALLATION >

[TYPE 2]

BRC

UNIT REMOVAL AND INSTALLATION

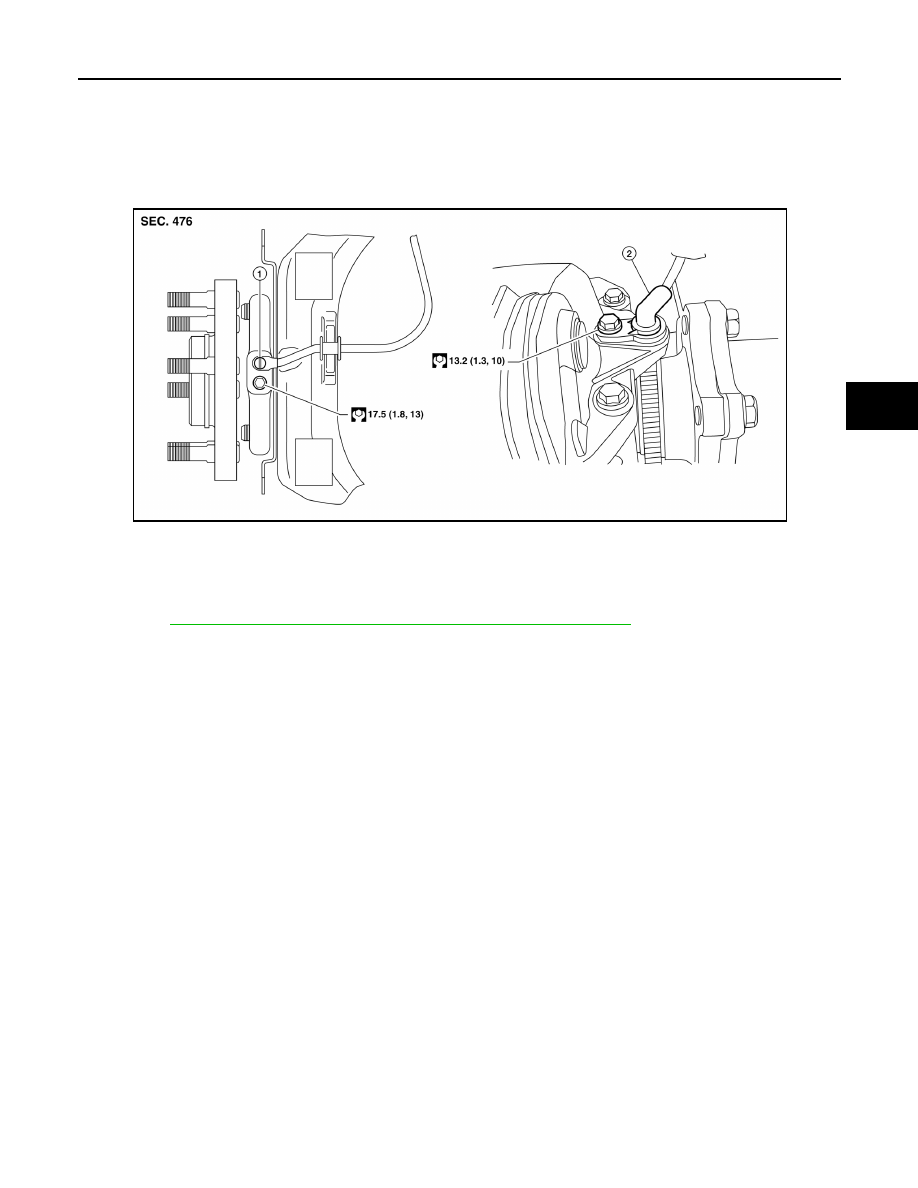

WHEEL SENSORS

Removal and Installation

INFOID:0000000007356984

REMOVAL

1. If removing the front wheel sensor, first remove the disc rotor to gain access to the front wheel sensor bolt.

Refer to

BR-47, "Removal and Installation of Brake Caliper and Disc Rotor"

2. If removing the rear wheel sensor, first remove the spare tire.
3. Remove the wheel sensor bolt.
4. Pull the wheel sensor out, being careful to turn it as little as possible.

CAUTION:

• Be careful not to damage wheel sensor edge or the sensor rotor teeth.

• Do not pull on the wheel sensor harness.

5. Disconnect the wheel sensor harness connector, then remove the wheel sensor harness from the mounts

and remove the wheel sensor.

• When removing the rear wheel sensor, both sensors must be removed as they are on the same har-

ness.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Inspect wheel sensor O-ring, replace wheel sensor if damaged.

• Before installing the wheel sensor, make sure no foreign materials (such as iron fragments) are

adhered to the pick-up part of the wheel sensor, to the inside of the wheel sensor hole or on the sen-

sor rotor in the wheel hub assembly.

• Clean wheel sensor hole and mating surface with brake cleaner and a lint-free shop rag. Be careful

that dirt and debris do not enter the axle or wheel hub assembly.

NOTE:

Apply a coat of suitable grease to the wheel sensor O-ring and mating hole.

Front wheel sensor LH

Rear wheel sensor RH

AWFIA0786GB

August 2012

2012 Pathfinder

BRC-230

< UNIT REMOVAL AND INSTALLATION >

[TYPE 2]

SENSOR ROTOR

SENSOR ROTOR

Removal and Installation

INFOID:0000000007356985

FRONT WHEEL SENSOR ROTOR

The wheel sensor rotors are built into the front wheel hub and bearing assemblies and are not removable. If

damaged, replace the front wheel hub and bearing assembly. Refer to

FAX-10, "Removal and Installation"

REAR WHEEL SENSOR ROTOR

Removal

1. Remove the side flange from the final drive assembly. Refer to

DLN-463, "Removal and Installation"

CAUTION:

Discard side oil seal.

2. Remove the sensor rotor from the side flange, using suitable tool with Tool.

Installation

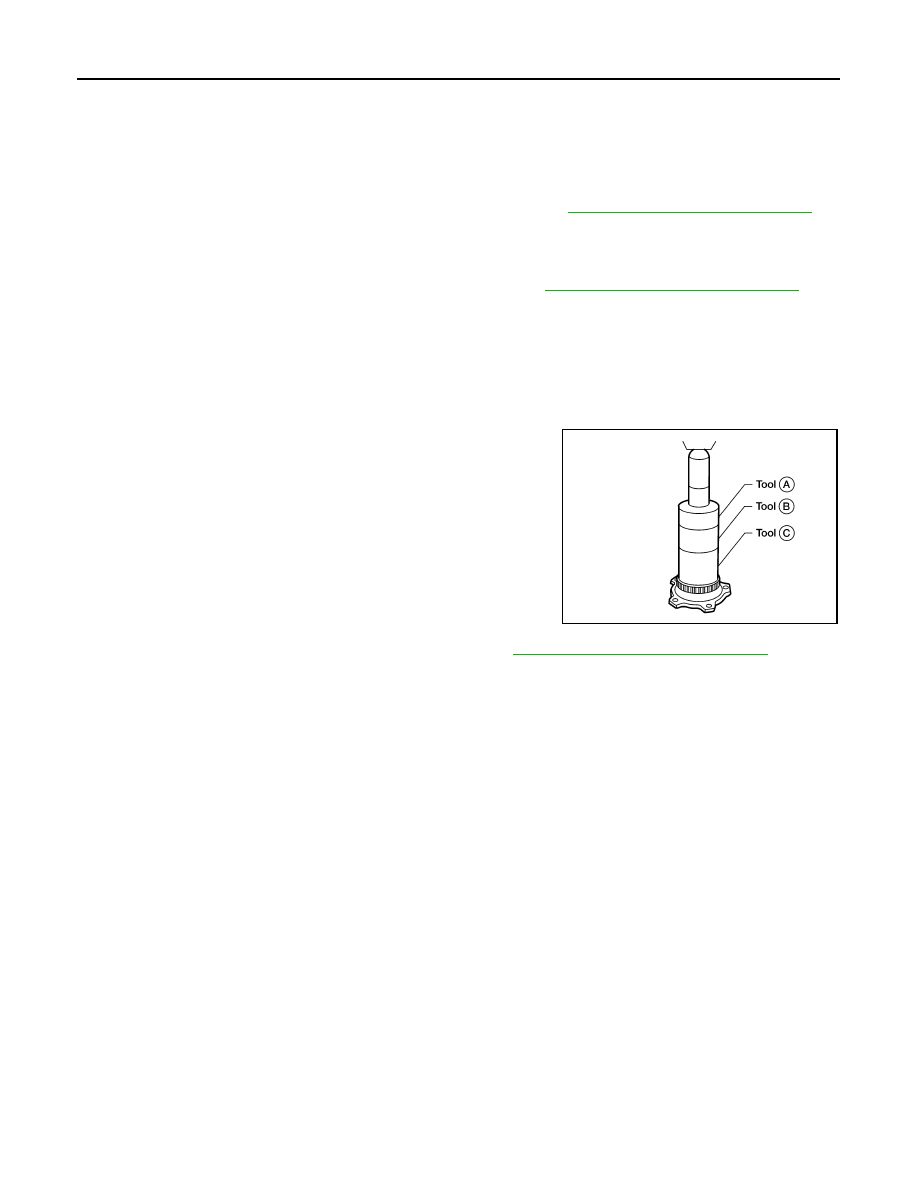

1. Install the new sensor rotor on the side flange using Tools and a

suitable press as shown. Make sure the sensor rotor is fully

seated on the side flange.

CAUTION:

Do not reuse the old sensor rotor.

2. Install the side flange on the final drive assembly. Refer to

DLN-463, "Removal and Installation"

CAUTION:

Do not reuse the side oil seal. The side oil seal must be replaced every time the side flange is

removed from the final drive assembly.

Tool number

: ST30031000 ( — )

Tool numbers

A: ST30720000 (J-25405)
B: ST27863000 ( — )
C: KV40104710 ( — )

WFIA0334E

August 2012

2012 Pathfinder

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

BRC-231

< UNIT REMOVAL AND INSTALLATION >

[TYPE 2]

BRC

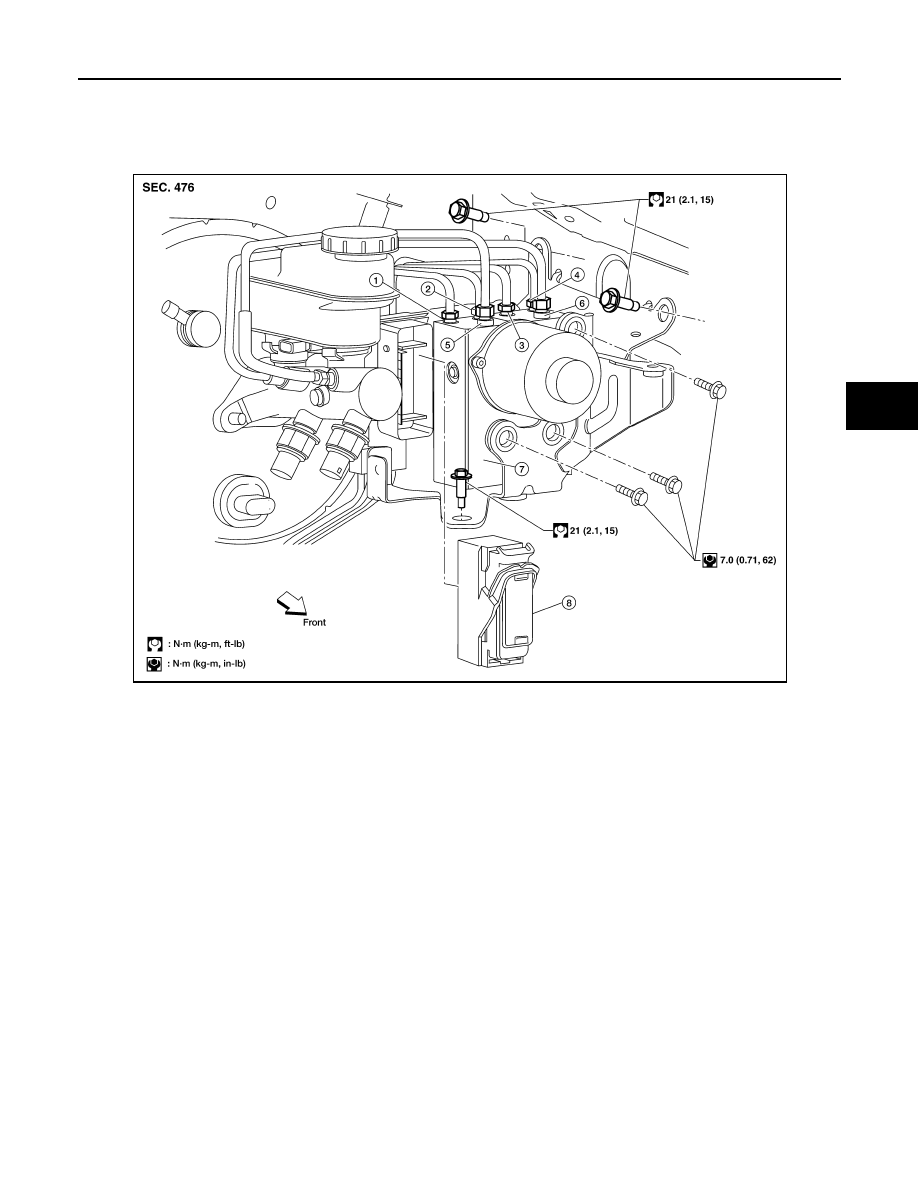

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

Removal and Installation

INFOID:0000000007356986

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Disconnect the battery negative terminal.
2. Disconnect the actuator harness from the ABS actuator and electric unit (control unit).
3. Disconnect the brake tubes.

CAUTION:

• To remove the brake tubes, use a flare nut wrench to prevent the flare nuts and brake tubes from

being damaged.

• Be careful not to splash brake fluid on painted areas.

4. Remove the three bolts and remove the ABS actuator and electric unit (control unit) and bracket.
5. Remove the bracket from the ABS actuator and electric unit (control unit).

INSTALLATION

Installation is in the reverse order of removal.

To rear left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

To rear right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

To front left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

To front right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

From master cylinder secondary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

From master cylinder primary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

ABS actuator and electric unit
(control unit)

Harness connector

WFIA0375E
