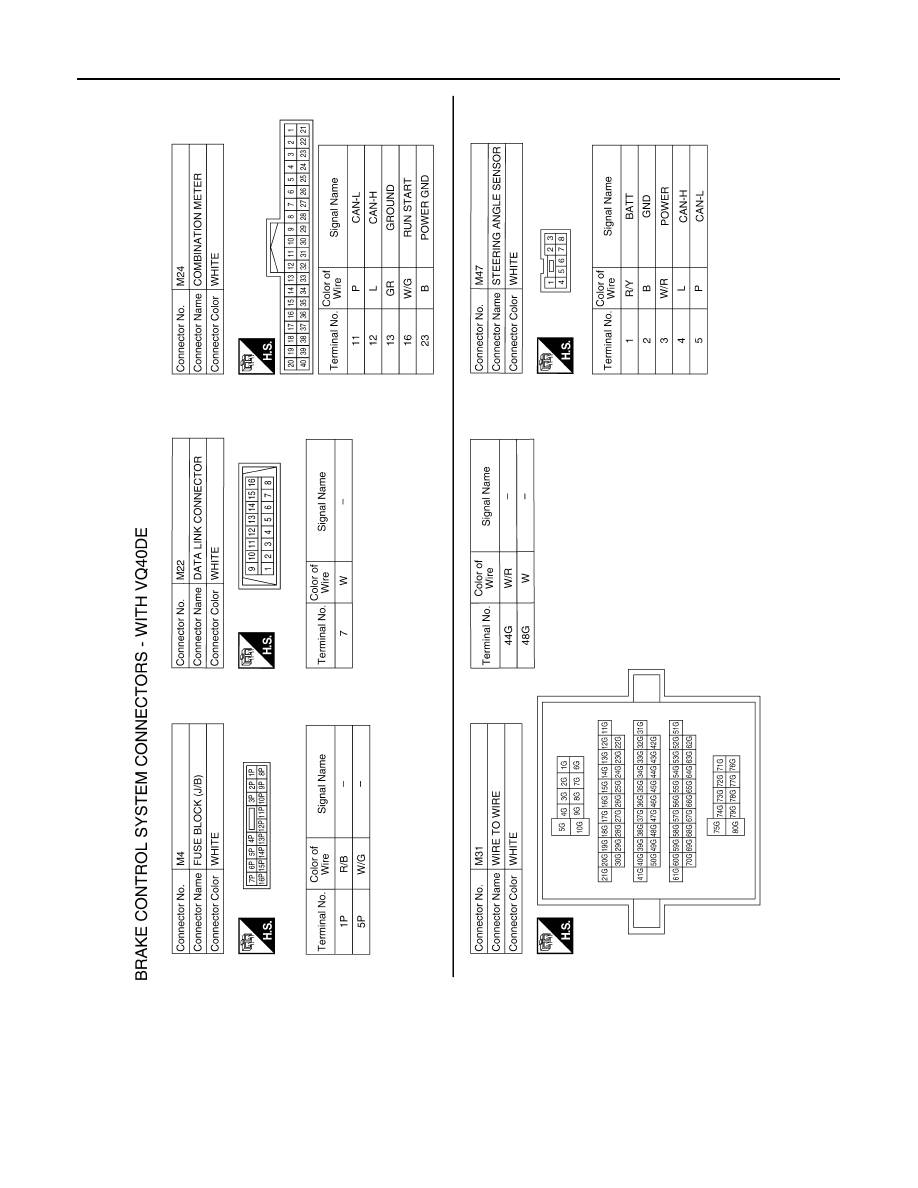

BRC-90

< WIRING DIAGRAM >

[TYPE 1]

BRAKE CONTROL SYSTEM - VDC

ABFIA0428GB

August 2012

2012 Pathfinder

BRAKE CONTROL SYSTEM - VDC

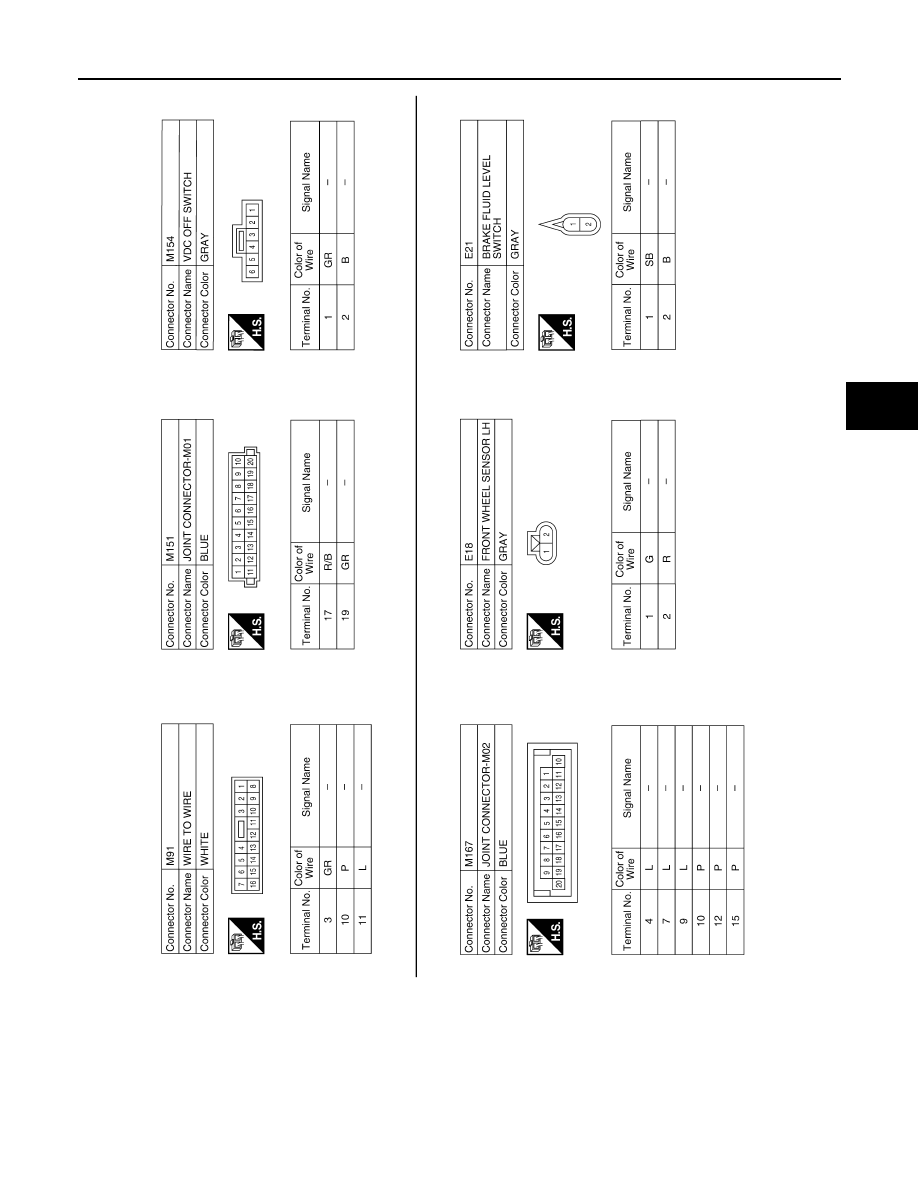

BRC-91

< WIRING DIAGRAM >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFIA0531GB

August 2012

2012 Pathfinder

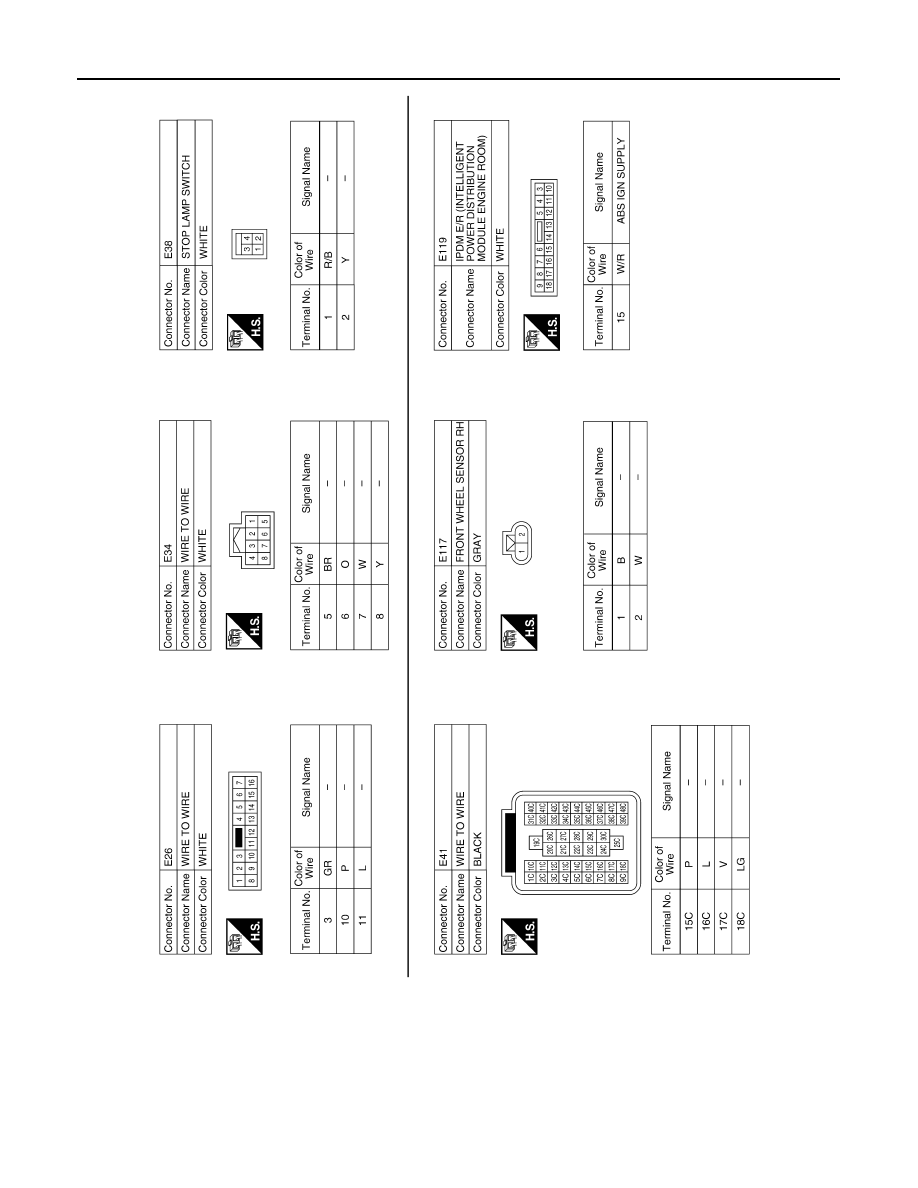

BRC-92

< WIRING DIAGRAM >

[TYPE 1]

BRAKE CONTROL SYSTEM - VDC

ABFIA0532GB

August 2012

2012 Pathfinder

BRAKE CONTROL SYSTEM - VDC

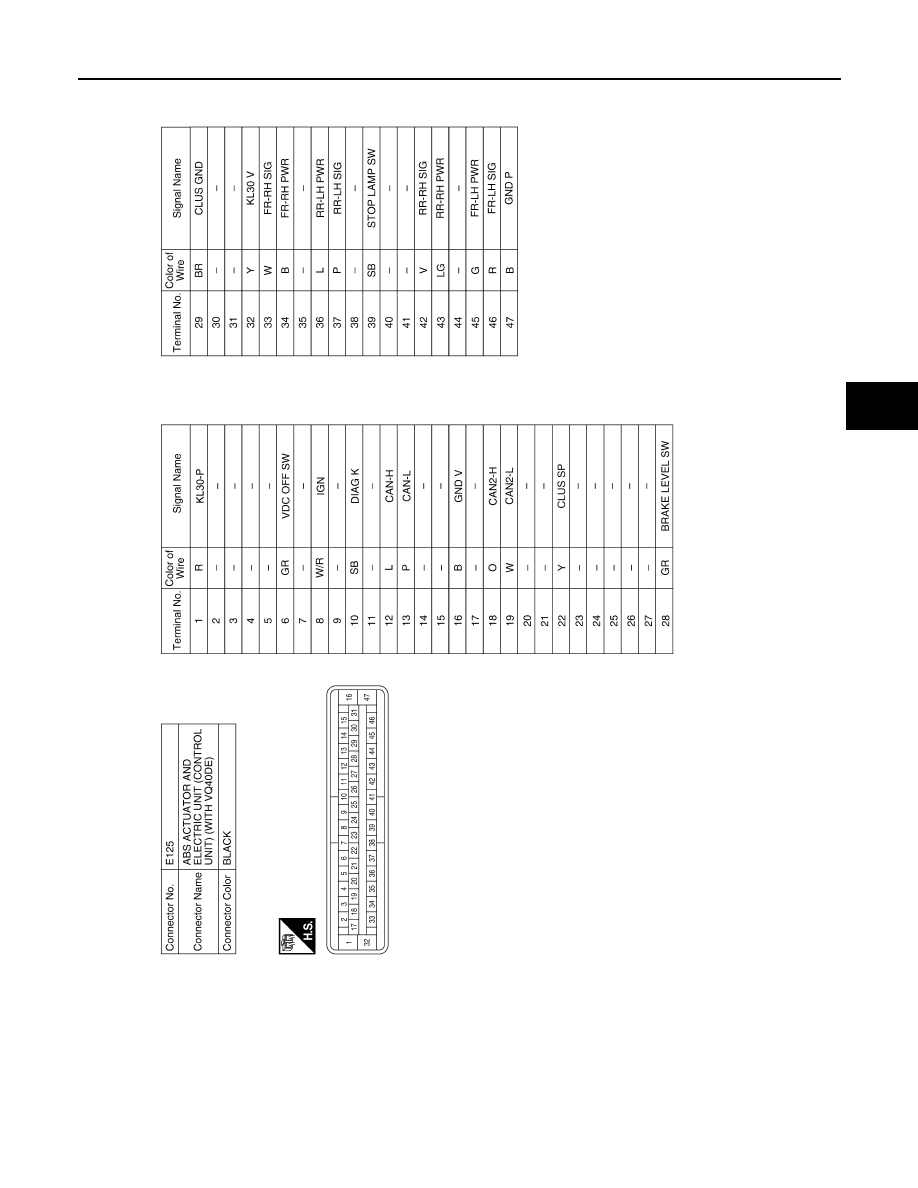

BRC-93

< WIRING DIAGRAM >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFIA0533GB

August 2012

2012 Pathfinder

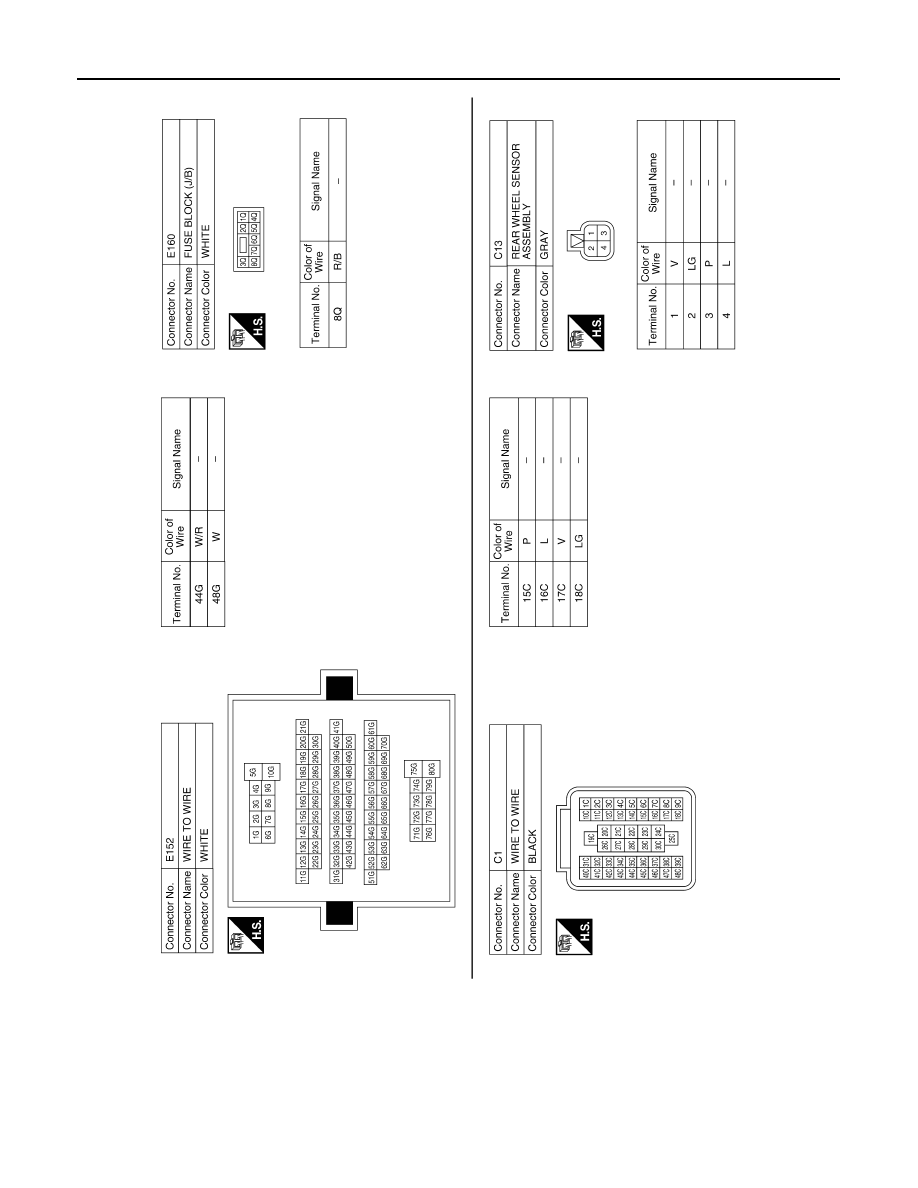

BRC-94

< WIRING DIAGRAM >

[TYPE 1]

BRAKE CONTROL SYSTEM - VDC

ABFIA0534GB

August 2012

2012 Pathfinder

BRAKE CONTROL SYSTEM - VDC

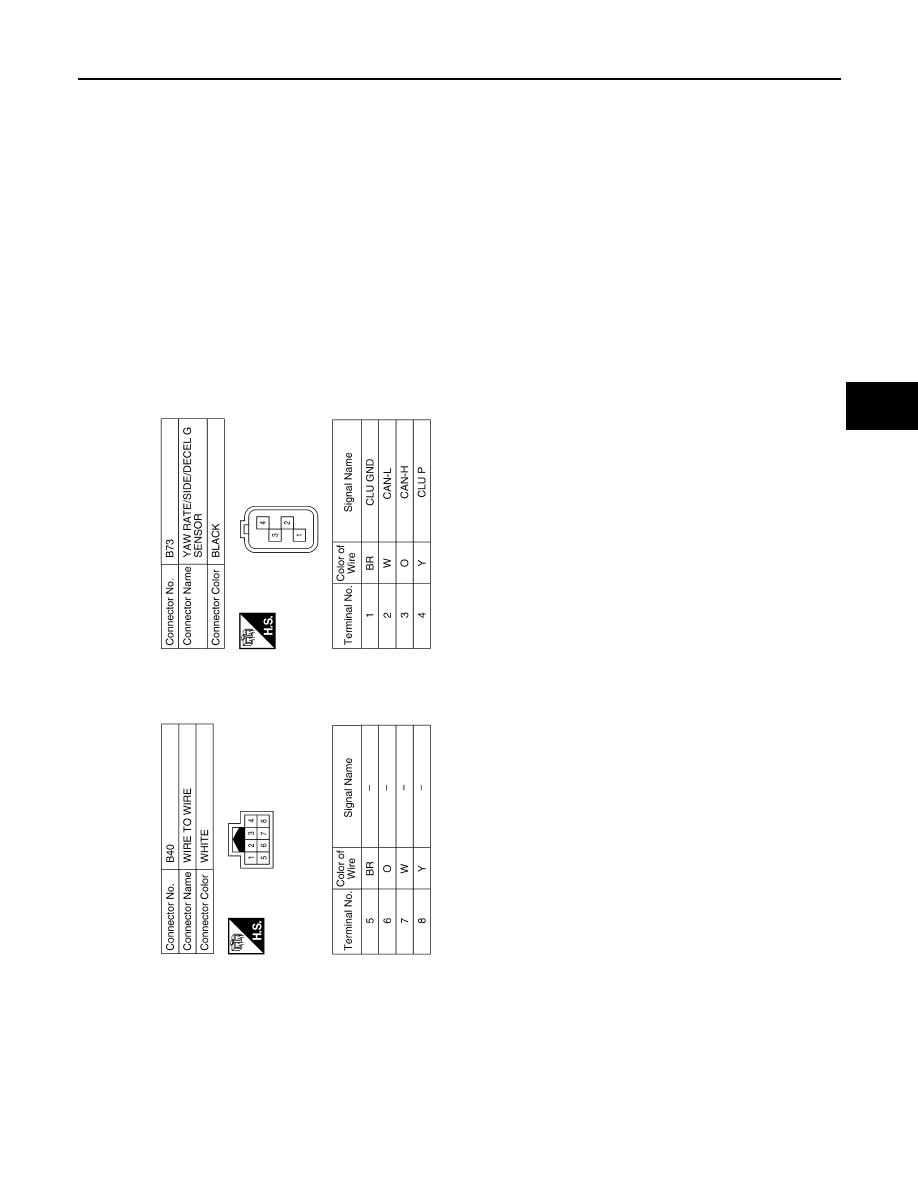

BRC-95

< WIRING DIAGRAM >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFIA0535GB

August 2012

2012 Pathfinder

BRC-96

< SYMPTOM DIAGNOSIS >

[TYPE 1]

APPLICATION NOTICE

SYMPTOM DIAGNOSIS

APPLICATION NOTICE

Application Notice

INFOID:0000000007818417

Service information

Remarks

TYPE 1

VDC/TCS/ABS (VQ40DE)

TYPE 2

VDC/TCS/ABS (VK56DE)

August 2012

2012 Pathfinder

VDC/TCS/ABS

BRC-97

< SYMPTOM DIAGNOSIS >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

VDC/TCS/ABS

Symptom Table

INFOID:0000000007356795

If ABS warning lamp and SLIP indicator lamp turn ON, perform self-diagnosis.

NOTE:

• 1: The ABS does not operate when the speed is 10 km/h (6 MPH) or less.
• 2: Under the following conditions, ABS is activated and vibration is felt when brake pedal is lightly depressed. However, this is normal.
- When shifting gears
- When driving on slippery road
- During cornering at high speed
- When passing over bumps or grooves [at approximately 50 mm (1.97 in) or more]
- When pulling away just after starting engine [at approximately 10 km/h (6 MPH) or higher]

Symptom

Check item

Reference

Excessive ABS function operation fre-
quency

Brake force distribution

BRC-98, "Diagno-

sis Procedure"

Looseness of front and rear axle

Wheel sensor and rotor system

Unexpected pedal reaction

Brake pedal stroke

BRC-99, "Diagno-

sis Procedure"

Make sure the braking force is sufficient when the ABS is not operating.

The braking distance is long

Check stopping distance when the ABS is not operating.

BRC-100, "Diag-

nosis Procedure"

ABS function does not operate (Note 1)

ABS actuator and electric unit (control unit)

BRC-101, "Diag-

nosis Procedure"

Pedal vibration or ABS operation sound
occurs (Note 2)

Brake pedal

BRC-102, "Diag-

nosis Procedure"

ABS actuator and electric unit (control unit)

Vehicle jerks during VDC/TCS/ABS con-
trol

ABS actuator and electric unit (control unit)

BRC-103, "Diag-

nosis Procedure"

TCM

ECM
