AV-186

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Description

INFOID:0000000007347757

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the

audio signals before sending them to the rear door speakers using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000007347758

Regarding Wiring Diagram information, refer to

AV-225, "Wiring Diagram - Without Navigation System"

.

1.

CONNECTOR CHECK

Check the AV control unit, BOSE speaker amp. and speaker connectors for the following:

• Proper connection

• Damage

• Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

HARNESS CHECK

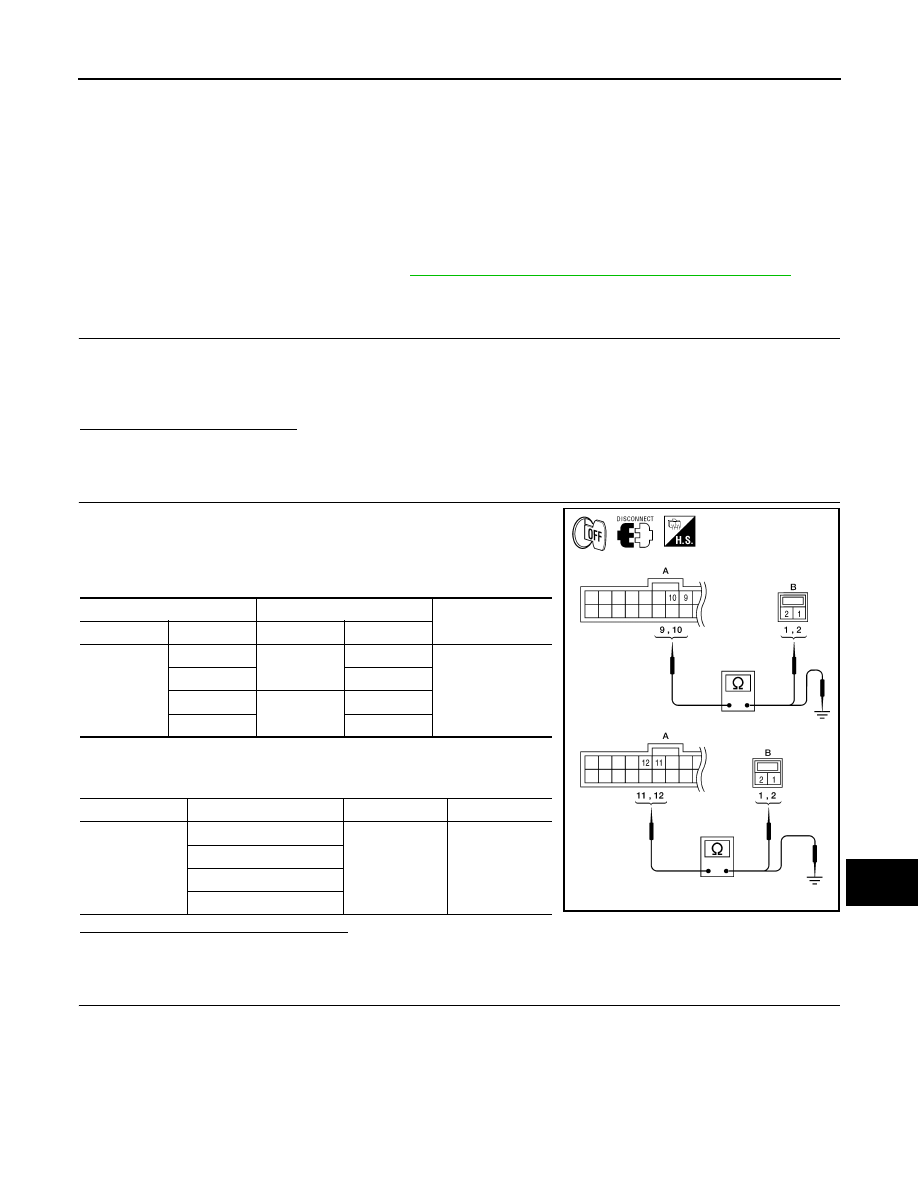

1. Disconnect BOSE speaker amp. connectors B75 and suspect

speaker connector.

2. Check continuity between BOSE speaker amp. harness connec-

tors B75 (A) and  suspect speaker harness connector (B).

3. Check continuity between BOSE speaker amp. harness connec-

tors B75 (A) and ground.

Are the continuity results as specified?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

REAR DOOR SPEAKER SIGNAL CHECK

A

B

Continuity

Connector

Terminal

Connector

Terminal

B75

9

D207

1

Yes

10

2

11

D307

1

12

2

Connector

Terminal

-

Continuity

B75

9

Ground

No

10

11

12

ALNIA0533GB

August 2012

2012 Pathfinder

AV

REAR DOOR SPEAKER

AV-187

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1. Connect BOSE speaker amp. connectors and suspect speaker

connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

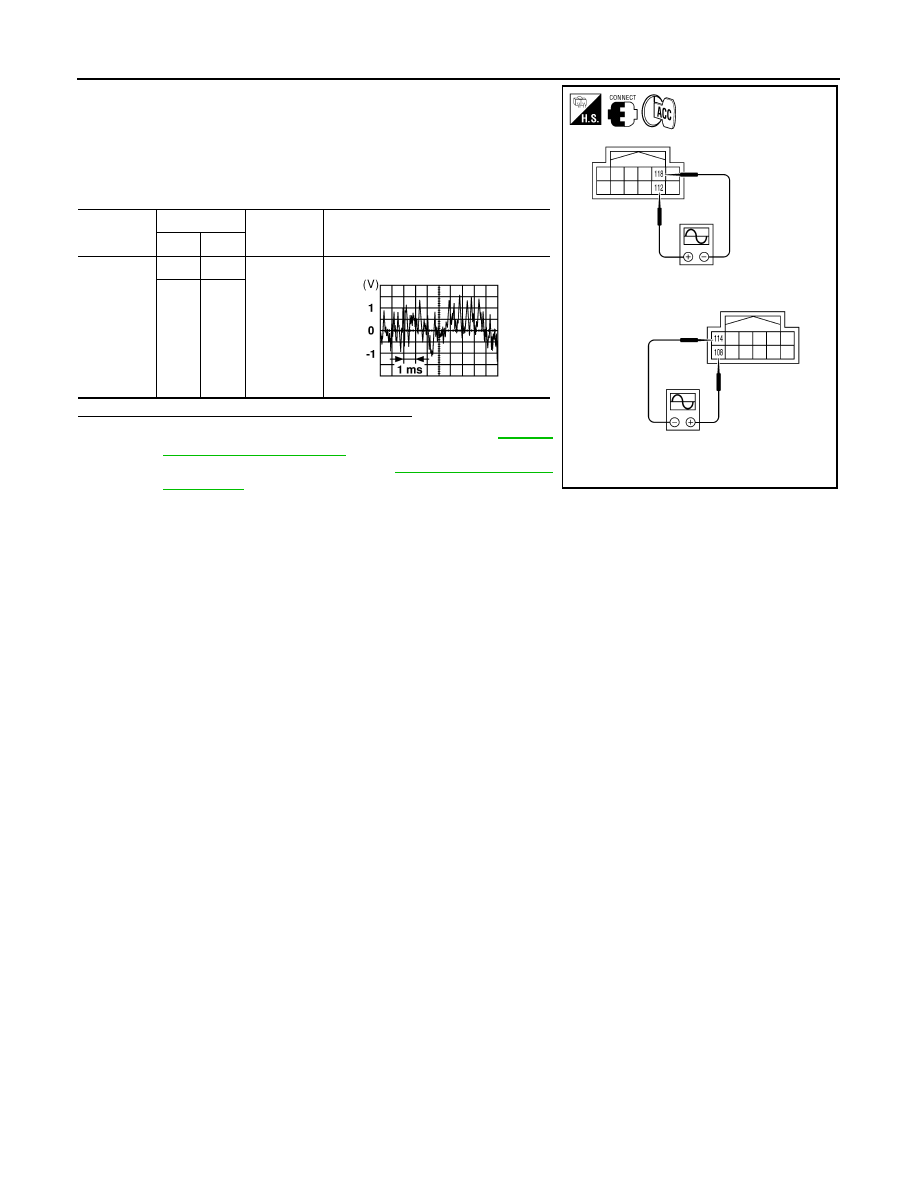

4. Check the signal between BOSE speaker amp. harness connec-

tors B75 terminals with CONSULT or oscilloscope.

Are audio signal voltage readings as specified?

YES

>> Replace suspect speaker. Refer to

AV-261, "Removal

and Installation of Rear Tweeter"

.

NO

>> GO TO 4

4.

HARNESS CHECK

1. Disconnect AV control unit connector M69 and BOSE speaker

amp. connector B75.

2. Check continuity between AV control unit harness connector

M69 (A) and BOSE speaker amp. harness connector B75 (B).

3. Check continuity between AV control unit harness connector

M69 (A) and ground.

Are the continuity  results as specified?

YES

>> GO TO 5

NO

>> Repair harness or connector.

5.

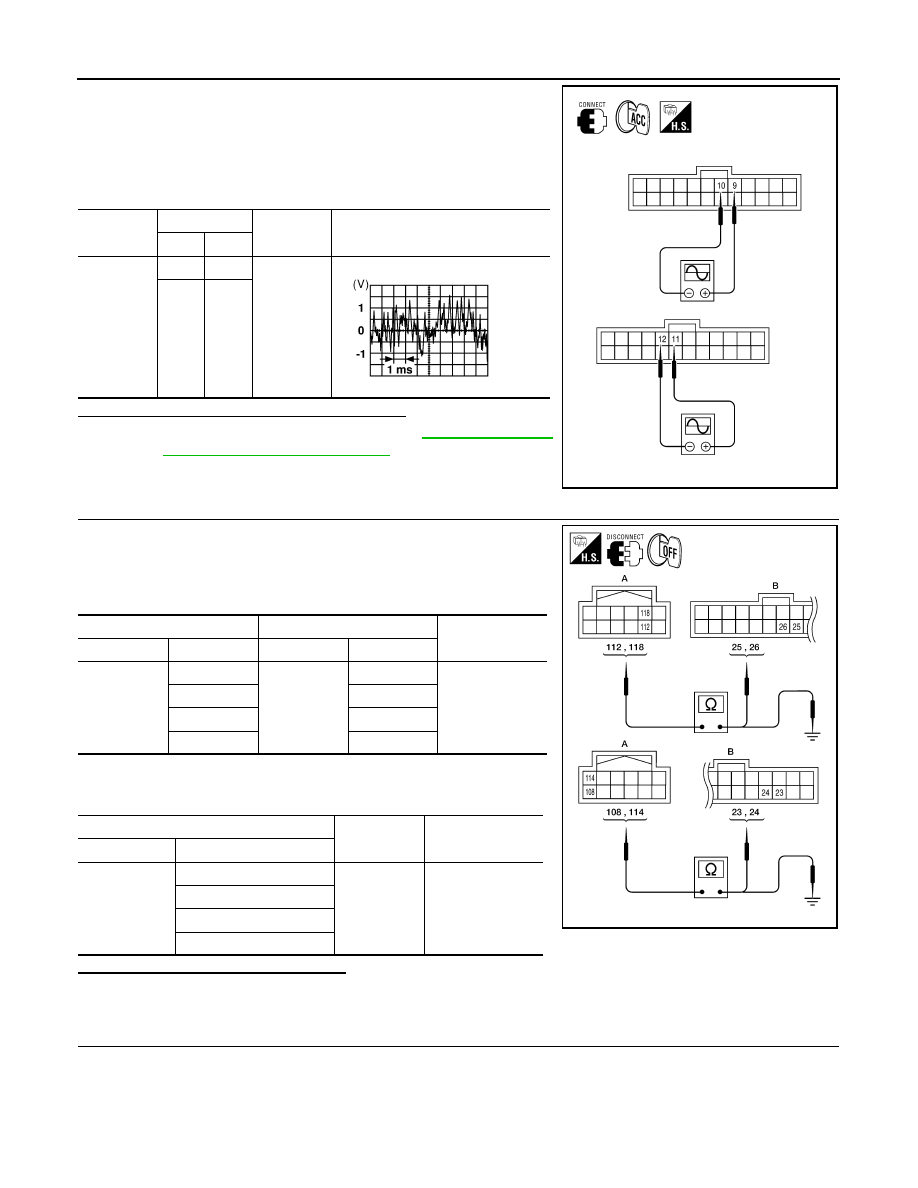

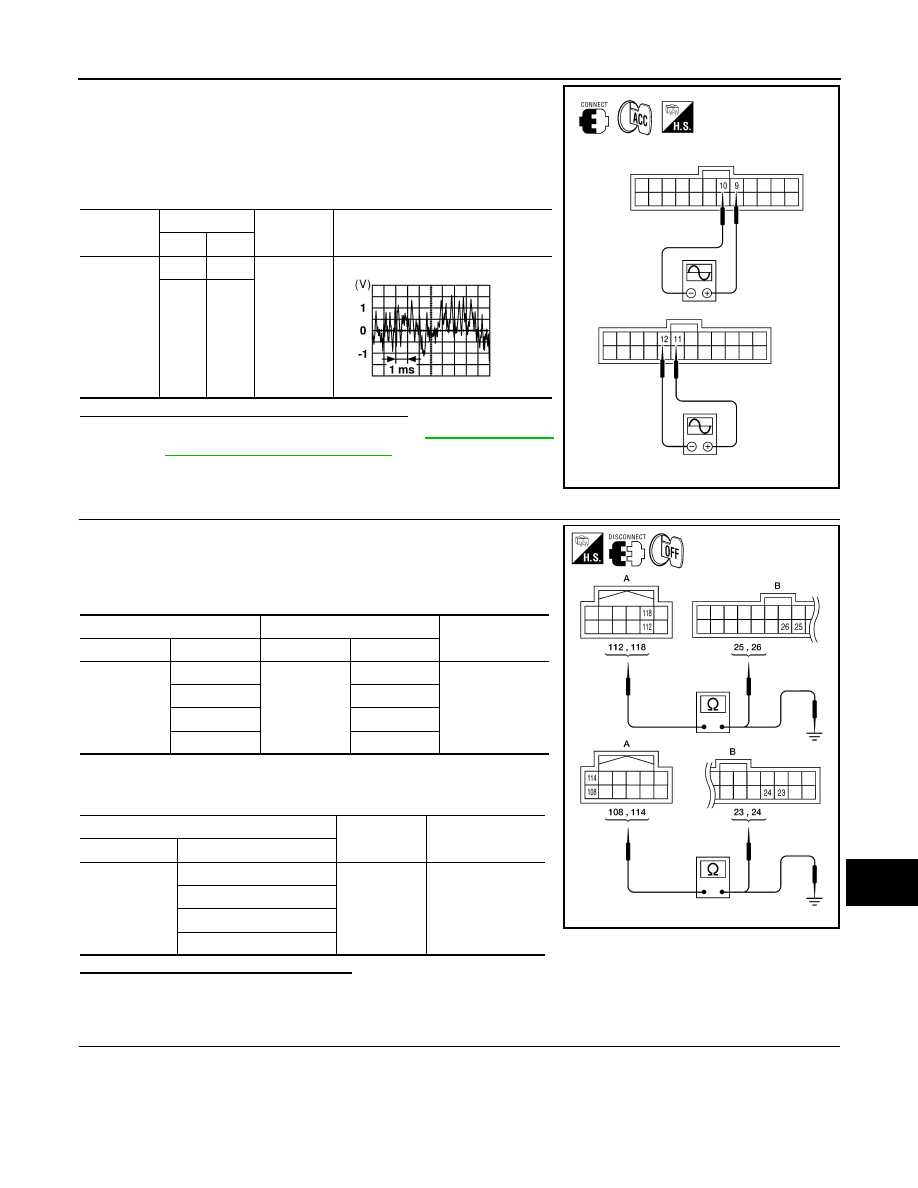

REAR DOOR SPEAKER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

B75

9

10

Receive
audio sig-
nal

11

12

ALNIA0534GB

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M69

112

B75

26

Yes

118

25

108

24

114

23

A

—

Continuity

Connector

Terminal

M69

112

Ground

No

118

108

114

ALNIA0535GB

August 2012

2012 Pathfinder

AV-188

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR DOOR SPEAKER

1. Connect AV control unit connector M69 and BOSE speaker

amp. connector B75.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between AV control unit harness connector

M69 terminals with CONSULT or oscilloscope.

Is the audio signal voltage reading as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-265,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-255, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M69

112

118

Receive
audio sig-
nal

108

114

ALNIA0356GB

SKIA0177E

August 2012

2012 Pathfinder

A V

REAR TWEETER

AV-189

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR TWEETER

Description

INFOID:0000000007347759

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the

audio signals before sending them to the rear tweeters using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000007347760

Regarding Wiring Diagram information, refer to

AV-225, "Wiring Diagram - Without Navigation System"

.

1.

CONNECTOR CHECK

Check the AV control unit, BOSE speaker amp. and speaker connectors for the following:

• Proper connection

• Damage

• Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

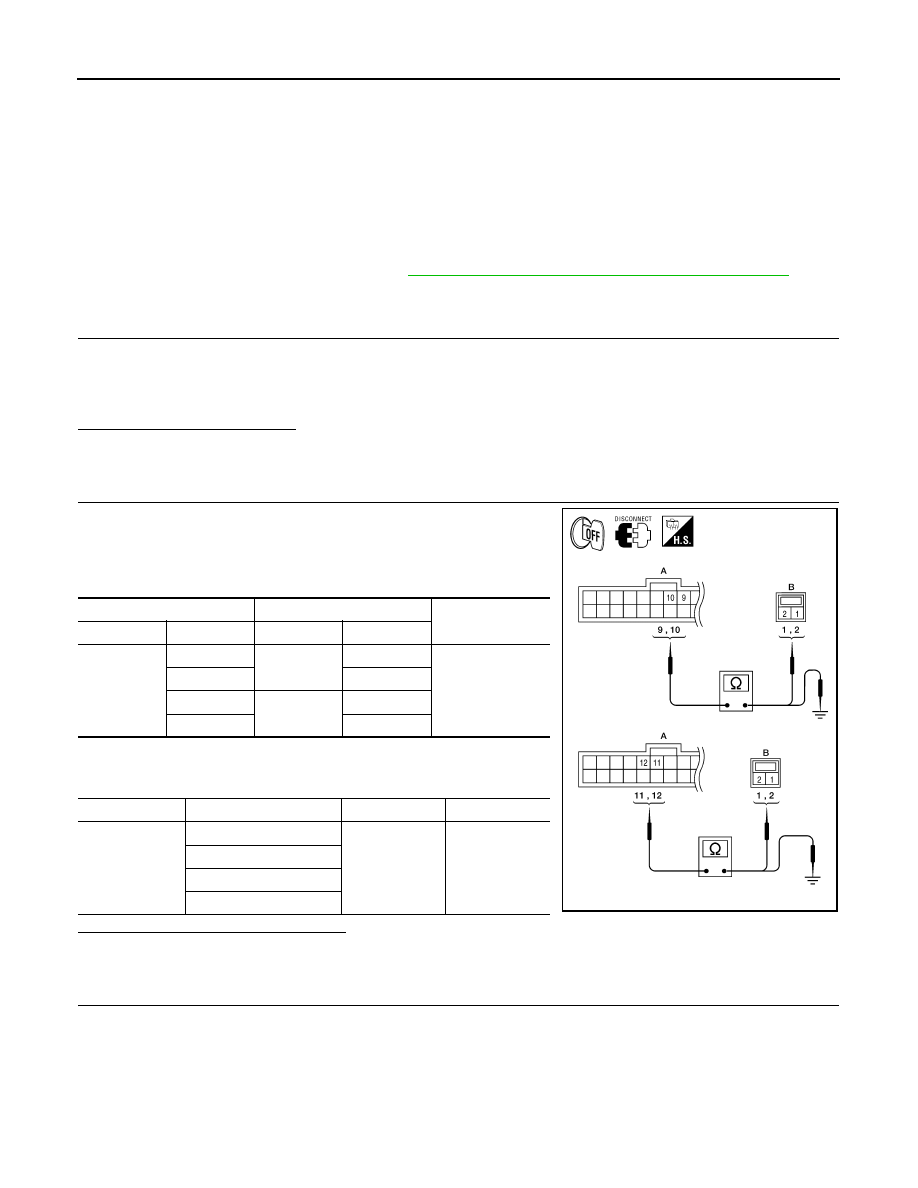

HARNESS CHECK

1. Disconnect BOSE speaker amp. connectors B75 and suspect

tweeter connector.

2. Check continuity between BOSE speaker amp. harness connec-

tors B75 (A) and  suspect tweeter harness connector (B).

3. Check continuity between BOSE speaker amp. harness connec-

tors B75 (A) and ground.

Are the continuity results as specified?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

REAR TWEETER SIGNAL CHECK

A

B

Continuity

Connector

Terminal

Connector

Terminal

B75

9

D208

1

Yes

10

2

11

D308

1

12

2

Connector

Terminal

-

Continuity

B75

9

Ground

No

10

11

12

ALNIA0533GB

August 2012

2012 Pathfinder

AV-190

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR TWEETER

1. Connect BOSE speaker amp. connectors and suspect tweeter

connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

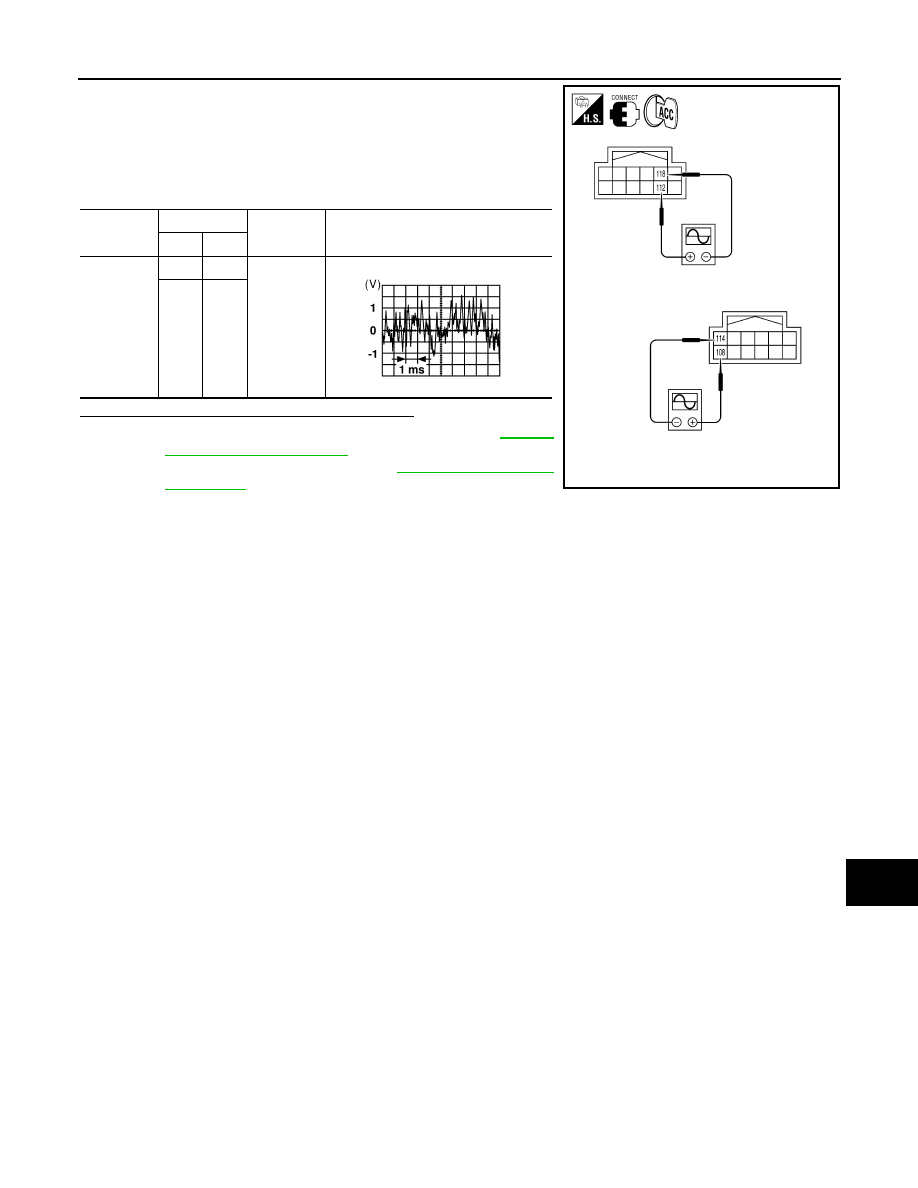

4. Check the signal between BOSE speaker amp. harness connec-

tors B75 terminals with CONSULT or oscilloscope.

Are audio signal voltage readings as specified?

YES

>> Replace suspect tweeter. Refer to

AV-261, "Removal

and Installation of Rear Tweeter"

.

NO

>> GO TO 4

4.

HARNESS CHECK

1. Disconnect AV control unit connector M69 and BOSE speaker

amp. connector B75.

2. Check continuity between AV control unit harness connector

M69 (A) and BOSE speaker amp. harness connector B75 (B).

3. Check continuity between AV control unit harness connector

M69 (A) and ground.

Are the continuity results as specified?

YES

>> GO TO 5

NO

>> Repair harness or connector.

5.

REAR TWEETER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

B75

9

10

Receive
audio sig-
nal

11

12

ALNIA0534GB

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M69

112

B75

26

Yes

118

25

108

24

114

23

A

—

Continuity

Connector

Terminal

M69

112

Ground

No

118

108

114

ALNIA0535GB

August 2012

2012 Pathfinder

AV

REAR TWEETER

AV-191

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1. Connect AV control unit connector M69 and BOSE speaker

amp. connector B75.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between AV control unit harness connector

M69 terminals with CONSULT or oscilloscope.

Is the audio signal voltage reading as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-265,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-255, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M69

112

118

Receive
audio sig-
nal

108

114

ALNIA0356GB

SKIA0177E

August 2012

2012 Pathfinder

AV-192

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

SUBWOOFER

SUBWOOFER

Description

INFOID:0000000007347761

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the

audio signals before sending them to the subwoofer using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000007347762

Regarding Wiring Diagram information, refer to

AV-225, "Wiring Diagram - Without Navigation System"

.

1.

CONNECTOR CHECK

Check the AV control unit, BOSE speaker amp. and subwoofer connectors for the following:

• Proper connection

• Damage

• Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

VERIFY SUBWOOFER POWER AND GROUND SUPPLY

Check power and ground supply to the subwoofer.  Refer to

AV-166, "SUBWOOFER : Diagnosis Procedure"

Did the power and ground supply check OK?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

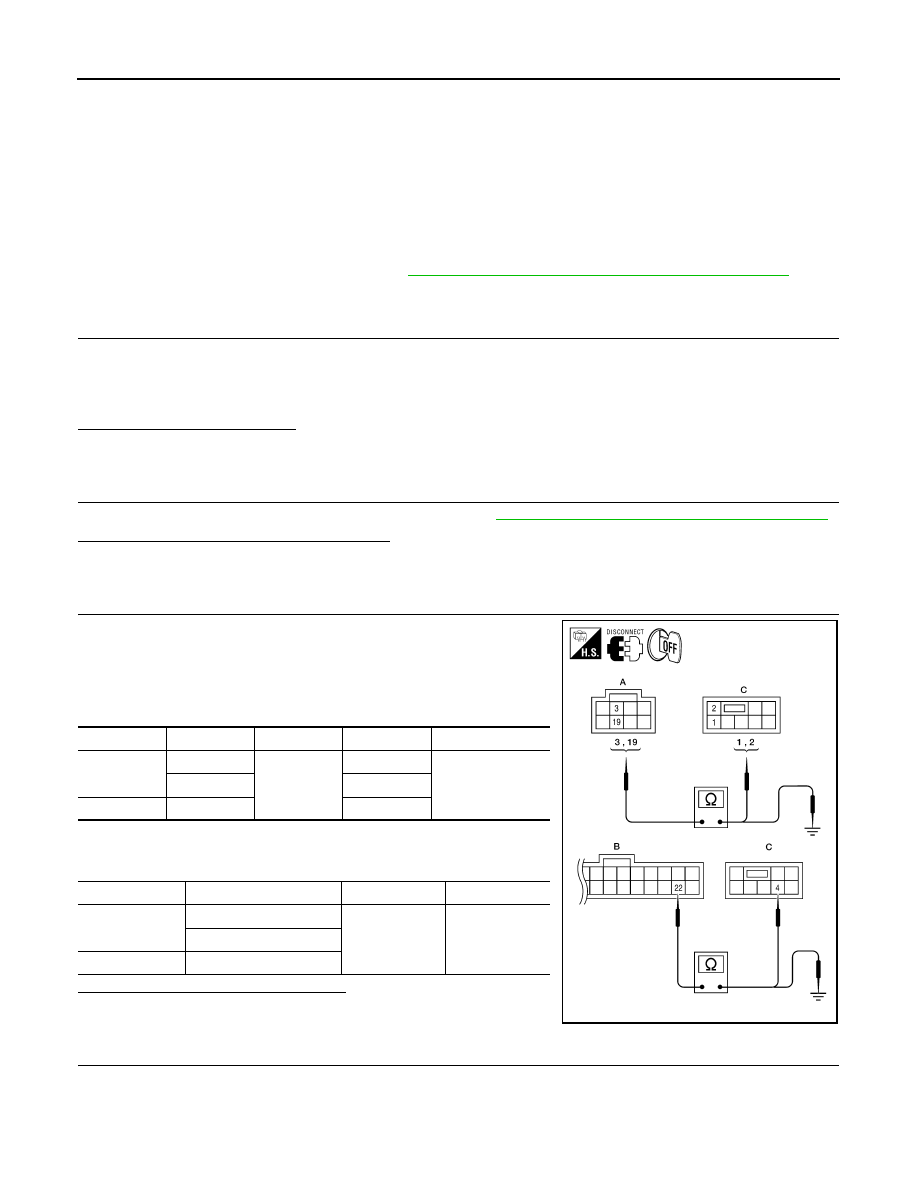

HARNESS CHECK

1. Disconnect BOSE speaker amp. connectors and subwoofer

connector.

2. Check continuity between BOSE speaker amp. harness connec-

tors B74 (A) and B75 (B) and subwoofer harness connector B72

(C).

3. Check continuity between BOSE speaker amp. harness connec-

tor B74 (A) and B75 (B) and ground.

Are the continuity results as specified?

YES

>> GO TO 4

NO

>> Repair harness or connector.

4.

SUBWOOFER AMP ON SIGNAL CHECK

Connector

Terminal

Connector

Terminal

Continuity

A: B74

3

C: B72

1

Yes

19

2

B: B75

22

4

Connector

Terminal

-

Continuity

A: B74

3

Ground

No

19

B: B75

22

ALNIA0536GB

August 2012

2012 Pathfinder

AV

SUBWOOFER

AV-193

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

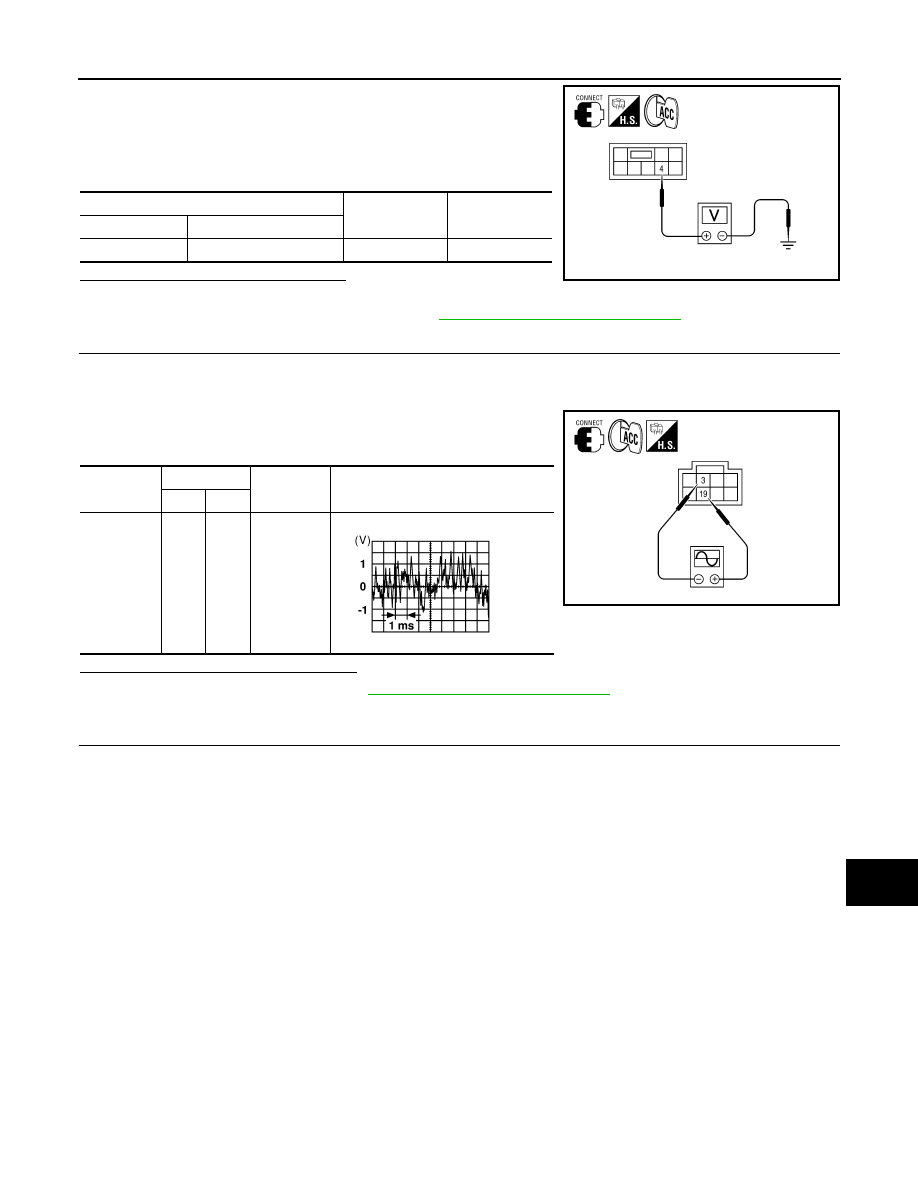

1. Connect BOSE speaker amp. connector B74.

2. Turn ignition switch to ACC.

3. Push "POWER" switch.

4. Check voltage between subwoofer connector B72 terminal 4

and ground.

Are the voltage readings as specified?

YES

>> GO TO 5

NO

>> Replace BOSE speaker amp.  Refer to

AV-265, "Removal and Installation"

.

5.

SUBWOOFER AUDIO SIGNAL CHECK

1. Connect BOSE speaker amp. connectors and subwoofer connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between BOSE speaker amp. harness connec-

tor B74 terminals with CONSULT or oscilloscope.

Is the audio signal voltage as specified?

YES

>> Replace subwoofer. Refer to

AV-266, "Removal and Installation"

.

NO

>> GO TO 6

6.

HARNESS CHECK

1. Turn ignition switch OFF.

(+)

(-)

Voltage

Connector

Terminal

B72

4

Ground

Battery voltage

ALNIA0540GB

Connector

Terminals

Condition

Reference

signal

(+)

(-)

B74

19

3

Receive au-
dio signal

ALNIA0879GB

SKIA0177E

August 2012

2012 Pathfinder
