AV-34

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

AUDIO UNIT

REMOVAL AND INSTALLATION

AUDIO UNIT

Removal and Installation

INFOID:0000000007347594

Removal and Installation

REMOVAL

1. Disconnect the battery negative terminal.
2. Remove the cluster lid C. Refer to

IP-16, "Removal and Installation"

.

3. Remove the audio unit screws, using power tool.
4. Remove the audio unit and disconnect audio unit connectors.
5. Remove the audio unit brackets screws and remove the audio unit brackets.

INSTALLATION

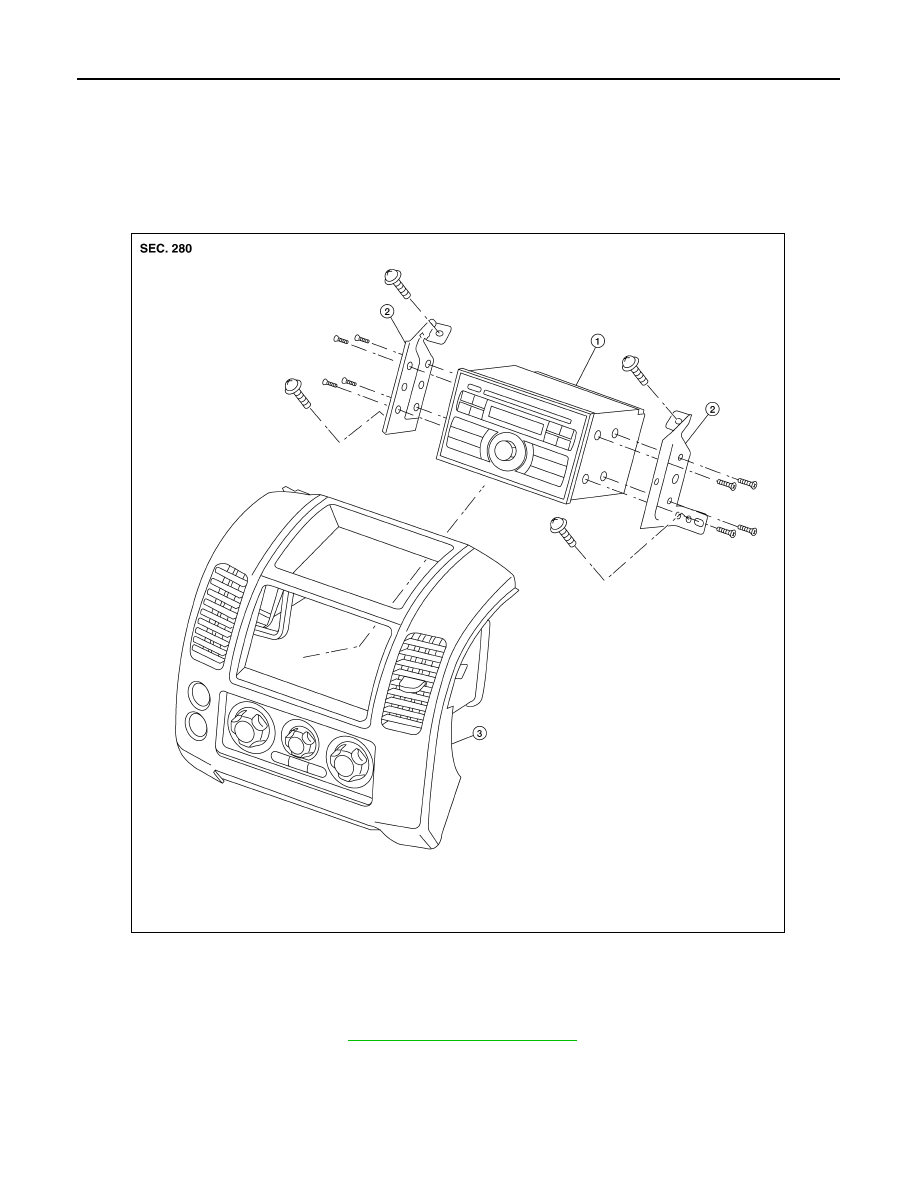

1.

Audio unit

2.

Audio unit brackets (LH) and (RH)

3.

Cluster lid C

ALNIA0341ZZ

August 2012

2012 Pathfinder

AV

AUDIO UNIT

AV-35

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Installation is in the reverse order of removal.

August 2012

2012 Pathfinder

AV-36

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

FRONT TWEETER

FRONT TWEETER

Removal and Installation

INFOID:0000000007347595

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.

1. Remove the front tweeter grille.
2. Remove the front tweeter screws (A).

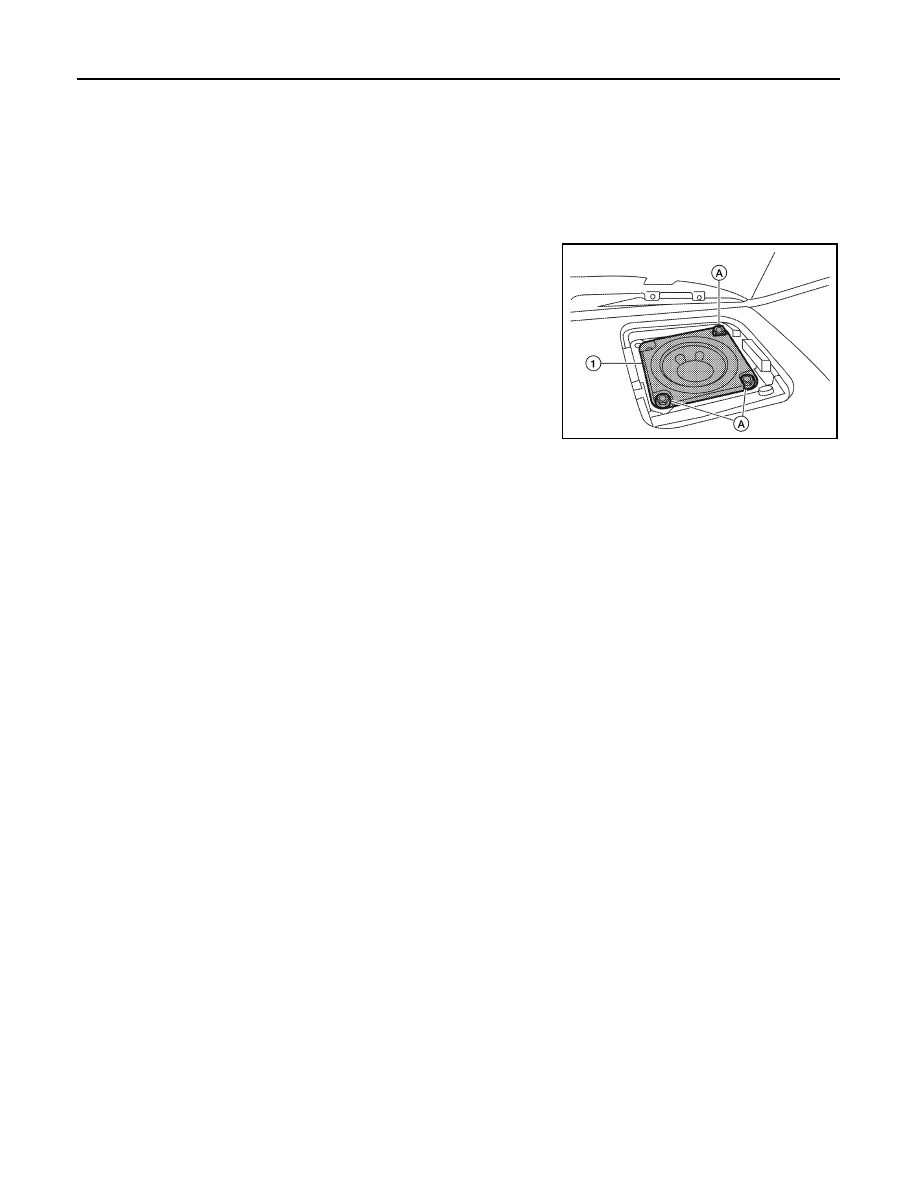

3. Pull out the front tweeter speaker (1) and disconnect front

tweeter connector, then remove the front tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0344ZZ

August 2012

2012 Pathfinder

AV

FRONT DOOR SPEAKER

AV-37

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000007347596

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the front door speaker screws (A).

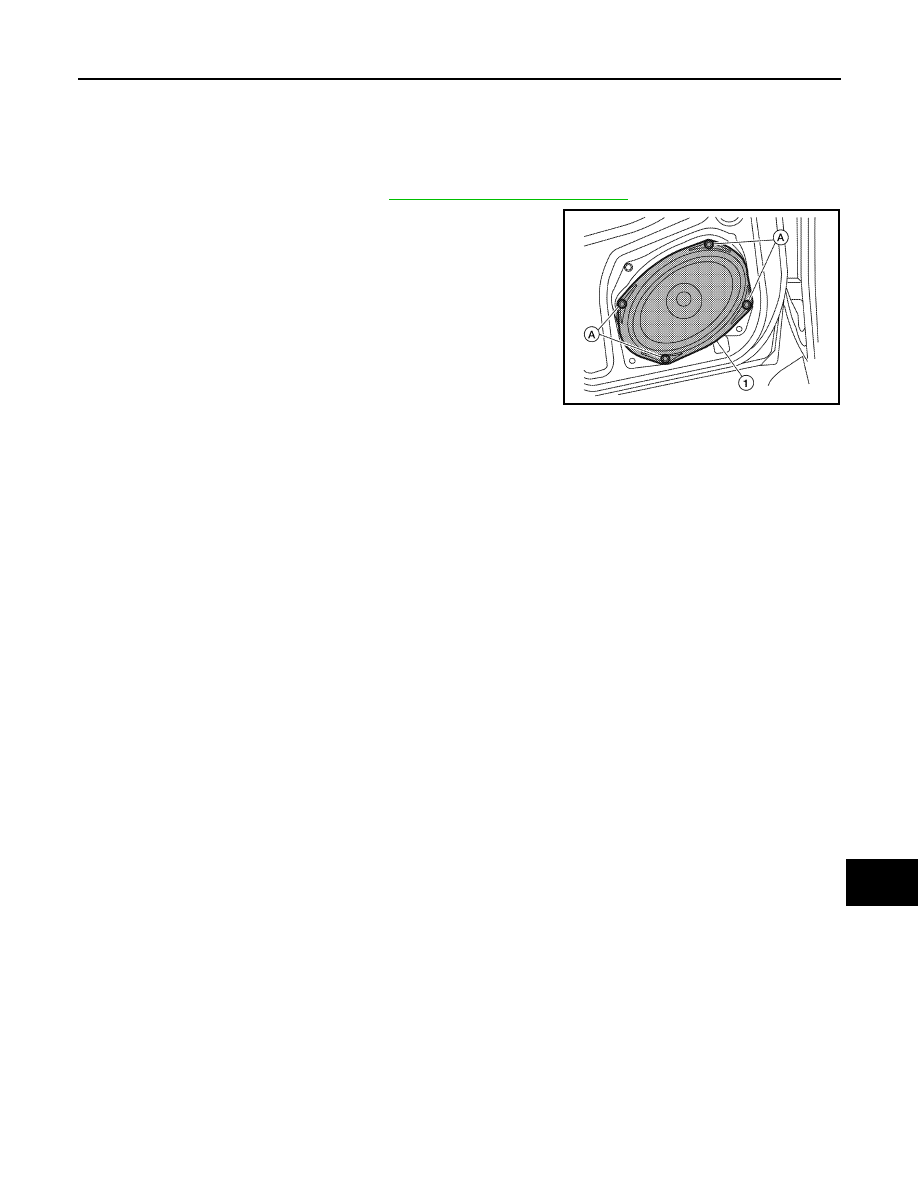

3. Pull out the front door speaker (1), and disconnect the front door

speaker connector and remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

August 2012

2012 Pathfinder

AV-38

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000007347597

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the rear door speaker screws (A).

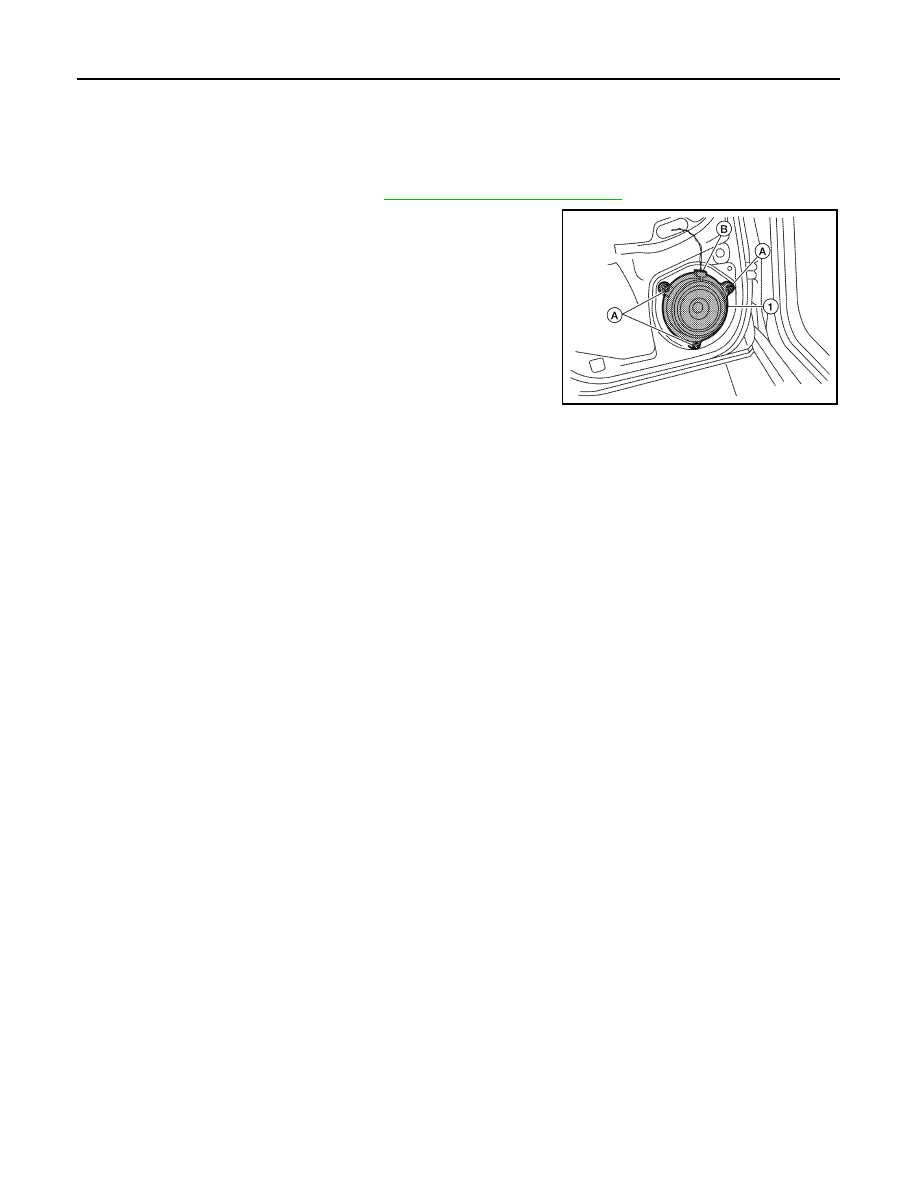

3. Disconnect the rear door speaker connector (B) and remove

rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0348ZZ

August 2012

2012 Pathfinder

AV

AUDIO ANTENNA

AV-39

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO ANTENNA

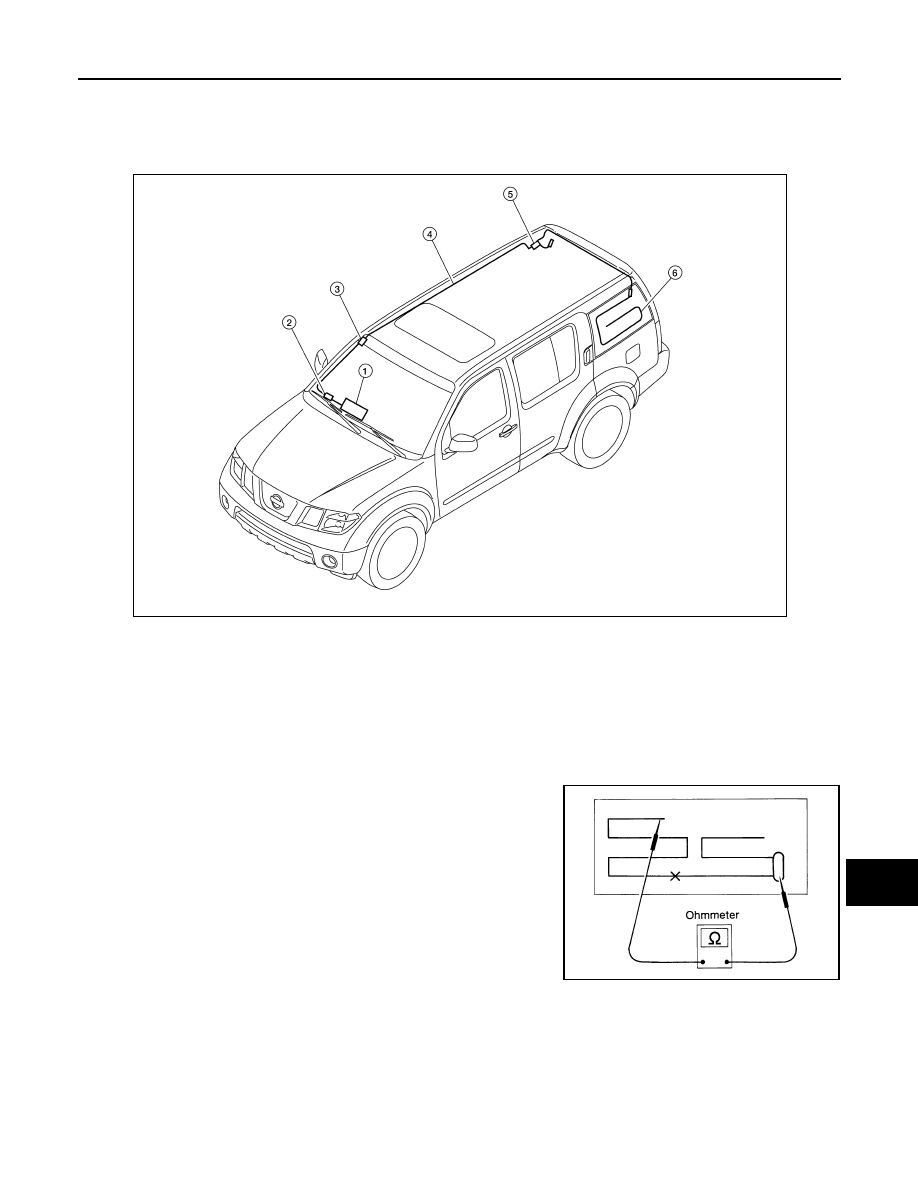

Location of Antenna

INFOID:0000000007347598

Window Antenna Repair

INFOID:0000000007347599

ELEMENT CHECK

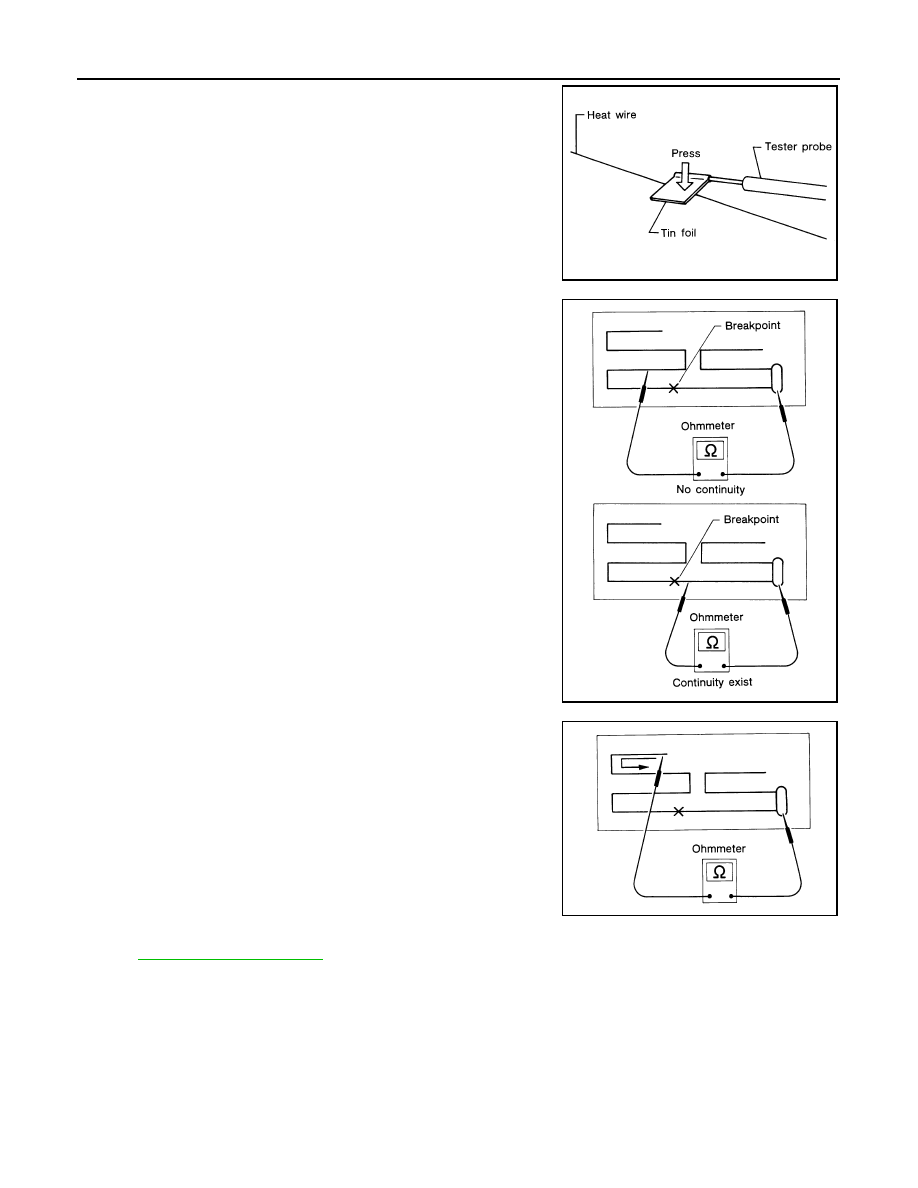

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

Audio unit M38, M60

2.

Harness connector
M78, M501

3.

Harness connector
M502, M601

4.

Antenna feeder

5.

Antenna amp.
M602

6.

Window antenna grid

AWNIA1775ZZ

SEL250I

August 2012

2012 Pathfinder

AV-40

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

AUDIO ANTENNA

When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your fin-

ger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

DEF-45, "Filament Repair"

.

SEL122R

SEL252I

SEL253I

August 2012

2012 Pathfinder

AV

ANTENNA AMP.

AV-41

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA AMP.

Removal and Installation

INFOID:0000000007347600

REMOVAL

1. Remove the luggage side upper and lower RH finishers. Refer to

INT-25, "Removal and Installation"

.

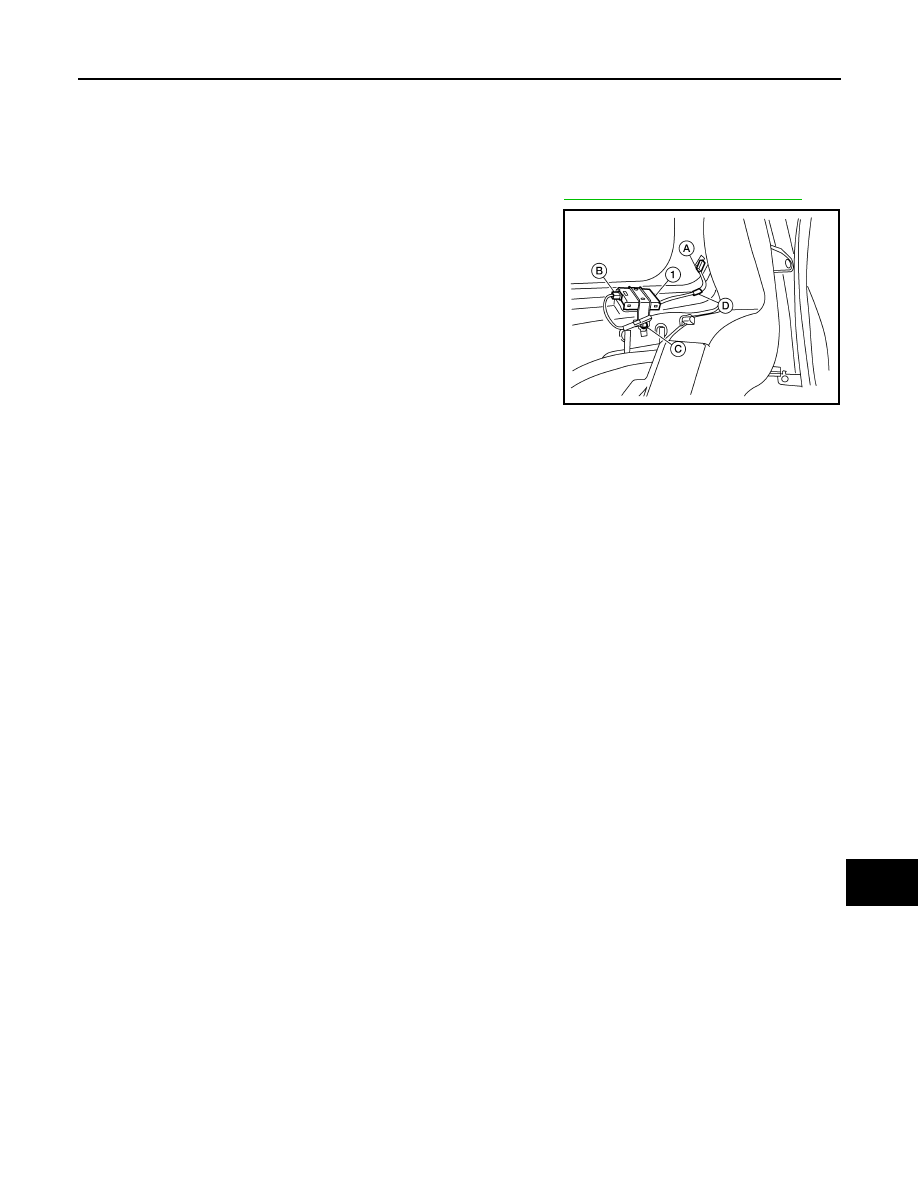

2. Detach the antenna amp. harness clip (D), disconnect the

antenna amp. connector (A), harness connector (B), then

remove the antenna amp. screw (C) and remove the antenna

amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1228ZZ

August 2012

2012 Pathfinder
