Nissan Pathfinder (2012 year). Manual - part 22

AP-8

< WIRING DIAGRAM >

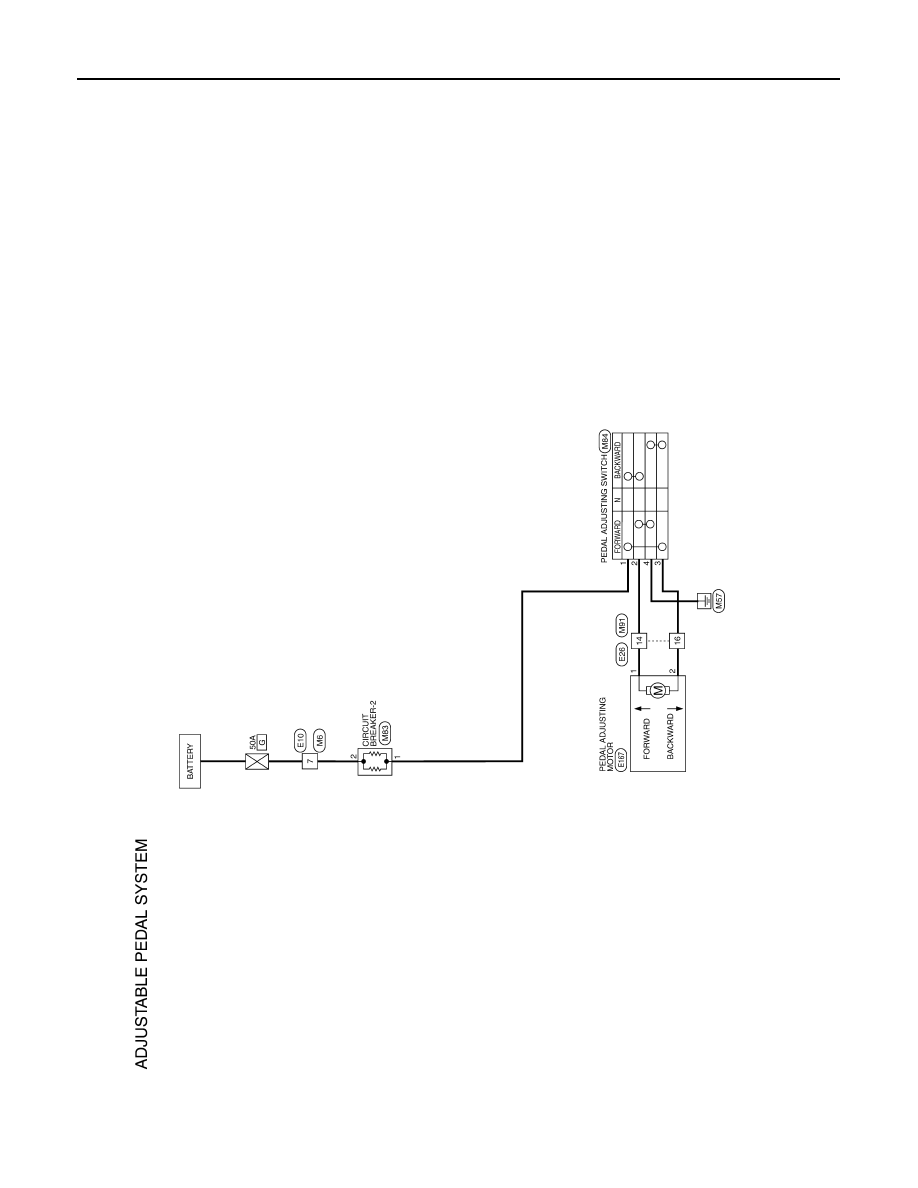

ADJUSTABLE PEDAL SYSTEM

WIRING DIAGRAM

ADJUSTABLE PEDAL SYSTEM

Wiring Diagram

INFOID:0000000007356250

ABJWA0002GB

August 2012

2012 Pathfinder

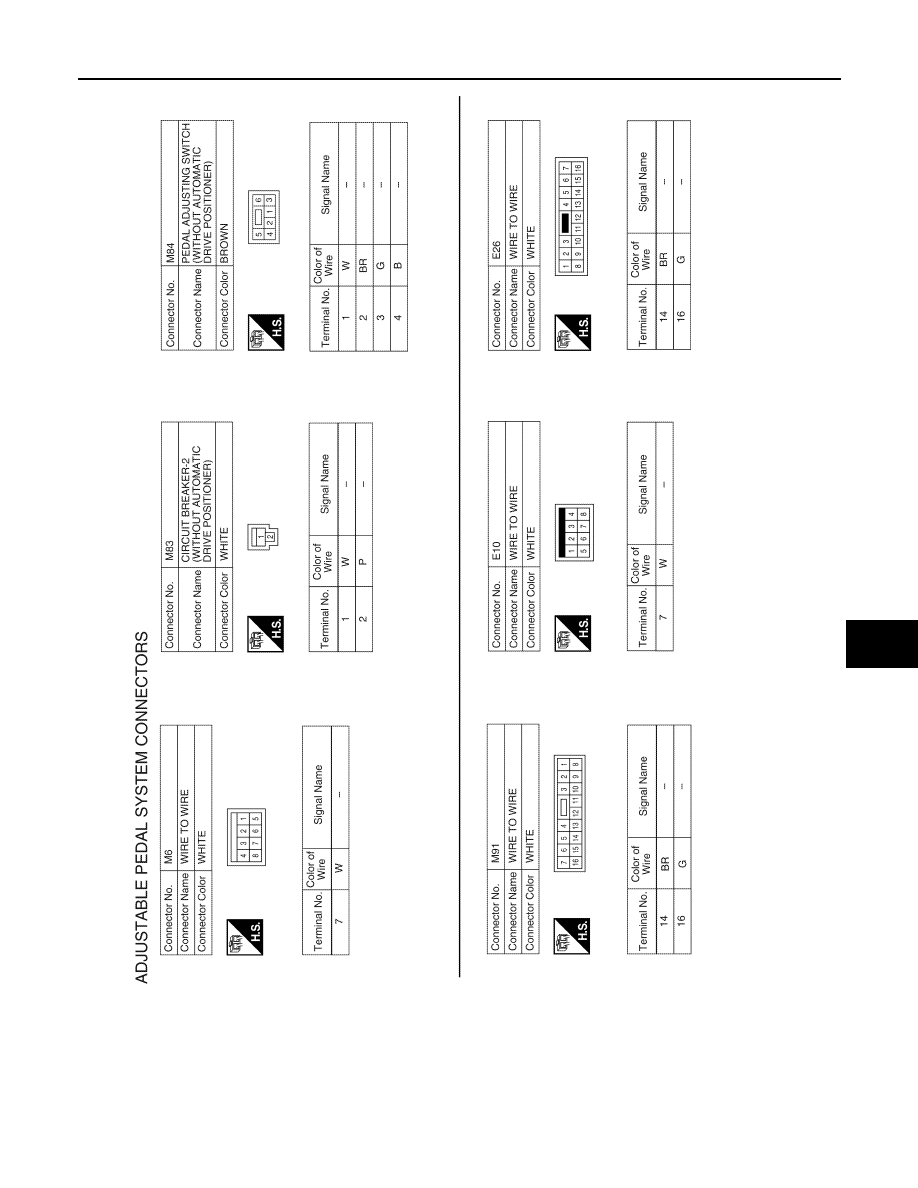

ADJUSTABLE PEDAL SYSTEM

AP-9

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

AP

N

O

P

ABJIA0369GB

August 2012

2012 Pathfinder

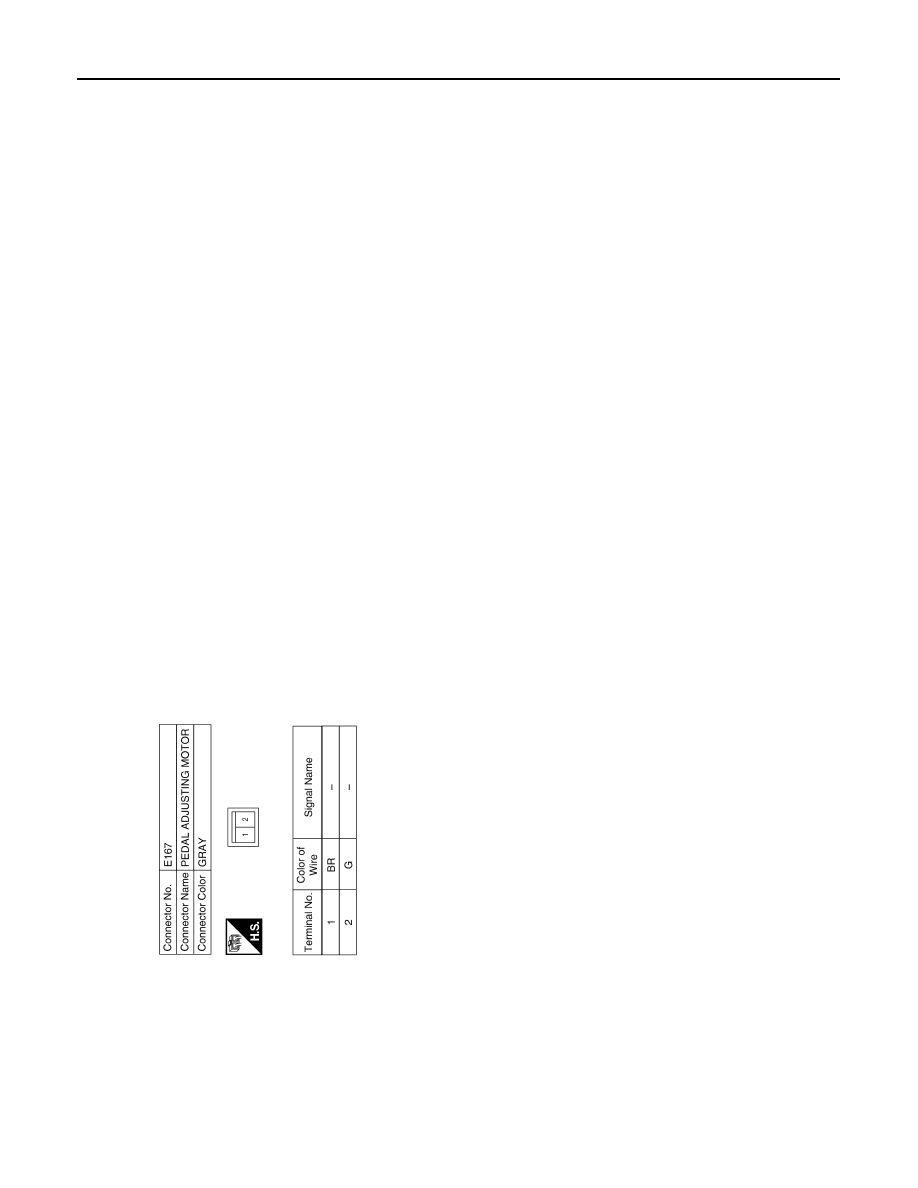

AP-10

< WIRING DIAGRAM >

ADJUSTABLE PEDAL SYSTEM

ABJIA0003GB

August 2012

2012 Pathfinder

ADJUSTABLE PEDAL SYSTEM

AP-11

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

AP

N

O

P

SYMPTOM DIAGNOSIS

ADJUSTABLE PEDAL SYSTEM

Symptom Table

INFOID:0000000007356251

NOTE:

Always check the WORK FLOW before troubleshooting. Refer to "WORK FLOW".

Symptom

Diagnosis/Service procedure

Reference page

Adjustable pedal system does not operate.

1. Pedal adjusting switch power supply and ground circuit inspec-
tion.

AP-6

2. Pedal adjusting motor circuit inspection.

AP-6

August 2012

2012 Pathfinder

AP-12

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000007830181

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000007817645

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing work. If

DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

August 2012

2012 Pathfinder

PRECAUTIONS

AP-13

< PRECAUTION >

C

D

E

F

G

H

I

K

L

M

A

B

AP

N

O

P

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT.

Precaution for Work

INFOID:0000000007356254

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components.

- Water soluble dirt: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the dirty

area.

Then rub with a soft and dry cloth.

- Oily dirt: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the dirty area.

Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with

a soft and dry cloth.

• Do not use organic solvent such as thinner, benzene, alcohol, or gasoline.

• For genuine leather seats, use a genuine leather seat cleaner.

August 2012

2012 Pathfinder

AP-14

< REMOVAL AND INSTALLATION >

ADJUSTABLE PEDAL SYSTEM

REMOVAL AND INSTALLATION

ADJUSTABLE PEDAL SYSTEM

Removal and Installation

INFOID:0000000007356255

Refer to

ACC-4, "Removal and Installation"

 for accelerator pedal, and

BR-23, "Removal and Installation"

 for

brake pedal.

August 2012

2012 Pathfinder

AV

AV-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

AV

A

O

P

CONTENTS

AUDIO, VISUAL & NAVIGATION SYSTEM

BASE AUDIO

BASIC INSPECTION  ....................................

9

DIAGNOSIS AND REPAIR WORKFLOW  ..........

9

Work Flow  .................................................................

9

SYSTEM DESCRIPTION  .............................

11

AUDIO SYSTEM .................................................

11

System Diagram ......................................................

11

System Description  .................................................

11

Component Parts Location ......................................

11

Component Description ...........................................

12

DTC/CIRCUIT DIAGNOSIS  .........................

13

POWER SUPPLY AND GROUND CIRCUIT ......

13

AUDIO UNIT  ..............................................................

13

AUDIO UNIT : Diagnosis Procedure  .......................

13

FRONT DOOR SPEAKER  .................................

14

Description ..............................................................

14

Diagnosis Procedure ...............................................

14

FRONT TWEETER  .............................................

16

Description ..............................................................

16

Diagnosis Procedure ...............................................

16

REAR DOOR SPEAKER ....................................

18

Description ..............................................................

18

Diagnosis Procedure ...............................................

18

ECU DIAGNOSIS INFORMATION  ..............

20

AUDIO UNIT  .......................................................

20

Reference Value  .....................................................

20

WIRING DIAGRAM ......................................

22

BASE AUDIO SYSTEM ......................................

22

Wiring Diagram  .......................................................

22

SYMPTOM DIAGNOSIS  ..............................

29

AUDIO SYSTEM  ...............................................

29

AUDIO UNIT ...............................................................

29

AUDIO UNIT : Symptom Table ................................

29

NORMAL OPERATING CONDITION  ...............

30

Description ...............................................................

30

PRECAUTION ..............................................

31

PRECAUTIONS .................................................

31

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

31

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ...................................

31

Precaution for Work .................................................

32

PREPARATION ...........................................

33

PREPARATION .................................................

33

Special Service Tool ................................................

33

Commercial Service Tools .......................................

33

REMOVAL AND INSTALLATION ...............

34

AUDIO UNIT ......................................................

34

Removal and Installation  .........................................

34

FRONT TWEETER ............................................

36

Removal and Installation  .........................................

36

FRONT DOOR SPEAKER  ................................

37

Removal and Installation  .........................................

37

REAR DOOR SPEAKER  ..................................

38

Removal and Installation  .........................................

38

AUDIO ANTENNA .............................................

39

Location of Antenna .................................................

39

Window Antenna Repair ..........................................

39

August 2012

2012 Pathfinder
