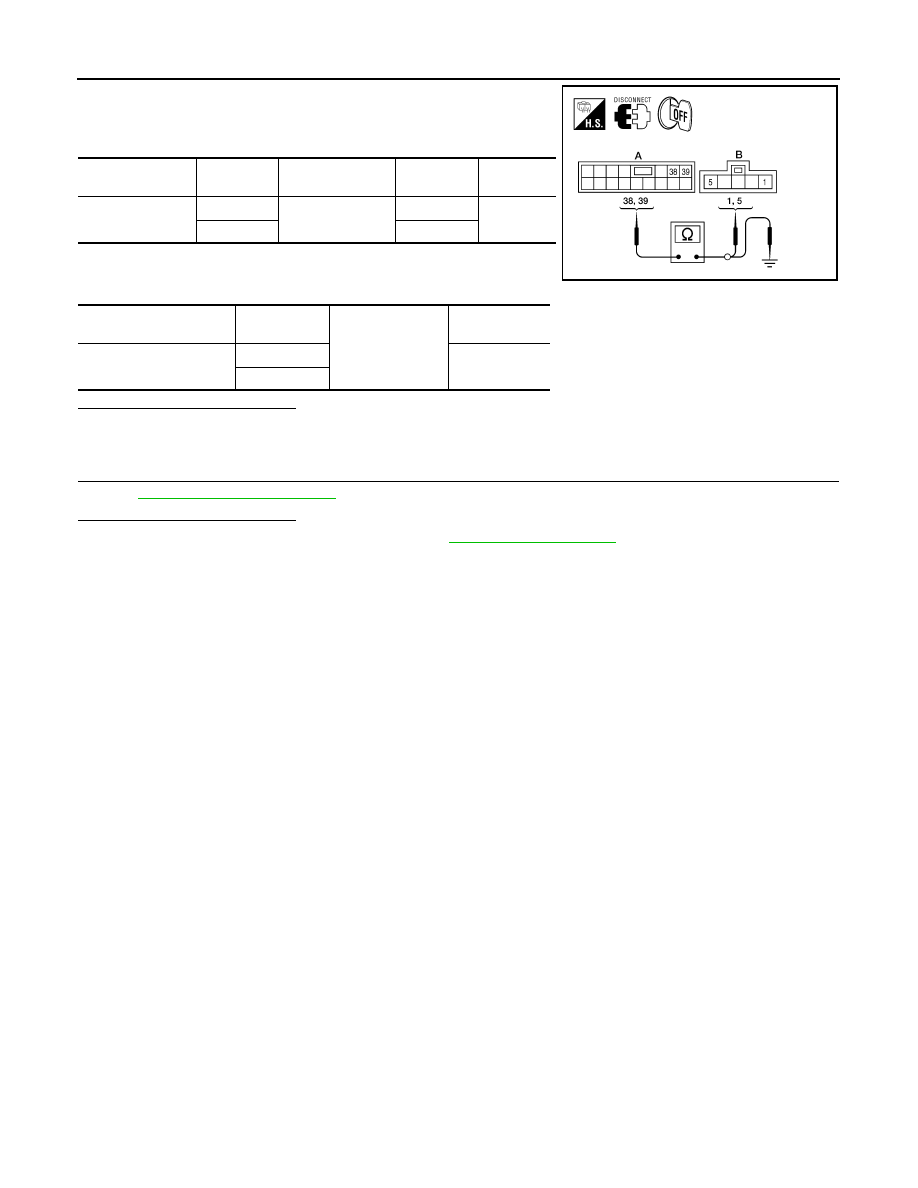

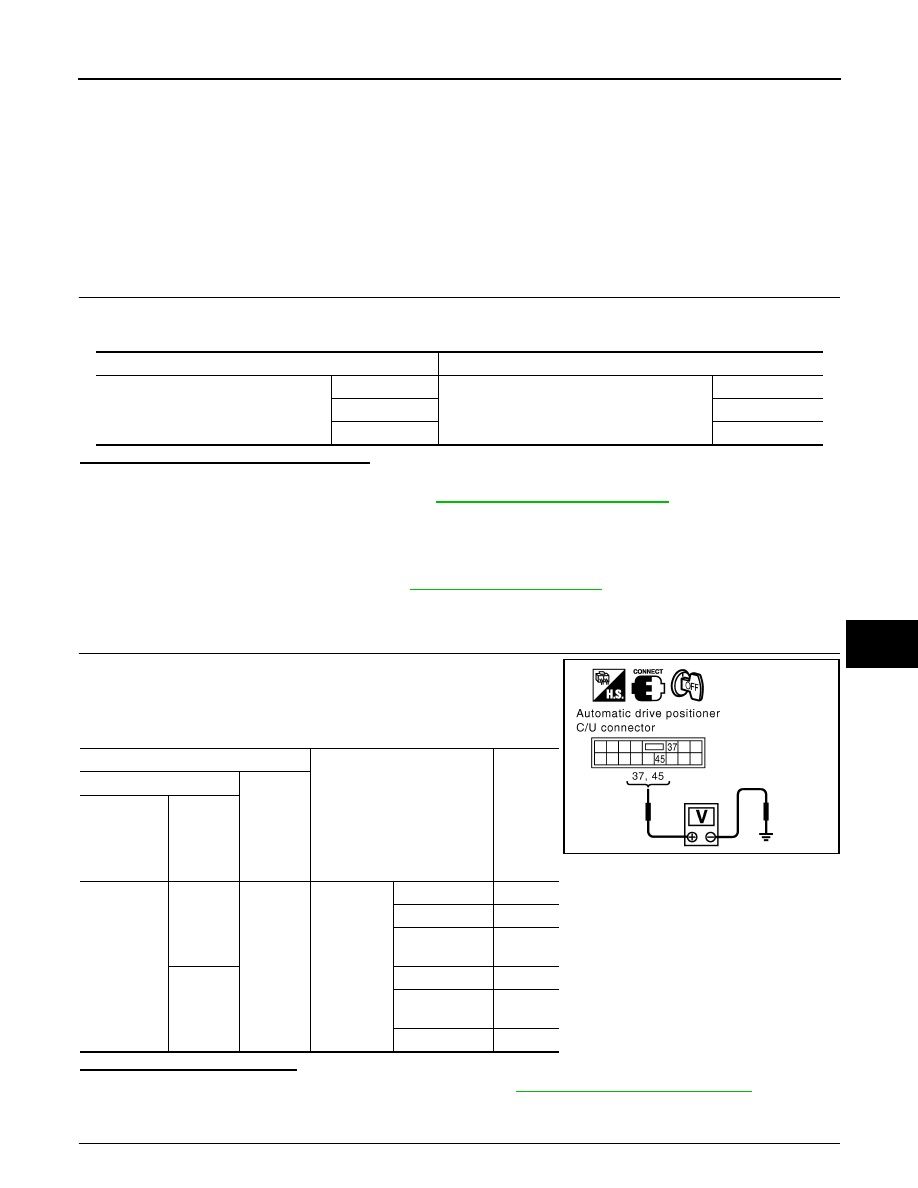

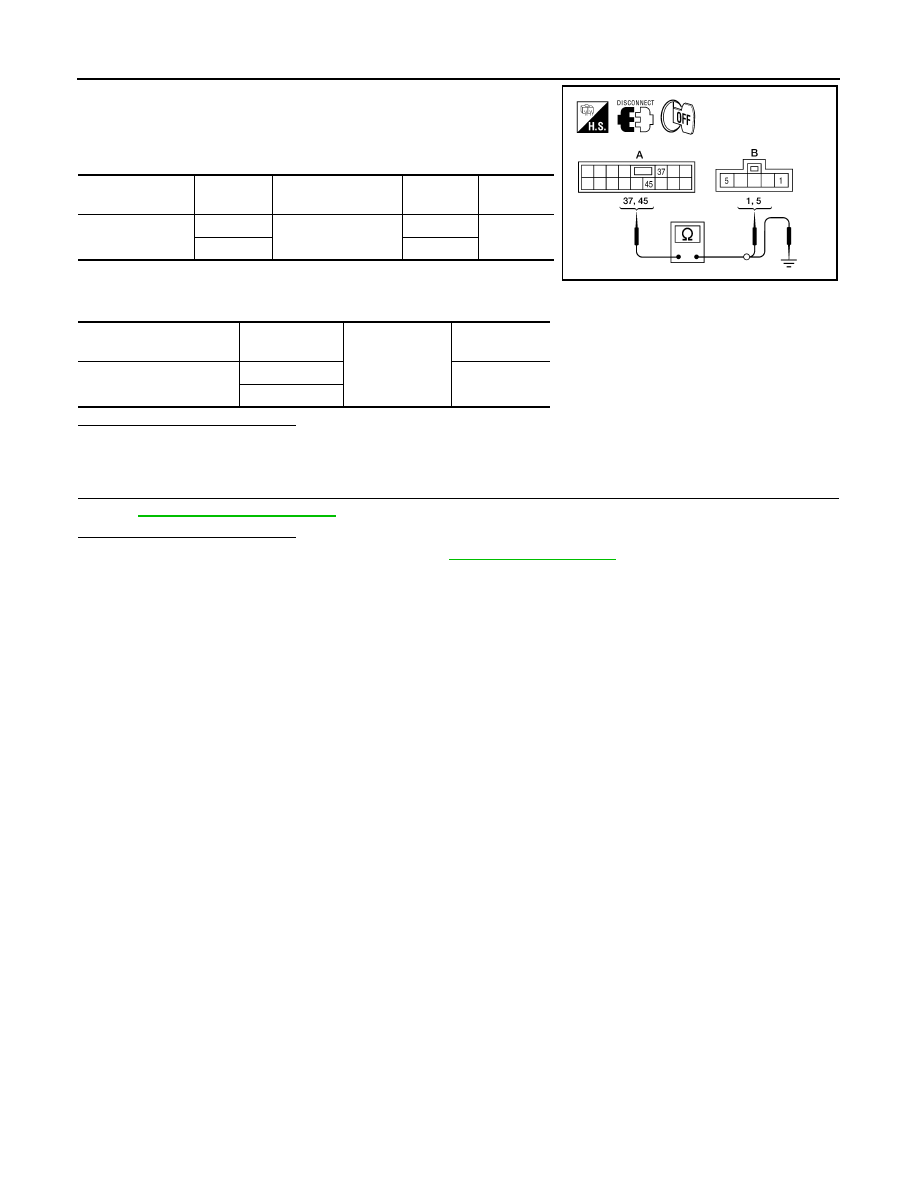

LIFTING MOTOR (FRONT) ADP-97 < DTC/CIRCUIT DIAGNOSIS > C D E F G H I K L M A B ADP N O P LIFTING MOTOR (FRONT) Description INFOID:0000000007356205 • The lifting motor (front) is installed to the seat frame assembly. • The lifting motor (front) is activated with the driver seat control unit. • The lifter (front) is moved upward/downward by changing the rotation direction of lifting motor (front). Component Function Check INFOID:0000000007356206 1. CHECK FUNCTION 1. Select “SEAT LIFTER FR” in “Active test” mode with CONSULT. 2. Check the lifting motor (front) operation. Is the operation of relevant parts normal? YES >> Inspection End. NO >> Perform diagnosis procedure. Refer to Diagnosis Procedure INFOID:0000000007356207 Regarding Wiring Diagram information, refer to 1. CHECK LIFTING MOTOR (FRONT) POWER SUPPLY 1. Turn the ignition switch to ACC. 2. Perform “Active test” (“SEAT LIFTER FR”) with CONSULT. 3. Check voltage between driver seat control unit harness connec- tor and ground. Is the inspection result normal? YES >> Replace lifting motor (front). Refer to . NO >> GO TO 2 2. CHECK LIFTING MOTOR (FRONT) CIRCUIT Test Item Description SEAT LIFTER FR OFF Seat lifting (front) Stop UP Upward DWN Downward Terminal Test Item Voltage (V) (Approx.) (+) (-) Driver seat connector Terminal B203 37 Ground SEAT OFF 0 UP 0 DWN (down) Battery voltage 45 OFF 0 UP Battery voltage DWN (down) 0 PIIA4805E August 2012 2012 Pathfinder |
