ACC-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000007358920

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000007358921

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing work. If

DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

August 2012

2012 Pathfinder

PRECAUTIONS

ACC-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT.

August 2012

2012 Pathfinder

ACC-4

< REMOVAL AND INSTALLATION >

ACCELERATOR CONTROL SYSTEM

REMOVAL AND INSTALLATION

ACCELERATOR CONTROL SYSTEM

Removal and Installation

INFOID:0000000007358922

ADJUSTABLE ACCELERATOR PEDAL

CAUTION:

• Before removal and installation, the adjustable accelerator and brake pedals must be in the front

most position, if equipped. This is to align the base position of the accelerator and brake pedals.

• Do not disassemble the accelerator pedal assembly.

• Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.

• Do not disassemble the accelerator pedal adjusting mechanism.

• Avoid damage from dropping the accelerator pedal assembly during handling.

• Keep the accelerator pedal assembly away from water.

REMOVAL

1. Move the accelerator and brake pedals to the front most position.
2. Disconnect the negative battery terminal.
3. Disconnect the adjustable pedal electric motor electrical connector.
4. Disconnect the adjustable pedal electric motor memory electrical connector (if equipped).

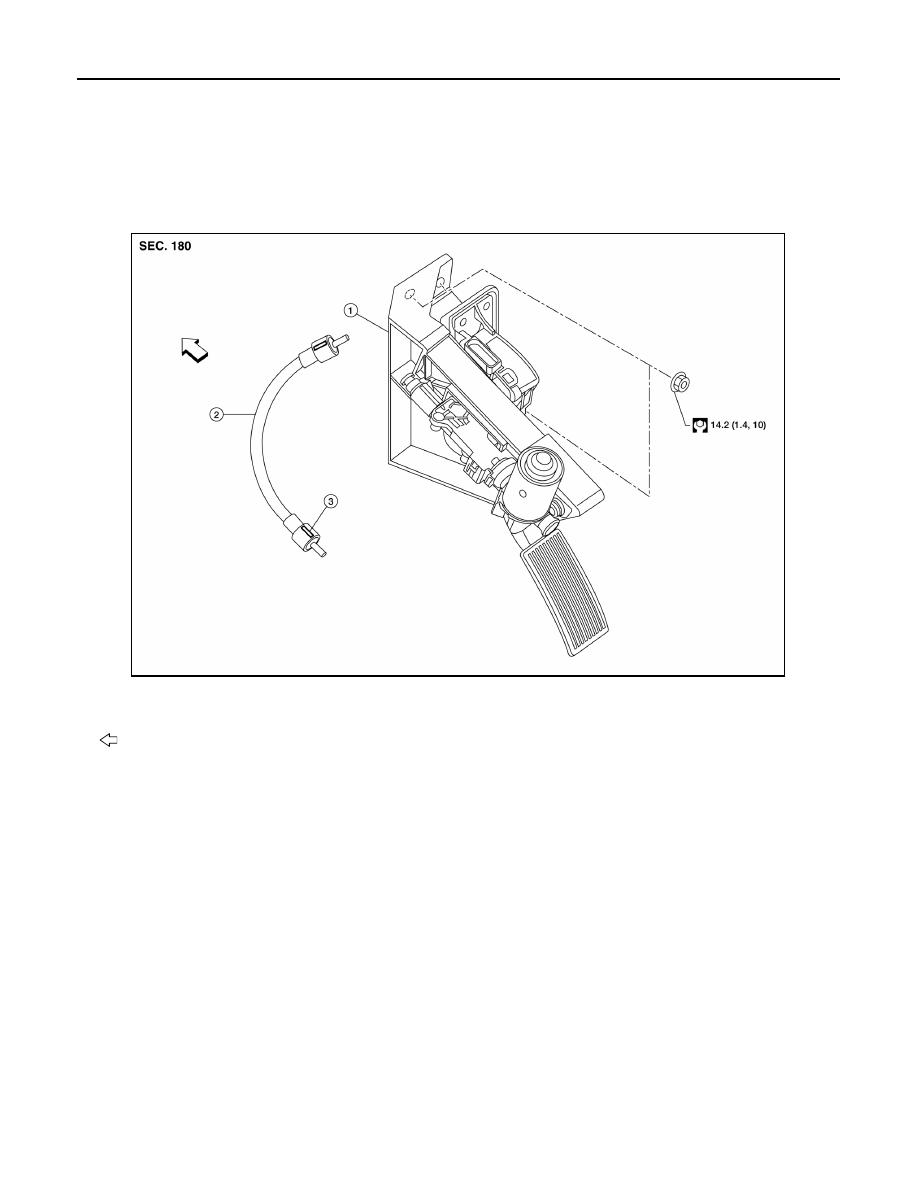

1.

Adjustable accelerator pedal assembly

2.

Adjustable brake pedal cable

3.

Adjustable brake pedal cable lock
tab (part of the cable)

Front

AWBIA1008GB

August 2012

2012 Pathfinder

ACCELERATOR CONTROL SYSTEM

ACC-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

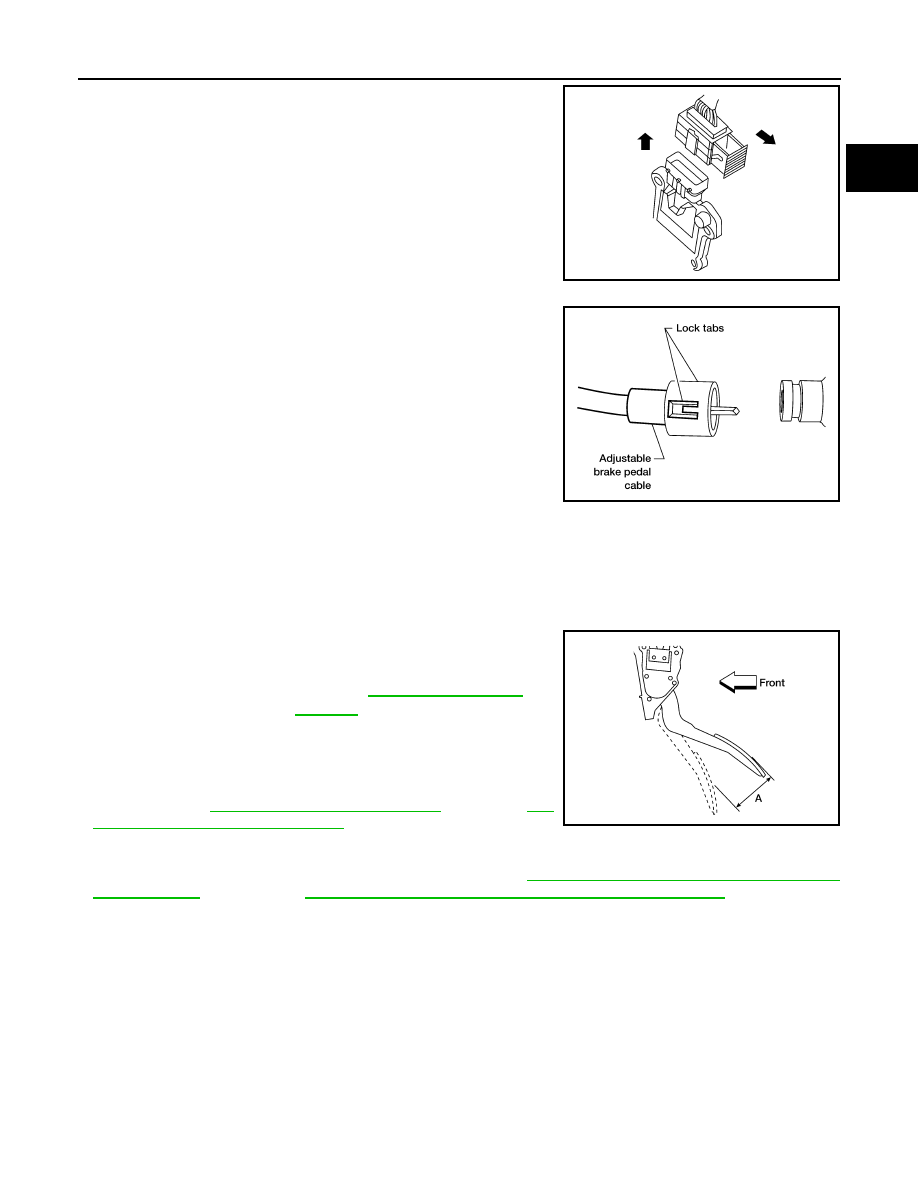

5. Disconnect the accelerator position sensor electrical connector.
a. Pull the connector lock back to unlock the connector from the

accelerator pedal position sensor as shown.

b. Pull up on the connector to disconnect it from the accelerator

pedal position sensor as shown.

6. Disconnect the adjustable brake pedal cable from the adjustable

accelerator pedal.

• Release the two lock tabs, then pull the adjustable brake pedal

cable to disconnect it from the adjustable accelerator pedal.

7. Remove the two upper and one lower accelerator pedal nuts.
8. Remove the adjustable accelerator pedal assembly.

INSTALLATION

Installation is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

• Check that the accelerator pedal moves smoothly within the speci-

fied range.

• Check that the accelerator pedal smoothly returns to the original

position.

• Perform an electrical inspection of the accelerator pedal position

sensor. Refer to

EC-396, "Component Inspection"

 (VQ40DE),

EC-

530, "On Board Diagnosis Function"

 (VK56DE).

CAUTION:

When the harness connector of the accelerator pedal position sensor is disconnected, perform

Accelerator Pedal Released Position Learning

. Refer to

EC-25, "Accelerator Pedal Released Posi-

tion Learning"

 (VQ40DE), or

EC-597, "Accelerator Pedal Released Position Learning"

 (VK56DE).

NON-ADJUSTABLE ACCELERATOR PEDAL

LBIA0333E

LFIA0233E

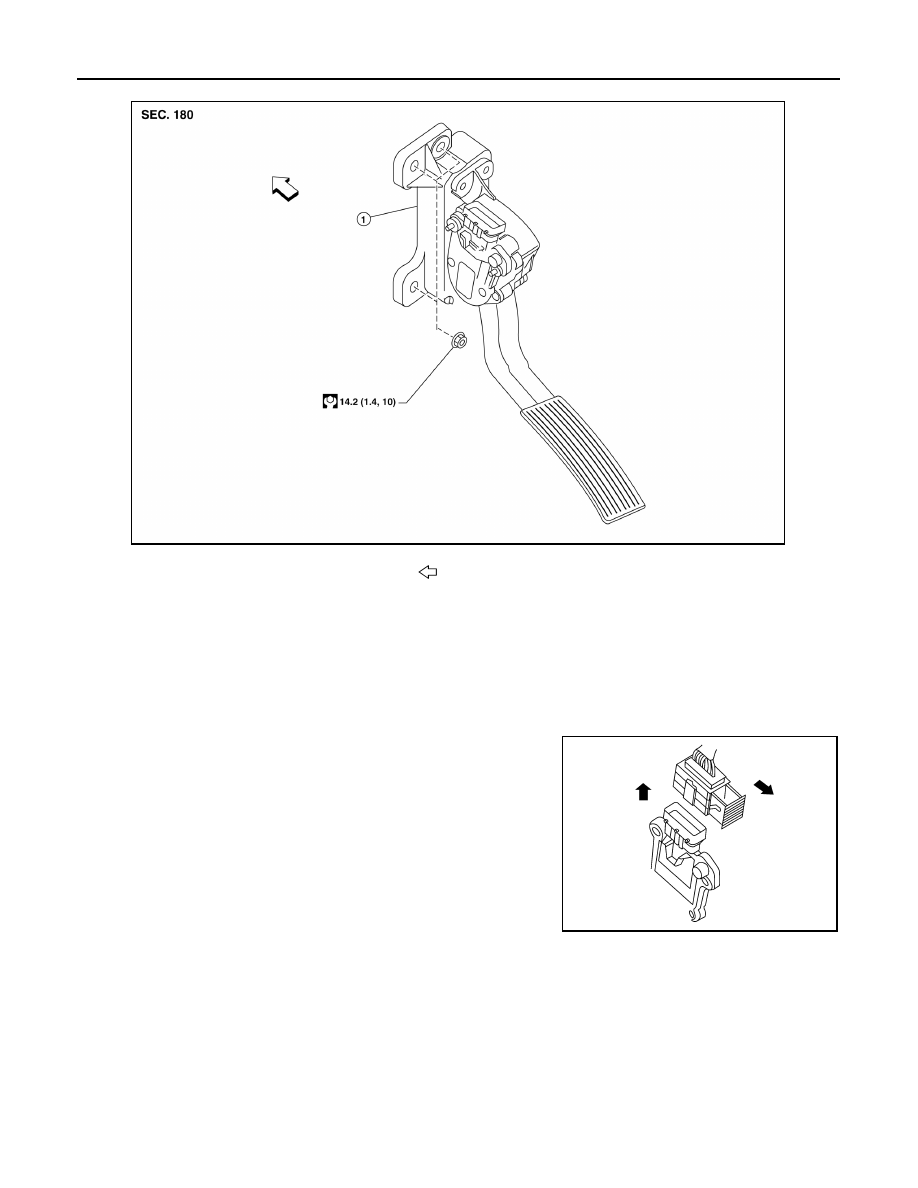

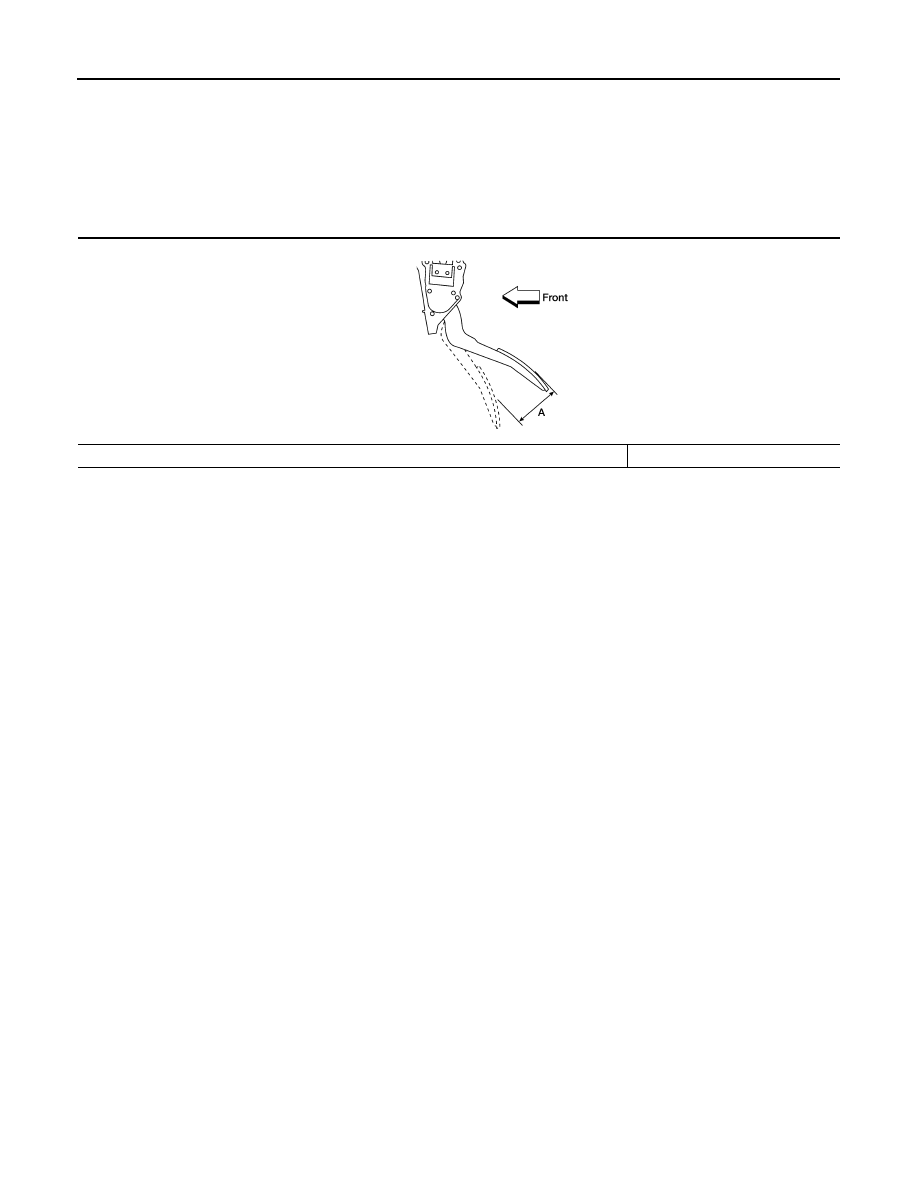

Accelerator pedal -
total pedal applied
stroke (A)

: Refer to

ACC-8, "Accelerator

Control"

.

LBIA0434E

August 2012

2012 Pathfinder

ACC-6

< REMOVAL AND INSTALLATION >

ACCELERATOR CONTROL SYSTEM

CAUTION:

• Do not disassemble the accelerator pedal assembly.

• Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.

• Avoid damage from dropping the accelerator pedal assembly during handling.

• Keep the accelerator pedal assembly away from water.

REMOVAL

1. Disconnect the negative battery terminal.
2. Disconnect the accelerator position sensor electrical connector.
a. Pull the connector lock back to unlock the connector from the

accelerator pedal position sensor as shown.

b. Pull up on the connector to disconnect it from the accelerator

pedal position sensor as shown.

3. Remove the two upper and one lower accelerator pedal nuts.
4. Remove the accelerator pedal assembly.

INSTALLATION

Installation is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

1.

Non-adjustable accelerator pedal assembly

Front

AWBIA1009GB

LBIA0333E

August 2012

2012 Pathfinder

ACCELERATOR CONTROL SYSTEM

ACC-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

• Check that the accelerator pedal moves smoothly within the speci-

fied range.

• Check that the accelerator pedal smoothly returns to the original

position.

• Perform an electrical inspection of the accelerator pedal position

sensor. Refer to

EC-396, "Component Inspection"

.

CAUTION:

When the harness connector of the accelerator pedal position

sensor is disconnected, perform

Accelerator Pedal Released Position Learning

. Refer to

EC-25,

"Accelerator Pedal Released Position Learning"

 (VQ40DE), or

EC-597, "Accelerator Pedal Released

Position Learning"

 (VK56DE).

Accelerator pedal -
total pedal applied
stroke (A)

: Refer to

ACC-8, "Accelerator

Control"

.

LBIA0434E

August 2012

2012 Pathfinder

ACC-8

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Accelerator Control

INFOID:0000000007358923

ADJUSTABLE AND NON-ADJUSTABLE ACCELERATOR PEDAL

Unit: mm (in)

Accelerator pedal - total pedal applied stroke (A)

48 (1.89)

LBIA0434E

August 2012

2012 Pathfinder
