REAR WIPER AND WASHER SYSTEM

WW-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

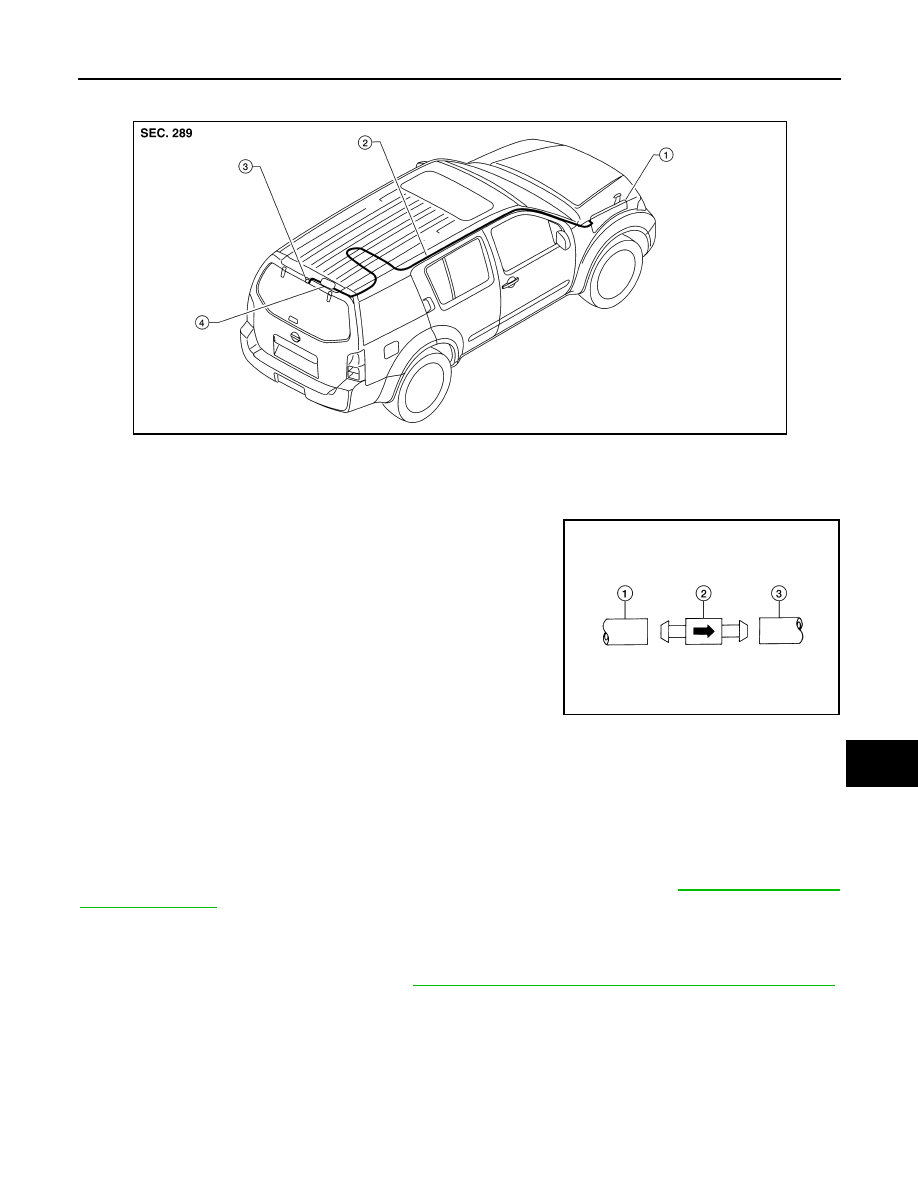

REAR WASHER TUBE LAYOUT

NOTE:

Connect the check valve (2) to the washer fluid tube (1) so that the

directional arrow on the check valve (2) points towards the washer

nozzle tube (3).

REAR WASHER NOZZLE

Removal

1. Disconnect rear washer tube from rear washer nozzle.
2. Release retaining clips and remove washer nozzle.

Installation

Installation is in the reverse order of removal.

NOTE:

Inspect rear washer nozzle for proper spray pattern, adjust as necessary. Refer to

WW-78, "Rear Washer

Nozzle Adjustment"

.

WASHER MOTOR

Removal

1. Remove RH front fender protector. Refer to

EXT-25, "Removal and Installation of Front Fender Protector"

.

2. Disconnect the rear washer hoses.
3. Disconnect the rear washer motor connectors.

1.

Washer fluid reservoir

2.

Washer fluid tube to rear door

3.

Rear washer nozzle

4.

Check valve

WKIA4143E

WKIA4242E

2011 Pathfinder

WW-78

< REMOVAL AND INSTALLATION >

REAR WIPER AND WASHER SYSTEM

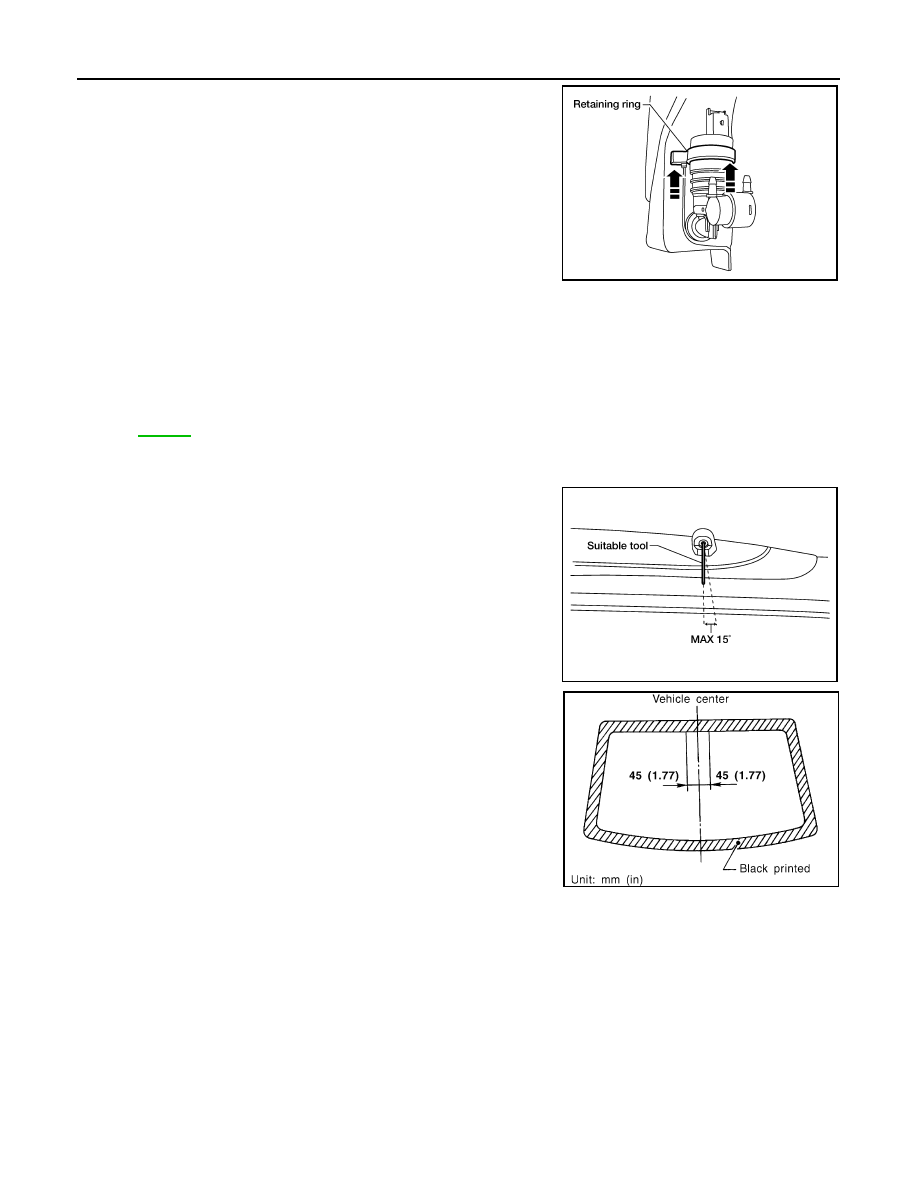

4. Slide retaining ring upward to release rear washer motor.

5. Remove rear washer motor from washer fluid reservoir.

Installation

Installation is in the reverse order of removal.

CAUTION:

When installing rear washer motor, there should be no packing twists, etc.

WASHER MOTOR

Refer to

WW-70

.

Rear Washer Nozzle Adjustment

INFOID:0000000006247938

• Adjust washer nozzle with suitable tool as shown in the figure.

LKIA0540E

Adjustable range

:

±

15

°

 (In any direction)

LKIA0349E

WEL912A

2011 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

WW-79

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Specifications

INFOID:0000000006833072

Windshield Washer Fluid

Windshield washer fluid capacity

4.5   (1 1/4 US gal, 1 Imp gal)

Windshield washer fluid specification

Refer to

MA-18, "FOR USA AND CANADA : Fluids and Lubricants"



(United States and Canada),

MA-20, "FOR MEXICO : Fluids and Lubri-

cants"

 (Mexico).
