FRONT WIPER MOTOR HI CIRCUIT

WW-21

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

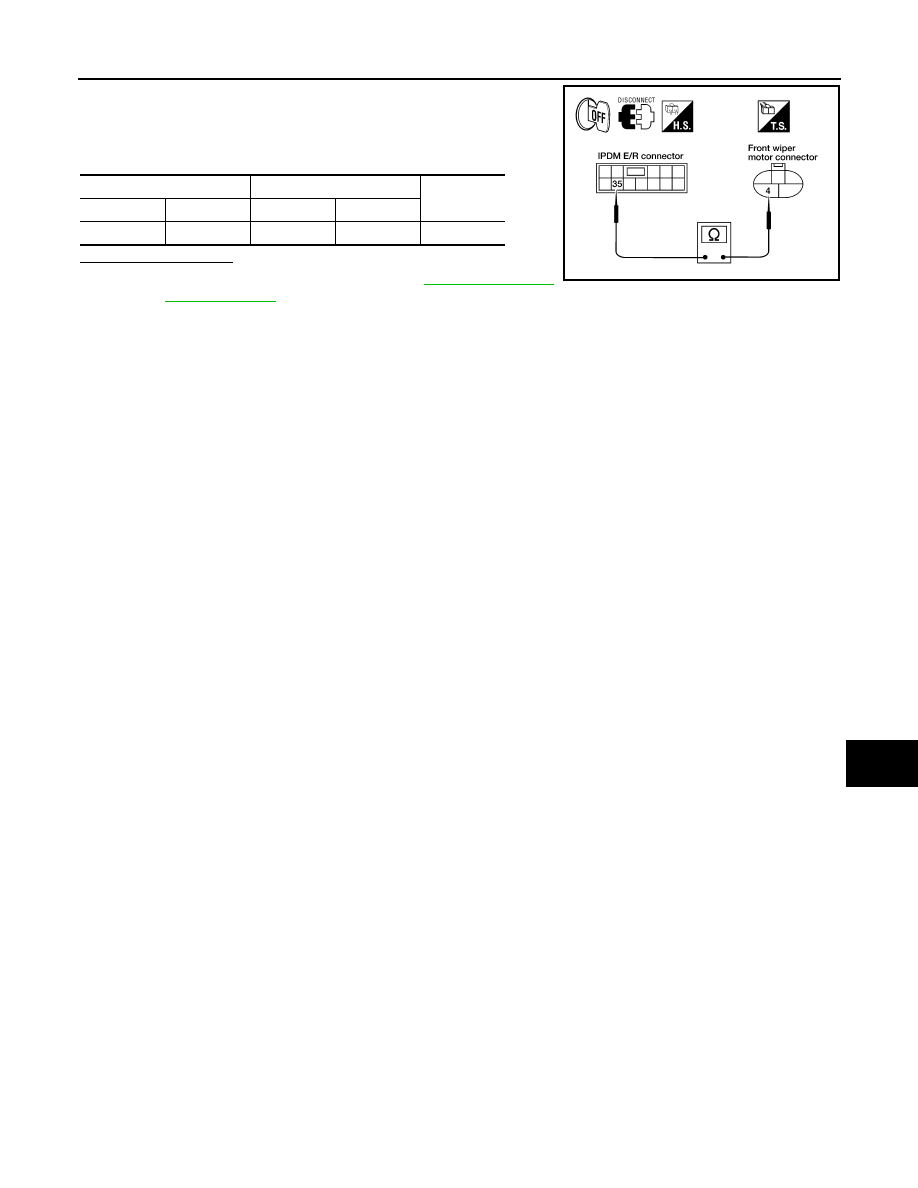

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R and front wiper motor.

3. Check continuity between IPDM E/R harness connector and

front wiper motor harness connector.

Does continuity exist?

YES

>> Replace front wiper motor. Refer to

WW-70, "Removal

and Installation"

.

NO

>> Repair or replace harness.

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E121

35

E23

4

Yes

WKIA3199E

2011 Pathfinder

WW-22

< DTC/CIRCUIT DIAGNOSIS >

FRONT WIPER AUTO STOP SIGNAL CIRCUIT

FRONT WIPER AUTO STOP SIGNAL CIRCUIT

Component Function Check

INFOID:0000000006247905

1.

 CHECK FRONT WIPER (AUTO STOP) SIGNAL

CONSULT-III DATA MONITOR

1. Select "WIP AUTO STOP" of IPDM E/R data monitor item.

2. Operate the front wiper.

3. Check that "WIP AUTO STOP" changes to "STOP P" and "ACT P" linked with the wiper operation.

Is the status of item normal?

YES

>> Front wiper auto stop signal circuit is normal.

NO

>> Refer to

WW-22, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006247906

Regarding Wiring Diagram information, refer to

WW-50, "Wiring Diagram"

.

1.

 CHECK IPDM E/R OUTPUT VOLTAGE

1. Turn the ignition switch OFF.

2. Disconnect front wiper motor.

3. Turn the ignition switch ON.

4. Check voltage between front wiper motor harness connector and ground.

Is the measurement normal?

YES

>> Replace front wiper motor. Refer to

WW-70, "Removal and Installation"

.

NO

>> GO TO 2

2.

 CHECK FRONT WIPER MOTOR (AUTO STOP) CIRCUIT CONTINUITY

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector E122.

3. Check continuity between IPDM E/R harness connector and front wiper motor harness connector.

4. Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?

Monitor item

Condition

Monitor status

WIP AUTO STOP

Front wiper motor

Stop position

STOP P

Except stop position

ACT P

Terminals

Voltage (V)

(Approx.)

(+)

(-)

Front wiper motor

Ground

Connector

Terminal

E23

5

Battery voltage

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E122

43

E23

5

Yes

IPDM E/R

Ground

Continuity

Connector

Terminal

E122

43

No

2011 Pathfinder

FRONT WIPER AUTO STOP SIGNAL CIRCUIT

WW-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

YES

>> Replace IPDM E/R. Refer to

PCS-29, "Removal and Installation of IPDM E/R"

.

NO

>> Repair or replace harness.

2011 Pathfinder

WW-24

< DTC/CIRCUIT DIAGNOSIS >

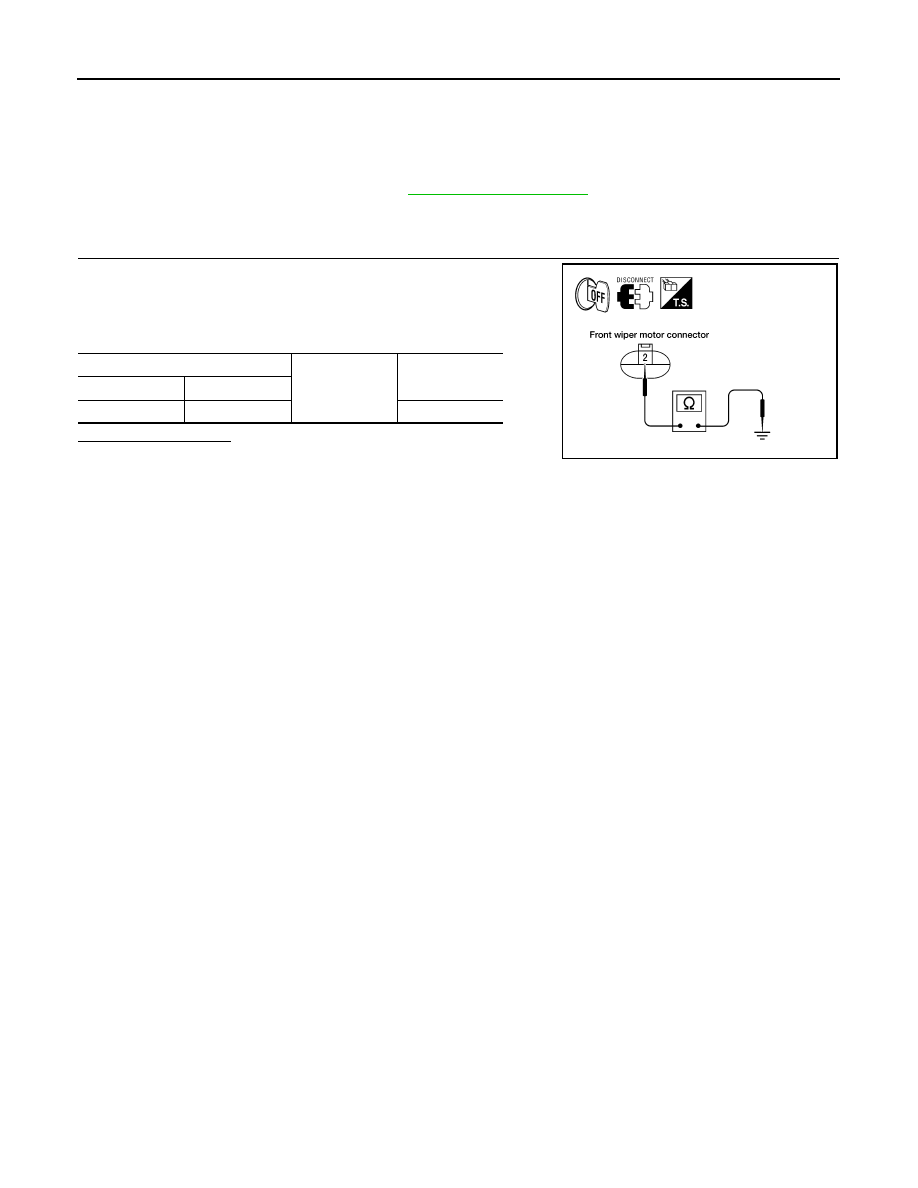

FRONT WIPER MOTOR GROUND CIRCUIT

FRONT WIPER MOTOR GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000006247907

Regarding Wiring Diagram information, refer to

WW-50, "Wiring Diagram"

.

1.

 CHECK FRONT WIPER MOTOR (GROUND) OPEN CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect front wiper motor.

3. Check continuity between front wiper motor harness connector

and ground.

Does continuity exist?

YES

>> Front wiper motor ground circuit is normal.

NO

>> Repair or replace harness.

Front wiper motor

Ground

Continuity

Connector

Terminal

E23

2

Yes

WKIA3194E

2011 Pathfinder

WASHER SWITCH

WW-25

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

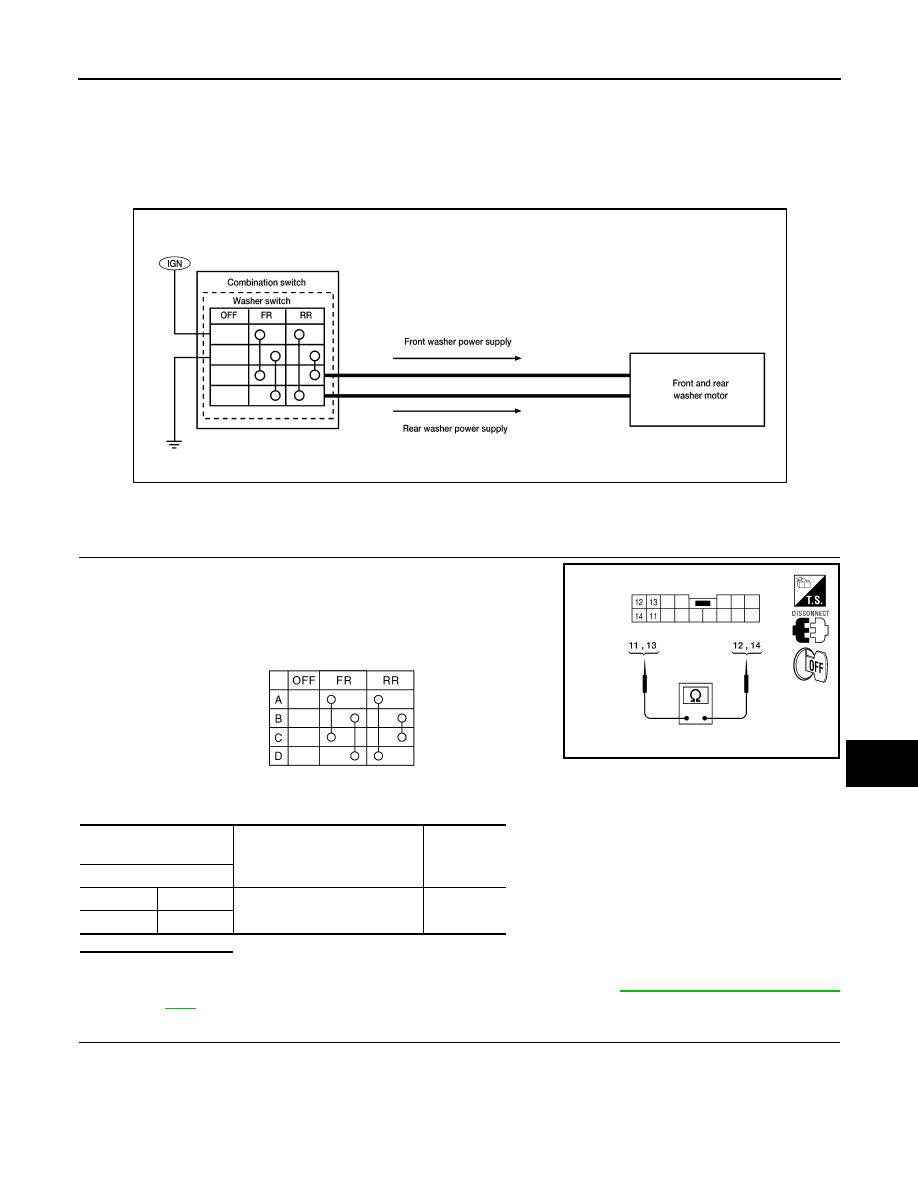

WASHER SWITCH

Description

INFOID:0000000006247908

• Washer switch is integrated with combination switch (wiper and washer switch).

• Combination switch (wiper and washer switch) switches polarity between front washer operating and rear

washer operating to supply power and ground to the front and rear washer motor.

Component Inspection

INFOID:0000000006247909

1.

 CHECK FRONT WASHER SWITCH

1. Turn the ignition switch OFF.

2. Disconnect combination switch (wiper and washer switch).

3. Check continuity between the combination switch (wiper and

washer switch) terminals.

Does continuity exist?

YES

>> GO TO 2

NO

>> Replace combination switch (wiper and washer switch). Refer to

WW-70, "Removal and Installa-

tion"

.

2.

 CHECK REAR WASHER SWITCH

ALLIA0350GB

A: Terminal 14
B: Terminal 12
C: Terminal 13

D: Terminal 11

ALLIA0839ZZ

JPLIA0164GB

Combination switch (wip-

er and washer switch)

Condition

Continuity

Terminal

11

12

Front washer switch ON

Yes

13

14

2011 Pathfinder

WW-26

< DTC/CIRCUIT DIAGNOSIS >

WASHER SWITCH

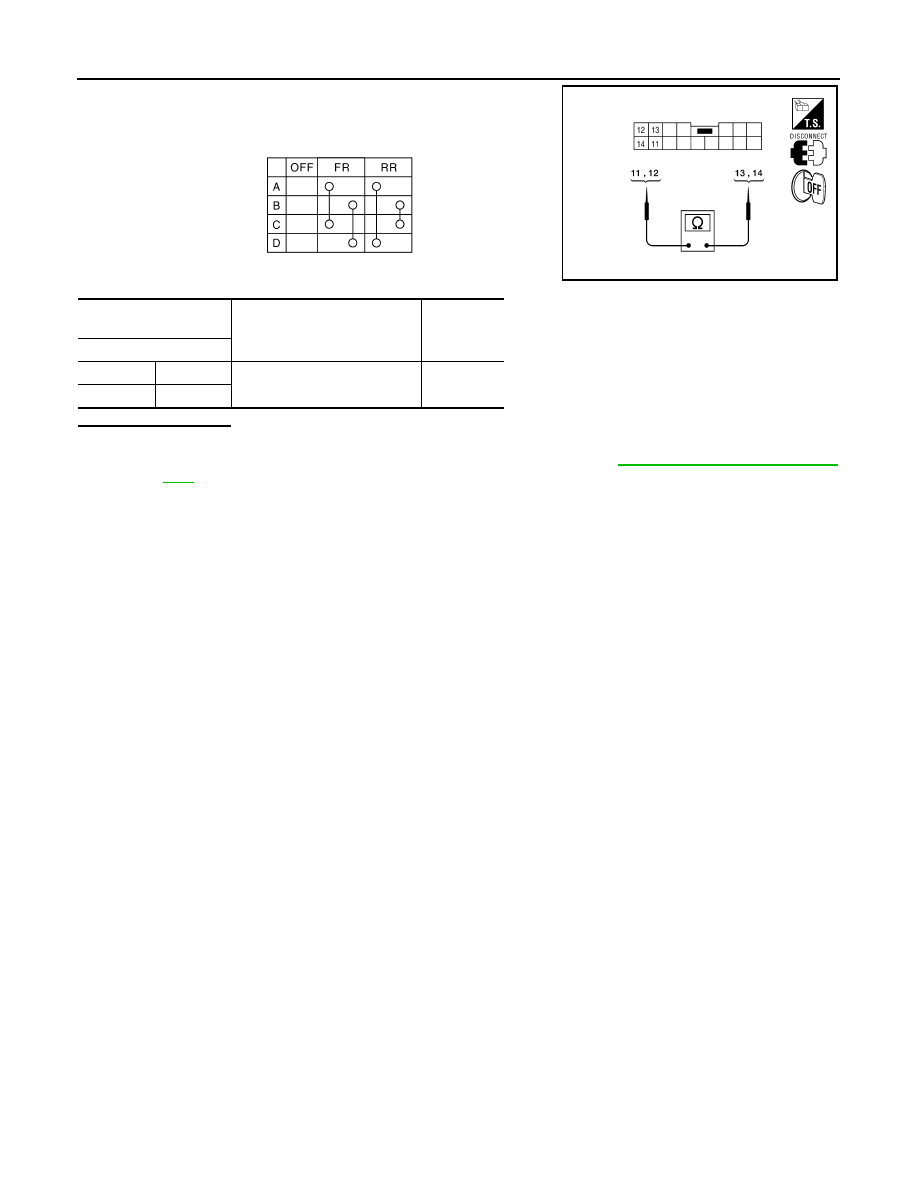

Check continuity between the combination switch (wiper and washer

switch) terminals.

Does continuity exist?

YES

>> Wiper and washer switch is normal.

NO

>> Replace combination switch (wiper and washer switch). Refer to

WW-70, "Removal and Installa-

tion"

.

A: Terminal 14
B: Terminal 12
C: Terminal 13

D: Terminal 11

Combination switch (wip-

er and washer switch)

Condition

Continuity

Terminal

11

14

Rear washer switch ON

Yes

12

13

ALLIA0840ZZ

JPLIA0164GB

2011 Pathfinder

WASHER MOTOR CIRCUIT

WW-27

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER MOTOR CIRCUIT

Diagnosis Procedure

INFOID:0000000006706785

Regarding Wiring Diagram information, refer to

WW-50, "Wiring Diagram"

,

WW-55, "Wiring Diagram"

.

1.

 CHECK FRONT WASHER MOTOR FUSE

1. Turn the ignition switch OFF.

2. Check that the following fuse is not blown.

Is the fuse blown?

YES

>> Replace the fuse after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK WIPER AND WASHER SWITCH INPUT VOLTAGE

1. Disconnect combination switch (wiper and washer switch).

2. Turn the ignition switch ON.

3. Check voltage between combination switch (wiper and washer switch) harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK WIPER AND WASHER SWITCH GOURND CIRCUIT

Check continuity between combination switch (wiper and washer switch) harness connector and ground.

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK WIPER AND WASHER SWITCH

Check wiper and washer switch. Refer to

WW-25, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace wiper and washer switch. Refer to

WW-70, "Removal and Installation"

.

5.

 CHECK FRONT AND REAR WASHER MOTOR POWER SUPPLY

1. Turn ignition switch OFF.

2. Connect combination switch (wiper and washer switch).

3. Disconnect front and rear washer motor.

Unit

Location

Fuse No.

Capacity

Front washer motor

Fuse block (J/B)

15

10A

Terminals

Voltage

(Approx.)

(+)

(-)

Combination switch (wiper and

washer switch)

Ground

Connector

Terminal

M28

14

Battery voltage

Combination switch (wiper and

washer switch)

Ground

Continuity

Connector

Terminal

M28

12

Yes

2011 Pathfinder

WW-28

< DTC/CIRCUIT DIAGNOSIS >

WASHER MOTOR CIRCUIT

4. Turn ignition switch ON.

5. Check voltage between front and rear washer motor harness connector and ground.

Is the measurement value normal?

YES

>> Replace front and rear washer motor. Refer to

WW-70, "Removal and Installation"

.

NO

>> Repair or replace harness.

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(-)

Front and

rear wash-

er motor

Terminal

E105

1

2

Washer

switch

Front: ON

Battery voltage

2

1

Rear:  ON
