Nissan Pathfinder (2011 year). Manual - part 628





DIAGNOSIS AND REPAIR WORKFLOW

WT-3

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Repair Work Flow

INFOID:0000000006246356

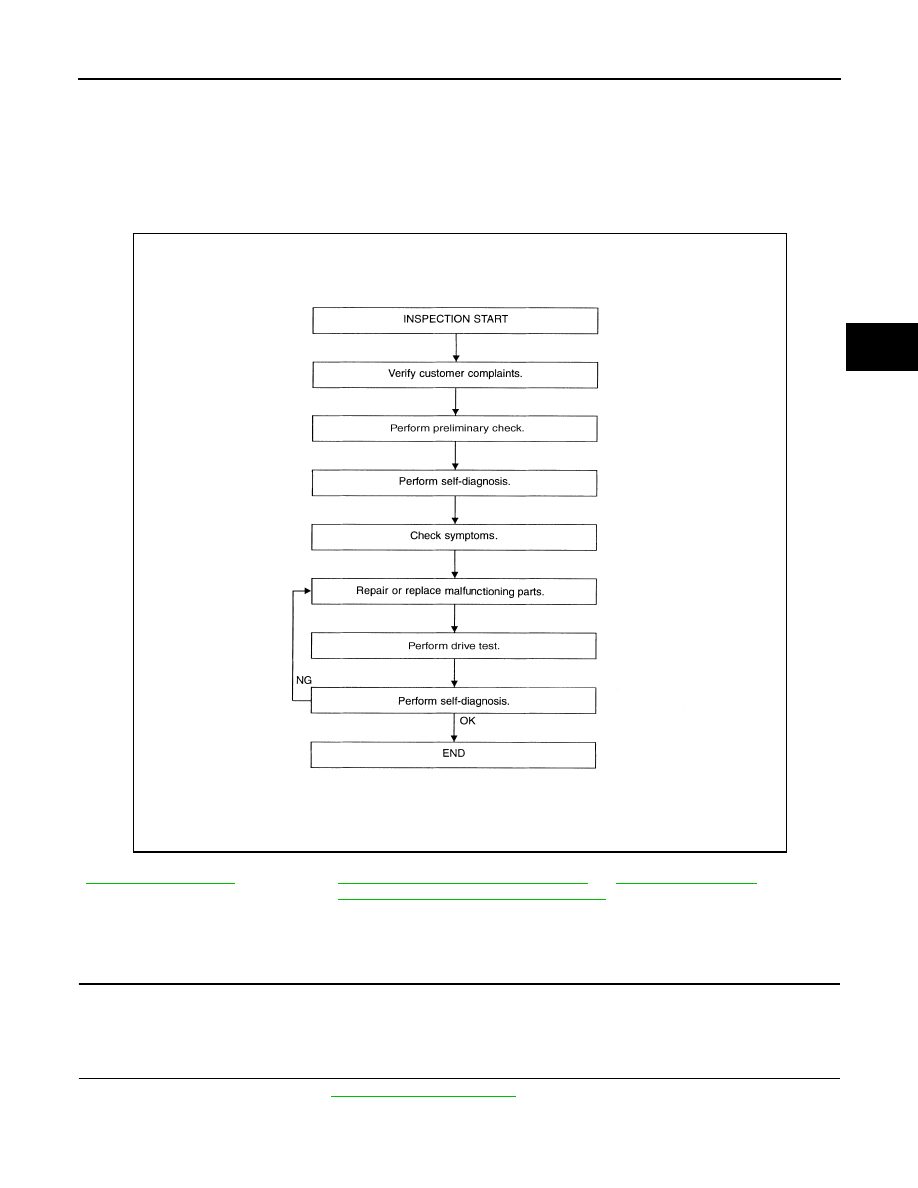

WORK FLOW

DETAILED FLOW

1.

CUSTOMER INFORMATION

Interview the customer to obtain detailed information about the symptom.

>> GO TO 2

2.

PRELIMINARY CHECK

Perform preliminary check. Refer to

WT-5, "Preliminary Check"

.

>> GO TO 3

WT-5, "Preliminary Check"

WT-31, "Self-Diagnosis (With CONSULT-III)"
WT-32, "Self-Diagnosis (Without CONSULT-III)"

WT-38, "Symptom Table"

ALEIA0003GB

2011 Pathfinder

WT-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

3.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS. Refer to

WT-31, "Self-Diagnosis (With CONSULT-III)"

 or

WT-32, "Self-Diagnosis

(Without CONSULT-III)"

.

>> GO TO 4

4.

SYMPTOM

Check for symptoms. Refer to

WT-38, "Symptom Table"

.

>> GO TO 5

5.

MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 6

6.

DRIVE TEST

1. Perform a drive test.

2. Check the low tire pressure warning lamp.

>> GO TO 7

7.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS. Refer to

WT-31, "Self-Diagnosis (With CONSULT-III)"

 or

WT-32, "Self-Diagnosis

(Without CONSULT-III)"

.

Are any DTC's displayed?

YES

>> GO TO 5

NO

>> Inspection End

2011 Pathfinder

INSPECTION AND ADJUSTMENT

WT-5

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

INSPECTION AND ADJUSTMENT

Preliminary Check

INFOID:0000000006246357

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

1.

TIRE PRESSURE

Check all tire pressures. Refer to

WT-54, "Tire"

.

Do tire pressures match specification?

YES

>> GO TO 2.

NO

>> Adjust tire pressures to specified value.

2.

LOW TIRE PRESSURE WARNING LAMP

Check low tire pressure warning lamp activation.
Does the low tire pressure warning lamp activate for one second when ignition switch is turned ON?

YES

>> GO TO 3.

NO

>> GO TO

WT-39, "Low Tire Pressure Warning Lamp Does Not Come On When Ignition Switch Is

Turned On"

.

3.

BCM CONNECTOR

1. Disconnect BCM harness connectors.

2. Check terminals for damage or loose connections.

3. Reconnect harness connectors.
Are BCM connectors damaged or loose?

YES

>> Repair or replace damaged parts.

NO

>> GO TO 4.

4.

TRANSMITTER ACTIVATION TOOL

Check battery in transmitter activation tool.
Is transmitter activation tool battery fully charged?

YES

>> Perform self-diagnosis.  Refer to

WT-31, "Self-Diagnosis (With CONSULT-III)"

.

NO

>> Replace battery in transmitter activation tool.

Transmitter Wake Up Operation

INFOID:0000000006246358

NOTE:

This procedure must be done after replacement of a TPMS transmitter or BCM. New replacement transmitters

are provided "asleep" and must first be "woken up" using Transmitter Activation Tool J-45295 or Signal Tech II

Tool J-50190 before ID registration can be performed. Use the following procedure when using the Transmitter

Activation Tool J-45295.

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

2011 Pathfinder

WT-6

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

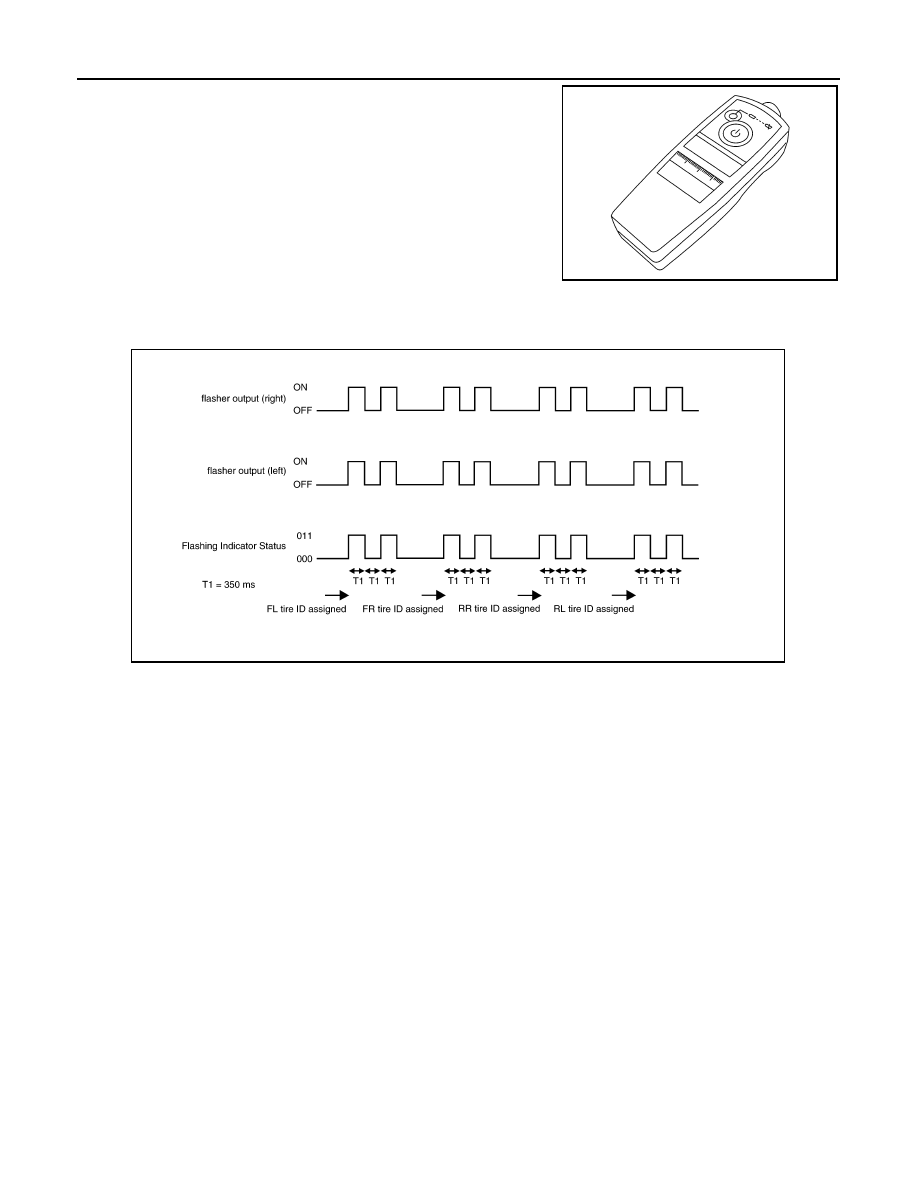

1. Turn ignition switch ON. Push the transmitter activation tool

against the tire near the front left transmitter. Press the button for

5 seconds.  The hazard warning lamps flash per the following

diagram.

2. Repeat this procedure for each tire in the following order: FL, FR, RR, RL.
3. When the BCM finishes assigning each tire ID, the BCM flashes the hazard warning lamps and sends

flashing indicator status by CAN according to the following time chart.

4. After completing wake up of all transmitters, make sure low tire pressure warning lamp goes out.

ID Registration Procedure

INFOID:0000000006246359

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

ID REGISTRATION WITH TRANSMITTER ACTIVATION TOOL

NOTE:

This procedure must be done after replacement of a TPMS transmitter or BCM. New replacement transmitters

are provided "asleep" and must first be "woken up" using Transmitter Activation Tool J-45295 or Signal Tech II

Tool J-50190 before ID registration can be performed. Use the following procedure when using the Transmitter

Activation Tool J-45295.
1. Connect CONSULT-III.
2. Select ID REGIST under BCM.

Tool number

: (J-45295)

LEIA0036E

WEIA0177E

2011 Pathfinder

INSPECTION AND ADJUSTMENT

WT-7

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

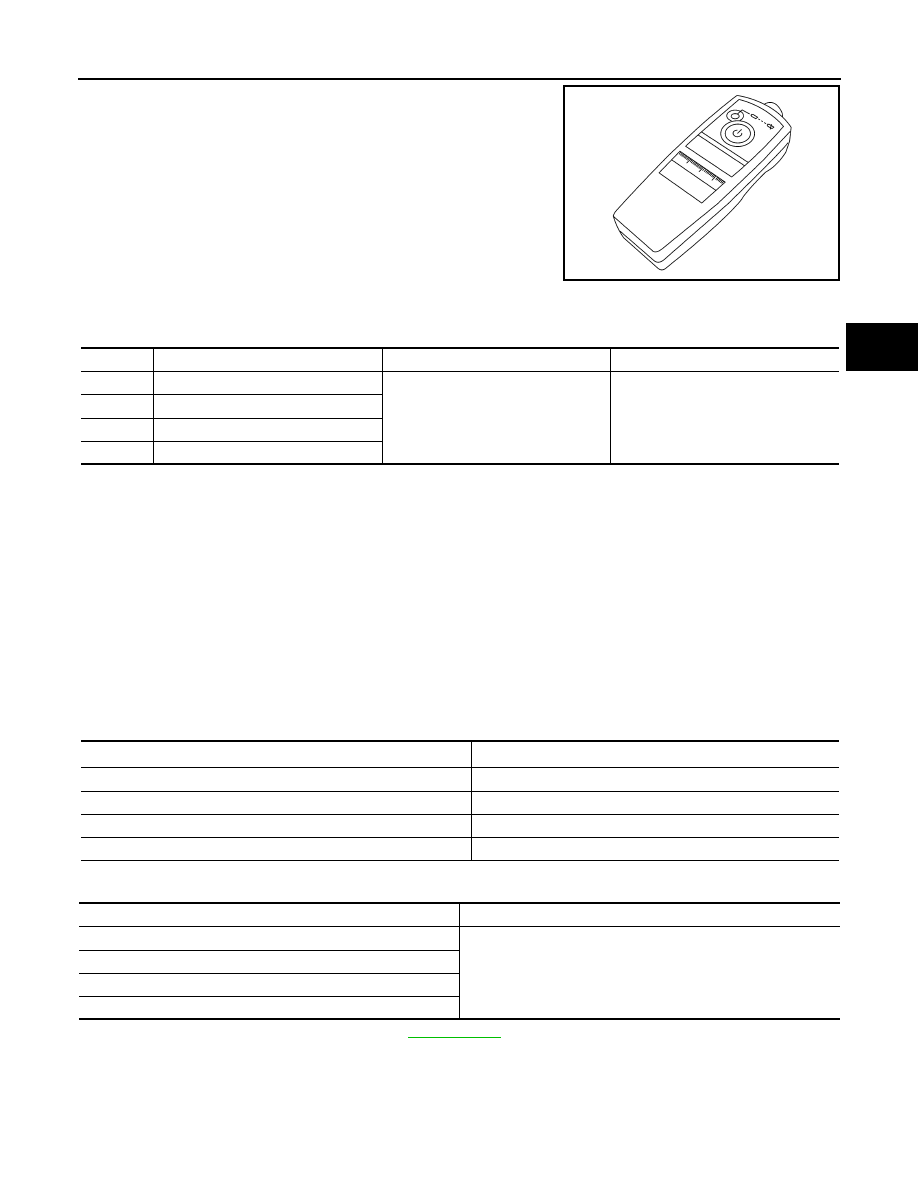

3. Push the transmitter activation tool against the tire near the front

left transmitter. Press the button for 5 seconds.

4. Register the IDs in order from FR LH, FR RH, RR RH and RR LH. When ID registration of each wheel has

been completed, the hazard warning lamps flash.

5. After completing all ID registrations, press END to complete the procedure.

NOTE:

Be sure to register all of the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results

display will not function properly.

ID REGISTRATION WITHOUT TRANSMITTER ACTIVATION TOOL

NOTE:

This procedure must be done after replacement of a TPMS transmitter or BCM. New replacement transmitters

are provided "asleep" and must first be "woken up" using Transmitter Activation Tool J-45295 or Signal Tech II

Tool J-50190 before ID registration can be performed.
1. Connect CONSULT-III.
2. Select ID REGIST under BCM.
3. Adjust the tire pressures to the values shown in the table and drive the vehicle at 40 km/h (25 MPH) or

more for a few minutes.

4. After completing all ID registrations, press END to complete the procedure.

5. Inflate all tires to proper pressure. Refer to

WT-54, "Tire"

.

Tool number

: (J-45295)

LEIA0036E

Step

Activation tire position

Hazard warning lamp

CONSULT-III

1

Front LH

2 times flashing

YET

DONE

2

Front  RH

3

Rear  RH

4

Rear LH

Tire position

Tire pressure kPa (kg/cm

2

, psi)

Front LH

250 (2.5, 36)

Front RH

230 (2.3, 33)

Rear RH

210 (2.1, 30)

Rear LH

190 (1.9, 27)

Activation tire position

CONSULT-III

Front LH

YET

DONE

Front RH

Rear RH

Rear LH

2011 Pathfinder

WT-8

< SYSTEM DESCRIPTION >

TPMS

SYSTEM DESCRIPTION

TPMS

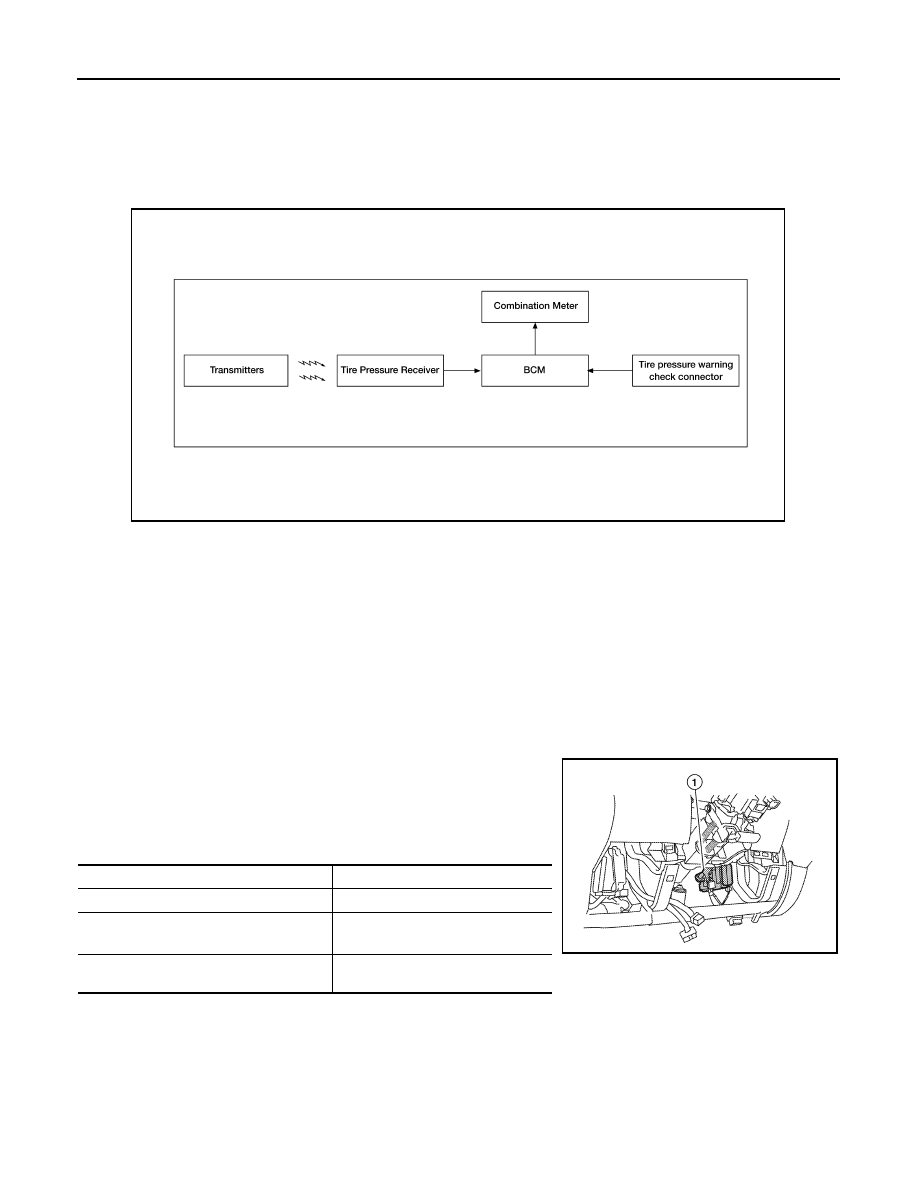

System Diagram

INFOID:0000000006246360

System Description

INFOID:0000000006246361

DESCRIPTION

During driving, the tire pressure monitoring system receives the signal transmitted from the transmitter

installed in each wheel, and turns on the low tire pressure warning lamp when the tire pressure becomes low.

The control unit (BCM) for this system has pressure judgement and self-diagnosis functions.

FUNCTION

When the tire pressure monitoring system detects low inflation pressure or an internal malfunction, the low tire

pressure warning lamp in the combination meter comes on. The malfunction is indicated by the low tire pres-

sure warning lamp flashing.

BODY CONTROL MODULE (BCM)

The BCM (1) is shown with the lower instrument panel LH removed.

The BCM reads the air pressure signal received by the remote key-

less entry receiver, and controls the low tire pressure warning lamp

as shown below. It also has a self-diagnosis function to detect a sys-

tem malfunction.

TRANSMITTER

ALEIA0004GB

Condition

Low tire pressure warning lamp

System normal

On for 1 second after ignition ON

Tire less than 193 kPa (2.0 kg/cm

2

 , 28 psi)

[Flat tire]

ON

Low tire pressure warning system malfunc-
tion

After key ON, flashes once per sec-

ond for 1 minute, then stays ON

AWEIA0010ZZ

2011 Pathfinder

TPMS

WT-9

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

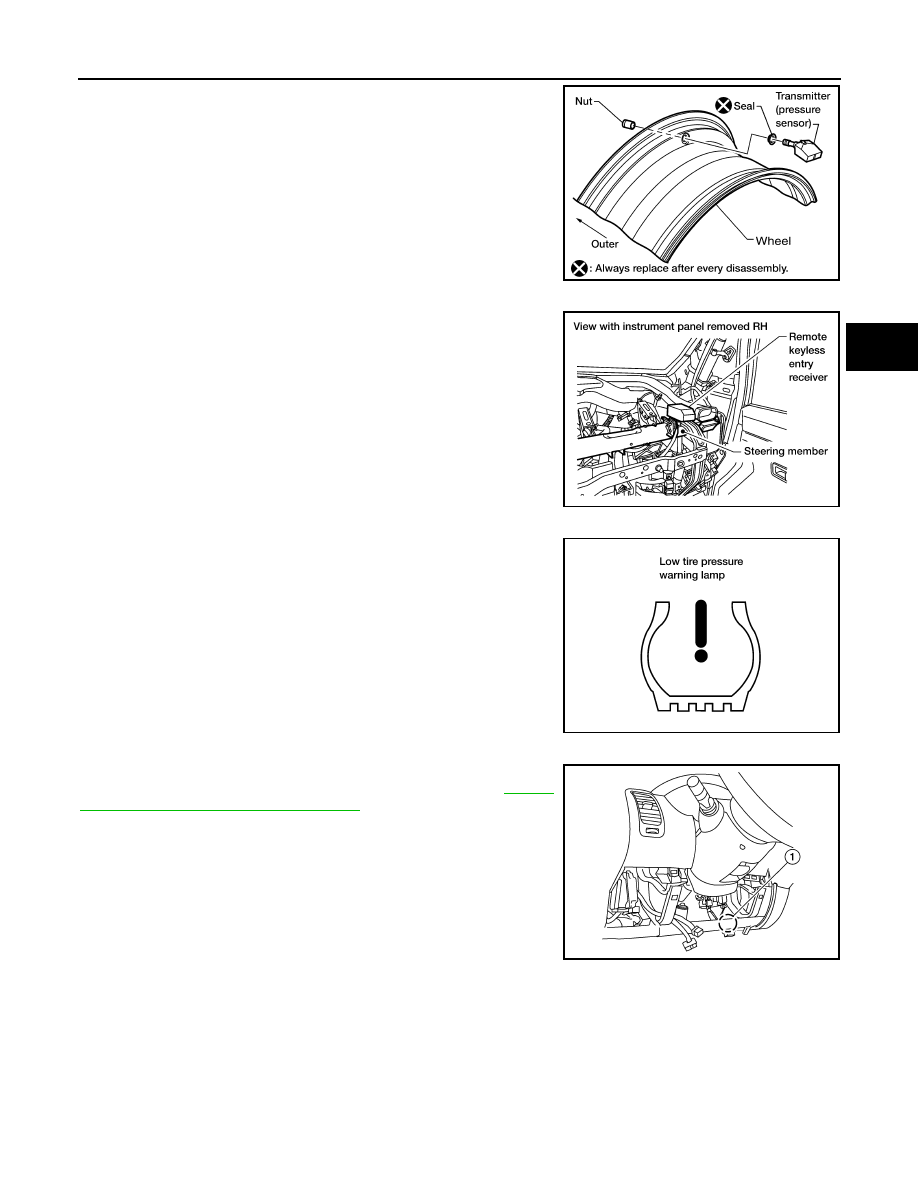

A sensor-transmitter integrated with a valve is installed in each

wheel, and transmits a detected air pressure signal in the form of a

radio wave.  The radio signal is received by the remote keyless entry

receiver.

REMOTE KEYLESS ENTRY RECEIVER

The remote keyless entry receiver is shown with the instrument

panel RH removed. The remote keyless entry receiver receives the

air pressure signal transmitted by the transmitter in each wheel.

COMBINATION METER

The combination meter receives tire pressure status from the BCM

using CAN communication. When a low tire pressure condition is

sensed by the BCM, the combination meter low tire pressure warn-

ing lamp is activated. A CHECK TIRE PRESSURE warning mes-

sage will also be displayed in the odometer.  Refer to the Owner’s

Manual for additional information.

TIRE PRESSURE WARNING CHECK CONNECTOR

The tire pressure warning check connector can be grounded in order

to initiate self-diagnosis without a CONSULT-III. Refer to

WT-32,

"Self-Diagnosis (Without CONSULT-III)"

. The tire pressure warning

check connector (1) is located behind the lower portion of the instru-

ment panel LH.

DISPLAY UNIT (if equipped)

WEIA0137E

LEIA0069E

LEIA0055E

AWEIA0120ZZ

2011 Pathfinder

WT-10

< SYSTEM DESCRIPTION >

TPMS

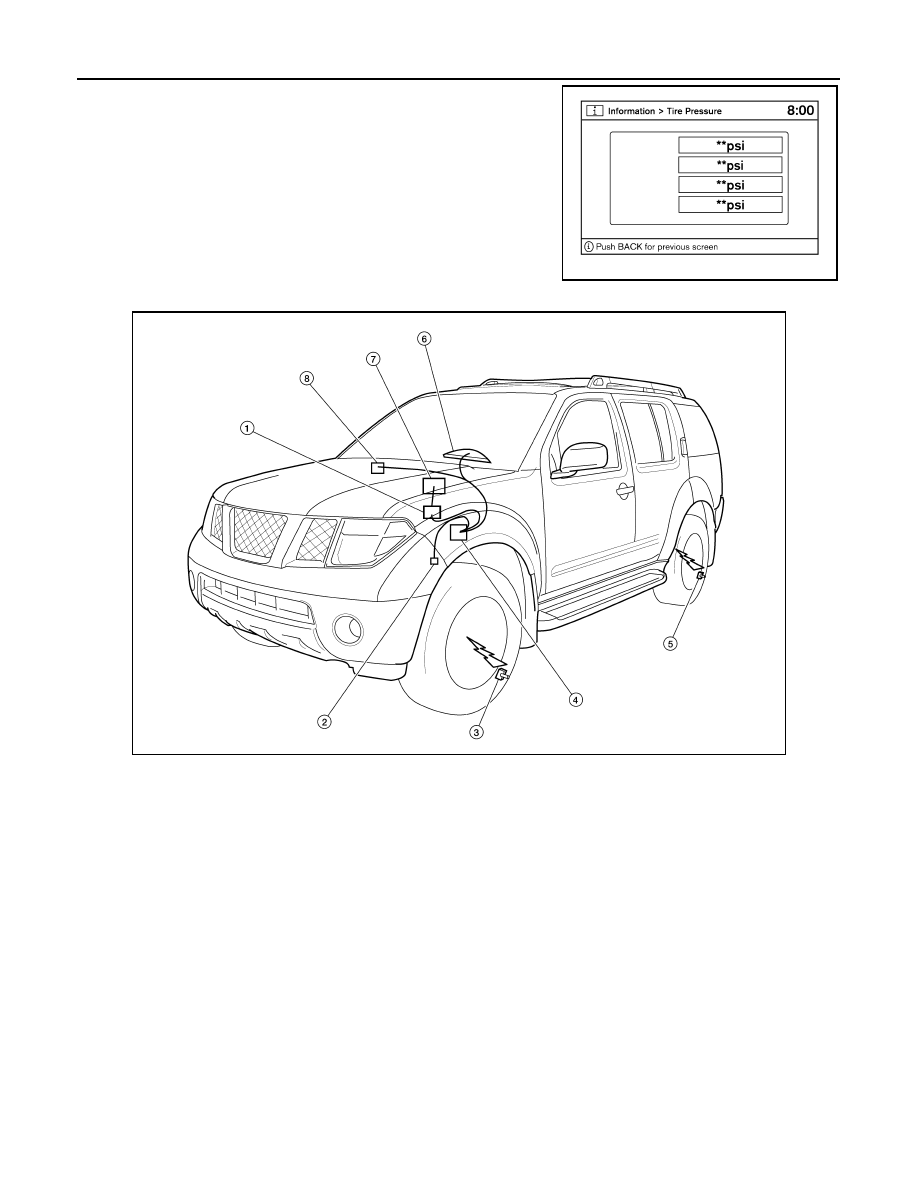

Displays the air pressure of each tire.

NOTE:

After the ignition switch is turned on, the pressure values will not be

displayed until the data of each wheel is received.

System Component

INFOID:0000000006246362

AWEIA0002GB

AWEIA0011ZZ

1.

AV control unit M37, M48 (with BOSE
audio system - with NAVI)
AV control unit M45, M70 (with BOSE
audio system - without NAVI)
AV control unit M133, M135 (with mid
audio system)

2.

Tire pressure warning check connec-
tor M123

3.

Transmitter

4.

BCM M18, M20

5.

Transmitter

6.

Combination meter M24

7.

Display unit M92 (with BOSE audio
system - with NAVI)
Display unit M93 (with mid audio sys-
tem or with BOSE audio system - with-
out NAVI)

8.

Remote keyless entry receiver M120

2011 Pathfinder
