Nissan Pathfinder (2011 year). Manual - part 617





TM-282

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

A/T Fluid Temperature Sensor

INFOID:0000000006244913

Input Speed Sensor

INFOID:0000000006244914

Output Speed Sensor

INFOID:0000000006244915

Reverse brake

INFOID:0000000006244916

*: Always check with the Parts Department for the latest parts information.

Total End Play

INFOID:0000000006244917

BEARING RACE FOR ADJUSTING TOTAL END PLAY

*: Always check with the Parts Department for the latest parts information.

Name

Condition

CONSULT-III “DATA MONITOR” (Approx.) (V)

Resistance (Approx.) (k

)

A/T fluid temperature sensor

0

°

C (32

°

F)

3.3

15

20

°

C (68

°

F)

2.7

6.5

80

°

C (176

°

F)

0.9

0.9

Name

Condition

Data   (Ap-

prox.)

Input speed sensor 1

When running at 50 km/h (31 MPH) in 4th speed with the closed throttle position signal
“OFF”.

 1.3 (kHz)

Input speed sensor 2

When moving at 20 km/h (12 MPH) in 1st speed with the closed throttle position signal “OFF”.

Name

Condition

Data (Approx.)

Output speed sensor

When moving at 20 km/h (12 MPH).

185 (Hz)

Model code number

3FX7A, 3FX7C

3DX3D

Number of drive plates

6

7

Number of driven plates

6

7

Clearance [mm (in)]

Standard

0.7 - 1.1 (0.028 - 0.043)

Thickness of retaining plates

Thickness mm (in)

4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)

Total end play mm (in)

0.25 - 0.55 (0.0098 - 0.0217)

Thickness mm (in)

0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.4 (0.055)
1.6 (0.063)
1.8 (0.071)

2011 Pathfinder

VTL-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

VTL

A

B

VTL

N

O

P

CONTENTS

VENTILATION SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

2

Precaution for Working with HFC-134a (R-134a) ......

3

Precaution for Work  ..................................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

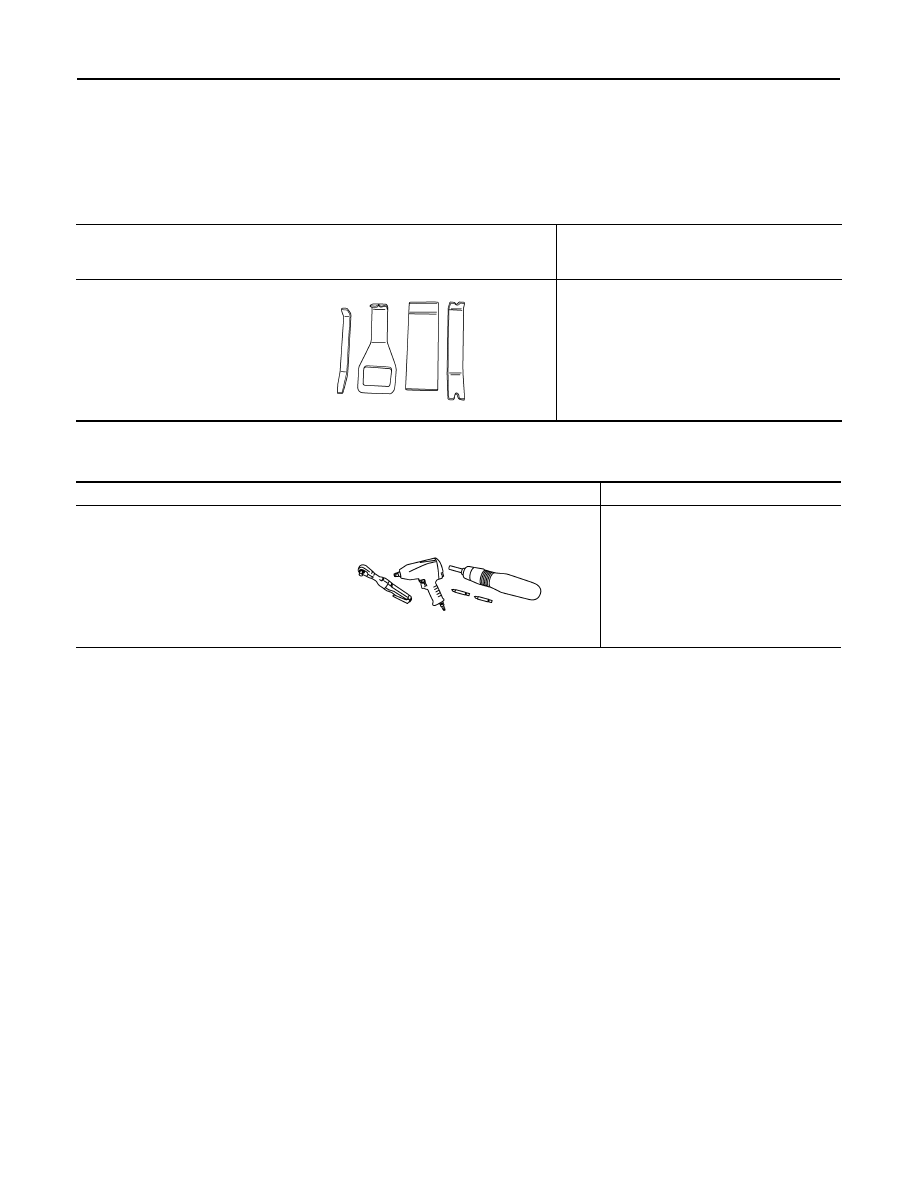

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

SYSTEM DESCRIPTION  ..............................

5

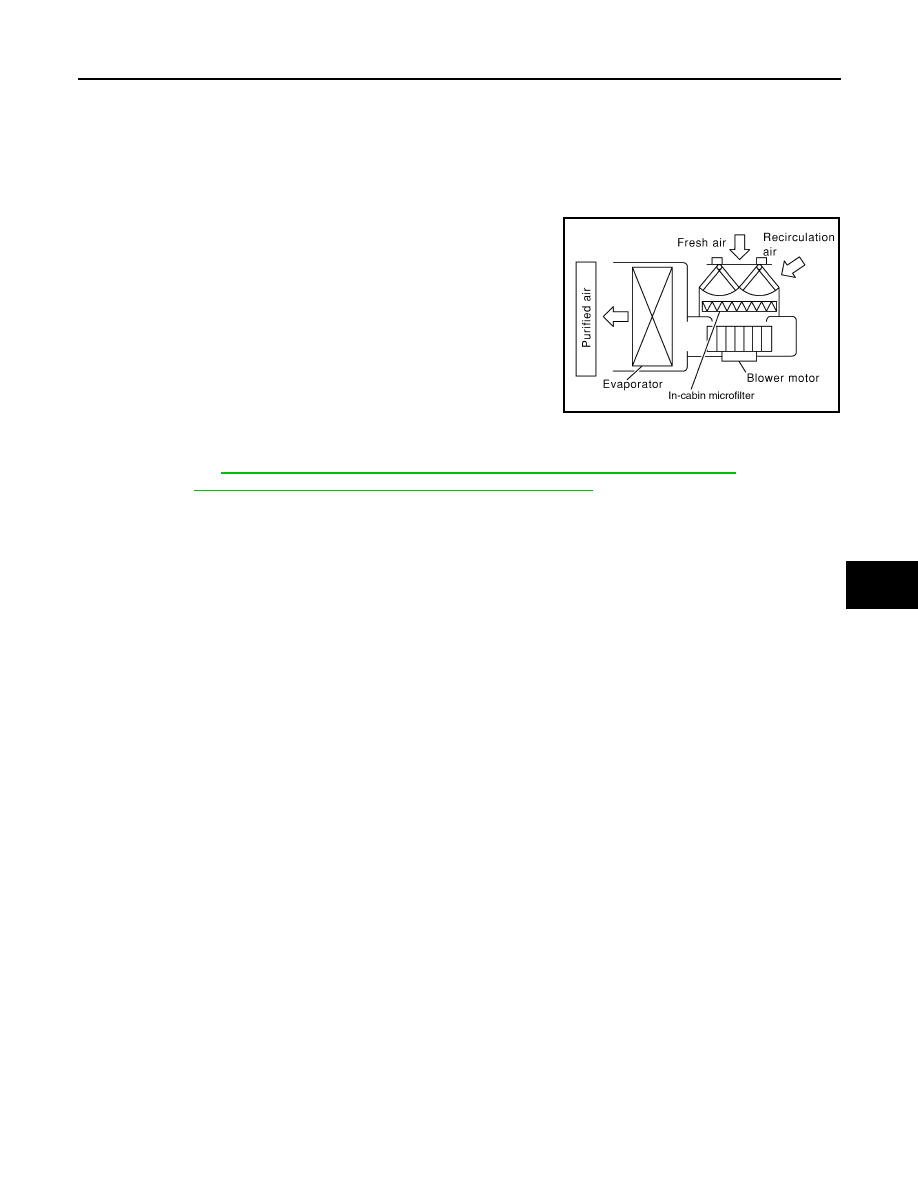

IN-CABIN MICROFILTER  ...................................

5

Description ................................................................

5

PERIODIC MAINTENANCE ..........................

6

IN-CABIN MICROFILTER  ...................................

6

Removal and Installation ...........................................

6

REMOVAL AND INSTALLATION ................

7

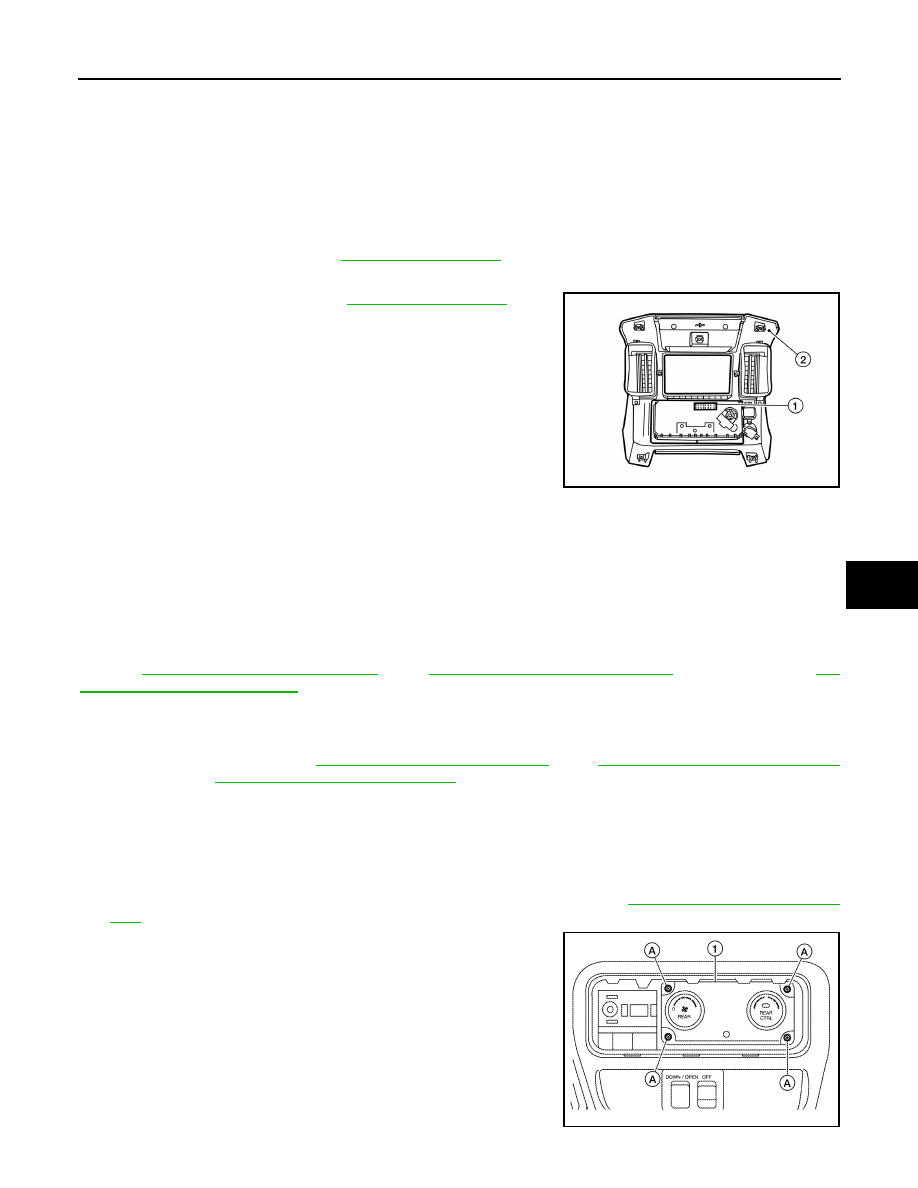

CONTROL UNIT ..................................................

7

Removal and Installation ...........................................

7

IN-VEHICLE SENSOR  ........................................

9

Removal and Installation ...........................................

9

OPTICAL SENSOR  ............................................

10

Removal and Installation .........................................

10

INTAKE SENSOR  ..............................................

11

Removal and Installation .........................................

11

BLOWER MOTOR  ............................................

12

Component ..............................................................

12

Removal and Installation  .........................................

12

VARIABLE BLOWER CONTROL .....................

14

Component ..............................................................

14

Removal and Installation  .........................................

14

FRONT BLOWER MOTOR RESISTOR ............

16

Removal and Installation  .........................................

16

HEATER & COOLING UNIT ASSEMBLY  ........

17

Component ..............................................................

17

Removal and Installation  .........................................

18

EVAPORATOR .................................................

20

Removal and Installation for Front Evaporator  ........

20

Removal and Installation for Rear Evaporator .........

21

EXPANSION VALVE .........................................

23

Removal and Installation for Rear Expansion
Valve ........................................................................

23

HEATER CORE .................................................

24

Component ..............................................................

24

Removal and Installation  .........................................

25

INTAKE DOOR MOTOR  ...................................

26

Removal and Installation  .........................................

26

MODE DOOR MOTOR ......................................

27

Removal and Installation  .........................................

27

AIR MIX DOOR MOTOR  ...................................

28

Component ..............................................................

28

Removal and Installation  .........................................

29

DUCTS AND GRILLES  .....................................

31

Component ..............................................................

31

Removal and Installation  .........................................

33

2011 Pathfinder

VTL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006245358

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000006245359

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2011 Pathfinder

PRECAUTIONS

VTL-3

< PRECAUTION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

Precaution for Working with HFC-134a (R-134a)

INFOID:0000000006245360

WARNING:

• CFC-12 (R-12) refrigerant and HFC-134a (R-134a) refrigerant are not compatible. If the refrigerants

are mixed compressor failure is likely to occur. Refer to

HA-4, "Contaminated Refrigerant"

. To deter-

mine the purity of HFC-134a (R-134a) in the vehicle and recovery tank, use refrigerant recovery/recy-

cling equipment and refrigerant identifier.

• Use only specified oil for the HFC-134a (R-134a) A/C system and HFC-134a (R-134a) components. If

oil other than that specified is used, compressor failure is likely to occur.

• The specified HFC-134a (R-134a) oil rapidly absorbs moisture from the atmosphere. The following

handling precautions must be observed:

- When removing refrigerant components from a vehicle, immediately cap (seal) the component to

minimize the entry of moisture from the atmosphere.

- When installing refrigerant components to a vehicle, do not remove the caps (unseal) until just

before connecting the components. Connect all refrigerant loop components as quickly as possible

to minimize the entry of moisture into system.

- Only use the specified oil from a sealed container. Immediately reseal containers of oil. Without

proper sealing, oil will become moisture saturated and should not be used.

- Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat.

Remove HFC-134a (R-134a) from the A/C system using certified service equipment meeting require-

ments of SAE J2210 [HFC-134a (R-134a) recycling equipment], or SAE J2209 [HFC-134a (R-134a)

recovery equipment]. If accidental system discharge occurs, ventilate work area before resuming

service. Additional health and safety information may be obtained from refrigerant and oil manufac-

turers.

- Do not allow the refrigerant oil to come in contact with styrofoam parts. Damage may result.

Precaution for Work

INFOID:0000000008199833

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components.

- Water soluble dirt: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the dirty

area.

Then rub with a soft and dry cloth.

- Oily dirt: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the dirty area.

Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with

a soft and dry cloth.

• Do not use organic solvent such as thinner, benzene, alcohol, or gasoline.

• For genuine leather seats, use a genuine leather seat cleaner.

2011 Pathfinder

VTL-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000006824017

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000006245362

Tool number
(Kent-Moore No.)
Tool name

Description

(J-46534)
Trim tool set

For removing trim

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening bolts, screws and nuts

PIIB1407E

2011 Pathfinder

IN-CABIN MICROFILTER

VTL-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

SYSTEM DESCRIPTION

IN-CABIN MICROFILTER

Description

INFOID:0000000006245363

FUNCTION

The air inside the passenger compartment is filtered by the in-cabin

microfilters when the heater or A/C controls are set on either the

recirculation or fresh mode. The two in-cabin microfilters are located

in the front heater and cooling unit assembly. The rear heater and

cooling unit assembly only draws in air from the passenger compart-

ment to recirculate into the passenger compartment, so the rear

heater and cooling unit assembly is not equipped with in-cabin

microfilters.

REPLACEMENT TIMING

Replacement of the two in-cabin microfilters is recommended on a regular interval depending on the driving

conditions. Refer to

MA-11, "FOR USA AND CANADA : Introduction to Periodic Maintenance"

 (United States

and Canada) or

MA-15, "FOR MEXICO : Periodic Maintenance Schedule"

 (Mexico). It may also be necessary

to replace the two in-cabin microfilters as part of a component replacement if the in-cabin microfilters are dam-

aged.

LJIA0012E

2011 Pathfinder

VTL-6

< PERIODIC MAINTENANCE >

IN-CABIN MICROFILTER

PERIODIC MAINTENANCE

IN-CABIN MICROFILTER

Removal and Installation

INFOID:0000000006245364

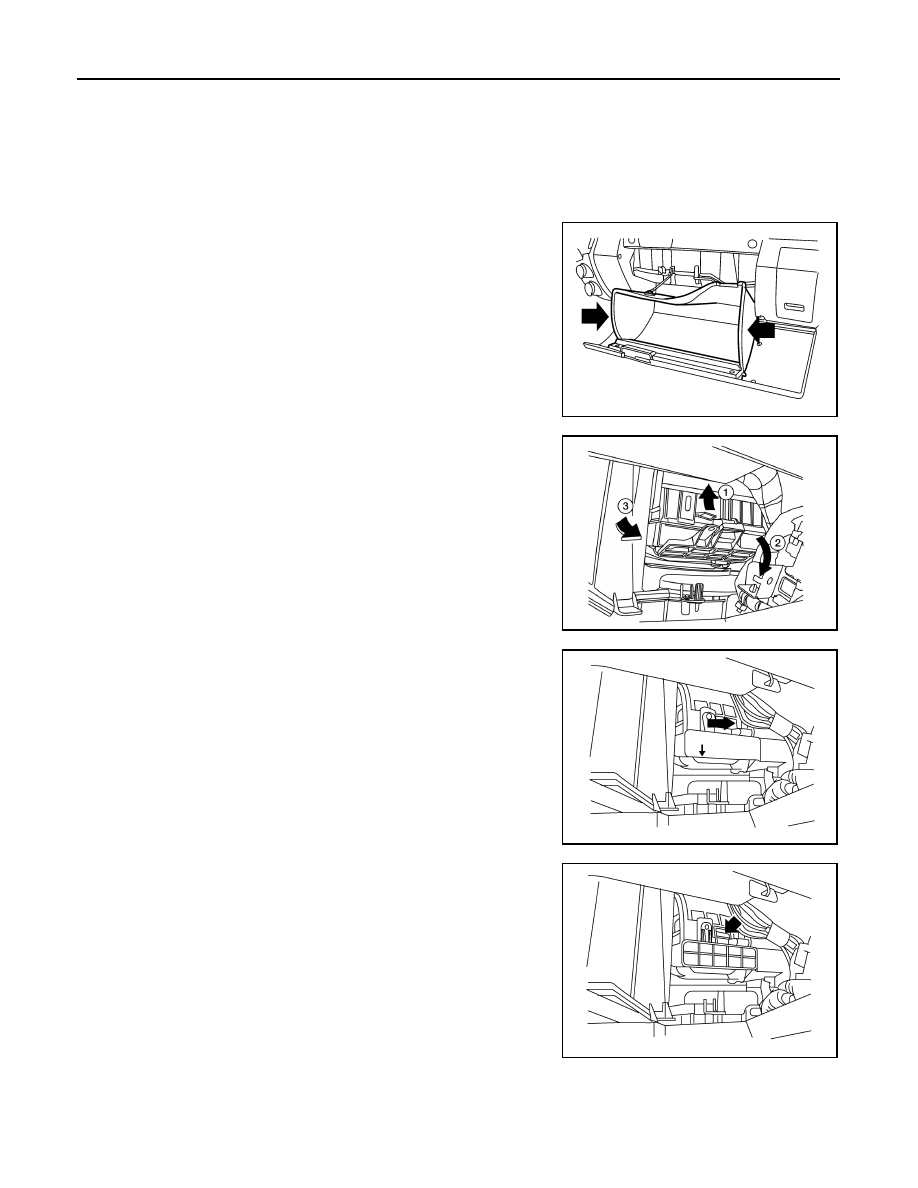

REPLACEMENT PROCEDURE

1. Open the lower glove box and press in on the sides as shown so

that it will open completely, allowing it to hang by the cord.

2. Gently lift up on the lock tab (1) then pull the in-cabin microfilter

cover rearward (toward the rear of the vehicle) and then down

(2) to remove the in-cabin microfilters (3) from the front heater

and cooling unit housing.

CAUTION:

Use care when lifting up on the tab to avoid damaging it.

3. Insert the first new in-cabin microfilter into the front heater and

cooling unit housing and slide it over to the right. Insert the sec-

ond new in-cabin microfilter into the front heater and cooling unit

housing as shown.

NOTE:

The in-cabin microfilters are marked with air flow arrows. The

end of the microfilter with the arrow should face the rear of the

vehicle. The arrows should point downward.

4. Install the in-cabin microfilter cover making sure the lock tab is

securely locked in place as shown.

5. Close the lower glove box completely.

WLIA0023E

AWIIA1431ZZ

ALIIA0360ZZ

ALIIA0359ZZ

2011 Pathfinder

CONTROL UNIT

VTL-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REMOVAL AND INSTALLATION

CONTROL UNIT

Removal and Installation

INFOID:0000000006245365

FRONT AIR CONTROL (MANUAL A/C)

Removal

1. Remove the AT finisher. Refer to

IP-11, "Exploded View"

2. Remove the cup holder.
3. Remove cluster lid C (2). Refer to

IP-11, "Exploded View"

.

4. Remove the 4 screws securing the front air control to cluster lid C (2).
5. Remove the front air control (1).

Installation

Installation is in the reverse order of removal.

A/C AND AV SWITCH ASSEMBLY (AUTOMATIC A/C)

Removal and Installation

The front A/C switch is integrated into the A/C and AV switch assembly in cluster lid C in the instrument panel.

Refer to

AV-33, "Removal and Installation"

 Base,

AV-258, "Removal and Installation"

 Bose without Navi,

AV-

422, "Removal and Installation"

 Bose with Navi.

A/C AUTO AMP. (AUTOMATIC A/C)

Removal

Remove the display unit. Refer to

AV-33, "Removal and Installation"

 Base

AV-258, "Removal and Installation"

Bose without Navi,

AV-422, "Removal and Installation"

 Bose with Navi.

Installation

Installation is in the reverse order of removal.

REAR AIR CONTROL (FRONT)

Removal

1. Remove the front roof console finisher from the front roof console. Refer to

INT-22, "Removal and Installa-

tion"

.

2. Remove the 4 rear air control (front) screws (A), disconnect the

rear air control (front) connector and remove the rear air control

(front) (1) from the front roof console.

AWIIA1575ZZ

ALIIA0135ZZ

2011 Pathfinder















Content      ..     615      616      617      618     ..
