STEERING GEAR AND LINKAGE

ST-35

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

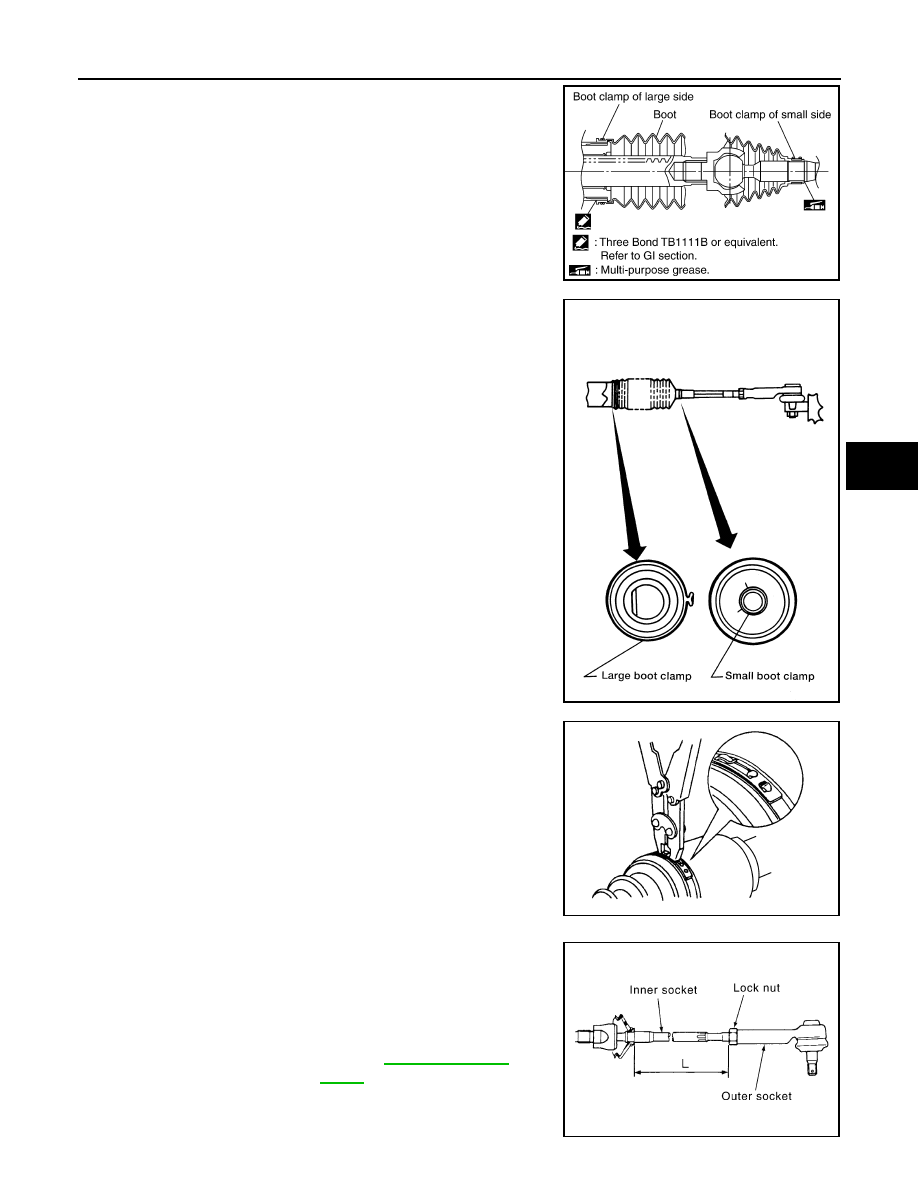

2. Install the large-diameter side of the boots to the gear housing

assembly.

3. Install the small-diameter side of the boots to the groove of the

inner sockets.

4. Install the boot clamps to the boots, as shown.

CAUTION:

Do not reuse the large boot clamps.

5. Crimp the large boot clamps, using Tool.

6. Install the cylinder tubes to the gear housing assembly.
7. Install the lock nuts and outer sockets to the inner sockets.

8. Thread the outer sockets onto the inner sockets to the specified

length (L) and a minimum thread depth of 18 mm threads. Then

tighten the lock nuts to the specified torque. Refer to "Disassem-

bly and Assembly". Reconfirm that the tie-rod length (L) is within

specification.

SGIA0550E

AST139

Tool number : KV40107300 ( — )

RAC1133D

Maximum inner socket
length (L)

Refer to

ST-36, "Steering

Gear"

.

SGIA0167E

2011 Pathfinder

ST-36

< SERVICE DATA AND SPECIFICATIONS (SDS)

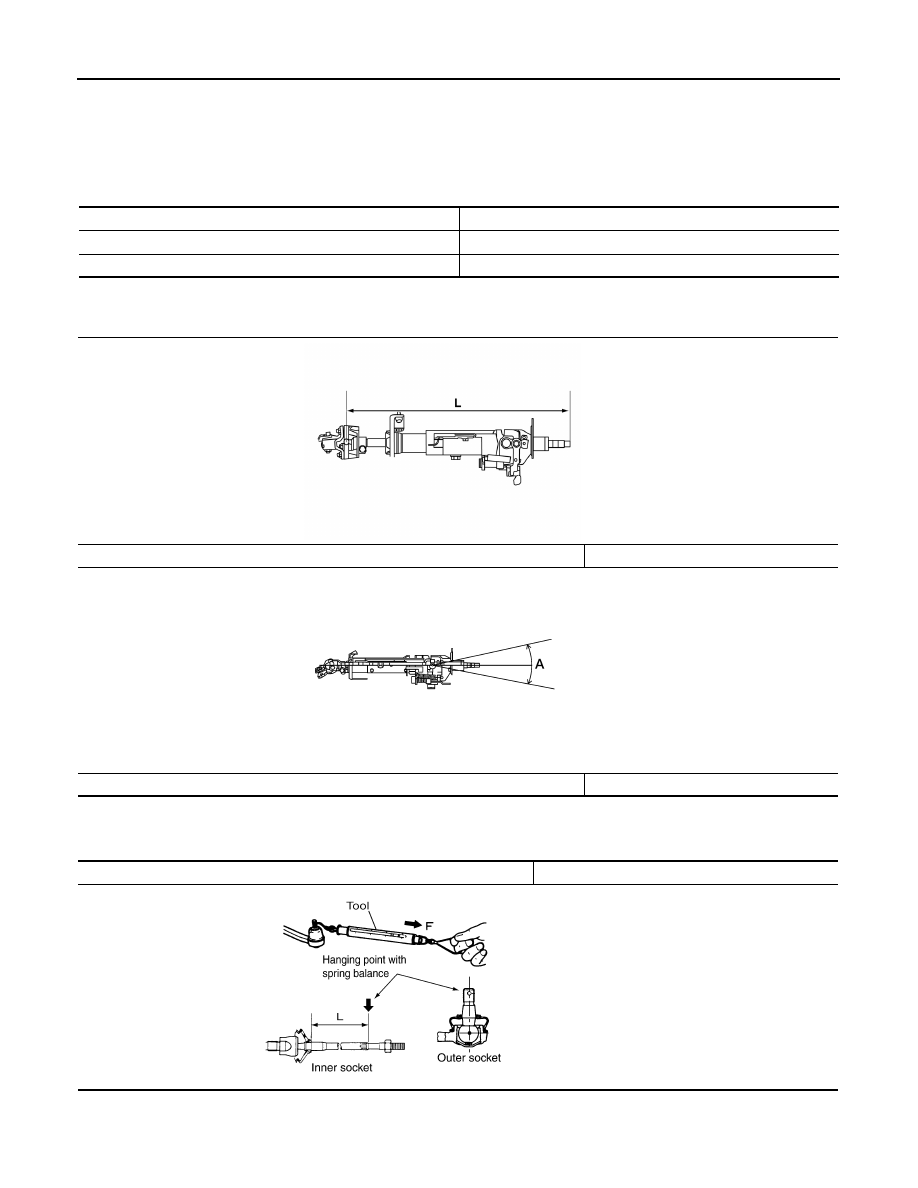

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Steering Wheel

INFOID:0000000006247252

Steering Column

INFOID:0000000006247253

Steering Gear

INFOID:0000000008188063

End play of the axle direction for steering wheel

0 mm (0 in)

Steering wheel turning force

39 N (4 kg, 9 lb) or less

Steering wheel play on the outer circumference

0

−

 35 mm (0

−

 1.38 in)

Steering column length (L)

553.0 mm (21.77 in)

Tilt range (A)

18

°

 - 21

°

 of tilt range

AWGIA0147ZZ

WGIA0083E

Steering gear type

PR26AM

AWGIA0153ZZ

2011 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

ST-37

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

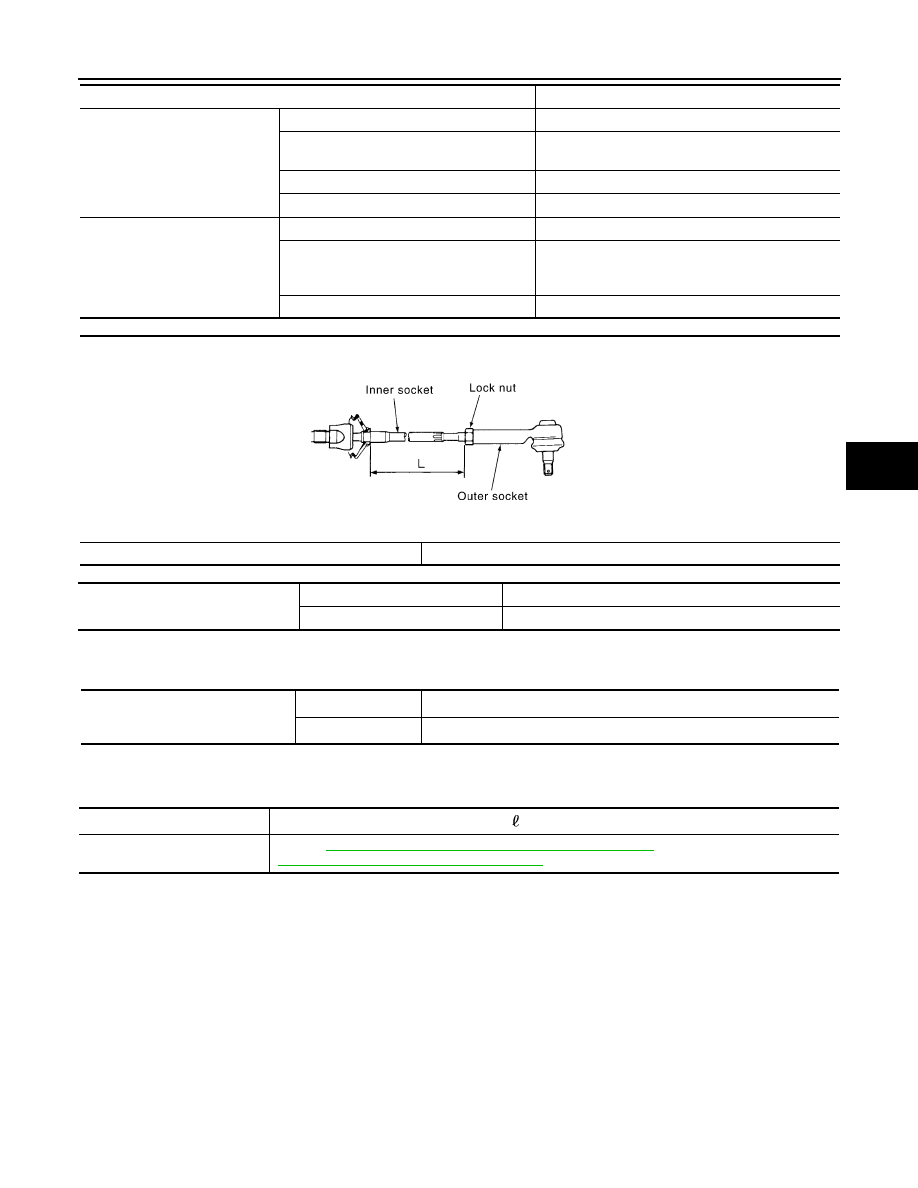

Oil Pump

INFOID:0000000006247255

Steering Fluid

INFOID:0000000008188072

Outer socket

Swinging torque

0.3

−

 2.9 N·m (0.03

−

 0.29 kg-m, 3

−

 25 in-lb)

Measurement on spring balance
• Measuring point: cotter pin hole of stud

4.84

−

 46.7 N (0.50

−

 4.7 kg, 4

−

 34 lb)

Rotating torque

0.3

−

 2.9 N·m (0.03

−

 0.29 kg-m, 3

−

 25 in-lb)

Axial end play

0.5 mm (0.020 in) or less

Inner socket

Swinging torque

1.0

−

 7.8 N·m (0.11

−

 0.79 kg-m, 9

−

 69 in-lb)

Measurement on spring balance
• Measuring point: L mark see above,

L=84.0 mm (3.307 in) max.

12.1

−

 93.7 N (1.3

−

 9.5 kg, 9

−

 69 lb)

Axial end play

0.2 mm (0.08 in) or less

Maximum inner socket length (L)

84.0 mm (3.31 in) max

Steering gear type

PR26AM

SGIA0167E

Rack sliding force

Standard

280

±

 30 N (28.6

±

 3.1 kg, 62.9

±

 6.7 lb)

Minimum

210 N (21.4 kg, 47.2 lb)

Oil pump hydraulic relief pressure

VQ40DE Engine

8.3 + 0.5 - 0.3 mPa (84.66 + 5.10 - 3.06 kg/cm

2

, 1203.5 + 72.5 - 43.5 psi)

VK56DE Engine

9.3 + 0.5 - 0.3 mPa (94.86 + 5.10 - 3.06 kg/cm

2

, 1348.5 + 72.5 - 43.5 psi)

Fluid capacity

Approx. 1.0   (2 1/8 US pt, 1 3/4 Imp pt)

Fluid type

Refer to

MA-18, "FOR USA AND CANADA : Fluids and Lubricants"

 for United States and Canada,

MA-20, "FOR MEXICO : Fluids and Lubricants"

  for Mexico.

2011 Pathfinder

STR-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

STR

A

STR

N

O

P

CONTENTS

STARTING SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Power Generation Variable Voltage
Control System ..........................................................

2

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

2

Precaution for Work  ..................................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

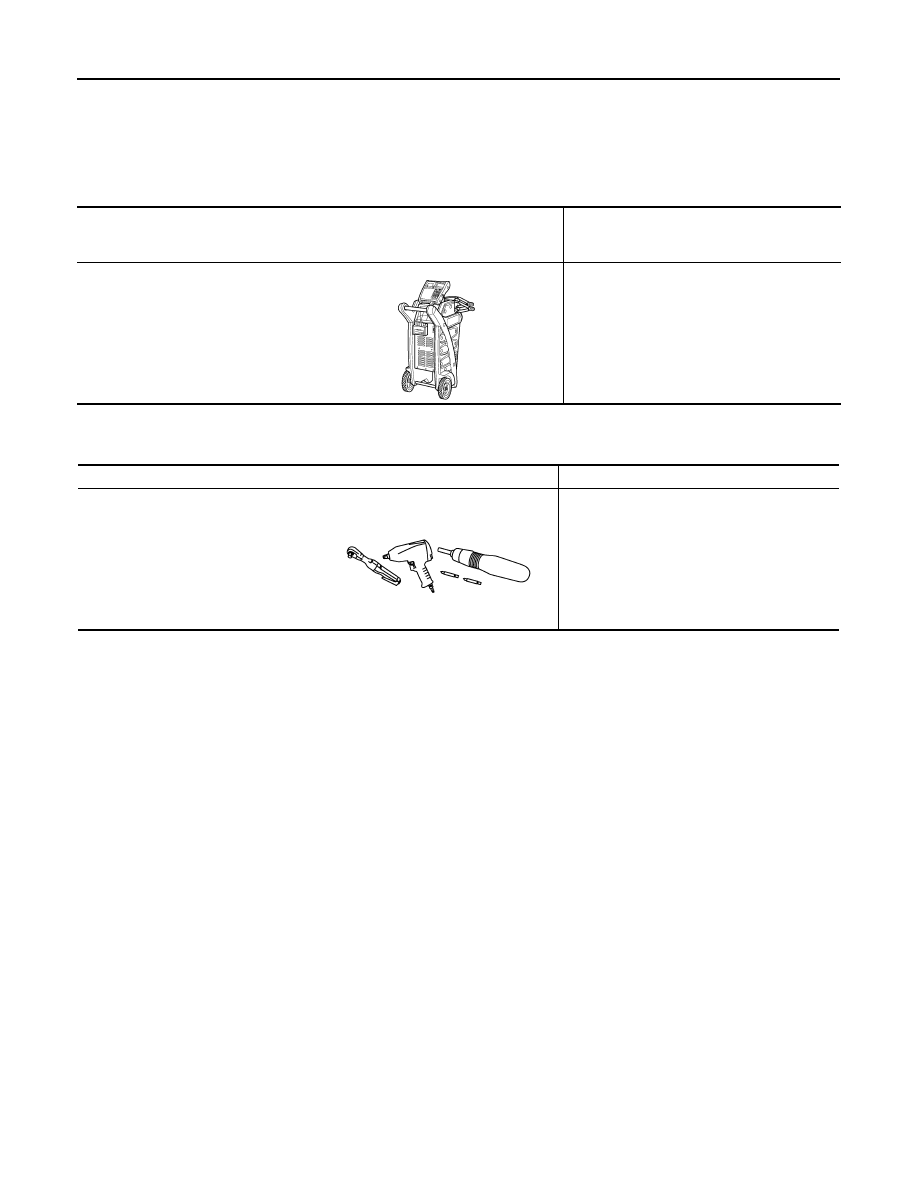

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

BASIC INSPECTION  ....................................

5

DIAGNOSIS AND REPAIR WORKFLOW  ..........

5

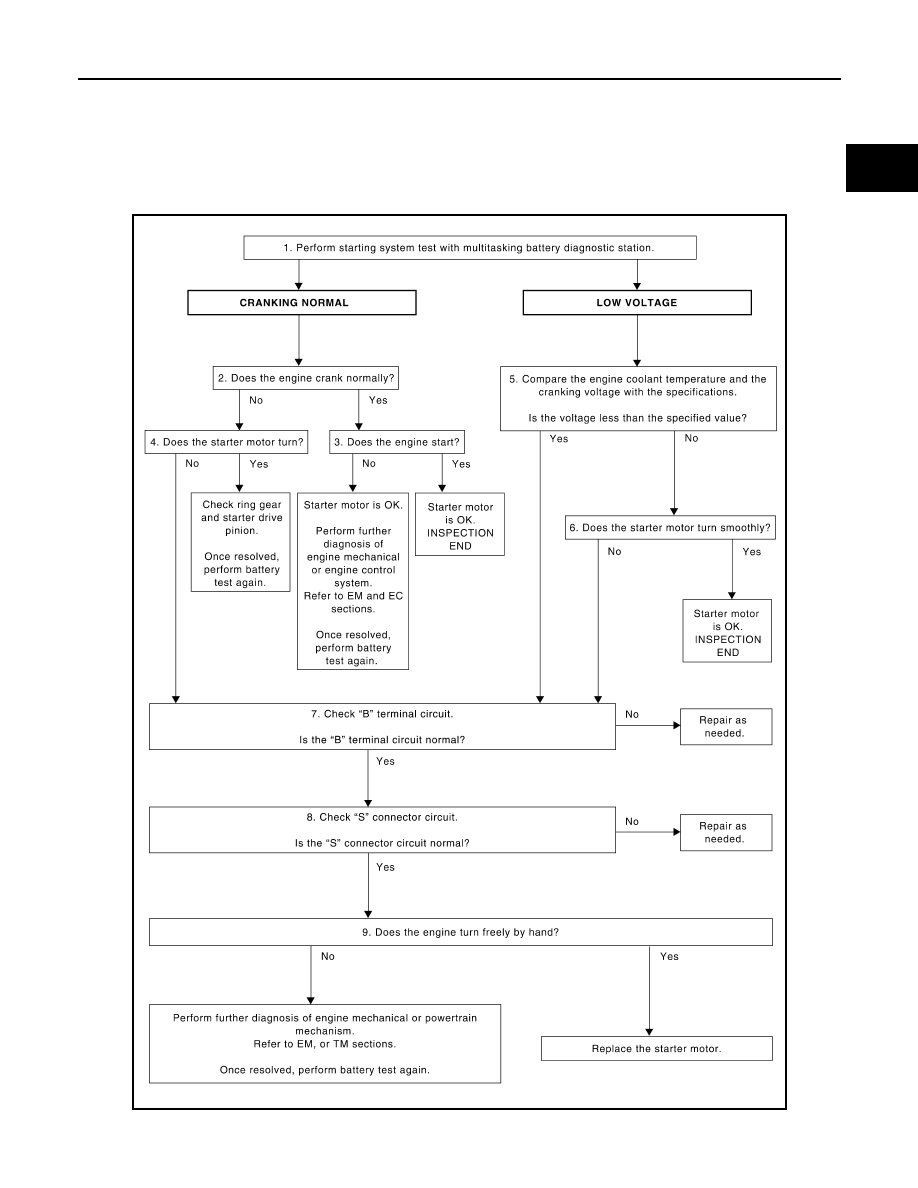

Work Flow  .................................................................

5

SYSTEM DESCRIPTION  ..............................

8

STARTING SYSTEM ...........................................

8

System Diagram ........................................................

8

System Description  ...................................................

8

Component Parts Location ........................................

8

Component Description ............................................

9

DTC/CIRCUIT DIAGNOSIS  .........................

10

B TERMINAL CIRCUIT  ......................................

10

Description ..............................................................

10

Diagnosis Procedure - VQ40DE  .............................

10

Diagnosis Procedure - VK56DE  ..............................

11

S CONNECTOR CIRCUIT .................................

13

Description ...............................................................

13

Diagnosis Procedure - VQ40DE ..............................

13

Diagnosis Procedure - VK56DE  ..............................

14

WIRING DIAGRAM ......................................

16

STARTING SYSTEM .........................................

16

Wiring Diagram - VQ40DE  ......................................

16

Wiring Diagram - VK56DE .......................................

20

SYMPTOM DIAGNOSIS  ..............................

24

STARTING SYSTEM .........................................

24

Symptom Table  .......................................................

24

REMOVAL AND INSTALLATION ...............

25

STARTER MOTOR  ...........................................

25

VQ40DE .....................................................................

25

VQ40DE : Exploded View ........................................

25

VQ40DE : Removal and Installation  ........................

25

VK56DE ......................................................................

26

VK56DE : Exploded View  ........................................

26

VK56DE : Removal and Installation  ........................

26

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

28

STARTER MOTOR  ...........................................

28

Starter ......................................................................

28

2011 Pathfinder

STR-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006752638

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Power Generation Variable Voltage Control System

INFOID:0000000006245746

CAUTION:

For this model, the battery current sensor that is installed to the negative battery cable measures the

charging/discharging current of the battery and performs various engine controls. If an electrical com-

ponent is connected directly to the negative battery terminal, the current flowing through that compo-

nent will not be measured by the battery current sensor. This condition may cause a malfunction of

the engine control system and battery discharge may occur. Do not connect an electrical component

or ground wire directly to the battery terminal.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000006245747

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

2011 Pathfinder

PRECAUTIONS

STR-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

Precaution for Work

INFOID:0000000006752639

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components.

- Water soluble dirt: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the dirty

area.

Then rub with a soft and dry cloth.

- Oily dirt: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the dirty area.

Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with

a soft and dry cloth.

• Do not use organic solvent such as thinner, benzene, alcohol, or gasoline.

• For genuine leather seats, use a genuine leather seat cleaner.

2011 Pathfinder

STR-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000008185222

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000008185223

Tool number
(Kent-Moore No.)
Tool name

Description

 —

(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station

Tests batteries, starting and charging sys-
tems and charges batteries.
For operating instructions, refer to diagnostic
station instruction manual.

AWIIA1239ZZ

Tool name

Description

Power tool

Loosening bolts, screws and nuts.

PIIB1407E

2011 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

STR-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006245750

OVERALL SEQUENCE

DETAILED FLOW

AWBIA0755GB

2011 Pathfinder
