PRECAUTIONS

ST-3

< PRECAUTION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006247229

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000006247230

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2011 Pathfinder

ST-4

< PRECAUTION >

PRECAUTIONS

5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2011 Pathfinder

PREPARATION

ST-5

< PREPARATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

PREPARATION

PREPARATION

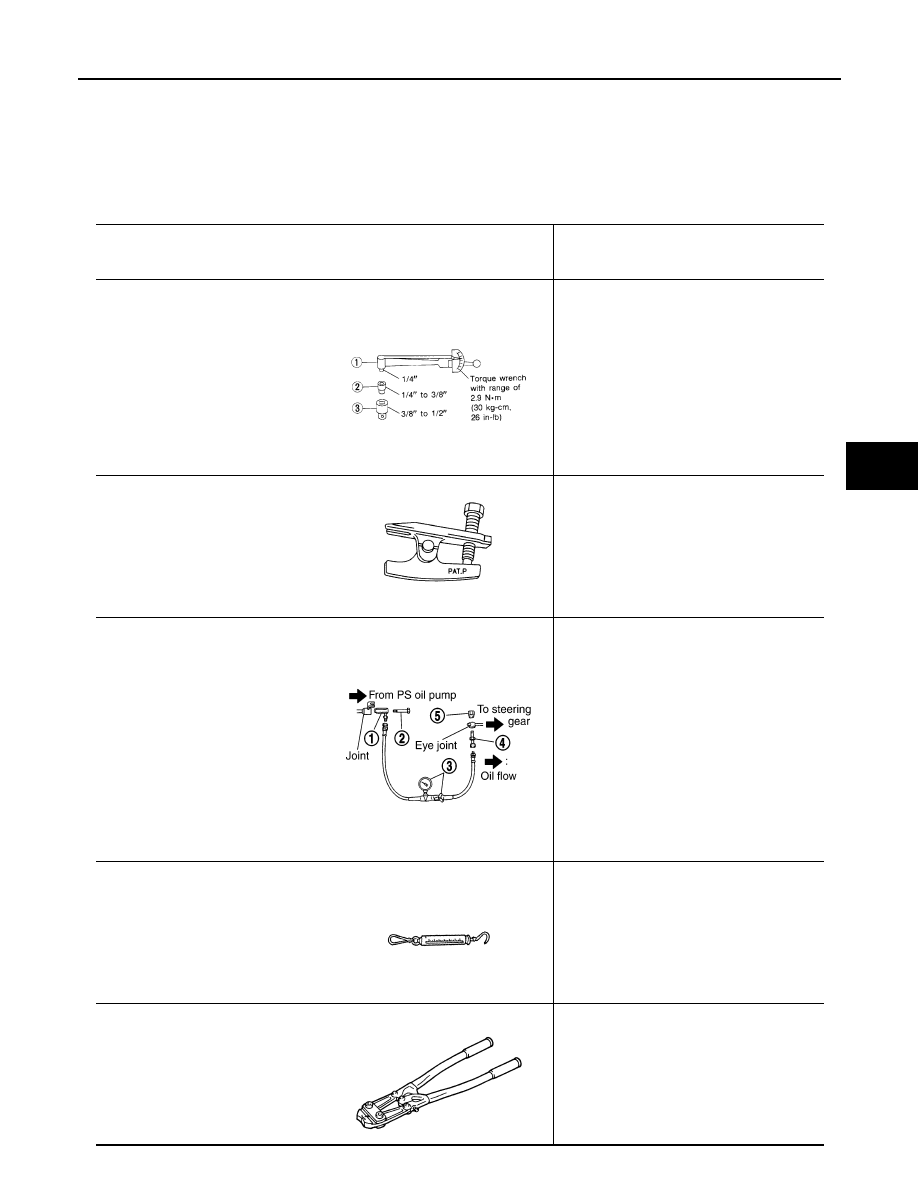

Special Service Tool

INFOID:0000000006247231

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST3127 S000
(See J-25765-A)
Preload gauge
 1. GG9103000
    (J-25765-A)
    Torque wrench
 2. HT62940000
   (

)

   Socket adapter
 3. HT62900000
   (

)

   Socket adapter

Inspecting of pinion rotating torque and rota-
tional torque for ball joint

HT72520000
(J-25730-A)
Ball joint remover

Removing steering outer socket

1. KV48105300-4 and 5295262U10
(

)

Connector A and O-ring
2. KV48105300-3 and 5295262U00
(

)

Eye-bolt and O-ring
3. KV48103500
(J-26357 and J-26357-10)
Pressure gauge and shut-off valve
4. KV48105300-1 and 5295262U00
(

)

Connector B and O-ring
5. KV48105300-2
(

)

Nut

Measuring oil pump relief pressure

(J-44372)
Spring gauge

Measuring steering wheel turning force

KV40107300
(

)

Boot band crimping tool

Crimping boot bands

S-NT541

NT146

SGIA0427E

LST024

ZZA1229D

2011 Pathfinder

ST-6

< PREPARATION >

PREPARATION

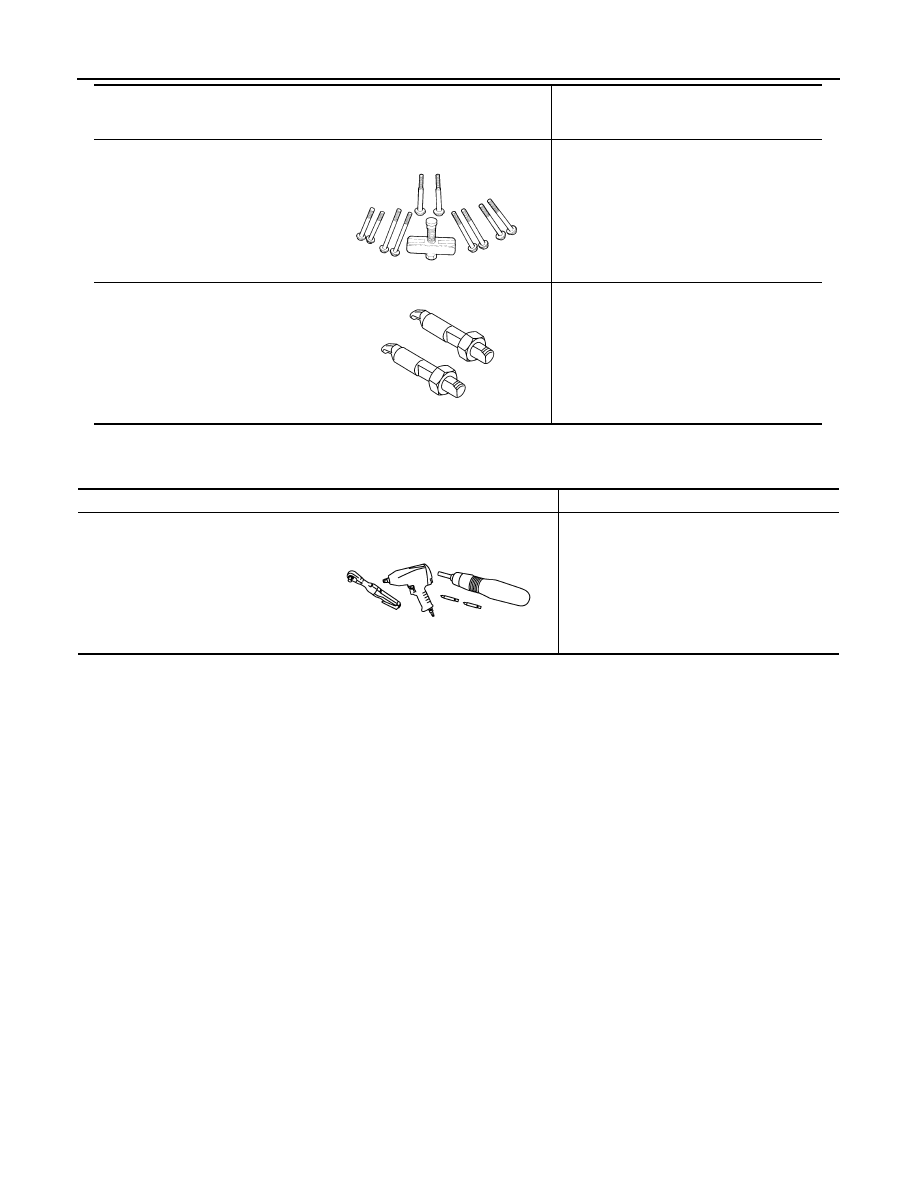

Commercial Service Tool

INFOID:0000000006247232

KV481J0010
(J-1859A)
Steering wheel puller

Removing steering wheel

KV481J0020
(J-42578)
Steering wheel puller legs

Removing steering wheel

Tool number
(Kent-Moore No.)
Tool name

Description

LHIA0043E

LHIA0044E

Tool name

Description

Power tool

Loosening bolts, screws and nuts.

PIIB1407E

2011 Pathfinder

HEATED STEERING WHEEL

ST-7

< SYSTEM DESCRIPTION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

SYSTEM DESCRIPTION

HEATED STEERING WHEEL

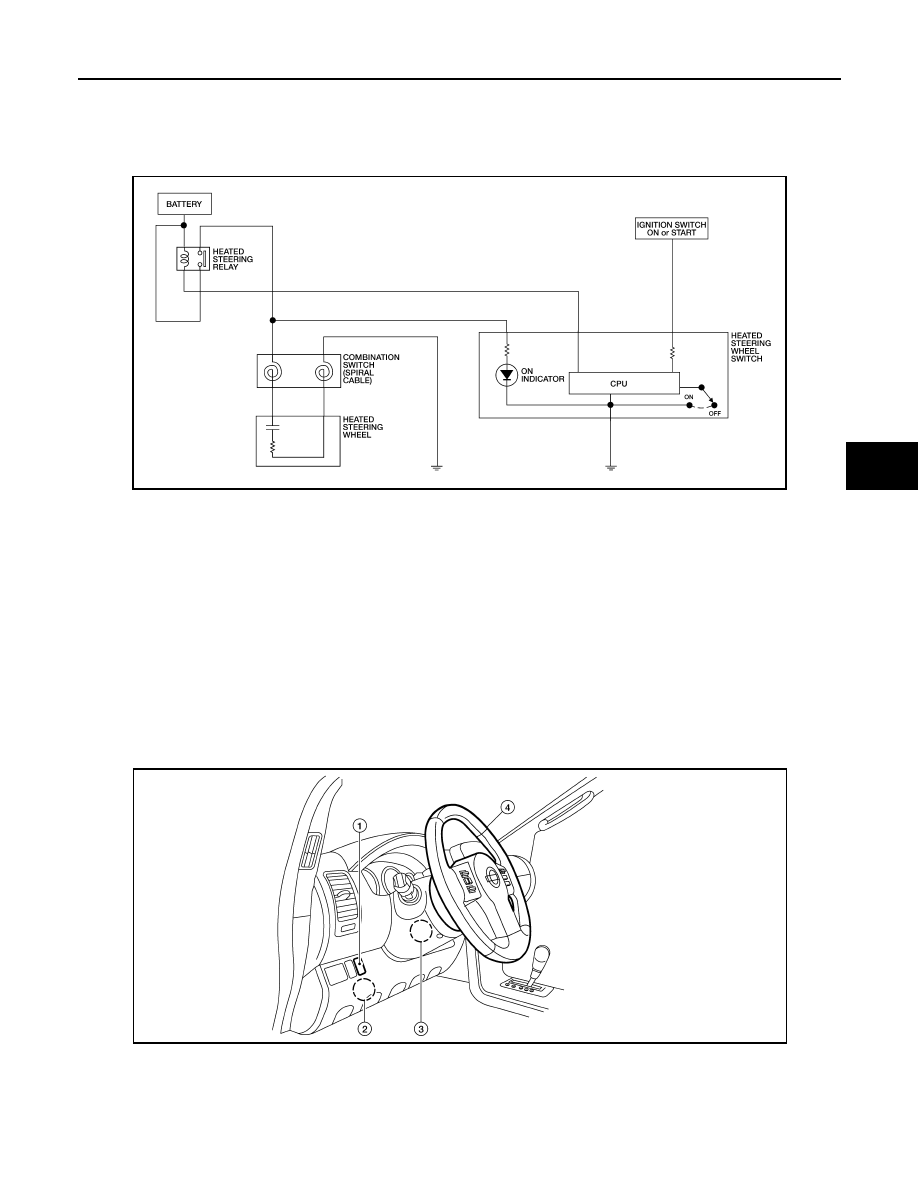

System Diagram

INFOID:0000000006247233

System Description

INFOID:0000000006247234

The heated steering wheel switch controls the heated steering relay. When the switch is turned on, the relay is

energized and the heated steering system will operate. The heated steering system will turn off when the

steering wheel temperature reaches approximately 86

°

F (30

°

C). Heated steering system operation can also

be canceled by pressing the heated steering wheel switch again.

NOTE:

If the surface temperature of the steering wheel is below 68

°

 F (20

°

 C), the system will heat the steering wheel

and cycle off and on to maintain a temperature above 68

°

 F (20

°

 C). The indicator light will remain on as long

as the system is on. Push the switch again to turn the heated steering wheel system off manually. The indica-

tor light will go off.

Component Parts Location

INFOID:0000000006247235

AWGIA0022GB

1.

Heated steering wheel switch M7

2.

Heated steering relay M2

3.

Combination switch (spiral cable) M5

4.

Heated steering wheel M114

ALGIA0025ZZ

2011 Pathfinder

ST-8

< SYSTEM DESCRIPTION >

HEATED STEERING WHEEL

Component Description

INFOID:0000000006247236

Heated steering wheel switch

• Controls the heated steering relay and operates the heated steering system.
• Turns the indicator lamp ON when the system is activated.

Heated steering relay

• Operates the heated steering system with the control signal from the heated steering

wheel switch.

Heated steering wheel

• Heats the heating element with the power supplied from the heated steering relay.

2011 Pathfinder

HEATED STEERING WHEEL

ST-9

< WIRING DIAGRAM >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

WIRING DIAGRAM

HEATED STEERING WHEEL

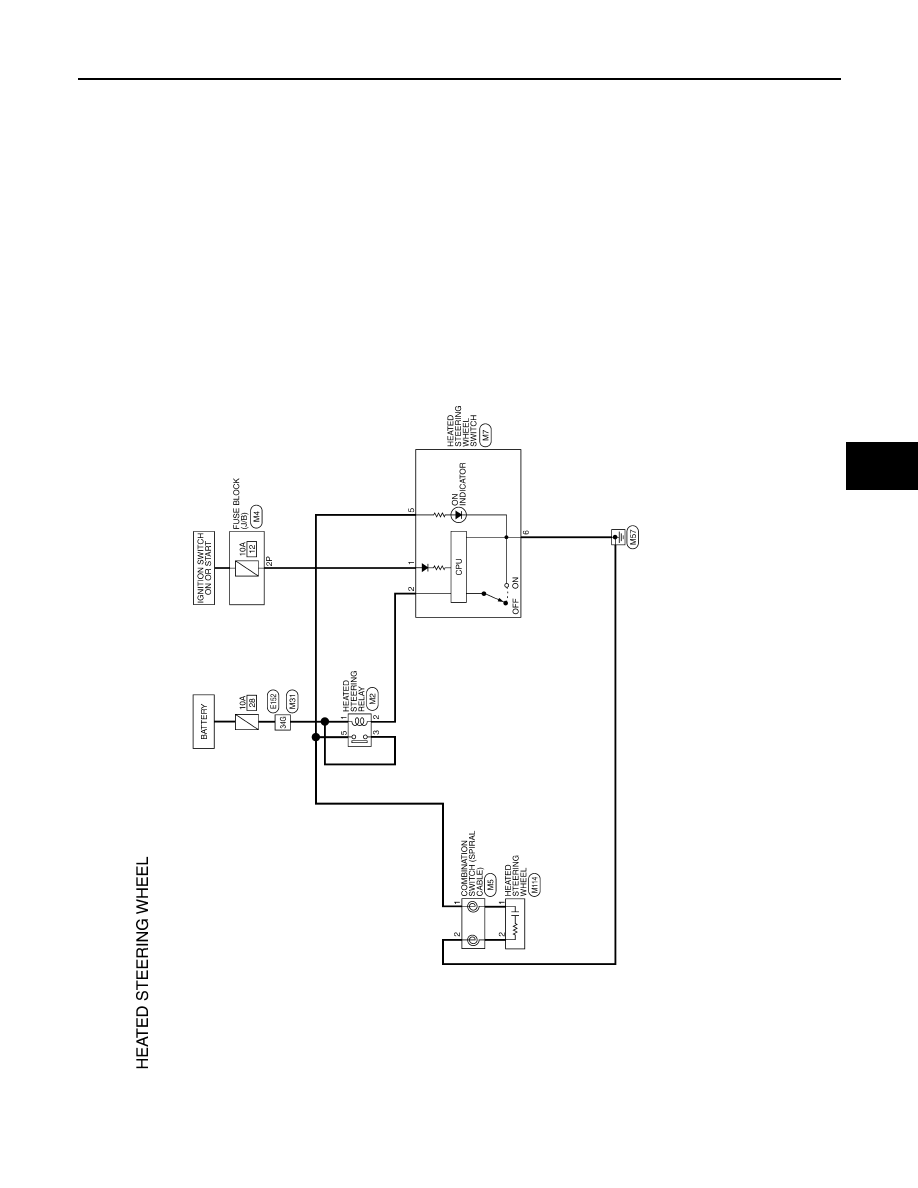

Wiring Diagram

INFOID:0000000006543764

ABGWA0025GB

2011 Pathfinder

ST-10

< WIRING DIAGRAM >

HEATED STEERING WHEEL

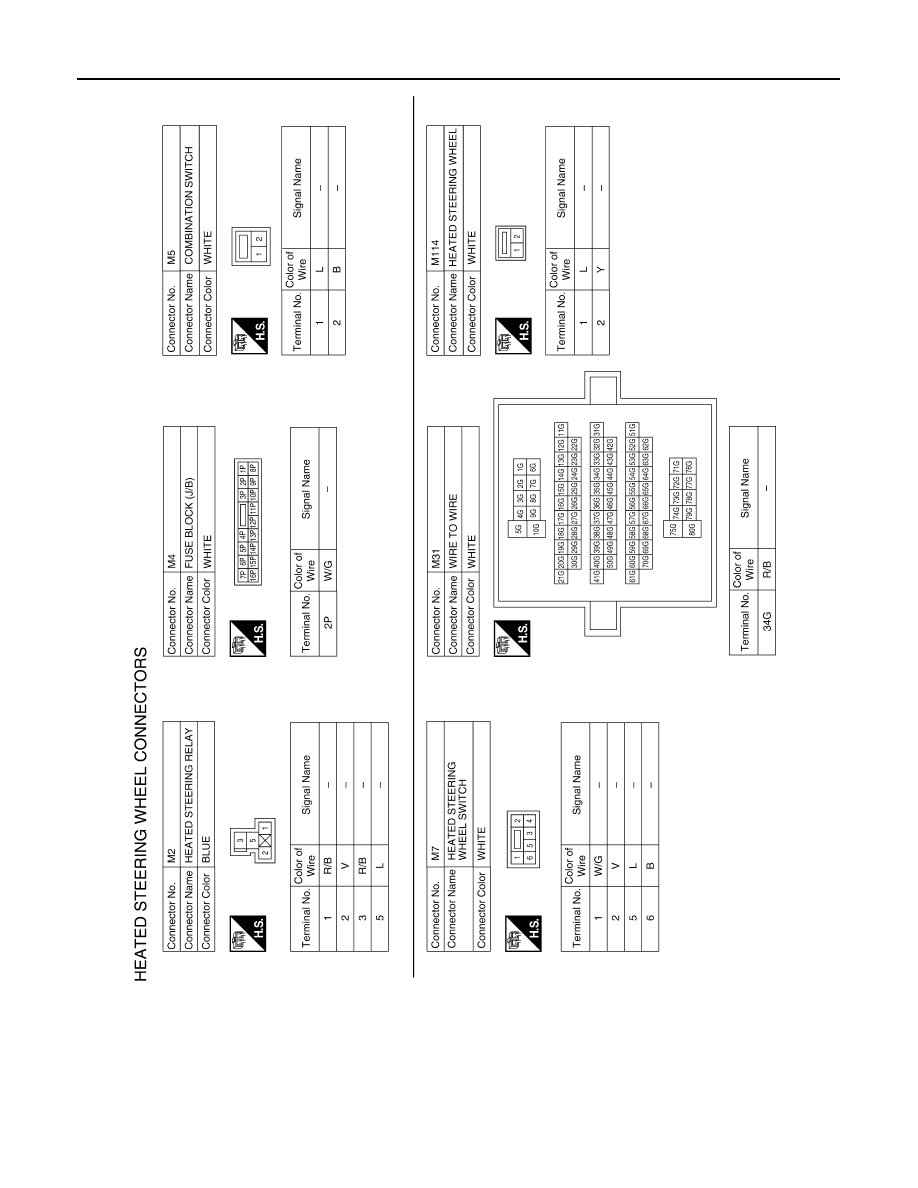

ABGIA0008GB

2011 Pathfinder
