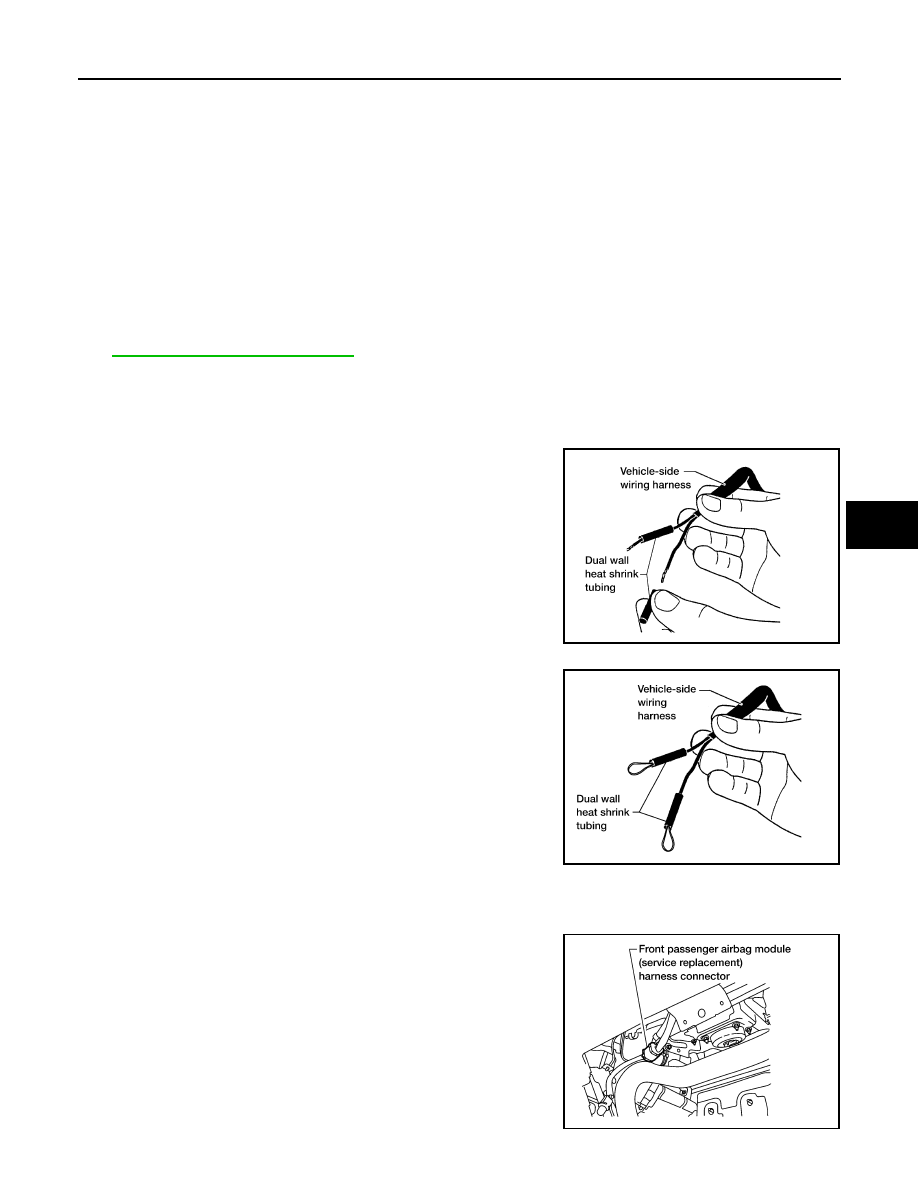

FRONT PASSENGER AIR BAG MODULE SR-11 < REMOVAL AND INSTALLATION > C D E F G I J K L M A B SR N O P air bag module is replaced or if the direct-connect harness connectors are damaged, the vehicle wiring har- ness must be modified to allow connection of the service replacement passenger air bag module. NOTE: The wiring harness modification is to be performed only if the vehicle is equipped with the original passenger air bag which uses direct-connect harness connectors. If the passenger air bag is to be replaced in a vehicle that has already had the service replacement passenger air bag installed, the wiring harness modification is not required. CAUTION: • Do not attempt to repair or replace damaged direct-connect front passenger air bag module connec- tors. If a direct-connect harness connector is damaged, the front passenger air bag must be replaced and the wiring harness modified. • Before servicing SRS, turn the ignition switch off, disconnect both battery terminals and wait at least 3 minutes. • Always work from the side of or under front passenger air bag module. • After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer 1. Locate the yellow and orange direct-connect passenger air bag module harness connectors. nectors from the vehicle wiring harness approximately 50 mm (1.9 in) from the connectors. 3. Remove approximately 150 mm (5.9 in) of the vehicle harness covering from the cut end. senger air bag service kit) onto each wire of the previously used vehicle wiring harness. 5. Fold each wire back and insert into the end of the heat shrink tubing so that the end of the wire is approximately centered in the heat shrink tubing. 6. Use a heat gun to shrink the heat shrink tubing and seal the wire. tor that is taped back to the main harness. Unwrap the tape to access the yellow service replacement connector and remove the dust cover from the connector. LHIA0017E WHIA0062E WHIA0118E 2011 Pathfinder |
