Nissan Pathfinder (2011 year). Manual - part 549

VEHICLE SECURITY SYSTEM

SEC-99

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

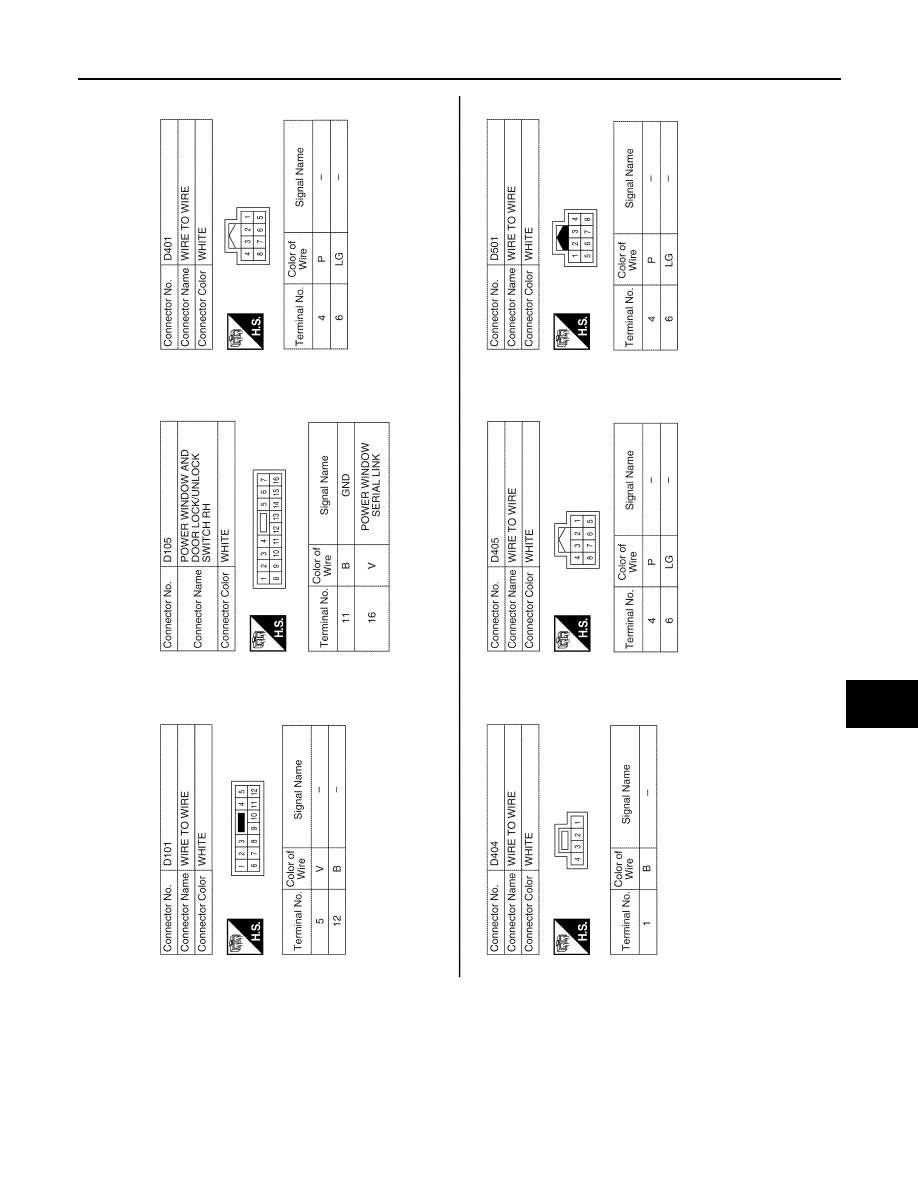

ABKIA1770GB

2011 Pathfinder

SEC-100

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

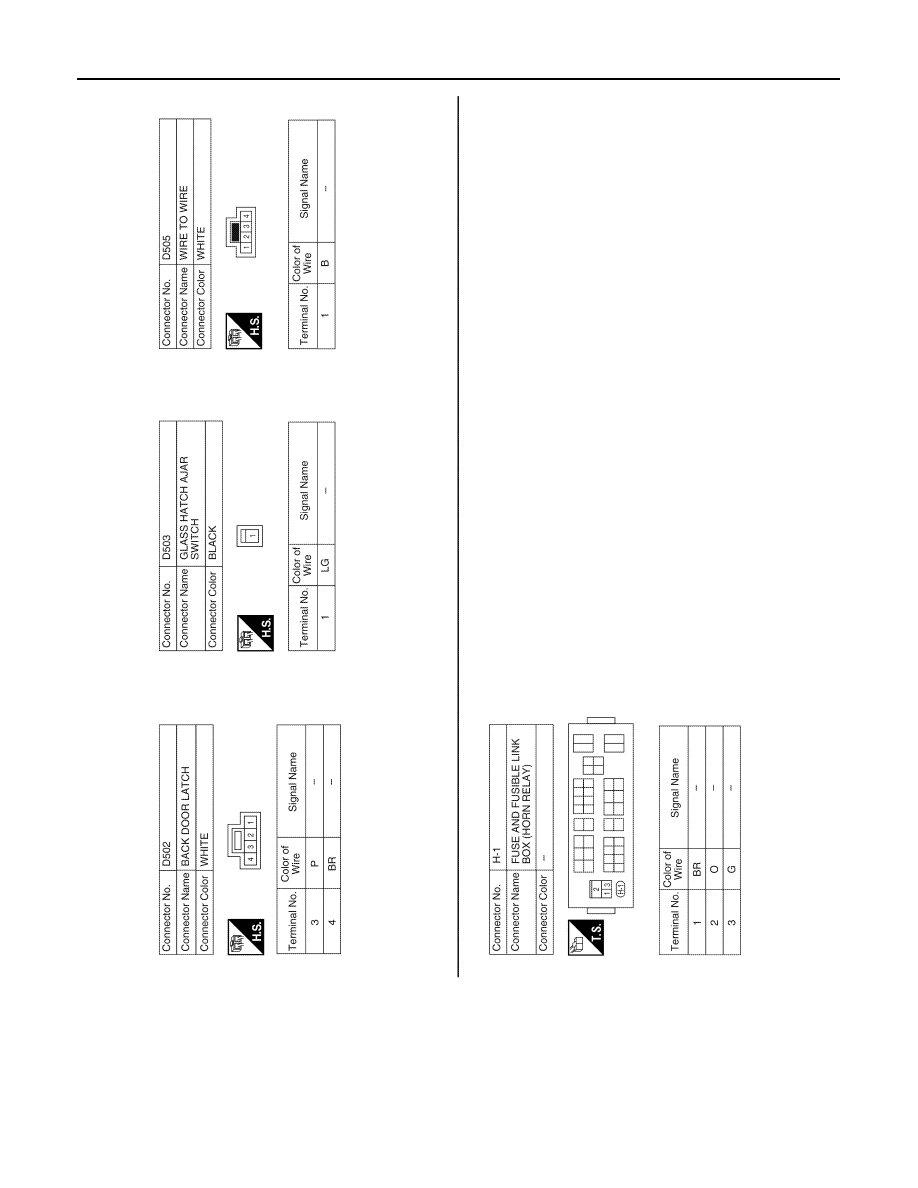

ABKIA1771GB

2011 Pathfinder

NVIS

SEC-101

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

NVIS

Wiring Diagram - With Intelligent Key System

INFOID:0000000006545121

ABKWA1710GB

2011 Pathfinder

SEC-102

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

NVIS

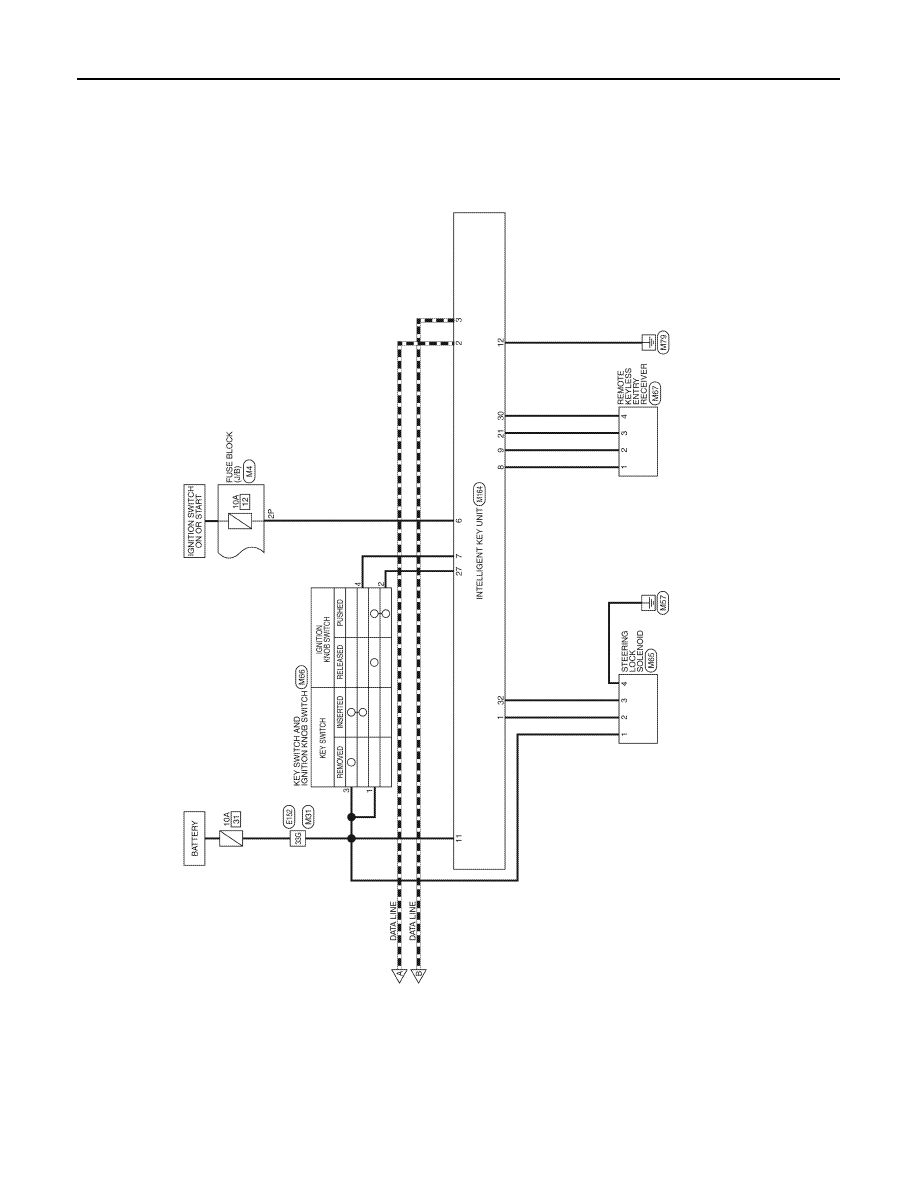

ABKWA0601GB

2011 Pathfinder

NVIS

SEC-103

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

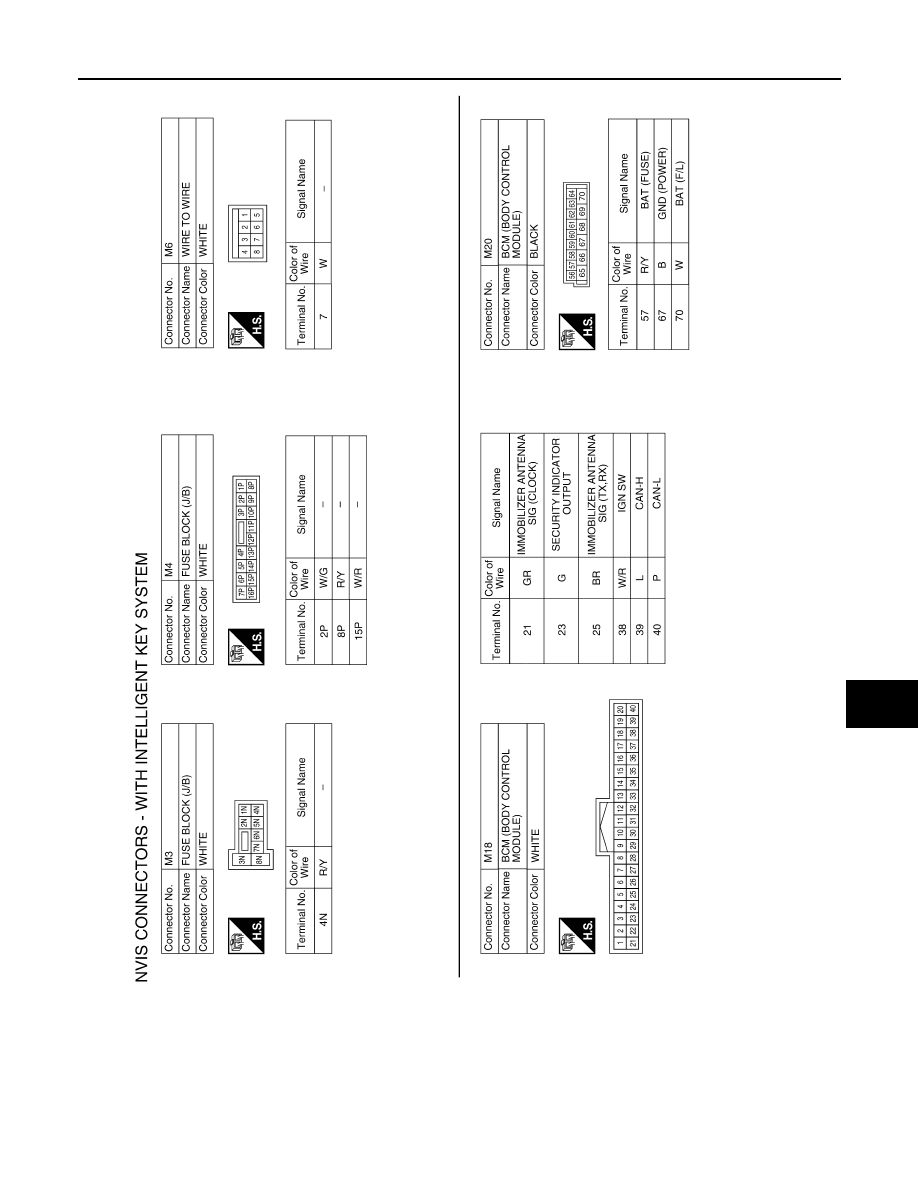

ABKIA1759GB

2011 Pathfinder

SEC-104

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

NVIS

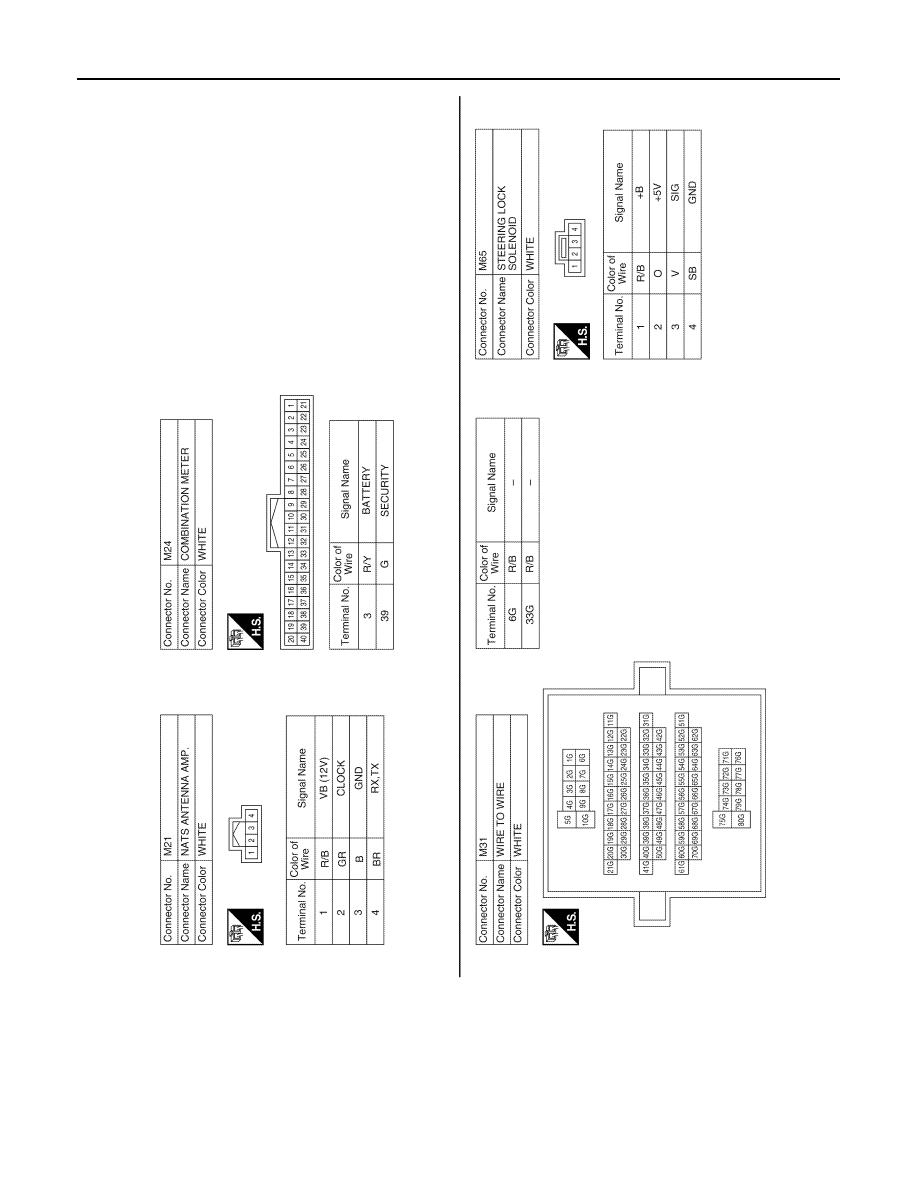

ABKIA1760GB

2011 Pathfinder

NVIS

SEC-105

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

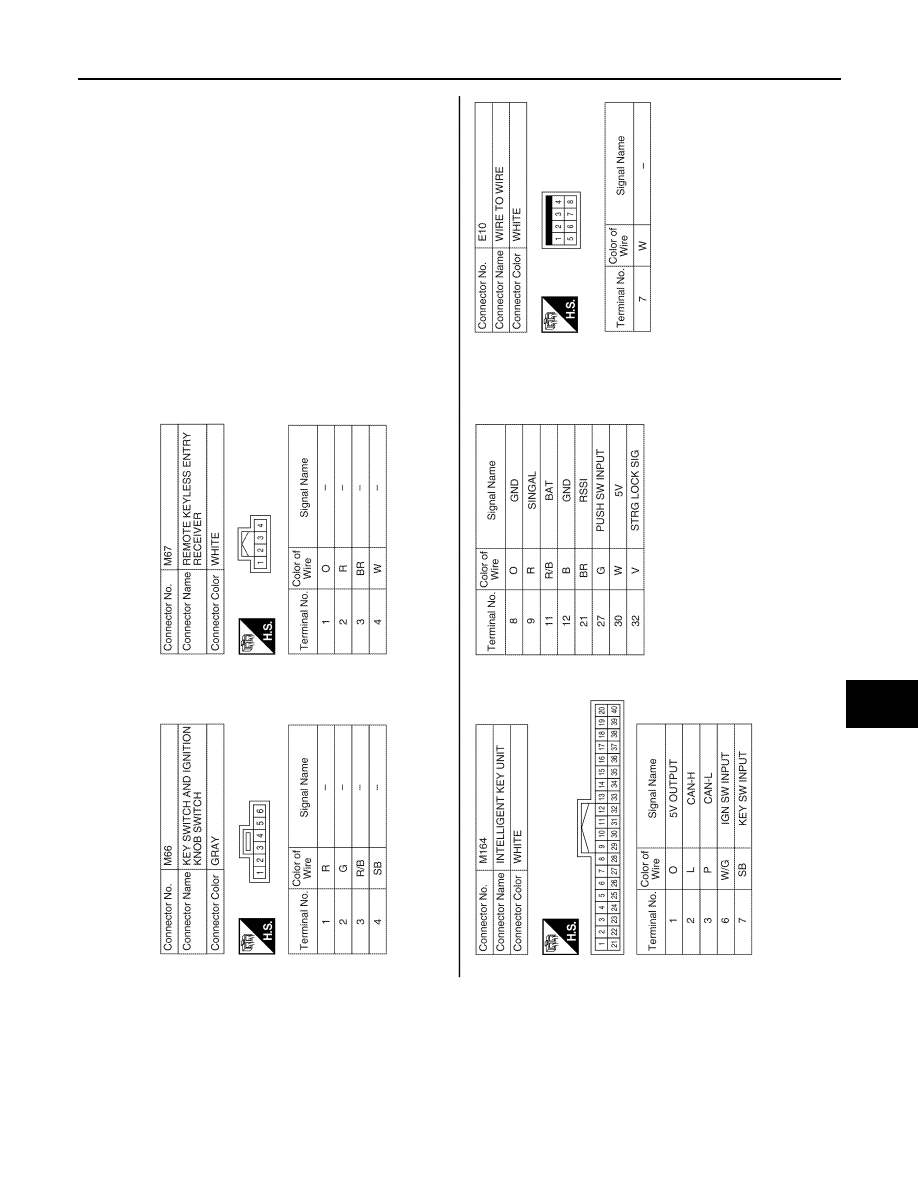

ABKIA1761GB

2011 Pathfinder

SEC-106

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

NVIS

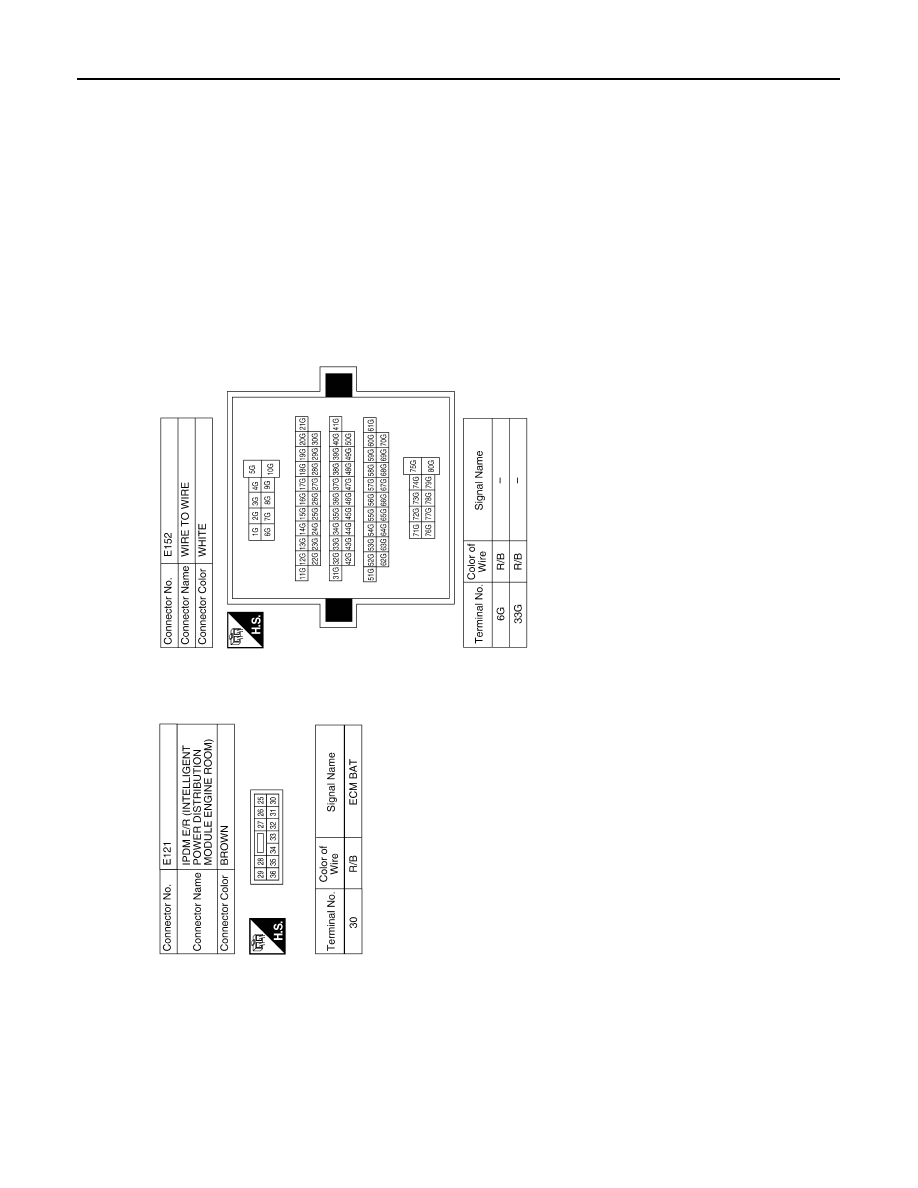

ABKIA2891GB

2011 Pathfinder
