Nissan Pathfinder (2011 year). Manual - part 541





B2190, P1614 NATS ANTENNA AMP.

SEC-35

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

6.

CHECK NATS ANTENNA AMP. SIGNAL LINE- 2

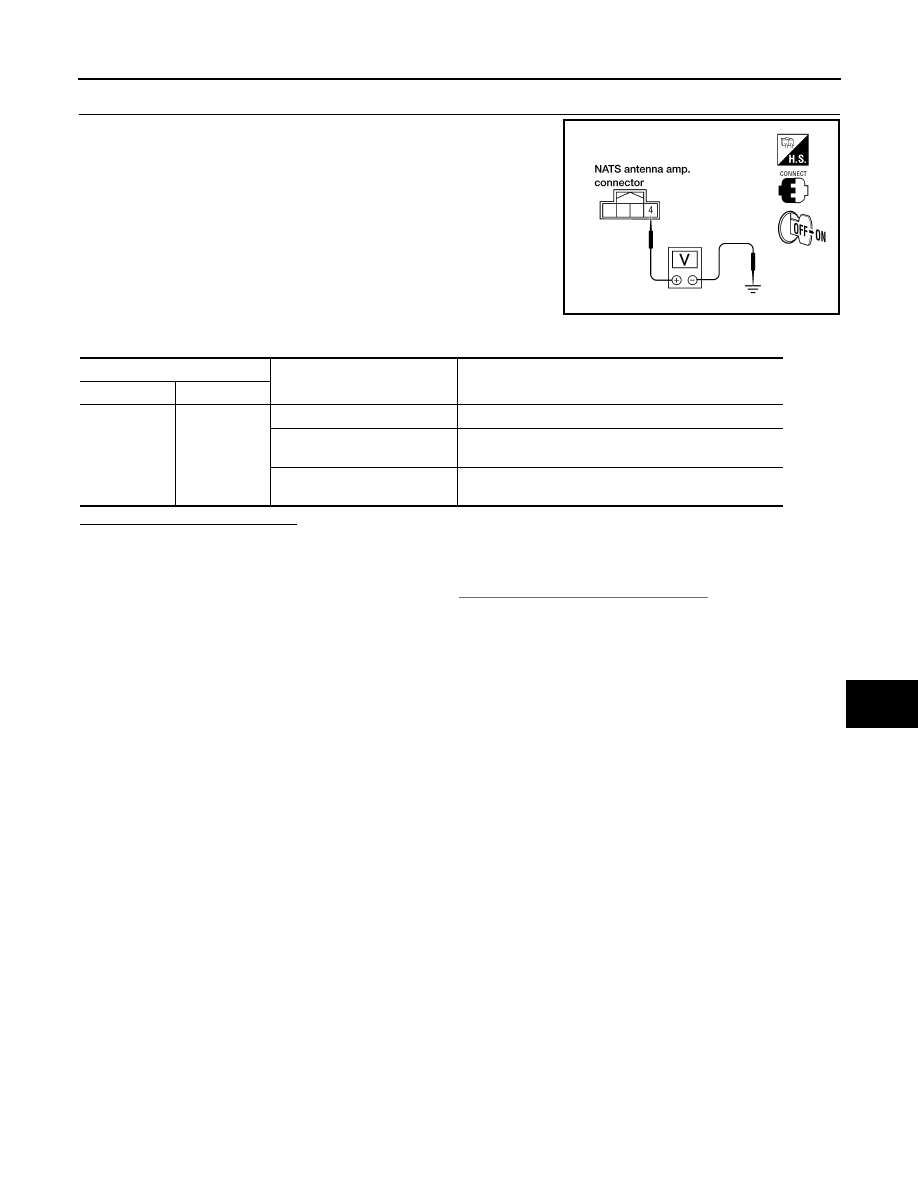

Check voltage between NATS antenna amp. connector M21 terminal

4 and ground with analog tester.

Is the inspection result normal?

YES

>> NATS antenna amp. is malfunctioning.

NO

>> • Repair or replace harness.

NOTE:

If harness is OK, replace BCM, refer to

BCS-55, "Removal and Installation"

. Perform initializa-

tion with CONSULT-III. For initialization, refer to “CONSULT-III Operation Manual”.

LIIA1282E

Terminals

Position of ignition key cylinder

Voltage (V)

(Approx.)

( + )

( - )

4

Ground

Before inserting ignition key

Battery voltage

After inserting ignition key

Pointer of tester should move for approx. 30 seconds,

then return to battery voltage

Just after turning ignition switch

ON

Pointer of tester should move for approx. 1 second, then

return to battery voltage

2011 Pathfinder

SEC-36

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2191, P1615 DIFFERENCE OF KEY

B2191, P1615 DIFFERENCE OF KEY

Description

INFOID:0000000006246224

Performs ID verification through BCM when ignition knob switch is pressed.

Prohibits the release of steering lock or start of engine when an unregistered ID of mechanical key is used.

DTC Logic

INFOID:0000000006246225

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Insert mechanical key into the key cylinder.

2. Press the ignition knob switch.

3. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-36, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000006246226

1.

PERFORM INITIALIZATION

Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.
Can the system be initialized and can the engine be started with re-registered mechanical key?

YES

>> Mechanical key was unregistered.

NO

>> BCM is malfunctioning.

• Replace BCM. Refer to

BCS-55, "Removal and Installation"

.

• Perform initialization again.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2191

DIFFERENCE OF
KEY

The ID verification results between BCM and me-
chanical key are NG. The registration is necessary.

Mechanical key

P1615

2011 Pathfinder

B2192, P1611 ID DISCORD, IMMU-ECM

SEC-37

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2192, P1611 ID DISCORD, IMMU-ECM

Description

INFOID:0000000006246227

BCM performs the ID verification with ECM that allows the engine to start. BCM starts the communication with

ECM if ignition switch is turned ON and starts the engine if the ID is OK. ECM prevents the engine from start-

ing if the ID is not registered.

DTC Logic

INFOID:0000000006246228

DTC DETECTION LOGIC

NOTE:

• If DTC B2192 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

SEC-28, "DTC Logic"

.

• If DTC B2192 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

SEC-29, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-37, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000006246229

1.

PERFORM INITIALIZATION

Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.
Can the system be initialized and can the engine be started with re-registered mechanical key?

YES

>> ID was unregistered.

NO

>> GO TO 2

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-55, "Removal and Installation"

.

2. Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.

Can the system be initialized and can the engine be started with re-registered mechanical key?

YES

>> BCM is malfunctioning.

NO

>> GO TO 3

3.

REPLACE ECM

1. Replace ECM. Refer to Removal and Installation.

2. Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.

Can the system be initialized and can the engine be started with re-registered mechanical key?

YES

>> ECM is malfunctioning.

NO

>> GO TO 4

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2192

ID DISCORD BCM-
ECM

The ID verification results between BCM and ECM
are NG. The registration is necessary.

• BCM
• ECM

P1611

2011 Pathfinder

SEC-38

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2192, P1611 ID DISCORD, IMMU-ECM

>> Inspection End.

2011 Pathfinder

B2193, P1612 CHAIN OF ECM-IMMU

SEC-39

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2193, P1612 CHAIN OF ECM-IMMU

Description

INFOID:0000000006246230

BCM performs the ID verification with ECM that allows the engine to start. BCM starts the communication with

ECM if ignition switch is turned ON and starts the engine if the ID is OK. ECM prevents the engine from start-

ing if the ID is not registered.

DTC Logic

INFOID:0000000006246231

DTC DETECTION LOGIC

NOTE:

• If DTC B2193 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

SEC-28, "DTC Logic"

.

• If DTC B2193 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

SEC-29, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-39, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000006246232

1.

REPLACE BCM

1. Replace BCM. Refer to

BCS-55, "Removal and Installation"

.

2. Perform initialization with CONSULT-III.

For initialization, refer to “CONSULT-III Operation Manual”.

Does the engine start?

YES

>> BCM was malfunctioning.

NO

>> ECM is malfunctioning.

• Replace ECM.

• Perform ECM re-communicating function.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2193

CHAIN OF BCM-
ECM

Inactive communication between ECM and BCM

• Harness or connectors

(The CAN communication line is
open or short)

• BCM
• ECM

P1612

2011 Pathfinder

SEC-40

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2194 ID DISCORD IMMU-I-KEY

B2194 ID DISCORD IMMU-I-KEY

Description

INFOID:0000000006246233

BCM performs the ID verification with Intelligent Key unit that allows the engine to start. BCM starts the com-

munication with Intelligent Key unit if ignition switch is turned ON and starts the engine if the ID is OK. BCM

prevents the engine from starting if the ID is not registered.

DTC Logic

INFOID:0000000006246234

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-40, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000006246235

1.

PERFORM INITIALIZATION

1. Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> GO TO 2

NO

>> ID was unregistered.

2.

REPLACE BCM

1. Turn ignition switch OFF.

2. Replace BCM. Refer to

BCS-55, "Removal and Installation"

.

3. Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.

Can the system be initialized and can the engine be started?

YES

>> BCM is malfunctioning.

NO

>> GO TO 3

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

>> Inspection End.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2194

DISCORD BCM-I-
KEY

The ID verification results between BCM and Intel-
ligent Key unit are NG. The registration is neces-
sary.

• BCM
• Intelligent Key unit

2011 Pathfinder

B2552 INTELLIGENT KEY

SEC-41

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2552 INTELLIGENT KEY

Description

INFOID:0000000006246236

Intelligent Key unit performs engine start operation and steering lock control by crosschecking ID with the

Intelligent Key.

DTC Logic

INFOID:0000000006246237

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-41, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000006246238

1.

REPLACE INTELLIGENT KEY UNIT

1. Replace Intelligent Key unit.

2. Perform initialization with CONSULT-III. Re-register all mechanical keys. Refer to “CONSULT-III Opera-

tion Manual”.

3. Start the engine.
Does the engine start?

YES

>> Inspection End.

NO

>> Perform “DTC confirmation procedure”. Refer to

SEC-41, "DTC Logic"

.

Special Repair Requirement

INFOID:0000000006246239

1.

REQUIRED WORK WHEN REPLACING INTELLIGENT KEY UNIT

Initialize control unit. Refer to CONSULT-III Operation Manual.

>> Inspection End.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2552

INTELLIGENT KEY
UNIT

Malfunction is detected inside Intelligent
Key unit.

Intelligent Key unit

2011 Pathfinder

SEC-42

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2590 ID DISCORD BCM-I-KEY

B2590 ID DISCORD BCM-I-KEY

Description

INFOID:0000000006246240

Intelligent Key unit performs the ID verification with BCM that allows the engine to start. BCM starts the engine

if the ID is OK and prevents the engine from starting if the ID is not registered.

DTC Logic

INFOID:0000000006246241

DTC DETECTION LOGIC

NOTE:

• If DTC B2590 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

SEC-28, "DTC Logic"

.

• If DTC B2590 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

SEC-29, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-42, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000006246242

1.

PERFORM INITIALIZATION

Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.
Can the system be initialized and can the engine be started with re-registered mechanical key?

YES

>> ID was unregistered.

NO

>> BCM is malfunctioning.

• Replace BCM. Refer to

BCS-55, "Removal and Installation"

.

• Perform initialization again

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2590

ID DISCORD BCM-I-
KEY

The ID verification results between BCM and Intel-
ligent Key unit are NG. The registration is neces-
sary.

• BCM
• Intelligent Key unit

2011 Pathfinder















Content      ..     539      540      541      542     ..
