REAR SUSPENSION MEMBER

RSU-19

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

UNIT REMOVAL AND INSTALLATION

REAR SUSPENSION MEMBER

Removal and Installation

INFOID:0000000006245815

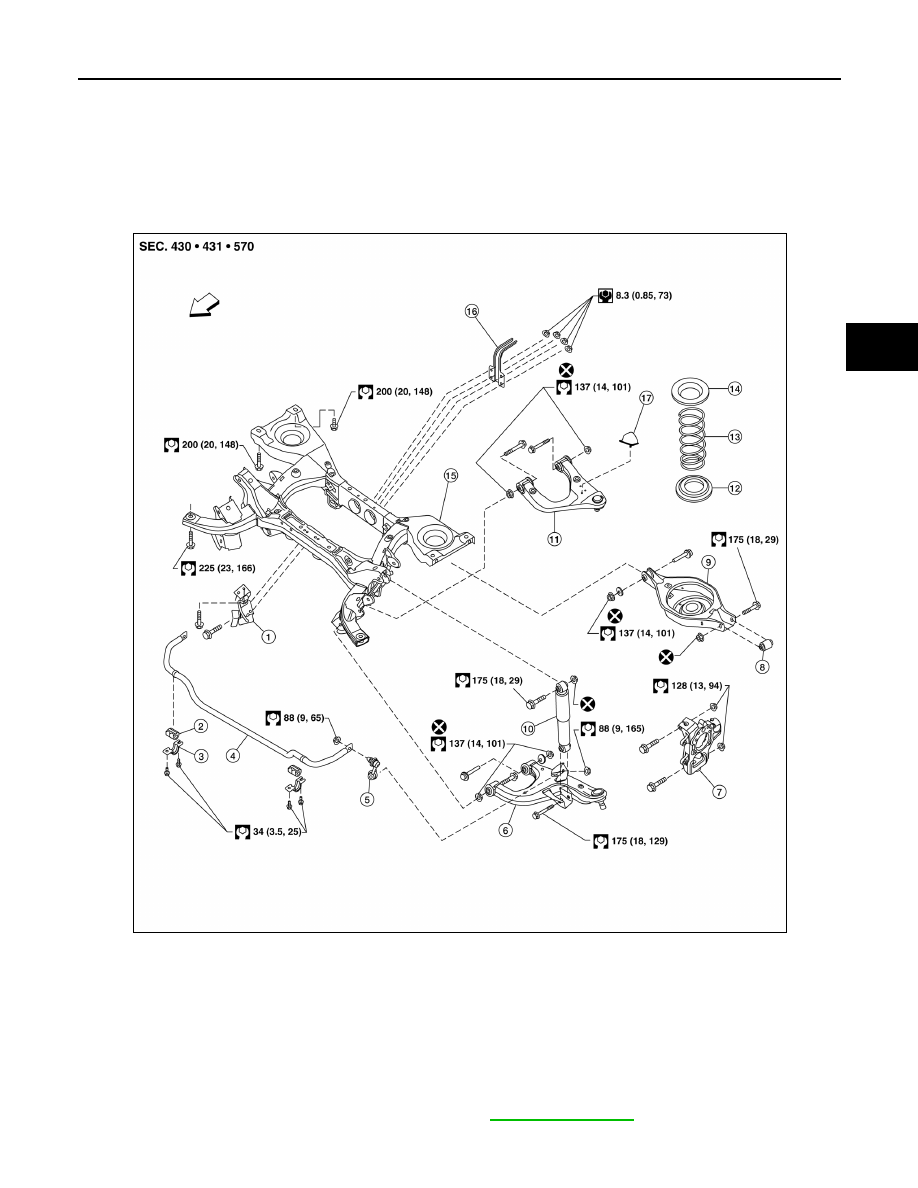

COMPONENTS

REMOVAL

1. Remove both rear wheel and tire assemblies. Refer to

WT-50, "Adjustment"

.

2. Remove the spare tire.

1.

Seat belt latch anchor

2.

Stabilizer bar bushing

3.

Stabilizer bar clamp

4.

Stabilizer bar

5.

Connecting rod

6.

Front lower link

7.

Knuckle

8.

Bushing

9.

Rear lower link

10. Shock absorber

11. Suspension arm

12. Lower rubber seat

13. Coil spring

14. Upper rubber seat

15. Rear suspension member

16. Spare tire bracket

17. Bound bumper

AWEIA0191GB

2011 Pathfinder

RSU-20

< UNIT REMOVAL AND INSTALLATION >

REAR SUSPENSION MEMBER

3. Remove the brake caliper without disconnecting the brake hoses, using power tool. Reposition the brake

caliper out of the way using a suitable wire. Refer to

BR-48, "Removal and Installation of Brake Caliper

and Disc Rotor"

.

CAUTION:

• Do not crimp or stretch the brake hose when repositioning the brake caliper out of the way.

• Do not press the brake pedal while the brake caliper is positioned out of the way.

4. Remove the two rear brake rotors.
5. Remove the two rear drive shafts. Refer to

RAX-8, "Removal and Installation"

.

6. Disconnect the parking brake cables brackets from the rear suspension member.
7. Disconnect the two rear wheel sensor connectors and harness clips.
8. Remove the rear final drive vent tube from the rear suspension member and frame.
9. Remove the rear final drive. Refer to

DLN-425, "Removal and Installation"

 (R200),

DLN-463, "Removal

and Installation"

 (R230).

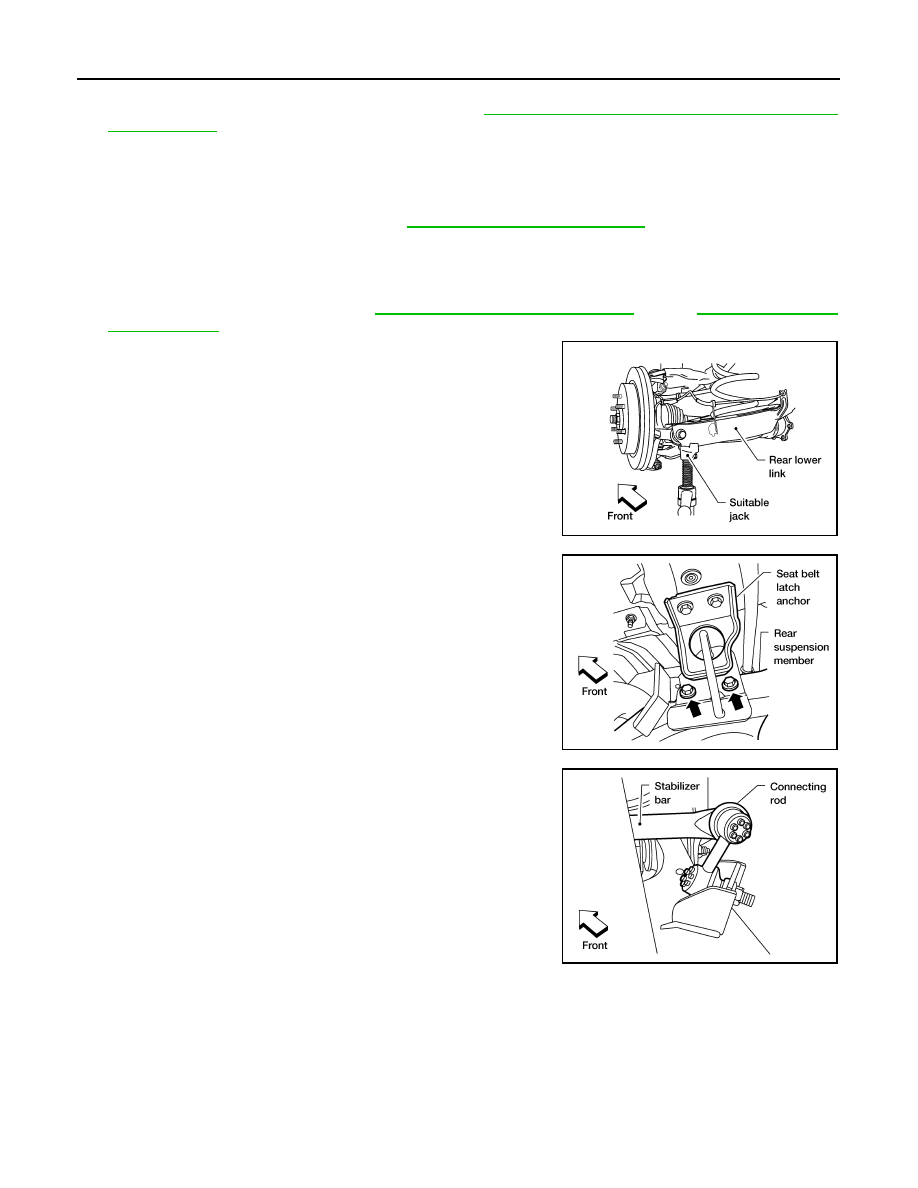

10. Set a suitable jack to support each of the rear lower links and the

coil spring tension.

11. Remove both of the rear lower link outer bolts using power tool,

and lower the jack to remove the rear coil springs, and the upper

and lower rubber seats.

12. Remove the two bolts to disconnect the seat belt latch anchor

from the rear suspension member using power tool.

13. Disconnect both of the connecting rods from the rear stabilizer

bar.

LEIA0077E

LEIA0109E

LEIA0111E

2011 Pathfinder

REAR SUSPENSION MEMBER

RSU-21

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

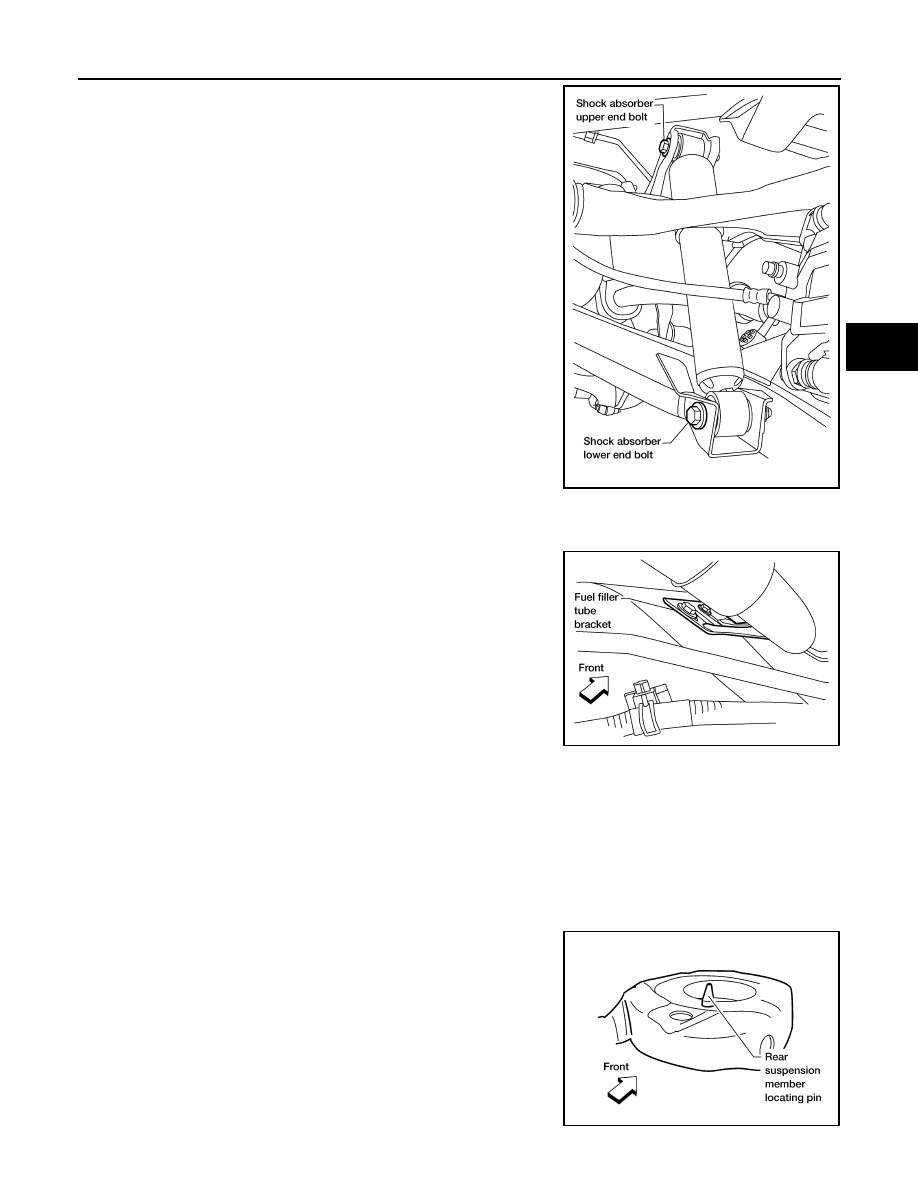

14. Set a suitable jack under each front lower link for support and

remove the shock absorber upper end bolts and lower end bolts

using power tool.

15. Remove both of the shock absorbers.

16. Set a suitable jack under the rear suspension member.
17. Remove the six rear suspension member bolts using power tool.
18. Slowly lower the jack supporting the rear suspension member to

access the fuel filler tube bracket, then remove the two bolts to

disconnect the fuel filler tube bracket from the rear suspension

member.

19. Slowly lower the jack to remove the rear suspension member, suspension arm, front and rear lower links,

knuckles, and stabilizer bar as an assembly.

20. Remove the suspension arm, spare tire bracket, stabilizer bar, front and rear lower links, and the knuckles

from the rear suspension member using power tool.

INSPECTION AFTER REMOVAL

Check rear suspension member for deformation, cracks, and other damage and replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.

• When raising the rear suspension member assembly, use the

locating pins to align the rear suspension member to the vehicle

body.

LEIA0110E

LEIA0114E

LEIA0083E

2011 Pathfinder

RSU-22

< UNIT REMOVAL AND INSTALLATION >

REAR SUSPENSION MEMBER

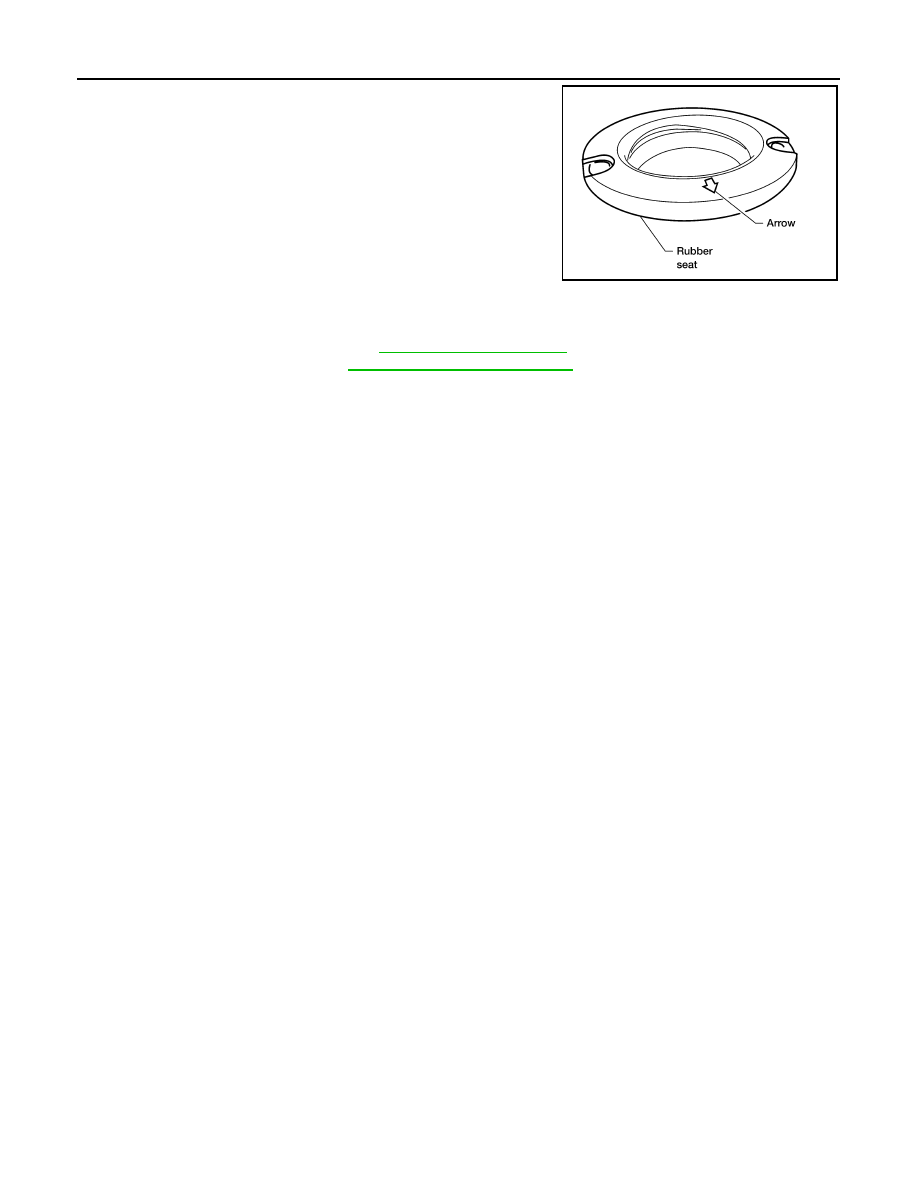

• When installing the upper and lower rubber seats for the rear coil

springs, the arrow embossed on the rubber seats must point out

toward the wheel and tire assembly.

• Perform final tightening of the nuts and bolts for the links (with rubber bushings) under unladen conditions

with the tires on level ground.

• Adjust the parking brake cables. Refer to

PB-5, "On-Vehicle Service"

.

• Check the wheel alignment. Refer to

FSU-7, "Front Wheel Alignment"

.

LEIA0076E

2011 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

RSU-23

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

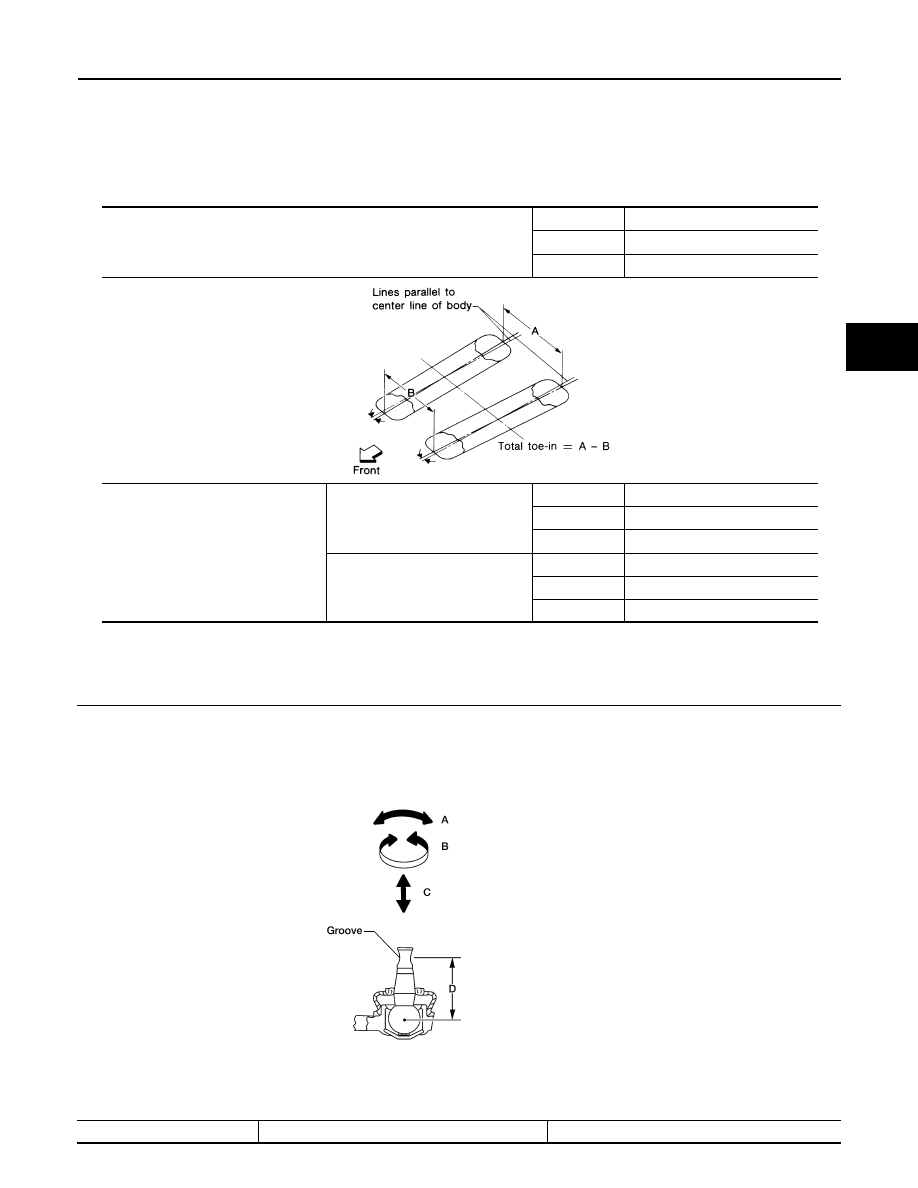

Wheel Alignment (Unladen*)

INFOID:0000000006245816

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designed positions.

Ball Joint

INFOID:0000000006245817

Camber
Degree minute (decimal degree)

Minimum

- 0

°

 32

′

 (- 0.53

°

)

Nominal

- 0

°

 2

′

 (- 0.03

°

)

Maximum

0

°

 28

′

 (0.47

°

)

Total toe-in

Distance (A – B)

Minimum

Out 1.4 mm (0.05 in)

Nominal

In 1.9 mm (0.07 in)

Maximum

In 5.2 mm (0.20 in)

Angle
Degree minute (decimal degree)

Minimum

  Out  0

°

 3

′

 36

″

 (0.06

°

)

Nominal

In 0

°

 8

′

 24

″

 (0.14

°

)

Maximum

In 0

°

 20

′

 24

″

 (0.34

°

)

SFA234AC

Ball joint position

Upper

Lower

WEIA0131E

2011 Pathfinder

RSU-24

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

*: Measurement point is at the bolt groove of the ball stud.

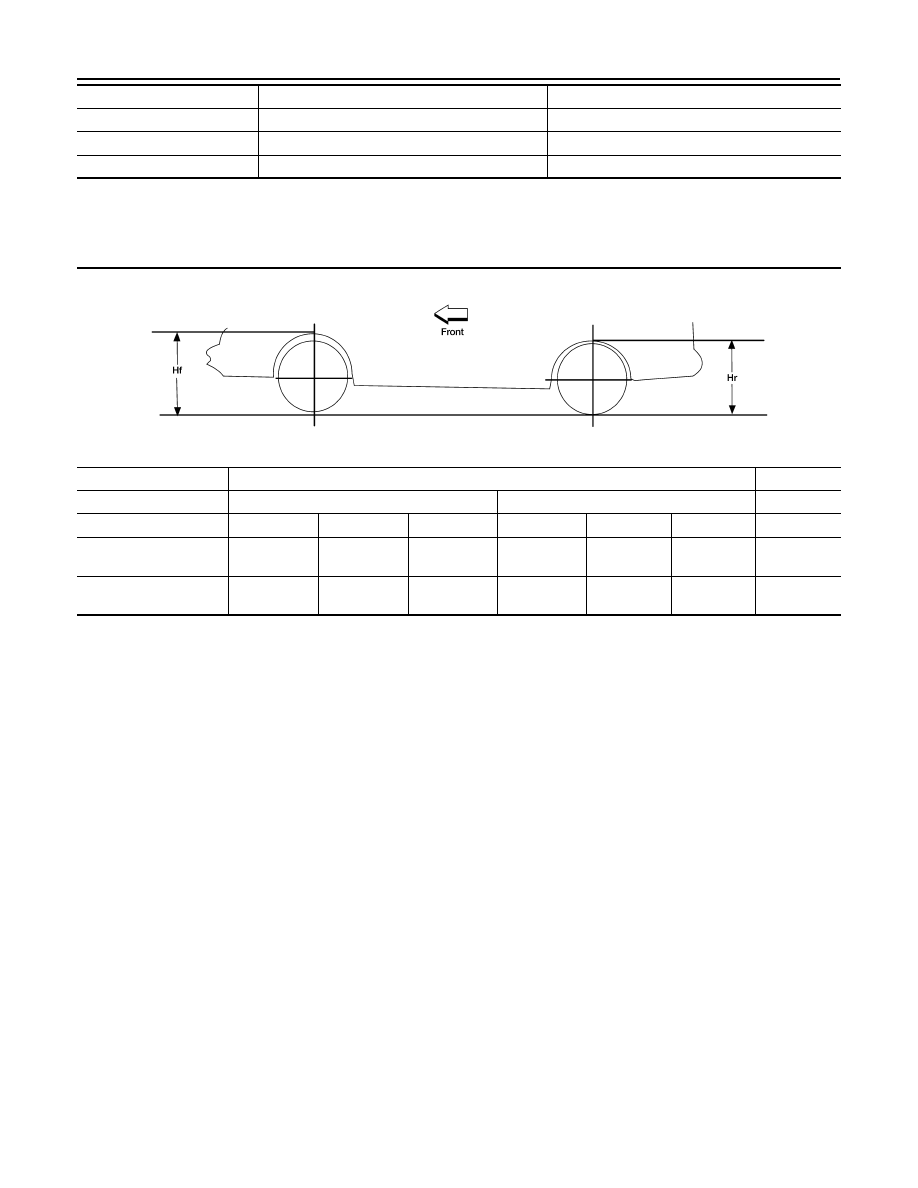

Wheelarch Height (Unladen*)

INFOID:0000000006245818

Unit: mm (in)

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Swinging force* (A)

11.4 - 145.5 N (1.16 - 14.8 kg, 2.56 - 32.7 lb)

11.0 - 140.7 N (1.12 - 14.35 kg, 2.47 - 31.63 lb)

Turning torque (B)

0.5 - 6.4 N·m (0.06 - 0.65 kg-m, 5 - 56 in-lb)

0.5 - 6.4 N·m (0.06 - 0.65 kg-m, 5 - 56 in-lb)

Vertical end play (C)

0 mm (0 in)

0 mm (0 in)

Height (D)

44 mm (1.73 in)

45.5 mm (1.79 in)

Engine

VQ40DE

VK56DE

Drive type

2WD

4WD

4WD

Tire size

P245/75R16

P265/65R17

P265/60R18

P245/75R16

P265/65R17 P265/60R18

P265/60R18

Front wheelarch height
(Hf)

867

(34.13)

865

(34.06)

867

(34.13)

875

(34.45)

874

(34.41)

891

(35.08)

876

(34.49)

Rear wheelarch height
(Hr)

875

(34.45)

873

(34.37)

875

(34.45)

884

(34.80)

883

(34.76)

901

(35.47)

886

(34.88)

LEIA0085E
