MA-28

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (VQ40DE)

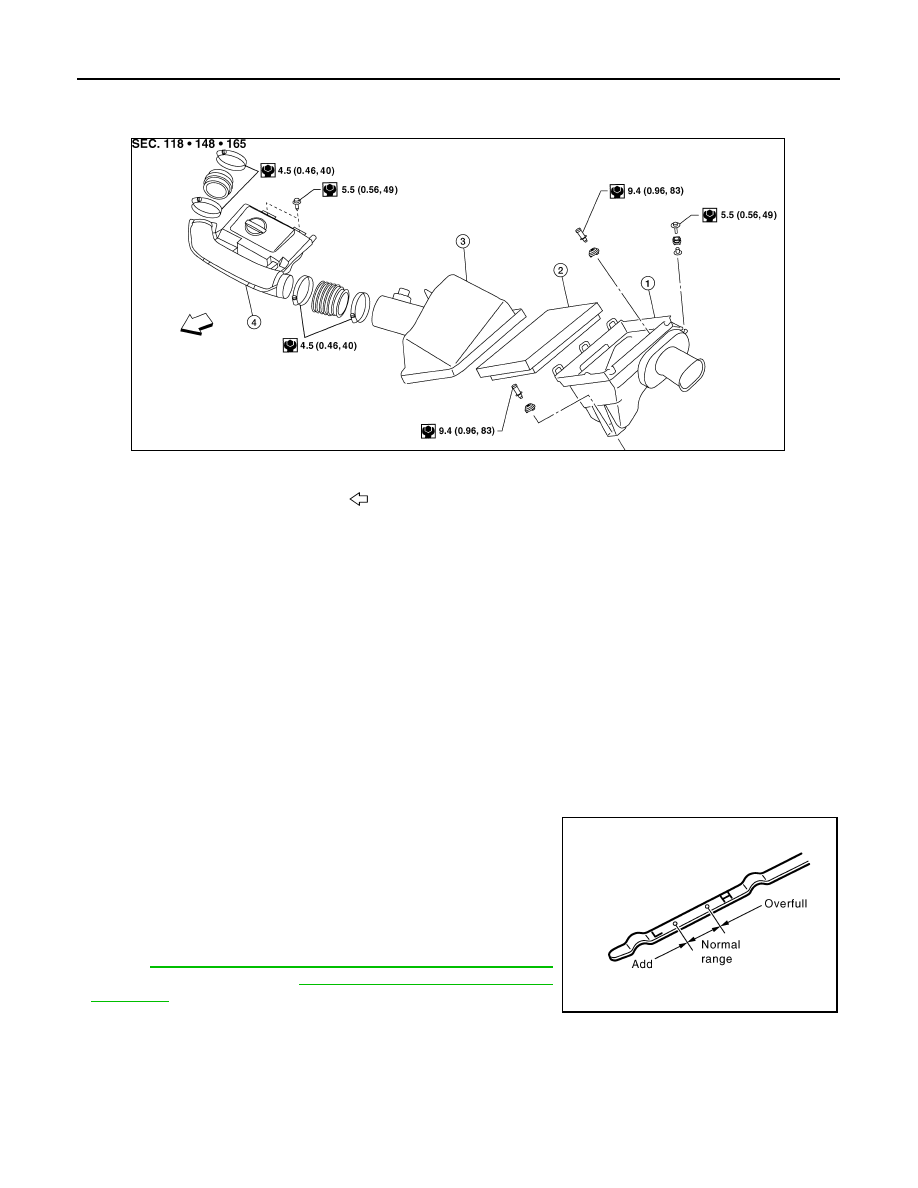

AIR CLEANER FILTER : Exploded View

INFOID:0000000006827549

AIR CLEANER FILTER : Removal and Installation

INFOID:0000000006827550

REMOVAL

1. Disconnect air duct and resonator from the air cleaner case (upper).
2. Disconnect MAF/IAT sensor.
3. Unhook clips, and lift air cleaner case (upper).
4. Remove air cleaner filter.

INSTALLATION

Installation is in the reverse order of removal.

ENGINE OIL
ENGINE OIL : Inspection

INFOID:0000000006827551

OIL LEVEL

• Before starting the engine make sure the vehicle is parked on a flat

and level surface, then check the oil level. If the engine is already

running, turn it off and allow 10 minutes before checking.

• Pull out oil level gauge and wipe clean.

• Insert oil level gauge.

• Check that the oil level is within the low (L) and high (H) range as

indicated on the dipstick.

• If the engine oil level is out of range, add oil as necessary.

Refer to

MA-18, "FOR USA AND CANADA : Fluids and Lubricants"

(United States and Canada),

MA-20, "FOR MEXICO : Fluids and

Lubricants"

(Mexico).

CAUTION:

Do not overfill the engine with oil.

ENGINE OIL : Changing Engine Oil

INFOID:0000000006827552

WARNING:

• Be careful not to burn yourself, as the engine and engine oil may be hot.

Air cleaner case (lower)

Air cleaner filter

Air cleaner case (upper)

Air duct and resonator

Front

AWBIA0133GB

PBIC2823E

2011 Pathfinder

ENGINE MAINTENANCE (VQ40DE)

MA-29

< PERIODIC MAINTENANCE >

• Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct skin

contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as

possible.

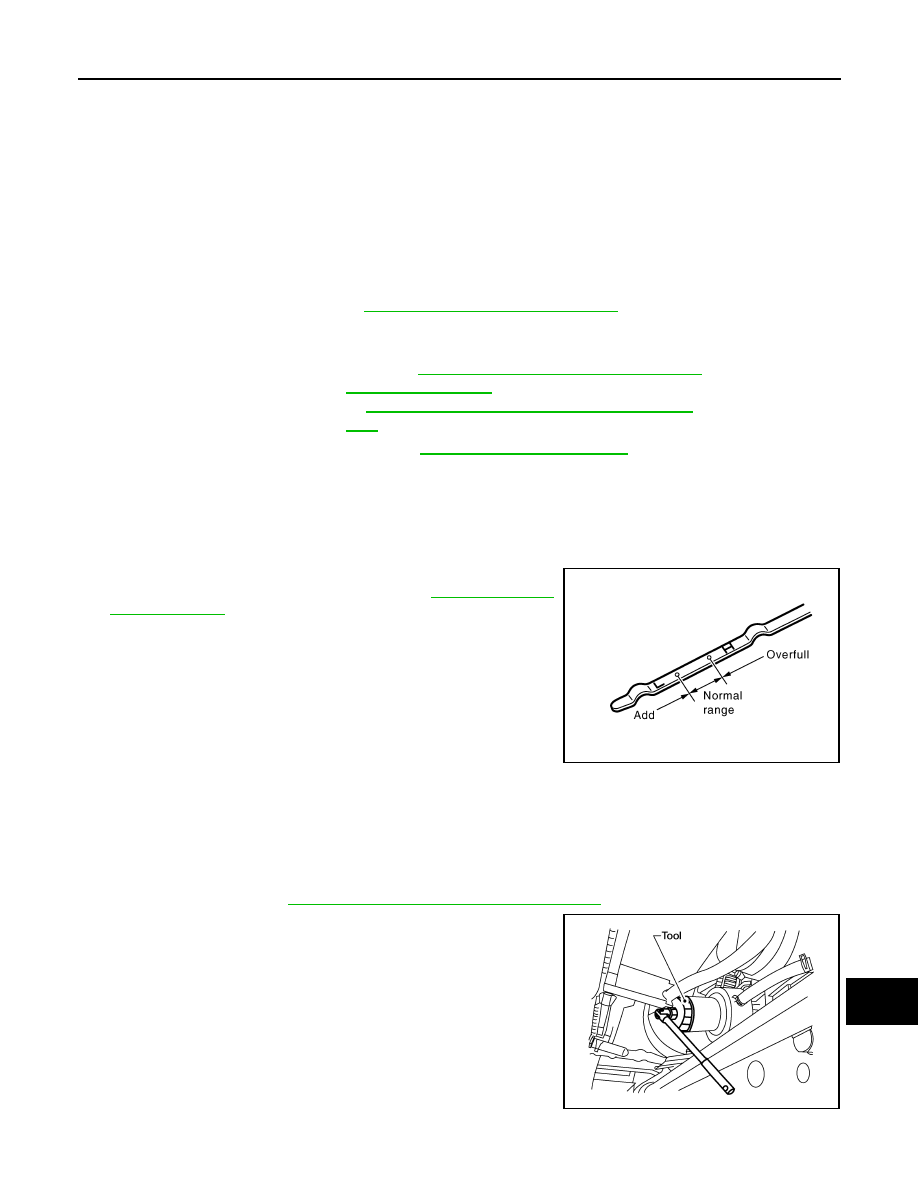

1. Warm up the engine, and check for any oil leaks.
2. Stop the engine and wait for at least 10 minutes.
3. Remove the oil drain plug and oil filler cap to drain the old oil.
4. Install a new washer on the oil drain plug, then install the oil drain plug in the oil pan.

CAUTION:

• Clean the drain plug and install with a new washer.

• Do not reuse copper sealing washer.

5. Refill the engine with new specified engine oil.

CAUTION:

The refill capacity depends on the oil temperature and drain time. Use the “Refill oil capacity” val-

ues as a reference and check the oil level using the dipstick when filling the engine with oil.

6. Warm up the engine and check the area around the drain plug and oil filter for any oil leaks.
7. Stop the engine and wait for more than 10 minutes.
8. Check the oil level using the dipstick as shown. Add oil as nec-

essary and install the oil filler cap. Refer to

MA-28, "ENGINE

OIL : Inspection"

CAUTION:

Do not overfill the engine with oil.

OIL FILTER
OIL FILTER : Removal and Installation

INFOID:0000000006827553

REMOVAL

1. Remove the engine front under cover access cover.
2. Drain engine oil. Refer to

MA-28, "ENGINE OIL : Changing Engine Oil"

3. Remove the oil filter using Tool as shown.

WARNING:

Be careful not to burn yourself, as the engine and engine oil

may be hot.

CAUTION:

• Oil filter is equipped with a pressure relief valve.

• Use Genuine NISSAN Oil Filter or equivalent.

• When removing, prepare a shop cloth to absorb any

engine oil leaks or spills.

• Do not allow engine oil to adhere to drive belts.

• Completely wipe off any engine oil that adheres to the engine and the vehicle.

Oil drain plug

: Refer to

EM-36, "Removal and Installation"

Oil grade and viscosity

: Refer to

MA-18, "FOR USA AND CANADA : Flu-

ids and Lubricants"

(United States and Canada)

MA-20, "FOR MEXICO : SAE Viscosity Num-

ber"

(Mexico).

Oil capacity

: Refer to

LU-19, "Standard and Limit"

PBIC2823E

Tool number

: KV10115801 (J-38956)

LBIA0425E

2011 Pathfinder

MA-30

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (VQ40DE)

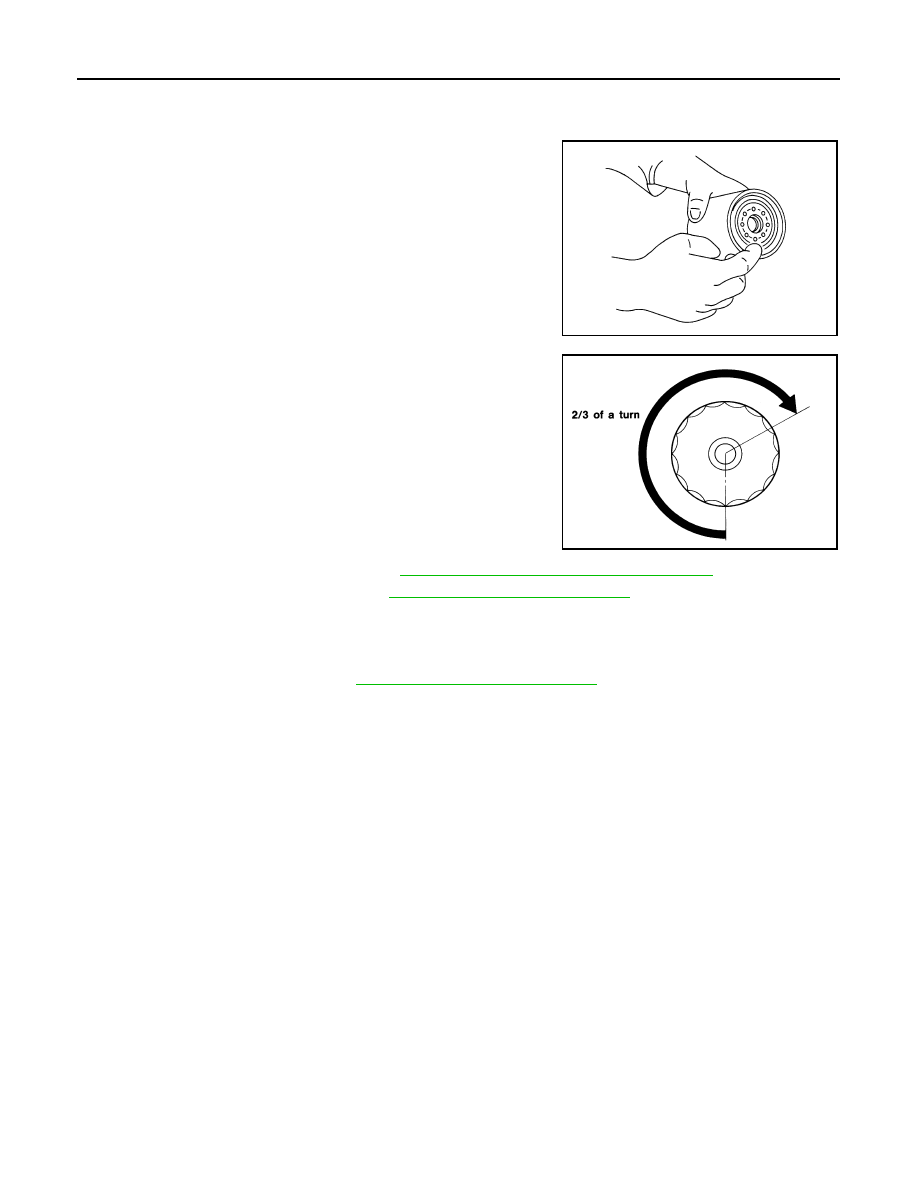

INSTALLATION

1. Remove foreign materials adhering to the oil filter seal mating surface.
2. Apply clean engine oil to the new oil filter seal as shown.

3. Screw on the oil filter manually until it touches the installation

surface, then tighten it by 2/3 turn as shown. Or tighten to speci-

fication.

4. Refill engine with new engine oil. Refer to

MA-28, "ENGINE OIL : Changing Engine Oil"

5. Inspect the engine for oil leaks. Refer to

MA-28, "ENGINE OIL : Inspection"

6. Install the engine front under cover access cover.

INSPECTION AFTER INSTALLATION

1. Check the engine oil level. Refer to

MA-28, "ENGINE OIL : Inspection"

2. Start the engine and check for engine oil leaks.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level and add engine oil as required.

SPARK PLUG

SMA010

Oil filter

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

SMA702C

2011 Pathfinder

ENGINE MAINTENANCE (VQ40DE)

MA-31

< PERIODIC MAINTENANCE >

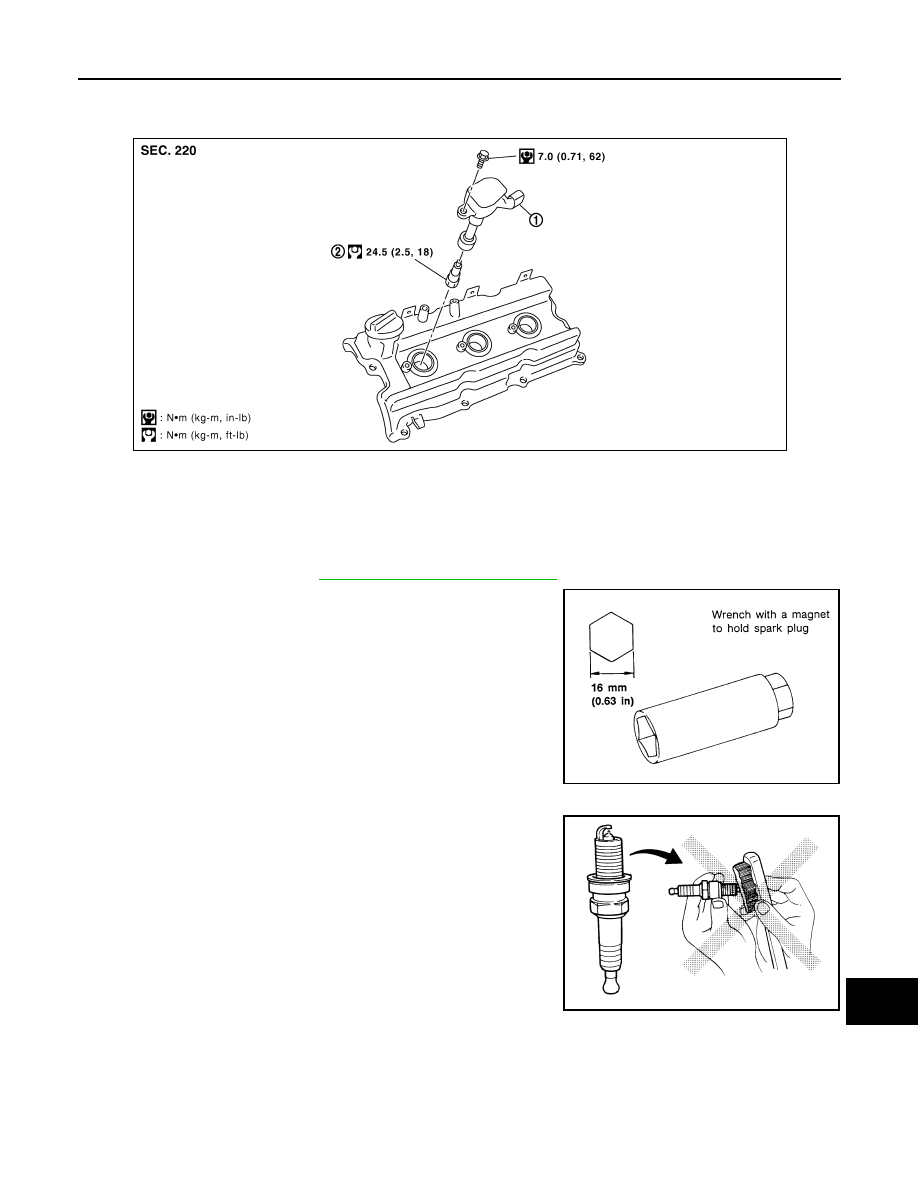

SPARK PLUG : Exploded View

INFOID:0000000006827554

SPARK PLUG : Removal and Installation

INFOID:0000000006827555

REMOVAL

1. Remove ignition coil. Refer to

EM-42, "Removal and Installation"

2. Remove spark plug using suitable tool.

CAUTION:

Do not drop or shock it.

INSPECTION AFTER REMOVAL

• Do not use a wire brush for cleaning.

• If the spark plug tip is covered with carbon, a spark plug cleaner may be used.

Ignition coil

Spark plug

PBIC2901E

SEM294A

SMA773C

Cleaner air pressure

: Less than 588 kPa (6 kg/cm

, 85 psi)

Cleaning time

: Less than 20 seconds

2011 Pathfinder

MA-32

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (VQ40DE)

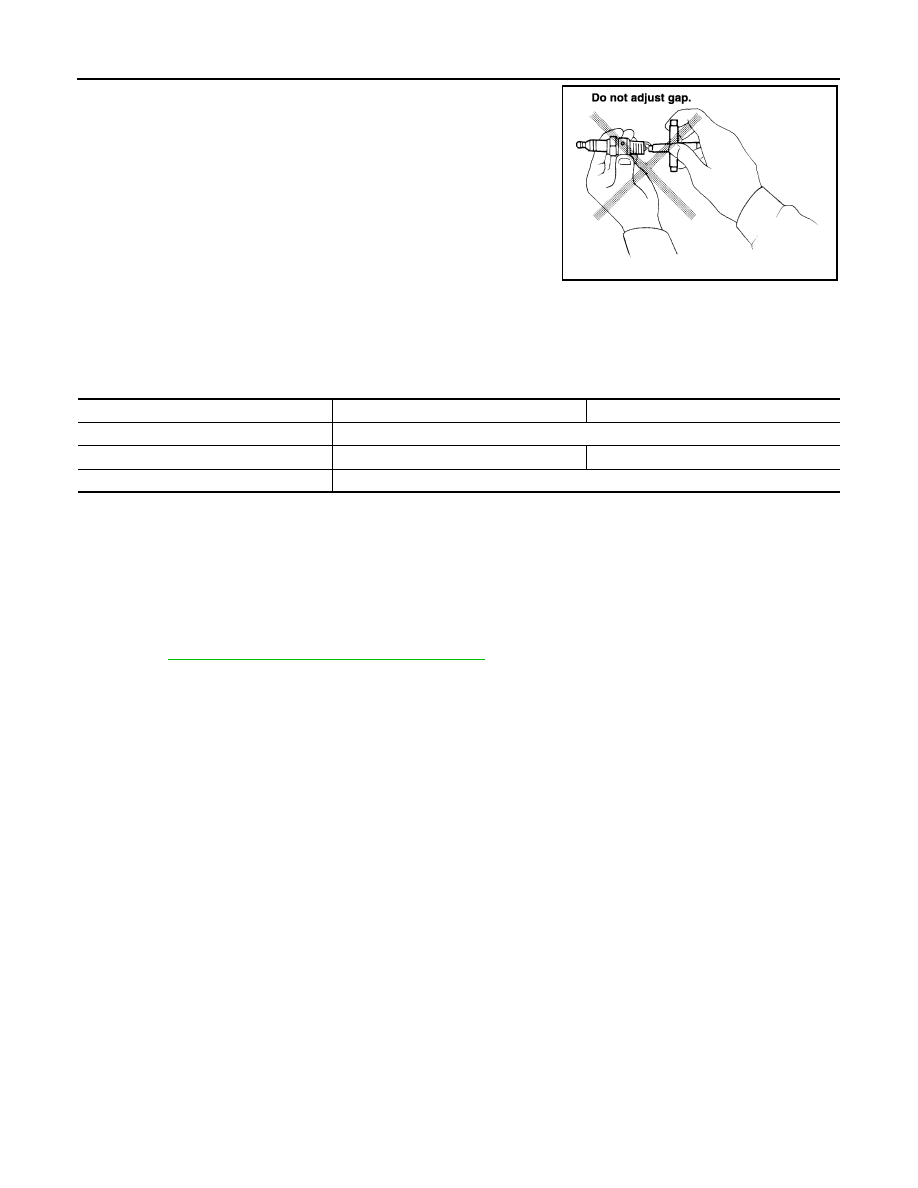

• Checking and adjusting spark plug gap is not required between

change intervals.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not drop or shock spark plug.

*: Always check with the Parts Department for the latest parts information.

EVAP VAPOR LINES
EVAP VAPOR LINES : Checking EVAP Vapor Line

INFOID:0000000006243406

1. Visually inspect EVAP vapor lines for improper attachment, cracks, damage, loose connections, chafing

or deterioration.

2. Inspect vacuum relief valve of fuel tank filler cap for clogging and sticking.

Refer to

EC-486, "How to Detect Fuel Vapor Leakage"

SMA806CA

Application

United States and Canada

Mexico

Make

NGK

Standard type*

DILFR5A-11

PLFR5A-11

Gap (nominal)

1.1 mm (0.043 in)

2011 Pathfinder

ENGINE MAINTENANCE (VK56DE)

MA-33

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (VK56DE)

DRIVE BELTS

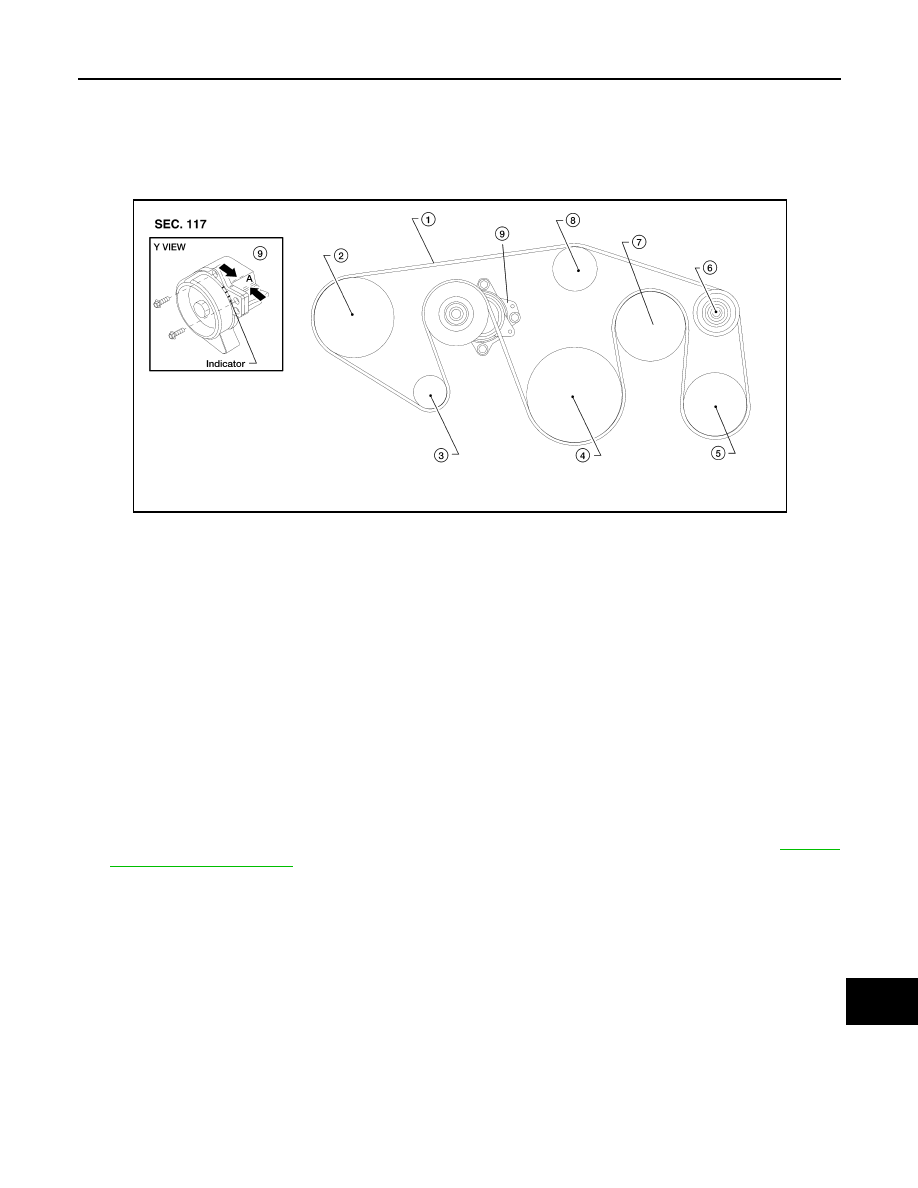

DRIVE BELTS : Exploded View

INFOID:0000000006827556

DRIVE BELTS : Checking Drive Belts

INFOID:0000000006827557

WARNING:

Be sure to perform when the engine is stopped.

1. Remove air duct and resonator assembly when inspecting drive belt.
2. Make sure that indicator (single line notch) of each auto tensioner is within the allowable working range

(between three line notches).

NOTE:

• Check the drive belt auto tensioner indication when the engine is cold.

• The indicator notch is located on the moving side of the drive belt auto tensioner.

3. Visually check entire belt for wear, damage or cracks.
4. If the indicator is out of allowable working range or belt is damaged, replace the belt. Refer to

EM-153,

"Removal and Installation"

ENGINE COOLANT
ENGINE COOLANT : System Inspection

INFOID:0000000006827558

WARNING:

• Never remove the radiator/reservoir cap when the engine is hot. Serious burns could occur from

high pressure fluid escaping from the radiator or reservoir.

• Wrap a thick cloth around the cap. Slowly push down and turn it a quarter turn to allow built-up pres-

sure to escape. Carefully remove the cap by pushing down and turning it all the way.

CHECKING COOLING SYSTEM HOSES

Check hoses for the following:

• Improper attachment

• Leaks

• Cracks

Drive belt

Power steering pump pulley

Generator pulley

Crankshaft pulley

A/C compressor

Idler pulley

Cooling fan pulley

Water pump pulley

Drive belt auto tensioner

Allowable working range

LBIA0391E

2011 Pathfinder

MA-34

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (VK56DE)

• Damage

• Loose connections

• Chafing

• Deterioration

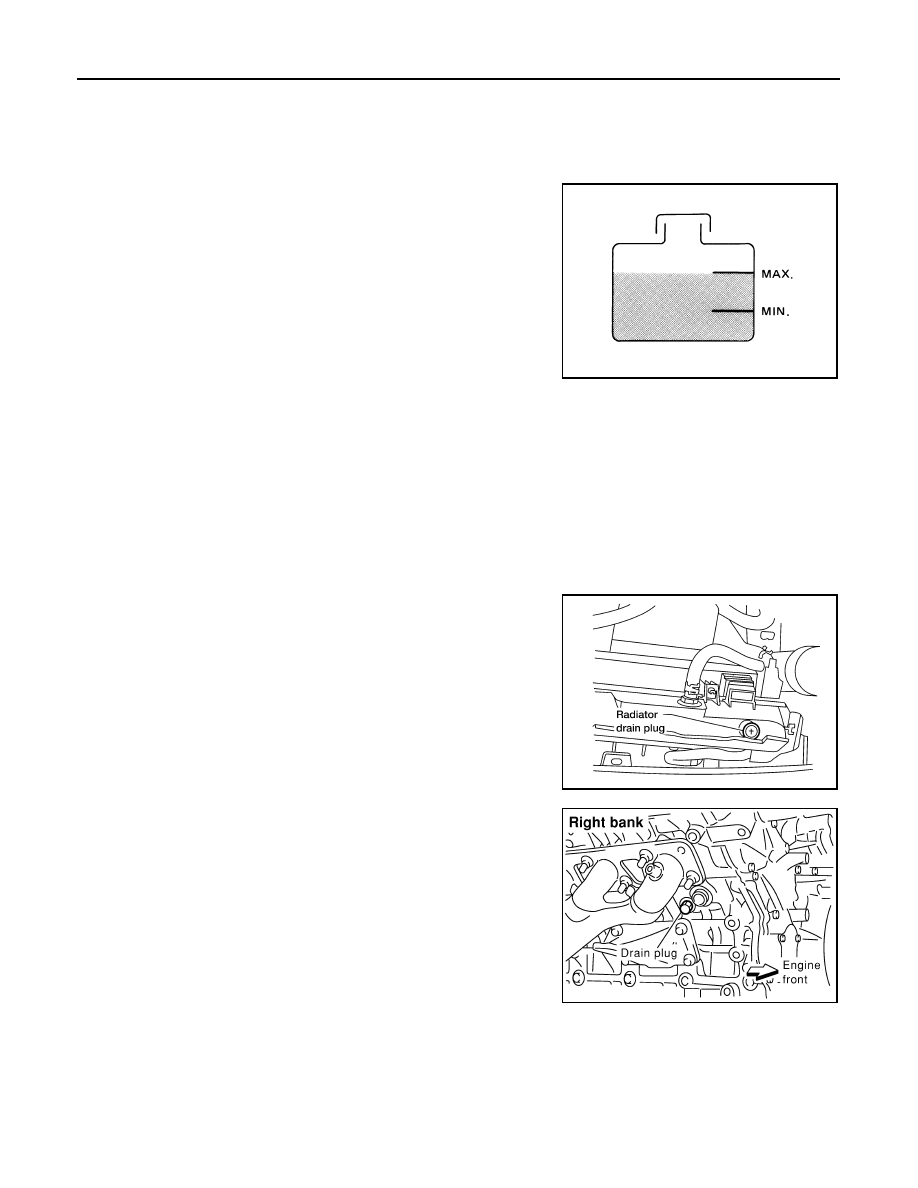

CHECKING RESERVOIR LEVEL

• Check if the engine coolant reservoir tank level is within MIN to

MAX level when the engine is cool.

• Adjust engine coolant level as necessary.

ENGINE COOLANT : Changing Engine Coolant

INFOID:0000000006827559

WARNING:

• To avoid being scalded, never change the coolant when the engine is hot.

• Wrap a thick cloth around the cap to carefully remove the cap. First, turn the cap a quarter of a turn

to release any built-up pressure, then push down and turn the cap all the way to remove it.

DRAINING ENGINE COOLANT

1. Turn ignition switch ON and set temperature control lever all the way to HOT position or the highest tem-

perature position. Wait 10 seconds and turn ignition switch OFF.

2. Remove the engine under cover using power tool.
3. Open the radiator drain plug at the bottom of the radiator, and

remove the reservoir cap. This is the only step required when

partially draining the cooling system (radiator only).

CAUTION:

• Perform this step when the engine is cold.

• Do not allow the coolant to contact the drive belts.

4. When draining all of the coolant in the system for engine

removal or repair, it is necessary to drain the cylinder block.

Remove the RH cylinder block drain plug to drain the right bank,

the oil cooler hose to drain the left bank as shown.

CAUTION:

Do not reuse copper sealing washers.

NOTE:

For Canada, the drain plug as shown is replaced by a block

heater.

SMA412B

LLIA0070E

PBIC0146E

2011 Pathfinder

ENGINE MAINTENANCE (VK56DE)

MA-35

< PERIODIC MAINTENANCE >

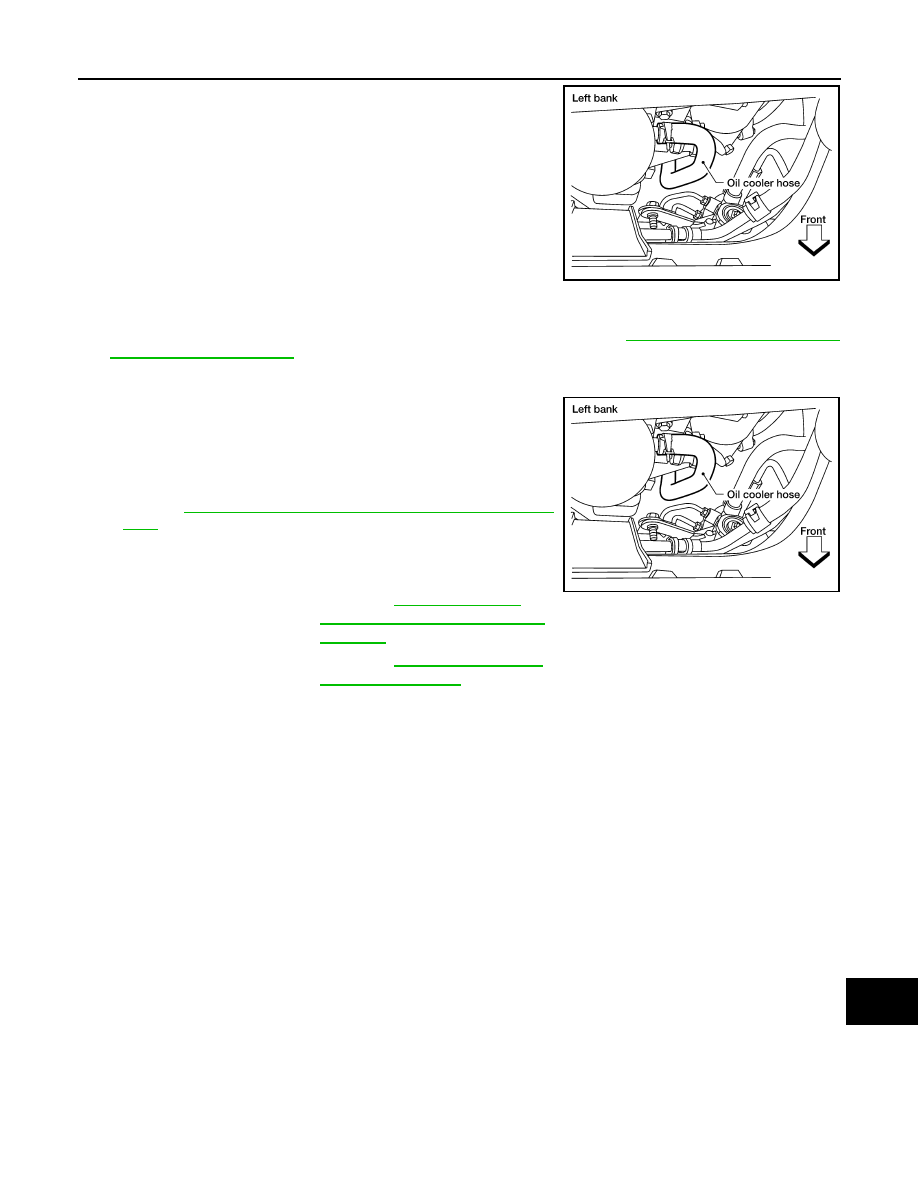

5. Remove the reservoir tank to drain the engine coolant, then clean the reservoir tank before installing it.
6. Check the drained coolant for contaminants such as rust, corrosion or discoloration.

If the coolant is contaminated, flush the engine cooling system. Refer to

MA-34, "ENGINE COOLANT :

Changing Engine Coolant"

REFILLING ENGINE COOLANT

1. Close the radiator drain plug. Install the reservoir tank, cylinder

block drain plug, and the oil cooler hose if removed for a total

system drain or for engine removal or repair.

• The radiator must be completely empty of coolant and water.

• Apply sealant to the threads of the cylinder block drain plug.

Use Genuine High Performance Thread Sealant or equivalent.

Refer to

ants"
