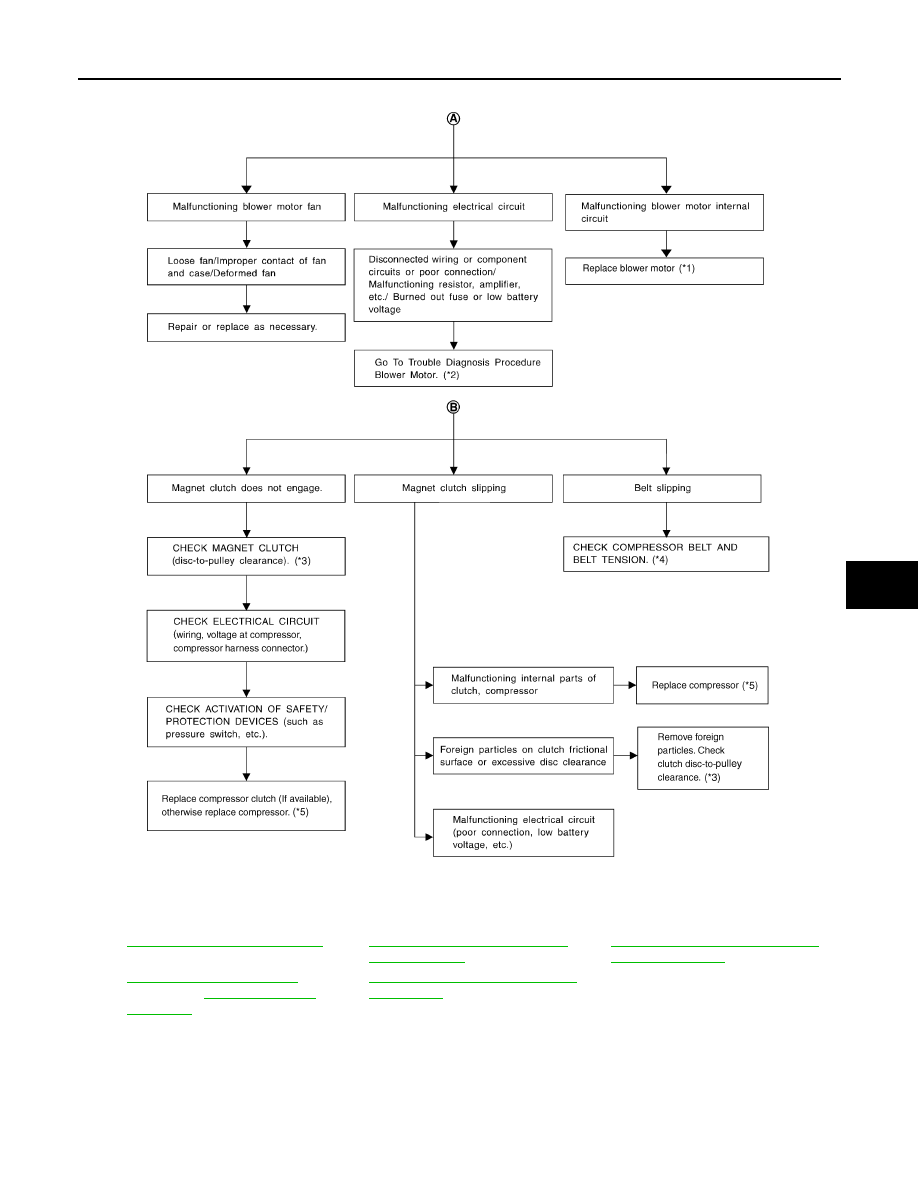

AIR CONDITIONER CONTROL HAC-111 < SYMPTOM DIAGNOSIS > [AUTOMATIC AIR CONDITIONER] C D E F G H J K L M A B HAC N O P SYMPTOM DIAGNOSIS AIR CONDITIONER CONTROL Symptom Matrix Chart INFOID:0000000006243682 SYMPTOM TABLE Symptom Reference Page A/C system does not come on. Go to Trouble Diagnosis Procedure for A/C System. A/C system display is malfunctioning. Go to AV System. A/C system cannot be controlled. Go to Self-diagnosis Function. Air outlet does not change. Go to Trouble Diagnosis Procedure for Mode Door Motor. Mode door motor is malfunctioning. Discharge air temperature does not change. Go to Trouble Diagnosis Procedure for Air Mix Door Motor. Air mix door motor is malfunctioning. Intake door does not change. Go to Trouble Diagnosis Procedure for Intake Door Motor. Intake door motor is malfunctioning. Front blower motor operation is malfunction- Go to Trouble Diagnosis Procedure for Front Blower Motor. Rear blower motor operation is malfunction- Go to Trouble Diagnosis Procedure for Rear Blower Motor. Rear discharge air temperature and/or air Go to Trouble Diagnosis Procedure for Rear Air Control system. Magnet clutch does not engage. Go to Trouble Diagnosis Procedure for Magnet Clutch. Insufficient cooling Go to Trouble Diagnosis Procedure for Insufficient Cooling. Insufficient heating Go to Trouble Diagnosis Procedure for Insufficient Heating. Noise Go to Trouble Diagnosis Procedure for Noise. Self-diagnosis cannot be performed. Go to Trouble Diagnosis Procedure for Self-diagnosis. Memory function does not operate. Go to Trouble Diagnosis Procedure for Memory Function. 2011 Pathfinder |
