Nissan Pathfinder (2011 year). Manual - part 426





GI-1

GENERAL INFORMATION

C

D

E

F

G

H

I

J

K

L

M

B

GI

SECTION

GI

N

O

P

CONTENTS

GENERAL INFORMATION

HOW TO USE THIS MANUAL ......................

3

HOW TO USE THIS MANUAL  ............................

3

Description ................................................................

3

Terms ........................................................................

3

Units ..........................................................................

3

Contents ....................................................................

3

Relation between Illustrations and Descriptions  .......

4

Components ..............................................................

4

HOW TO FOLLOW TROUBLE DIAGNOSES .....

6

Description ................................................................

6

How to Follow Test Groups in Trouble Diagnosis ......

6

Key to Symbols Signifying Measurements or Pro-
cedures ...................................................................
..

7

HOW TO READ WIRING DIAGRAMS  ................

9

Connector symbols  ...................................................

9

Sample/wiring diagram -example- ...........................

10

Description ..............................................................

11

ABBREVIATIONS ..............................................

13

Abbreviation List ......................................................

13

RECOMMENDED CHEMICAL PRODUCTS
AND SEALANTS ................................................

14

Recommended Chemical Products and Sealants ....

14

TERMINOLOGY .................................................

15

ISO 15031-2 Terminology List  ................................

15

TIGHTENING TORQUE OF STANDARD
BOLTS ................................................................

19

Tightening Torque Table  .........................................

19

FEATURES OF NEW MODEL .....................

20

IDENTIFICATION INFORMATION .....................

20

Model Variation  .......................................................

20

Identification Number  ..............................................

21

Dimensions .............................................................

23

Wheels & Tires ........................................................

23

PRECAUTION ..............................................

24

PRECAUTIONS .................................................

24

Description ...............................................................

24

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

24

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ...................................

24

General Precaution ..................................................

25

Precaution for All Mode 4WD System  .....................

26

Precaution for Three Way Catalyst ..........................

26

Precaution for Fuel (Unleaded Premium Gasoline
Recommended) .......................................................

26

Precaution for Multiport Fuel Injection System or
Engine Control System ............................................

27

Precaution for Hoses  ...............................................

27

Precaution for Engine Oils .......................................

28

Precaution for Air Conditioning ................................

28

LIFTING POINT .................................................

29

Pantograph Jack ......................................................

29

Garage Jack and Safety Stand ................................

29

2-Pole Lift  ................................................................

29

TOW TRUCK TOWING  .....................................

31

Tow Truck Towing  ...................................................

31

Vehicle Recovery (Freeing a Stuck Vehicle)  ...........

32

BASIC INSPECTION  ...................................

33

SERVICE INFORMATION FOR ELECTRICAL
INCIDENT ..........................................................

33

Work Flow ................................................................

33

Control Units and Electrical Parts ............................

33

How to Check Terminal  ...........................................

34

Intermittent Incident  .................................................

37

Circuit Inspection  .....................................................

40

CONSULT-III CHECKING SYSTEM  .................

45

Description ...............................................................

45

Function and System Application  ............................

45

2011 Pathfinder

HOW TO USE THIS MANUAL

GI-3

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

HOW TO USE THIS MANUAL

HOW TO USE THIS MANUAL

Description

INFOID:0000000006243337

This volume explains “Removal, Disassembly, Installation, Inspection and  Adjustment” and “Trouble Diag-

noses”.

Terms

INFOID:0000000006243338

• The captions

WARNING

 and

CAUTION

 warn you of steps that must be followed to prevent personal injury

and/or damage to some part of the vehicle.

WARNING

 indicates the possibility of personal injury if instructions are not followed.

CAUTION

 indicates the possibility of component damage if instructions are not followed.

BOLD TYPED STATEMENTS

 except

WARNING

 and

CAUTION

 give you helpful information.

Standard value:Tolerance at inspection and adjustment.

Limit value:The maximum or minimum limit value that should not be exceeded at inspection and adjustment.

Units

INFOID:0000000006243339

• The

UNITS

 given in this manual are primarily expressed as the SI UNIT (International System of Unit), and

alternatively expressed in the metric system and in the yard/pound system.

Also with regard to tightening torque of bolts and nuts, there are descriptions both about range and about the

standard tightening torque.

“Example”

Range

Standard

Contents

INFOID:0000000006243340

A QUICK REFERENCE INDEX

, a black tab (e.g.

) is provided on the first page. You can quickly find the

first page of each section by matching it to the section's black tab.

THE CONTENTS

 are listed on the first page of each section.

THE TITLE

 is indicated on the upper portion of each page and shows the part or system.

THE PAGE NUMBER

 of each section consists of two or three letters which designate the particular section

and a number (e.g. “BR-5”).

THE SMALL ILLUSTRATIONS

 show the important steps such as inspection, use of special tools, knacks of

work and hidden or tricky steps which are not shown in the previous large illustrations.

Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle

or transmission, etc. are presented in a step-by-step format where necessary.

Outer Socket Lock Nut

: 59 - 78 N·m (6.0 - 8.0 kg-m, 43 - 58 ft-lb)

Drive Shaft Installation Bolt : 44.3 N·m (4.5 kg-m, 33 ft-lb)

2011 Pathfinder

GI-4

< HOW TO USE THIS MANUAL >

HOW TO USE THIS MANUAL

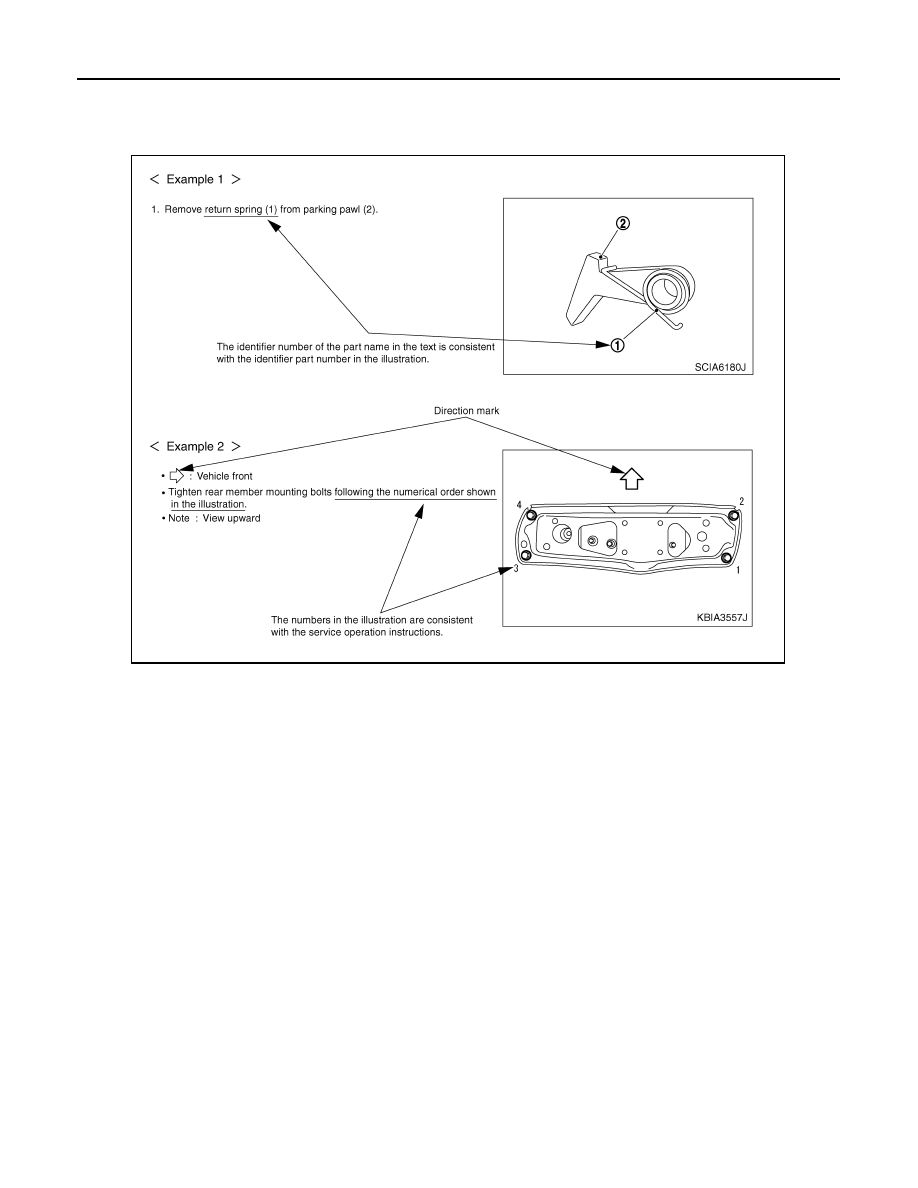

Relation between Illustrations and Descriptions

INFOID:0000000006243341

The following sample explains the relationship between the part description in an illustration, the part name in

the text and the service procedures.

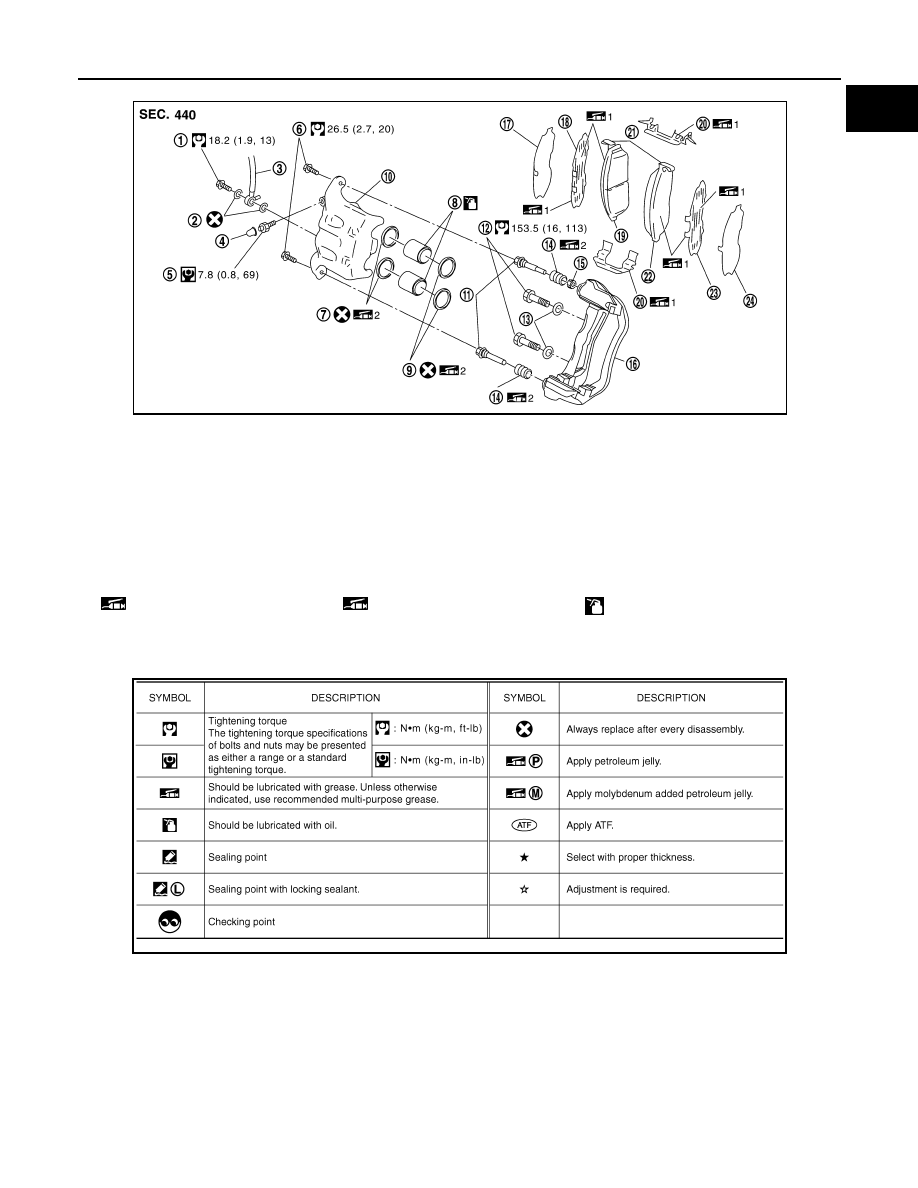

Components

INFOID:0000000006243342

THE LARGE ILLUSTRATIONS

 are exploded views (see the following) and contain tightening torques, lubri-

cation points, section number of the

PARTS CATALOG

 (e.g. SEC. 440) and other information necessary to

perform repairs.

The illustrations should be used in reference to service matters only. When ordering parts, refer to the appro-

priate

PARTS CATALOG

.

Always check with the

PARTS DEPARMENT

 for the latest parts information.

Components shown in an illustration may be identified by a circled number. When this style of illustration is

used, the text description of the components will follow the illustration.

SAIA0519E

2011 Pathfinder

HOW TO USE THIS MANUAL

GI-5

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

SYMBOLS

1.

Union bolt

2.

Copper washer

3.

Brake hose

4.

Cap

5.

Bleed valve

6.

Sliding pin bolt

7.

Piston seal

8.

Piston

9.

Piston boot

10. Cylinder body

11. Sliding pin

12. Torque member mounting bolt

13. Washer

14. Sliding pin boot

15. Bushing

16. Torque member

17. Inner shim cover

18. Inner shim

19. Inner pad

20. Pad retainer

21. Pad wear sensor

22. Outer pad

23. Outer shim

24. Outer shim cover

1: PBC (Poly Butyl Cuprysil) grease
or silicone-based grease

2: Rubber grease

: Brake fluid

Refer to GI section for additional symbol definitions.

SFIA2959E

SAIA0749E

2011 Pathfinder

GI-6

< HOW TO USE THIS MANUAL >

HOW TO FOLLOW TROUBLE DIAGNOSES

HOW TO FOLLOW TROUBLE DIAGNOSES

Description

INFOID:0000000006243343

NOTICE:

Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following

instructions before diagnosing.

• Before performing trouble diagnoses, read the “Work Flow” in each section.

• After repairs, re-check that the problem has been completely eliminated.

• Refer to Component Parts and Harness Connector Location for the Systems described in each section for

identification/location of components and harness connectors.

• When checking circuit continuity, ignition switch should be OFF.

• Refer to the Circuit Diagram for quick pinpoint check.

If you need to check circuit continuity between harness connectors in more detail, such as when a sub-har-

ness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG section for identi-

fication of harness connectors.

• Before checking voltage at connectors, check battery voltage.

• After accomplishing the Diagnosis Procedures and Electrical Components Inspection, make sure that all

harness connectors are reconnected as they were.

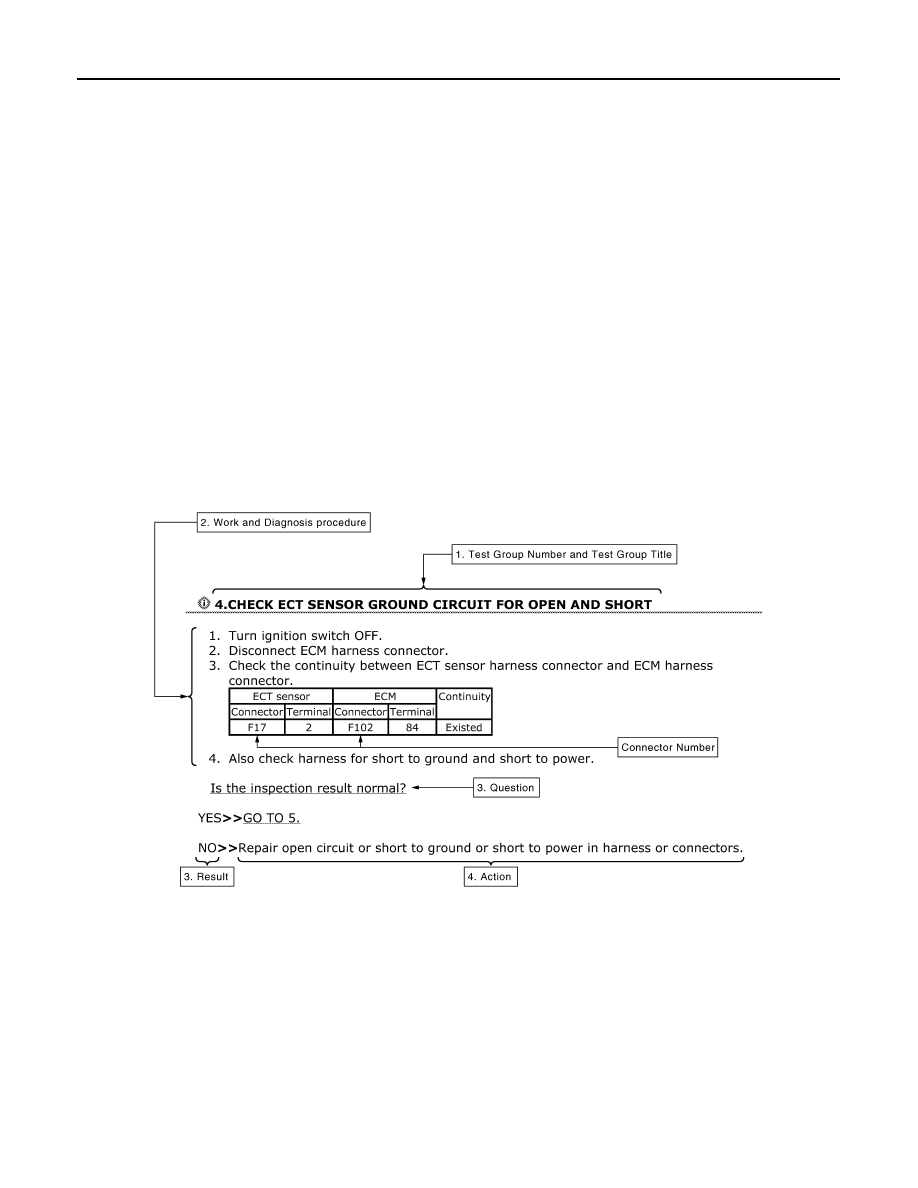

How to Follow Test Groups in Trouble Diagnosis

INFOID:0000000006243344

1. Test group number and test group title

• Test group number and test group title are shown in the upper portion of each test group.

2. Work and diagnosis procedure

• Start to diagnose a problem using procedures indicated in enclosed test groups.

3. Questions and results

• Questions and required results are indicated in test group.

4. Action

• Next action for each test group is indicated based on result of each question.

JPAIA0021GB

2011 Pathfinder

HOW TO FOLLOW TROUBLE DIAGNOSES

GI-7

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

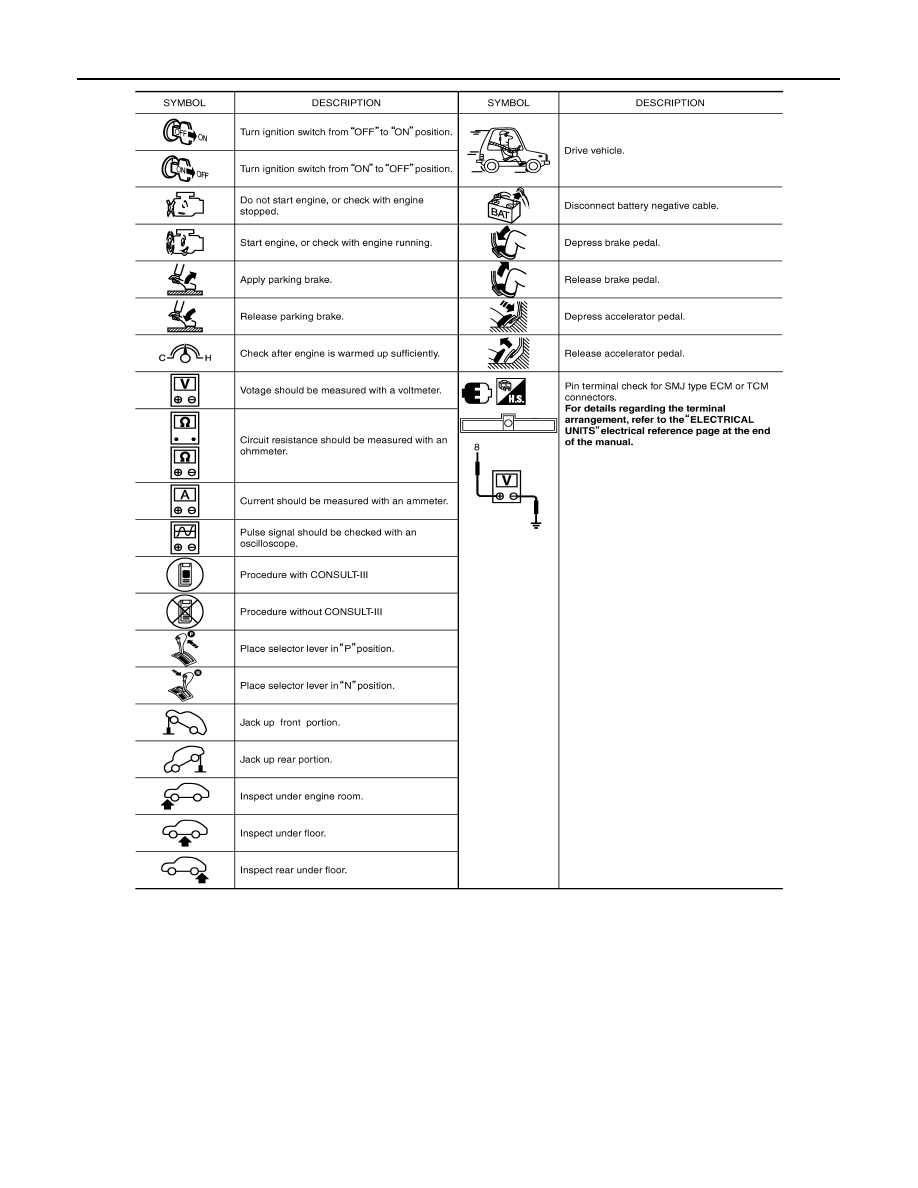

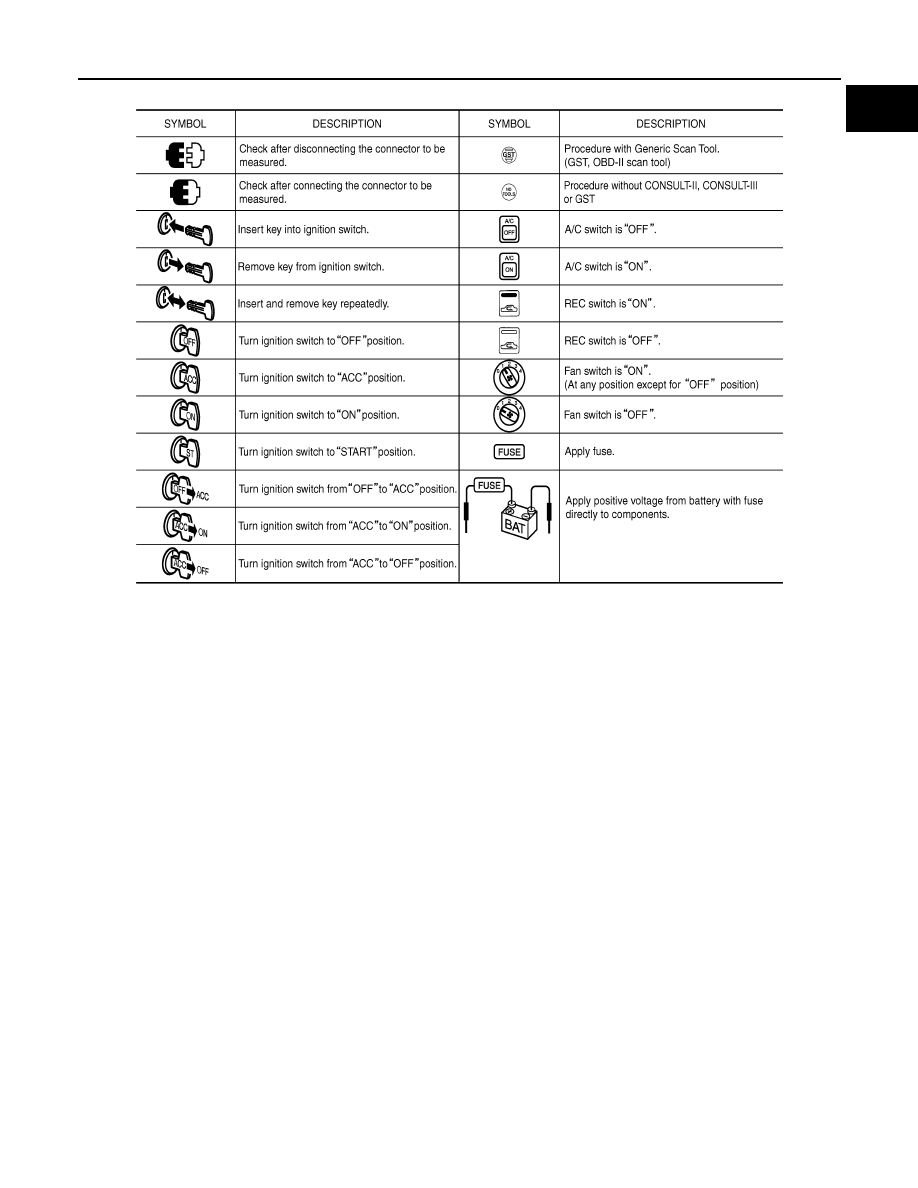

Key to Symbols Signifying Measurements or Procedures

INFOID:0000000006243345

SAIA1539E

2011 Pathfinder

GI-8

< HOW TO USE THIS MANUAL >

HOW TO FOLLOW TROUBLE DIAGNOSES

SAIA1540E
