Nissan Pathfinder (2011 year). Manual - part 387

CAMSHAFT

EM-207

< REMOVAL AND INSTALLATION >

[VK56DE]

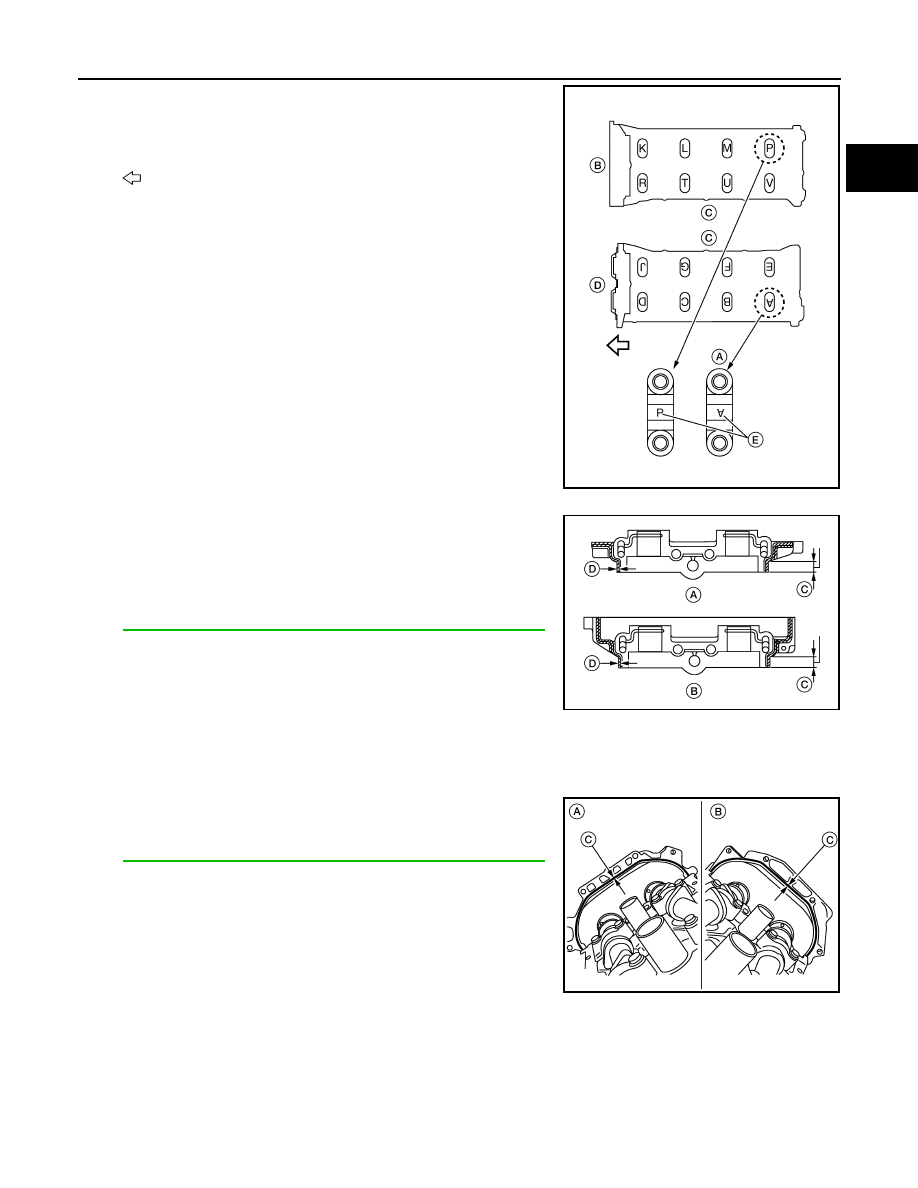

3. Install the RH bank (B) and LH bank (D) camshaft brackets (A).

• Install by referring to the installation location mark (E) on the

upper surface.

• Install so that the installation location mark (E) can be correctly

read when viewed from the intake manifold side (C).

•

: Front

• Install No. 1 camshaft bracket using the following procedure:

• C:11 mm (0.43 in)

• D: 2.0 - 3.0 mm (0.079 - 0.118 in) dia.

- Apply liquid gasket to No. 1 camshaft bracket (A) and (B) as

shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

CAUTION:

The components must be installed within 5 minutes of the

liquid gasket application. Then allow 30 minutes for the

liquid gasket to set before operating the engine.

CAUTION:

• After installation, be sure to wipe off any excessive liquid gasket outside of application (C) and

(D) both on RH and LH sides.

• Remove completely any excess of liquid gasket inside bracket.

- Apply liquid gasket (C) to the back side of the LH (A) bank

front cover and RH (B) bank front cover as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

CAUTION:

The components must be installed within 5 minutes of the

liquid gasket application. Then allow 30 minutes for the

liquid gasket to set before operating the engine.

- C: 2.6 - 3.6 mm (0.102 - 0.142 in) dia.

AWBIA0164ZZ

WBIA0710E

WBIA0711E

2011 Pathfinder

EM-208

< REMOVAL AND INSTALLATION >

[VK56DE]

CAMSHAFT

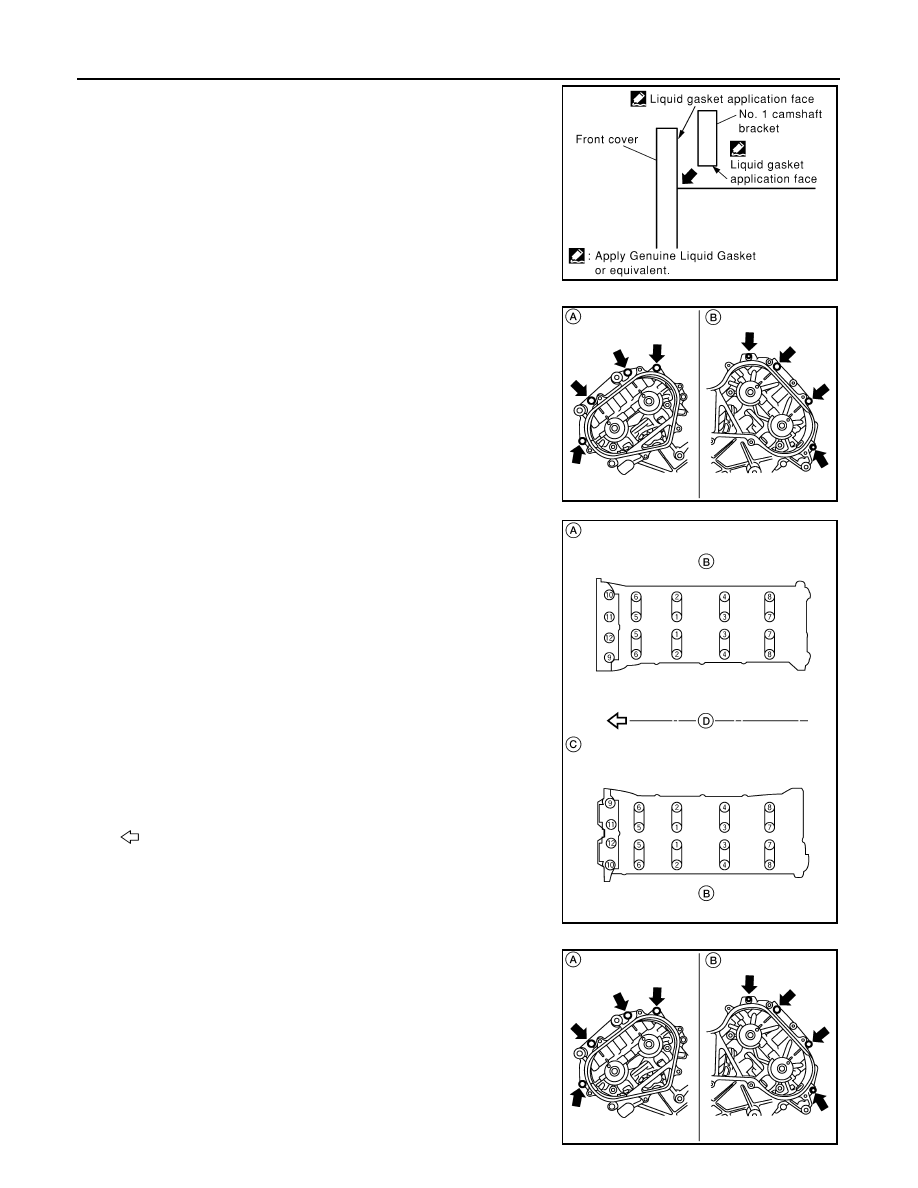

- Position No. 1 camshaft bracket close to the mounting posi-

tion, and then install it to prevent from touching liquid gasket

applied to each surface.

- Temporarily tighten the RH (A) and LH (B) front cover bolts (4

for each bank) as shown.

4. Tighten the camshaft bracket bolts as follows:

CAUTION:

After tightening the camshaft bracket bolts, be sure to wipe

off excessive liquid gasket from the parts listed below.

• Mating surface of rocker cover

• Mating surface of front cover

• A: RH bank

• B: Exhaust side

• C: LH bank

• D: Intake side
•

: Front

a. Tighten the RH (A) and LH (B) front cover bolts (4 for each bank)

as shown to the specified torque.

SBIA0259E

WBIA0706E

Camshaft bracket bolts
Step 1 (bolts 9 - 12)

: 1.96 N·m (0.2 kg-m, 17 in-lb)

Step 2 (bolts 1 - 8)

: 1.96 N·m (0.2 kg-m, 17 in-lb)

Step 3 (all bolts)

: 5.88 N·m (0.6 kg-m, 52 in-lb)

Step 4 (all bolts)

: 10.4 N·m (1.1 kg-m, 92 in-lb)

WBIA0707E

Front cover bolts : 11.0 N·m (1.1 kg-m, 8 ft-lb)

WBIA0706E

2011 Pathfinder

CAMSHAFT

EM-209

< REMOVAL AND INSTALLATION >

[VK56DE]

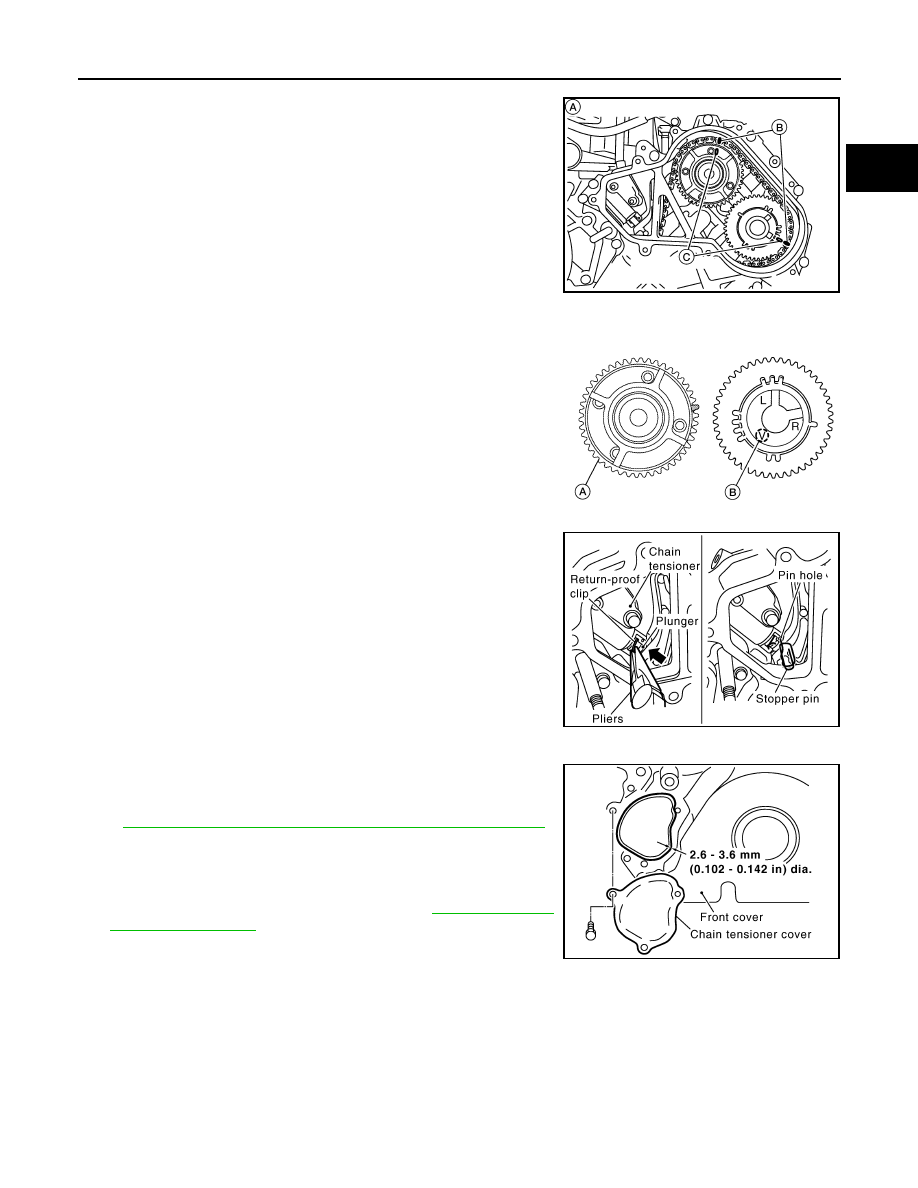

5. Install the camshaft sprockets using the following procedure:

• A: LH bank shown

a. Install the camshaft sprockets aligning them with the matching

marks painted on the timing chain (B) and the camshaft sprock-

ets (C) before removal. Align the camshaft sprocket key groove

with the dowel pin on the camshaft front edge at the same time.

Then temporarily tighten camshaft sprocket bolts.

• Install the intake VTC (A) and exhaust (B) side camshaft

sprockets by selectively using the groove of the dowel pin

according to the bank for the exhaust (B) side camshaft

sprockets. (Common part used for both exhaust banks.)

NOTE:

Use the groove marked (R) for RH bank and (L) for LH bank.

b. Lock the hexagonal part of the camshaft in the same way as for

removal, and tighten the camshaft sprocket bolts.

c. Check again that the timing alignment mark on the timing chain

and on each sprocket are aligned.

6. Install the chain tensioner using the following procedure:

NOTE:

LH is shown.

a. Install the chain tensioner.

• Compress the plunger and hold it using a stopper pin when

installing.

• Loosen the slack guide side timing chain by rotating the cam-

shaft hexagonal part if mounting space is small.

b. Remove the stopper pin and release the plunger to apply ten-

sion to the timing chain.

c. Install the chain tensioner cover onto the front cover.

• Apply liquid gasket as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

7. Check and adjust valve clearances. Refer to

EM-209, "Inspec-

tion after Installation"

8. Installation of the remaining components is in the reverse order

of removal.

Inspection after Installation

INFOID:0000000006247089

INSPECTION OF CAMSHAFT SPROCKET (INT) OIL GROOVE

WARNING:

Check when engine is cold so as to prevent burns from any splashing engine oil.

CAUTION:

AWBIA0152ZZ

AWBIA0151ZZ

Chain tensioner bolts

: 6.9 N·m (0.70 kg-m, 61 in-lb)

Chain tensioner cover
bolts

: 9.0 N·m (0.92 kg-m, 80 in-lb)

KBIA2479E

KBIA2547E

2011 Pathfinder

EM-210

< REMOVAL AND INSTALLATION >

[VK56DE]

CAMSHAFT

• Perform this inspection only when DTC P0011 is detected in self-diagnostic results of CONSULT III

and it is directed according to inspection procedure of EC section. Refer to

EC-620, "Component

Inspection"

1. Check engine oil level. Refer to

LU-26, "Inspection"

2. Perform the following procedure so as to prevent the engine from being unintentionally started while

checking.

a. Release fuel pressure. Refer to

EC-938, "Fuel Pressure Check"

b. Disconnect ignition coil and injector harness connectors if practical.
3. Remove IVT control solenoid valve.
4. Crank engine, and then make sure that engine oil comes out from IVT control cover oil hole. End cranking

after checking.

WARNING:

Be careful not to touch rotating parts (drive belts, idler pulley, and crankshaft pulley, etc.).

CAUTION:

• Engine oil may squirt from IVT control solenoid valve installation hole during cranking. Use a

shop cloth to prevent engine oil from splashing on worker, engine components and vehicle.

• Do not allow engine oil to get on rubber components such as drive belts or engine mount insula-

tors. Immediately wipe off any splashed engine oil.

5. Clean oil groove between oil strainer and IVT control solenoid valve if engine oil does not come out from

IVT control valve cover oil hole. Refer to

LU-25, "System Chart"

6. Remove components between IVT control solenoid valve and camshaft sprocket (INT), and then check

each oil groove for clogging.

• Clean oil groove if necessary.

7. After inspection, installation of the remaining components is in the reverse order of removal.

2011 Pathfinder

OIL SEAL

EM-211

< REMOVAL AND INSTALLATION >

[VK56DE]

OIL SEAL

Removal and Installation of Valve Oil Seal

INFOID:0000000006247090

REMOVAL

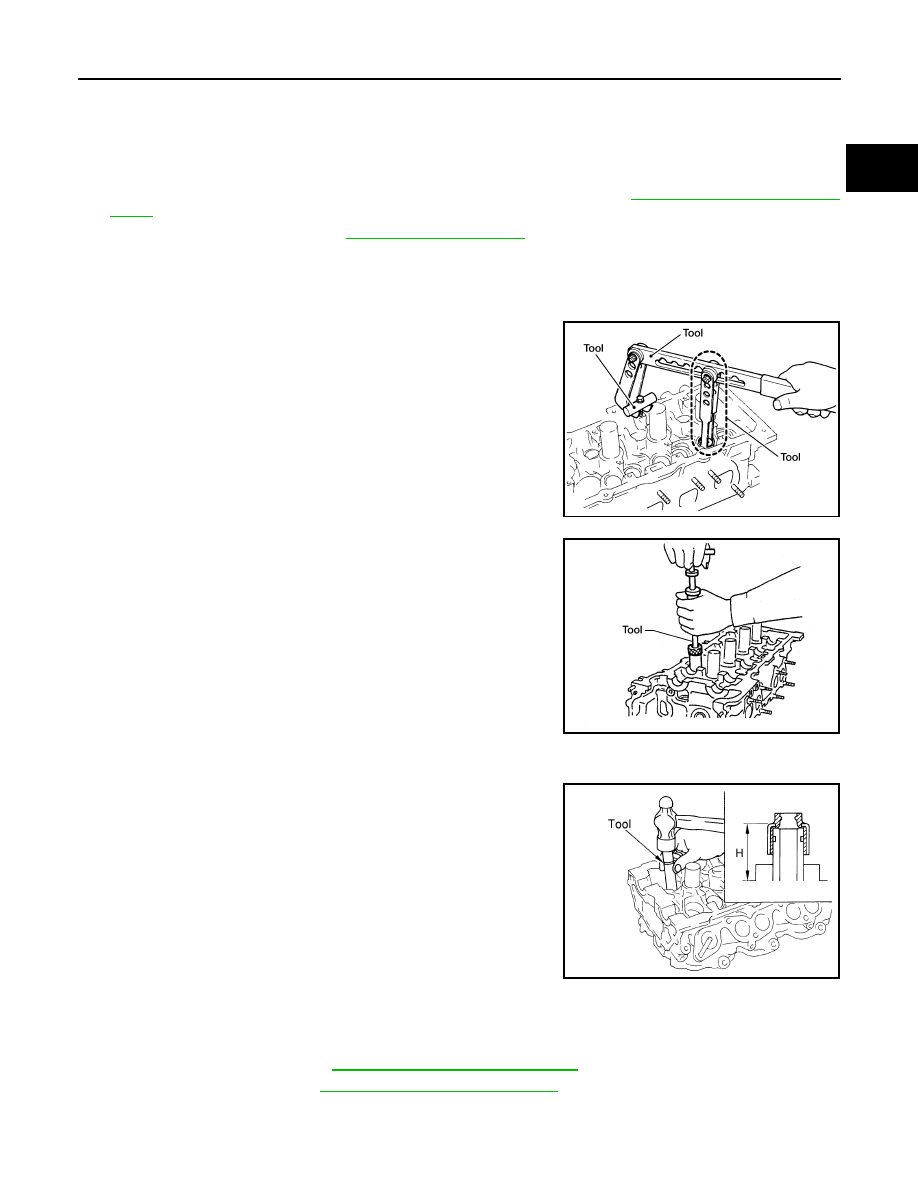

1. Remove the camshaft relating to the valve oil seal to be removed. Refer to

EM-200, "Removal and Instal-

lation"

2. Remove the valve lifters. Refer to

EM-217, "Exploded View"

• Correctly identify the location where each part is removed from. Keep parts organized to avoid mixing

them up.

3. Turn the crankshaft until the cylinder requiring new oil seals is at TDC. This will prevent the valve from

dropping into the cylinder.

4. Remove the valve collet using Tool.

CAUTION:

Do not damage the valve lifter holes.

5. Remove the valve spring retainer and valve spring.

CAUTION:

Do not remove the valve spring seat from the valve spring.

6. Remove the valve oil seal using Tool.

INSTALLATION

Installation is in the reverse order of removal.

• Install the valve oil seal using Tool.

• Apply new engine oil on the new valve oil seal joint and seal lip.

• Install the valve oil seal to the specified height "H".

Removal and Installation of Front Oil Seal

INFOID:0000000006247091

REMOVAL

1. Remove the drive belt. Refer to

EM-153, "Removal and Installation"

2. Remove the radiator. Refer to

CO-49, "Removal and Installation"

3. Remove drive plate cover.

Tool number

: KV10116200 (J-26336-B)
: KV10115900 (J-26336-20)
: KV10109220 ( — )

WBIA0578E

Tool number

: KV10107902 (J-38959)

WBIA0478E

Tool number

: KV10115600 (J-38958)

Height "H" (without valve spring installed)

Intake and exhaust

: 14.300 - 14.900 mm (0.5630 -
0.5870 in)

WBIA0490E

2011 Pathfinder

EM-212

< REMOVAL AND INSTALLATION >

[VK56DE]

OIL SEAL

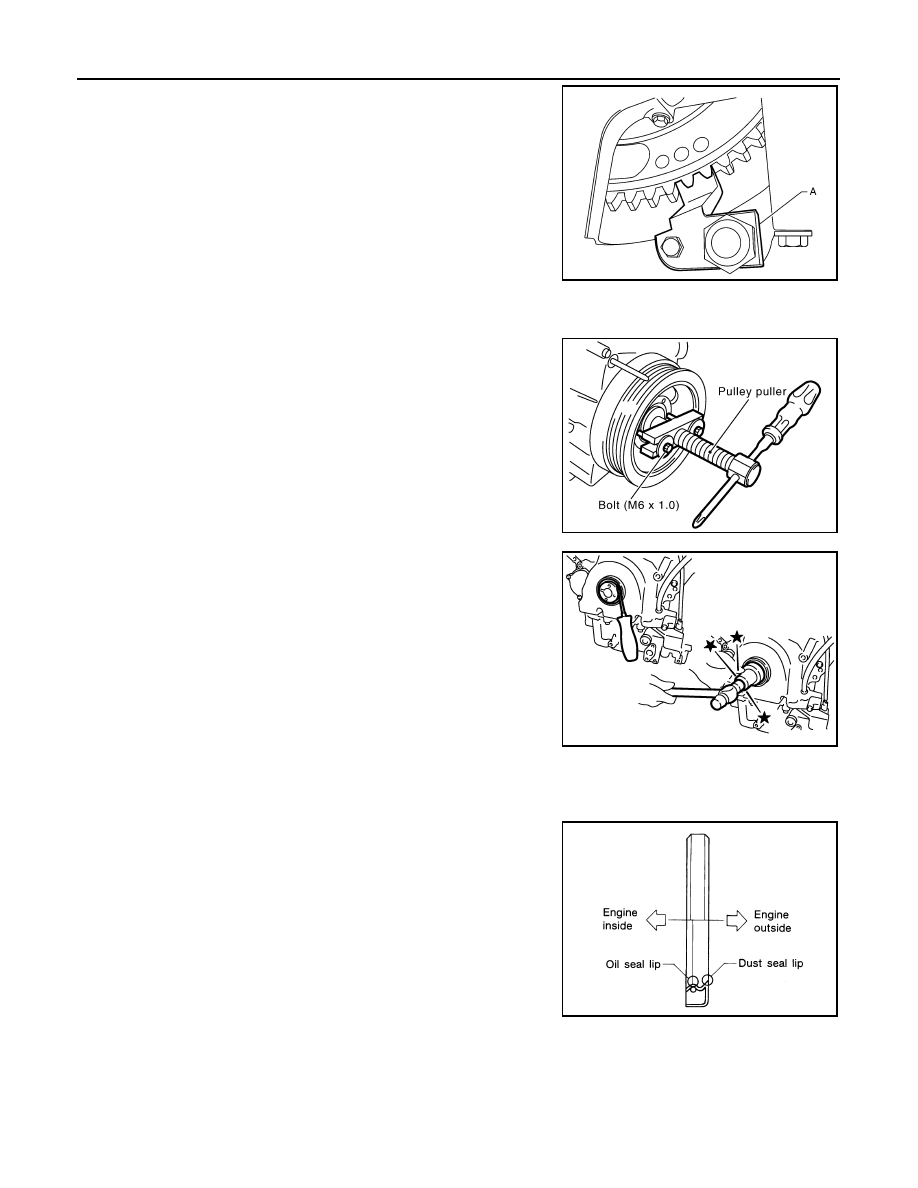

4. Lock crankshaft using Tool (A).

5. Match mark crankshaft pulley bolt flange and crankshaft pulley for installation.
6. Remove the crankshaft pulley.
a. Remove the crankshaft pulley from the crankshaft using suitable

tool.

• Set the bolts in the two bolt holes [M6 x 1.0 mm (0.04 in)] on

the front surface.

NOTE:

The dimension between the centers of the two bolt holes is 61

mm (2.40 in).

7. Remove the front oil seal using suitable tool.

CAUTION:

Do not damage front cover and oil pump drive spacer.

INSTALLATION

1. Apply new engine oil to both the oil seal lip and dust seal lip of the new front oil seal.
2. Install the front oil seal.

• Install the front oil seal so that each seal lip is oriented as

shown.

Tool number

: — (J-47245)

LBIA0455E

KBIA2477E

SBIA0359E

SEM715A

2011 Pathfinder

OIL SEAL

EM-213

< REMOVAL AND INSTALLATION >

[VK56DE]

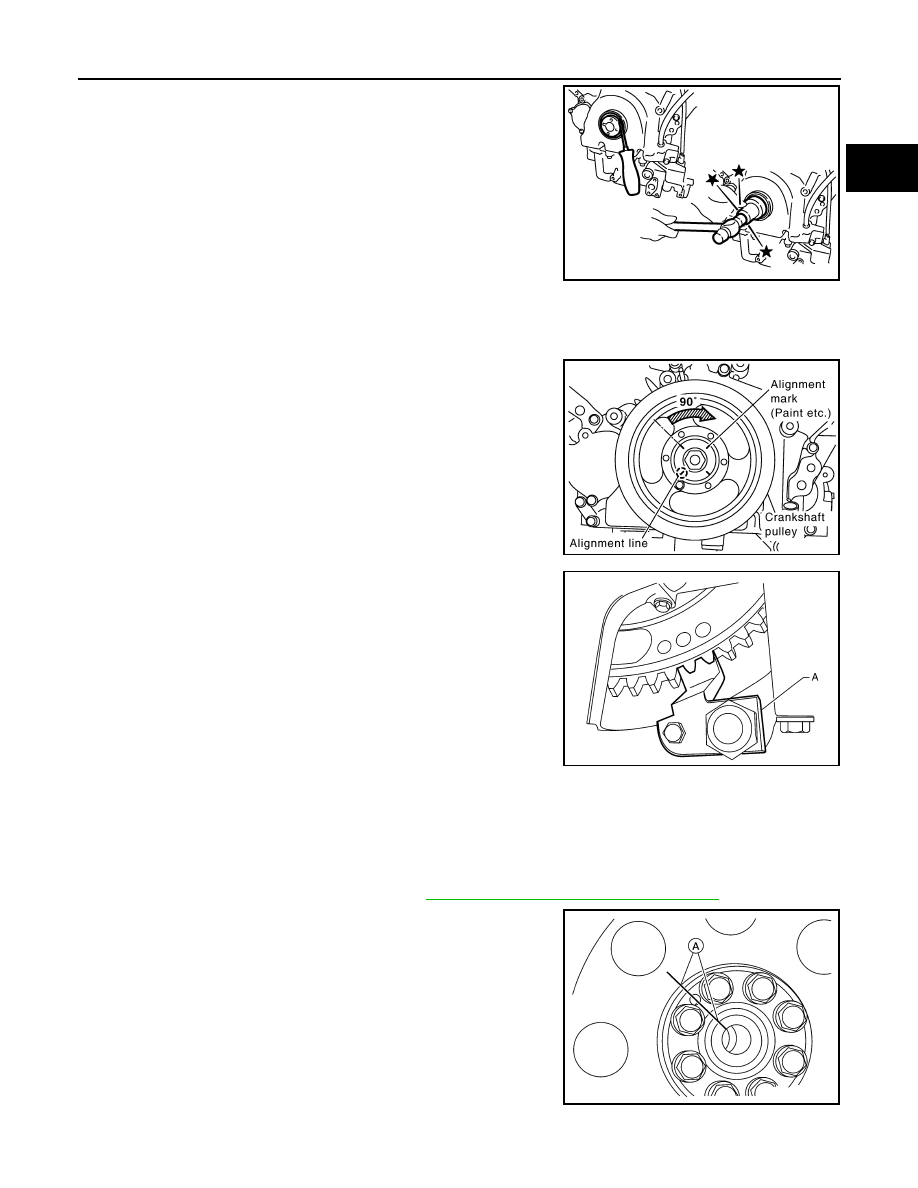

• Press-fit until the front oil seal is level with the front cover

using suitable tool.

CAUTION:

• Do not damage front timing chain case and crankshaft.

• Press-fit straight and avoid causing burrs or tilting of the

oil seal.

3. Tighten the crankshaft pulley bolt.

• Perform the following steps for angular tightening:

a. Apply engine oil onto the threaded parts of the bolt and seating area.
b. Select the one most visible notch of the four on the bolt flange.

Corresponding to the selected notch, put a alignment mark

(such as paint) on the crankshaft pulley.

4. Remove Tool (A).

5. Installation of the remaining components is in the reverse order of removal.

Removal and Installation of Rear Oil Seal

INFOID:0000000006247092

REMOVAL

1. Remove the transmission assembly. Refer to

TM-197, "4WD : Removal and Installation"

2. Before removing the drive plate, put a match mark (A) on the

crankshaft and drive plate for alignment during installation.

3. Remove the drive plate.

SBIA0359E

Crankshaft pulley bolt torque
Step 1

: 93.1 N·m (9.5 kg-m, 69 ft-lb)

Step 2

: additional 90

(angle tightening)

Tool number

: KV10112100 (BT-8653-
A)

KBIA2519E

Tool number

: — (J-47245)

LBIA0455E

ALBIA0522ZZ

2011 Pathfinder

EM-214

< REMOVAL AND INSTALLATION >

[VK56DE]

OIL SEAL

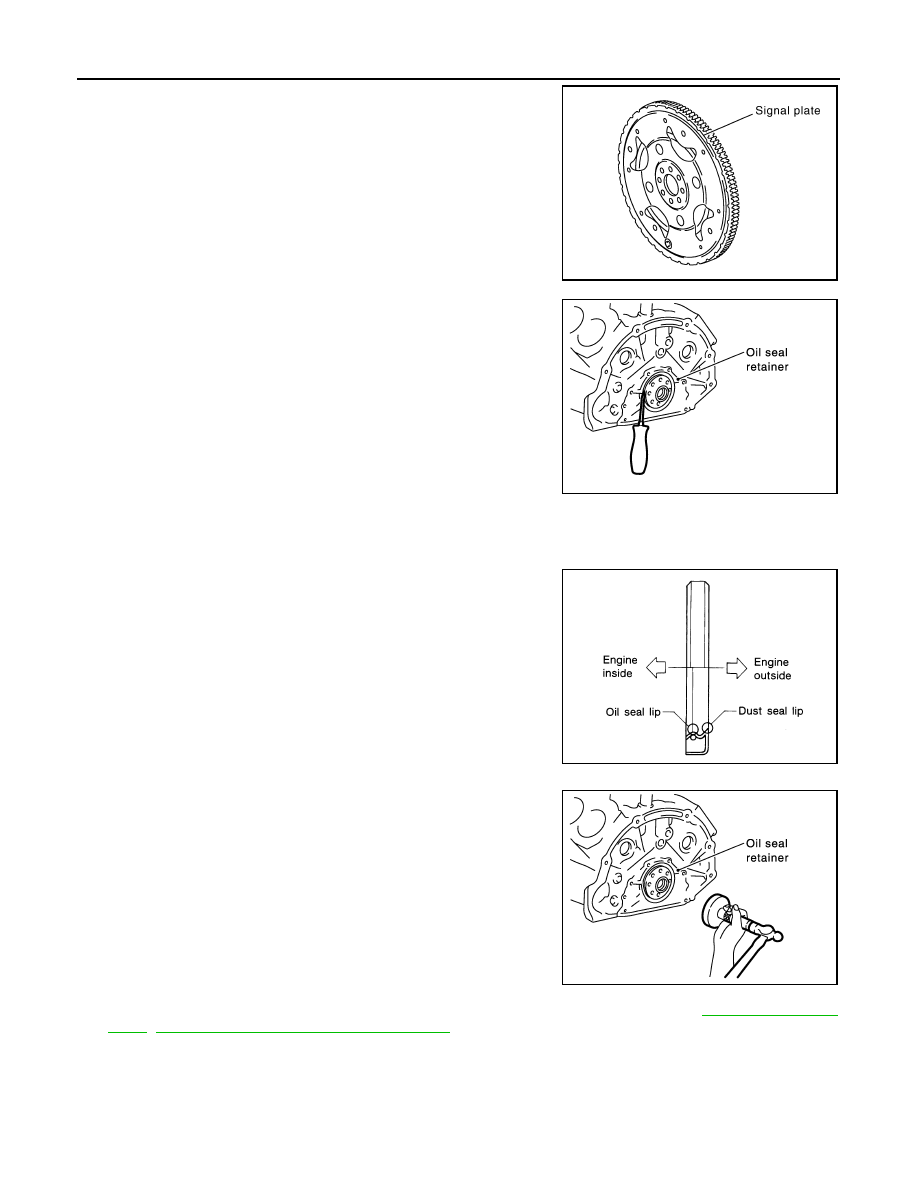

• Holding the crankshaft pulley bolt, lock the crankshaft to

remove the drive plate bolts.

• Remove drive plate bolts diagonally.

CAUTION:

• Do not damage the drive plate. Especially, avoid deform-

ing and damaging the signal plate teeth (circumference

position).

• Keep magnetic materials away from signal plate.

• Place the drive plate with the signal plate surface facing

upward.

4. Remove the rear oil seal using suitable tool.

CAUTION:

Do not damage crankshaft or oil seal retainer surface.

INSTALLATION

1. Apply new engine oil to both the oil seal lip and dust seal lip of the new rear oil seal.
2. Install the rear oil seal.

• Install the rear oil seal so that each seal lip is oriented as

shown.

• Press-fit the rear oil seal using suitable tool.

CAUTION:

• Do not damage the crankshaft or oil seal retainer.

• Press-fit the oil seal straight to avoid causing burrs or

tilting.

• Do not touch grease applied onto the oil seal lip.

• Do not damage or scratch the outer circumference of

the rear oil seal.

• Tap until flush with the front edge of the oil seal retainer.

3. Installation of the remaining components is in the reverse order of removal. Refer to

EM-229, "Exploded

View"

TM-197, "4WD : Removal and Installation"

CAUTION:

• When replacing an engine or transmission you must make sure the dowels are installed cor-

rectly during re-assembly.

• Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of

drivetrain components.

KBIA2491E

WBIA0437E

SEM715A

WBIA0438E

2011 Pathfinder

Content .. 385 386 387 388 ..
