EC-942

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Pressure

INFOID:0000000006244644

Idle Speed and Ignition Timing

INFOID:0000000006244645

*: Under the following conditions:
• Air conditioner switch: OFF
• Electric load: OFF (Lights, rear window defogger and heater fan)
• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000006244646

Mass Air Flow Sensor

INFOID:0000000006244647

*: Engine is warmed up to normal operating temperature and running under no load.

Intake Air Temperature Sensor

INFOID:0000000006244648

Engine Coolant Temperature Sensor

INFOID:0000000006244649

A/F Sensor 1 Heater

INFOID:0000000006244650

Fuel pressure at idling kPa (kg/cm

2

, psi)

Approximately 350 (3.57, 51)

Target idle speed

No-load* (in the P or N position)

650

±

 50 rpm

Air conditioner: ON

In the P or N position

700 rpm or more

Ignition timing

In the P or N position

15

°



±

 5

°

BTDC

Condition

Calculated load value (%) (Using CONSULT-III or GST)

At idle

14.0 - 33.0

At 2,500 rpm

12.0 - 25.0

Supply voltage

Battery voltage (11 - 14 V)

Output voltage at idle

1.0 - 1.3 V*

Mass air flow (Using CONSULT-III or GST)

3.0 - 9.0 g/s at idle*

9.0 - 28.0 g/s at 2,500 rpm*

Temperature [

°

C (

°

F)]

Resistance (k

)

25 (77)

1.800 - 2.200

Temperature [

°

C (

°

F)]

Resistance (k

)

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

Resistance [at 25

°

C (77

°

F)]

1.98 - 2.66

2011 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

EC-943

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Heated Oxygen sensor 2 Heater

INFOID:0000000006244651

Crankshaft Position Sensor (POS)

INFOID:0000000006244652

Refer to

EC-734, "Component Inspection"

.

Camshaft Position Sensor (PHASE)

INFOID:0000000006244653

Refer to

EC-738, "Component Inspection"

.

Throttle Control Motor

INFOID:0000000006244654

Fuel Injector

INFOID:0000000006244655

Fuel Pump

INFOID:0000000006244656

Resistance [at 25

°

C (77

°

F)]

8 - 10

Resistance [at 25

°

C (77

°

F)]

Approximately 1 - 15

Resistance [at 10 - 60

°

C (50 - 140

°

F)]

11.1 - 14.5

Resistance [at 25

°

C (77

°

F)]

0.2 - 5.0

2011 Pathfinder

EM-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EM

A

EM

N

O

P

CONTENTS

ENGINE MECHANICAL

VQ40DE

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

4

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

4

Precaution for Drain Engine Coolant .........................

5

Precaution for Disconnecting Fuel Piping  .................

5

Precaution for Removal and Disassembly  ................

5

Precaution for Inspection, Repair and Replace-
ment ........................................................................
..

5

Precaution for Assembly and Installation  ..................

5

Parts Requiring Angle Tightening  .............................

5

Precaution for Liquid Gasket .....................................

6

PREPARATION ............................................

7

PREPARATION ...................................................

7

Special Service Tool  .................................................

7

Commercial Service Tool  ..........................................

9

SYSTEM DESCRIPTION  .............................

12

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ............................

12

NVH Troubleshooting - Engine Noise  .....................

12

Use the Chart Below to Help You Find the Cause
of the Symptom  .......................................................

12

PERIODIC MAINTENANCE .........................

14

DRIVE BELTS  ....................................................

14

Exploded View  ........................................................

14

Checking Drive Belts ...............................................

14

Adjustment ..............................................................

14

Removal and Installation .........................................

14

Drive Belt Auto Tensioner and Idler Pulley  .............

15

AIR CLEANER FILTER .....................................

16

Exploded View .........................................................

16

Removal and Installation  .........................................

16

SPARK PLUG  ...................................................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

CAMSHAFT VALVE CLEARANCE  ..................

19

Valve Clearance  ......................................................

19

COMPRESSION PRESSURE  ...........................

23

Compression Pressure  ............................................

23

REMOVAL AND INSTALLATION ...............

25

ENGINE ROOM COVER  ...................................

25

Removal and Installation  .........................................

25

AIR CLEANER AND AIR DUCT  .......................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

26

INTAKE MANIFOLD COLLECTOR  ..................

27

Exploded View .........................................................

27

Removal and Installation  .........................................

27

INTAKE MANIFOLD  .........................................

30

Exploded View .........................................................

30

Removal and Installation  .........................................

30

EXHAUST MANIFOLD AND THREE WAY
CATALYST ........................................................

32

Exploded View .........................................................

32

Removal and Installation (Three Way Catalyst)  ......

32

Removal and Installation (Exhaust Manifold)  ..........

33

OIL PAN AND OIL STRAINER  .........................

36

Exploded View .........................................................

36

Removal and Installation  .........................................

36

IGNITION COIL  .................................................

42

Exploded View .........................................................

42

2011 Pathfinder

EM-2

Removal and Installation  ........................................

42

ROCKER COVER  ..............................................

43

Exploded View ........................................................

43

Removal and Installation  ........................................

43

FUEL INJECTOR AND FUEL TUBE .................

47

Exploded View ........................................................

47

Removal and Installation  ........................................

47

INTAKE VALVE TIMING CONTROL .................

52

Intake Valve Timing Control Solenoid Valve (LH) ...

52

Intake Valve Timing Control Solenoid Valve (RH) ...

52

FRONT TIMING CHAIN CASE  ..........................

53

Exploded View ........................................................

53

Removal and Installation  ........................................

53

TIMING CHAIN  ..................................................

61

Exploded View ........................................................

61

Removal and Installation  ........................................

61

TIMING CHAIN TENSIONER  ............................

69

Exploded View ........................................................

69

Removal and Installation (Primary Timing Chain
Tensioner) .............................................................
.

69

Removal and Installation (Secondary Timing
Chain Tensioner)  ...................................................
.

70

Removal and Installation (Secondary Timing
Chain Tensioner Shoe) ..........................................
.

70

REAR TIMING CHAIN CASE  ............................

72

Exploded View ........................................................

72

Removal and Installation  ........................................

72

CAMSHAFT .......................................................

77

Exploded View ........................................................

77

Removal and Installation  ........................................

78

OIL SEAL ...........................................................

87

Removal and Installation of Valve Oil Seal .............

87

Removal and Installation of Front Oil Seal  .............

87

Removal and Installation of Rear Oil Seal ..............

88

CYLINDER HEAD ..............................................

90

Exploded View ........................................................

90

Removal and Installation  ........................................

90

Exploded View ........................................................

94

Disassembly and Assembly ....................................

94

Inspection After Disassembly .................................

96

UNIT REMOVAL AND INSTALLATION  ....

101

ENGINE ASSEMBLY .......................................

101

Exploded View .......................................................

101

Removal and Installation  .......................................

101

UNIT DISASSEMBLY AND ASSEMBLY ...

105

ENGINE UNIT  ..................................................

105

Exploded View .......................................................

105

Disassembly and Assembly ...................................

106

Inspection After Disassembly ................................

116

Dowel Pin Alignment .............................................

125

HOW TO SELECT PISTON AND BEARING  ...

127

How to Select Piston and Bearing  ........................

127

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

132

SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................

132

Standard and Limit ................................................

132

VK56DE

PRECAUTION ...........................................

143

PRECAUTIONS  ................................................

143

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

143

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ................................

143

Precaution for Drain Engine Coolant  ....................

144

Precaution for Disconnecting Fuel Piping  .............

144

Precaution for Removal and Disassembly  ............

144

Precaution for Inspection, Repair and Replace-
ment ......................................................................

144

Precaution for Assembly and Installation ..............

144

Parts Requiring Angular Tightening  ......................

144

Precaution for Liquid Gasket .................................

145

PREPARATION .........................................

146

PREPARATION ................................................

146

Special Service Tool  .............................................

146

Commercial Service Tool ......................................

148

SYSTEM DESCRIPTION  ..........................

150

NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING ...........................

150

NVH Troubleshooting - Engine Noise  ...................

150

Use the Chart Below to Help You Find the Cause
of the Symptom .....................................................

151

PERIODIC MAINTENANCE ......................

153

DRIVE BELTS  ..................................................

153

Exploded View  ......................................................

153

Checking Drive Belts .............................................

153

Adjustment ............................................................

153

Removal and Installation .......................................

153

Drive Belt Auto Tensioner and Idler Pulley  ...........

154

AIR CLEANER FILTER  ....................................

155

Exploded View  ......................................................

155

Removal and Installation .......................................

155

SPARK PLUG ...................................................

156

Exploded View  ......................................................

156

Removal and Installation .......................................

156

2011 Pathfinder

EM-3

C

D

E

F

G

H

I

J

K

L

M

EM

A

N

O

P

CAMSHAFT VALVE CLEARANCE  .................

158

Valve Clearance ....................................................

158

COMPRESSION PRESSURE  ..........................

163

Compression Pressure ..........................................

163

REMOVAL AND INSTALLATION .............

164

ENGINE ROOM COVER  ..................................

164

Removal and Installation .......................................

164

AIR CLEANER AND AIR DUCT  ......................

165

Exploded View  ......................................................

165

Removal and Installation .......................................

165

INTAKE MANIFOLD .........................................

166

Exploded View  ......................................................

166

Removal and Installation .......................................

166

EXHAUST MANIFOLD AND THREE WAY
CATALYST .......................................................

170

Exploded View  ......................................................

170

Removal and Installation .......................................

170

OIL PAN AND OIL STRAINER  ........................

173

Exploded View  ......................................................

173

Removal and Installation .......................................

173

IGNITION COIL  ................................................

178

Exploded View  ......................................................

178

Removal and Installation .......................................

178

ROCKER COVER .............................................

179

Exploded View  ......................................................

179

Removal and Installation .......................................

179

FUEL INJECTOR AND FUEL TUBE  ...............

181

Exploded View  ......................................................

181

Removal and Installation .......................................

181

INTAKE VALVE TIMING CONTROL  ...............

185

Intake Valve Timing Control Solenoid Valve
(Bank1) (LH) ..........................................................

185

Intake Valve Timing Control Solenoid Valve (Bank
2) (RH)  ..................................................................

185

Intake Valve Timing Control Position Sensor
(Bank 1) (LH) .........................................................

186

Intake Valve Timing Control Position Sensor
(Bank 1) (RH)  ........................................................

186

Camshaft Position Sensor (PHASE)  .....................

186

TIMING CHAIN COVER  ..................................

188

Exploded View .......................................................

188

Removal and Installation  .......................................

188

TIMING CHAIN ................................................

194

Exploded View .......................................................

194

Removal and Installation  .......................................

195

CAMSHAFT .....................................................

200

Exploded View .......................................................

200

Removal and Installation  .......................................

200

Inspection after Installation ....................................

209

OIL SEAL  ........................................................

211

Removal and Installation of Valve Oil Seal ............

211

Removal and Installation of Front Oil Seal  ............

211

Removal and Installation of Rear Oil Seal .............

213

CYLINDER HEAD  ...........................................

215

Exploded View .......................................................

215

Removal and Installation  .......................................

215

Exploded View .......................................................

217

Disassembly and Assembly ...................................

217

Inspection After Disassembly  ................................

219

UNIT REMOVAL AND INSTALLATION ....

225

ENGINE ASSEMBLY ......................................

225

Exploded View .......................................................

225

Removal and Installation  .......................................

225

UNIT DISASSEMBLY AND ASSEMBLY  ..

229

ENGINE UNIT ..................................................

229

Exploded View .......................................................

229

Disassembly and Assembly ...................................

230

Inspection After Disassembly  ................................

237

HOW TO SELECT PISTON AND BEARING  ..

248

How to Select Piston and Bearing  .........................

248

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

255

SERVICE DATA AND SPECIFICATIONS
(SDS) ...............................................................

255

Standard and Limit  ................................................

255

2011 Pathfinder

EM-4

< PRECAUTION >

[VQ40DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006598638

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000006246977

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2011 Pathfinder

PRECAUTIONS

EM-5

< PRECAUTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

Precaution for Drain Engine Coolant

INFOID:0000000006246978

Drain engine coolant when engine is cooled.

Precaution for Disconnecting Fuel Piping

INFOID:0000000006246979

• Before starting work, make sure no fire or spark producing items are in the work area.

• Release fuel pressure before disconnecting and disassembly.

• After disconnecting pipes, plug openings to stop fuel leakage.

Precaution for Removal and Disassembly

INFOID:0000000006246980

• When instructed to use special service tools, use the specified tools. Always be careful to work safely, avoid

forceful or uninstructed operations.

• Exercise maximum care to avoid damage to mating or sliding surfaces.

• Cover openings of engine system with tape or equivalent, if necessary, to seal out foreign materials.

• Mark and arrange disassembly parts in an organized way for easy troubleshooting and re-assembly.

• When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally

opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be used

in the step.

Precaution for Inspection, Repair and Replacement

INFOID:0000000006246981

Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and

replace if necessary.

Precaution for Assembly and Installation

INFOID:0000000006246982

• Use torque wrench to tighten bolts or nuts to specification.

• When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the

ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is specified,

do exactly as specified.

• Replace with new gasket, packing, oil seal or O-ring.

• Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for

any restriction and blockage.

• Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.

Before assembly, oil sliding surfaces well.

• Release air within route when refilling after draining engine coolant.

• Before starting engine, apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped).

Then make sure that there are no leaks at fuel line connections.

• After repairing, start engine and increase engine speed to check engine coolant, fuel, engine oil, and

exhaust gasses for leakage.

Parts Requiring Angle Tightening

INFOID:0000000006246983

• For the final tightening of the following engine parts use Tool:

- Cylinder head bolts

- Lower cylinder block bolts

- Connecting rod cap bolts

- Crankshaft pulley bolt (No angle wrench is required as bolt flange is provided with notches for angle tighten-

ing)

• Do not use a torque value for final tightening.

• The torque value for these parts are for a preliminary step.

• Ensure thread and seat surfaces are clean and coated with engine oil.

Tool number

: KV10112100 (BT-8653-A)

2011 Pathfinder

EM-6

< PRECAUTION >

[VQ40DE]

PRECAUTIONS

Precaution for Liquid Gasket

INFOID:0000000006246984

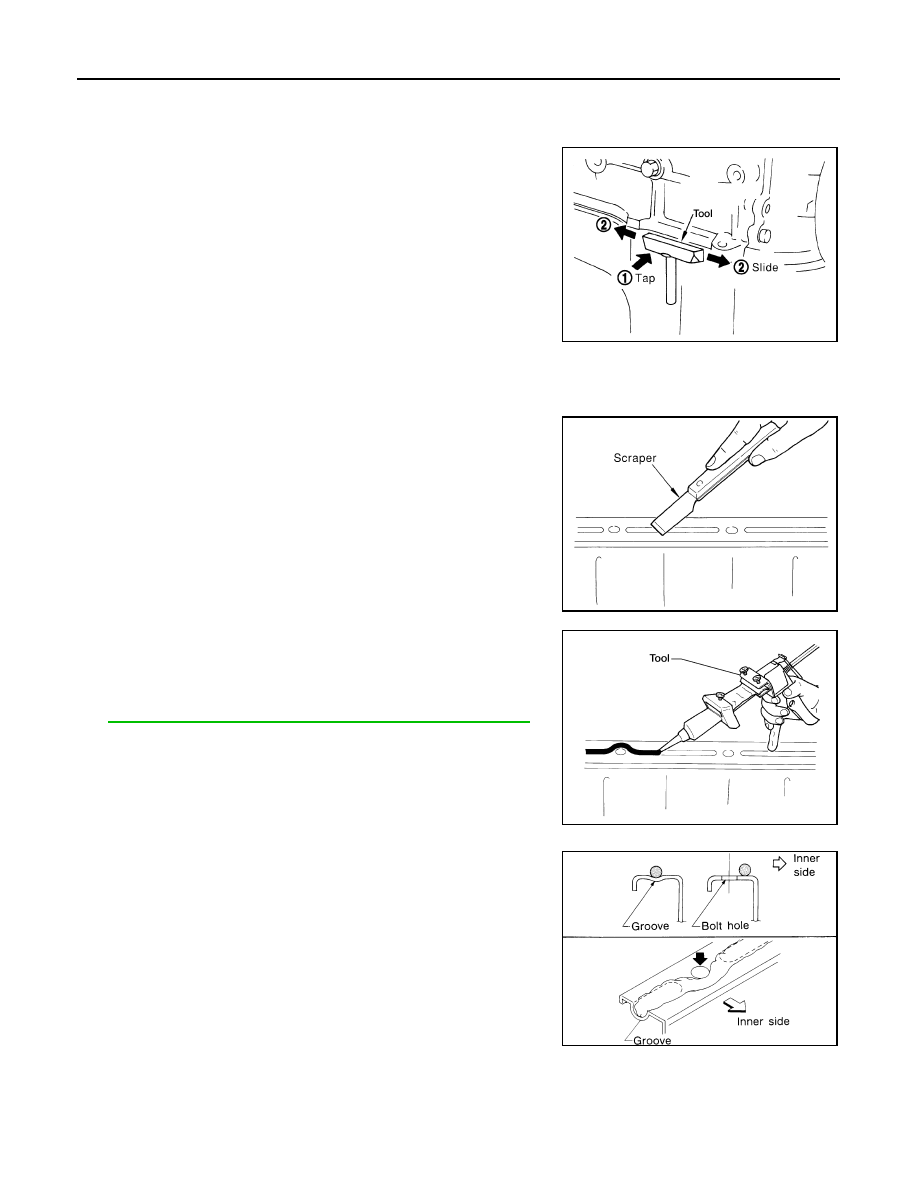

REMOVAL OF LIQUID GASKET SEALING

• After removing nuts and bolts, separate the mating surface and

remove old liquid gasket sealing using Tool.

CAUTION:

Be careful not to damage the mating surfaces.

• Tap seal cutter to insert it (1), and then slide it by tapping on the

side (2) as shown.

• In areas where Tool is difficult to use, use plastic hammer to lightly

tap the part, to remove it.

CAUTION:

If for some unavoidable reason tool such as screwdriver is

used, be careful not to damage the mating surfaces.

LIQUID GASKET APPLICATION PROCEDURE

1. Remove the old liquid gasket adhering to the gasket application

surface and the mating surface using suitable tool.

• Remove liquid gasket completely from the groove of the gas-

ket application surface, bolts, and bolt holes.

2. Thoroughly clean the mating surfaces and remove adhering

moisture, grease and foreign materials.

3. Attach liquid gasket tube to the Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-14, "Recommended Chemical Products and Sealants"

.

4. Apply the liquid gasket without breaks to the specified location

with the specified dimensions.

• If there is a groove for the liquid gasket application, apply the

liquid gasket to the groove.

• As for bolt holes, normally apply the liquid gasket inside the

holes. Occasionally, it should be applied outside the holes.

Make sure to read the text of this manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If the liquid gasket protrudes, wipe it off immediately.

• Do not retighten nuts or bolts after the installation.

• Wait 30 minutes or more after installation, before refilling the

engine with engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe them.

Tool number

: KV10111100 (J-37228)

WBIA0566E

PBIC0003E

Tool number

: WS39930000 (

)

WBIA0567E

SEM159F

2011 Pathfinder















Content      ..     359      360      361      362     ..
