DIAGNOSIS SYSTEM (ECM)

*: This function is not necessary in the usual service procedure.

SELF-DIAGNOSTIC RESULT MODE

Self Diagnostic Item

Regarding items of DTC and 1st trip DTC, refer to

EC-441, "DTC Index"

How to Read DTC and 1st Trip DTC

DTCs and 1st trip DTCs related to the malfunction are displayed in “self-diag results”.

• When ECM detects a 1st trip DTC, 1t” is displayed for “TIME”.

• When ECM has detected a current DTC, “0” is displayed for “TIME”.

• If “TIME” is neither “0” nor “1t”, the DTC occurred in the past and ECM shows the number of times the vehi-

cle has been driven since the last detection of the DTC.

How to Erase DTC and 1st Trip DTC

NOTE:

• If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10

seconds and then turn it ON (engine stopped) again.

• If the DTC is not for A/T related items (see

EC-441, "DTC Index"

), skip step 1.

1. Erase DTC in TCM. Refer to

EC-441, "DTC Index"

2. Select “ENGINE” with CONSULT-III.
3. Select “SELF-DIAG RESULTS”.
4. Touch “ERASE”. (DTC in ECM will be erased.)

Freeze Frame Data and 1st Trip Freeze Frame Data

TARGET IDLE RPM ADJ*

• Idle condition

When setting target idle speed

TARGET IGN TIM ADJ*

• Idle condition

When adjusting target ignition tim-
ing

WORK ITEM

CONDITION

USAGE

Freeze frame data

item*

Description

DIAG TROUBLE
CODE
[PXXXX]

• The engine control component part/control system has a trouble code, that is displayed as PXXXX. (Refer

EC-441, "DTC Index"

FUEL SYS-B1

• “Fuel injection system status” at the moment a malfunction is detected is displayed.
• One of in the following made is displayed.

Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop

FUEL SYS-B2

CAL/LD VALUE [%]

• The calculated load value at the moment a malfunction is detected is displayed.

COOLANT TEMP [

or [

• The engine coolant temperature at the moment a malfunction is detected is displayed.

L-FUEL TRM-B1 [%]

• “Long-term fuel trim” at the moment a malfunction is detected is displayed.
• The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule than

short-term fuel trim.

L-FUEL TRM-B2 [%]

S-FUEL TRM-B1 [%]

• “Short-term fuel trim” at the moment a malfunction is detected is displayed.
• The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel sched-

ule.

S-FUEL TRM-B2 [%]

ENGINE SPEED [rpm] • The engine speed at the moment a malfunction is detected is displayed.

VEHICL SPEED [km/
h] or [mph]

• The vehicle speed at the moment a malfunction is detected is displayed.

ABSOL TH-P/S [%]

• The throttle valve opening angle at the moment a malfunction is detected is displayed.

B/FUEL SCHDL
[msec]

• The base fuel schedule at the moment a malfunction is detected is displayed.

INT/A TEMP SE [

or [

• The intake air temperature at the moment a malfunction is detected is displayed.

2011 Pathfinder

DIAGNOSIS SYSTEM (ECM)

EC-79

< SYSTEM DESCRIPTION >

[VQ40DE]

*: The items are the same as those of 1st trip freeze frame data.

DATA MONITOR MODE

Monitored Item

INT MANI PRES [kPa]

• Always a certain value is displayed.
• These items are displayed but are not applicable to this model.

COMBUST CONDI-
TION

Freeze frame data

item*

Description

Monitored item

Unit

Description

Remarks

ENG SPEED

rpm

• Indicates the engine speed computed from the sig-

nal of the crankshaft position sensor (POS) and
camshaft position sensor (PHASE).

• Accuracy becomes poor if engine speed

drops below the idle rpm.

• If the signal is interrupted while the en-

gine is running, an abnormal value may
be indicated.

MAS A/F SE-B1

• The signal voltage of the mass air flow sensor is

displayed.

• When the engine is stopped, a certain

value is indicated.

• When engine is runnning specification

range is indicated in “SPEC”.

B/FUEL SCHDL

• “Base fuel schedule” indicates the fuel injection

pulse width programmed into ECM, prior to any
learned on board correction.

• When engine is runnning specification

range is indicated in “SPEC”.

A/F ALPHA-B1

• The mean value of the air-fuel ratio feedback cor-

rection factor per cycle is indicated.

• When the engine is stopped, a certain

value is indicated.

• When engine is runnning specification

range is indicated in “SPEC”.

• This data also includes the data for the

air-fuel ratio learning control.

A/F ALPHA-B2

COOLAN TEMP/S

C or

• The engine coolant temperature (determined by

the signal voltage of the engine coolant tempera-
ture sensor) is displayed.

• When the engine coolant temperature

sensor is open or short-circuited, ECM
enters fail-safe mode. The engine cool-
ant temperature determined by the ECM
is displayed.

A/F SEN1 (B1)

• The A/F signal computed from the input signal of

the Air fuel ratio (A/F) sensor 1 is displayed.

A/F SEN1 (B2)

HO2S2 (B1)

• The signal voltage of the heated oxygen sensor 2

is displayed.

HO2S2 (B2)

HO2S2 MNTR(B1)

RICH/

LEAN

• Display of heated oxygen sensor 2 signal:

RICH: Means the amount of oxygen after three way
catalyst is relatively small.
LEAN: Means the amount of oxygen after three
way catalyst is relatively large.

• When the engine is stopped, a certain

value is indicated.

HO2S2 MNTR(B2)

RICH/

LEAN

VHCL SPEED SE

km/h or

mph

• The vehicle speed computed from the vehicle

speed signal sent from combination meter is dis-
played.

BATTERY VOLT

• The power supply voltage of ECM is displayed.

ACCEL SEN 1

• The accelerator pedal position sensor signal volt-

age is displayed.

• ACCEL SEN 2 signal is converted by

ECM internally. Thus, it differs from ECM
terminal voltage signal.

ACCEL SEN 2

TP SEN 1-B1

• The throttle position sensor signal voltage is dis-

played.

• THRTL SEN 2 signal is converted by

ECM internally. Thus, it differs from ECM
terminal voltage signal.

TP SEN 2-B1

FUEL T/TMP SE

C or

• The fuel temperature (determined by the signal

voltage of the fuel tank temperature sensor) is dis-
played.

2011 Pathfinder

EC-80

< SYSTEM DESCRIPTION >

[VQ40DE]

DIAGNOSIS SYSTEM (ECM)

INT/A TEMP SE

C or

• The intake air temperature (determined by the sig-

nal voltage of the intake air temperature sensor) is
indicated.

EVAP SYS PRES

FUEL LEVEL SE

START SIGNAL

ON/OFF

• Indicates start signal status [ON/OFF] computed by

the ECM according to the signals of engine speed
and battery voltage.

• After starting the engine, [OFF] is dis-

played regardless of the starter signal.

CLSD THL POS

ON/OFF

• Indicates idle position [ON/OFF] computed by ECM

according to the accelerator pedal position sensor
signal.

AIR COND SIG

ON/OFF

• Indicates [ON/OFF] condition of the air conditioner

switch as determined by the air conditioner signal.

P/N POSI SW

ON/OFF

• Indicates [ON/OFF] condition from the park/neutral

position (PNP) signal.

PW/ST SIGNAL

ON/OFF

• [ON/OFF] condition of the power steering system

(determined by the signal voltage of the power
steering pressure sensor signal) is indicated.

LOAD SIGNAL

ON/OFF

• Indicates [ON/OFF] condition from the electrical

load signal.
ON: Rear window defogger switch is ON and/or
lighting switch is in 2nd position.
OFF: Both rear window defogger switch and light-
ing switch are OFF.

IGNITION SW

ON/OFF

• Indicates [ON/OFF] condition from ignition switch

signal.

HEATER FAN SW

ON/OFF

• Indicates [ON/OFF] condition from the heater fan

switch signal.

BRAKE SW

ON/OFF

• Indicates [ON/OFF] condition from the stop lamp

switch signal.

INJ PULSE-B1

msec

• Indicates the actual fuel injection pulse width com-

pensated by ECM according to the input signals.

• When the engine is stopped, a certain

computed value is indicated.

INJ PULSE-B2

msec

IGN TIMING

BTDC

• Indicates the ignition timing computed by ECM ac-

cording to the input signals.

• When the engine is stopped, a certain

value is indicated.

CAL/LD VALUE

• Calculated load value indicates the value of the

current air flow divided by peak air flow.

MASS AIRFLOW

g/s

• Indicates the mass air flow computed by ECM ac-

cording to the signal voltage of the mass air flow
sensor.

PURG VOL C/V

• Indicates the EVAP canister purge volume control

solenoid valve control value computed by the ECM
according to the input signals.

• The opening becomes larger as the value increas-

es.

INT/V TIM(B1)

• Indicates [

CA] of intake camshaft advanced angle.

INT/V TIM(B2)

INT/V SOL(B1)

• The control condition of the intake valve timing con-

trol solenoid valve (determined by ECM according
to the input signals) is indicated.

• The advance angle becomes larger as the value in-

creases.

INT/V SOL(B2)

Monitored item

Unit

Description

Remarks

2011 Pathfinder

DIAGNOSIS SYSTEM (ECM)

EC-81

< SYSTEM DESCRIPTION >

[VQ40DE]

VIAS S/V-1

ON/OFF

• The control condition of the VIAS control solenoid

valve (determined by ECM according to the input
signals) is indicated.
ON: VIAS control solenoid valve is operating.
OFF: VIAS control solenoid valve is not operating.

AIR COND RLY

ON/OFF

• The air conditioner relay control condition (deter-

mined by ECM according to the input signals) is in-
dicated.

FUEL PUMP RLY

ON/OFF

• Indicates the fuel pump relay control condition de-

termined by ECM according to the input signals.

VENT CONT/V

ON/OFF

• The control condition of the EVAP canister vent

control valve (determined by ECM according to the
input signals) is indicated.
ON: Closed
OFF: Open

THRTL RELAY

ON/OFF

• Indicates the throttle control motor relay control

condition determined by the ECM according to the
input signals.

COOLING FAN

HI/LOW/

OFF

• The control condition of the cooling fan (deter-

mined by ECM according to the input signals) is in-
dicated.
HI: High speed operation
LOW: Low speed operation
OFF: Stop

HO2S2 HTR (B1)

ON/OFF • Indicates [ON/OFF] condition of heated oxygen

sensor 2 heater determined by ECM according to
the input signals.

HO2S2 HTR (B2)

ON/OFF

I/P PULLY SPD

rpm

• Indicates the engine speed computed from thein-

put speed sensor signal.

VEHICLE SPEED

km/h or

mph

• Indicates the vehicle speed computed from the out-

put speed sensor signal.

IDL A/V LEARN

YET/

CMPLT

• Displays the condition of idle air volume learning

YET: Idle air volume learning has not been per-
formed yet.
CMPLT: Idle air volume learning has already been
performed successfully.

TRVL AFTER MIL

km or

mile

• Distance traveled while MIL is activated.

A/F S1 HTR(B1)

• Air fuel ratio (A/F) sensor 1 heater control value

computed by ECM according to the input signals.

• The current flow to the heater becomes larger as

the value increases.

A/F S1 HTR(B2)

AC PRESS SEN

• The signal voltage from the refrigerant pressure

sensor is displayed.

VHCL SPEED SE

km/h or

mph

• The vehicle speed computed from the vehicle

speed signal sent from TCM is displayed.

SET VHCL SPD

km/h or

mph

• The preset vehicle speed is displayed.

MAIN SW

ON/OFF

• Indicates [ON/OFF] condition from MAIN switch

signal.

CANCEL SW

ON/OFF

• Indicates [ON/OFF] condition from CANCEL switch

signal.

RESUME/ACC SW

ON/OFF

• Indicates [ON/OFF] condition from RESUME/AC-

CELERATE switch signal.

SET SW

ON/OFF

• Indicates [ON/OFF] condition from SET/COAST

switch signal.

Monitored item

Unit

Description

Remarks

2011 Pathfinder

EC-82

< SYSTEM DESCRIPTION >

[VQ40DE]

DIAGNOSIS SYSTEM (ECM)

BRAKE SW1

ON/OFF

• Indicates [ON/OFF] condition from ASCD brake

switch signal.

BRAKE SW2

ON/OFF

• Indicates [ON/OFF] condition of stop lamp switch

signal.

VHCL SPD CUT

NON/

CUT

• Indicates the vehicle cruise condition.

NON: Vehicle speed is maintained at the ASCD set
speed.
CUT: Vehicle speed increased to excessively high
compared with the ASCD set speed, and ASCD op-
eration is cut off.

LO SPEED CUT

NON/

CUT

• Indicates the vehicle cruise condition.

NON: Vehicle speed is maintained at the ASCD set
speed.
CUT: Vehicle speed decreased to excessively low
compared with the ASCD set speed, and ASCD op-
eration is cut off.

AT OD MONITOR

ON/OFF

• Indicates [ON/OFF] condition of A/T O/D according

to the input signal from the TCM.

AT OD CANCEL

ON/OFF

• Indicates [ON/OFF] condition of A/T O/D cancel

signal sent from the TCM.

CRUISE LAMP

ON/OFF

• Indicates [ON/OFF] condition of CRUISE lamp de-

termined by the ECM according to the input sig-
nals.

SET LAMP

ON/OFF

• Indicates [ON/OFF] condition of SET lamp deter-

mined by the ECM according to the input signals.

ALT DUTY

• Indicates the duty ratio of the power generation

command value. The ratio is calculated by ECM
based on the battery current sensor signal.

BAT CUR SEN

• The signal voltage of battery current sensor is dis-

played.

ALT DUTY SIG

ON/OFF

• The control condition of the power generation volt-

age variable control (determined by ECM accord-
ing to the input signals) is indicated.
ON: Power generation voltage variable control is
active
OFF: Power generation voltage variable control is
inactive.

A/F ADJ-B1

—

• Indicates the correction factor saved in ECM. The

factor is calculated from the difference between the
target air-fuel ratio saved in ECM and the air-fuel
ratio calculated from A/F sensor 1 signal.

A/F ADJ-B2

—

HO2 S2 DIAG1(B1)

INCMP/

CMPLT

• Indicates DTC P0139 self-diagnosis (delayed re-

sponce) condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.

HO2 S2 DIAG1(B2)

INCMP/

CMPLT

• Indicates DTC P0159 self-diagnosis (delayed re-

sponce) condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.

HO2 S2 DIAG2(B1)

INCMP/

CMPLT

• Indicates DTC P0139 self-diagnosis (slow re-

sponce) condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.

HO2 S2 DIAG2(B2)

INCMP/

CMPLT

• Indicates DTC P0159 self-diagnosis (slow re-

sponce) condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.

Monitored item

Unit

Description

Remarks

2011 Pathfinder

DIAGNOSIS SYSTEM (ECM)

EC-83

< SYSTEM DESCRIPTION >

[VQ40DE]

*: The item is indicated, but not used.

NOTE:

Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.

ACTIVE TEST MODE

Test Item

A/F SEN1 DIAG2
(B1)*

INCMP/

CMPLT

• Indicates DTC P014C or P014D self-diagnosis

condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.

A/F SEN1 DIAG2
(B2)*

INCMP/

CMPLT

• Indicates DTC P014E or P014F self-diagnosis con-

dition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.

Monitored item

Unit

Description

Remarks

TEST ITEM

CONDITION

JUDGEMENT

CHECK ITEM (REMEDY)

FUEL INJEC-
TION

• Engine: Return to the original

non-standard condition

• Change the amount of fuel injec-

tion using CONSULT-III.

If malfunctioning symptom disap-
pears, see CHECK ITEM.

• Harness and connectors
• Fuel injector
• Air fuel ratio (A/F) sensor 1

IGNITION TIM-
ING

• Engine: Return to the original

non-standard condition

• Timing light: Set
• Retard the ignition timing using

CONSULT-III.

If malfunctioning symptom disap-
pears, see CHECK ITEM.

• Perform Idle Air Volume Learning.

POWER BAL-
ANCE

• Engine: After warming up, idle the

engine.

• A/C switch: OFF
• Shift lever: P or N
• Cut off each fuel injector signal

one at a time using CONSULT-III.

Engine runs rough or stops.

• Harness and connectors
• Compression
• Fuel injector
• Power transistor
• Spark plug
• Ignition coil

COOLING FAN*

• Ignition switch: ON
• Turn the cooling fan HI, LOW and

OFF using CONSULT-III.

Cooling fan moves and stops.

• Harness and connectors
• Cooling fan motor
• IPDM E/R

ENG COOLANT
TEMP

• Engine: Return to the original

non-standard condition

• Change the engine coolant tem-

perature using CONSULT-III.

If malfunctioning symptom disap-
pears, see CHECK ITEM.

• Harness and connectors
• Engine coolant temperature sen-

sor

• Fuel injector

FUEL PUMP RE-
LAY

• Ignition switch: ON (Engine

stopped)

• Turn the fuel pump relay ON and

OFF using CONSULT-III and lis-
ten to operating sound.

Fuel pump relay makes the operat-
ing sound.

• Harness and connectors
• Fuel pump relay

VIAS SOL VALVE

• Ignition switch: ON
• Turn solenoid valve ON and OFF

with CONSULT-III and listen for
operating sound.

Solenoid valve makes an operating
sound.

• Harness and connectors
• Solenoid valve

PURG VOL
CONT/V

• Engine: After warming up, run en-

gine at 1,500 rpm.

• Change the EVAP canister purge

volume control solenoid valve
opening percent using CON-
SULT-III.

Engine speed changes according to
the opening percent.

• Harness and connectors
• Solenoid valve

FUEL/T TEMP
SEN

• Change the fuel tank temperature using CONSULT-III.

2011 Pathfinder

EC-84

< SYSTEM DESCRIPTION >

[VQ40DE]

DIAGNOSIS SYSTEM (ECM)

*: Leaving cooling fan OFF with CONSULT-III while engine is running may cause the engine to overheat.

DTC & SRT CONFIRMATION MODE

SRT STATUS Mode

• For items whose SRT codes are set, “CMPLT” is displayed on the CONSULT-III screen; for items whose

SRT codes are not set, “INCMP” is displayed.

• “SRT STATUS” provides the presence or absence of permanent DTCs stored in ECM memory.

PERMANENT DTC STATUS Mode

How to display permanent DTC status

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

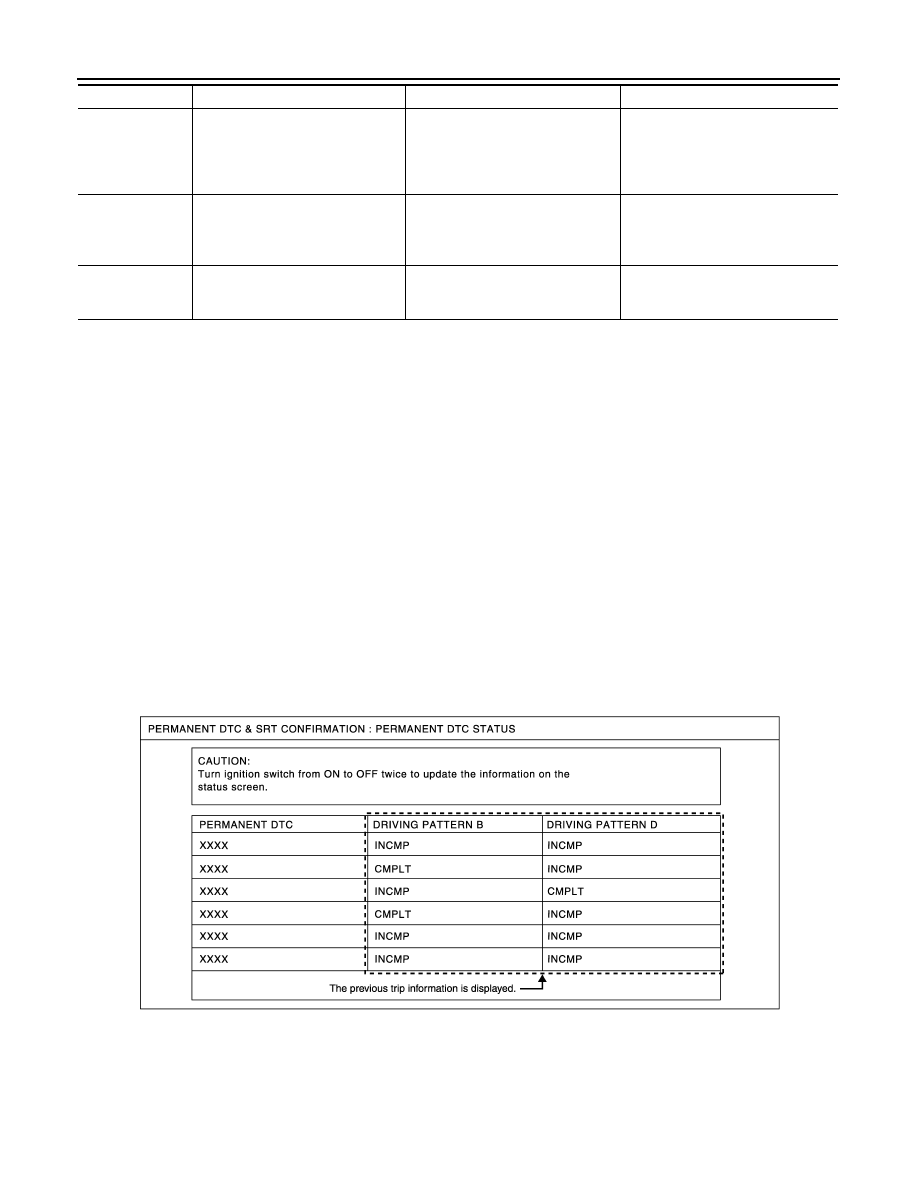

5. Select “PERMANENT DTC STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.

NOTE:

Permanent DTCs stored in ECM memory are displayed on the CONSULT-III screen to show if a driving

pattern required for erasing permanent DTCs is complete (CMPLT) or incomplete (INCMP).

CAUTION:

Since the “PERMANENT DTC STATUS” screen displays the previous trip information, repeat the

following twice to update the information: “Ignition switch OFF”, “Wait for more than 10 seconds”

and “Ignition switch ON”.

NOTE:

This mode is not used in regions that permanent DTCs are not regulated by law.

SRT WORK SUPPORT Mode

This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

PERMANENT DTC WORK SUPPORT Mode

VENT CON-
TROL/V

• Ignition switch: ON (Engine

stopped)

• Turn solenoid valve ON and OFF

with the CONSULT-III and listen
to operating sound.

Solenoid valve makes an operating
sound.

• Harness and connectors
• Solenoid valve

V/T ASSIGN AN-
GLE

• Engine: Return to the original

non-standard condition

• Change intake valve timing using

CONSULT-III.

If malfunctioning symptom disap-
pears, see CHECK ITEM.

• Harness and connectors
• Intake valve timing control sole-

noid valve

ALTERNATOR
DUTY

• Engine: Idle
• Change duty ratio using CON-

SULT-III.

Battery voltage changes.

• Harness and connectors
• IPDM E/R
• Alternator

TEST ITEM

CONDITION

JUDGEMENT

CHECK ITEM (REMEDY)

JSBIA0062GB

2011 Pathfinder

DIAGNOSIS SYSTEM (ECM)

EC-85

< SYSTEM DESCRIPTION >

[VQ40DE]

This mode enables a technician to drive a vehicle to complete the driving pattern that is reguired for erasing

permanent DTC.

NOTE:

This mode is not used in regions that permanent DTCs are not regulated by law.

DTC WORK SUPPORT Mode

*: DTC P1442 and P1456 does not apply to R51 models but appears in DTC Work Support Mode screens.

Test mode

Test item

Corresponding DTC No.

Reference page

EVAPORATIVE SYS-
TEM

EVP SML LEAK P0442/P1442*

P0455

EC-274

EVP V/S LEAK P0456/P1456*

P0442

EC-237

P0456

EC-281

PURG VOL CN/V P1444

P0443

EC-244

PURG FLOW P0441

P0441

EC-232

A/F SEN1

A/F SEN1(B1) P1278/P1279

P0133

EC-160

A/F SEN1(B1) P1276

P0130

EC-148

A/F SEN1(B2) P1288/P1289

P0153

EC-160

A/F SEN1(B2) P1286

P0150

EC-148

HO2S2

HO2S2 (B1) P1146

P0138

EC-171

HO2S2(B1) P1147

P0137

EC-165

HO2S2(B1) P0139

P0139

EC-179

HO2S2(B2) P1166

P0158

EC-171

HO2S2(B2) P1167

P0157

EC-165

HO2S2(B2) P0159

P0159

EC-179

2011 Pathfinder

Content .. 251 252 253 254 ..
