EC-30

< BASIC INSPECTION >

[VQ40DE]

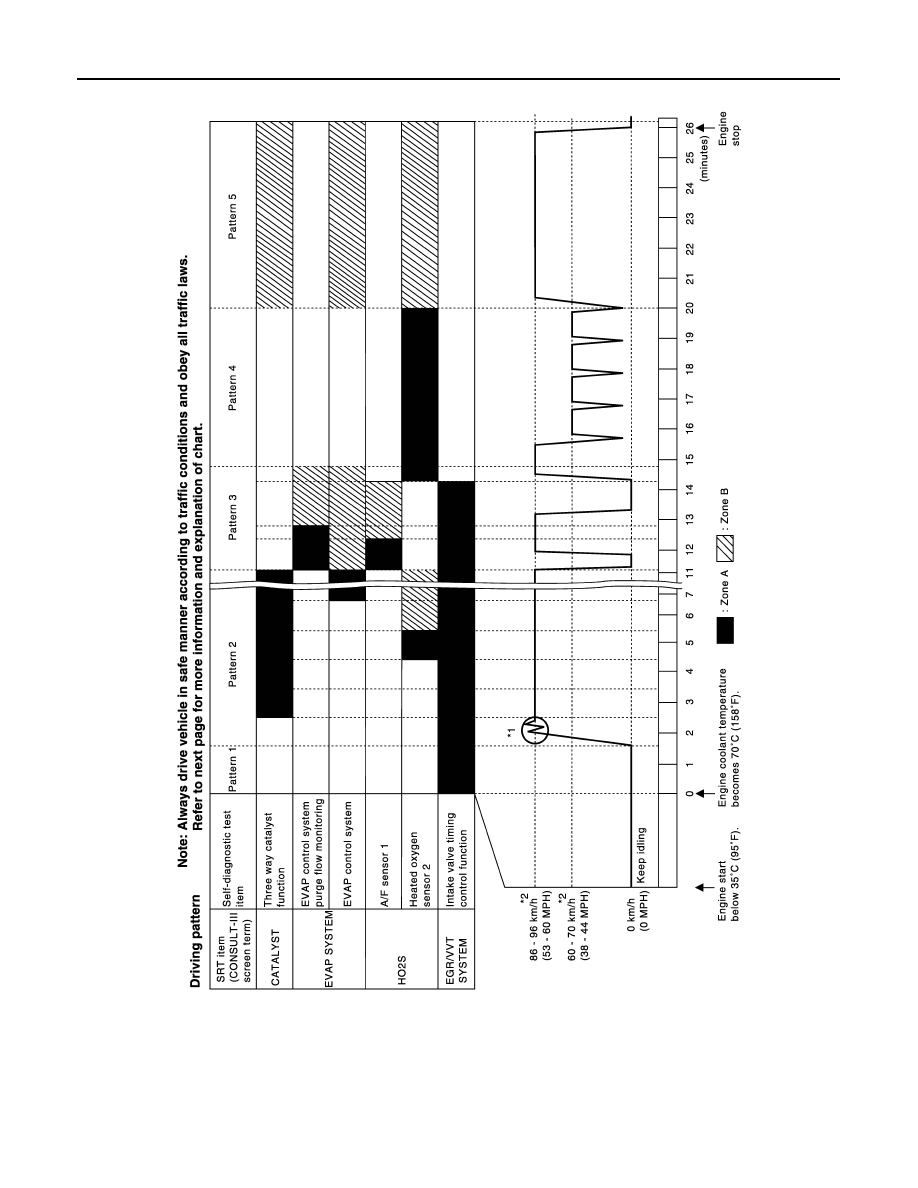

HOW TO SET SRT CODE

Always drive the vehicle in safe manner according to traffic conditions and obey all traffic laws.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal

and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h

(56 MPH) again.

*2: Checking the vehicle speed with GST is advised.

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.

• “Zone A” is the fastest time where required for the diagnosis under normal conditions*. If the diagnosis is not

completed within “Zone A”, the diagnosis can still be performed within “Zone B”.

JSBIA0162GB

2011 Pathfinder

HOW TO SET SRT CODE

EC-31

< BASIC INSPECTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

*: Normal conditions

- Sea level

- Flat road

- Ambient air temperature: 20 – 30

°

C (68 – 86

°

F)

NOTE:

Diagnosis is performed as quickly as possible under normal conditions. However, under other conditions,

diagnosis may also be performed. [For example: ambient air temperature other than 20 – 30

°

C (68 – 86

°

F)]

Work Procedure

INFOID:0000000006709452

1.

CHECK DTC

Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-441, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK SRT STATUS

With CONSULT-III

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.

Without CONSULT-III

Perform “SRT status” mode with

EC-74, "On Board Diagnosis Function"

.

With GST

Select Service $01 with GST.
Is SRT code(s) set?

YES

>> GO TO 11.

NO-1 >> With CONSULT-III: GO TO 3.

NO-2 >> Without CONSULT-III: GO TO 4.

3.

DTC CONFIRMATION PROCEDURE

1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.

2. For SRT(s) that is not set, perform the corresponding “DTC CONFIRMATION PROCEDURE” according to

the “Performance Priority” in the “SRT ITEM” table. Refer to

EC-28, "Description"

.

3. Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-441, "DTC Index"

.

NO

>> GO TO 10.

4.

PERFORM ROAD TEST

• Check the “Performance Priority” in the “SRT ITEM” table. Refer to

EC-28, "Description"

.

• Perform the most efficient SRT set driving pattern to set the SRT properly. Refer to

EC-29, "SRT Set Driving

Pattern"

.

In order to set all SRTs, the SRT set driving pattern must be performed at least once.

>> GO TO 5.

5.

PATTERN 1

1. Check the vehicle condition;

-

Engine coolant temperature is

−

10 to 35

°

C (14 to 95

°

F).

-

Fuel tank temperature is more than 0

°

C (32

°

F).

2. Start the engine.

3. Keep engine idling until the engine coolant temperature is greater than 70

°

C (158

°

F)

NOTE:

ECM terminal voltage is follows;

• Engine coolant temperature

-

−

10 to 35

°

C (14 to 95

°

F): 3.0 – 4.3 V

- 70

°

(158

°

F): Less than 4.1 V

• Fuel tank temperature: Less than 1.4 V

Refer to

EC-427, "CONSULT-III Reference Value in Data Monitor Mode"

.

2011 Pathfinder

EC-32

< BASIC INSPECTION >

[VQ40DE]

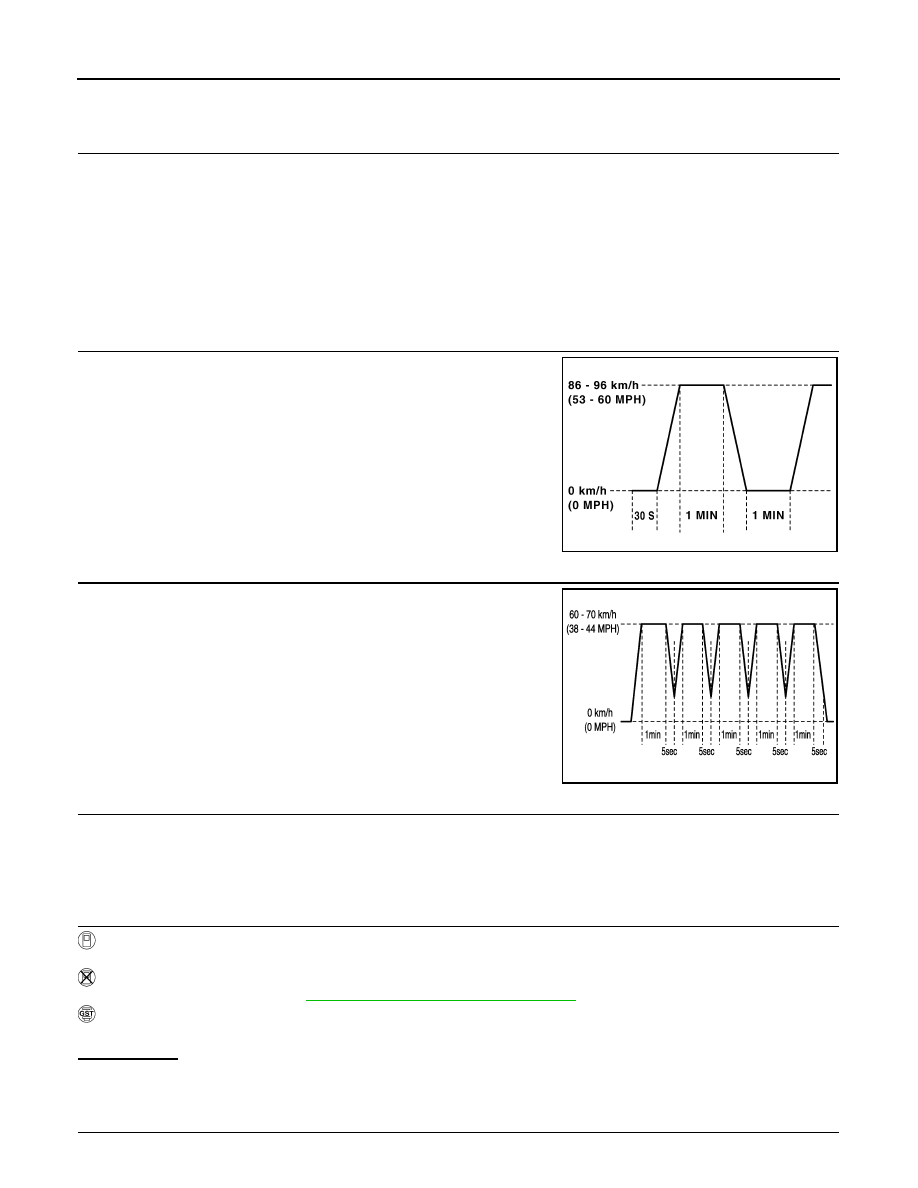

HOW TO SET SRT CODE

>> GO TO 6.

6.

PATTERN 2

1. Drive the vehicle. And depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then

release the accelerator pedal and keep it released for more than 10 seconds.

2. Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH) again

NOTE:

• Checking the vehicle speed with GST is advised.

• When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.

In this case, the time required for diagnosis may be extended.

>> GO TO 7.

7.

PATTERN 3

• Operate vehicle following the driving pattern shown in the figure.

• Release the accelerator pedal during deceleration of vehicle speed

from 90 km/h (56 MPH) to 0 km/h (0 MPH).

>> GO TO 8.

8.

PATTERN 4

• Operate vehicle, following the driving pattern shown in the figure.

- Drive the vehicle in a proper gear at 60 km/h (38 MPH) and main-

tain the speed.

- Release the accelerator pedal fully at least 5 seconds.

- Repeat the above two steps at least 5 times.

>> GO TO 9.

9.

PATTERN 5

• The accelerator pedal must be held very steady during steady-state driving.

• If the accelerator pedal is moved, the test must be conducted again.

>> GO TO 10.

10.

CHECK SRT STATUS

With CONSULT-III

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.

Without CONSULT-III

Perform “SRT status” mode with

EC-74, "On Board Diagnosis Function"

.

With GST

Select Service $01 with GST.
Is SRT(s) set?

YES

>> GO TO 11.

NO

>> Call TECH LINE or take appropriate action.

11.

CHECK PERMANENT DTC

PBIB2244E

JSBIA0160GB

2011 Pathfinder

HOW TO SET SRT CODE

EC-33

< BASIC INSPECTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NOTE:

Permanent DTC cannot be checked with a tool other than CONSULT-III or GST.

With CONSULT-III

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.

With GST

Select Service $0A with GST.
Is permanent DTC(s) detected?

YES

>> Go to

EC-34, "Description"

.

NO

>> END

2011 Pathfinder

EC-34

< BASIC INSPECTION >

[VQ40DE]

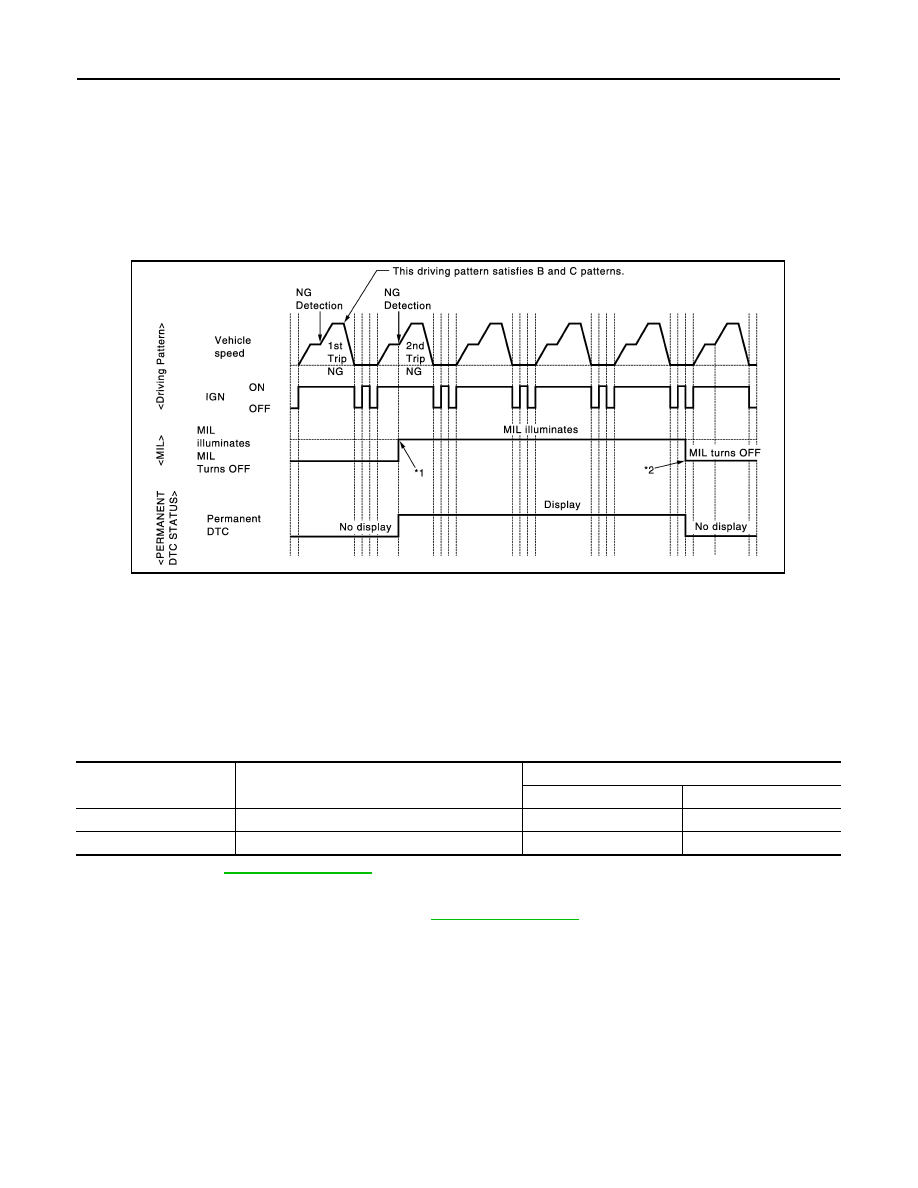

HOW TO ERASE PERMANENT DTC

HOW TO ERASE PERMANENT DTC

Description

INFOID:0000000006709453

OUTLINE

When a DTC is stored in ECM

When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same mal-

function is not detected after performing the driving pattern for MIL shutoff three times in a raw.

When a DTC is not stored in ECM

The erasing method depends on a permanent DTC stored in ECM. Refer to the following table.

NOTE:

If the applicable permanent DTC includes multiple groups, perform the procedure of Group B first. If the per-

manent DTC is not erased, perform the procedure of Group A.

×

: Applicable —: Not applicable

*: For group, refer to

EC-441, "DTC Index"

.

PERMANENT DTC ITEM

For permanent DTC items, MIL turns ON. Refer to

EC-441, "DTC Index"

.

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

*2: MIL will turn off after vehicle is driven

3 times (driving pattern B) without
any malfunctions.

JSBIA0063GB

Group

*

Perform “DTC CONFIRMATION PROCEDURE”

for applicable DTCs.

Driving pattern

B

D

A

×

—

—

B

—

×

×

2011 Pathfinder

HOW TO ERASE PERMANENT DTC

EC-35

< BASIC INSPECTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

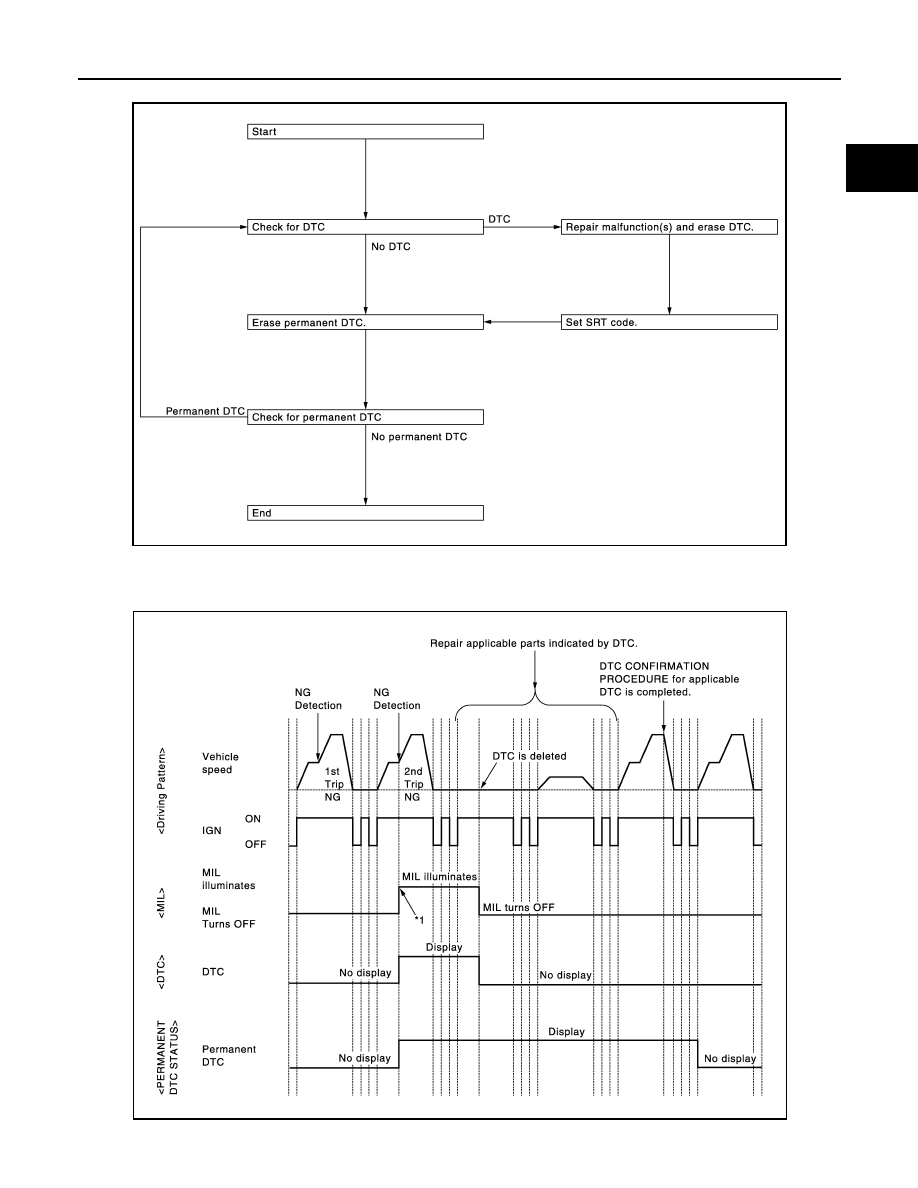

PERMANENT DTC SERVICE PROCEDURE

Work Procedure (Group A)

INFOID:0000000006709454

JSBIA0401GB

JSBIA0064GB

2011 Pathfinder

EC-36

< BASIC INSPECTION >

[VQ40DE]

HOW TO ERASE PERMANENT DTC

1.

CHECK DTC

Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-74, "On Board Diagnosis Function"

.

NO

>> GO TO 2.

2.

CHECK PERMANENT DTC

With CONSULT-III

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Select “PERMANENT DTC STATUS” mode with CONSULT-III.

With GST

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Select Service $0A with GST.
Is any permanent DTC detected?

YES

>> GO TO 3.

NO

>> END

3.

PERFORM DTC CONFIRMATION PROCEDURE

Perform “DTC CONFIRMATION PROCEDURE” for DTCs which are the same as permanent DTCs stored in

ECM. Refer to

EC-441, "DTC Index"

.

>> GO TO 4.

4.

CHECK PERMANENT DTC

With CONSULT-III

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Select “PERMANENT DTC STATUS” mode with CONSULT-III.

With GST

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Select Service $0A with GST.
Is any permanent DTC detected?

YES

>> GO TO 1.

NO

>> END

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

2011 Pathfinder

HOW TO ERASE PERMANENT DTC

EC-37

< BASIC INSPECTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

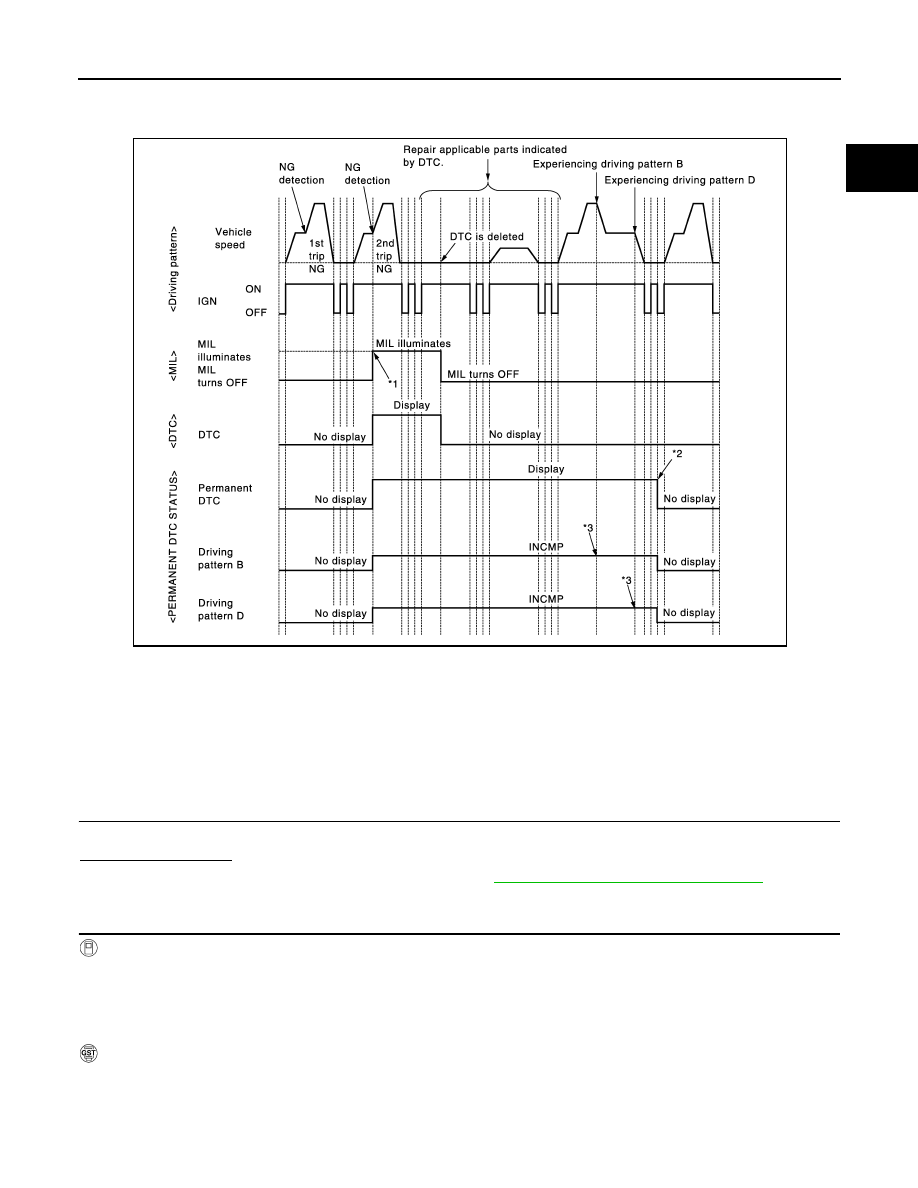

Work Procedure (Group B)

INFOID:0000000006709455

NOTE:

Drive the vehicle according to only driving patterns indicating “INCMP” in driving patterns B and D on the

“PERMANENT DTC STATUS” screen.

1.

CHECK DTC

Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-74, "On Board Diagnosis Function"

.

NO

>> GO TO 2.

2.

CHECK PERMANENT DTC

With CONSULT-III

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Select “PERMANENT DTC STATUS” mode with CONSULT-III.

With GST

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

*2: After experiencing driving pattern B

and D, permanent DTC is erased.

*3: Indication does not change unless

the ignition switch is turned from ON
to OFF twice even after experiencing
driving pattern B or D.

JSBIA0414GB
