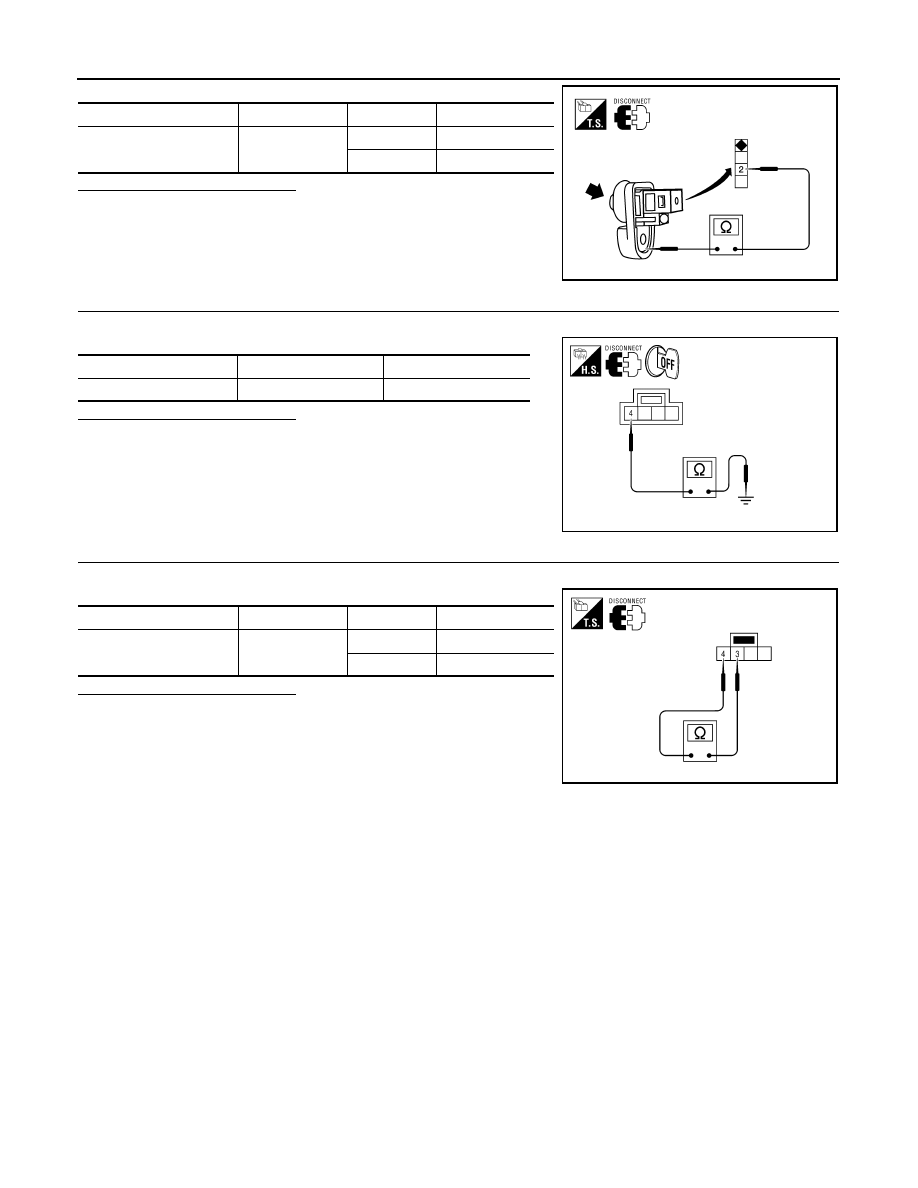

DLK-58 < DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM] DOOR SWITCH Is the inspection result normal? YES >> Door switch circuit is OK. NO >> Replace door switch. 4. CHECK BACK DOOR LATCH CIRCUIT • Check continuity between back door latch connector terminal 4 and ground. Is the inspection result normal? YES >> GO TO 5. NO >> Repair or replace harness. 5. CHECK BACK DOOR LATCH SWITCH • Check continuity between back door latch switch terminals. Is the inspection result normal? YES >> Back door latch switch circuit is OK. NO >> Replace back door latch. Switch Terminals Condition Continuity Door switch 2 – Ground Open Yes Closed No ALKIA0747ZZ Connector Terminals Continuity Back door latch 4 – Ground Yes ALKIA1703ZZ Switch Terminals Condition Continuity Back door latch 3 – 4 Open Yes Closed No ALKIA1702ZZ 2011 Pathfinder |
