DLK-34

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

KEY REMINDER FUNCTION

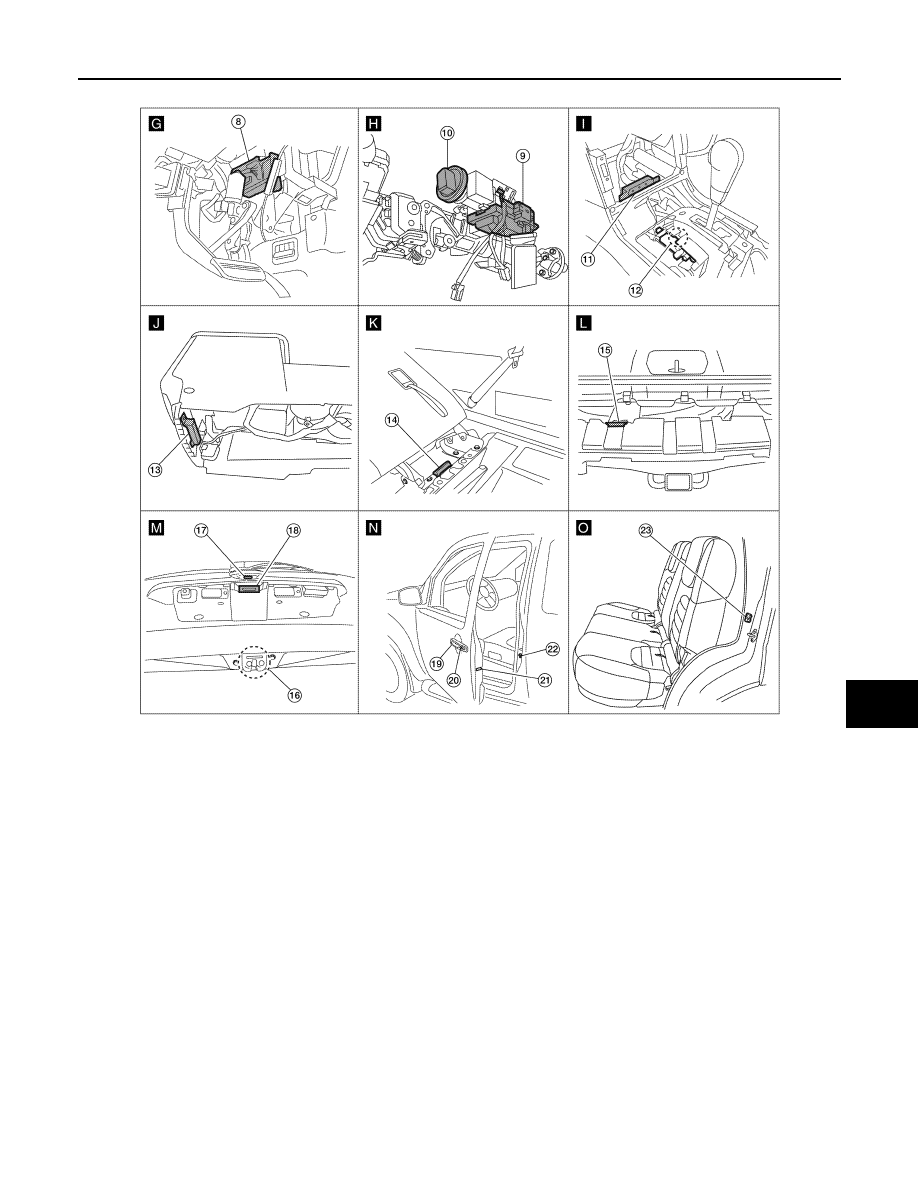

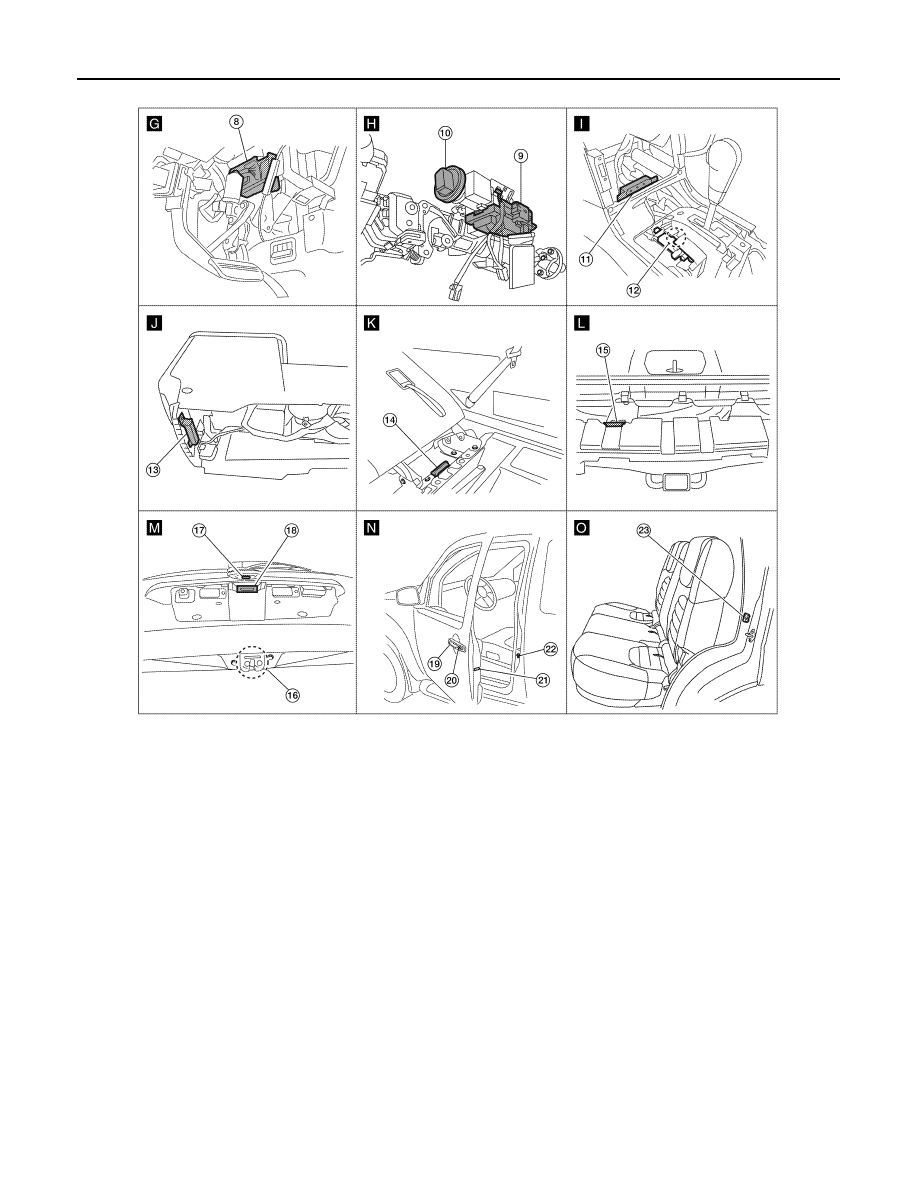

1.

Horn E3
(Behind front combination lamp LH)

2.

Intelligent Key warning buzzer E60

3.

IPDM E/R E122, E124
(view with cover removed)

4.

Horn relay H-1

5.

Remote keyless entry receiver M67
(view with glove box removed)

6.

Combination meter M24

7.

Intelligent Key unit M164
(view with glove box removed)

8.

BCM M18, M19, M20
(view with instrument panel LH removed)

9.

Steering lock solenoid M65
(view with steering column removed)

10. Key switch and ignition knob switch

M66

11. Instrument panel area antenna M68

(view with center console cover removed)

12. A/T shift selector [park position switch

(Intelligent Key system)] M158

13. Center console area antenna M212

(view with center console removed)

14. Luggage area antenna B129

(behind right side of 3rd row seat)

15. Rear bumper antenna C127

(view with rear bumper removed)

16. Back door latch (door ajar switch)

D502

17. Back door request switch D552

18. Back door opener switch D511

19. Front outside antenna LH D15

Front outside antenna RH D115

20. Front door request switch LH D16

Front door request switch RH D116

21. Front door lock assembly LH (door

unlock sensor) D14

22. Front door switch LH B8

RH B108

23. Rear door switch LH B18

RH B116

ALKIA1699ZZ

2011 Pathfinder

HAZARD AND BUZZER REMINDER FUNCTION

DLK-35

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD AND BUZZER REMINDER FUNCTION

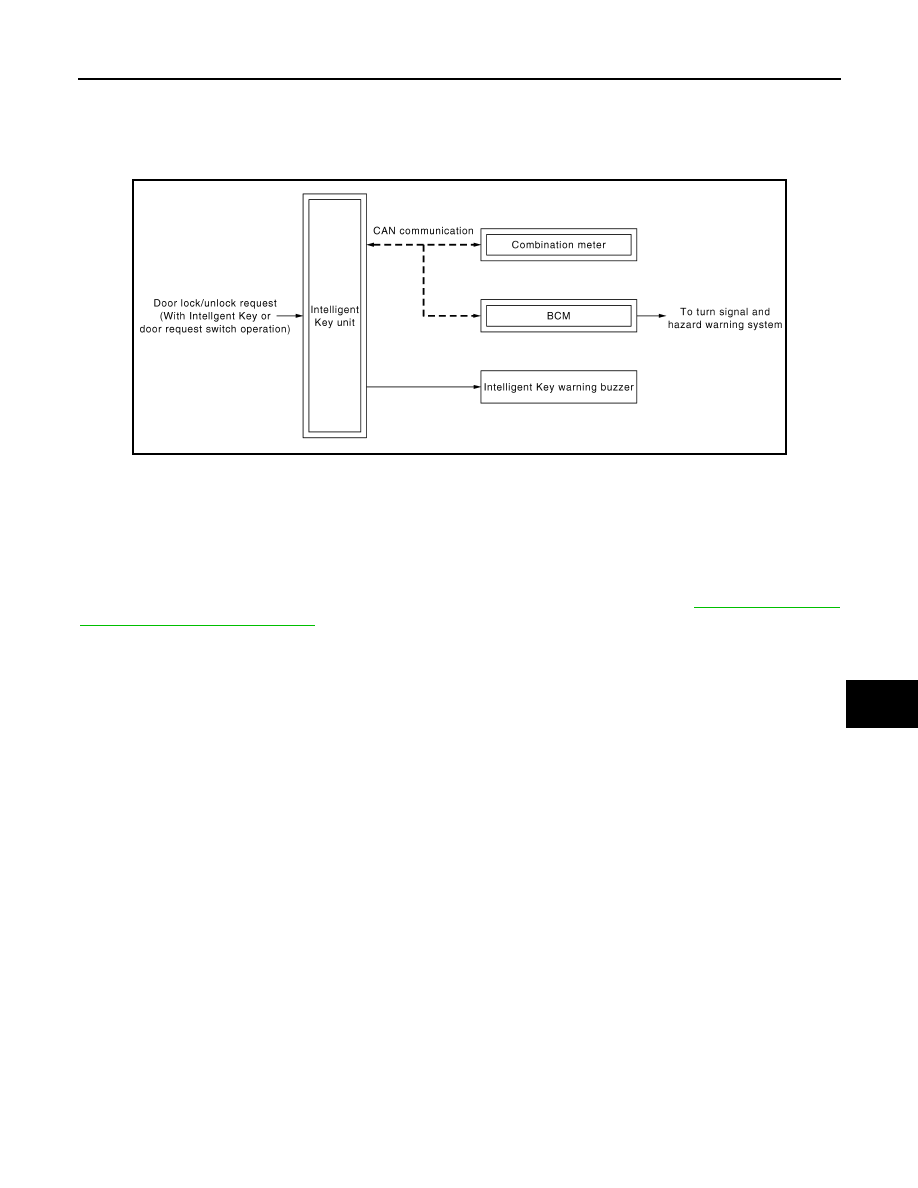

System Diagram

INFOID:0000000006245422

HAZARD & BUZZER REMINDER FUNCTION

System Description

INFOID:0000000006245423

HAZARD AND BUZZER REMINDER FUNCTION

When door is locked or unlocked by Intelligent Key or door request switch, Intelligent Key unit sounds buzzer

and sends hazard request signal to BCM via CAN communication. Then BCM flashes hazard warning lamps

as a reminder.

NOTE:

Hazard and buzzer reminder function mode can be changed with CONSULT-III. Refer to

DLK-43, "CONSULT-

III Function (INTELLIGENT KEY)"

.

JMKIA0506GB

2011 Pathfinder

DLK-36

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD AND BUZZER REMINDER FUNCTION

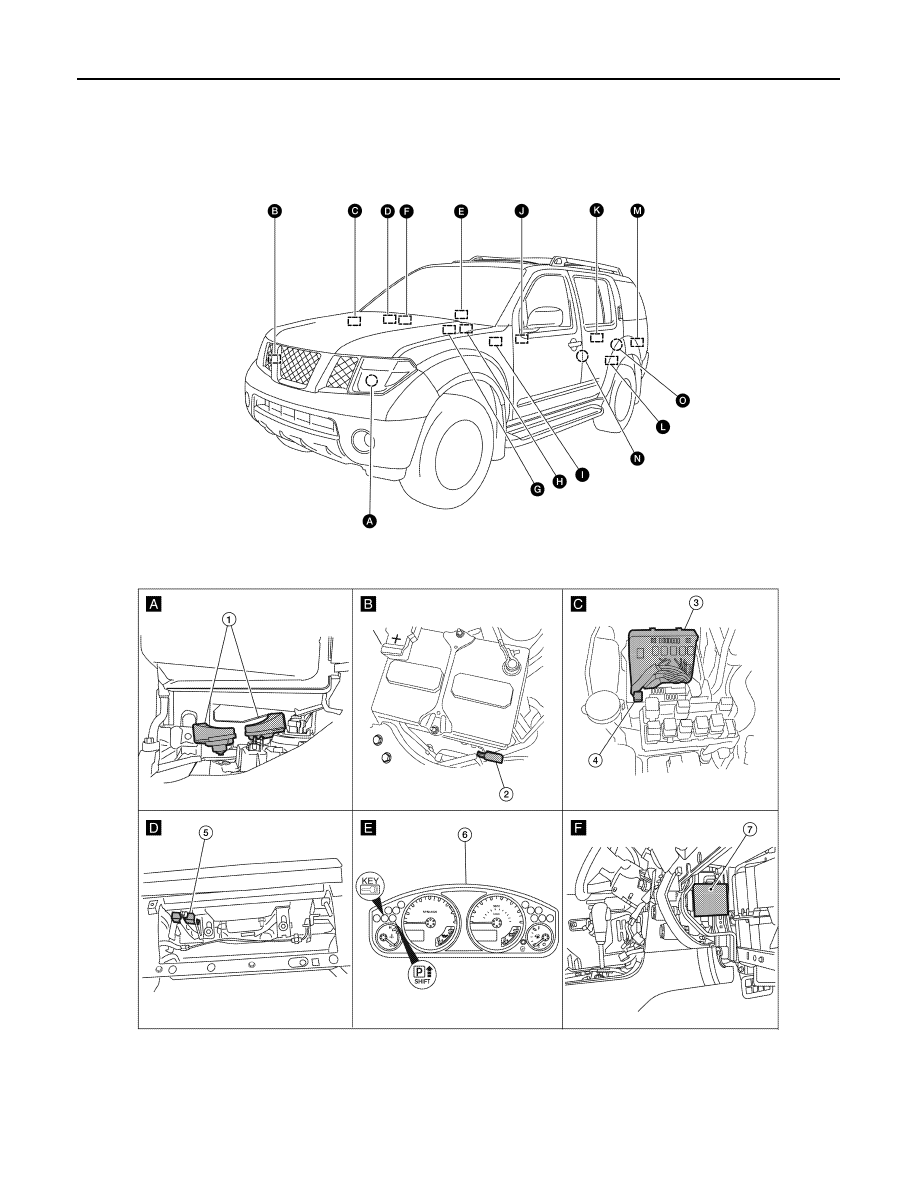

Component Parts Location

INFOID:0000000008185227

ALKIA1166ZZ

2011 Pathfinder

HAZARD AND BUZZER REMINDER FUNCTION

DLK-37

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Horn E3
(Behind front combination lamp LH)

2.

Intelligent Key warning buzzer E60

3.

IPDM E/R E122, E124
(view with cover removed)

4.

Horn relay H-1

5.

Remote keyless entry receiver M67
(view with glove box removed)

6.

Combination meter M24

7.

Intelligent Key unit M164
(view with glove box removed)

8.

BCM M18, M19, M20
(view with instrument panel LH removed)

9.

Steering lock solenoid M65
(view with steering column removed)

10. Key switch and ignition knob switch

M66

11. Instrument panel area antenna M68

(view with center console cover removed)

12. A/T shift selector [park position switch

(Intelligent Key system)] M158

13. Center console area antenna M212

(view with center console removed)

14. Luggage area antenna B129

(behind right side of 3rd row seat)

15. Rear bumper antenna C127

(view with rear bumper removed)

16. Back door latch (door ajar switch)

D502

17. Back door request switch D552

18. Back door opener switch D511

19. Front outside antenna LH D15

Front outside antenna RH D115

20. Front door request switch LH D16

Front door request switch RH D116

21. Front door lock assembly LH (door

unlock sensor) D14

22. Front door switch LH B8

RH B108

23. Rear door switch LH B18

RH B116

ALKIA1699ZZ

2011 Pathfinder

DLK-38

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD AND BUZZER REMINDER FUNCTION

Component Description

INFOID:0000000006245425

Item

Function

BCM

Controls the hazard and buzzer reminder function (without Intelligent Key).

Intelligent Key unit

Controls the hazard and buzzer reminder function (with Intelligent Key).

Combination meter

Turns ON the LOCK indicator, KEY indicator, turn signal indicator and buzzer
(built in combination meter) by the request from Intelligent Key unit via CAN com-
munication.

Intelligent Key warning buzzer

Sounds by the request signal from Intelligent Key unit via CAN communication.

2011 Pathfinder

HOMELINK UNIVERSAL TRANSCEIVER

DLK-39

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOMELINK UNIVERSAL TRANSCEIVER

Component Description

INFOID:0000000006245426

Item

Function

Reference page

Homelink universal transceiver

A maximum of 3 radio signals can be stored and transmitted to operate
the garage door, etc.

Refer to Owner's

Manual

2011 Pathfinder

DLK-40

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006709526

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Intelligent Key system

INTELLIGENT KEY

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

2011 Pathfinder

DIAGNOSIS SYSTEM (BCM)

DLK-41

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK
DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)

INFOID:0000000006709527

SELF DIAGNOSTIC RESULT

Refer to

BCS-46, "DTC Index"

.

DATA MONITOR

* : with Intelligent Key
** : without Intelligent Key

ACTIVE TEST

WORK SUPPORT

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

KEY ON SW [On/Off]

Indicates condition of key switch.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

CDL UNLOCK SW [On/Off]

Indicates condition of unlock signal from door lock and unlock switch.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

DOOR SW-RR [On/Off]

Indicates condition of rear door switch RH.

DOOR SW-RL [On/Off]

Indicates condition of rear door switch LH.

BACK DOOR SW [On/Off]

Indicates condition of back door switch.

KEY CYL LK-SW [On/Off]

Indicates condition of lock signal from door key cylinder switch.

KEY CYL UN-SW [On/Off]

Indicates condition of unlock signal from door key cylinder switch.

I-KEY LOCK* [On/Off]

Indicates condition of lock signal from Intelligent Key.

I-KEY UNLOCK* [On/Off]

Indicates condition of unlock signal from Intelligent Key.

KEYLESS LOCK** [On/Off]

Indicates condition of lock signal from keyfob.

KEYLESS UNLOCK** [On/Off]

Indicates condition of unlock signal from keyfob.

Test Item

Description

DOOR LOCK

This test is able to check door lock operation [OTR ULK/DR UNLK/ALL ULK/ALL LCK].

Support Item

Setting

Description

DOOR LOCK-UNLOCK SET

On*

Automatic door locks function ON.

Off

Automatic door locks function OFF.

ANTI-LOCK OUT SET

Off

Anti lock out function OFF.

On*

Anti lock out function ON.

AUTOMATIC DOOR LOCK SELECT

SHIFT OUT
OF PARK

Doors lock automatically when shifted out of park (P).

VH SPD*

Doors lock automatically when vehicle speed reaches 24 km/h (15 mph).

AUTOMATIC DOOR UNLOCK
SELECT

MODE6

Drivers door unlocks automatically when key is removed.

MODE5

Drivers door unlocks automatically when shifted into park (P).

MODE4

Drivers door unlocks automatically when ignition is switched from ON to OFF.

MODE3

Doors unlock automatically when key is removed.

MODE2

Doors unlock automatically when shifted into park (P).

MODE1*

Doors unlock automatically when ignition is switched from ON to OFF.

2011 Pathfinder
