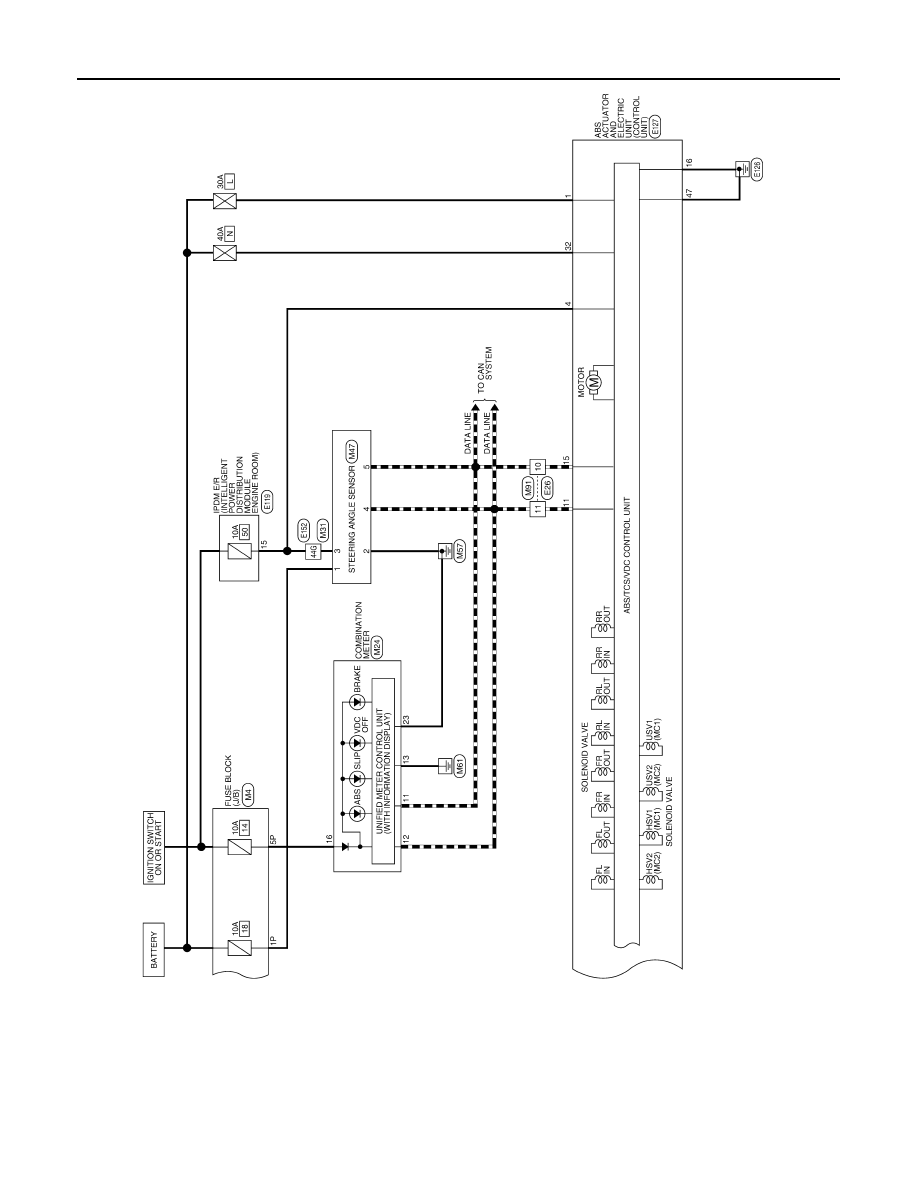

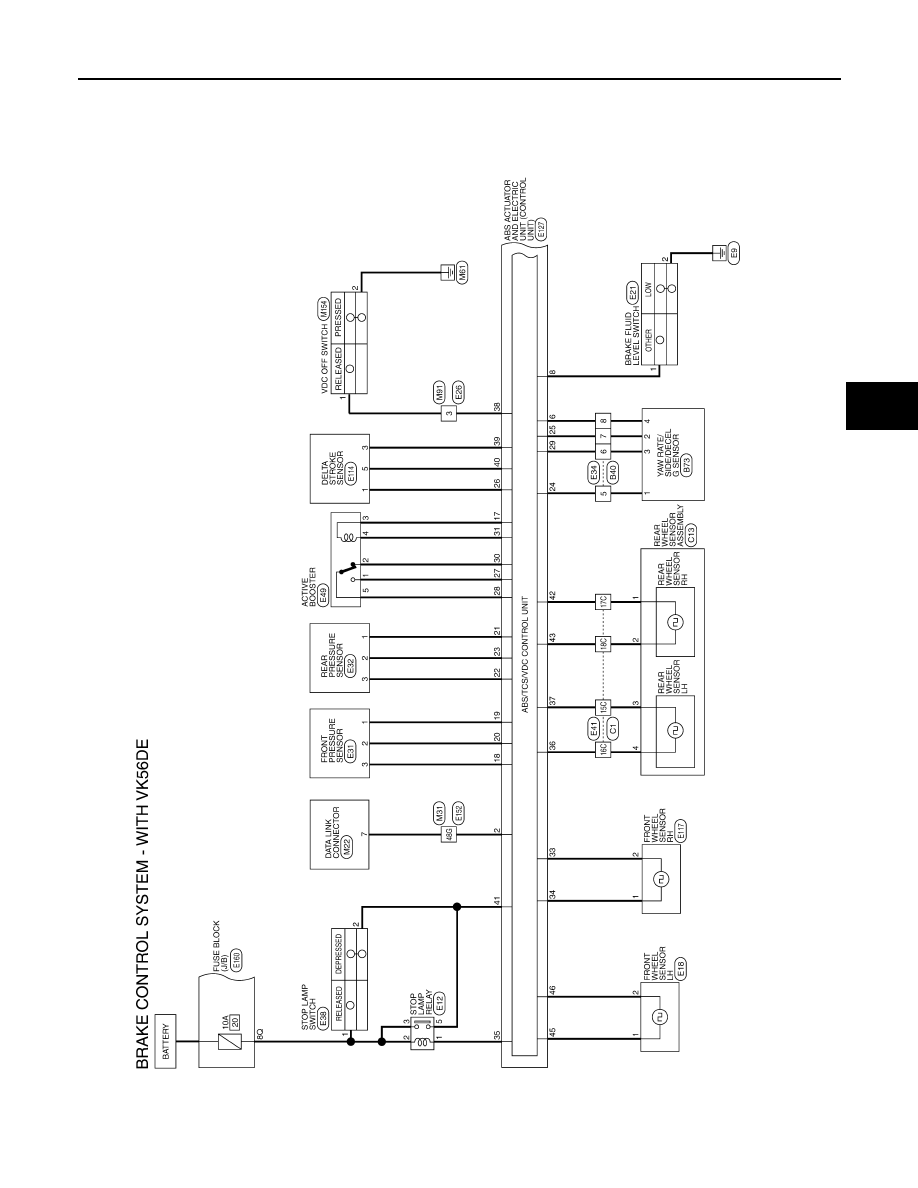

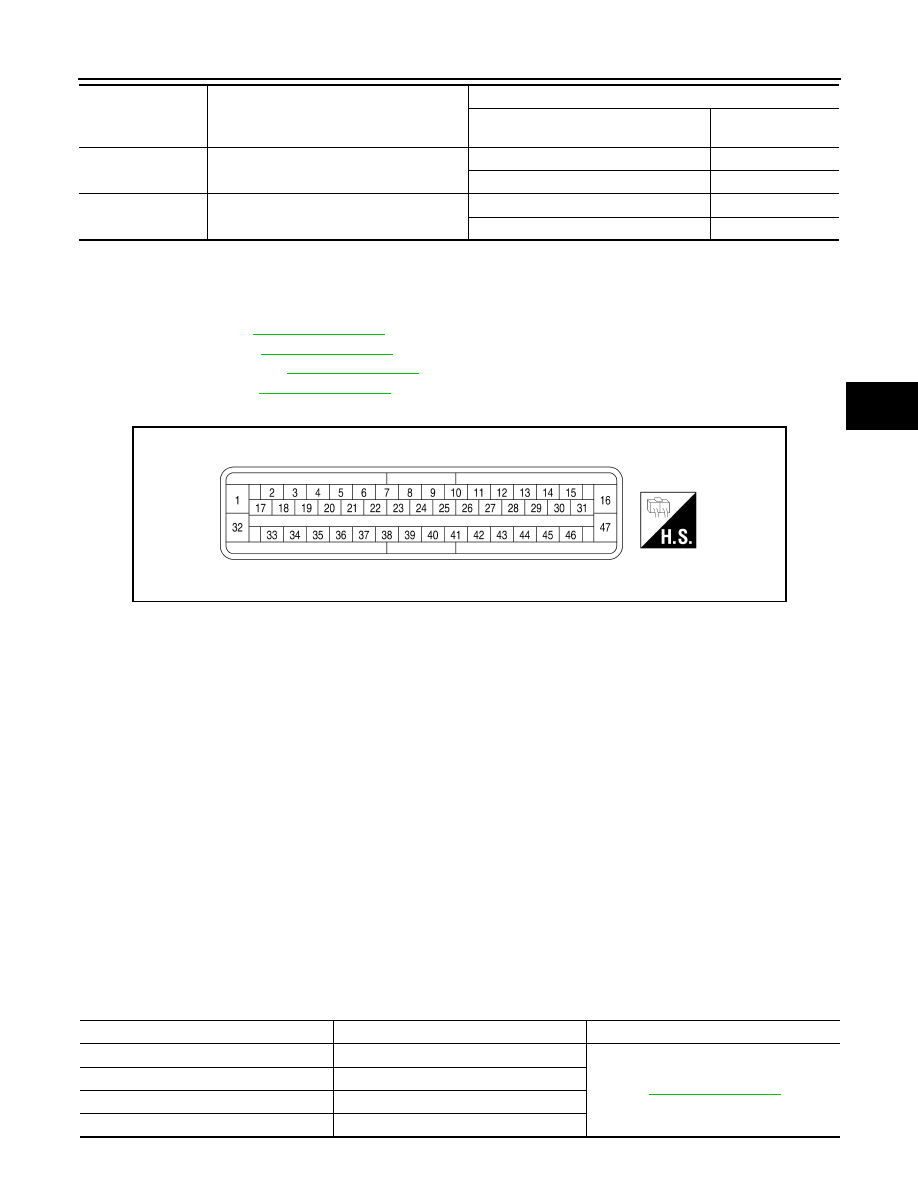

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) BRC-201 < ECU DIAGNOSIS INFORMATION > [TYPE 2] C D E G H I J K L M A B BRC N O P ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) Reference Value INFOID:0000000006246125 VALUES ON THE DIAGNOSIS TOOL CAUTION: The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short-circuited. CONSULT-III MONITOR ITEM Monitor item Display content Data monitor Condition Reference value in normal operation FR LH SENSOR Wheel speed 0 [km/h (MPH)] Vehicle stopped Nearly matches the speed meter display ± 10% or less) Vehicle running (Note 1) FR RH SENSOR Wheel speed 0 [km/h (MPH)] Vehicle stopped Nearly matches the speed meter display ± 10% or less) Vehicle running (Note 1) RR LH SENSOR Wheel speed 0 [km/h (MPH)] Vehicle stopped Nearly matches the speed meter display ± 10% or less) Vehicle running (Note 1) RR RH SENSOR Wheel speed 0 [km/h (MPH)] Vehicle stopped Nearly matches the speed meter display ± 10% or less) Vehicle running (Note 1) FR RH IN SOL Operation status of each solenoid valve Actuator (solenoid valve) is active (“AC- ON When the actuator (solenoid valve) is not OFF FR RH OUT SOL Operation status of each solenoid valve Actuator (solenoid valve) is active (“AC- ON When the actuator (solenoid valve) is not OFF FR LH IN SOL Operation status of each solenoid valve Actuator (solenoid valve) is active (“AC- ON When the actuator (solenoid valve) is not OFF FR LH OUT SOL Operation status of each solenoid valve Actuator (solenoid valve) is active (“AC- ON When the actuator (solenoid valve) is not OFF RR RH IN SOL Operation status of each solenoid valve Actuator (solenoid valve) is active (“AC- ON When the actuator (solenoid valve) is not OFF 2011 Pathfinder |
